WARRANTY CONDITIONS This product is guaranteed for a period of 2 years from the date of purchase* against any failure resulting from a manufacturing or material defect. This warranty does not cover defects or damage resulting from incorrect installation, improper use or abnormal wear of the product. *as shown on the sales receipt.

Table of contents Description of the appliance Thanks! Thank you for choosing this VALBERG product. Installation Chosen, tested and recommended by ELECTRO DEPOT, Qperation products from the VALBERG brand are easy to use, reliable and of an impe Thanks to thi use will bring Cleaning and Care Welcome to ELECTRO DEPOT. Trouble shooting Visit our website lectrodepot.fr C Customer services TRO DEPOT

A Preview of the appliance Description of the appliance Water supply hose Detergent dispenser Door Top cover Control panel Power supply cord Drum Service flap Drain hose 4 x Cover caps

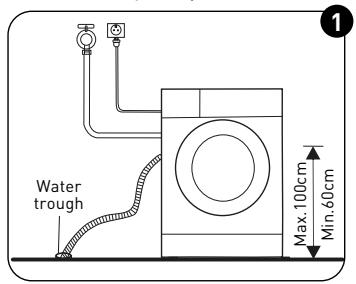

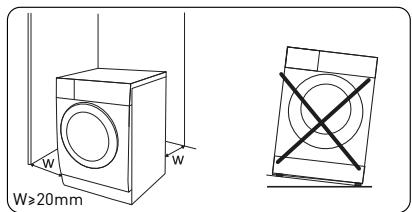

1 x Supply hosecold water NOTE The product picture is for illustration only; please refer to the real product as reference. Le. Using the appliance Installation Installation area WARNING! Stability is important to prevent the product from wandering! Make sure the machine is level and stable. Make sure that the product does not stand onto the powercord. Be sure to maintain the minimum distances from walls as shown in the picture Before installing the machine, the following type of location should be selected: Rigid, dry, and level surface Avoid direct sunlight Sufficient ventilation Room temperature is above 0°C © 6 © © © Keep far away from heat sources such as coal- or gas-burning appliances. Unpacking the washing machine WARNING! + Packaging material (e.g. Films, Styrofoam] can be dangerous for children. + Thereis a risk of suffocation! Keep all packaging well away from children.

Using the appliance Using the appliance © Remove the cardboard box and styrofoam packing. © Liftthe washing machine and remove the base packaging. Make sure the small foam triangle is removed together with the bottom packaging. If not, Lay the unit down onits side and remove it manually. © Remove the tape securing the power supply cord and drain hose. © Remove the inlet hose from the drum. Remove the transport bolts WARNING! You must remove the transport bolts from the back side before using the p oduct.

© Remove the bolts including the rubber parts and keep them for future use. © Loosen the 4 transport bolts with a spanner. © Close the holes using the cover caps. Levelling the washing machine WARNING! The Lock nuts on all four feet must be screwed tightly against the housing. © Loosen the lock nut. © Turn the foot until it reaches the floor. © Adjust the Legs and lock the nuts with a spanner. Make sure the machine is Level and steady. Connect the water supply hose WARNING! To prevent leakage or water damage, follow the instructions in this chapter + Do not kink, crush or modify the water inlet hose. Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated. NOTE onnect manually, do not use tools. Check ifthe connections are tight. Drain Hose WARNING! + Do not kink or stretch the drain hose. + _ Position the drain hose properly, otherwise damage might result or water leakage. There are two ways to place the end of the drain hose:

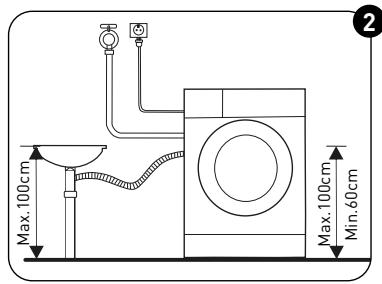

Max. 100cm Max. 100cm, © Putitinto the water trough. © Connectit to the branch drain pipe of the trough.

Using the appliance Operation Quick Start CAUTION! + _ Before washing, please make sure the washing machine is installed properly. + Your appliance was thoroughly checked before it Left the factory. To remove any residual water and neutralise potential odours, it's recommended that you clean your appliance before first use. For this reason, start the Cotton programme at 90°C without laundry or detergent. CALIBRATION It's recommended that you calibrate the washing machine to provide the best performance. The appliance can detect the amount of laundry loaded. This function optimises product performance by minimising energy and water consumption, Saving you money and time. For this reason, it's recommended that you calibrate the appliance for best use. © Remove all accessories from the drum and close the door; @ Insert the mains plug in the socket; © Switch on the washing machine and press “Delay” and “Temp.” simultaneously for 10 seconds until ‘t19” is displayed; © Press [eu ] to start the appliance and wait until **#*#" is displayed. Le. Using the appliance o Before Washing

Plugin Open tap Load Close door Add detergent NOTE Detergent needs to be added in compartment | if the pre- wash function is selected. @ \ashing (© 7) Power On Select programme Select function or retain default settings 6e © © © Press Start/Pause to start the programme

Using the appliance (31 After Washing Buzzer beep and “End” on display. Before Each Wash The ambient temperature of the washing machine should be 5-40°C. If used under O°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. Please check your laundry care labels and the detergent use instructions before washing. Use non-foaming or less-foaming detergent suitable for machine washing properly. WARNING! + Do not wash or dry articles that have been cleaned in, washeld in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, petrol, alcohol, kerosene, and other flammable materials. Washing single clothing items may create considerable eccentricity and cause the alarm to sound due to unbalance. Therefore, it is best to add one or two more laundry items to the wash so that the spin can be completed smoothly. Using the appliance Check the care Label Sort laundry according to colour and textile type Take all items out of pockets Tie together long textile strips and belts, close zips and buttons Put small items into a laundry bag 60000 / \ \

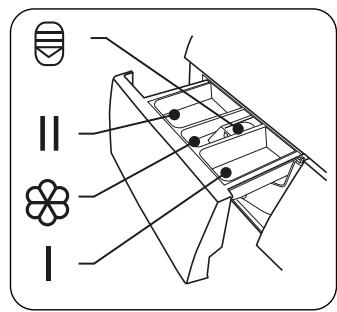

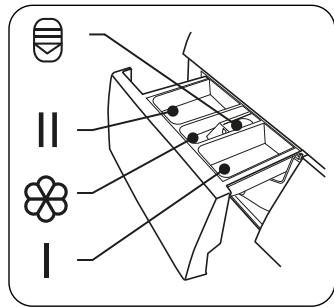

Turn easy-pilling and long-pile fabric inside out Detergent Dispenser 1 Pre-wash 11 Main wash & Softener 8 Release button to pull out the dispenser CAUTION! Detergent only needs to be added to “compar selecting the pre-wash function.

Using the appliance Using the appliance Detergent Recommendation Programme | [ I & Recommended washing Washing Type of laundry and Wash cycles a À Synthetic O e O detergent temp. textile Heavy-duty detergent Cotton, ECO 40- White laundry made Se Mix O e (e] with bleaching agents and 60, Mix, Jeans, 30/40 from boil-proof cotton optical brighteners Intensive or linen 5 dd 45: e «3 Rapid 45 O O Colour detergent without Cotton, ECO 40- Gorcunir/met 160 Quick 15° e O Gesg agent and optical 60, Dix Jeans, Cold/20/30/40 metnarlhen brighteners Intensive & Woo e O Colour or mil detergent Coloured laundry made o . O Without U ea ee ere Synthetic Cold/20/30/40 from easy care fibres or Do Allergy Care P s synthetic materials <> Steam Care O e O Mild washing detergent Synthetic 20 / 30 DEEE tetes, ele o viscose %© Ri & Spi LéeRRInse 8Spin Special wool detergent Wool 20 / 30 Wool © Spin Onty ut Sportswear O ° O SS 200 e O fl Jeans (e) e O Q Eslowc e O TT intensive e O [ee] Cotton O e O @hMeans must © Means optional

Le Using the appliance NOTE + Agglomerating or poor-quality detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet getting blocked and thus causing a water overflow. Please choose a suitable type of detergent to obtain maximum washing performance and minimum water and energy consumption + To achieve the best cleaning result, proper detergent dosing is important. + _ Use a reduced amount of detergent if the drum is not filled completely. + _ Always adjust the amount of detergent to suit the water hardness. If your tap water is soft, Use less detergent. + _ Dose according to how dirty your laundry is - Less dirty clothes require less detergent. + Highly concentrated (compact) detergent requires particularly accurate dosing. The following symptoms are a sign of detergent overdosing: - heavy foam formation - poor washing and rinsing results The following symptoms are a sign of detergent underdosing: - laundry turns grey - build-up of limescale deposits on the drum, the heating element and/or the laundry Le. Using the appliance Control Panel DOG D corn O6 8G «

gag CR , 40€ 1200 LE la mmmum M 4% SH e æ & v DTA =) Sean Ce DT ie à Sin l |

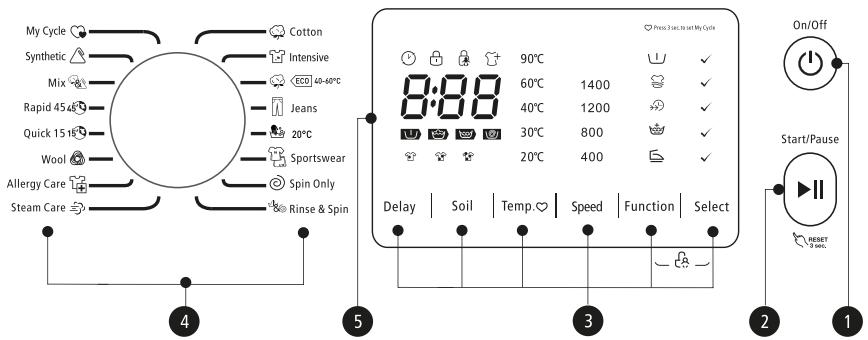

Delay | Soi [Tempo | set function | sect L & On/off Turn the appliance on and off. Start/Pause Start or pause your programme. Option This allows you to select additional functions and will Light up when selected. Programmes Available according to the laundry type.

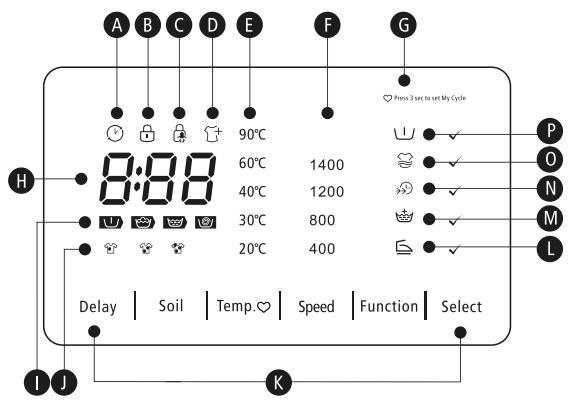

Display The display shows settings, estimated remaining time, options and status messages.

Using the appliance The above data is for reference only, and may change due to different actual use conditions. The values given for programmes other than the ECO 40-60 programme are indicative only. Concerning to Regulation(EU) No 1061/2010, The EU energy efficiency class is: Energy test programme: intensive 60/40°C; Speed: The highest speed; Other as the default. Half Load for 7.0/8.0/12.0Kg machine: 3.5/4.0/6.0Kg. Concerning to Regulation(EU) 2019/2023, The EU energy efficiency class is: Energy test programme: ECO 40-60. Other as the default. Half Load for 7.0/8.0/12.0Kg machine: 3.5/4.0/6.0Kg. Quarter Load for 7.0/8.0/12.0Kg machine: 2.0/2.0/3.0Kg. Using the appliance Programmes 2 £ E £$ 8? Cycle = SE £ 5 5 5 € a £ 7kg à :i g + SE EQ Ë 35 > RIT s< £a ES Z £ 82 Ed S5 20 35 1:01 0.100 G Cotton(é0°c) 7.0 3:44 1.392 T7 Intensive 7.0 3:48 1.000 A Mix 7.0 1:20 0.710 1€9 Quick 15° 2.0 0:15 0.030

(2) <Eco] 40-00 35 - 0.47

Water consumption in Litre/operating cycle BR & æ n Highest NN temperature °C Cold

Residual moisture in % / spin speed 65% / 1000 53% / 1400 70% / 800 70% / 800 75% / 800 53% / 1400 53% / 1400 53% / 1400 + __ The above data is for reference only, and may change due to different actual use conditions. + The values given for programmes other than the ECO 40-60 programme are indicative only. + Concerning to Regulation(EU] No 1061/2010, The EU energy efficiency class is: Energy test programme: intensive 60/40°C; Speed: The highest speed; Other as the default. Half Load for 7.0Kg machine: 3.5Kg. + Concerning to Regulation(EU] 2019/2023, The EU energy efficiency class is: Energy test programme: ECO 40-60. Other as the default. Half Load for 7.0Kg machine: 3.5Kg. Quarter load for 7.0Kg machine: 2.0Kg.

+ The above data is for reference only, and may change due to different actual use + The above data is for reference only, and may change due to different actual use conditions. conditions. + The values given for programmes other than the ECO 40-60 programme are indicative + The values given for programmes other than the ECO 40-60 programme are indicative only. only. + Concerning to Regulation(EU) No 1061/2010, + Concerning to Regulation(EU) 2019/2023, The EU energy efficiency class is: Energy test programme: Intensive 60/40°C; Speed: The EU energy efficiency class is: Energy test programme: ECO 40-60. Other as the The highest speed; default. Other as the default. Half Load for 12.0Kg machine: 6.0Kg. Half Load for 8.0Kg machine: 4.0Kg. Quarter load for 12.0Kg machine: 3.0Kg. + Concerning to Regulation(EU) 2019/2023, The EU energy efficiency class is: Energy test programme: ECO 40-60. Other as the default. Half Load for 8.0Kg machine: 4.0Kg. Quarter Load for 8.0Kg machine: 2.0Kg.

Using the appliance © The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. © Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. © The ECO 40-60 programme can clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess compliance with regulation (EU) 2019/2023. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings. Noise and remaining moisture content are influenced by the spin speed: the higher the spin speed in the spinning phase, the higher the noise and the lower the remaining moisture content. CAUTION! Ifthere is a break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established. Using the appliance Programmes Programmes are available according to the laundry type. Programmes À Synthetic SR Mix 49 Rapid 45 1€D Quick 15° & wWoot Allergy Care Æ> Steam Care “%© Rinse & Spin © spin Onty Tà Sportswear

fl Jeans GR Esinse TF intensive € Cotton Wash synthetic items, for example: shirts, coats, bedding. While washing knitted textiles, detergent quantity should be reduced due to its loose string construction and easily forming bubbles. Hard-wearing textiles, heat-resistant textiles made of cotton or linen. Mixed load consisting of textiles made of cotton and synthetics. This programme is suitable for washing not very dirty clothes, saving energy and washing time Extra-short programme approx, suitable for lightly soiled washing as well as small amounts of laundry. Hand- or machine-washable wool or richwool textiles. Especially gentle wash programme to prevent shrinkage, longer programme pauses {textiles rest in wash liquor]. Washing machine can effectively kill some allergens and achieve anti-allergic effect by adapting 60°C high temperature for sterilisation. Steam Care is applicable for daily laundries like cotton and synthetics. The steam can deeply penetrate the fibre, which effectively eliminates bacteria and germs, preventing odours and protecting your health. Extra rinse with spin. Extra spin with selectable spin speed. Washing activewear. 20°C default, can choose cold water. Specially for jeans. Default 40°C, not selectable, suitable for laundry washing at about 40-60°C. To increase the washing effects, washing time is increased. Hard-wearing textiles, heat-resistant textiles made of cotton or linen.

Using the appliance Using the appliance Option - NOTE Cycle re en Additional functions + Forthe maximum spin speed, programme time, and other : details of the ECO 40-60 programme, please refer to the Wash cycles 1400 content on the Product Sheet page. À Synthetie 0 1200 Eu, 8, 9.%,8 + The table shows which cycle offers which options for adjustment. % Mix 40 800 G,wu, 2,9 ,%#,6 49 Rapid 45° 40 800 CU, 5, ES 1€5 Quick 15° Cold 800 (C & Woot 40 800 CG, &,6 ne Allergy Care 60 800 G.u,8,#,6 <> Steam Care 40 800 G,wu,8,9,%,6 “ko Rinse & Spin - 800 (CARS © spin Onty : 800 ce a Sportswear 20 800 G, WU, w,s LES 20 800 G, &,8 fl Jeans 30 800 G, WU, 9, & Eu = 1400 & TT intensive 40 800 (C @ Cotton 40 0 &,W,2, 9,5,

Using the appliance Temp. When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C. Delay Set the Delay function: © Select a programme; @ Press the Delay button to choose the time [the delaying time is 0-24 hr.); © Press [Start/Pause] to commence the delay operation Choose the Programme Setting time Start Cancel the Delay function: Press the [Delay] button until the display be OH.It should be pressed before starting the programme. If the programme has already started, you should switch off the programme to reset a new one. Soil The washing time will increase or decrease after you select it. Pre Wash The Prewash function can get an extra wash before main washiit is suitable for washing the dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it. Extra Wash Use for very dirty clothes. Select it to increase the washing time and intensity for increased washing effect. Speed Wash This function can reduce the washing time. Using the appliance Extra Rinse The laundry will undergo an extra rinse when you select it. Ce) My Cycle To memorise the most frequently used programme. After choosing the programme and setting the options, press [Temp.] 3 sec. before start to wash.The default setting course is Cotton. Anti-Crease Anti-Crease function can be used to reduce wrinkles in clothes. Reload This operation can be executed during the washing process. When the drum is still rolling and there is a large amount of water at high temperature in the drum. The status is unsafe and the door cannot be opened forcefully. Press [Start/Pause] for 3 sec. to reload, and add clothes at the midway point. Please follow the steps below: © Wait until the drum stops rotating. © The door is unlocked. © Close the door when the clothes are reloaded and press the [Start/Pause] button. C1) > € » (1 Press [Start/Pause] 3 sec. Reload the clothes Start Child Lock To avoid mis-operation by children. Press [Function] and [Select] 3 sec. until the buzzer is heard.

Using the appliance CAUTION! When the child lock is activated and the programme starts, the child lock indicator will switch on, and the CL and remaining time on the display are alternately displayed every 0.5s. Pressing the other buttons will make the child Lock indicator flash for 3s. when the programme finishes, CL and END DU for 10s every 0.5s, then the child Lock lights flash or 35. + Only press and hold the two button can release child lock, even power off, switch off and program end ° The ‘Child Lock” will lock all buttons except the Power button and Child Lock button + Release the child lock before selecting your programme and starting washing Temp. Press the button to regulate the temperature (Cold, 20°C, 30°C, 40°C, 60°C, 90°C) Option select Select the Pre-Wash, Extra Rinse, Extra Wash, Night Wash or Anti-crease function. Option Confirm Confirm selection of the Pre-Wash, Extra Rinse, Speed Wash, Extra Rinse or Anti- crease function. Speed Press the button to change the speed. 1400: 0-400-800-1200-1400 Useful information Cleaning and Care WARNING! Always unplug the appliance and close the water tap before cleaning and maintenance. Cleaning the Cabinet Proper maintenance of the washing machine can extend its working life. ST The surface can be cleaned with diluted, non-abrasive neutral detergents | © when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance. 5 CAUTION! Never use abrasive or caustic agents, formic acids or its diluted solvents or similar substances, like alcohol or chemical products. Cleaning the Drum Any rust stains Left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum! NOTE Keep any laundry away from the machine while cleaning the drum. Cleaning the Door Seal and Glass Wipe the glass and seal after each wash to remove lint and stains. If lint builds up, it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash. Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

C | Useful information Cleaning the Inlet Filter NOTE Diminishing water flow is a sign that the filter needs to be cleaned. Close the tap and remove the water supply hose fromit. Clean the filter with a brush.

Unscrew the water supply hose from the back of the machine. Pull out the filter using long-nose pliers. Use a brush to clean the filter. Reinstall the filter to the water inlet and reconnect the water supply hose. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance. Clean the Detergent Dispenser Press the release and remove the dispenser drawer. Clean the dispenser drawer and softener cover under water. Clean the recess with a soft brush. Insert the dispenser drawer. Useful information NOTE Do not use abrasive or caustic agents to clean plastic parts. Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance. Cleaning the Drain Pump Filter WARNING! Be careful with hot water! Allow the detergent solution to cool down. Unplug the machine to avoid electric shock before washing. The dräin pump filter can filter yarn and small foreign matter from the MERUNEE . Clean the filter periodically to ensure the normal operation of the washing machine. CCR] Open the lower cover cap Open the filter by turning it anti-clockwise Remove any extraneous matter Close the lower cover cap

Useful information CAUTION! + Make sure the valve cap and emergency drain hose are reinstalled properly, with the cap plates inserted to align With the hole plates, otherwise water may Leak o Some machines don't have an GUERRE LL hose, so steps 2 and 3 can be skipped. Rotate the lower cover cap directly to make water run into the basin. When the appliance is in use and depending on the programme Selected, there may be hot water in the pump. Never remove the pump cover during a wash cycle: always wait until the appliance has finished the cycle an is empty. When replacing the cover, ensure it is Securely re-tightened. Useful information Trouble Shooting If there is a problem with the appliance, check if you can resolve it using the tables below. Ifthe problem persists, please contact customer services. Description Appliance does not start Door can't be opened Water leakage Detergent residues in Possible cause Door is not closed property. Clothes are stuck. Safety protection is activated. Connections are not tight enough. Detergent is damp and/or the detergent dispenser clotted. Indicator or display does PC board or harness have not work Abnormal noise Error Codes Description E35 Eit Eci Eig EXX connection problems. Fixing bolts stilL in place. Floor is not solid or level. Possible cause Door is not closed property Water injecting problem during wash cycle. Overtime water draining Water overflow Others Solution Close the door property and restart. Check the laundry. Disconnect the power and restart. Check and fasten the water inlet pipe. Check and clean the outlet hose. Clean and wipe the detergent dispenser dry. Switch off the power and check if the mains plug is connected properly. Check if the fixing bolts have been removed Make sure the appliance is installed on a solid and Level floor. Solution Close the door property and restart. Check if the water pressure is high enough. Straighten the water pipe. Clean the inlet valve filter. Check the drain hose for blockages. Restart the appliance. Restart the appliance. If the problem persists, please contact customer services.

Useful information Customer services Spare parts for your appliance are available for a minimum of 10 years. In case of questions, please contact our customer services at: WARNING! Risk of electric shock + Never try to repair an appliance which is defective or presumed to be defective. You may put your own and future users lives in danger. Only authorised specialists are allowed to carry out this repair work. + _Improper repair will void the warranty and subsequent damage will not be recognised! Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

Unplug the appliance and close the water inlet tap. Check if the door and detergent dispenser are closed properly. Remove the water inlet pipe and outlet hose from the house installations. Let the water drain completely from the appliance (see “Maintenance Cleaning the drain pump filter”) Important: Re-install the 4 transport bolts in the back of the appliance. This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Note

Carico (kg) 8,0 8,0 8,0 8,0 8,0 4,0 4,0 8,0 8,0 8,0 4,0 2,0 2,0 2,0 8,0 4,0 Durata indicata 7,0/8,0/12,0 03:39 03:48 3:13/3:32/3:56 01:35 01:01 00:45 00:12 00:20 01:47 02:09 01:07 00:15 00:45 01:20 03:17
