USER MANUAL CL-KM1350BMGP COSYLIFE

CONDITION DE GARANTIE

EN This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required

GARANTIEVOORWAARDEN

Multifunctional Food Processor

Keukenmachine

Robot multifunción

Robot multifunzione

971672 - CL-KM1350BMG

CONSIGNES D'UTILISATION 02

INSTRUCTIONS FOR USE 18

Thank you for choosing this COSYLIFE product. COSYLIFE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

A	Product overview	Parts Product overview Intended use Specifications
B	Product usage	Before first use Using the mixer function Using the blender Using the mincer Using the kibbeh making kit Using the sausage making kit Using the pasta machine Installing the mincer, kibbeh making set, sausage making set and pasta making set on the unit
C	Cleaning and maintenance	Cleaning and maintenance Storage

A Product overview

Before using the unit, carefully read both the Manual and RegulatoryWarnings booklet. Keep these instructions for future reference and pass them onto any new owners of the unit.

Parts

Pusher with lid
B Feed hopper
C Mincer tube
D Aluminium mincer
E Accessory-connecting head
F Splash guard with filler opening
6 Mixing bowl
H Base
Suction feet
J Adjustable arm
KFiller cap
Lid
M Blender jug
N Blender jug base
0 Blender jug connector cap

P Arm-locking button
Speed control knob (P, 0, 1, 2, 3, 4, 5, 6)
R Power cable with plug
Mincer connector cap
Whisk
U Flat metal beater
V Flex-edge flat beater
W Dough hook
X Nut
Kibbeh accessories a. Kibbeh-preparing nozzle b. Ring
Z Separator
Mincer plates a. Finely-mincing plate b. Medium-mincing plate c. Coarsely-mincing plate
BB 2 pasta discs
CC Blade
DD Worm screw
EE Sausage filling tube

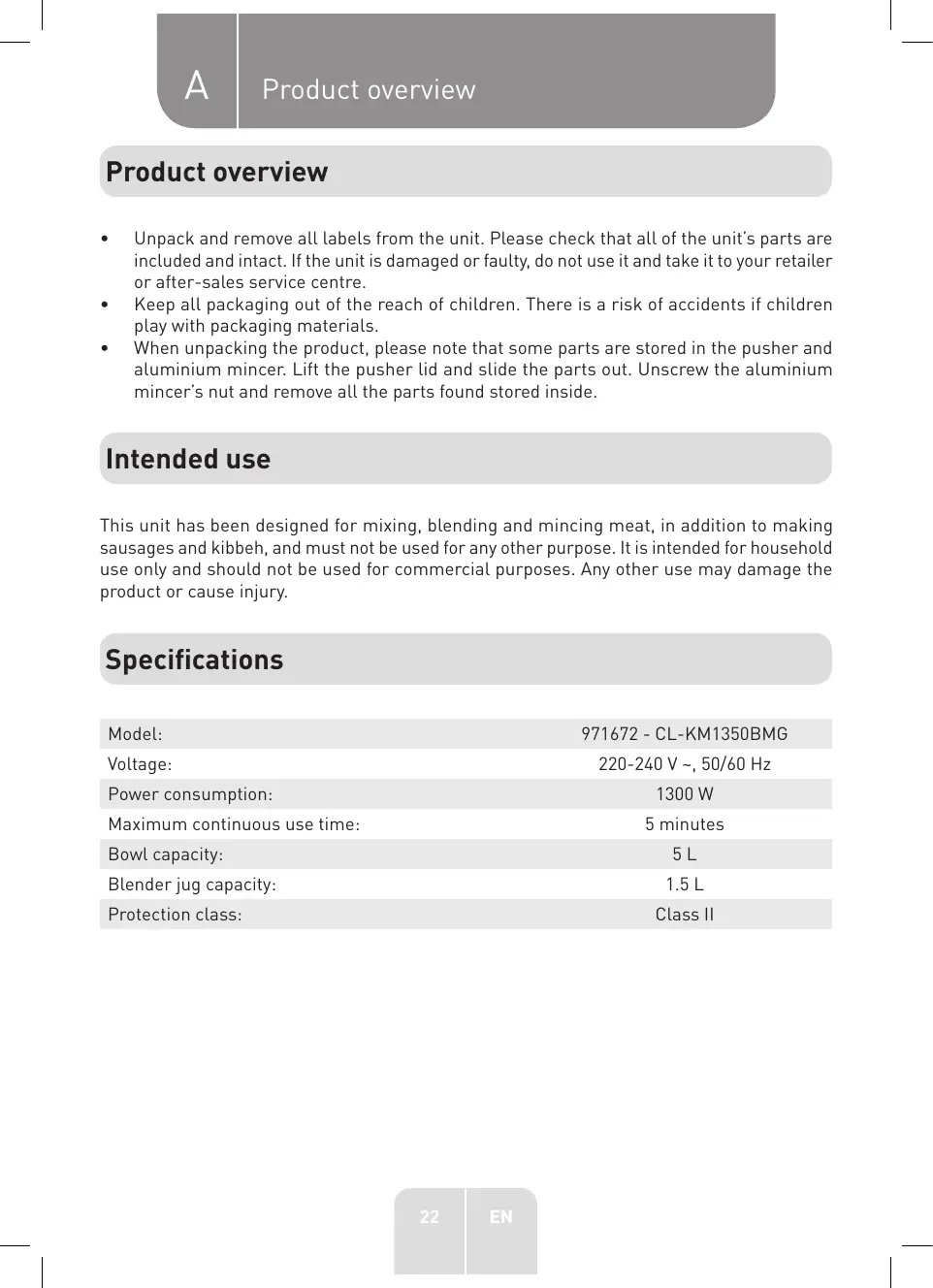

Product overview

• Unpack and remove all labels from the unit. Please check that all of the unit's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
• When unpacking the product, please note that some parts are stored in the pusher and aluminium mincer. Lift the pusher lid and slide the parts out. Unscrew the aluminium mincer's nut and remove all the parts found stored inside.

Intended use

This unit has been designed for mixing, blending and mincing meat, in addition to making sausages and kibbeh, and must not be used for any other purpose. It is intended for household use only and should not be used for commercial purposes. Any other use may damage the product or cause injury.

Specifications

Model:	971672 - CL-KM1350BMG
Voltage:	220-240 V ~, 50/60 Hz
Power consumption:	1300 W
Maximum continuous use time:	5 minutes
Bowl capacity:	5 L
Blender jug capacity:	1.5 L
Protection class:	Class II

Before first use

• Clean the unit before first use ( CLEANING AND MAINTENANCE).
• Place the unit on a stable, flat and non-slip surface.
• The unit may vibrate and move slightly across the worktop during use. Do not place the unit near the edge of a worktop as it could accidentally fall.
• Do not place the unit on a hot surface such as a stove.
  Fully unwind the power cable before use.

WARNING!

• Before assembling the unit, changing the accessories or removing the mixing bowl/blender jug, always set the speed control knob to 0 (Off) and unplug the power cable from the wall socket. Failure to do so could result in serious injury.
• Do not touch moving parts when the unit is in use. There is a risk of injury.
• Only use one function at a time. Should more than one function be enabled at the same time, the motor may overheat.
• Only ever use the unit continuously for a maximum of 5 minutes. If you would like to use the unit for a longer period of time, let the unit cool down for 10 minutes between the two cycles. This operation can be repeated for a maximum of 20 cycles.

Using the mixer function

NOTE: Never operate the food processor while it is empty, in order to avoid overheating the motor.

To adjust the position of the arm, push in the arm-locking button and tilt the adjustable arm back as far as it will go. When in position, release the arm-locking button.
Place the bowl on the base. Turn the bowl clockwise towards the "lock" symbol, until it clicks into place. Place the ingredients in the bowl. (To remove the bowl at any time, turn it anticlockwise towards the "unlock symbol" and lift it up.)

NOTE: Do not overfill the bowl.

B Product usage

3 Attach one of the four supplied accessories (2 x flat beaters, whisk or dough hook) to the accessory-connecting head. Push upwards to insert the accessory as far as it will go. Then, turn the accessory anticlockwise until it clicks into place. (To remove the accessory, push it up and turn it clockwise until it comes off).
Push in the arm-locking button and tilt the adjustable arm downwards until it clicks into place.
Slide the splash guard over the bowl. Press the splash guard down to secure it onto the bowl. The filler opening should now be facing the speed control knob. (To remove the splash guard, extract it from the bowl by sliding it outwards).

NOTE: Always use the splash guard with the bowl to prevent food from splashing out of the bowl.

Set the speed control knob to 0. Plug the unit into a mains socket.

NOTE: Plug the power plug into the mains socket, then use the pulse function first (by setting the speed control knob to P) to check whether or not the bowl has been correctly installed.

To start mixing, turn the speed control knob to the desired position (either P for pulse or 1-6 for the desired speed).

• To switch off the unit, turn the speed control knob to 0. Always unplug the unit from the mains socket whenever you have finished using it.

Accessories	Functions	Recommended settings
Whisk	Used to incorporate air into moist preparations, such as egg whites, whipped cream and mayonnaise.	Start by mixing at a low speed, then gradually increase the speed to reduce the risk of food splattering out of the bowl. To whip 16 egg whites into stiff peaks, use the unit at speed 4, then increase it to speed 6 for 4 minutes. To whip 250 ml of cream, use speed 4 for 4 minutes.
2 x flat beaters	For normal to heavy mixtures Use this accessory to prepare cakes, biscuits, pasta, pastries, meatloaf and purées. The flex-edge flat beater has been designed to beat butter and chocolate.	Use the unit on a low speed to mix the ingredients. Gradually increase the speed to 6 until the desired result is obtained.
Dough hook	Ideal for mixing and kneading bread, Swiss roll, pizza and brioche doughs. NOTE: Never use more than 600 g of flour. We recommend a flour to water ratio of approx. 5:3.	To mix and knead dough: 1. Level 1 – 30 seconds. 2. Level 2 – 30 seconds. 3. Level 3 – 3 minutes. NOTE: When mixing the dough, do not exceed level 3 as this could damage the unit.

NOTE:

• Turn the speed control knob to position 1-3 when adding ingredients. Pour any additional ingredients into the bowl via the filler opening.
  Use the pulse function (P) for an easy-to-control power boost. Do not use this function for more than 1 minute to prevent the motor from overheating.
• Never put your hand or fingers into the bowl whilst the unit is in use.
• Do not use the mixer function to crush ice or prepare hot liquids.
• Do not move the food processor if there are still ingredients in the bowl.

Using the blender

WARNING!

Always ensure the lid is correctly installed when using the blender.
Only remove the lid once the blades have come to a complete stop.
We recommend waiting for the ingredients to cool before blending them. If you do decide to mix hot liquids, be careful when removing the lid or blender jug as the steam may burn you.

8 Remove the blender jug connector cap by turning it to the UNLOCK position, then lifting it up.
9 1 Place the blender jug on the corresponding connector, whilst making sure to align the arrow on the base of the jug with the unlock symbol.
② Next, turn it towards the "lock" symbol, until it clicks into place.

• Place the ingredients in the blender.

NOTE: Do not fill the jug above the maximum 1.5 L mark.

10 1 Reposition the filler cap on the lid of the blender jug. Make sure that the notches on both the filler cap and lid are aligned.
Firmly push the filler cap onto the lid and turn it clockwise until it clicks into place. (To remove the filler cap, unscrew it by turning it anticlockwise until the notches are aligned; then lift up the filler cap.)
- Place the lid on the blender jug and press firmly so that the blender jug is firmly closed.
- Set the speed control knob to 0. Plug the unit into a mains socket.

NOTE: Plug the power plug into the mains socket, then use the pulse function first (by setting the speed control knob to P) to check whether or not the bowl has been correctly installed.

• To start blending, turn the speed control knob to the desired position (either P for pulse or 1-6 for the desired speed).
  To switch off the unit, turn the speed control knob to 0.

• To remove the blender jug, turn it anticlockwise towards the "unlock" symbol and lift it up.
  Always unplug the unit from the mains socket whenever you have finished using it.

Functions	Recommended settings
To gently blend liquids.	3 to 4
For a thicker consistency (blending liquid and solid food).	5 to 6
For crushing ice and coarsely chopping.	P NOTE: Do not use the pulse function continuously for more than 1 minute. This function should not be used for chopping hard ingredients - such as coffee beans - as this could damage the blades.

NOTE:

If you would like to add ingredients whilst the unit is in use, e.g. oil when making mayonnaise, remove the filler lid and pour the ingredients through the opening.
- Never put your hand or fingers into the blender jug whilst the unit is in use.
- Use the pulse function (P) for an easy-to-control power boost. Do not use this function for more than 1 minute to prevent the motor from overheating. Use the pulse function to crush ice in the blender.
We recommend waiting for liquids to cool before blending them.
- When blending thicker mixtures, you may need to scrape the mixture off the side of the blender or add more liquid to obtain the desired result.

WARNING!

The blade is very sharp. Handle it with extreme care.

Using the mincer

11 Assembling the mincer to mince meat:

1. Insert the worm screw.
2. Carefully position the blade on top of the worm screw axis and turn the blade clockwise until it clicks into place.
3. Select one of the mincer plates (fine, medium or coarse). Align the two notches on the plate with the holes on the edge of the aluminium mincer's housing.
4. Screw the nut clockwise until it is firmly tightened.

B Product usage

Preparing minced meat

• Chop the meat into 2 cm cubes. Remove any bones or tendons.
• Place an empty bowl underneath the mincer to collect the minced meat.
  Plug in the unit and turn the speed control knob to 4-6.
• Feed the meat through the feed hopper and use the pusher to push the meat through the mincer.
  To switch off the unit, turn the speed control knob to 0.
  Always unplug the unit from the mains socket whenever you have finished using it.

Using the kibbeh making kit

Use finely minced meat - seasoned to taste - to make kibbeh.

12 Assembling the kibbeh making kit:

1. Insert the worm screw.
2. Align the two notches on the kibbeh making tip with the holes on the edge of the aluminium mincer's housing.
3. Place the plastic ring on the kibbeh making tip.
4. Screw the nut clockwise until it is firmly tightened.

Making kibbeh

• Fill the feed hopper with the kibbeh mixture.
  Plug in the unit and turn the speed control knob to 4-6.
• Ensure the kibbeh mixture comes out in a slow and even manner. Use the pusher to push the kibbeh mixture into the mincer tube.
• Cut the roll to the desired length, then garnish the individual pieces. Tightly seal each end of the kibbeh to prevent the filling from leaking during the cooking process.
  To switch off the unit, turn the speed control knob to 0.
  Always unplug the unit from the mains socket whenever you have finished using it.

Using the sausage making kit

Use finely minced meat - seasoned to taste - to make sausages.

To assemble the sausage making kit:

1. Insert the worm screw.
2. Insert the separator, making sure to align the two notches on the separator with the holes on the edge of the aluminium mincer's housing.
3. Attach the sausage filling tube to the separator; again making sure to align the two notches with the unit's holes and snap it in place.
4. Screw the nut clockwise until it is firmly tightened.

B Product usage

Making sausages

• Soak the sausage casing in lukewarm water for 10-20 minutes. The water makes it easier to fill.
• Tie a knot at one end of the sausage casing.
• Slide the open end of the sausage casing over the filling tube, up to the knot.
• Fill the feed hopper with the sausage mixture.
• Plug in the unit and turn the speed control knob to 4-6.
• Ensure the sausage mixture comes out in a slow and even manner. Use the pusher to push the sausage mixture into the mincer tube.
• Should the sausage casing stick to the filling tube, dampen it with water.
  Once the sausage casing has been filled, pull out approx. 20cm of unfilled casing, then cut it.
• Compress the sausage meat to achieve the desired sausage size and then twist the end twice to tightly seal the end of the sausage. Repeat this process until all the sausages have been made; then tie a knot at the end of the last sausage.

NOTE: Before cooking, pierce the sausages with a sharp knife or skewer to prevent them from exploding during the cooking process.

To switch off the unit, turn the speed control knob to 0.
Always unplug the unit from the mains socket whenever you have finished using it.

Using the pasta machine

14 Assembling the pasta machine:

1. Insert the worm screw.
2. Choose either the ribbon or leaf-shaped pasta disc and position it on the worm screw. Make sure to align the two notches on the disc with the holes on the edge of the aluminium mincer's housing.
3. Screw the nut clockwise until it is firmly tightened.
4. Insert the feed hopper into the top of the mincer tube.

Preparing pasta

Prepare the dough as described in the Using the food processor section.
- Fill the feed hopper with the pasta dough.
Plug in the unit and turn the speed control knob to 4-6.
- Ensure the pasta mixture comes out in a slow and even manner. Lightly dust the pasta pieces with flour to prevent them from sticking.
- Spread out the pasta on a pre-floured baking tray or hang it on a pasta drying rack, and let it dry out before cooking.
- To switch off the unit, turn the speed control knob to 0.
Always unplug the unit from the mains socket whenever you have finished using it.

Installing the vincer, kibbeh making set, sausage making set and pasta making set on the unit

15 Remove the mincer connector cap from the unit by turning it to the UNLOCK position.
② Turn the assembled aluminium mincer 45 degrees and insert the rod into the unit's appropriate slot.
Once in place, turn the aluminium mincer's housing anticlockwise until it clicks into place.
④ Insert the feed hopper into the top of the aluminium mincer's housing.

Cleaning and maintenance

WARNING!

• To prevent the risk of electrocution, turn off and unplug the unit from the mains socket before cleaning.
• Allow the unit to cool completely before cleaning it.
  Take care when cleaning sharp blades/knives.
• Under no circumstances should you immerse the unit, its power cable or plug in water or any other liquid, as they contain electrical components. Do not rinse them under the tap.
• Never use solvents, chemical or abrasive cleaning products, wire brushes, sharp objects or scouring pads to clean the unit.

Disassemble the food processor and clean it as follows:

Parts	Cleaning method
Arm	Clean with a soft, slightly damp cloth and a small amount of washing-up liquid. Make sure that no liquid enters the unit.
Base
Blender jug connector cap	Dry it thoroughly.
Mincer connector cap
Splash guard with filler opening	Soak in soapy water (washing-up liquid) to soften any food residue.
Mixing bowl	Wash thoroughly.
Whisk	Rinse off with clean water.
2 x flat beaters	Once clean, dry all parts well.
Dough hook
Blender jug	Please note:
Meat mincing set	• Wash the bowl and whisk in the dishwasher.
Kibbeh-preparing set	• All other parts should be hand-washed and are not dishwasher-safe.
Sausage-preparing set	• If the blender jug blade is difficult to clean, pour hot soapy water into the blender jug. Secure the lid and turn on the unit at speed setting 1 for a few seconds.
Pasta-preparing set
Meat mincer blade	• Once clean, lightly coat them with vegetable oil in order to protect them.
Meat mincer plates x 3

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
