USER MANUAL U-GO-Fresh VALBERG

CONDITION DE GARANTIE

EN This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*proof of purchase required

GARANTIEVOORWAARDEN

Contact details for obtaining more information

ELECTRO DEPOT, 1 route de Vendeville 59155 FACHES THUMESNIL - France

Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

Parts

Product overview

Intended use

Specifications

Before first use

Assembly

Use

Cleaning and maintenance

Storage

PLEASE TAKE TIME TO CAREFULLY READ THIS USER MANUAL AND THE SEPARATE REGULATORY BOOKLET BEFORE USING THE UNIT. KEEP BOTH BOOKLETS FOR FUTURE REFERENCE.

Parts

A Base with non-slip feet
B First tube
C Second tube
D Display
E Power cable
F Motor unit
Control panel
① Speed button (1-8) / Timer button (auto-on/off)
2 Oscillation button (left-right)
3 Power button (ON/STANDBY)
H Motor shaft
Rear grill
Rear grill nut
K Propeller
L Propeller cap
M Front grill

Remote control

Power button [ON/STANDBY]

Speed - / + button [1-8]

Timer button (auto-on/auto-off)

Oscillation button (left-right)

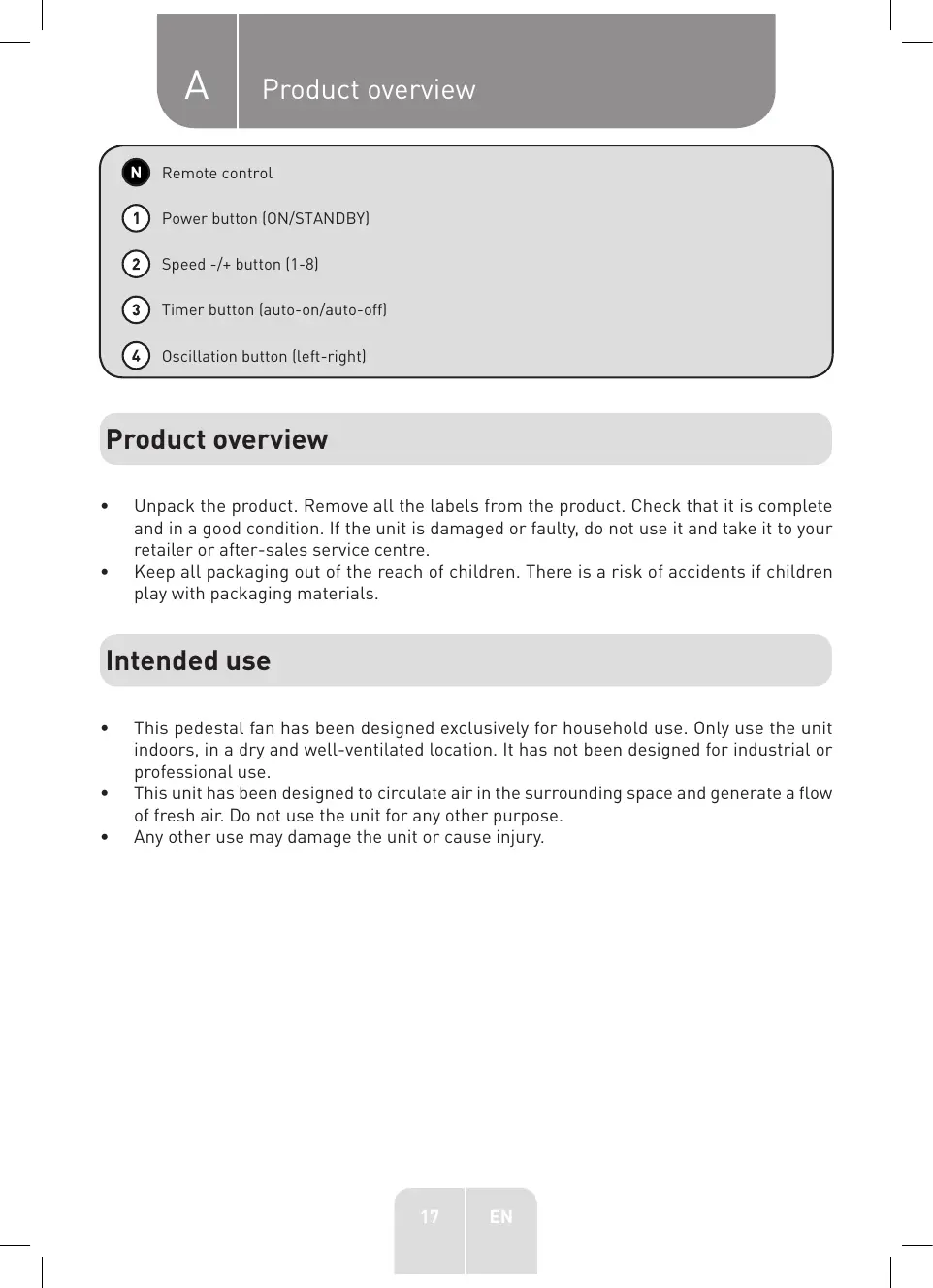

Product overview

• Unpack the product. Remove all the labels from the product. Check that it is complete and in a good condition. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

• This pedestal fan has been designed exclusively for household use. Only use the unit indoors, in a dry and well-ventilated location. It has not been designed for industrial or professional use.
  This unit has been designed to circulate air in the surrounding space and generate a flow of fresh air. Do not use the unit for any other purpose.
  Any other use may damage the unit or cause injury.

Specifications

Model:	968179
Fan
Operating voltage:	220-240 V ~, 50 Hz
Power:	45 W
Protection class:	II
Timer (auto-on/auto-off):	1-8 hours (1-hour intervals)
Remote control
Batteries required:	2 x 1.5V AAA (LR03) batteries, non-rechargeable manganese or alkaline batteries (included)
Operating range:	Up to 5 metres

Description	Symbol	Value	Unit
Maximum fan air flow:	F	41.3	m³/min
Fan power input:	P	40.3	W
Service value:	Sv	1.0	(m³/min)/W
Power consumption in standby mode:	PSB	0.2	W
Seasonal power consumption:	Q-{PNominal*320+PSB*1120}/1000, (PNominal=45 W)	14.6	kWh/year
Sound power level:	LWA	58	dB(A)
Maximum air speed:	C	4.1	metre(s)
Service value measurement standard	IEC 60879:1986+(coor. 1992)

Contact details for obtaining more information

ELECTRO DEPOT, 1 route de Vendeville 59155 FACHES THUMESNIL - France

B Product usage

WARNING!

Always unplug the unit from the mains socket before:

• Assembling or disassembling ANY part.
  Adjusting the vertical tilt.
• Moving the unit.

• Cleaning or storing the unit.

• Do not touch any of the moving parts. Never insert fingers or any object into the unit's propeller or air vents to prevent the risk of an electric shock, fire or injury.

Before first use

Before first use, wipe the unit with a dry soft cloth to remove any dust.
- Insert the new batteries (2 x AAA/LR03 batteries - supplied) into the remote control, according to the indicated polarities (+/-) .

NOTE:

Do not use rechargeable batteries in the remote control.

Assembly

Assembling the base and motor unit

This pedestal fan comes with 2 identical tubes to allow you to assemble the fan at the desired height. Make sure the unit has been unplugged from the mains socket.

1. Place the base on a flat, solid floor.

2. Insert the threaded end of a tube into the hole in the middle of the base, then rotate the tube clockwise until it is securely screwed into place. To use the fan at its maximum height, insert the threaded end of the second tube into the first tube, then rotate it clockwise until it is securely screwed into place.

3. Next, insert the motor unit tube into the assembled tube and rotate it clockwise until it is securely screwed into place.

IMPORTANT: The motor unit and its tube form an element and contain electrical components. Do not try to disassemble them.

B Product usage

Assembling the grills and propeller

Once the motor unit has been mounted on the base, secure the grills and propeller to the motor unit.

Insert the rear grill onto the motor shaft. Align the small hole on the rear grill with the small button on the bottom half of the motor unit. Then with one hand, hold the rear grill in position.
② Insert the plastic nut on the motor shaft and rotate it clockwise in the "TIGHTEN" direction to secure the rear grill in place. Once the nut has been tightened, check that the rear grill is still aligned with the button.
3 Insert the propeller onto the motor shaft by aligning the groove on the propeller with the motor shaft's metal rod, then push down on the propeller to make both parts snap into place. The motor's shaft rod rotates the propeller whenever the unit is in use.
Place the plastic cap on the motor shaft and rotate the cap anticlockwise in the "TIGHTEN" direction, until it is tightly screwed in place and secures the propeller on the motor shaft.
Hold the front grill with the attachment hook facing upwards and the locking clip pointing downwards. First insert the attachment hook into the slot on the top of the rear grill.
Make sure the two grills are properly aligned, then press firmly on all the edges of the grills to connect them, starting from the top. You'll hear clicks as the edges are secured into place.
Close the locking clip at the bottom, then tighten the screw using a Phillips screwdriver.

WARNING!

Before plugging in the unit, always check that all the parts have been properly assembled to avoid any danger.

Disassembling the unit

To disassemble the unit before putting it away, simply unplug the power cable and follow the steps indicated in the previous section in reverse order.

Use

Control panel and remote control description

button		Function
Control panel	Remote control
POWER		Press this button to turn on the fan. The screen displays the current speed. Press this button to turn off the fan and put it in Standby mode. The screen will go off.
Oscillation		Press this button to start or stop the automatic left-right oscillation (85°).
Speed	-/+	Upon connecting the fan, the default speed is “1” (the slowest speed). Press the / + or - buttons several times to increase or decrease the fan speed (from level 1 to 8) in a loop.
Hold down for 2-3s to access the timer	Timer -/+	This button allows you to set the auto-on or auto-off timer from "1" to "8" hours. • To enter the timer setting mode, press the按钮 or press and hold the fan's button for 2-3 seconds until the icon starts flashing on the screen. • Then press the / button or - buttons to increase or decrease the duration (1-8 hours) in 1-hour intervals. The hour values will loop when you press these buttons. Once the desired duration is displayed on the screen, stop pressing the buttons. The selected hour value and icon will flash twice and your settings will be automatically confirmed. • Auto-on: The auto-on timer can be set when the unit is in Standby mode. The speed and oscillation settings will remain the same as defined during the previous use. Once the timer has been set and confirmed, the screen will display the duration and the icon will be steadily lit before turning off to save energy. Press any button (except the button) to turn the display back on again. Once the timer duration has elapsed, the unit will automatically turn on. • Auto-off: The auto-off timer can be set when the unit is in use. Once the timer has been set and confirmed, the screen will display the current speed and the icon will be steadily lit. Should the display turn off (for energy-saving reasons), press any button (except the button) to turn it back on. Tap the icon to check the set duration. Once the duration of the auto-off timer has elapsed, the unit will stop and automatically switch to Standby mode. • To cancel a programmed auto-on or auto-off: - Press the button. - Repeatedly press the button until the hour digit returns to "0" or - press and hold the button for 2-3 seconds; then repeatedly press the button until the displayed time returns to "0".

• A beep will sound to confirm your selection whenever a button is pressed on the fan or remote control.
• The current speed and status of the unit will appear on the display.

Using the unit

Always place the unit on a flat, dry and sturdy surface. Position the unit in a safe place to prevent it from tipping over.

WARNING!

• Before using the unit, always check that all parts have been properly aligned and assembled to avoid any danger.
• Do not let the power cable hang from the edges of a table or worktop. Make sure the power cable cannot be pulled by children or animals, and does not pose a tripping hazard.
• Do not place the unit near a window where it could be exposed to rain.

• Do not use the unit in a bathroom. Keep the unit away from all water sources or very humid environments.

• Fully unwind the power cable and securely plug it into a suitable mains socket. Once powered, the unit will beep and enter Standby mode.

• Press the button on the fan or remote control to turn on the fan. The default speed after connecting the unit is "1".
• Press the () / + button or — button to increase or decrease the speed (1-8) in a loop.
• Press the button to start or stop the automatic left-right air flow oscillation (85^) .

3 To manually adjust the vertical tilt, press the button first to stop the fan. Wait for the fan to stop completely, then gently push the fan head upwards or downwards to adjust the vertical tilt angle [24^] .
5. See the "Control panel and remote control description" section above for more information.

NOTE: After a few seconds of inactivity (no buttons being pressed), the display will turn off to save power whilst the fan continues to operate (speed, oscillation and timer). Press any button (except ) to turn the display back on again.

1. When the fan is no longer in use, press the ① button to make it enter Standby mode and unplug the power cable from the mains socket.

IMPORTANT: Always unplug the unit from the mains socket after use to fully disconnect it from the power source.

Cleaning and maintenance

WARNING!

• Always unplug the unit from the mains socket before cleaning it.
• Never immerse the unit, power cable or plug in water or any other liquid, to avoid any electrical hazard. Never rinse them under a tap.

NOTE: Never use solvents, chemical or abrasive cleaning products, wire brushes, sharp objects or scouring pads to clean the unit.

• General cleaning - Wipe the main unit and base with a soft cloth/sponge lightly soaked in water or a small amount of soapy water to remove any dirt and dust. After cleaning, dry the unit thoroughly.
• Deep cleaning – To remove the dust that has accumulated on the grills and propeller, follow these steps:

• Disassemble the fan head by following the steps indicated in the "Assembling the grills and propeller" section in reverse order.

• Wipe the motor unit with a soft cloth slightly dampened with water or a small amount of soapy water. Dry well.

• Clean the front and rear grills, propeller, plastic propeller cap and rear grill nut in slightly soapy water with a soft cloth/ sponge. Rinse thoroughly and dry with a soft cloth. Allow all elements to dry thoroughly before reassembling them on the motor unit.

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
