USER MANUAL VAL-SF40 VALBERG
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required
CONDITION DE GARANTIE
FR
Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down. We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

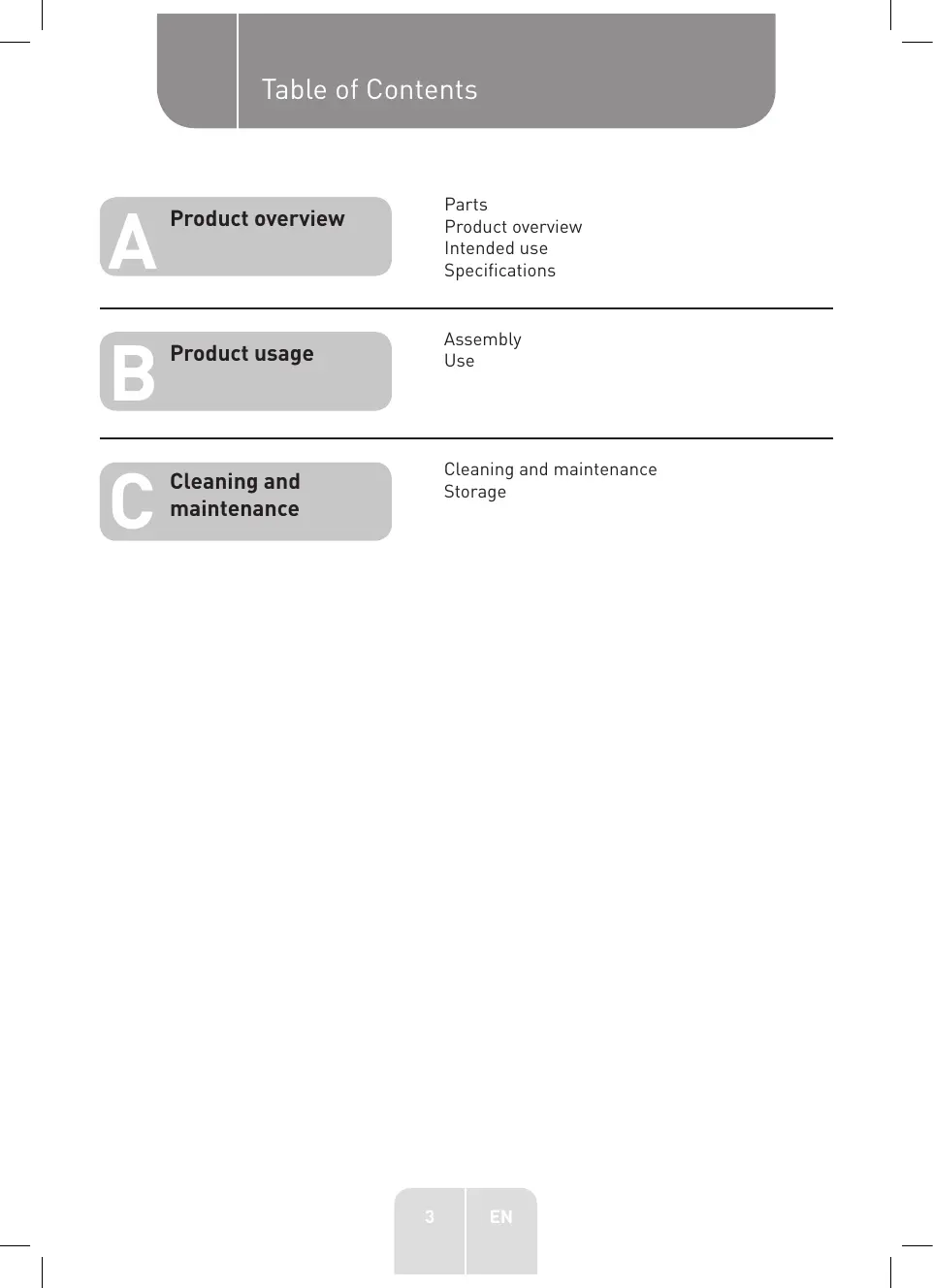

Table of Contents
Parts
Product overview
Intended use
Specifications
Assembly
Use
Cleaning and maintenance
Storage
Parts
A Safety screw and nut
B Front grille
C Blade cap
D Fan blades
E Grille mounting nut
F Rear grille
Motor shaft
Oscillation knob
Motor housing
J Tilt adjustment knob
K Control box
Control panel
Control box fixing screw
N Inner tube
0 Height adjustment collar
Outer tube
Base decorative cap
R Screws [x 4]
Top cross bar
Bottom cross bar
Product overview
- Unpack and remove all labels from the unit except the nameplate. Please check that all parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
- This unit is intended for household use only and not for commercial, industrial, or outdoor use. The unit has been designed for indoor use to circulate air and generate airflow. Use the unit in a room with dry conditions and adequate ventilation.
Any other use may damage the unit or cause injury.
Specifications
| Model: | 985764 |
| Operating voltage: | 220-240 V~, 50 Hz |
| Rated power: | 45 W |
| Power cable length: | 180 cm |
| Adjustable height: | 101 - 118 cm |
| Blade size: | 34.7 cm |
| Dimensions (W x D x H): | 61 x 61 x 118 cm |
| Net weight: | 2.43 kg |
| Protection class: | Class II |
| Maximum blade rotation speed: | 1250 RPM |
Information requirements for comfort fans according to Regulation (EU) N°206/2012
| Model identification | 985764 - VAL-SF40 |
| Description | Symbol | Value | Unit |
| Maximum fan flow rate | F | 41.5 | m³/min |
| Fan power input | P | 39.4 | W |
| Service value | SV | 1.1 | (m³/min)/W |
| Standby power consumption | PSB | N/A | W |
| Seasonal electricity consumption | Q | 12.6 | kWh/a |
| Fan sound power level | LWA | 51.86 | dB(A) |
| Maximum air velocity | c | 2.3 | meters/sec |
| Measurement standard for service value | EN IEC 60879:2019
EN 50564:2011
EN 60704-1:2010 + A11:2012
EN IEC 60704-2-7:2020 |
| Contact details for obtaining more information | Electro Dépôt - 1 route de Vendeville
F-59155 FACHES THUMESNIL - France |
Assembly
WARNING!
Before assembling or disassembling the unit, always disconnect the unit from the mains supply to avoid the risk of injury.
Tool required: Cross-head screwdriver, not supplied.
Assembling the stand
- Remove the 4 screws (R) from the bars (S, T) by turning them anti-clockwise.
- 1 Cross the top bar (S) over the bottom bar (T).
- 2 Align the four holes in the base of the outer tube (P) with the four holes in the cross bars and secure with the 4 screws (R) clockwise.
- Remove the height adjustment collar (O) from the outer tube (P) by turning it anticlockwise. Insert the base decorative cap (Q) into the outer tube (P) and slide it down onto the base assembly.
- Pull out the inner tube (N) to the desired height, replace the height adjustment collar (O) on the outer tube (P) and tighten the collar clockwise.
- 5 On the bottom back of the control box (K), loosen the fixing screw (M) anti-clockwise with a screwdriver. Insert the control box onto the inner tube (N) and tighten the fixing screw clockwise to secure it in place.
Assembling the fan head
- Make sure the unit is disconnected from the mains socket.
- 6 Turn the blade cap (C) clockwise to remove it from the motor shaft (G), then turn the grille mounting nut (E) anti-clockwise to remove it from the motor unit.
- Place the rear grille (F) on the front of the motor housing (I), so that the handle is at the top back and the 2 alignment pins on the motor housing are inserted into the corresponding holes on the rear grille.
Secure the rear grille with the mounting nut (E) by turning it clockwise. Do not overtighten the nut.
- 8 To insert the fan blades (D), align the 2 slots in the center of the blades with the 2 pins on the motor shaft (G) and then push the fan blades in.
Tighten the blade cap (C) onto the motor shaft by turning it anti-clockwise.
- 9 To attach the front grille (B), open the clips on the rim, hook the bracket onto the top of the rear grille (F), and align the hole at the bottom of the grilles.
B Product usage
- Close the clips to lock the grilles. Make sure the clips are properly closed.
- Secure the bottom rim of the grilles with the screw and nut (A).
Use
- Place the unit upright on a dry, level and stable surface.
- Make sure the stand fan is properly assembled.
- Plug the power cable into a suitable mains socket.
- To turn on the fan, press the desired speed button on the control panel (L):
0-Off
1-Low
2 - Medium
3-High
- To turn off the fan, press "0".
- To start the automatic left-right oscillation, push the Oscillation knob (H) down. To stop the oscillation function, pull up the knob.
- To adjust the vertical tilt of the fan head, press "0" to turn off the fan first. Loosen the Tilt adjustment knob (J) by turning it anti-clockwise, adjust the fan head to the desired tilt, and retighten the knob.
- To adjust the height of the fan, turn off the fan. Slowly loosen the height adjustment collar [0] by turning it anti-clockwise, adjust the fan to the desired height, and retighten the collar.
CAUTION!
Always turn off the fan before adjusting the tilt or height of the fan.
- Turn off the fan after each use. Unplug the fan from the mains socket if it is not going to be used for a long period of time.
Cleaning and maintenance
WARNING! To avoid the risk of injury, electric shock or fire:
- Always turn off and unplug the unit from the mains socket before cleaning, assembling or disassembling any parts.
-
Never immerse the unit, power cable or plug in water or any liquid.
-
Never use solvents, chemical or abrasive cleaning agents, wire brushes, sharp objects or scouring pads to clean the unit.
- Clean the unit regularly. Keep the grilles and air vents on the back of the motor housing free from dust and dirt.
- For a quick cleaning, you can use a vacuum cleaner to clean the grilles and air vents.
- Clean the motor housing, control box, and base with a soft cloth slightly moistened with water or soapy water. Dry completely with a soft, dry cloth. Do not allow water or any liquid to enter the motor housing or control box during cleaning.
-
For a thorough cleaning:
-
Remove the grilles and fan blades for cleaning by reversing the steps in the "Assembling the fan head" section.
- Clean the grilles and fan blades in soapy water with a soft sponge. Rinse and dry thoroughly before reassembling them into the unit.
Storage
- Always unplug the unit before storing it.
- Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
