USER MANUAL INES-B-KOOL VALBERG

Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

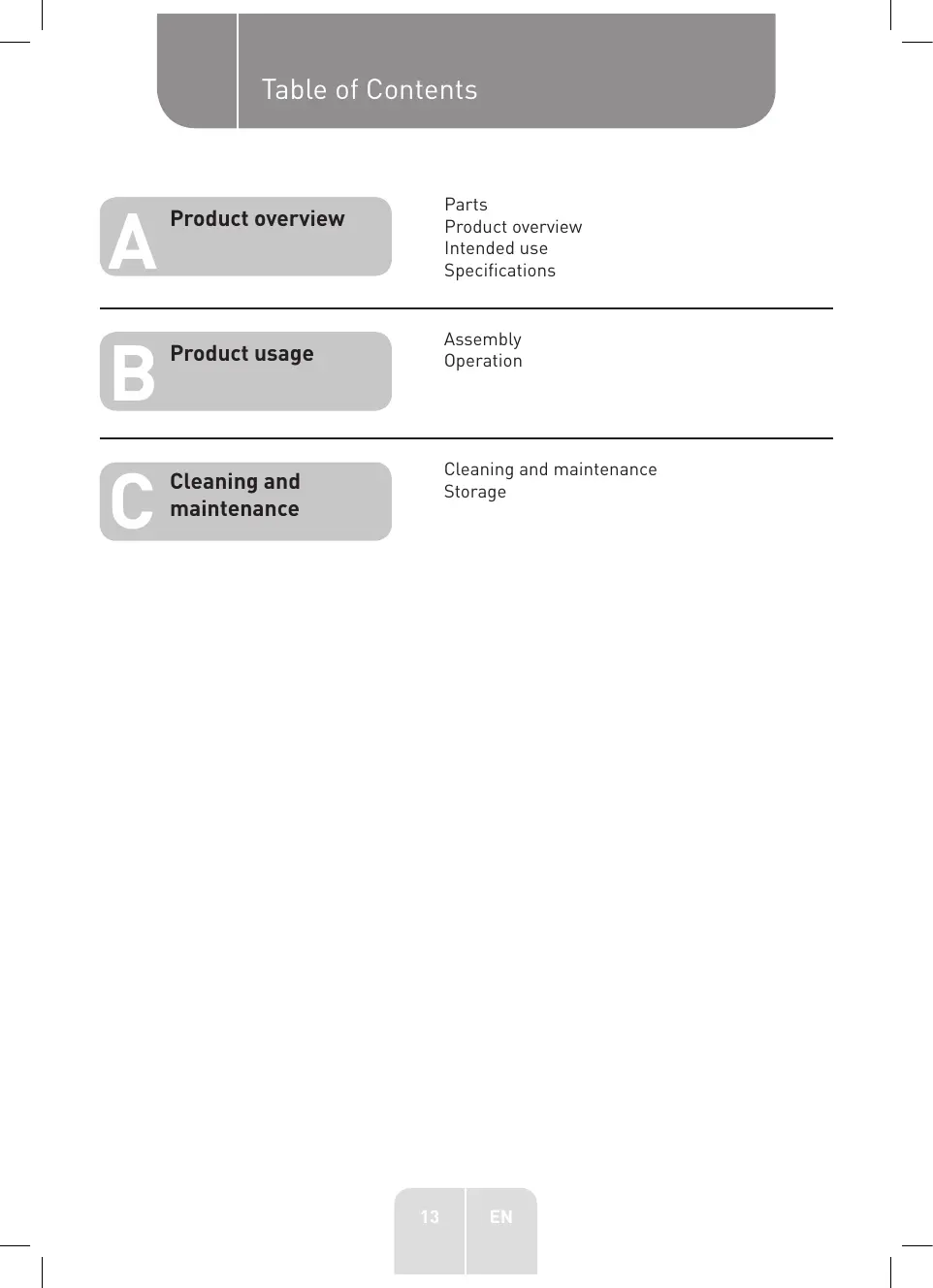

Table of Contents

Parts

Product overview

Intended use

Specifications

Assembly

Operation

Cleaning and maintenance

Storage

Parts

A Clips [1 on the top of fan and 1 on the bottom of the fan with a screw]
B Infrared sensor (receiver)
C Control panel with display screen
(1) Natural mode icon
② Sleep mode icon
③ Fan speed level icons - Low, Medium and High
Timericon
⑤ TIMER button
6 MODE button
⑦ SPEED button
8 POWER button
D Power cable with plug
E Height adjustment knob
F Oscillation button
Motor
H Screw
Base tube (extendable)
J Base
K Lever-fitted screw and metal disc
L Motor shaft

Plastic nut

Propeller cap

Rear cover

Propeller

Front cover

Remote control

Infrared sensor (transmitter)

Product overview

• Unpack and remove all labels from the unit. Please check that all of the unit's parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This product is for domestic use only. It has not been designed for industrial or professional use.
Any other use may damage the unit or cause injury.

Specifications

Model:	972443 - WIND -S9 SILENCE
Main unit
Operating voltage:	220-240V ~ 50 Hz
Protection class:	Class II
Max. power:	40 W
Standby power:	0.21 W
Maximum noise level:	57 dB(A)
Oscillation angle:	80°
Oscillation time:	12 s
Main unit size (W x D x H):	440 x 400 x 1,300 mm
Propeller size:	400 mm
Max. blade rotation speed:	1280 RPM
Maximum air flow:	30.1 m³/min
Maximum air speed:	2.2 m/s
Operating temperature:	0-40 °C
Power cable length:	1.85 m
Product weight:	5.63 kg
Service value:	1.09 (m³/min/W)
Remote control
Power supply:	2x 1.5 V AAA batteries (not supplied)
Operating range:	5 m

Assembly

1. Turn the lever-fitted screw and metal disc (K) located underneath the base tube (I) anticlockwise and remove it.
2. Unscrew and remove the plastic nut (M) and propeller cap (N) from the motor shaft (L).
3. Insert the base tube (I) into the hole on the top of the base (J) . Place the metal disc (K) on the hole underneath the base (J) and insert the lever-fitted screw (K) , then turn it clockwise until it has been firmly secured. Turn the base (J) right side up and position it on the floor.
4. 2 Turn the screw (H) on the motor-equipped tube anticlockwise to loosen it. Place the motor-equipped tube (G) on the base tube (I). Secure it in place by turning the screw (H) clockwise.
5. 3 Insert the rear cover (O) onto the motor shaft (L). Place the plastic nut (M) on the motor shaft (L) and turn it clockwise. Do not overtighten it.
6. Push the propeller (P) onto the motor shaft (L). Secure it in place by turning the propeller cap (N) anticlockwise. Should the blade be installed upside down, this can lead to malfunctions, such as vibration and noise. Check that the propeller (P) turns freely by pushing it with your hand. It must not come into contact with the back cover (O). If it does not turn freely, unscrew the propeller (P) to install it the other way round. Reposition the propeller (P) on the motor shaft (L).
7. Align the clips (A) at the top and bottom of the front and rear covers (Q/0). Join the two covers by pushing until they click into place and then securing the lower clip with the screw (A).

NOTE: Make sure that the central logo detail on the front cover is facing the right way round, when standing in front of the fan.

1. 6 Turn the height adjustment knob (E) anticlockwise to loosen it. Adjust the height of the fan. Turn the height adjustment knob (E) clockwise to lock the height.

Inserting the remote control batteries:

1. Whilst pressing down on the battery compartment cover, slide it in the direction indicated by the arrow to remove it.

2. Insert the 2x 1.5 V AAA batteries (not supplied), making sure to match the polarity, as indicated in the battery compartment.

3. Reposition the cover.

4. The remote control is now ready for use.

CAUTION! Remove the batteries whenever you do not plan on using the product for a long period of time.

Operation

Installation site

Place the fan on a stable horizontal surface.

NOTE: Make sure that the front and back covers are not blocked. Do not cover the fan.

Switching the unit on/off

• Connect the plug to a mains socket. The unit will beep and the screen will momentarily light up.
• Press the / button to switch on the unit. When switching on the unit for the first time, the NATURAL mode will start. The natural mode icon ≈ will be displayed, in addition to the Low speed level.

NOTE: After the first use, the unit will remember the last setting used whenever you turn on the unit, and the display will indicate that setting accordingly.

• Press the / button again to switch off the unit.
  Unplug the unit from the mains socket to completely switch it off.

Selecting a mode

Press the / button several times to select 1 of the 3 modes:

Icon	Mode	Description
Fan	Fan	The fan has 3 speed levels.
		- Low
		- Medium
		- High
		Press the / button several times until the desired speed level is obtained.
Natural	The fan alternates between the 3 speed levels: Low → Medium → High → Medium → Low, etc. NOTE: The fan speed cannot be manually changed in this mode.

Sleep

Press the / button to select the Low or Medium speed level. The fan will start to operate at the selected speed. Once 30 minutes have elapsed, the fan will automatically reduce its speed by one level until it reaches the low speed. It will then continue to operate at this speed.

NOTE: The High speed level is not available in this mode.

Timer

To set the timer so that the fan will turn off after 1 to 7 hours, press the 4 button repeatedly to select one of the following options:

Duration	Icon
1 hour	1H
2 hours	2H
3 hours	1H/2H
4 hours	4H
5 hours	1H/4H
6 hours	2H/4H
7 hours	3H/4H

Off No time icon is displayed

Air direction

• Push in the oscillation button to horizontally tilt the fan 80 degrees. To prevent the fan from swaying, release the oscillation button as soon as the fan is blowing air in the desired direction.
• To direct the airflow up or down, push the fan head upwards or downwards. There are 3 different vertical positions.

Remote control

The buttons on the remote control work exactly the same as those on the control panel.

Point the remote control at the infrared sensor receiver on the screen. Make sure that the remote control is used within 5 metres of the unit (with no obstacles in between). If the remote control is not working, move it closer to the unit or change the batteries.

Cleaning and maintenance

CAUTION!

• Before cleaning, always turn off and unplug the unit.
• When cleaning the unit, never use flammable or abrasive products (such as benzene or white spirit), metal brushes, scouring pads, wire sponges or sharp utensils.

• Never immerse the unit, cable or power plug in water.

• Regularly clean your unit and keep it dust free to optimise its performance, reduce the need for repairs and ensure product longevity.

• Loosen the clip screw on the back of the front cover, as shown. Then remove the clip and lift off the front cover.
• Clean the propeller cover and blades with a soft, slightly damp cloth. If necessary, use a mild detergent.
• Make sure that water does not get into the motor while cleaning.
• Dry all parts thoroughly with a soft, dry cloth.
• Reassemble the fan.

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
