USER MANUAL SB50BT THOMSON

Spcifications techniques 3

Care for your product 2

Care of the environment 2

Compliance 2

Technical specifications 3

What's in the box 3

Description of Parts 3

Get started 4

Use 5

Remarks 5

Setting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

Safety

Warning

• Never remove the casing of this apparatus.
• Never lubricate any part of this apparatus.
• Never place this apparatus on other electrical equipment.
• Keep this apparatus away from direct sunlight, naked Fames or heat.
• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

• Read these instructions.

• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Apparatus shall not be exposed to dripping or splashing.
2. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
3. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
4. Make sure there is enough free space around the product for ventilation.
5. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
6. The appliance must equipped with the appropriate batteries in order to function properly.
7. Only recommended batteries should be used.
8. Polarity must be respected in such a way as to avoid any short.
9. Don't mix used and new batteries.
10. Don't mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries.
11. Don't recharge or try to open the batteries. Don't throw the batteries in fire.
12. Replace all batteries at the same time with new, identical batteries.
13. Remove the batteries when unused for a long time.

Care for your product

1. Always unplug the appliance when not in use and before cleaning.
2. Do not play music at excessive volume levels as damage to hearing and or the equipment may occur.
3. Do not use this unit in wet or damp conditions.
4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

Marking information

double insulation
direct current
alternating current
Symbol indoor use

Compliance

This product complies with the radio interference requirements of the Europe Community.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Technical specifications

Power supply: 230V 50Hz
Total consumption: 30W
Input sensitivity: AUX IN 1000MV, LINE IN 775MV
- Speakers impedance: 4ohm

What's in the box

Check and identify the contents of your package:

Sound Bar and Subwoofer
- AC adapter

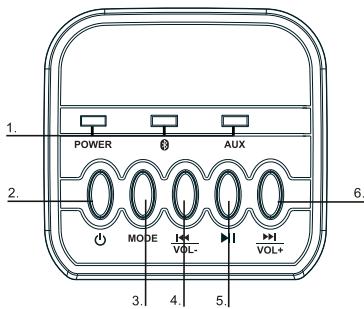

Description of Parts

Overview of the main unit

1. LED indicator

Show the current status

1. Standby

Turn on the unit, switch to Standby mode

1. Mode

Select a mode: Bluetooth, AUDIO IN

4.

Skip to the previous track

VOL -

Press and hold adjust the Volume

5.

Start or pause play

6.

Skip to the next track

VOL +

Press and hold adjust the Volume+

1. AUX in

Connect an external audio device

8 Subwoofer out
9. DC In

S/N (A): 75db
- THD(1kHz,1W): 0.5%
Frequency response: 20Hz-20KHz
Total music output: 20W

• User manual
  RCA cable

Get started

Power

Place the unit in the desired position and unravel the mains cable. Insert the AC adapter into the supply socket and switch on if applicable.

Auto standby

When playing media from a connected device, the soundbar automatically switches to standby if:

• No button is pressed for 10 minutes,
• No audio from a connected device for 10 minutes.

Use

Play from external audio

You can play from an external audio device such as MP3 player through this unit.

Auxiliary Input RCA (Requires an RCA cable)

1. Connect an RCA cable to the Auxiliary Input. Connect the other end of the RCA cable to the audio output on your DVD player, stereo system, gaming system or television.
2. Press the power button to turn the unit on.
3. Press the MODE button to switch to Aux In mode.
4. Use the controls on the connected device to begin playing audio routed through the unit.

Bluetooth Mode

A. Pairing with a Bluetooth cell phone

Please make sure your cell phone is Bluetooth-enabled. Specific pairing steps may vary with different cell phones. Please refer to the user manual of your cell phone for further information. The general pairing steps are as follows:

1. Keep SB50BT and Bluetooth cell phone within 1 meter when pairing.
2. Press button, and press the MODE to select the Bluetooth mode.
3. Switch on your cell phone's Bluetooth function and search for Bluetooth devices. After the search is completed, select "SB50BT" from the Bluetooth device list.
4. According to indication, enter password or PIN No: "0000" and press "Yes" or "confirm".
5. After successful pairing, select "SB50BT" from the Bluetooth device list and press "connect".
6. Press Vol+ to turn up the volume, press Vol- to turn down the volume.
7. Press to skip to the previous song.
8. Press▶ to skip to the next song.

Remarks:

Don't discard the electrical and electronic appliances in the regular waste disposal.

Take them to a collection point.
- Some components in these appliances may be hazardous to health and the environment.

• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.
• If there is an incoming call while SB50BT is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)
• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.
• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.
• Hereby, Bigben Interactive SA, declares that the SB50BT device complies with the essential requirements of the directive 1995/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity.

To download the full statement, please visit our website: http://www/bigben-interactive.co.uk/support and the section <>.

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2-FRETIN

CS 90414

59814 LESQUIN Cedex - France

www/bigben.eu

Made in China
