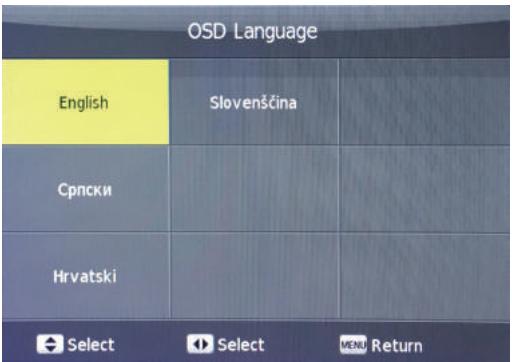

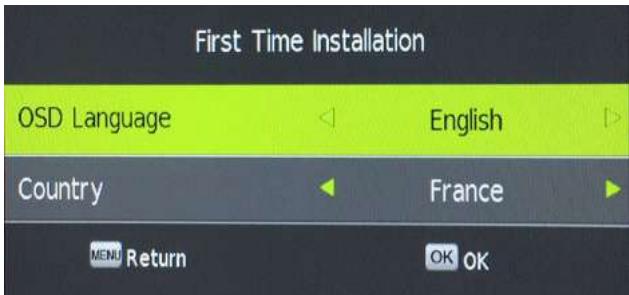

First Time Installation OSD Language English Country France MENU Return OK OK

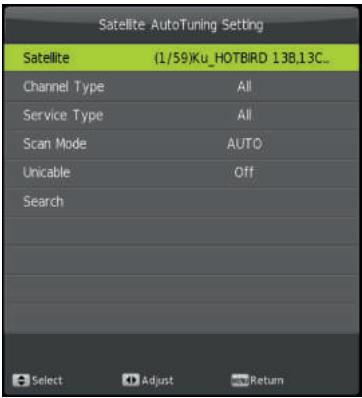

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBIRD 13B,13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

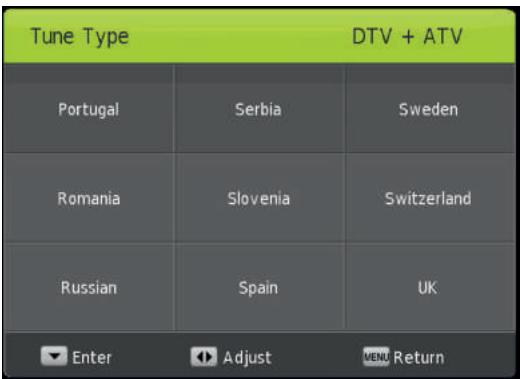

Tune Type DTV + ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Enter Adjust VENU Return

Do you want to skip ATV tuning?

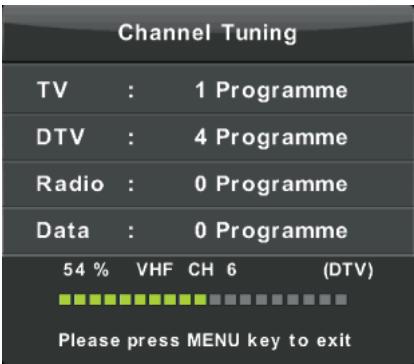

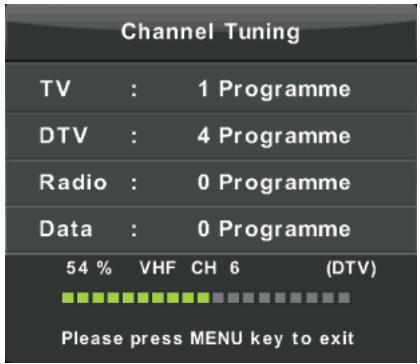

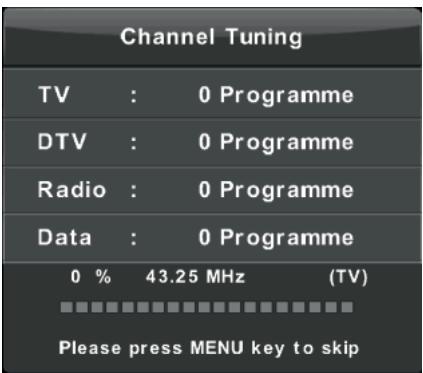

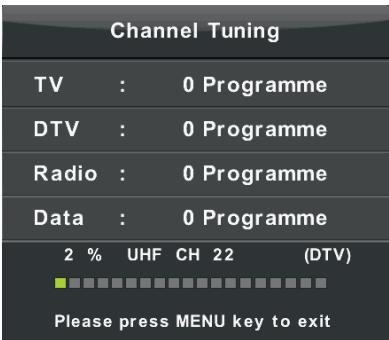

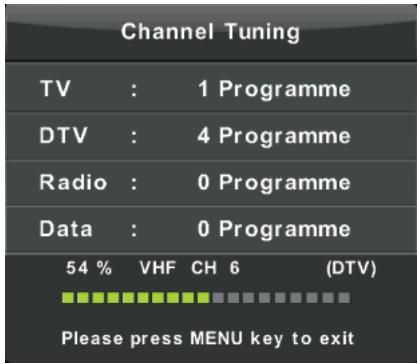

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

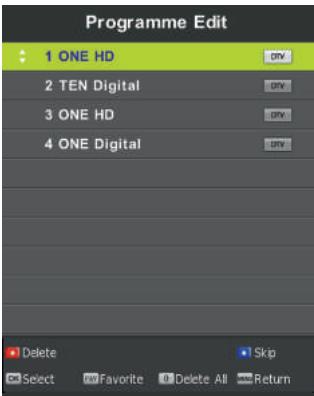

Programme Edit 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Delete Skip Select Favorite Delete All Return

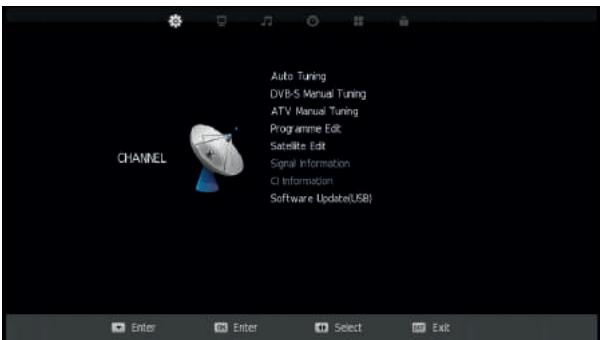

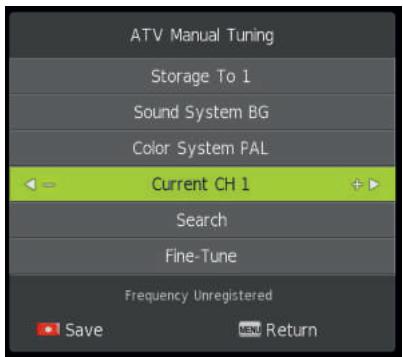

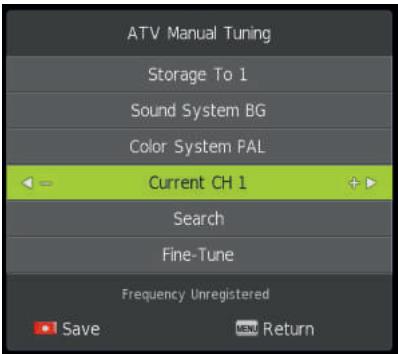

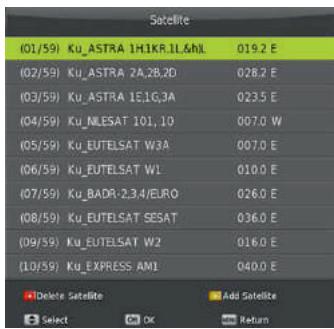

Auto Tuning DVB-S Manual Tuning ATV Manual Tuning Programme Edit Satellite Edit Signal Information CI Information Software Update(USB) CHANNEL Enter Enter Select Exit

Réglage automatique

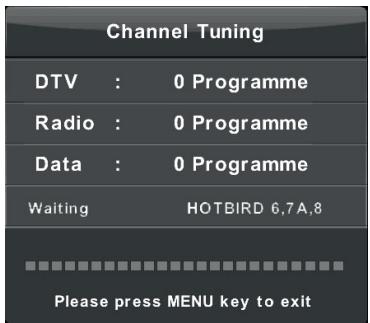

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBRD 13B.13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

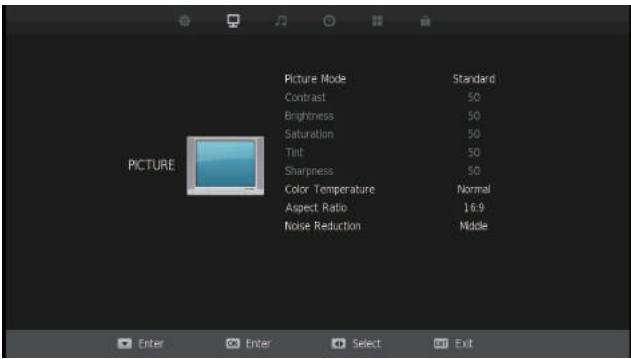

Picture Mode Contrast Brightness Saturation Tint Sharpness Color Temperature Aspect Ratio Noise Reduction Standard 50 50 50 50 Normal 16:9 Middle

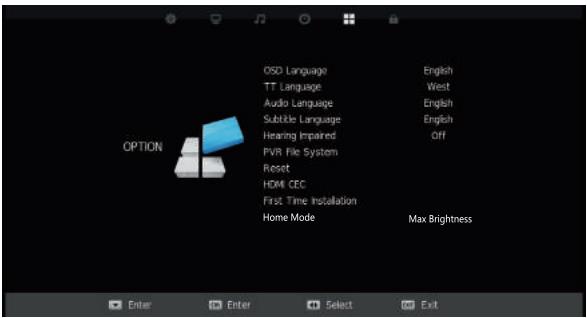

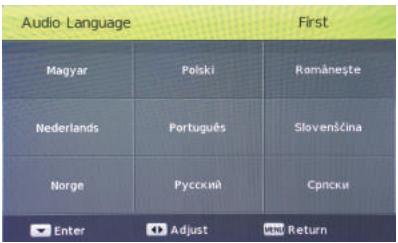

OPTION OSD Language TT Language Audio Language Subtitle Language Hearing Impaired PVR File System Reset HDMI CEC First Time Installation Home Mode English West English English off Max Brightness Enter Enter Select Exit

Press ◀ to confirm you want to reset or ▶ to cancel.

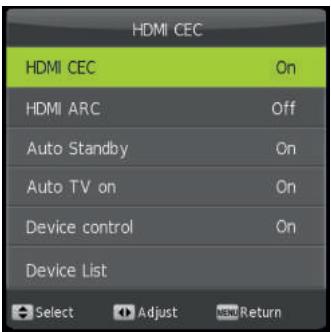

HDMI CEC

Lock System Set Password Block Program Parental Guidance Hotel Mode OFF OFF LOCK Enter Enter Select Exit

Please enter password Clear Cancel

Please enter old password Please enter new password Confirm new password Clear Cancel >

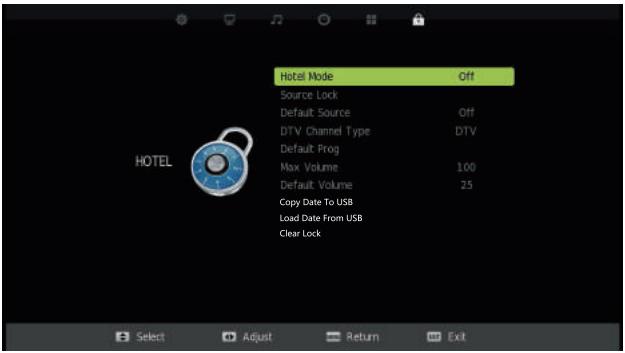

Hotel Mode Off Source Lock Default Source Off DTV Channel Type DTV Default Prog Max Volume 100 Default Volume 25 Copy Date To USB Load Date From USB Clear Lock

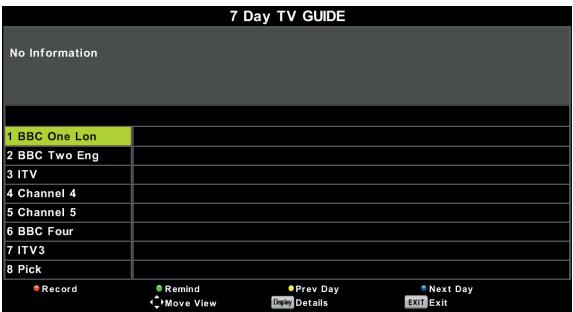

7 Day TV GUIDE No Information 1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick Record Remind Prev Day Next Day Move View Repairs Details Exit Exit

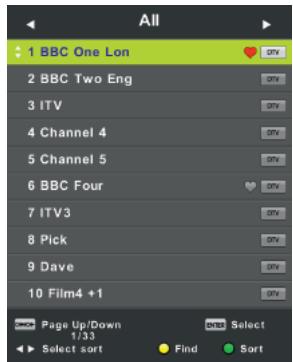

1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick 9 Dave 10 Film4 +1 Page Up/Down 1(3) Select Find Sort

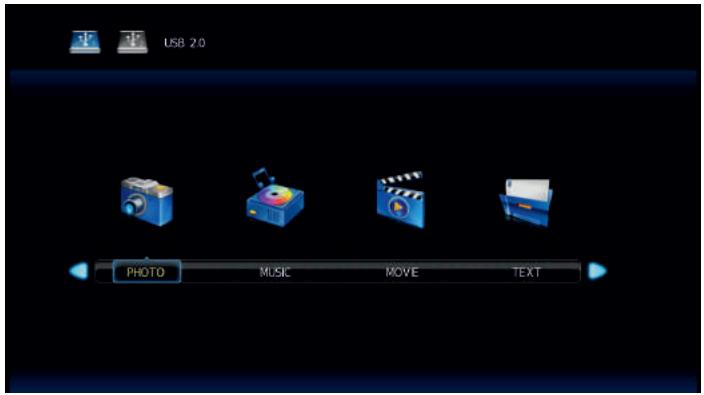

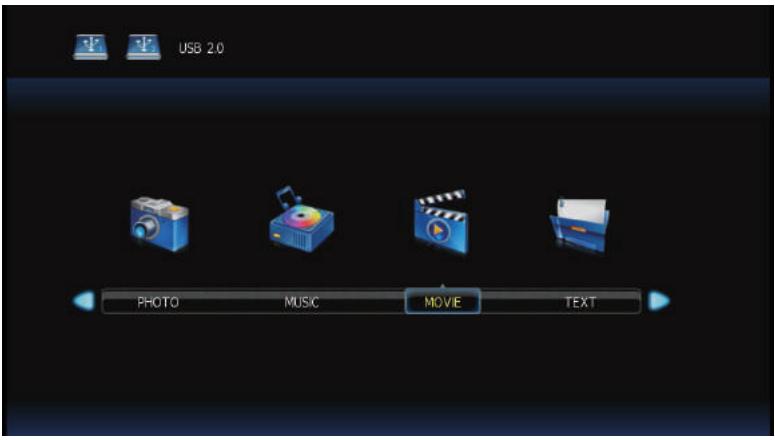

USB

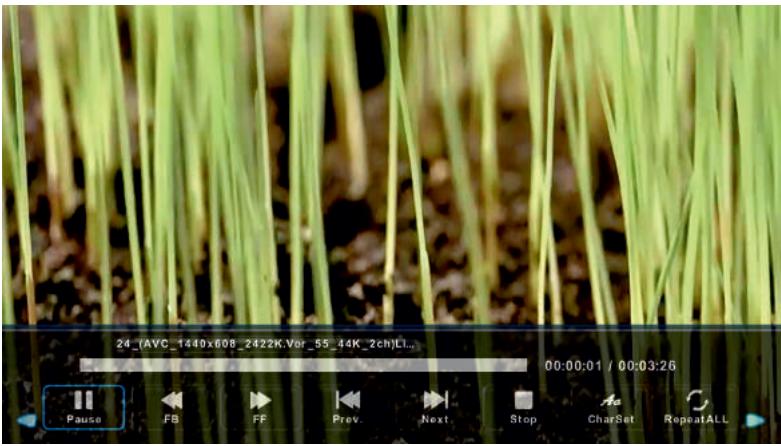

24 [(AVC 1440x608 2422K.Vor 55 44K_2ch)Li... 00:00:01 / 00:03:26 Pause FB FE Prev. Next Stop CharSet RepeatALL

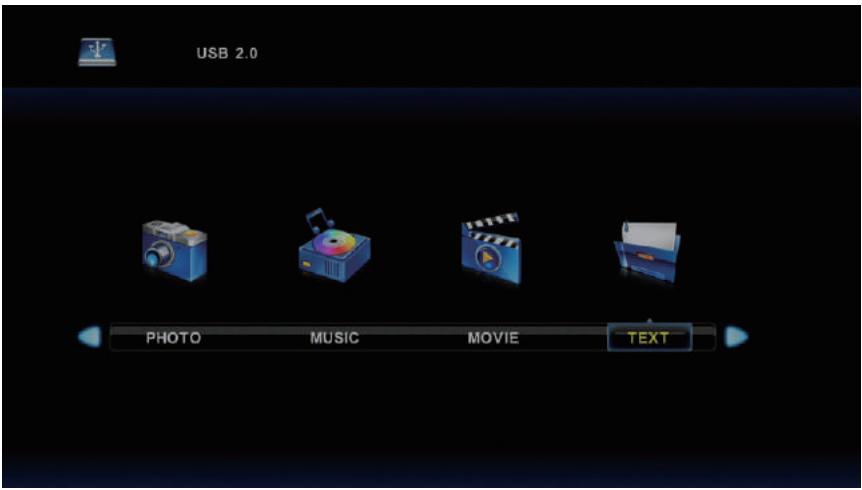

Menu « Texte »

EXCLUSIONS DE GARANTIE

EXCLUSIONS DE GARANTIE LIÉES À L'ORIGINE DU DOMMAGE

Simple graphic with a white square and a vertical color bar on the right (no text or symbols)

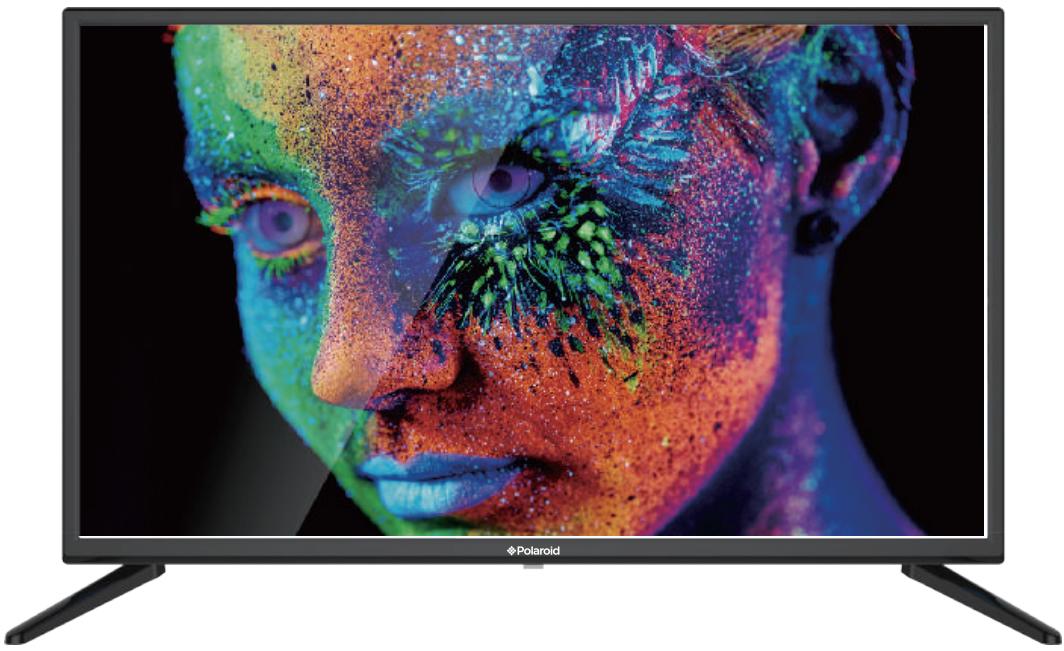

Modern Polaroid TV displaying a vibrant, colorful face with iridescent lighting (no text or symbols on the screen)

GAMME ACCESS 32 SERIE 1000

TVLED32HDPR001

USER MANUAL

SAFETY PRECAUTIONS

SAFETY PRECAUTIONS

Black triangular warning symbol with a lightning bolt inside, representing electrical hazard (no text)

The warning sign showing a lightning bolt in a triangle indicates that this product contains "dangerous electrical voltages".

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO AVOID THE RISK OF ELECTROCUTION, DO NOT REMOVE THE COVER (OR THE BACK OF THE DEVICE).

NO PARTS ARE REPLACEABLE BY THE USER. PLEASE CONTACT QUALIFIED PERSONNEL IN CASE OF FAILURE.

Black triangular warning symbol with exclamation mark (no text or numbers)

The warning sign showing an exclamation point in a triangle indicates that this point of the manual requires special attention.

CAUTION: - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR SERIOUS INJURY:

Read these safety instructions before using your device and store them for possible future reference.

●This device must only be connected to a mains network whose characteristics are identical to those shown on the device identification plate.
●The mains plug must always be easily accessible. It serves as a mains disconnecting switch of the device.
● To disconnect the device from the mains, the plug must be disconnected. Hold the mains cable by its plug. Do not pull on the mains cable to disconnect the plug.
●The mains cables must be routed so that they are not trampled upon or pinched by objects placed on or against them.
- If the mains cable of the device is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person to avoid any danger.
●The device must not be exposed to dripping or splashing water, moisture or liquids.
●Do not place the device near water, for example in a bathroom or near a sink.
● No objects filled with liquids such as vases should be placed on or above the device.
● Never touch the mains cable with wet hands, this could cause a short circuit or electric shock.
● To avoid the risk of fire, do not place sources of open flames, such as lighted candles, or heat sources such as radiators, on or near the device.
●The device is intended for use only in a temperate climate.
- If smoke, an unusual odour or strange noise is emitted by the device: unplug the

mains cable from the electrical outlet and consult the after-sales service or repair center. Never attempt to make repairs yourself, this could be potentially dangerous.

• Do not attempt to open or disassemble the device. This would expose you to dangerous voltages.
  ●The slots and openings of the device are intended for ventilation and to ensure its operation. To prevent overheating, these openings must not be obstructed or covered in any way, such as by newspapers, tablecloths or curtains.
  ●Always leave a minimum distance of 10 cm around the device for sufficient ventilation.
  ●Never push any object into the device through one of its openings, as it may come into contact with electrical components, which can cause an electric shock or fire.
  ●In case of thunderstorm or lightning, immediately unplug the mains cable from the wall outlet.
  ●Always turn off the device when not in use. Unplug the mains cable from the electrical outlet when the device will not be used for a long period of time.
  ● Unplug the device from the electrical outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry, soft cloth for cleaning.
• If the product does not bear the □ logo, it is a Class I device. It must then be connected to a mains socket with a protective earth connection.
• If it is a class I appliance, the user's protection is grounded. The appliance must be connected to a power supply base with a connection to the protective earth.

CAUTION –: TO AVOID RISK OF INJURY OR DAMAGE TO THE PRODUCT OR OTHER EQUIPMENT:

●This product is intended for household and personal use only. Do not use this product for commercial, industrial or other purposes.
- Do not subject the product to strong shocks, extreme temperatures or direct sunlight for prolonged periods.
- Keep the product away from magnetic objects, motors and transformers.
●Do not use the product outdoors, regardless of weather conditions.
●Install the device only on a stand (furniture, wall...) that can support its weight safely.
●WARNING: never place a TV on an unstable location. This can fall, causing injuries or

even the death of a person. Many injuries, especially in the case of children, can be avoided by taking simple precautions such as:

• The use of furniture or stands recommended by the TV manufacturer.
• The exclusive use of furniture that can support the weight of the TV safely.
• Make sure that the device does not protrude from the edge of the furniture on which it is placed.
• Never place the device on a tall piece of furniture (e.g. cabinets or bookcases) without attaching both the furniture and the device to a suitable stand.
• Do not place the device on a trolley or on a stand that is not stable. Do not install the device on any fabric or other materials placed between its base and the supporting furniture. The device could fall and be damaged or seriously injure a person.
• Do not use or watch the TV while driving. This is dangerous, and illegal in some countries.
• Explain to children the dangers they face when climbing on the furniture to reach the device or its controls.
• If you keep this device and change the location, you should apply the same considerations.
• CAUTION: to avoid accidents, this device must be securely attached to the floor or wall according to the installation instructions.

CAUTION: TO AVOID EYE HAZARDS:

- It is best to have soft indirect lighting to watch TV. Avoid completely dark environments and any reflection on the screen, as these can cause eyestrain.

USE AND HANDLING OF BATTERIES:

●CAUTION: danger of explosion if the batteries are not inserted correctly or if they are replaced by a non-similar or incompatible model.
- Replace the batteries only with batteries of the same type or equivalent type.
●Batteries must not be exposed to excessive heat such as that from the sun, fire or similar origin.
●Never throw batteries into fire and never expose them to heat sources.
- Do not mix different types of batteries, or new and used batteries.
●The batteries must be inserted according to the polarities indicated on the battery and in the battery case of the remote control.
●Used batteries must be removed from the remote control.
●The batteries must be disposed of safely at the assigned specific collection points to preserve the environment. Follow the disposal instructions indicated on the batteries and at the collection points.
- Keep batteries out of the reach of children and animals. Only adults are capable of handling the batteries.

For installation, handling, cleaning and disposal of the device, refer to the following chapters of the user manual.

Contents

General Description 5

Specifications and Accessories 6

Overview 8

Remote Control 9

First Time Setup 11

Menu Operation 13

Media Menu 29

External connection 34

Troubleshooting 35

Picture defects and the reason 37

Warranty conditions 38

Feature:

● Auto tuning and fine tuning
● One mini YPbPr input socket
● Two HDMI inputs socket (HDMI 1.4)
● One mini AV input socket
- Support USB
One Coaxial output
● Wide range voltage input

Note:

1. In case of any design change, a notice will not be released.

Specifications and Accessories

Reference	TVLED32HDPR001
Model	KDE32ML314ATS-6
Display	TV LED HD 32"/GAMME ACCESS 32 SERIE 1000
Resolution	1366x768 pixels
Colour display	16.7M
Contrast	1200:1
Ratio	16:9
Service life	30.000 hours
Tuner	HD DTV (receives digital channels, satellite, TV guide, teletext display, multi-language display)
TV power supply	AC 100-240V~ 50/60Hz 1.5A
Consumption	<65W
Dimensions	731.5mm (L)x207.2mm (D)x475.5mm (H)
Weight	4.05kg

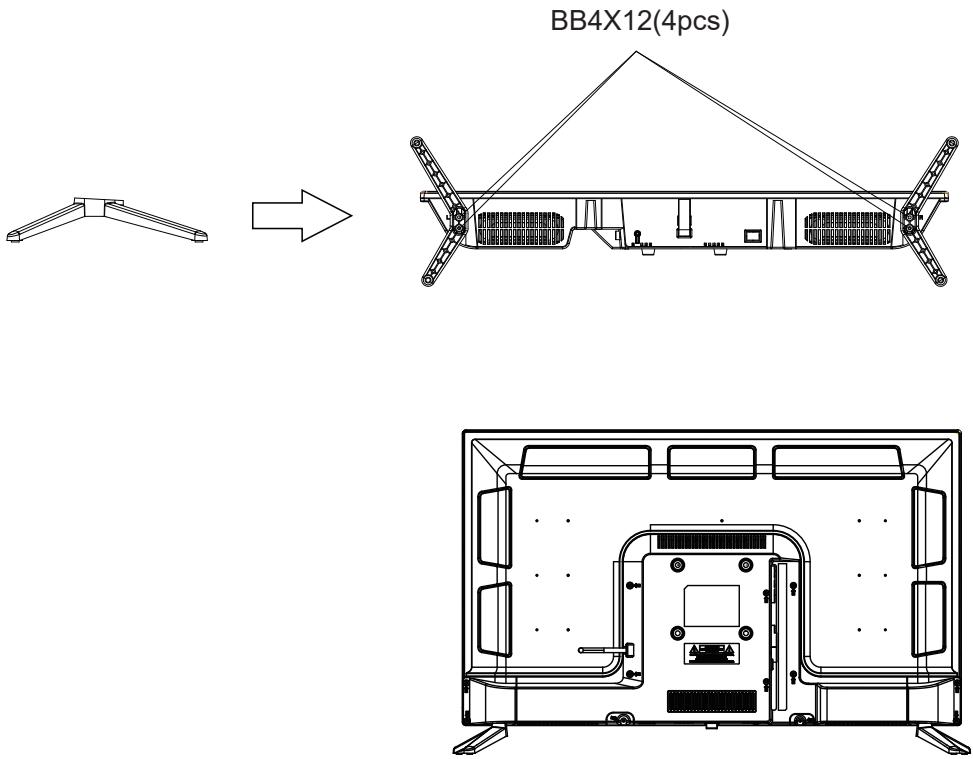

Base	Removable, in 2 parts
Operating temperature	0°C to 40°C
Remote control power supply	3V === (2 x LR03/AAA 1.5 V batteries, not supplied)
USB ports with voltage and current	5V === 0.5A
Hotel lock	Yes
Speaker	Built-in 2x8W
Inputs	Antennas (T2 and S2), HDMI, Mini YPbPr, Mini AV, USB, CI+
Outputs	Coaxial
Functions via USB	PVR (digital video recorder)
Multimedia playback formats via USB	Video: MPG, AVI, TS, MOV, MKV, DAT, MP4, VOB
	Music: MP3, AAC, WMA, M4A
	Photos: JPEG, BMP, PNG
	Text: TXT

These characteristics are subject to change without notice.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks of HDMI Licencing LLC in the United States and other countries.

ACCESSORIES:

Stand 2 pieces

Remote control 1 piece

User Guide 1piece

The pictures provided in this manual are for illustrative purposes only, refer to the actual product for confirmation.

PRODUCT DATA SHEET RELATING TO ENERGY
Brand	POLAROID
Reference	TVLED32HDPR001(Model: KDE32ML314ATS-6)
Energy efficiency class	A+
Visible screen diagonal	80 cm; 31.5 inches
Power consumption in On mode (W)	29W
Energy consumption (kWh per year), based on the power consumption of a TV operating four hours a day for three hundred and sixty-five days. The actual consumption depends on the conditions of use of the TV.	41 kWh/year
Power consumption in Standby mode (W)	<0.5W
Power consumption in Off mode (W)	0W
Screen resolution (pixels)	1366 x 768

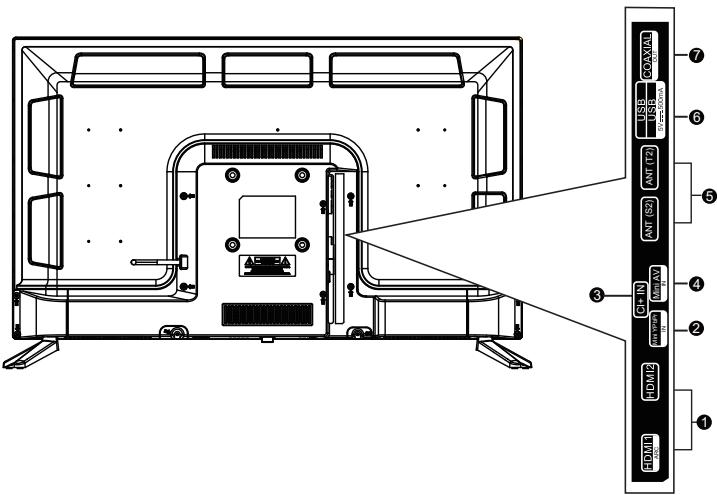

TV Terminal Connections

Technical diagram of a TV rack with labeled components and numbered parts for identification

① HDMI1/HDMI2: Connect to the HDMI jack of a device with an HDMI output.
② YPbPr: Connect Component video
③ CI: CI Input.
4 AV IN: AV Input
5 ANT: Connect to an antenna or cable TV system.
6 USB: Connect to USB flash driver to play supported multimedia content.
⑦ COAX: Connect Coaxial out.

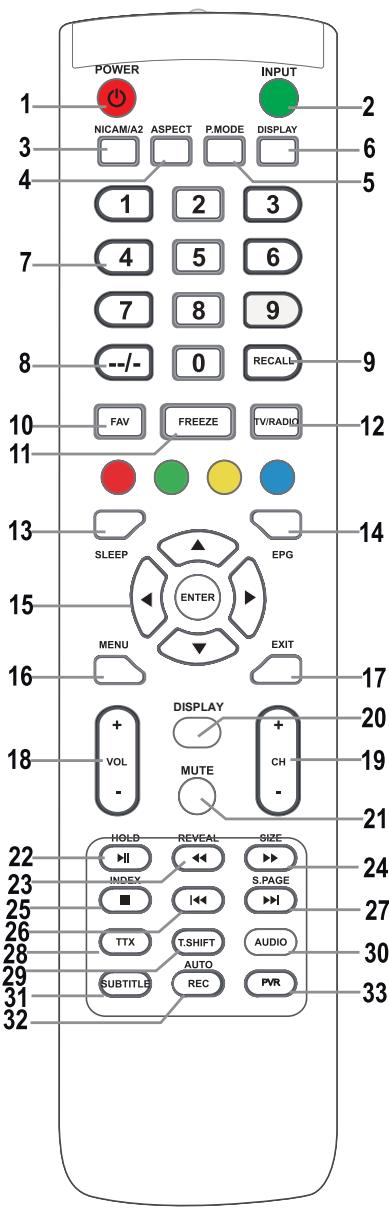

REMOTE CONTROL OUTLOOK & FUNCTION KEY DEFINITION

POWER NICAM/A2 ASPECT P.MODE DISPLAY INPUT 1 2 3 6 4 5 6 7 8 9 --/- 0 RECALL 9 10 FAV FREEZE TV/RADIO 12 11 SLEEP EPG 13 ENTER MENU EXIT 14 15 20 21 VOL DISPLAY + CH 19 - MUTE - 22 HOLD REVEAL SIZE 21 INDEX S.PAGE 24 ■ I T.SHIFT AUDIO 27 TTX AUTO 30 SUBTITLE REC PVR 31 32

1. POWER ⏻ button

Turns the television on from the stand-by mode.

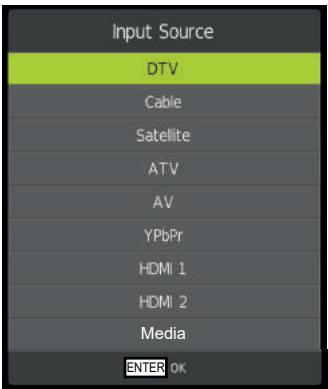

2. INPUT button

Press to select the desired input.

3. NICAM button

NICAM/A2 input or output.

4. ASPECT button

Page aspect ratio selection, e.g. 16:9, Zoom, Auto, 4:3

5. PMODE button

Repeatedly press to select a picture mode.

6. DISPLAY button

Button for displaying the source and information about channels.

7. Numerical buttons 0-9

Press 0-9 to directly select a TV channel while watching the TV. In teletext mode enter the page number, etc.

8. --/- button

It is used to enter channel numbers with various digit counts, e.g. for 1 - 11 - 111.

9. RECALL button

Button for switching to the previously watched channel.

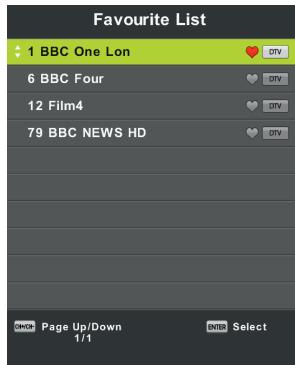

10. FAV button

Press in the TV mode to enter/exit the favourites menu.

11. FREEZE button

Freeze the picture

12. TV/RADIO button

Switching between the television and radio modes.

13. SLEEP button

Set the automatic shut off time for the television.

14. EPG button

Press to show/hide the electronic program guide.

15. ▲/▼/◄/►/ENTER buttons

Used for navigating in a menu on the screen and for setting up the television according to your preferences.

ENTER button

It is used to enter/exit the Channel list menu. (Only DTV/ATV)

16. MENU button

In TV mode, it displays the LCD television's main menu.

17. EXIT button

Function for exiting a menu or a screen.

18. VOL+/- buttons

Press to increase/decrease the volume.

19. CH +/- buttons

Press to switch between individual channels.

20. DISPLAY button

Button of displaying the source and information about channels.

21. MUTE button

Press to mute the sound. Press it again to renew the sound or press VOL +.

22. HOLD/▶II button

HOLD button: hold the current display

In the MEDIA mode: Playback/pause or start a time shift recording.

23. REVEAL/◄◄ button

REVEAL button: Press REVEAL to display or hide hidden teletext information (depends on the broadcast).

◀ button: fast rewind

24. SIZE/▶ button

SIZE button: Press SIZE to change the size of the screen in the MEDIA mode.

▶ button: fast forward.

25. INDEX/■ button

INDEX button: call up a teletext content page.

■ button: Stop recording/playback.

26. ◀◀ button

In the MEDIA mode: skip to the previous track

27. S.PAGE/▶▶I button

S.PAGE button: Press S.PAGE to enter a teletext subpage.

▶▶ button: skip to the next track.

28. TTX button

Turn teletext on or off.

Note: The teletext function is optional and the availability of buttons depends on the model. Teletext information fully depends on the operator of the channel.

29. T.SHIFT button

It is used to start recording with a time shift (i.e. time shift). Function is only available in the DTV mode.

30. AUDIO button

DTV/MEDIA mode: select a background sound, if available.

ATV mode: select a sound mode: Stereo/Dual I/II/Mono.

Other sources: select the left/right channel

31. SUBTITLE button

Button for showing/hiding subtitles in the bottom part of the screen, if they are available.

32. AUTO/REC button

AUTO button: Used for automatic configuration in the PC mode.

REC button: Press to start recording. (only in the DTV mode.)

33. PVR button

It is used to enter/exit the PVR setting menu.

Note:

Remove battery during storage or when you are not using the device for a long time.

To control the device using the remote control, point the remote control at the device and then press the button with the required function. The maximum range of the remote control is about 5 meters with a deviation of up to +/- 30° from the perpendicular direction to the reception sensor of the remote control on the front side of the device. The falling capacity of the batteries gradually reduces the remote control range.

There must be no solid obstacles in the area between the remote control and the device when the remote control is being used.

During standard use the lifetime of batteries in the remote control is about 1 year.

When the effective range of the remote control is substantially reduced, or when there are problems with its use, change both the batteries in the remote control.

If you will not be using the remote control for a longer period of time, take out both batteries from it - in this way you will prevent potential damage caused by their leakage.

Avoid strong impact of light (e.g. sunlight or light from strong fluorescent/saving sources) which can reduce the effectiveness and reliability of IR remote control.

Connecting a TV aerial or satellite dish to your TV

To use with a satellite dish (for Freesat or other DVB-S/S2 channels)

Connect your dish to the TVs input marked "ANT (S2)".

To use with an aerial (for Freeview, Saorview etc. or other DVB-T2 channels)

Connect a TV Aerial to the TVs input marked "ANT (T2)".

First Time Installation

When you first turn your TV on you will see the First Time Installation screen, you can also start the first time installation procedure by pressing the menu button and using the ◀/▶ buttons to move to the setup menu and then use the ▼/▲ buttons to select "First Time Installation" and press ENTER.

Select Language

Press ◀/▶ button to select the language to be used for menus and messages.

Select Country

Press ▼/▲ button to highlight country menu.

Press ◀/▶ button to select the country you are in.

Press the ENTER button.

First Time Installation OSD Language English Country France MENU Return OK OK

Select Connection Type

Press ▼/▲ button to highlight TV Connection menu.

Press ◀/▶ button to select the type of connection you are using.

Antenna for use with a TV antenna (Freeview, Saorview etc.)

Satellite for use with a satellite dish (Freesat or other free-to-air satellite TV)

Cable for a cable television service.

Set Tune Type to DTV

Press the ENTER button.

To use with a satellite dish (DVB-S2 eg. Freesat.)

Load the preset channel database

On the “Satellite Auto Tuning Setting” menu leave the Scan Mode set to Normal Scan and press ENTER.

Press ◀/▶ button to select the satellite to use, eg. ASTRA 2E, 2F, 2G for the UK Freesat service.

Move down to Scan Mode and use the ◀/▶ button to select Preset.

Move down to Search and press the ENTER button.

When you see the message "Do you want to start Satellite Autoscan" press the left arrow button to confirm.

Wait for the Database to be imported, when finished the TV enters viewing mode.

Press ENTER to view the channel list.

Press the GREEN button to select the satellite list, highlight the satellite you wish to view channels for and press ENTER.

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBIRD 13B,13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

To use with an aerial (DVB-T2 eg. Freeview, Saorview etc.)

Wait for tuning to finish and then the TV enters viewing mode. Press ENTER to view the channel list.

Channel Tuning TV : 0 Programme DTV : 0 Programme Radio : 0 Programme Data : 0 Programme 2 % UHF CH 22 (DTV) Please press MENU key to exit

Input Source DTV Cable Satellite ATV AV YPbPr HDMI 1 HDMI 2 Media ENTER OK

Press the INPUT button to display the input source list,

Press ▲/▼ or ENTER button to select the input source you want.

Press ENTER button to enter the input source or press the EXIT button to quit.

The available inputs are:

DTV: Digital TV with an aerial (DVB-T2 eg. Freeview, Saorview etc.)

Cable: For cable TV services outside the UK

Satellite: For use with a satellite dish (DVB-S2 eg. Freesat.)

ATV: Analogue TV with an aerial.

AV: For connection of a composite video and audio signal to the Mini AV socket.

YPbPr: For connection of a component video signal to the Mini Y/Pb/Pr socket.

HDMI1: For the HDMI 1 socket.

HDMI2: For the HDMI 2 socket.

Media: For playback of media connection to the USB socket on the side of the TV.

Channel Menu

Press MENU button to display the main menu.

Press ◀/▶ button to select CHANNEL in the main menu.

In Antenna Source.

CHANNEL Auto Tuning DVB-T Manual Tuning ATV Manual Tuning Programme Edit Signal Information CI Information 5V antenna power Off LCN On Software Update(USB) Enter Enter Select Exit

1. Press ▼/▲ button to highlight the option that you want to adjust in the CHANNEL menu.
2. Press ENTER button to select the highlighted option.
3. After finishing your adjustment, press Menu button to save and return to the previous menu.

Auto Tuning

Press ▼/▲ button to select Auto Tuning, then press ENTER button to enter. Select the correct country and press ENTER.

Tune Type DTV + ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Enter Adjust VENU Return

To skip ATV tuning and move straight on to DTV tuning, press the MENU button followed by the left arrow.

Channel Tuning TV : 0 Programme DTV : 0 Programme Radio : 0 Programme Data : 0 Programme 0 % 43.25 MHz (TV) Please press MENU key to skip

Do you want to skip ATV tuning?

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

ATV Manual Tuning

ATV Manual Tuning Storage To 1 Sound System BG Color System PAL Current CH 1 Search Fine-Tune Frequency Unregistered Save Return

Storage to

Set the channel number.

Sound System

Select the sound system

Colour System

Select the colour system

(Available System: AUTO, PAL, SECAM)

Fine-Tune

Adjust the frequency of the channel finely.

Search

Start searching channel.

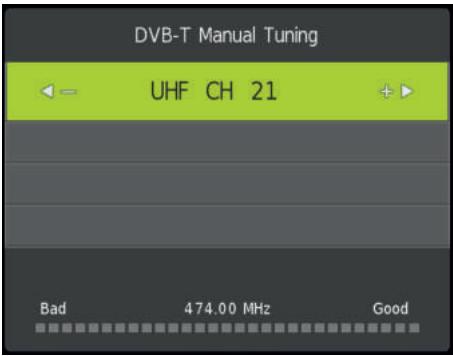

DVB-T Manual Tuning

Press ▼/▲ button to select DVB-T Manual Tuning, then press ENTER button to enter sub-menu.

Press ◀/▶ button to select channel, then press ENTER button to search program.

DVB-T Manual Tuning UHF CH 21 Bad 474.00 MHz Good

Program Edit (reordering the channel list)

Press ▼/▲ button to select Program Edit, then press ENTER button to enter sub-menu.

Programme Edit 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Delete Skip Select Favorite Delete All Return

The three colored keys are shortcut keys for programming the channel.

First press ▼/▲ to highlight the channel you want to select, then:

Press the Red button to delete the program in the list.

Press the Yellow button to move the channel in favourite list.

Press the Blue button to skip the selected channel.

Press Fav button to add or remote the channel to your favourite list.

(Your TV set will skip between these channels automatically when using CH+/- to view the channels.)

The CHANNEL List in Satellite Source.

Auto Tuning DVD-S Manual Tuning ATV Manual Tuning Programme Edit Satellite Edit Signal Information CI Information Software Update(USB) CHANNEL Enter Enter Select Exit

Auto Tuning

Press ▼/▲ button to select Auto Tuning, then press ENTER button to enter.

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBRD 13B.13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

Press MENU button to bring up the main menu.

Highlight "Channel" using navigation buttons and press ENTER.

Then highlight "Auto Tuning" and press ENTER to enter.

Satellite: Select an available satellite.

Channel Type: Select a channel type.

Service Type: Select a service type.

Scan Mode: Select your scan mode.

Unicable: Select Off

Select Search and press ENTER.

Channel Tuning DTV : 0 Programme Radio : 0 Programme Data : 0 Programme Waiting HOTBIRD 6,7A,8 Please press MENU key to exit

Satellite Edit

Press ▼/▲ button to select Satellite Edit then press ENTER button to enter.

Satellite (01/59) Ku_ASTRA 1H.1KR.1L.6hkl 019.2 E (02/59) Ku_ASTRA 2A.28.2D 028.2 E (03/59) Ku_ASTRA 1E.1G.3A 023.5 E (04/59) Ku_NILESAT 101, 10 007.0 W (05/59) Ku_EUTELSAT W3A 007.0 E (06/59) Ku_EUTELSAT W1 010.0 E (07/59) Ku_BADR-2.3.4/EURO 026.0 E (08/59) Ku_EUTELSAT SESAT 036.0 E (09/59) Ku_EUTELSAT W2 016.0 E (10/59) Ku_EXPRESS AMI 040.0 E Delete Satellite Add Satellite Select OK Return

Highlight the satellite to edit and press ENTER. Select the field to change and the ◀/▶ buttons to change the settings.

Satellite Satellite Name ASTRA IN1KR... Orbit Position 019.2 E LNB Type Universal D5EqC1.0 LNB 1 D5EqC11 OFF Tone 22KHz AUTO TransPonder Unicable Setting Off Motor Off Band Ku Input number Select Return

Picture Menu

Press MENU button to display the main menu.

Press ◀/▶ button to select PICTURE in the main menu.

Picture Mode Contrast Brightness Saturation Tint Sharpness Color Temperature Aspect Ratio Noise Reduction Standard 50 50 50 50 Normal 16:9 Middle

1. Press ▼/▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press ENTER button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Picture Mode

Press ▼/▲ button to select Picture Mode, then press ENTER button to enter sub-menu.

Press ◀/▶ to cycle through the modes Standard, Dynamic, Mild and User.

Note: You can change the value of contrast, brightness, saturation, tint and sharpness manually when set to Standard mode.

Contrast/Brightness/Saturation/Sharpness/Tint

Press ▼/▲ Button to select option, then press ◀/▶ button to adjust.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Saturation Adjust the saturation of the colour based on your own like.

Sharpness Adjust the peaking in the detail of the picture.

Tint (NTSC only) Use in compensating color changed with the transmission in the NTSC code.

TIP: In viewing mode you can press PMODE button to cycle through the picture modes quickly.

Color Temp

Change the overall color cast of the picture.

Press ▼/▲ button to select Colour Temperature, then ◀/▶ to cycle through the options:

Normal No adjustment

Cold Increase the blue tone for the white.

Warm Increase the red color for the white.

Aspect Ratio

Manually change the aspect ratio of the picture

Press ▼/▲ button to select Aspect Ratio, then ◀/▶ to cycle through the options:

16:9 (default), Zoom1, Zoom2, Auto, 4:3

Noise Reduction

To filter out and reduce image noise and improve picture quality.

Press ▼/▲ button to select Noise Reduction, then ◀/▶ to cycle through the options:

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise (default).

High Detect and reduce enhanced video noise.

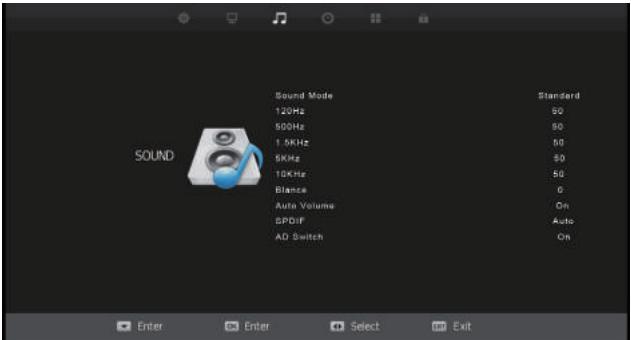

Sound Menu

Press MENU button to display the main menu.

Press ◀/▶ button to select SOUND in the main menu.

Sound Sound Mode 120Hz 500Hz 1.5KHz 5KHz 10KHz Blance Auto Volume SPDIF AD Switch Standard 50 50 50 50 0 On Auto On

1. Press ▼/▲ button to select the option that you want to adjust in the SOUND menu.
2. Press ENTER button to adjust.
3. After finishing your adjustment, Press ENTER button to save and return to the previous menu.

Sound Mode

Press ▼/▲ button to select Sound Mode, then ◀/▶ to cycle through the options:

Standard Produces a balanced sound in all environments.

Music Preserves the original sound. Good for musical program.

Movie Enhances treble and bass for a rich sound experience.

Sports Enhances vocals for sports.

User Select to customise sound settings.

Balance

Press ▼/▲ button to select option, Press ◀/▶ button to adjust.

Auto Volume level

This reduces the difference between channel and programme volumes automatically.

Press ▼/▲ button to select Auto Volume Level, then press ◀/▶ button to select On or Off.

SPDIF Mode

Press ▼/▲ button to select SPDIF Mode, then press ◀/▶ button to select Off/PCM/Auto.

AD Switch (Audio Description)

Press ▼/▲ button to select AD Switch, then press ◀/▶ button to select On or Off.

AD Volume (Audio Description Volume)

When AD Switch is On, press ▼/▲ button to select AD Volume, then press ◀/▶ button to adjust volume of audio description.

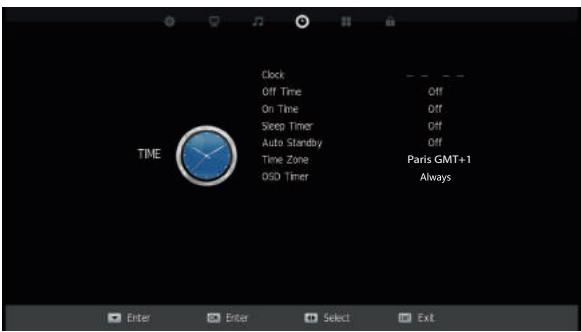

Time Menu

Press MENU button to display the main menu.

Press ◀/▶ button to select TIME in the main menu.

Clock Off Time On Time Sleep Timer Auto Standby Time Zone 0SD Timer Paris GMT+1 Always

Clock

Press ▼/▲ button to select Clock and then press ENTER to open the submenu.

Press ▼/▲ button to select each entry, then ◀/▶ to adjust the date, month, year, hour and minute.

Off Time

The TV will automatically enter standby mode at this time.

Press ▼/▲ button to select Off Time and then press ENTER to open the submenu.

Press ▼/▲ button to select Off Time and then ◀/▶ to cycle through the options: Once, Every Day, Mon.\~Fri., Mon.\~Sat., Sat.\~Sun., Sunday.

Press ▼/▲ button to select Hour, then ◀/▶ to adjust the hours.

Press ▼/▲ button to select Minute, then ◀/▶ to adjust the minutes.

On Time

The TV will automatically turn on from standby mode at this time.

Press ▼/▲ button to select Off Time and then press ENTER to open the submenu.

Press ▼/▲ button to select Off Time and then ◀/▶ to cycle through the options: Once, Every Day, Mon.\~Fri., Mon.\~Sat., Sat.\~Sun., Sunday.

Press ▼/▲ button to select Hour, then ◀/▶ to adjust the hours.

Press ▼/▲ button to select Minute, then ◀/▶ to adjust the minutes.

Press ▼/▲ button to select the source, then ◀/▶ to choose the source to turn on.

Press ▼/▲ button to select Channel, then ◀/▶ to select the channel to tune to.

Press ▼/▲ button to select Volume, then ◀/▶ to set the volume used when the TV is turned on.

Sleep Timer

Press ▼/▲ button to select Sleep Timer, then ◀/▶ to cycle through the options:

The TV will turn off after the set time has passed.

Auto Standby

Press ▼/▲ button to select Auto Standby, then ◀/▶ to cycle through the options: Off, 3 H, 4 H, 5 H.

The TV will automatically turn off after the preset time if no remote control buttons are pressed. Pressing a button will reset the timer.

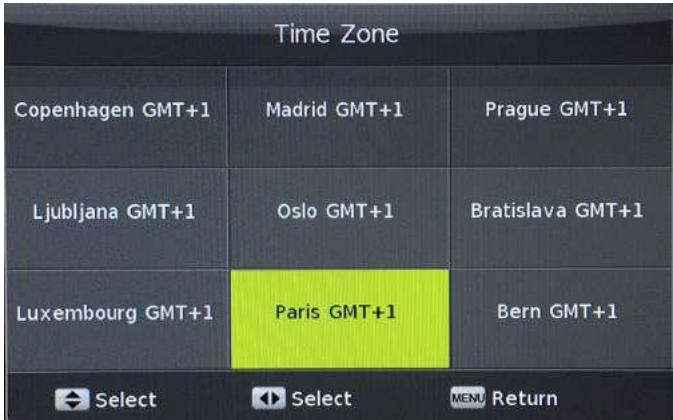

Time Zone

Press ▼/▲/◄/► button to select time zone and then Menu to return to the Time menu.

Time Zone Copenhagen GMT+1 Madrid GMT+1 Prague GMT+1 Ljubljana GMT+1 Oslo GMT+1 Bratislava GMT+1 Luxembourg GMT+1 Paris GMT+1 Bern GMT+1 Select Select MENU Return

OSD Timer

Press ▼/▲ button to select OSD Timer, then ◀/▶ to cycle through the options: 5, 10, 15, 20, 25, 30, Always.

This controls how long the OSD (On Screen Displays) menus will stay on screen after a button is pressed. If set to Always, the OSD will remain on screen until you press the Exit button.

Option Menu

Press MENU button to display the main menu.

Press ◀/▶ button to select SETUP in the main menu.

OPTION OSD Language TT Language Audio Language Subtitle Language Hearing Impaired PVR File System Reset HDMI CEC First Time Installation Home Mode English West English English off Max Brightness Enter Enter Select Exit

OSD Language

Select a language for the OSD (On Screen Display) menus. The default language is English.

Press ▼/▲ button to select OSD Language and then ENTER to open the submenu.

Press ▼/▲/◄/► button to select the language and then Menu to return to the Option menu.

OSD Language English Slovenščina Cpncki Hrvatski Select Select MENU Return

TT Language

Press ▼/▲ button to select TT Language, then ◀/▶ to cycle through the options: West, East, Russian, Arabic, Persian.

Audio Language

Press ▼/▲ button to select Audio Language, then press ENTER button to enter the sub-menu.

Press ▼/▲/◄/► buttons to select the Audio Language.

Press Menu to return to the Option menu.

Audio Language First Magyar Polski Românește Nederlands Português Slovenščina Norge Русский Српски Enter Adjust Return

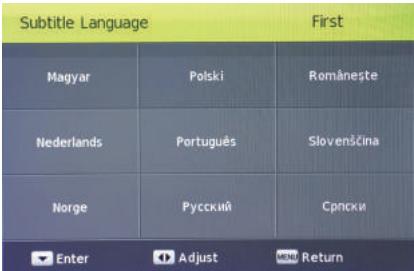

Subtitle Language

Press ▼/▲ button to select Subtitle Language, then press ENTER button to enter the sub-menu.

Press ▼/▲/◄/► buttons to select the Subtitle Language.

Press Menu to return to the Option menu.

Subtitle Language First Magyar Polski Românește Nederlands Português Slovenščina Norge Русский Српски Enter Adjust Return

Hearing Impaired

Press ▼/▲ button to select Hearing Impaired, then press ◀/▶ to select On or Off.

PVR File System

Settings for the Personal Video Recorder (PVR) function. A USB device (USB stick/thumb drive or hard drive must be connected to the TV, maximum size 1TB formatted in FAT32 or NTFS).

Press ▼/▲ button to select PVR File System, then press ENTER button to enter sub-menu.

If you have more than one USB device connected, press ENTER to select the disk.

Press ▼/▲ button to select Check PVR File System, then press ENTER button to enter.

This will check the USB format, speed and size.

Select Disk Check PVR File System USB Disk Format Time Shift Size Speed Free Record Limit 6 Hr. Select Return

Format

Press ▼/▲ button to select Format, then press ENTER button to enter sub-menu.

This will show you the maximum recording time for SD and HD recordings and allow you to format (wipe clean) the device.

CAUTION: Formatting the device will permanently delete ALL files from the device not just TV recordings.

Time Shift Size

The Time Shift Size sets how much disk space will be allowed to be used for time shift recordings, ie. how long you can pause or rewind a live recording for.

Press ▼/▲ button to select Time Shift Size, then press ENTER button to enter sub-menu.

Press the ◀/▶ buttons to adjust the size between:

0 GB Time shift is disabled

512 MB SD recording time of 14 min, HD recording time of 4 Min

1 GB SD recording time of 28 min, HD recording time of 8 Min

Free Record Limit

Press ▼/▲ button to select Free Record Limit, then press the ◀/▶ buttons to adjust the time for manual recording between 1 and 6 hours.

Reset

This will reset the TV to the factory defaults.

Press ▼/▲ button to select Reset, then press ENTER button to enter sub-menu.

Press t to confirm you want to reset or u to cancel.

HDMI CEC

Press ▼/▲ button to select HDMI CEC, then press ENTER button to enter the sub-menu.

HDMI CEC HDMI CEC On HDMI ARC Off Auto Standby On Auto TV on On Device control On Device List Select Adjust NEW Return

HDMI CEC Press ◀/▶ button to turn the CEC Control on or off.

HDMI ARC Press ◀/▶ button to turn the Audio Receiver Control on or off.

Auto Standby Press ◀/▶ button to turn the Device Auto Standby on or off.

Auto TV On Press ◀/▶ button to turn the Auto TV Power On on or off.

Device control Press ◀/▶ button to turn the Device control on or off.

Device List Press ENTER button to show list of device.

First Time Installation

This allows you to restart the first time installation process.

Press ▼/▲ button to select First time installation, then press ENTER button to start.

Blue Screen

When turned on, the screen will be blue if there is no signal, if turned off, the screen will be black. Press ▼/▲ button to select Blue Screen, then press the ◀/▶ buttons to select On or Off.

Lock Menu

Press MENU button to display the main menu.

Press ◀/▶ button to select Lock in the main menu.

Lock System Set Password Block Program Parental Guidance Hotel Mode OFF OFF LOCK Enter Enter Select Exit

1. Press ▼/▲ button to select the option that you want to adjust in the LOCK SYSTEM menu.
2. Press ENTER/◄/► button to adjust.
3. After finishing your adjustment, press MENU button to return back to the previous menu.

Lock System

Please enter password Clear Cancel

Press ▼/▲ button to select Lock System, then press ENTER button to make the remaining options valid.

The default password is 0000.

Set Password

Please enter old password Please enter new password Confirm new password Clear Cancel >

Press ▼/▲ button to select Set Password, then press ENTER button to enter sub-menu to set new password.

Channel Lock

Press ▼/▲ button to select Channel Lock, then press ENTER button to enter sub-menu to select.

Press Green button to lock or unlock the channel.

Parental Guidance

Press ▼/▲ button to select Parental Guidance, then press the ◀/▶ buttons to select the one that is suitable for your children.

Key Lock

Press ▼/▲ button to select Key Lock, then press ◀/▶ button to select Off or On.

When Key Lock is turned on the buttons on the rear of the TV are disabled.

Hotel Menu

Hotel Mode Off Source Lock Default Source Off DTV Channel Type DTV Default Prog Max Volume 100 Default Volume 25 Copy Date To USB Load Date From USB Clear Lock

1. Press ▼/▲ button on the remote control to select hotel mode in the Lock menu.
2. Press ENTER button on the remote control to enter the sub-menu.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Hotel Mode

Press ▼/▲ button to select Hotel Mode, then press ◀/▶ button to select on or off.

Source Lock

Press ▼/▲ button to select Source Lock, then press ENTER button to enter sub-menu to select.

Default Source

Press ▼/▲ button to select Default Source, then press ENTER button to enter sub-menu to select.

Default Prog

Press ▼/▲ button to select Default Prog, then press ◀/▶ button to adjust. It is available when the default source is TV.

Max Volume

Press ▼/▲ button to select Max Volume, then press ◀/▶ button to adjust.

Default Volume

Press ▼/▲ button to select Default Volume, then press ◀/▶ button to adjust.

Clear Lock

Press ▼/▲ button to select Clear Lock, then press ENTER button to reset the lock settings to default.

EPG

Press EPG button on remote control to enter EPG menu page.

7 Day TV GUIDE No Information 1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick Record Remind Prev Day Next Day Move View Drop Details Exit Exit

Press ▼/▲ navigation buttons to select preferred program.

Press ◀/▶ navigation buttons to switch between left column and right column.

When a program is highlighted

Press RED button to record program.

Press GREEN button display information on the highlighted program.

Press YELLOW button to recording schedule.

Press BLUE button to set a reminder.

FAVOURITE LIST

When viewing a channel, press the FAV button on the remote control to enter the Favorite List menu.

Press ▼/▲ navigation buttons to select your preferred channel.

Press ENTER button to confirm the selection.

NOTE:

To add a favourite channel, please refer to the operations of “DTV Mode > Channel > Programme Edit”

Quick select

When viewing an available channel, press ENTER button on remote control to enter Channel List menu page.

Press ▼/▲ navigation buttons to select preferred channel.

Press ◀/▶ navigation buttons to select a channel group.

Press ENTER button to confirm the selection.

Favourite List 1 BBC One Lon 6 BBC Four 12 Film4 79 BBC NEWS HD SMG Page Up/Down 1/1 ENTB Select

1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick 9 Dave 10 Film4 +1 Page Up/Down 1/33) Select sort Find Sort

USB

Note: Before operating Media menu, plug in USB device, then press INPUT button to set the Input Source to Media.

Press ▼/▲ button to select Media in the Source menu, then press ENTER button to enter.

USB 2.0 PHOTO MUSIC MOVE TEXT

Press ◀/▶ button to select the option you want to adjust in the main Media menu, then press ENTER button to enter.

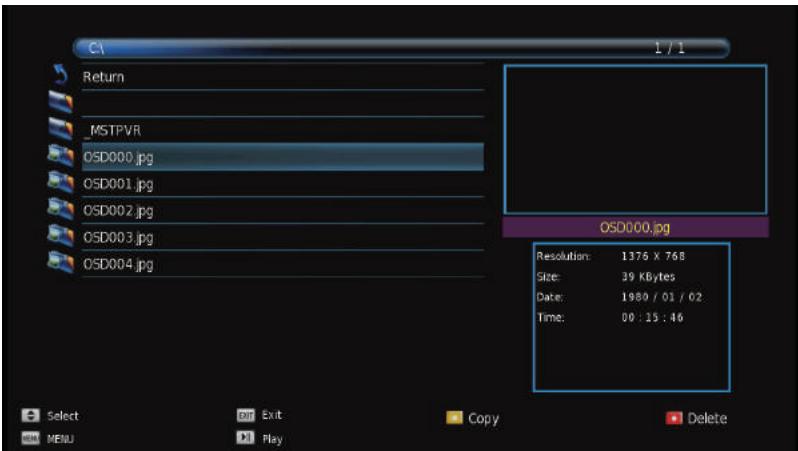

Photo Menu

Press ◀/▶ button to select PHOTO in the main menu, then press ENTER button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

C1 1 / 1 Return MSTPVR OSD000.jpg OSD001.jpg OSD002.jpg OSD003.jpg OSD004.jpg OSD000.jpg Resolution: 1376 x 768 Size: 39 KBytes Date: 1980 / 01 / 02 Time: 00 : 15 : 46 Select Off Exit Copy Delete MENU Play

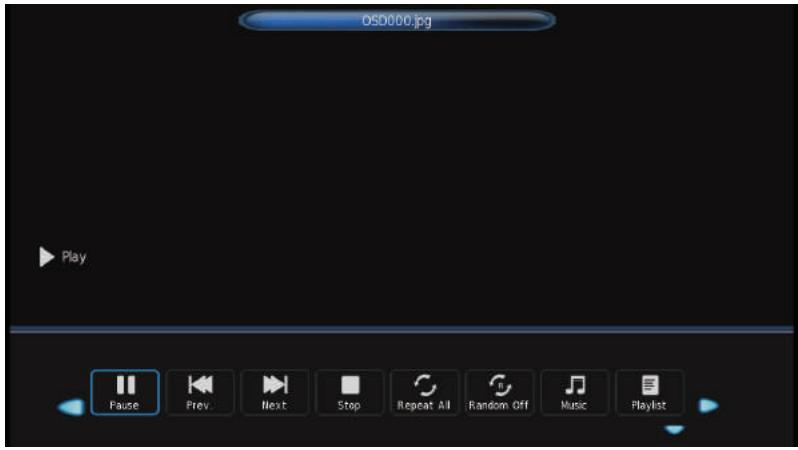

Press ◀/▶ button to select the file you want to watch in the file selecting menu, then press media button to display picture.

When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

OSD000.jpg Play Pause Prev Next Stop Repeat All Random Off Music Playlist

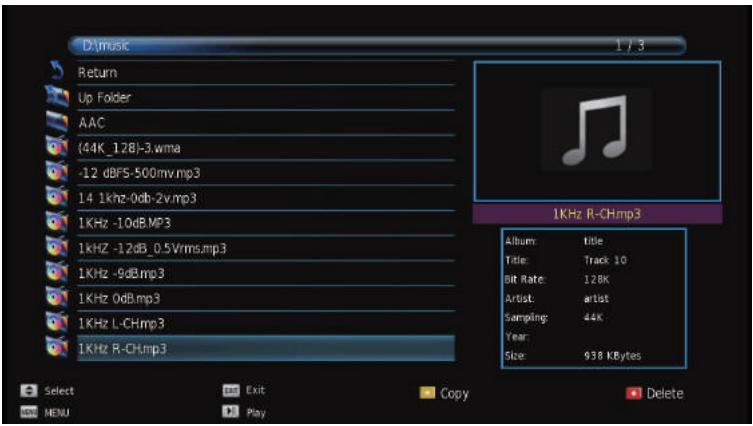

Music Menu

Press ◀/▶ button to select MUSIC in the main menu, then press ENTER button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

D:\music 1 / 3 Return Up Folder AAC (44K_128)-3.wma -12 dBFS-500mv.mp3 14 1khz-0db-2v.mp3 1KHz -10dB.mp3 1kHz -12dB_0.5Vrms.mp3 1KHz -9dB.mp3 1KHz 0dB.mp3 1KHz L-CH.mp3 1KHz R-CH.mp3 1KHz R-CH.mp3 Album: title Title: Track 10 Bit Rate: 12BK Artist: artist Sampling: 44K Year: Size: 938 KBytes Select Exit Copy Delete MENU Play

Press ◀/▶ button to select drive disk you want to watch, then press ENTER button to enter.

Press ◀/▶ button to select return option to the previous menu.

OSD000.jpg Play Pause Prev Next Stop Repeat All Random Off Music Playlist

Movie Menu

Press ◀/▶ button to select MOVIE in the main menu, then press ENTER button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

USB 2.0 PHOTO MUSIC MOVE TEXT

Press ◀/▶ button to select drive disk you want to watch, then press ENTER button to enter.

Press media button to play the selected movie.

Press display button to select menu in the bottom you want to run, then press ENTER button to operate.

Press Exit button to back to the previous menu and exit button to quit the entire menu.

24_(AVC_1440x608_2422K,Var_55_44K_2ch)Ll... 00:00:01 / 00:03:26 Pause FB FE Prev. Next Stop As CharSet RepeatALL

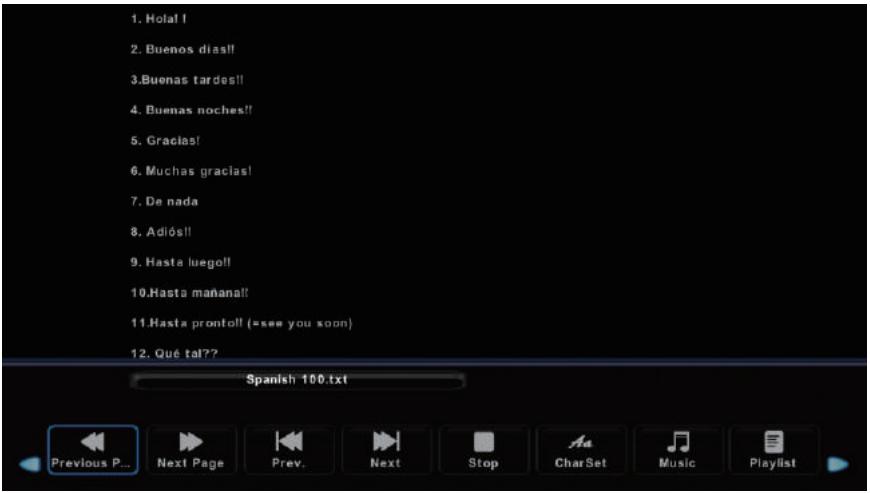

Text Menu

Press ◀/▶ button to select TEXT in the main menu, then press Enter button to enter.

Press Exit button to return to the previous menu and exit menu to quit.

USB 2.0 PHOTO MUSIC MOVIE TEXT

Press ◀/▶ button to select drive disk you want to watch, then press Enter button to enter.

Press ◀/▶ button to select return option to back to the previous menu.

1. Holal! 2. Buenos días!! 3. Buenas tardes!! 4. Buenas noches!! 5. Gracias! 6. Muchas gracias! 7. De nada 8. Adiós!! 9. Hasta luego!! 10. Hasta mañana!! 11. Hasta pronto! (=see you soon) 12. Qué tal?? Spanish: 100.txt Previous P.. Next Page Prev. Next Stop CharSet Music Playlist

1. Assemble the stand

Before attaching/detaching the stand, make sure to turn off the TV.

- Before performing work spread cushioning over the base area to lay the LED TV on. This will prevent it from being damaged.

Stand installation instruction

Troubleshooting

If you have any problem, check the outer measures for each symptom listed below. The following symptoms may have been caused by inappropriate adjustment rather than actual malfunction of the unit. If the trouble persists, contact the Customer Care Centre, see back page for contact details.

Symptoms	Possible solutions
No power	Please check the power cord plugged in and that the power outlet works. Unplug the power cord and plug it in after 60 seconds and restart the TV.
No picture	Please check antenna connection. Station may be experiencing problems, please tune to another station. Please adjust the settings of contrast and brightness.
Good picture but no sound	Please increase the volume. Please check TV is under mute mode, press MUTE button on the remote control. Please check sound settings If external devices are being used, check their volumes are not set too low or turned off. If using AVI or Component inputs, please make sure cables are connected properly and not loose. If using DVI to HDMI cable, a separate audio cable is required. Make sure a headphone jack is not connected.
Good sound but abnormal color or no picture	Please check antenna connection and antenna condition. If using Component input, please check Component connections, incorrect or loose connections may cause colour problems or cause the screen to be blank.
No response to remote control	Batteries of remote control may have exhausted, if necessary, please change the batteries. Clean the remote control lens. The distance between LED TV and remote control should be within 8m, within recommended operating angle and path is free of obstructions.
Colored dots may be present on the screen	Although the LED screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LED screen. This is a structural property of the LED screen and not a malfunction.
Picture is breaking up	Keep the TV away from noisy electrical sources such as cars, hair dryers, welders, and all optional equipment. Electrical atmospheric interference such as local or distant lightning storms may cause picture to break up. When installing optional equipment, leave some space between the optional equipment and the TV. Check the antenna and connection. Keep the antenna away from any power or input/output cables.
After Auto Tuning only some channels are available	Check your area is covered by Digital Video Broadcasts. Try re-tuning or manually tuning missing channels.Check that you are using the correct antenna type - please see pg. 16 'Antenna connection'.
Channel cannot be selected	Check if the channel has been blocked in the main menu settings.
USB not playing	Please check connecting USB cable and power supply is connected. Hard drive has not been formatted. Please make sure USB disk is compatible and the multimedia data formats are supported.
Picture is distorted, macroblock, small block, dots, pixelization, etc	Compression of video contents may cause distortion especially on fast moving pictures such as sports and action movies.
Noise from speaker	Check cable connections, make sure a video cable is not connected to an audio input. Low signal level may cause sound distortion.
TV turns off automatically	Check if the Off Timer or Sleep timer is turned on.
TV turns on automatically	Check if the On Timer is set to On in the Setup menu.
Picture is not shown in full screen	First check if it is caused by the input signal. Then try to adjust Zoom in Function menu.

Picture defects and the reason

Snowy Picture

Snowy picture is usually due to weak signal. Adjust antenna or install an antenna amplifier.

Double Image or Ghosts

Double images are usually caused by reflections from tall buildings. Adjust the direction of the antenna or raise it.

Ghosting may also occur when still pictures are displayed continuously. It may disappear after a few moments.

Radio Wave Interference

Wave patterns are moving on the screen, which are usually caused by nearby radio transmitters or short-wave receiving equipment.

High Temperature Electrothermal Interference

Diagonal or herringbone patterns appear on the screen or part of picture is missing. This is probably caused by high temperature electrothermal equipment in a nearby hospital.

OPERATING MANAGEMENT:

Your product is guaranteed 2 years.

To request support, contact the customer service at 0811 482 202.

You will then be asked the defective part and the original invoice stating the product regulation. We may ask you for photos of your appliance.

FAILURE TO PACKING:

If it appeared, after unpacking the product or device, a vice preventing the use of the product in its expected configuration, contact the customer service within 72 hours worked.

DISCLAIMER OF WARRANTY

DISCLAIMER OF WARRANTY RELATED TO THE ORIGIN OF DAMAGES

The guarantee does not apply in case of accidental physical damage, it does not cover such damage and failures that resulted:

• improper installation (of a bad installation) or a misuse or poor maintenance of the product.
• improper use of the material or not complying with the instructions in the user manual.
  ● lightning, flood, fire, power surge, shock, poor ventilation, a fall, discoloration due to the action of light, burning, humidity, excessive heating without humidifier, or irregular ground or insects.
  ● repairs made and/or working on the hardware and/or opening of it by an unauthorized person by the manufacturer.
  ● maintenance, repair or replacement of parts due to normal usury or failure to maintain.
  ● modification of the construction and original features of the guaranteed product.
  ● corrosion, oxidation, a bad connection nor an external power supply problem.

EXCLUSION OF WARRANTIES RELATING TO THE NATURE OF DAMAGES (INDIRECTS DAMAGES)

The guarantee covers only the right to repair or replace the guaranteed product. Consequently, the indirect damage resulting from the failure or damage not covered by warranty, including:

● Commissioning costs, adjusting, cleaning;
● Damage of any kind resulting from the unavailability of the product guaranteed during the period between deterioration and failure and repair or the replacement of the product guaranteed.

OTHER EXCLUSIONS

• Damage and faults under specific exclusions in the warranty manufacture guaranteed product, as mentioned in the product instructions for use;
  ● The aesthetic damage;
• The products guarantee that the customer is not able to return or those who returned without their accessories.

PIXEL POLICY

- In accordance with the ISO 13406-2 norm, a product is considered defective when the number of dead or lit pixels is over 3.

SUPPORT
Please refer you to the board below to find easily your alter sales number:

COUNTRY		PHONE NUMBER	EMAIL	WEB
FR (only for metropolitan France)		([phone]	[e-mail]	www.mms-support.netwww.polaroid.tech
BEL NL		+352.26.11.00.90	[e-mail]
DE		[phone]	[e-mail]
IT		199 309 314	[e-mail]
ES		+ 349521794 79	[e-mail]
PT		([phone]	[e-mail]
CH		0900 77 88 99	[e-mail]

Declaration of conformity EU:

Market Maker Brand Licensing, hereby declares that this equipment, conforms to the essential requirements and other relevant provisions of Directive 2014/53/UE. The declaration of Conformity can be viewed at the following address:

http://www.mms-support.net/OTA/ECD_MMBL_TVLED32HDPR001.pdf

CE

PLR IP Holdings, LLC, ils licensees and affiliates, fully support all electronic waste initiatives. As responsible stewards of the environment, and to avoid violating established laws, you should properly dispose of this product in compliance with all applicable regulations, directives or other governances in the area where you reside. Please check with local authorities or the retailer where you purchased this product to determine a location where you can appropriately dispose of the product.

THE DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT WASTE PRODUCTS ON THE PART OF FINAL USERS IN THE EUROPEAN UNION

This symbol on the product or on the container indicates that this product cannot be eliminated with the general waste. The user is responsible for eliminating this kind of waste by throwing them away at a "recycling point" specifically for electrical and electronic waste. Selective collection and electrical equipment recycling contribute to preserve natural resources and warrant waste recycling to protect environment and health. In order to receive further information about electrical and electronic waste collecting and recycling, contact your Local Council, the service of household waste or the establishment where the product was acquired.

Simple graphic with a white square and a vertical color bar on the right (no text or symbols)

Instantly recognizable. Instantly reassuring. The Polaroid Classic Border lets you know you've purchased a product that exemplifies the best qualities of our brand and that contributes to our rich heritage of quality and Innovation.

© 2019. All Rights Reserved

Polaroid, Polaroid & Pixel, Polaroid Classic Border Logo and Polaroid Color Spectrum are trademarks of PLR IP Holdings, LLC, used under license. PLR IP Holdings, LLC does not manufacture this product or provide any Manufacturer's Warranty or support.

www.polaroid.tech

Market Maker Brand Licensing - 79/81 Ancienne Route Nationale 7-69570 Dardilly, France

Modern Polaroid TV displaying a vibrant, colorful face with iridescent lighting (no text or symbols on the screen)

GAMME ACCESS 32 SERIE 1000

TVLED32HDPR001

MANUALE UTENTE

Domande ?

Bisogno d'aiuto ?

Technical diagram of a TV rack with labeled components and numbered parts for identification

First Time Installation OSD Language English Country France MENU Return OK OK

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBIRD 13B,13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

Tune Type DTV + ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Enter Adjust VENU Return

Do you want to skip ATV tuning?

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

Sintonizz. manuale ATV

ATV Manual Tuning Storage To 1 Sound System BG Color System PAL Current CH 1 Search Fine-Tune Frequency Unregistered Save NEW Return

Archiviazione su

Programme Edit 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Delete Skip Select Favorite Delete All Return

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBRD 13B.13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

Picture Mode Contrast Brightness Saturation Tint Sharpness Color Temperature Aspect Ratio Noise Reduction Standard 50 50 50 50 Normal 16:9 Middle

OPTION OSD Language TT Language Audio Language Subtitle Language Hearing Impaired PVR File System Reset HDMI CEC First Time Installation Home Mode English West English English off Max Brightness Enter Enter Select Exit

Lingua OSD

HDMI CEC HDMI CEC On HDMI ARC Off Auto Standby On Auto TV on On Device control On Device List Select Adjust Next Return

HDMI CEC

ARC HDMI

Spegn. auto

Lock System Set Password Block Program Parental Guidance Hotel Mode OFF OFF LOCK Enter Enter Select Exit

Please enter password Clear Cancel

Please enter old password Please enter new password Confirm new password Clear Cancel >

Hotel Mode Off Source Lock Default Source Off DTV Channel Type DTV Default Prog Max Volume 100 Default Volume 25 Copy Date To USB Load Date From USB Clear Lock

7 Day TV GUIDE No Information 1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick Record Remind Prev Day Next Day Move View Drop Details Exit Exit

1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick 9 Dave 10 Film4 +1 Page Up/Down 1/33 Select Find Sort

USB

24_(AVC_1440x608_2422K,Var_55_44K_2ch)L... 00:00:01 / 00:03:26 Pause FB FF Prev. Next Stop As CharSet RepeatALL

Menu Testo

Simple graphic with a white square and a vertical color bar on the right (no text or symbols)

Modern Polaroid TV displaying a vibrant, colorful face with iridescent lighting (no text or symbols on the screen)

GAMME ACCESS 32 SERIE 1000

TVLED32HDPR001

BEDIENUNGSANLEITUNG

Fragen ?

Technical diagram of a TV rack with labeled components and numbered parts for identification

First Time Installation OSD Language English Country France MENU Return OK OK

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBIRD 13B,13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

Tune Type DTV + ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Enter Adjust VENU Return

Menüfunktionen

Do you want to skip ATV tuning?

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

ATV Manuelle Suche

ATV Manual Tuning Storage To 1 Sound System BG Color System PAL Current CH 1 Search Fine-Tune Frequency Unregistered Save MENU Return

Speichern unter

Programme Edit 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Delete Skip Select Favorite Delete All Return

Auto Tuning DVB-S Manual Tuning ATV Manual Tuning Programme Edit Satellite Edit Signal Information CI Information Software Update(USB) CHANNEL Enter Enter Select Exit

Automatische Suche

Picture Mode Contrast Brightness Saturation Tint Sharpness Color Temperature Aspect Ratio Noise Reduction Standard 50 50 50 50 Normal 16:9 Middle

OPTION OSD Language TT Language Audio Language Subtitle Language Hearing Impaired PVR File System Reset HDMI CEC First Time Installation Home Mode English West English English off Max Brightness Enter Enter Select Exit

OSD Sprache

Press ◀ to confirm you want to reset or ▶ to cancel.

HDMI CEC

Lock System Set Password Block Program Parental Guidance Hotel Mode Off Off LOCK

Please enter password Clear Cancel >

Please enter old password Please enter new password Confirm new password Clear Cancel>

Hotel Mode Off Source Lock Default Source Off DTV Channel Type DTV Default Prog Max Volume 100 Default Volume 25 Copy Date To USB Load Date From USB Clear Lock

7 Day TV GUIDE No Information 1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick Record Remind Prev Day Next Day Move View Drop Details Exit Exit

1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick 9 Dave 10 Film4 +1 Page Up/Down 1/33 Select Find Sort

USB

24_(AVC_1440x608_2422K.Vor_55_44K_2ch)Ll... 00:00:01 / 00:03:26 Pause FB FE Prev. Next Stop As CharSet RepeatALL

Textmenü

Simple graphic with a white square and a vertical color bar on the right (no text or symbols)

Market Maker Brand Licensing, 79/81 Ancienne Route Nationale 7, 69570 Dardilly, France

Modern Polaroid TV displaying a vibrant, colorful face with iridescent lighting (no text or symbols on the screen)

GAMME ACCESS 32 SERIE 1000

TVLED32HDPR001

MANUAL DEL USUARIO

Technical diagram of a TV rack with labeled components and numbered parts for identification

First Time Installation OSD Language English Country France MENU Return OK OK

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBIRD 13B,13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

Tune Type DTV + ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Enter Adjust VENU Return

Do you want to skip ATV tuning?

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

Programme Edit 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Delete Skip Select Favorite Delete All Return

Auto Tuning DVB-S Manual Tuning ATV Manual Tuning Programme Edit Satellite Edit Signal Information CI Information Software Update(USB) CHANNEL Enter Enter Select Exit

Picture Mode Contrast Brightness Saturation Tint Sharpness Color Temperature Aspect Ratio Noise Reduction Standard 50 50 50 50 Normal 16:9 Middle

OPTION OSD Language TT Language Audio Language Subtitle Language Hearing Impaired PVR File System Reset HDMI CEC First Time Installation Home Mode English West English English Off Max Brightness Enter Enter Select Exit

Idioma del menú

Lock System Set Password Block Program Parental Guidance Hotel Mode OFF OFF LOCK Enter Enter Select Exit

Please enter password Clear Cancel

Please enter old password Please enter new password Confirm new password Clear Cancel >

Hotel Mode Off Source Lock Default Source Off DTV Channel Type DTV Default Prog Max Volume 100 Default Volume 25 Copy Date To USB Load Date From USB Clear Lock

7 Day TV GUIDE No Information 1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick Record Remind Prev Day Next Day Move View Drop Details Exit Exit

24_(AVC_1440x608_2422K,Var_55_44K_2ch)L... 00:00:01 / 00:03:26 Pause FB FF Prev. Next Stop As CharSet RepeatALL

Menú de texto

Simple graphic with a white square and a vertical color bar on the right (no text or symbols)

Modern Polaroid TV displaying a vibrant, colorful face with iridescent lighting (no text or symbols on the screen)

GAMME ACCESS 32 SERIE 1000

TVLED32HDPR001

GEBRUIKSHANDLEIDING

Vragen?

Wat hulp nodig?

Technical diagram of a TV rack with labeled components and numbered parts for identification

First Time Installation OSD Language English Country France MENU Return OK OK

Satellite AutoTuning Setting Satellite (1/59)Ku_HOTBIRD 13B,13C.. Channel Type All Service Type All Scan Mode AUTO Unicable Off Search Select Adjust Return

Tune Type DTV + ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Enter Adjust VENU Return

Menubediening

Do you want to skip ATV tuning?

Channel Tuning TV : 1 Programme DTV : 4 Programme Radio : 0 Programme Data : 0 Programme 54 % VHF CH 6 (DTV) Please press MENU key to exit

ATV handmatig afstemmen

ATV Manual Tuning Storage To 1 Sound System BG Color System PAL Current CH 1 Search Fine-Tune Frequency Unregistered Save MENU Return

Opslaan naar

Programme Edit 1 ONE HD 2 TEN Digital 3 ONE HD 4 ONE Digital Delete Skip Select Favorite Delete All Return

Picture Mode Contrast Brightness Saturation Tint Sharpness Color Temperature Aspect Ratio Noise Reduction Standard 50 50 50 50 Normal 16:9 Middle

OPTION OSD Language TT Language Audio Language Subtitle Language Hearing Impaired PVR File System Reset HDMI CEC First Time Installation Home Mode English West English English off Max Brightness Enter Enter Select Exit

OSD-taal

Press ◀ to confirm you want to reset or ▶ to cancel.

HDMI CEC

HDMI CEC HDMI CEC On HDMI ARC Off Auto Standby On Auto TV on On Device control On Device List Select Adjust Next Return

HDMI CEC

Lock System Set Password Block Program Parental Guidance Hotel Mode OFF OFF LOCK Enter Enter Select Exit

Please enter password Clear Cancel

Please enter old password Please enter new password Confirm new password Clear Cancel >

Hotel Mode Off Source Lock Default Source Off DTV Channel Type DTV Default Prog Max Volume 100 Default Volume 25 Copy Date To USB Load Date From USB Clear Lock

7 Day TV GUIDE No Information 1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick Record Remind Prev Day Next Day Move View Repairs Details Exit Exit

1 BBC One Lon 2 BBC Two Eng 3 ITV 4 Channel 4 5 Channel 5 6 BBC Four 7 ITV3 8 Pick 9 Dave 10 Film4 +1 Page Up/Down 1(3) Select Find Sort

USB

24_(AVC_1440x608_2422K.Vor_55_44K_2ch)Ll... 00:00:01 / 00:03:26 Pause FB FE Prev. Next Stop As CharSet RepeatALL

Tekstmenu

Simple graphic with a white square and a vertical color bar on the right (no text or symbols)
