USER MANUAL PARTY POWER412 BOOST

SPEAKER SYSTEM WITH BLUETOOTH, USB, SD & LED ILLUMINATION

SYSTEME DE SONORISATION AVEC BLUETOOTH, USB, SD & ANIMATION LUMINEUSE

LAUTSPRECHERSYSTEM MIT BLUETOOTH, USB, SD & LED LEUCHTFLÄCHE

LUIDSPREKERSYSTEEM MET BLUETOOTH, USB, SD & LED PANEL

SISTEMA DE SONORIZACION CON BLUETOOTH, USB, SD Y ANIMACION LUMINOSA

SISTEM DE SONORIZARE CU BLUETOOTH, USB, SD & ANIMATIE LUMINOASA

PARTY-BOX412

GB - INSTRUCTION MANUAL

F - MODE D'EMPLOI

Imported from China by LOTRONIC SA – Av. Z. Gramme 9 – B-1480 Saintes

Please read the manual carefully and keep it for future reference.

The lightning flash with arrowhead symbol, within an equilateral Triangle, is intended to alert the user to the presence of not insulated dangerous voltages within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:

1. Do not place any recipients filled with liquids, such as glasses or vases, on top of or directly next to the appliance. They could fall over, causing water to enter the appliance. Never pour out liquids over the appliance. Do not place small objects, such as coins or paper clips, on the appliance since they could fall inside the appliance and cause fire or a shock hazard! If any liquid or objects enter the appliance, pull immediately the mains plug out of the socket and contact a specialist.
2. Only pull the mains plug out of the socket by the intended gripping surface. Do not pull it by the cable.
3. Never plug the mains plug in or out with damp or wet hands
4. Electrical appliances must be kept out of the reach of children. Be particularly careful if children are present. Children are not aware of the hazards involved in handing electrical appliances improperly. Children could attempt to poke objects into the appliance. There is a life-threatening danger of electrocution.
5. Never place the appliance on an unstable or mobile surface. Persons could be injured or the appliance damaged by it falling down.
6. All persons involved in operating, installing and servicing the appliance and putting it into service must be trained and qualified accordingly and observe these operating instructions.
7. Defective mains cables may only be replaced by specialists. Danger of shock hazard!
8. If you are not sure about the correct connection or if questions arise which are not answered by the operating instructions, please do not hesitate to contact support or a specialist of your choice. Consult a specialist if you are in doubt about the operating principle or the safety of the product.
9. Please unplug the adaptor and switch the unit off if you don't use it for a long time, to avoid damage due to voltage surges.

Use of the Remote Control

Please operate the remote control within a distance of 6m and 30^ between the remote and the appliance.

Aim the remote at the sensor. Remove all obstacles between the remote and the sensor.

The remote control might not work properly if the sensor is exposed to strong sunshine.

If the remote control doesn't work properly, please check the batteries.

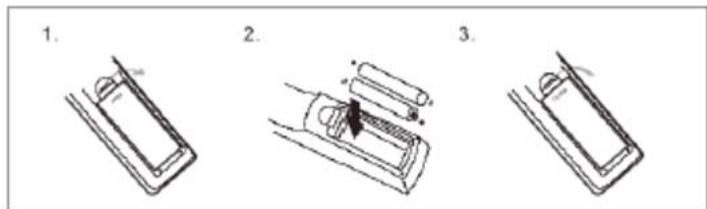

Installing the Batteries

Remove the battery cover from the back of the remote control as shown and insert 2x AAA size batteries ensuring correct polarity

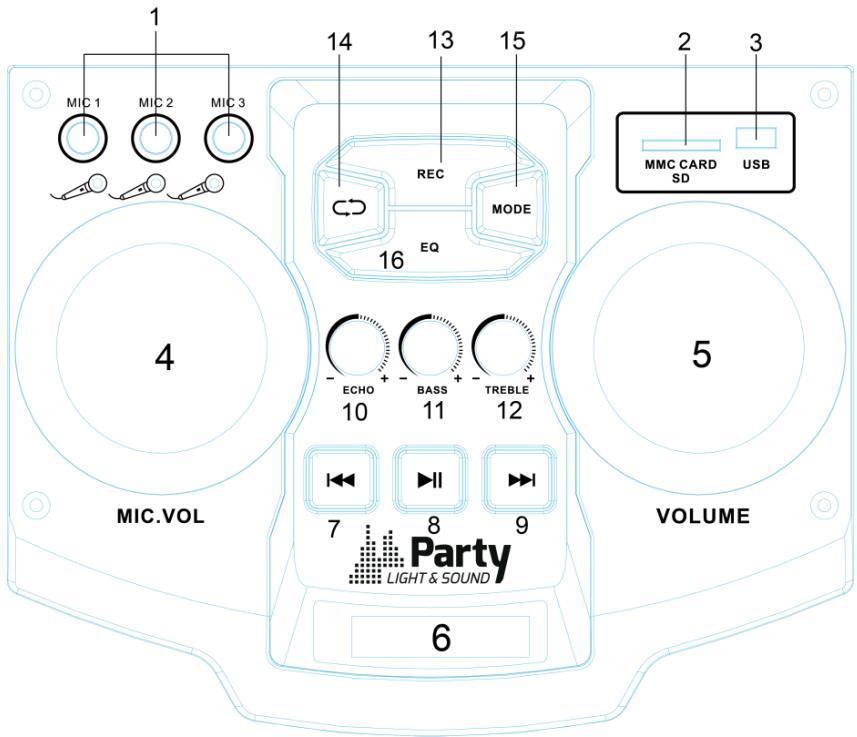

Description of the top panel

1. 3 Inputs for wired mics (not supplied)
2. SD card input
3. USB stick input
4. Microphone volume control
5. Master volume control
6. LED display
7. In USB/SD/Bluetooth mode: press to go back to the previous track.
8. Play/pause in USB/SD/Bluetooth mode.
9. In USB/SD/Bluetooth mode: press to go to the next track.
10. Echo control for the microphone
11. BASS control: Adjustment of low frequencies
12. TREBLE control: Adjustment of high frequencies
13. REC button: Press this button to record the sound of the wired or wireless mic on the USB or SD.
14. REPEAT (in USB/SD mode): Press to toggle between repeating the current track or repeating all tracks.
15. MODE: Press this button to switch between the various inputs (LINE, USB, SD, Bluetooth)
16. Equalizer (in USB/SD mode): Press to cycle through various styles (rock, pop, etc.)

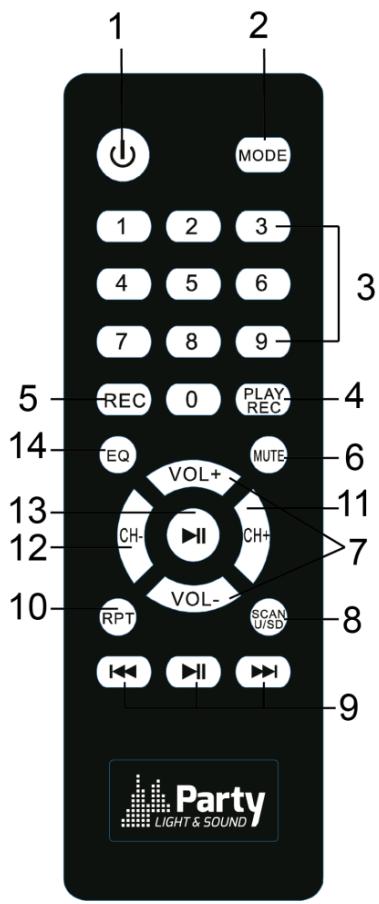

Description of the remote control

1. STAND BY
2. MODE: Press this button to toggle between the various inputs: LINE, USB/SD, Bluetooth
3. Track NO.
4. PLAY REC.: Recording track playing
5. REC: Press to record when Microphone input.
6. MUTE: Press this button to mute
7. VOL-/VOL+: Press this button to reduce or increase the volume
8. SCAN U/SD: toggle between USB and SD
9. PLAY/PAUSE (in USB/SD/BT mode)

Previous Track in USB/SD/BT mode: Select previous channel,

In USB/SD mode: long press to fast rewind

Next Track in USB/SD/BT mode: Select next channel,

in USB/SD mode: long press to fast forward

1. RPT: Press this button to repeat USB/SD track
2. CH + / : no function
3. CH-:/ no function
4. PLAY/PAUSE: Press this button for play/pause in USB/TF Bluetooth Mode
5. EQ Audio Converting on Classical/Rock/Vocal/POP in USB/SD mode

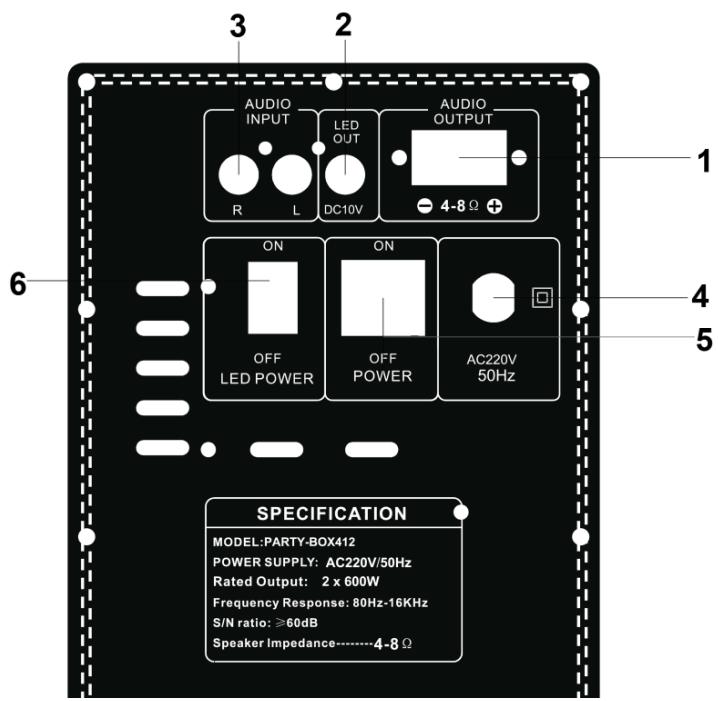

Description of the back panel

1. Speaker output connector to the passive box: Connect the RCA cable from the passive box to this RCA input
2. Light output connector to the passive box: Connect the DC plug from the passive box to this connector
3. LINE input via RCA connectors
4. AC input connector
5. ON/OFF switch of the system
6. Switches the LED on the woofer on /off

CONNECTION OF A WIRED MICROPHONE (not included)

Connect the microphone to one of the MIC sockets and switch it on.

Note: If you are playing music from any other input, connecting the microphone will not mute the sound output.

KARAOKE Function

This feature is available with any input. Play a track through LINE/USB/SD/Bluetooth, connect a microphone and sing along.

Built-in REC function

1. Plug a microphone into one of the MIC inputs.
2. Insert a USB/SD card into the corresponding port. Press MODE button and select USB/SD mode.
3. If the USB/SD card is plugged into the speaker for the first time, the system will automatically create a folder named 'JL_REC to save the recorded files.
4. When you are ready to record, press REC button to record the sound of the microphone.

USB/SD Operation

Keep the speaker away from high temperatures, strong magnetic fields and any equipment that could generate interference. If the speaker stops working, switch it off and on again, or unplug USB/SD/MMC card and re-plug it. The speaker should be back to normal status.

The maximum size of USB/SD device that can be connected is 32 GB.

Supported music formats: MP3, WMA

BLUETOOTH OPERATION

1. Turn on the unit and press the MODE button on unit to select the Bluetooth function.
2. Activate the Bluetooth feature on the external device to be paired.
3. Initiate a search for devices. The device shows up as "PARTY-BOX412".
4. Press the to start playing and the buttons and for the selection of songs.

Trouble shooting

If a problem occurs, follow the steps in the table below. If problem still can't be solved, please contact your retailer.

Problem	Possible cause	Solution
No sound when power on	1. No input source 2. Volume down	1. Connect an LINE signal 2. Adjust volume
No sound from the microphone	1. Bad mic connection 2. Mic not switched on 3. Mic volume down	1. Plug in the mic properly 2. Switch mic on 3. Increase mic volume
No sound after inserting USB/SD card	1. Incorrect file format 2. Bad connection of USB/SD card	1. File format should be MP3 2. Plug in USB/SD card properly
If Speaker makes loud noises	1. Microphone switched on but may be too close to the speaker 2. Microphone switched on but is not being used. 3. Microphone volume may be too loud 4. Mobile phone is being used too close to the speaker 5. Other wireless equipment may be placed very close to the speaker.	1. Keep the microphone 2m away from the speaker 2. Turn off microphone if not in use. 3. Adjust microphone volume to lower mode 4. Keep mobile away from the speaker whilst attending a call. 5. Keep the speaker away from other wireless equipment

Maximum radio-frequency power transmitted: 2.89dBmW
Bluetooth Frequency range: 2402-2480MHz

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.

EU Declaration of Conformity

We, LOTRONIC SA

Avenue Zénobe Gramme, 9

1480 SAINTES

Belgium

+32.2.390.91.91

certify and declare under our sole responsibility that the following product:

Trade name: PARTY LIGHT & SOUND

Product name: SOUND SYSTEM WITH USB, SD & BLUETOOTH 2 x 12" /30cm

Type or model: PARTY-BOX412

conforms with the essential requirements of:

RED directive 2014/53/EU – LVD directive 2014/35/EU – EMC directive 2014/30/EU – ROHS directive 2011/65/EU

based on the following standards applied:

EN 60065:2014

EN 62479 :2010

EN 301 489-1 V2.2.0

EN 301 489-17 V3.2.0

EN 300 328 V2.1.1

EN 55032 :2015

EN 61000-3-2 :2014

EN 61000-3-3 :2013

EN 55035 :2017

EN 50564 :2011

Place and date of issue: Saintes (Belgium), on 03/07/2018
