Device TypeConnected Ergometer Elliptical Bike
BrandCARE FITNESS
ReferenceCE 5484
Assembled Dimensions (L x W x H)135 x 65 x 161 cm
Net Weight42 kg
Maximum User Capacity130 kg
Inertia Mass18 kg
Stride Length36 cm
Resistance TypeSilent Motorized Aeromagnetic
Resistance Levels16
Number of Programs23
Program Details12 preprogrammed, 1 manual, 4 custom, 5 HRC, 1 Body Fat, 1 Recovery
ScreenBacklit LCD
Console FunctionsTime, Distance, Speed, Calories, BPM, RPM, Watts, Memory, BFS (body mass)
Heart Rate MeasurementHand pulse sensors
ConnectivityBluetooth - KINOMAP application compatible
StandardsISO 20957 / CE EN957
Frame Warranty5 years
Parts Warranty2 years

Frequently Asked Questions - CE 5484 - ergomètre connecté CARE FITNESS

How to connect the CE 5484 elliptical bike to a smartphone app?
The CE 5484 is Bluetooth compatible with the KINOMAP app. Download the KINOMAP app on your smartphone (iOS or Android), create an account, then activate your phone's Bluetooth and select your device in the app. This gives you access to interactive coaching videos and virtual courses.
What is the stride length of the CE 5484?
The stride length is 36 cm. This amplitude allows for a natural movement suitable for most body types, ideal for a complete cardio workout without joint impact.
How many resistance levels does the CE 5484 offer?
The CE 5484 has 16 resistance levels with aeromagnetic motorization. The adjustment is quiet and gradual, allowing the intensity to be adapted for both beginners and experienced users.
What is the maximum weight supported by the CE 5484?
The CE 5484 supports a maximum user weight of 130 kg. Make sure your weight does not exceed this limit to ensure the safety and durability of the device.
How to measure my heart rate during training?
The CE 5484 is equipped with touch pulse sensors integrated into the handles. Place your palms on the sensors for a few seconds to read your heart rate in real-time on the LCD screen. An analog chest strap (compatible) can be used for more precise measurement, but it is not provided.
What training programs are available on the CE 5484?
The CE 5484 offers 23 programs in total: 12 pre-programmed profiles, 1 manual mode, 4 custom programs, 5 HRC programs (heart rate control), 1 Body Fat program, and 1 Recovery cycle. These programs cater to all goals: weight loss, endurance, recovery.
What data does the CE 5484 console display?
The LCD console of the CE 5484 displays 10 functions: time, distance, speed, calories, heart rate (BPM), RPM (revolutions per minute), watts, user memory, body fat rate (BFS), and a program indicator. The screen is backlit for easy reading.
Is the CE 5484 elliptical bike quiet?
Yes, the CE 5484 uses an aeromagnetic resistance system that ensures very quiet operation. This type of braking without direct mechanical contact limits vibrations and noise, allowing it to be used in an apartment without disturbing others.
What is the warranty of the CE 5484?
The CE 5484 has a 5-year warranty on the frame and 2 years on wear parts. In case of failure, contact the CARE FITNESS after-sales service while keeping your proof of purchase. The device complies with ISO 20957 and CE/EN957 standards.
How to move and store the CE 5484?
The CE 5484 is equipped with transport wheels integrated into the base. To move it, slightly tilt the device forward and roll it. Its weight of 42 kg requires the help of a second person for significant maneuvers.
How to stabilize the CE 5484 on an uneven floor?
The CE 5484 has adjustable level stabilizers on the structure's feet. Screw or unscrew the stabilizing pads until the device is perfectly level and no longer tilts. Preferably place it on a flat, hard surface, or use a protective mat.
How to maintain the CE 5484 elliptical bike?
After each use, wipe the handles, frame, and pedals with a slightly damp cloth. Regularly check the tightness of the bolts. Avoid abrasive products on the epoxy steel structure. The aeromagnetic system does not require special lubrication.

User questions about CE 5484 - ergomètre connecté CARE FITNESS

2 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

Is it possible to disassemble the CARE FITNESS CE 5484 elliptical bike and how to proceed?
Frequently Asked Questions - 01/04/2026
Response Notice-Facile

Yes, it is possible to disassemble the CARE FITNESS CE 5484 elliptical bike. This process can be useful for transport, storage, or maintenance of the device.

Tips for disassembly:

  • Prepare the necessary tools: generally, an Allen key set, screwdrivers, and possibly a wrench are required.
  • Work on a clean and clear surface: this will make it easier to organize the parts and avoid losses.
  • Unplug the device: make sure the elliptical bike is disconnected from any power source before starting.
  • Proceed step by step: start by removing the outer parts like the covers, then disassemble the pedals, the moving arms, and finally the main frame if necessary.
  • Note or photograph each step: this will facilitate reassembly later.

Precautions:

  • Disassembly may require some DIY experience to avoid damaging the components.
  • Handle the parts carefully to avoid injuries.
  • If in doubt, it is better to seek help from a professional.

In summary, disassembly is feasible but requires caution and organization.

Respond (be the first)
What does error code E2 mean on the CARE FITNESS CE 5484 elliptical bike and how can it be resolved?
Frequently Asked Questions - 10/02/2026
Response Notice-Facile

The error code E2 on the CARE FITNESS CE 5484 elliptical bike generally indicates a problem related to the resistance or a sensor of the device. Here’s how you can proceed to identify and resolve this issue:

Steps to resolve error code E2:

  • Check the electrical connections: Ensure that all cables, especially those connected to the resistance and sensors, are properly connected and in good condition.
  • Restart the device: Turn off the elliptical bike, wait a few minutes, then turn it back on to see if the error disappears.
  • Check the stability of the device: Place the bike on a flat and stable surface to avoid any malfunction related to poor seating.
  • Inspect the speed sensor: Check that the sensor is not blocked, dirty, or damaged, as this can cause the E2 code to appear.

If after these checks the error code persists, it is advisable to contact a specialized technical service for a thorough diagnosis and possible repair.

Respond (be the first)

Download the instructions for your Elliptical bike in PDF format for free! Find your manual CE 5484 - ergomètre connecté - CARE FITNESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CE 5484 - ergomètre connecté by CARE FITNESS.

USER MANUAL CE 5484 - ergomètre connecté CARE FITNESS

Programme Contrôle de fréquence cardiaque : 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target (cible) H.R.C.

Programme 18 : 55% Max H.R.C. - - Target H.R. = (220 - AGE) x 55%
Programme 19 : 65% Max H.R.C. - - Target H.R. = (220 – AGE) x 65%
Programme 20 : 75% Max H.R.C. - - Target H.R. = (220 - AGE) x 75%
Programme 21 : 85% Max H.R.C. - - Target H.R. = (220 - AGE) x 85%
Programme 22 : Target H.R.C. - - Entrainnement à votre valeur de fréquence cardiaque ciblée.

C. connection bluetooth & application

E mail: sav@carefitness.com

CARE FITNESS CE 5484 - ergomètre connecté - connection bluetooth & application - 1

CARE FITNESS CE 5484 - ergomètre connecté - connection bluetooth & application - 2

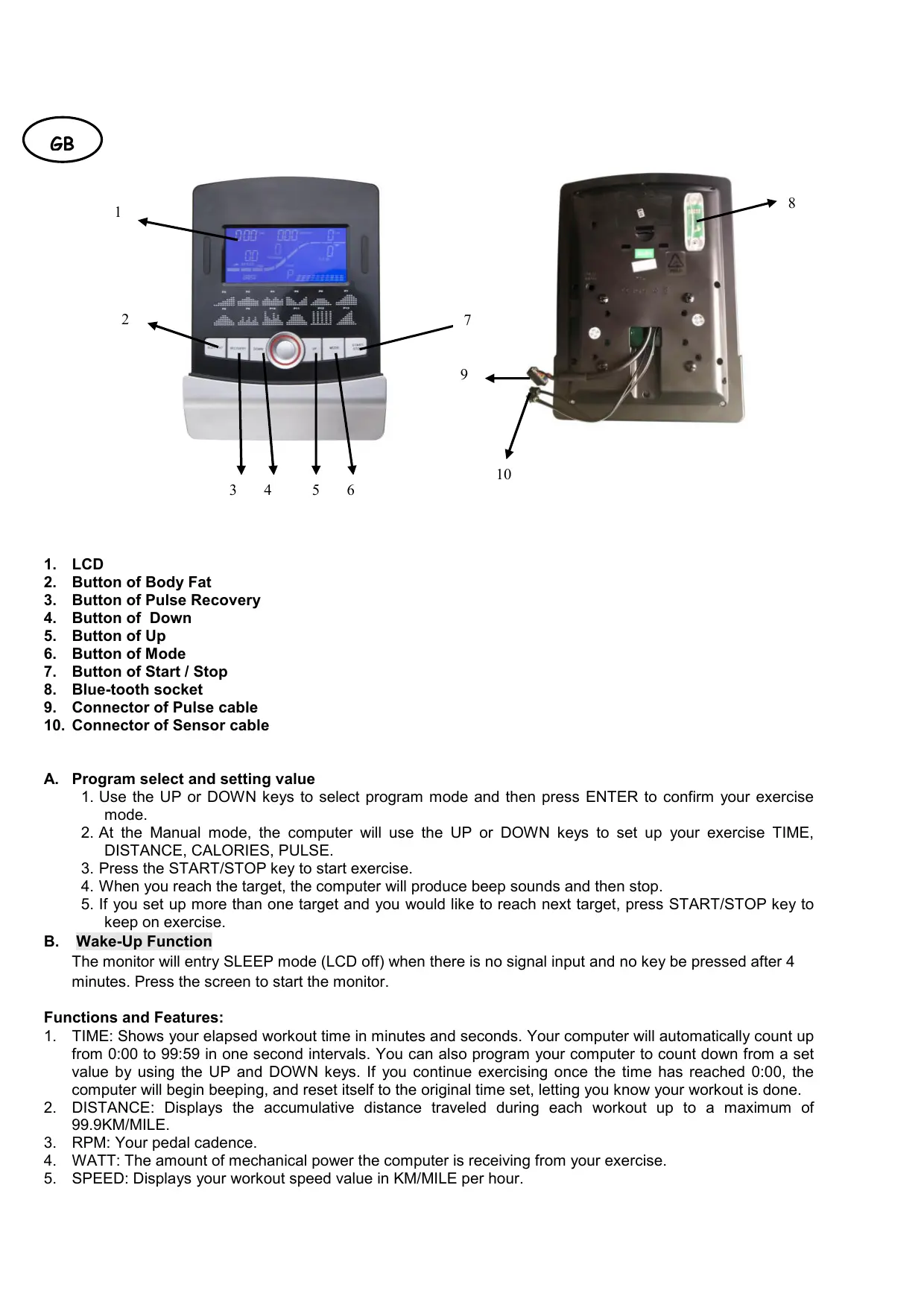

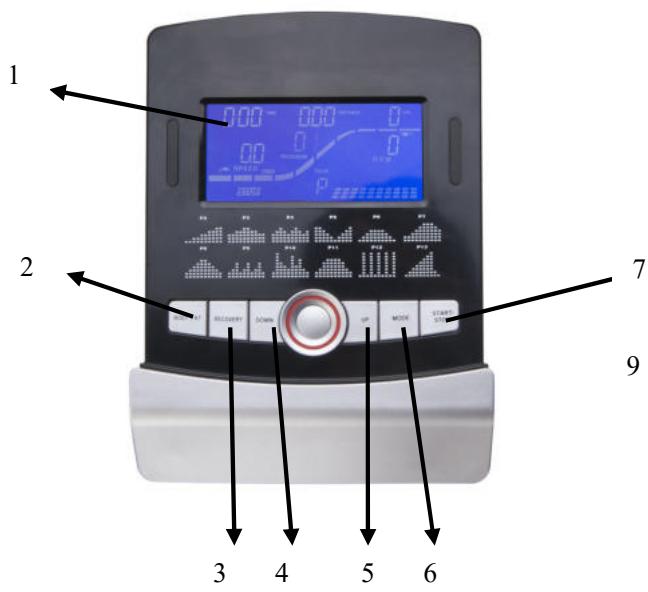

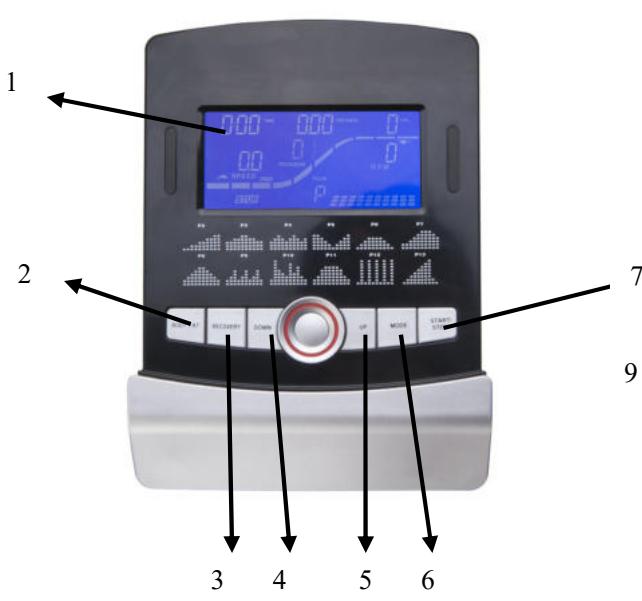

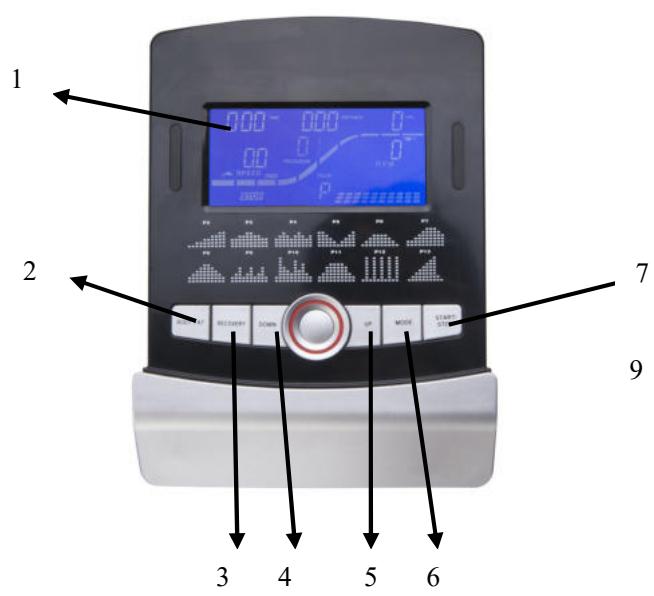

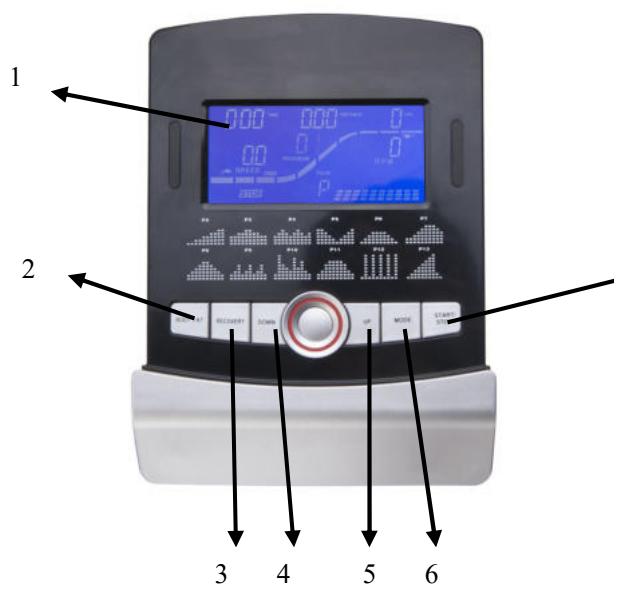

  1. LCD
  2. Button of Body Fat
  3. Button of Pulse Recovery
  4. Button of Down
  5. Button of Up
  6. Button of Mode
  7. Button of Start / Stop

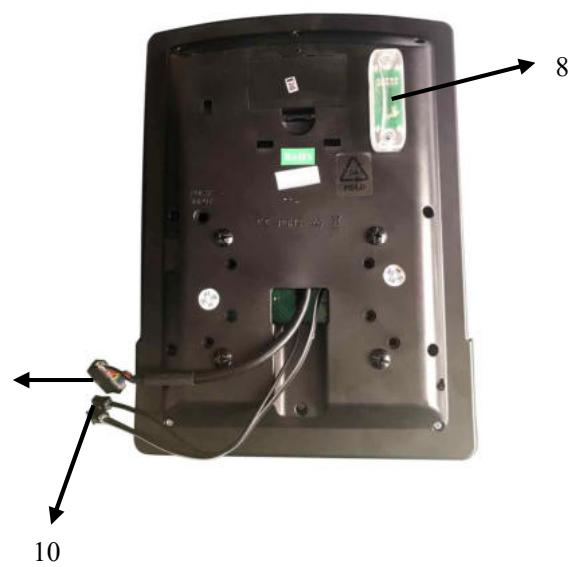

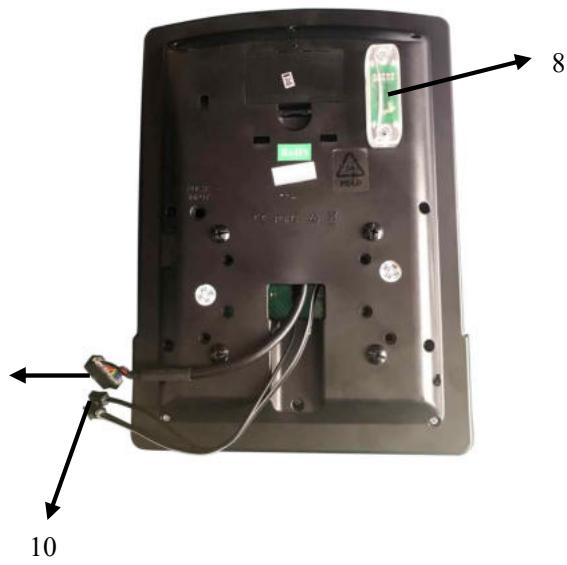

  8. Blue-tooth socket
  9. Connector of Pulse cable
  10. Connector of Sensor cable

A. Program select and setting value

  1. Use the UP or DOWN keys to select program mode and then press ENTER to confirm your exercise mode.
  2. At the Manual mode, the computer will use the UP or DOWN keys to set up your exercise TIME, DISTANCE, CALORIES, PULSE.
  3. Press the START/STOP key to start exercise.
  4. When you reach the target, the computer will produce beep sounds and then stop.
  5. If you set up more than one target and you would like to reach next target, press START/STOP key to keep on exercise.

B. Wake-Up Function

The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Press the screen to start the monitor.

Functions and Features:

  1. TIME: Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:59 in one second intervals. You can also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.
  2. DISTANCE: Displays the accumulative distance traveled during each workout up to a maximum of 99.9KM/MILE.
  3. RPM: Your pedal cadence.
  4. WATT: The amount of mechanical power the computer is receiving from your exercise.
  5. SPEED: Displays your workout speed value in KM/MILE per hour.

  6. CALORIES: Your computer will estimate the cumulative calories burned at any given time during your workout.

  7. PULSE: Your computer displays your pulse rate in beats per minute during your workout.
  8. AGE: Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always default to age 35.
  9. TARGET HEART RATE (TARGET PULSE): The heart rate you should maintain is called your Target Heart Rate in beats per minute.
  10. PULSE RECOVERY: During the START stage, leave the hands holding on grips or leave the chest transmitter attached and then press "PULSE RECOVERY" key, all function displays will stop except "TIME". Time starts counting from 00:60 - 00:59 -- to 00:00. As soon as 00:00 is reached, the computer will show your heart rate recovery status with the grade F1.0 to F6.0.

1.0 means OUTSTANDING

1.0 2.0 means EXCELLENT
2.0≤2.9 means GOOD
3.0≤F≤3.9 means FAIR
4.0≤5.9 means BELOW AVERAGE

6.0 means POOR

Note: If no pulse signal input then the computer will show "P" on the PULSE window. If the computer shows "ERR" on the message window, please re-press the PULSE RECOVERY key and please make sure your hands are keeping well on the grips or the chest transmitter is attached well.

Key function:

There are 6 button keys and the function description as follows:

  1. START/STOP key:

a. Quick Start function: Allows you to start the computer without selecting a program. Manual .workout only. Time automatically begins to count up from zero
b. During the exercise mode, press the key to STOP exercise.
c. During the stop mode, press the key to START exercise.

  1. UP key:

a. Turn the toggle wheel to increase the resistance during exercise mode.
b. During the setting mode, turn the toggle wheel to increase the value of Time, Distance, Calories, Age and select Gender and Program.

  1. DOWN key:

a. Press the key to decrease the resistance during exercise mode.
b. During the setting mode, press the key to decrease the value of Time, Distance, Calories, Age and select Gender and Program.

  1. ENTER key:

a. During the setting mode, press the key to accept the current data entry.
b. At the stop mode, by holding this key for over two seconds the user can reset all values to zero or default value.
c. During setting the Clock, press this key can accept the setting hour and setting minute.

  1. BODY FAT key: Press the key to input your HEIGHT, WEKGHT, GENDER and AGE then to measure your body fat ratio,

  2. PULSE RECOVERY key: Press the key to activate heart rate recovery function.

Program Introduction & Operation:

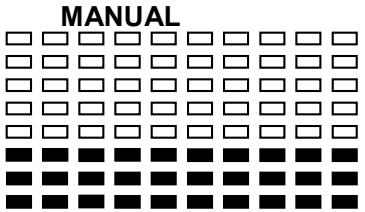

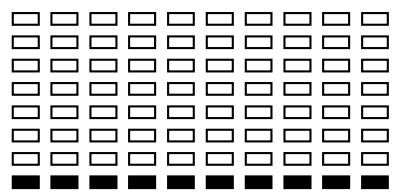

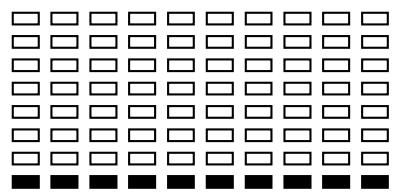

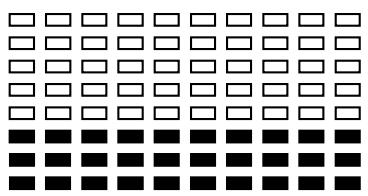

Manual Program: Manual

P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is
5. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select the MANUAL (P1) program.
  2. Press the ENTER key to enter MANUAL program.
  3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.

  7. Press the START/STOP key to begin exercise.

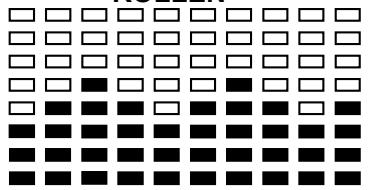

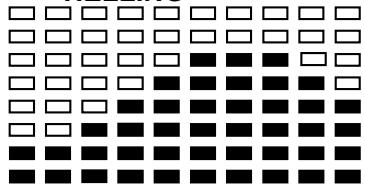

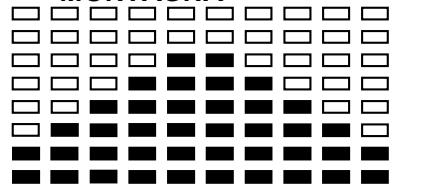

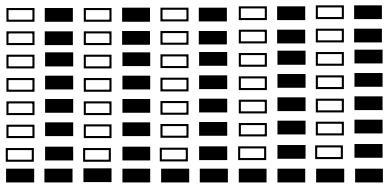

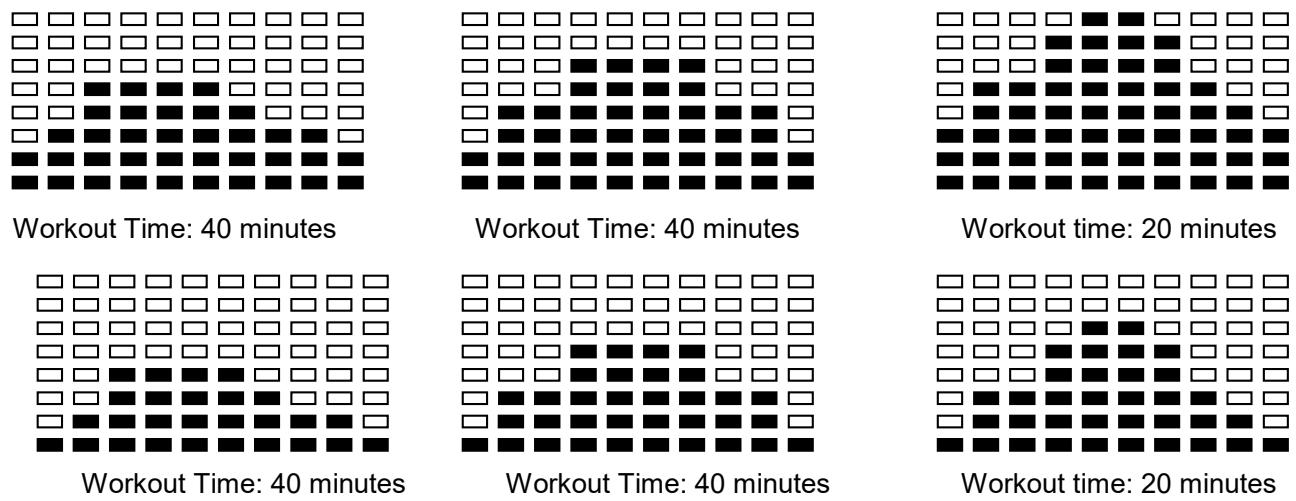

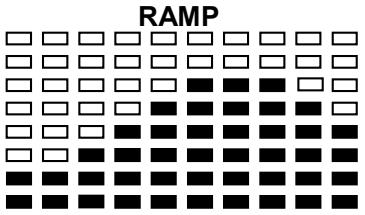

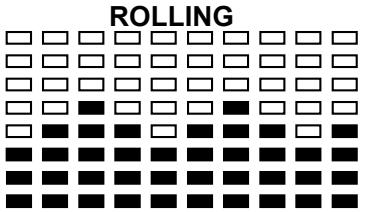

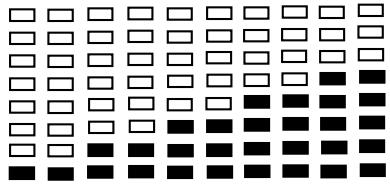

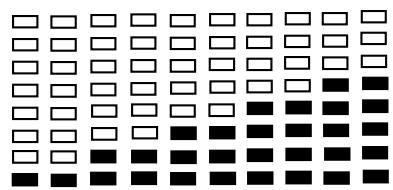

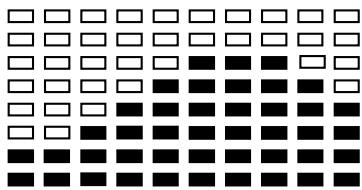

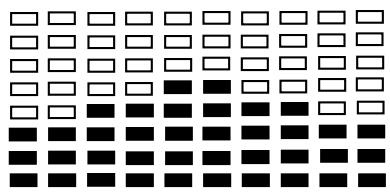

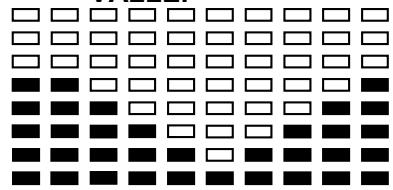

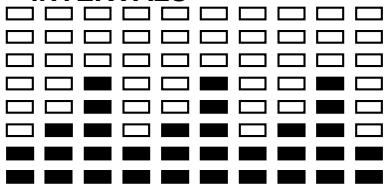

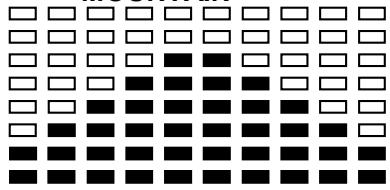

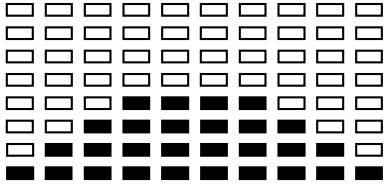

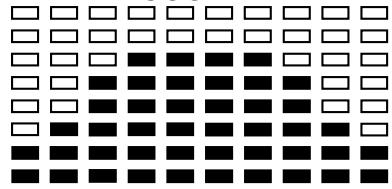

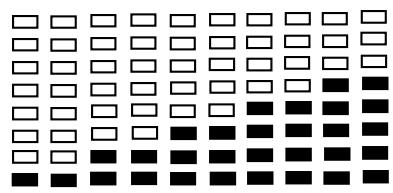

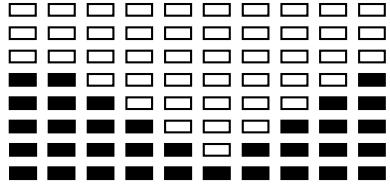

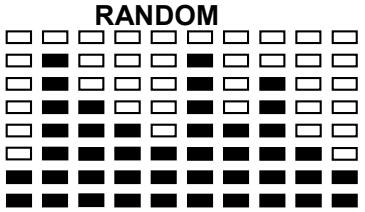

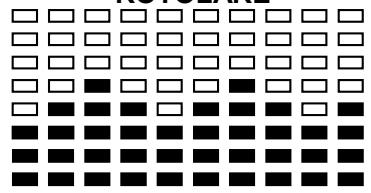

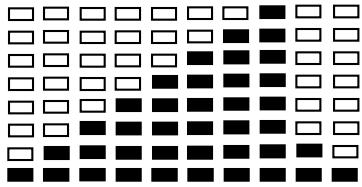

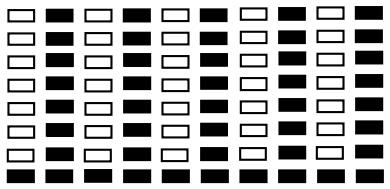

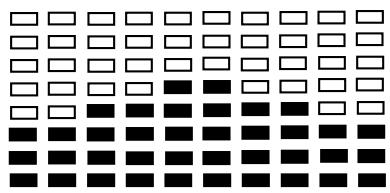

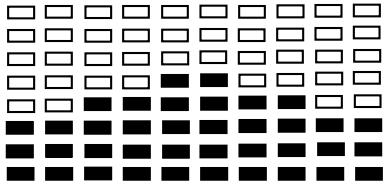

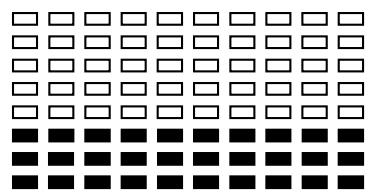

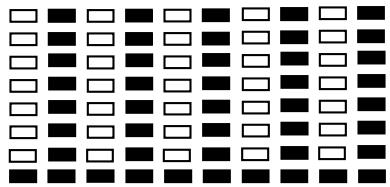

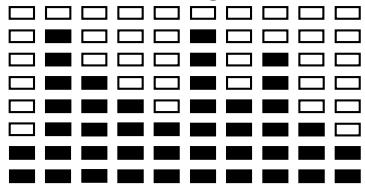

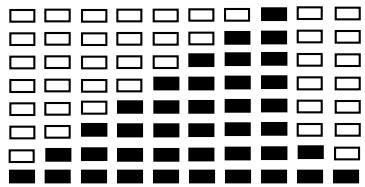

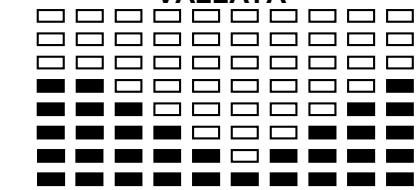

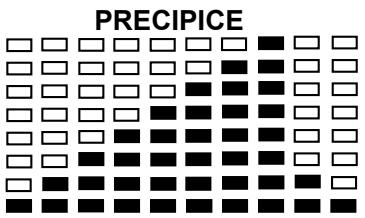

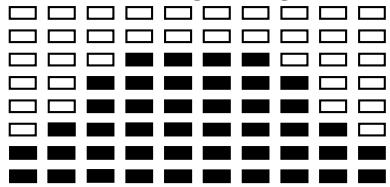

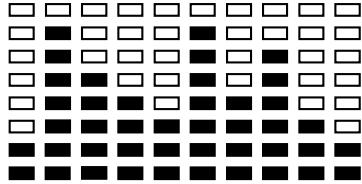

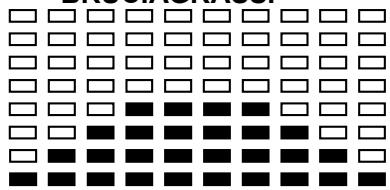

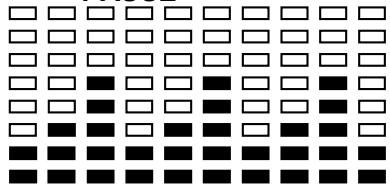

Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program

PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select one of the above programs from P2 to P13.
  2. Press the ENTER key to enter your workout program.
  3. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  7. Press the START/STOP key to begin exercise.

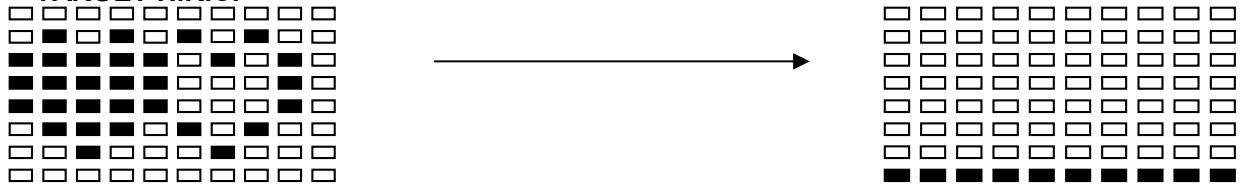

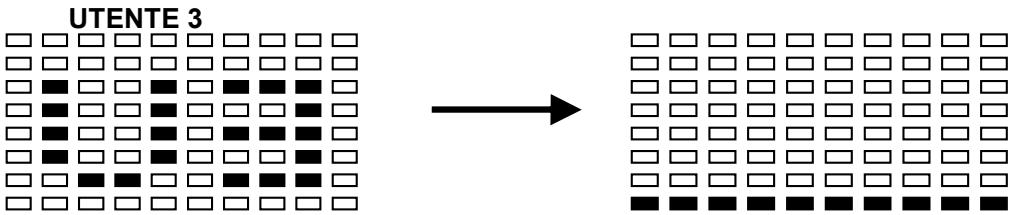

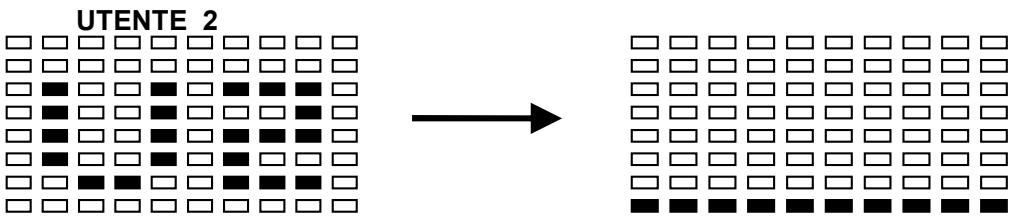

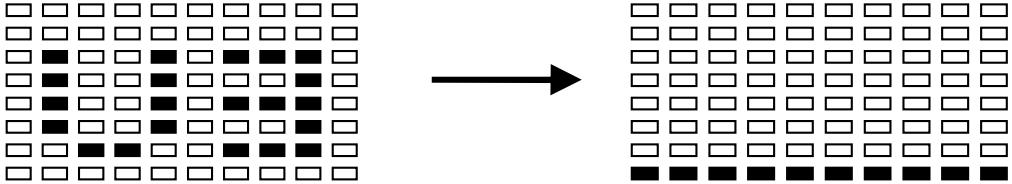

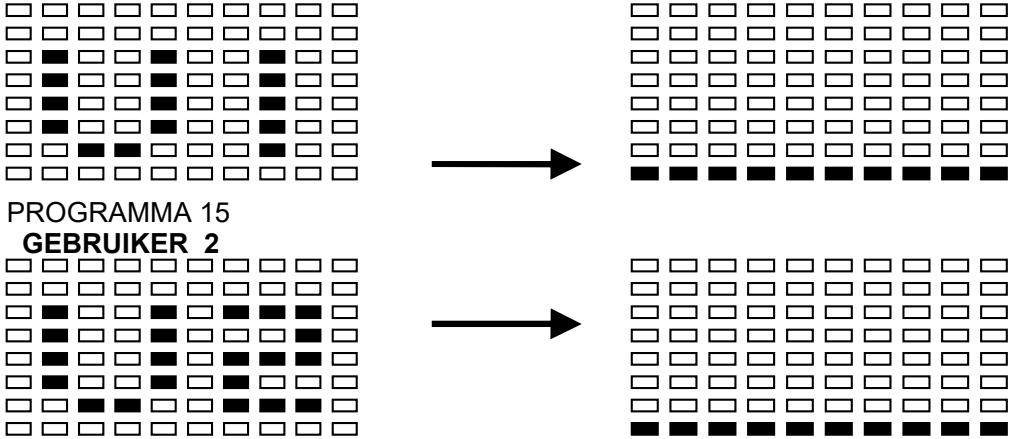

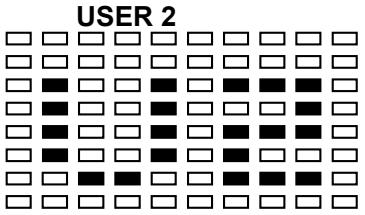

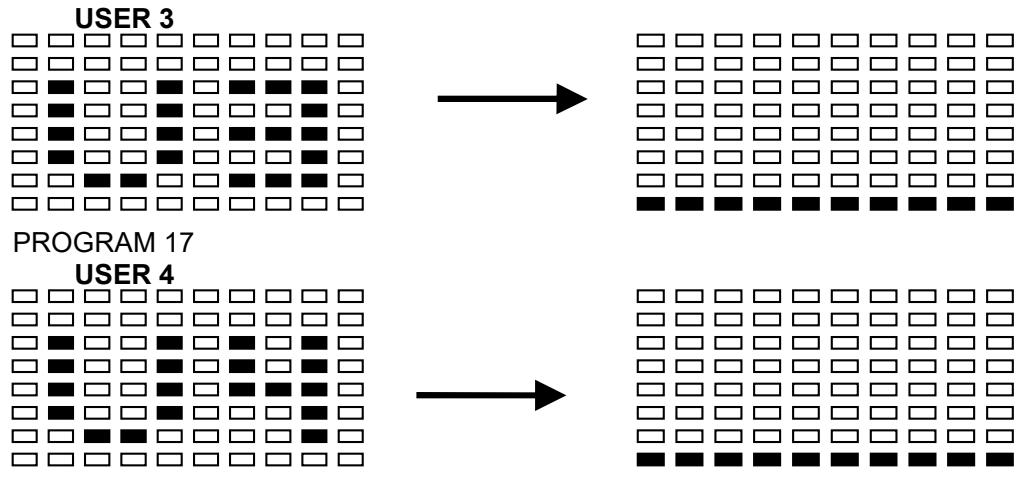

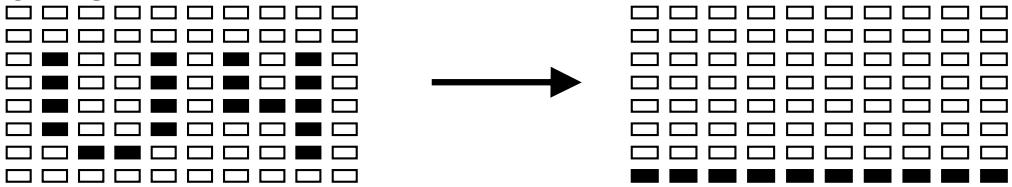

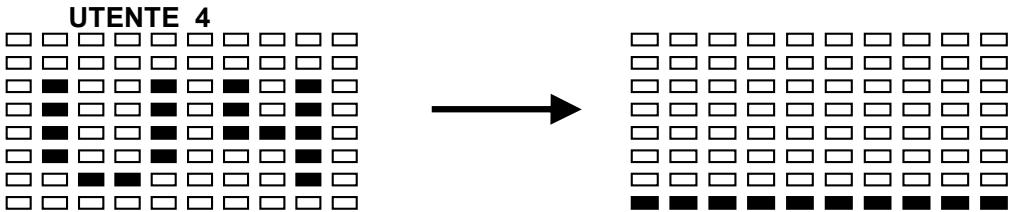

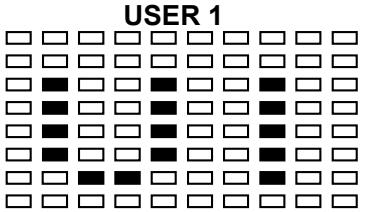

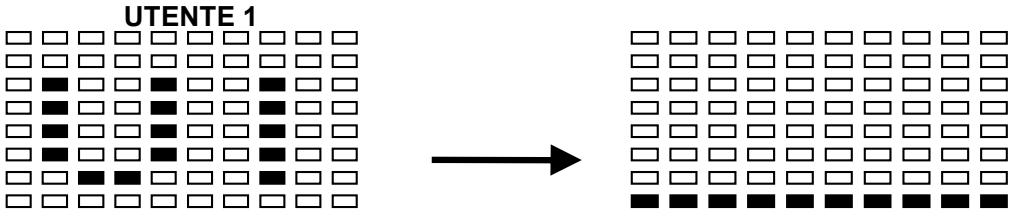

User Setting Program: User 1, User 2, User 3 and User 4

Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the resistance level stored in the memory.

Operations:

  1. Use UP/DOWN keys to select the USER program from P14 to P17.
  2. Press the ENTER key to enter your workout program.
  3. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your first column of exercise profile. The default level is load 1.
  4. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press ENTER to confirm your second column of exercise profile.
  5. Follow the above description 5 and 6 to finish your personal exercise profiles. Press ENTER to confirm your desired exercise profile.
  6. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press ENTER key to confirm your desired TIME.
  7. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  8. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  9. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  10. Press the START/STOP key to begin exercise.

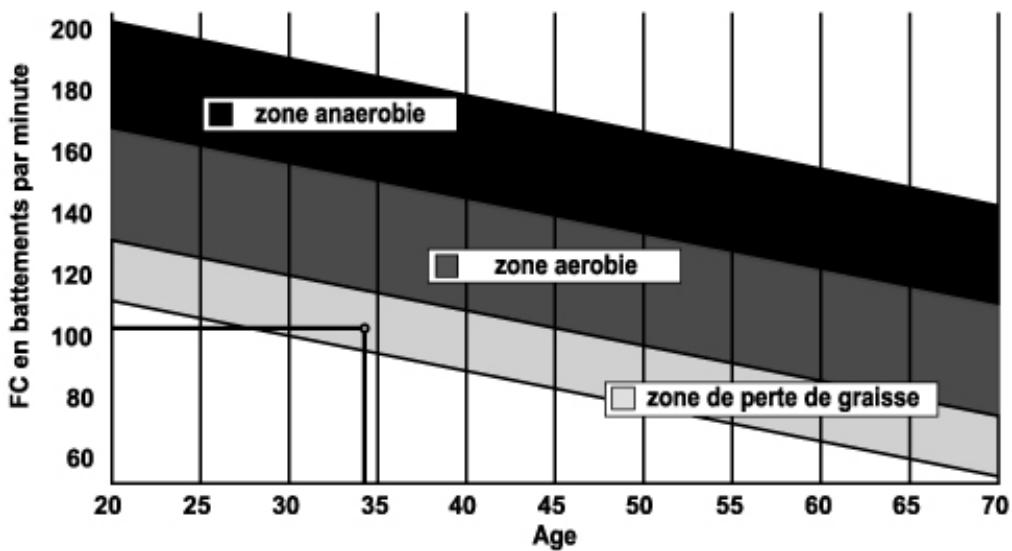

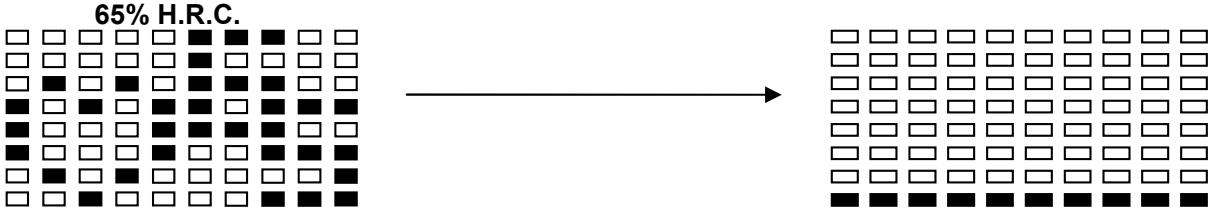

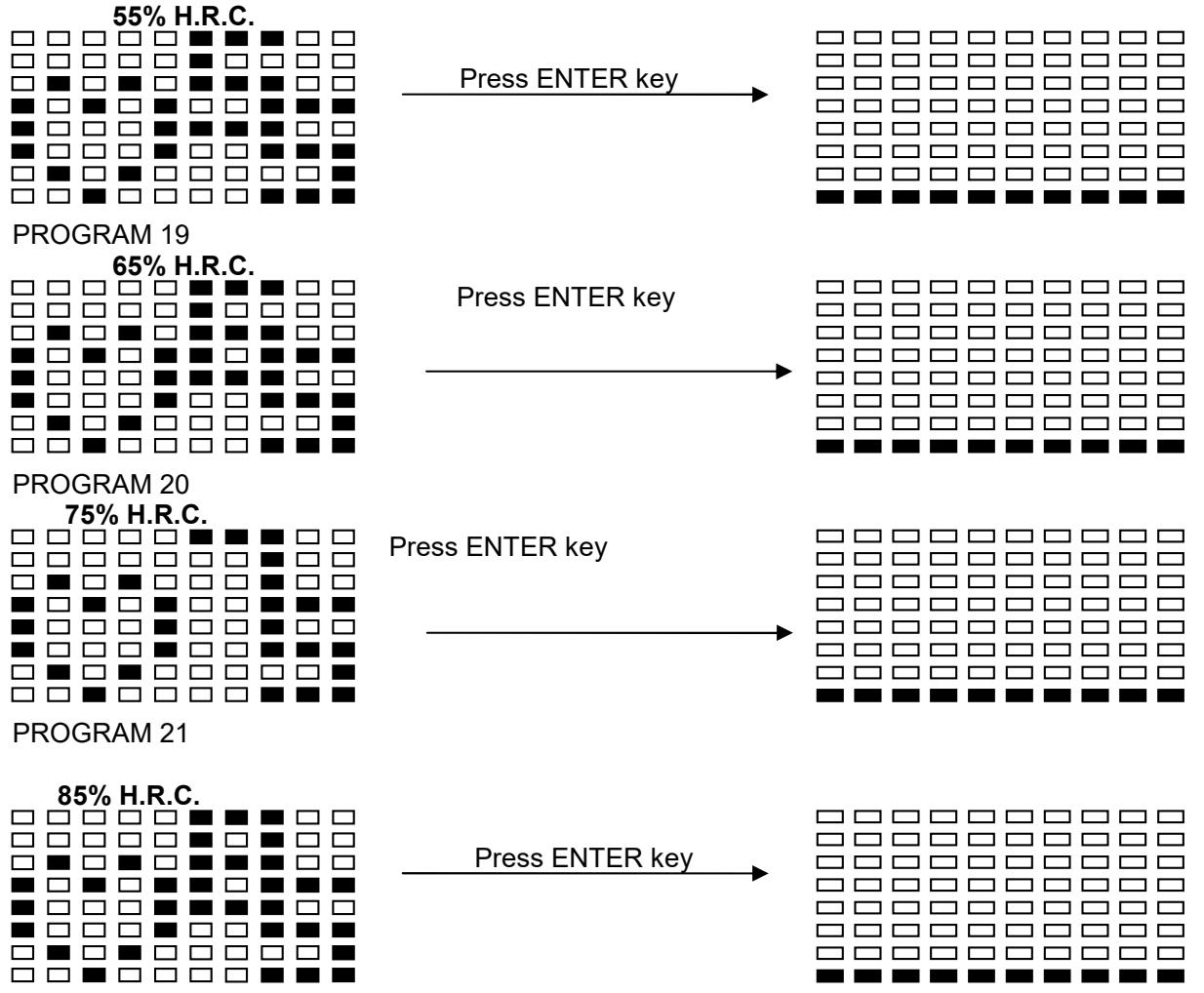

Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.

Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program.

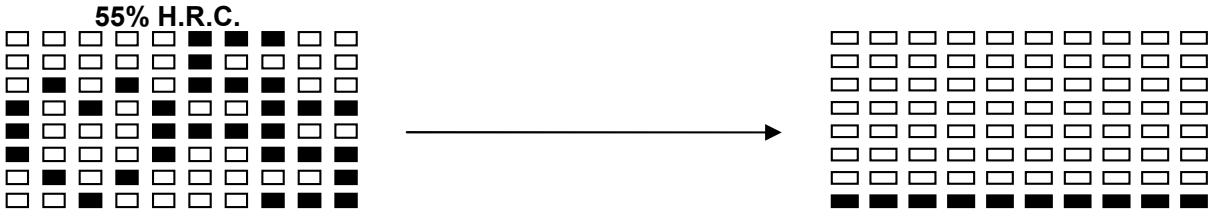

Program 18 is the 55% Max H.R.C. -- Target H.R. = (220 - AGE) x 55%

Program 19 is the 65% Max H.R.C. -- Target H.R. = (220 - AGE) x 65%

Program 20 is the 75% Max H.R.C. -- Target H.R. = (220 - AGE) x 75%

Program 21 is the 85% Max H.R.C. -- Target H.R. = (220 - AGE) x 85%

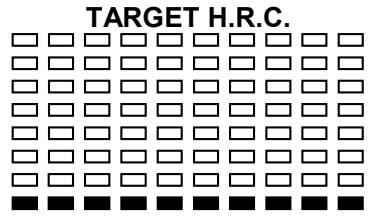

Program 22 is the Target H.R.C. - - Workout by your target heart rate value.

Users can exercise according to your desired Heart Rate program by setting your AGE, TIME, DISTANCE, CALORIES or TARGET PULSE. In these programs, the computer will adjust the resistance level according to the heart rate detected. For example, the resistance level may increase every 20 seconds while the heart rate detected is lower than the TARGET H.R and then the computer will show "SLOW DOWN" on the message window. Also the resistance level may decrease every 20 seconds while the heart rate detected is higher than the TARGET H.R and then the computer will show "HURRY UP" on the message window. As a result, the user's heart rate will be adjusted to close the TARGET H.R. between the range of TARGET H.R. +5 and TARGET H.R. -5 and then the computer will show "KEEP GOING" on the message window.

Operations:

  1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.

  2. Press the ENTER key to enter your workout program

  3. The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set your AGE. The default age is 35.
  4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120.
  5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  8. Press the START/STOP key to begin exercise.

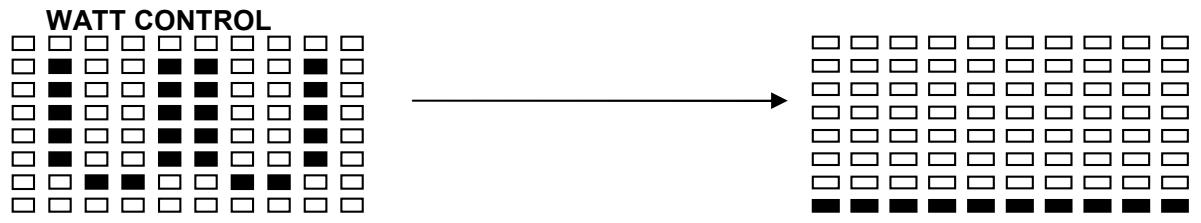

Watt Control Program: Watt Control

Program 23 is a Speed Independent Program. Press ENTER key to set up the values of TARGET WATT, TIME, DISTANCE and CALORIES. During the exercise mode, the level of resistance is not adjustable. For example, the level of resistance may increase while the speed is too slow. Also the level of resistance may decrease while the speed is too fast. As a result, the calculated value of WATT will close to the value of TARGET WATT setup by users.

Operations:

  1. Use UP or DOWN key to select the WATT CONTROL (P23) program.
  2. Press ENTER key to enter your workout program.
  3. The TIME will flash and you can press UP or DOWN key to set your exercise TIME. Press ENTER key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN key to set your target DISTANCE. Press ENTER key to confirm your desired DISTANCE.
  5. The WATT will flash and you can press UP or DOWN key to set your target WATT value. Press ENTER key to confirm your target WATT. The default WATT value is 100.
  6. The CALORIES will flash and you can press UP or DOWN key to set your exercise CALORIES. Press ENTER key to confirm your desired CALORIES.
  7. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press ENTER key to confirm your desired Pulse.
  8. Press the START/STOP key to begin exercise.

NOTE:

  1. WATT = TORQUE (KGM) * RPM * 1.03
  2. In this program, the WATT value will keep constant value. It means that if you peddle quickly, the resistance level will decrease and if you peddle slowly, the resistance level will increase. Always try to keep you in the same watt value.

C. Bluetooth & application connection

Copy the link here under to your brower (Edge, Firefox, Chrome, Safari etc)

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

And Followw the detailed instruction

Error Message:

E1 (ERROR 1):

Normal state: During workout, when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1.

Power on state: The gear motor will return to zero automatically, when the signal of motor cannot be detected for more than 4 seconds then the gear motor's driver will be cut off immediately and show the E1 on the LCD display. All the other digital and function mark are blank, and the output signals are cut off also.

E2 (ERROR 2): When the monitor read the memory data, if the I.D. code is not correct or the memory IC damages then the monitor will show E2 immediately at power on.
E3 (ERROR 3): After 4 seconds by start mode, the computer detects the faulty motor did not leave the zero point then the LCD bar displays "E3".

Error message: When you press "Pulse Recovery"Key but don't hold on hand grips, the computer will show "Err".

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 1
PRESET PROGRAM PROFILES:
PROGRAM 1

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 2
PROGRAM 4

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 3
PROGRAM 7

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 4
PROGRAM 10

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 5
PROGRAM 2
STEPS
PROGRAM 5

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 6
VALLEY
PROGRAM 8

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 7
MOUNTAIN

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 8
PROGRAM 11
PLATEAU

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 9
PROGRAM 3
HILL
PROGRAM 6

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 10
FAT BURN
PROGRAM 9

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 11
INTERVALS

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 12
PROGRAM 12
FARTLEK

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 13
PROGRAM 13
USER SETTING PROGRAM

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 14
PROGRAM 14

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 15
PROGRAM 15

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 16

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 17

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 18

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 19

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 20
PROGRAM 16
HEART RATE PROGRAM PROFILES:

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 21
PROGRAM 18

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 22
PROGRAM 22

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 23
WATT CONTROL PROGRAM
PROGRAM 23
One of the Following Six Profiles Will Display Automatically after Measuring Your BODY FAT:

CARE FITNESS CE 5484 - ergomètre connecté - Bluetooth & application connection - 24

Cardio - Training:

Before programming your training, it is essential to take account of your age, particularly for people of more than 35 years of age, as well as your physical condition. If you have a sedentary lifestyle without regular physical activity, it is vital that you consult your doctor to determine the level of intensity of your training. Once determined, do not attempt to achieve your maximum during the first training sessions. Be patient; your performance will quickly improve.

Cardio - Training:

This enables you to develop your cardiovascular system (fitness of the heart / blood vessels). During Cardio-Training, the muscles need a supply of oxygen and nutritive substances. They also need to eliminate waste. Our heart increases its rhythm and sends a larger amount of oxygen to the body by means of the cardiovascular system. The more often you exercise regularly and repetitively, the more your heart will develop, just like any other muscle. In daily life, this translates into the ability to bear greater physical effort and improve your intellectual faculties.

Definition of your work Zone:

The Maximum Heart Rate (MHR) = 220 - age (180 - age for sedentary people).

The Warming Up Zone and Cooling Down Zone are equal to 55% of your MHR.

The Fat Loss Zone is between 55 / 65% of your MHR.

The Aerobic Zone is between 65 / 85% of your MHR.

The Anaerobic Zone is between 85% of your MHR and your MHR.

Make a diagram of the target zones

CARE FITNESS CE 5484 - ergomètre connecté - Definition of your work Zone: - 1

The progressive training stages:

1) A warming up phase:

Start each training session by warming up progressively (10-20 min, more if you are over 50) which will put your muscles on standby and gently increase your heart rate. Gently increase your pulse to 55% of your MHR (Maximum Heart Rate).

Keep your Heart Rate at this level for the duration of the warming up time. If you begin your training too quickly, you are in danger of increasing the risk of tendon or muscle injury.

2) A work phase:

This is the main part of the training session. Depending on your specific goals and your initial physical condition, weight loss, improvement of cardiovascular resistance (aerobic work), development of stamina (anaerobic work), it is possible to choose the appropriate target zone.

The Fat Loss Zone, 55 - 65%

The heart rate must be low and the duration of the exercise quite long. This zone is advised for people resuming physical activity after a long period of idleness, who are trying to eliminate excess weight or are susceptible to cardiac problems. Do not forget that for this type of training the duration of the exercise must be at least 30 minutes and the Heart Rate (HR) between 55 and 65% of the MHR.

Gradually increase from 30 to 60 minutes per session.
Exercise 3 or 4 times a week.

The Aerobic Zone, 65 - 85%

This zone is recommended for those who are in good physical condition who train regularly. By training in this zone, you will improve your physical condition but avoid overworking.

Duration: 20 to 30 minutes per session.
- Frequency: At least 3 or 4 times a week.

The Anaerobic Zone, 85% - MHR

This zone is exclusively for experienced athletes and is never recommended without medical approval and supervision. This zone is designed only for very fit people. It is used for interval training (or for short sprints) to help you to improve or measure your level of stamina. The time spent in this zone must be brief to avoid the risk of accident.

3) A cooling down phase:

This entails a reduction of exertion (10 to 20 min). It enables you to return your cardiovascular system to normal (55% of your MHR) and prevent or reduce muscular pain such as cramp and stiffness. You must follow the training with a session of stretching exercises while your joints are still warm. This relaxes the muscles and helps to prevent stiffness. Stretch slowly and gently. You must never stretch until you reach the pain threshold. Hold each stretch for 30 to 60 seconds while breathing out.

Check your progress

As it improves, your cardiovascular system will have an HR which will be lower when at rest. You will take longer to reach your target zone and it will be easier for you to maintain it. Sessions will seem easier and easier and you will have more stamina in your daily life.

If, on the other hand, your HR is higher than usual when at rest, you will have to rest or reduce the intensity of your training.

Do not be discouraged by the initial sessions. Motivate yourself by scheduling specific training times. Work hard!

All defective materials or parts can only be exchanged once we have received them. Shipping is at the sender's expense. No returns of goods will be accepted without our prior approval.

To order spare parts

To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service:

The name or reference of the product.

The manufacturing number shown on the main chassis and on the packing box.

The number of the missing or faulty part shown on the exploded view of the product described in this manual.

After Sales Service

Email: service-uk@carefitness.com

CARE FITNESS CE 5484 - ergomètre connecté - To order spare parts - 1

CARE FITNESS CE 5484 - ergomètre connecté - To order spare parts - 2

https://cloud-carefitness.com/index.php/s/E2WD22KMNBQzERL

E mail: service-de@carefitness.com

CARE FITNESS CE 5484 - ergomètre connecté - To order spare parts - 3

CARE FITNESS CE 5484 - ergomètre connecté - To order spare parts - 4

CARE FITNESS CE 5484 - ergomètre connecté - To order spare parts - 5

FUNCTIONES:

1.0 F <2.0 means EXCELENTE

2.0≤F≤2.9 means BUENO

3.0≤3.9 means REGULAR

4.0≤F≤5.9 means POR DEBAJO DEL PROMEDIO

6.0 means MALO

Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C.

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - ETA') x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - ETA') x 65%

Programma 20: 75% Max H.R.C. -- Target H.R. = (220 - ETA') x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - ETA') x 85%

https://cloud-carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 1
PROGRAMMA 1
MANUALE
PROGRAMMA 4

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 2
ROTOLARE
PROGRAMMA 7

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 3
RAMPA
PROGRAMMA 10

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 4
RANDOM

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 5
PROGRAMMA 2
PASSI

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 6
PROGRAMMA 5 VALLATA

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 7
PROGRAMMA 81
ONTAGNA

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 8
PROGRAMMA 11 ALTOPIANC

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 9
PROGRAMMA 3 COLLINA

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 10
PROGRAMMA 6 BRUCIAGRASSI

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 11
PROGRAMMA 9 INTERVALL
PROGRAMMA 12

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 12
FARTLEK

PROGRAMMA 13

PRECIPIZIO

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 13

PROGRAMMA DA IMPOSTARE DALL'UTENTE

PROGRAMMA 14

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 14

PROGRAMMA 15

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 15

PROGRAMMA 16

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 16

PROGRAMMA 17

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 17

PROFILI DELLA FREQUENZA CARDIACA (H.C.R)

PROGRAMMA 18

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 18

PROGRAMMA 19

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 19

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 20
PROGRAMMA 20
75% H.R.C.
PROGRAMMA 21

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 21
85% H.R.C.

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 22
PROGRAMMA 22
TARGET H.R.C.
PROGRAMMA PER IL CONTROLLO DEI WATT

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 23
PROGRAMMA 23
CONTROLLO WATT

E mail: service-it@carefitness.com

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 24

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONES: - 25

FUNCTIONS:

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 65%

Programma 20: 75% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 85%

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 1
PROGRAMMA 1 MANUAL
PROGRAMMA 4

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 2
PROGRAMMA 2 STAPPEN
PROGRAMMA 5

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 3
PROGRAMMA 3 HEUVEL
PROGRAMMA 6

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 4
ROLLEN

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 5
VALLEI

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 6
VETVERBRANDEND

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 7
PROGRAMMA 7 HELLING

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 8
PROGRAMMA 10 RANDOM

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 9
PROGRAMMA 8 BERG

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 10
PROGRAMMA 11 HOOGVLAKTE

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 11
PROGRAMMA 9 PAUSE

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 12
PROGRAMMA 12 TLEK

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 13
PROGRAMMA 13
AFGROND
PROGRAMMA IN TE STEllen DOOR GEBRUiker

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 14
PROGRAMMA 14
GEBRUIKER 1
PROGRAMMA 16

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 15
GEBRUIKER 3
PROGRAMMA 17

CARE FITNESS CE 5484 - ergomètre connecté - FUNCTIONS: - 16
GEBRUIKER 4

De harttraining (cardiotraining):

Dagelijke training = circa 10 minutes per keer.

2 tot 3 trainingen per week = circa 30 minutes per keer.

1 tot 2 trainingen per week = circa 50 minutes per keer.

E-mail: service-nl@carefitness.com

CARE

FITNESS

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CARE FITNESS

Model : CE 5484 - ergomètre connecté

Category : Elliptical bike
