Product type Exercise bike
Brand CARE FITNESS
Model CV-375
Power supply 6V AC / 0.5A mains adapter (230V/50Hz or 110V/60Hz)
Display LCD screen
Training programs 24 programs: manual (P1), 12 presets (P2-P13: step, hill, rolling, valley, fat burn, ramp, mountain, intervals, random, plateau, Fartlek, precipice), 4 user (P14-P17), 5 heart rate control (P18-P22), watt control (P23), fat (P24)
Displayed functions Time, Distance, RPM, Speed, Calories, Pulse, Temperature, Body Fat
Time range 0:00 to 99:59 minutes
Maximum distance 99.9 km
Adjustable age 10 to 99 years (default 35)
Target heart rate 80 to 180 bpm (default 120)
Body fat measurement Yes, via hand grips or chest strap (not included)
Resistance Adjustable via UP/DOWN keys during exercise (default level 5)
Pulse Recovery Rating from F1.0 to F6.0 (F1.0 = perfect, F6.0 = weak)
Sleep mode After 4 minutes of inactivity, wake by pressing a key
Heart rate measurement hand grips Yes, integrated
Error messages E1 (motor signal loss), E2 (IC memory error), E3 (motor faulty), Err (pulse not detected)
After-sales service CARE After-Sales Service, 18/22 rue Bernard, Z.I. les Vignes, 93012 BOBIGNY Cedex, Tel. 01 48 43 04 44, Fax 01 48 91 06 24
Spare parts Available on request from after-sales service (return of defective parts at your expense)
Training advice Consult a doctor if you are over 35 or have a medical condition. Respect the warm-up (55% MHR), work (according to goal: 55-85% MHR) and cool-down phases.

Frequently Asked Questions - CV-375 CARE FITNESS

How do I connect the CV-375 exercise bike?
Plug the supplied mains adapter into the power socket on the bike. The computer will emit a beep and turn on in manual mode. Use a suitable outlet (230V/50Hz or 110V/60Hz).
How do I adjust training programs?
Use the UP and DOWN keys to choose the program (P1 to P24). Press MODE to enter the program. Then set parameters (time, distance, calories, pulse) with the UP/DOWN keys and confirm with MODE. Press START/STOP to begin.
What does error E1 on the screen mean?
Error E1 indicates that the monitor did not receive a signal from the motor for more than 4 seconds (checked 3 times). This may be due to a connection or motor issue. Turn off the device, check the cables, and restart. If the problem persists, contact after-sales service.
How do I measure body fat?
Select program P24 (fat) with the UP/DOWN keys. Press MODE, then set your height, weight, gender and age. Place your hands on the heart rate hand grips (or wear a chest strap) and press START/STOP. The screen will display your body fat percentage, BMI and BMR, then a suitable exercise profile.
How do I use the Pulse Recovery function?
During exercise, keep your hands on the pulse grips and press the PULSE RECOVERY key. The time counts down from 60 to 0 seconds. After the countdown, the computer displays a rating from F1.0 (perfect) to F6.0 (weak) based on your heart rate recovery.
How do I adjust resistance during exercise?
During exercise, turn the knob or press the UP key to increase resistance and DOWN to decrease it. This works in most programs except the watt control program (P23) where resistance is automatic.
What is the recommended target heart rate?
Calculate your maximum heart rate (MHR) with the formula 220 - your age (or 180 - age for sedentary individuals). The fat burning zone is between 55 and 65% of MHR, the aerobic zone between 65 and 85%, and the anaerobic zone above 85%. For program P22, set a target between 80 and 180 bpm.
How do I enter sleep mode or wake the screen?
The computer automatically enters sleep mode after 4 minutes without activity (no pedaling signal or key press). To wake it, press any key on the screen or control panel.
Where can I find spare parts for the CV-375?
Contact CARE after-sales service: CARE After-Sales Service, 18/22 rue Bernard, Z.I. les Vignes, 93012 BOBIGNY Cedex. Telephone: 01 48 43 04 44 (Monday-Friday 10am-12pm and 2pm-5pm). Have your serial number and product reference ready.
What are the training tips for a beginner?
First consult a doctor if you are over 35 or have health issues. Start with a warm-up of 10-20 minutes at 55% of your MHR. Then work in the fat burning zone (55-65% MHR) for at least 30 minutes, 3 to 4 times per week. Finish with a cool-down of 10 minutes with stretching. Gradually increase duration and intensity.

User questions about CV-375 CARE FITNESS

4 questions about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

How to download the PDF manual for the CARE FITNESS CV-375 exercise bike?
Frequently Asked Questions - 29/04/2026
Response Notice-Facile

To download the PDF manual for the CARE FITNESS CV-375 exercise bike, follow these simple steps:

  • Go to the official page dedicated to the CV-375 model on the manufacturer's or distributor's website.
  • Look for a link or button indicating "Download the manual" or "PDF manual".
  • Click on this link to start downloading the PDF file to your computer or mobile device.

Once downloaded, you can open the manual with a PDF reader to view all the information regarding the use, maintenance, and safety of your exercise bike.

If you prefer, some sites also offer an integrated viewer allowing you to view the manual online without downloading.

Respond (be the first)
Is the CARE FITNESS CV-375 exercise bike compatible with the Kinomap app?
Frequently Asked Questions - 28/01/2026
Response Notice-Facile

Yes, the CARE FITNESS CV-375 exercise bike is officially compatible with the Kinomap app. This compatibility is guaranteed by the manufacturer and allows access to a wide catalog of interactive workouts with road videos and personalized training programs.

The CV-375 features built-in Bluetooth connectivity that allows it to sync with the Kinomap app. The Bluetooth connection transmits your workout data in real-time (heart rate, speed, distance, calories) to the app, and the app can in turn adjust the bike's resistance according to the selected programs.

To connect your CV-375 to Kinomap, you first need to download the Kinomap app on your smartphone or tablet, then activate Bluetooth on your device. Refer to the detailed instruction link available in the "D. Bluetooth connection & app" section of your manual: https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL (to be opened in your browser). You will find the complete pairing steps with screenshots there.

If you encounter connection difficulties or cannot pair your bike, make sure that the Bluetooth module of your CV-375 is activated. Some versions include an optional module available for purchase from Care Fitness; check your delivery documentation or contact Care Fitness support to verify your setup.

Once connected to Kinomap, you will be able to follow your workouts live on video, participate in multiplayer sessions, and benefit from resistance adapted to the routes (real roads, legendary climbs, training circuits). The history of your sessions will be recorded in your Kinomap profile.

Respond (be the first)
How to display training routes from the CARE FITNESS CV-375 stationary bike on my television?
Frequently Asked Questions - 28/01/2026
Response Notice-Facile

Important: The Bluetooth module of the CV-375 is an optional accessory that does not come standard with the bike. You need to purchase it separately to use the connectivity features.

Once the Bluetooth module is installed on your CV-375, you can connect to the Kinomap app, which offers thousands of virtual training routes with real road visualization and famous climbs. The MyCare app from Care Fitness also allows you to control certain features of your bike live.

To display the routes on your television, here is the procedure: first, install the Kinomap (or MyCare) app on a mobile device (smartphone or tablet) or on a computer. Then, pair your CV-375 bike via Bluetooth by following the instructions in the app. Once paired, start a route in the app and select a workout from the available options.

To project the screen onto your television, you have several solutions. The simplest is to use an HDMI cable to connect your mobile device, tablet, or computer directly to an HDMI port on your television. You can also use a wireless streaming device like Chromecast, Apple TV, or a compatible Miracast device. Once connected, the app will display the route, the interactive map, and your real-time training statistics on the big screen.

For more detailed instructions on installing Bluetooth and using the app, refer to the online documentation provided by Care Fitness at https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL.

Respond (be the first)
How and where to connect the power adapter on the CARE FITNESS CV-375 exercise bike?
Frequently Asked Questions - 28/01/2026
Response Notice-Facile

The power adapter of the CARE FITNESS CV-375 exercise bike powers the LCD console that displays your workout data (time, distance, calories, speed, pulse). This adapter provides a voltage of 6V AC at 0.5A and can operate with a 230V/50Hz-60Hz or 110V/50Hz-60Hz wall outlet depending on your region.

Location of the power socket: The connection socket (called "Connection velo" in the documentation) is located at the back of the frame of the bike, usually at the bottom, near the base or at the joint of the plastics covering the wheel. This socket is specifically designed to receive the connector of the provided adapter.

Connection steps:

  • Locate the power socket at the back of the bike (small inlet near the base).
  • Firmly insert the adapter connector into this socket until it is fully seated (you will feel a slight resistance).
  • Plug the other end of the adapter into a standard wall outlet in your home.
  • Wait a few seconds: the LCD console will emit a beep and turn on in manual mode. The console is now ready for use.

Important safety instructions: Use only the adapter provided with the bike to avoid damaging the console. Never use an adapter with a different voltage (do not use a 9V or 12V instead of the 6V). Always turn off the device before plugging or unplugging the adapter. Ensure that the wall outlet is not damaged or overloaded with other devices, and check that the voltage in your country matches the specifications of the adapter.

If the console does not turn on after plugging in, check that the connector is properly seated in the socket and that the wall outlet is functioning correctly (test it with another device). If the problem persists, contact CARE FITNESS customer service mentioning your serial number.

Respond (be the first)

Download the instructions for your Exercise bike in PDF format for free! Find your manual CV-375 - CARE FITNESS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CV-375 by CARE FITNESS.

USER MANUAL CV-375 CARE FITNESS

Programme Contrôle de fréquence cardiaque : 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target (cible) H.R.C.

Programme 18 : 55% Max H.R.C. - - Target H.R. = (220 - AGE) x 55%

Programme 19 : 65% Max H.R.C. - - Target H.R. = (220 - AGE) x 65%

Programme 20 : 75% Max H.R.C. - - Target H.R. = (220 - AGE) x 75%

Programme 21 : 85% Max H.R.C. - - Target H.R. = (220 - AGE) x 85%

D. connection bluetooth & application

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CV-375 - connection bluetooth & application - 1

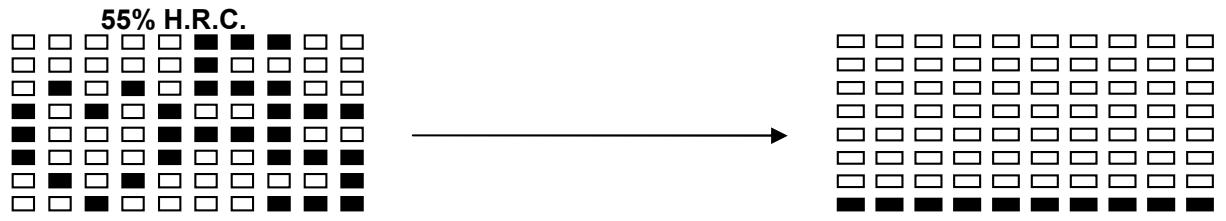

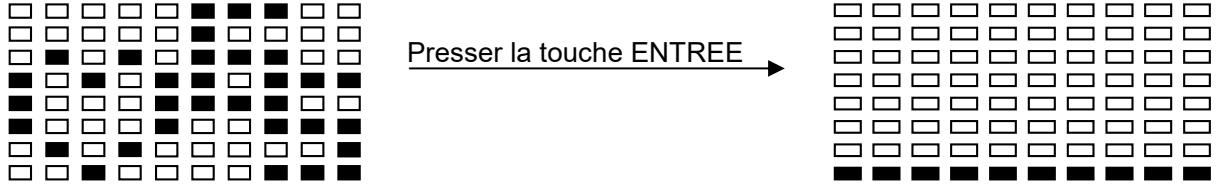

PROGRAMME 18
55% H.R.C.

CARE FITNESS CV-375 - connection bluetooth & application - 2

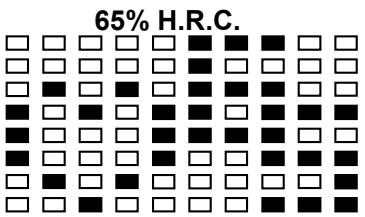

65% H.R.C.
PROGRAMME 20

CARE FITNESS CV-375 - connection bluetooth & application - 3

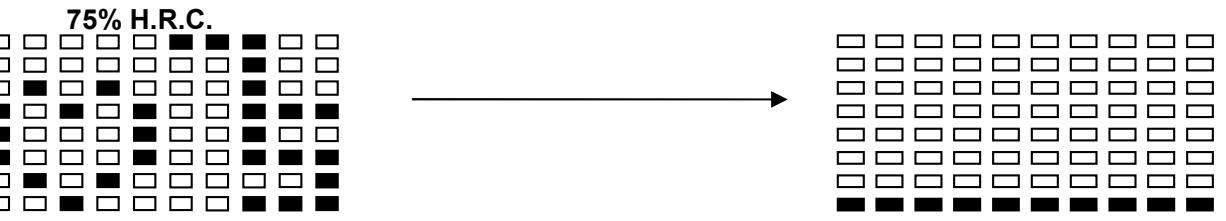

75% H.R.C.

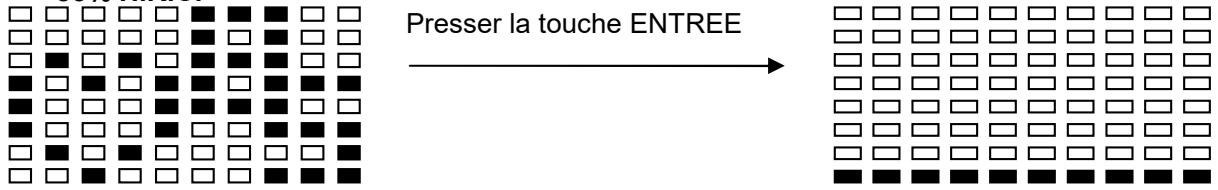

PROGRAMME 21

CARE FITNESS CV-375 - connection bluetooth & application - 4
85% H.R.C.

CARE FITNESS CV-375 - connection bluetooth & application - 5

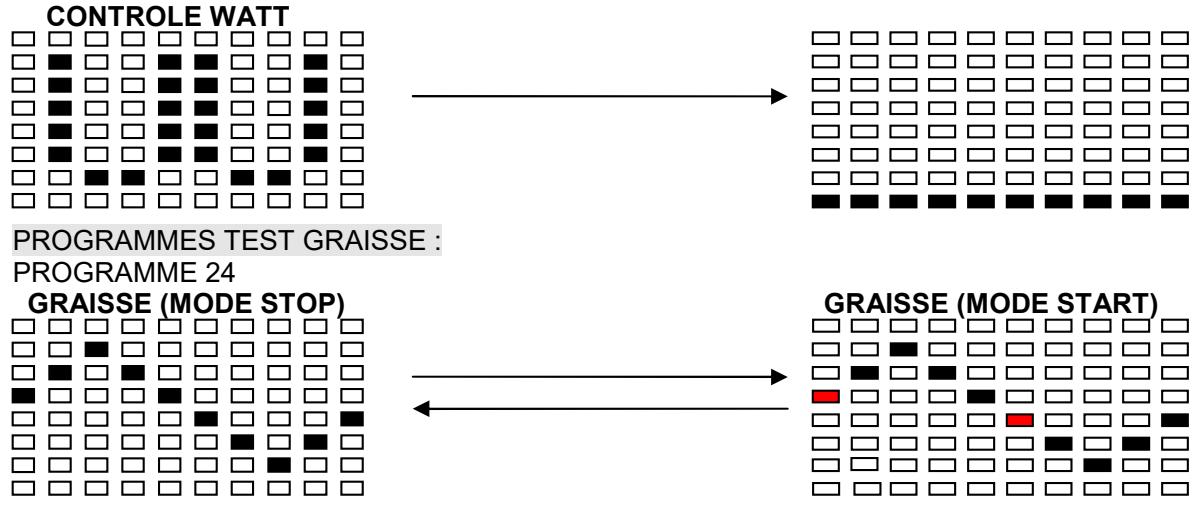

PROGRAMME 22

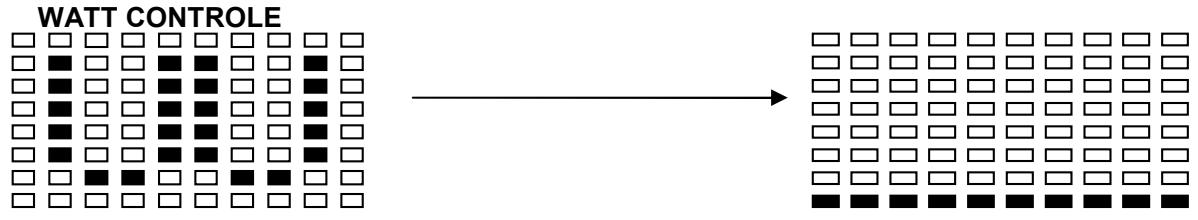

PROGRAMME CONTROLE WATT

CARE FITNESS CV-375 - connection bluetooth & application - 6
PROGRAMME 23

E mail: sav@carefitness.com

CARE FITNESS CV-375 - connection bluetooth & application - 7

CARE FITNESS CV-375 - connection bluetooth & application - 8

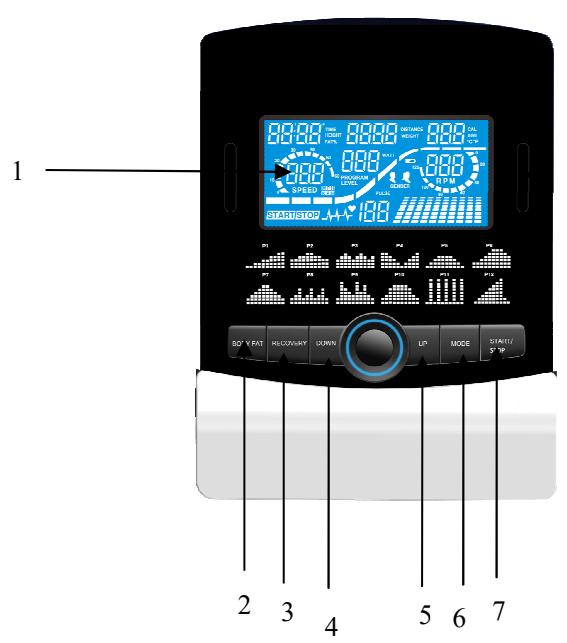

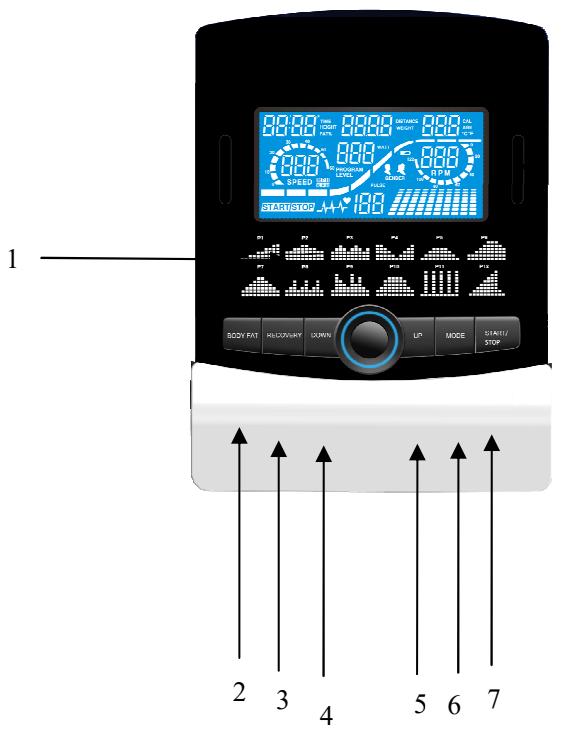

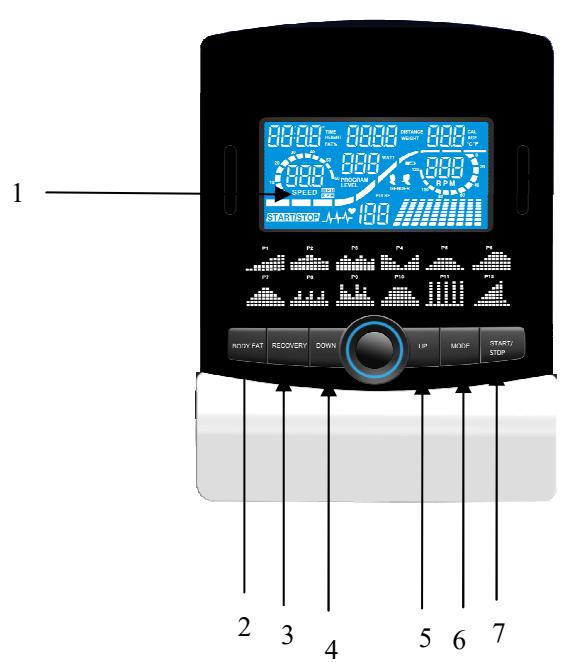

  1. LCD
  2. Button of Body Fat
  3. Button of Pulse Recovery
  4. Button of Down
  5. Button of Up
  6. Button of Mode
  7. Button of Start / Stop

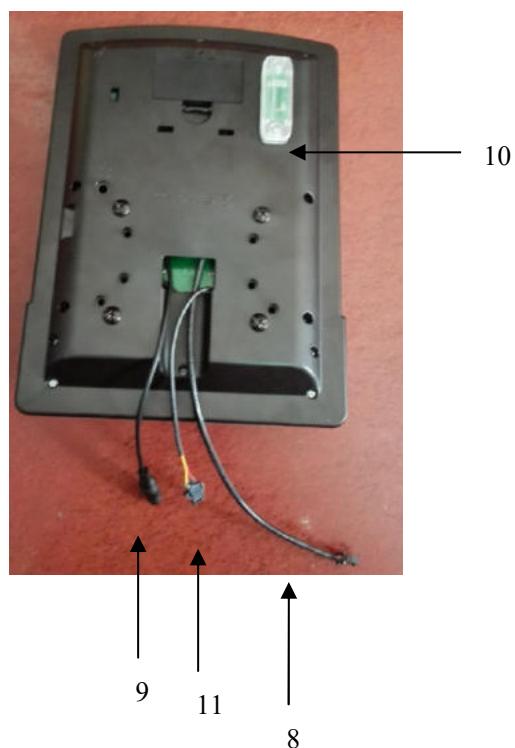

  8. Connector of Sensor cable
  9. Connector of Pulse cable
  10. Blue-tooth socket
  11. Connector USB

The things you should know before exercising

A. Input Power

Plug in the adaptor to the equipment then the computer will produce a beep sound and turn on the computer at the Manual mode.

B. Program select and setting value

  1. Use the UP or DOWN keys to select program mode and then press MODE to confirm your exercise mode.
  2. At the Manual mode, the computer will use the UP or DOWN keys to set up your exercise TIME, DISTANCE, CALORIES, PULSE.
  3. Press the START/STOP key to start exercise.
  4. When you reach the target, the computer will produce beep sounds and then stop.
  5. If you set up more than one target and you would like to reach next target, press START/STOP key to keep on exercise.

C. Wake-Up Function

The monitor will entry SLEEP mode (LCD off) when there is no signal input and no key be pressed after 4 minutes. Press the screen to start the monitor.

Functions and Features:

  1. TIME: Shows your elapsed workout time in minutes and seconds. Your computer will automatically count up from 0:00 to 99:59 in one second intervals. You can also program your computer to count down from a set value by using the UP and DOWN keys. If you continue exercising once the time has reached 0:00, the computer will begin beeping, and reset itself to the original time set, letting you know your workout is done.
  2. DISTANCE: Displays the accumulative distance traveled during each workout up to a maximum of 99.9KM/MILE.
  3. RPM: Your pedal cadence.
  4. WATT: The amount of mechanical power the computer is receiving from your exercise.
  5. SPEED: Displays your workout speed value in KM/MILE per hour.
  6. CALORIES: Your computer will estimate the cumulative calories burned at any given time during your workout.
  7. PULSE: Your computer displays your pulse rate in beats per minute during your workout.
  8. AGE: Your computer is age-programmable from 10 to 99 years. If you do not set an age, this function will always default to age 35.

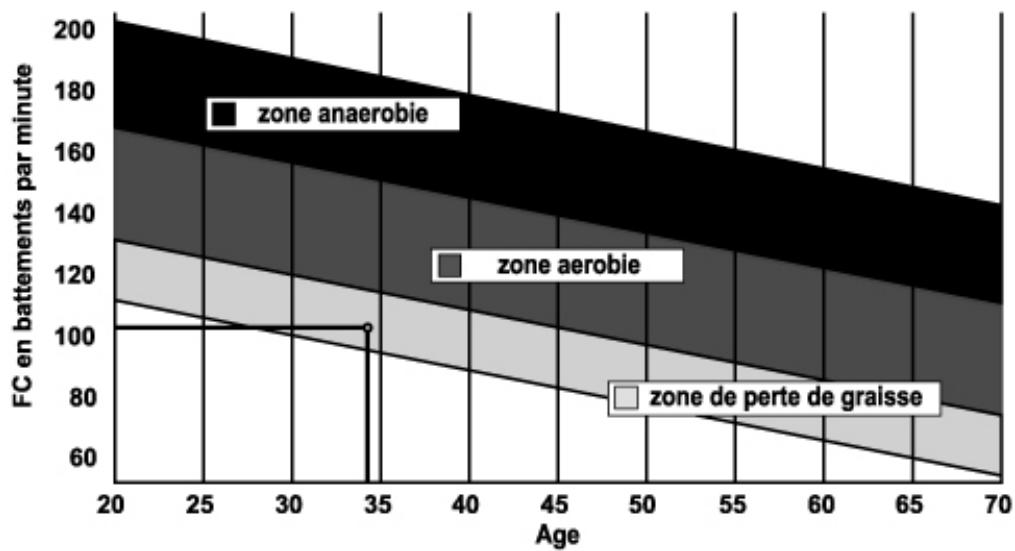

  9. TARGET HEART RATE (TARGET PULSE): The heart rate you should maintain is called your Target Heart Rate in beats per minute.
  10. PULSE RECOVERY: During the START stage, leave the hands holding on grips or leave the chest transmitter attached and then press "PULSE RECOVERY" key, all function displays will stop except "TIME". Time starts counting from 00:60 - 00:59 -- to 00:00. As soon as 00:00 is reached, the computer will show your heart rate recovery status with the grade F1.0 to F6.0.

1.0 means OUTSTANDING

1.0 F 2.0 means EXCELLENT
2.0≤F≤2.9meansGOOD
3.0≤F≤3.9 means FAIR
4.0≤F≤5.9 means BELOW AVERAGE

6.0 means POOR

Note: If no pulse signal input then the computer will show "P" on the PULSE window. If the computer shows "ERR" on the message window, please re-press the PULSE RECOVERY key and please make sure your hands are keeping well on the grips or the chest transmitter is attached well.

11.TEMPERATURE: Display the current temperature.

Key function:

There are 6 button keys and the function description as follows:

  1. START/STOP key:

a. Quick Start function: Allows you to start the computer without selecting a program. Manual .workout only. Time automatically begins to count up from zero
b. During the exercise mode, press the key to STOP exercise.
c. During the stop mode, press the key to START exercise.

  1. UP key:

a. Turn the toggle wheel to increase the resistance during exercise mode.
b. During the setting mode, turn the toggle wheel to increase the value of Time, Distance, Calories, Age and select Gender and Program.

  1. DOWN key:

a. Press the key to decrease the resistance during exercise mode.
b. During the setting mode, press the key to decrease the value of Time, Distance, Calories, Age and select Gender and Program.

  1. MODE key:

a. During the setting mode, press the key to accept the current data entry.
b. At the stop mode, by holding this key for over two seconds the user can reset all values to zero or default value.
c. During setting the Clock, press this key can accept the setting hour and setting minute.

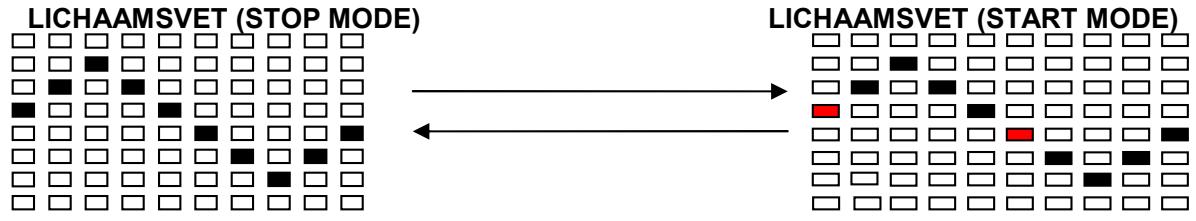

  1. BODY FAT key: Press the key to input your HEIGHT, WEKGHT, GENDER and AGE then to measure your body fat ratio,

  2. PULSE RECOVERY key: Press the key to activate heart rate recovery function.

Program Introduction & Operation:

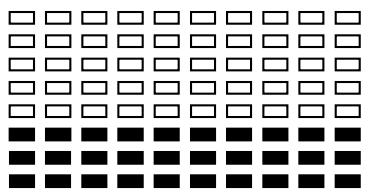

Manual Program: Manual

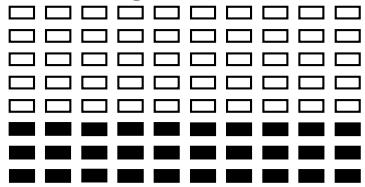

P1 is a manual program. User can start exercise by pressing START/STOP key. The default resistance level is 5. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select the MANUAL (P1) program.
  2. Press the MODE key to mode MANUAL program.
  3. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press MODE key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press MODE key to confirm your desired DISTANCE.
  5. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press MODE key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press MODE key to confirm your desired Pulse.
  7. Press the START/STOP key to begin exercise.

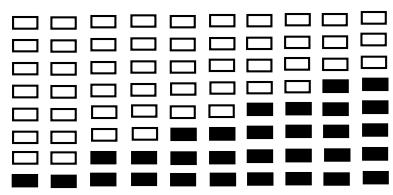

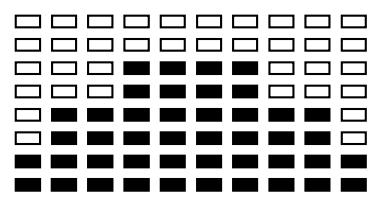

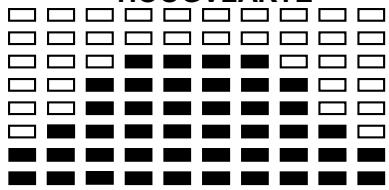

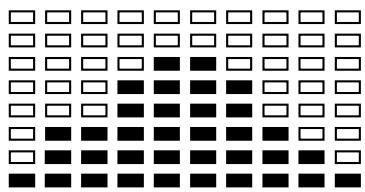

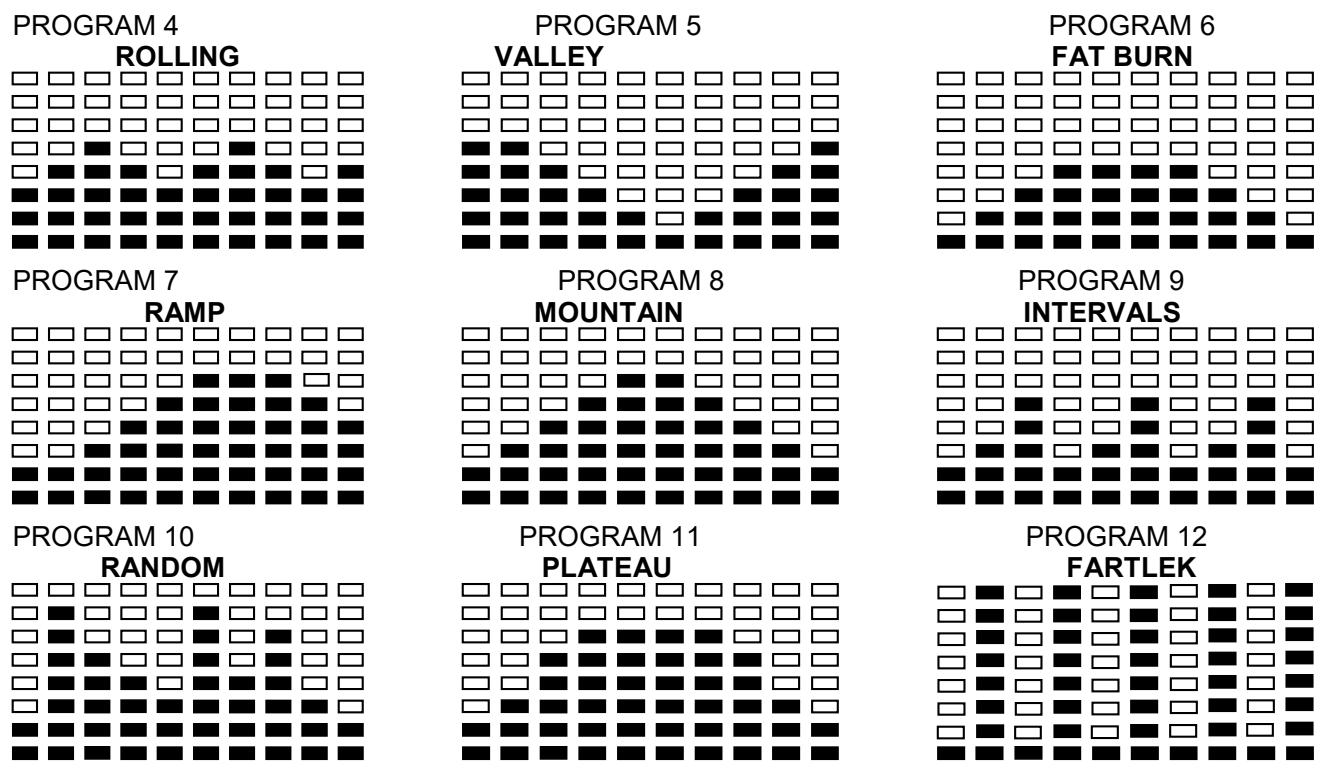

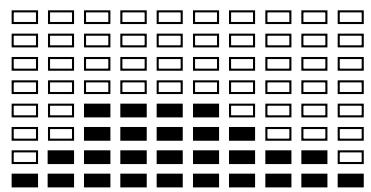

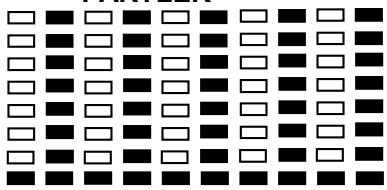

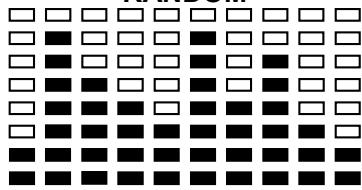

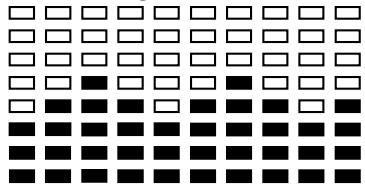

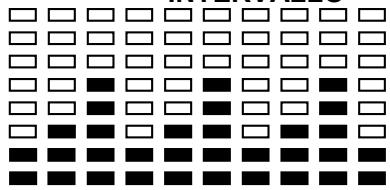

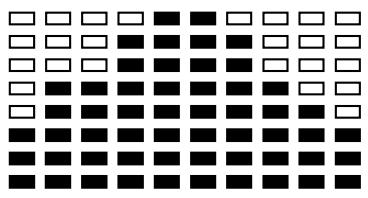

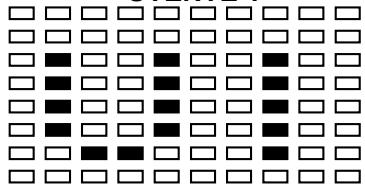

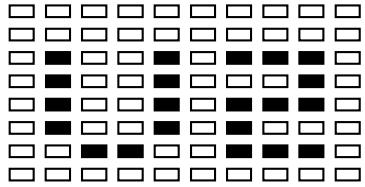

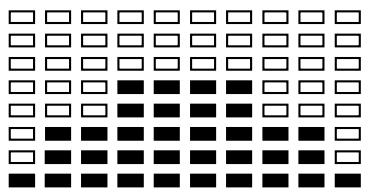

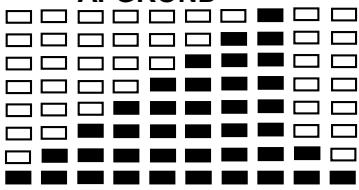

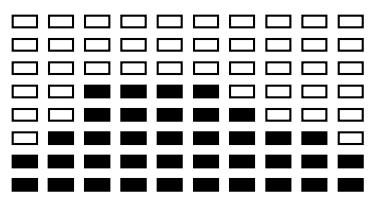

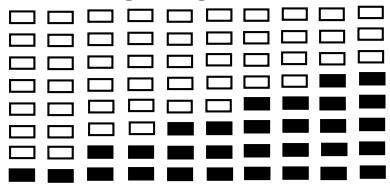

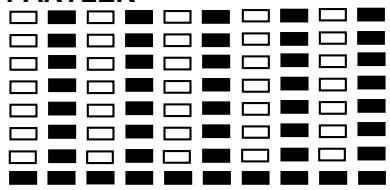

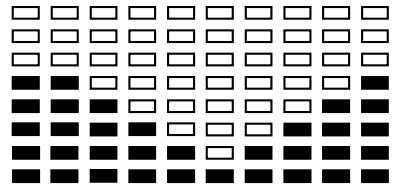

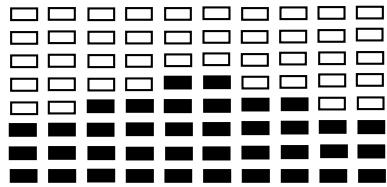

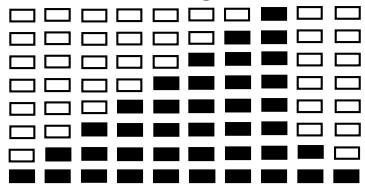

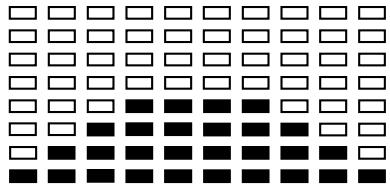

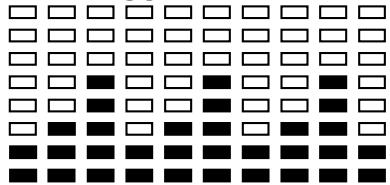

Preset Program: Steps, Hill, Rolling, Valley, Fat Burn, Ramp, Mountain, Intervals, Random, Plateau, Fartlek, Precipice Program

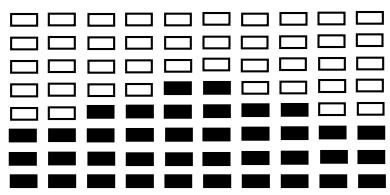

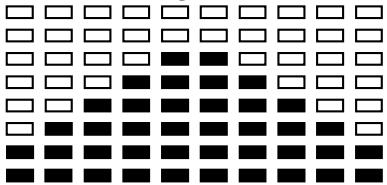

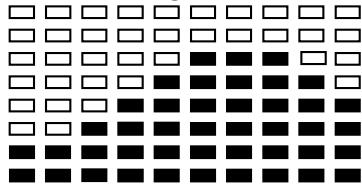

PROGRAM 2 to PROGRAM 13 is the preset programs. Users can exercise with different level of loading in different intervals as the profiles show. Users may exercise in any desirous of resistance level (Adjusting by UP/DOWN keys during the workout) with a period of time or a number of calories or a certain distance.

Operations:

  1. Use UP/DOWN keys to select one of the above programs from P2 to P13.
  2. Press the MODE key to mode your workout program.
  3. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press MODE key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press MODE key to confirm your desired DISTANCE.
  5. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press MODE key to confirm your desired CALORIES.
  6. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press MODE key to confirm your desired Pulse.
  7. Press the START/STOP key to begin exercise.

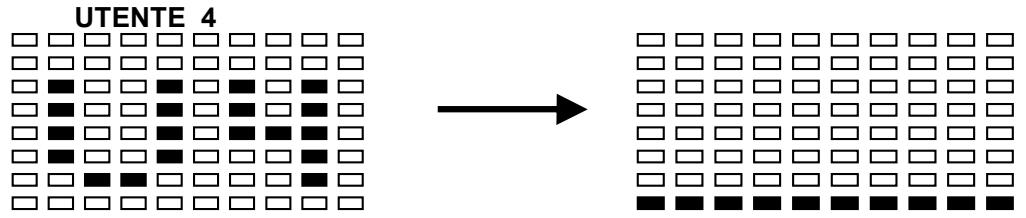

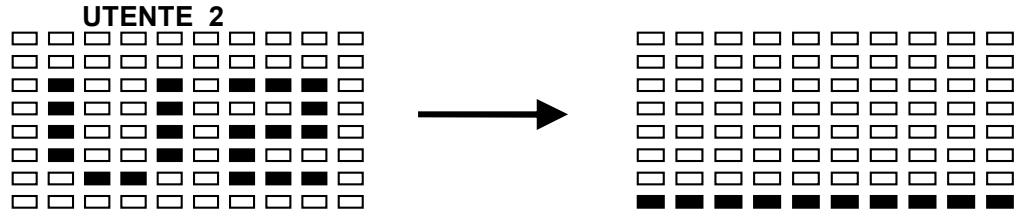

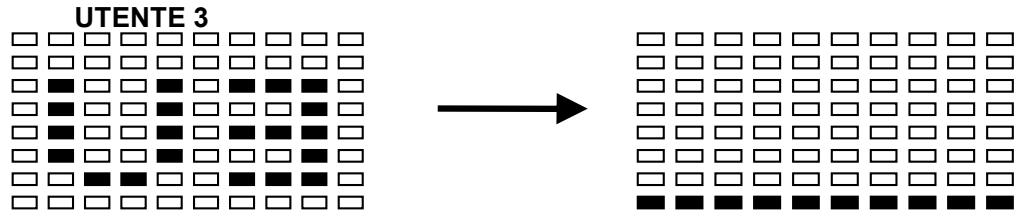

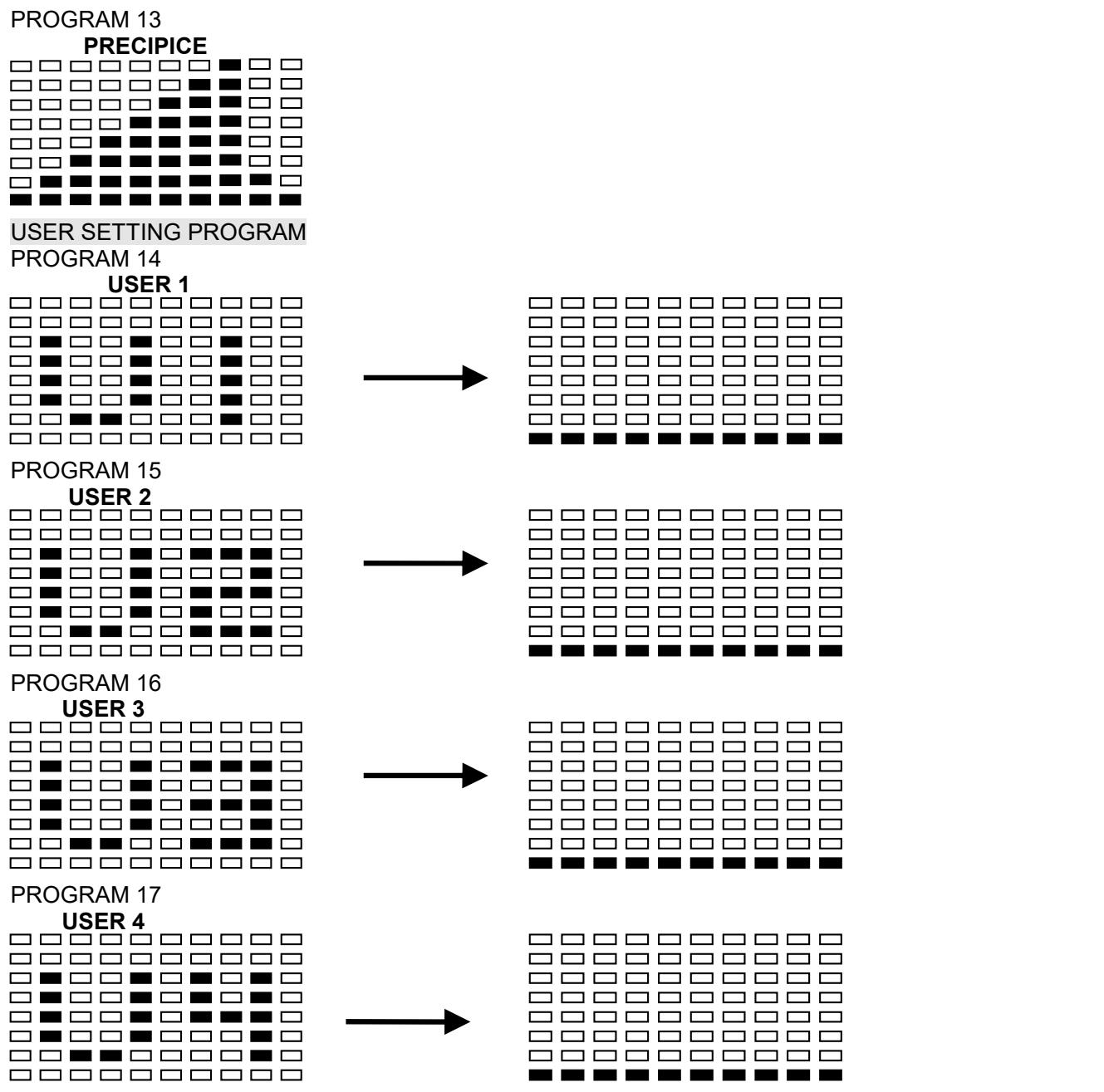

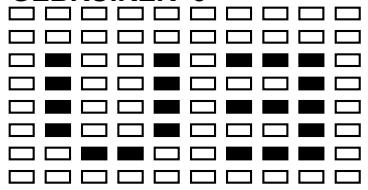

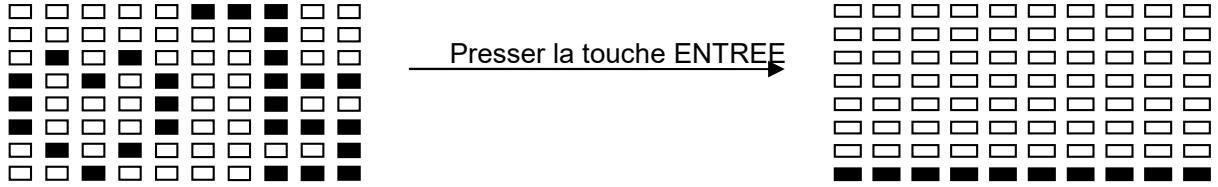

User Setting Program: User 1, User 2, User 3 and User 4

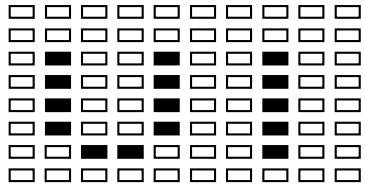

Program 14 to 17 is the user setting program. Users are free to create the values in the order of TIME, DISTANCE, CALORIES and the resistance level in 10 columns. The values and profiles will be stored in the memory after setup. Users may also change the ongoing loading in each column by UP/DOWN keys, and they will not change the resistance level stored in the memory.

Operations:

  1. Use UP/DOWN keys to select the USER program from P14 to P17.
  2. Press the MODE key to mode your workout program.
  3. The column 1 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press MODE to confirm your first column of exercise profile. The default level is load 1.
  4. The column 2 will flash, and then use the UP/DOWN keys to create your personal exercise profile. Press MODE to confirm your second column of exercise profile.
  5. Follow the above description 5 and 6 to finish your personal exercise profiles. Press MODE to confirm your desired exercise profile.
  6. The TIME will flash and you can press UP or DOWN keys to setting your exercise TIME. Press MODE key to confirm your desired TIME.
  7. The DISTANCE will flash and you can press UP or DOWN keys to setting your target DISTANCE. Press MODE key to confirm your desired DISTANCE.
  8. The CALORIES will flash and you can press UP or DOWN keys to setting your exercise CALORIES. Press MODE key to confirm your desired CALORIES.
  9. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press MODE key to confirm your desired Pulse.
  10. Press the START/STOP key to begin exercise.

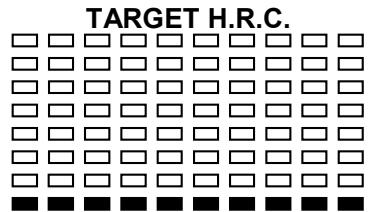

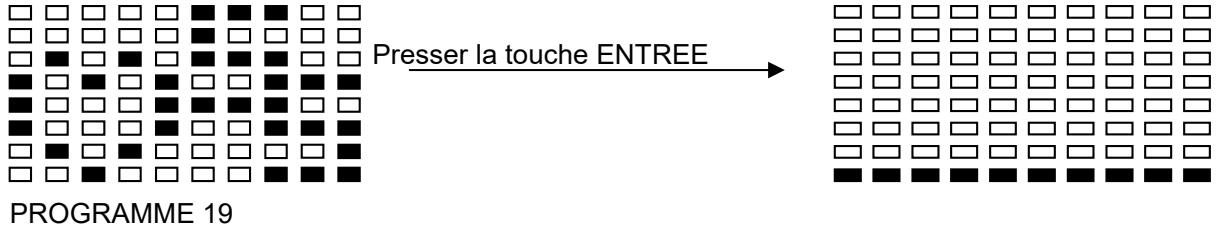

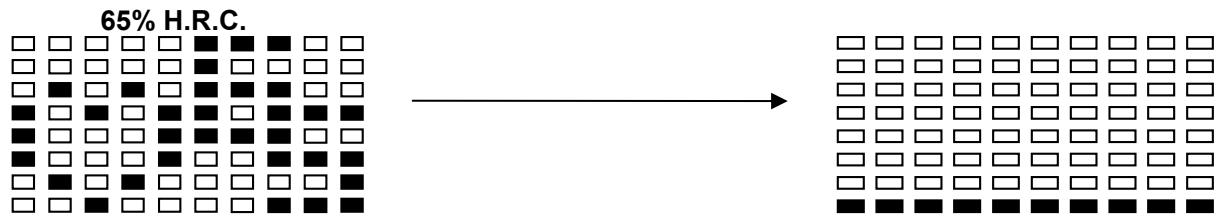

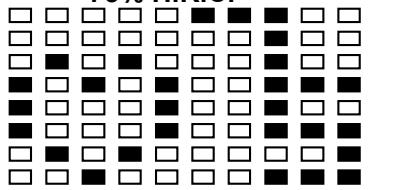

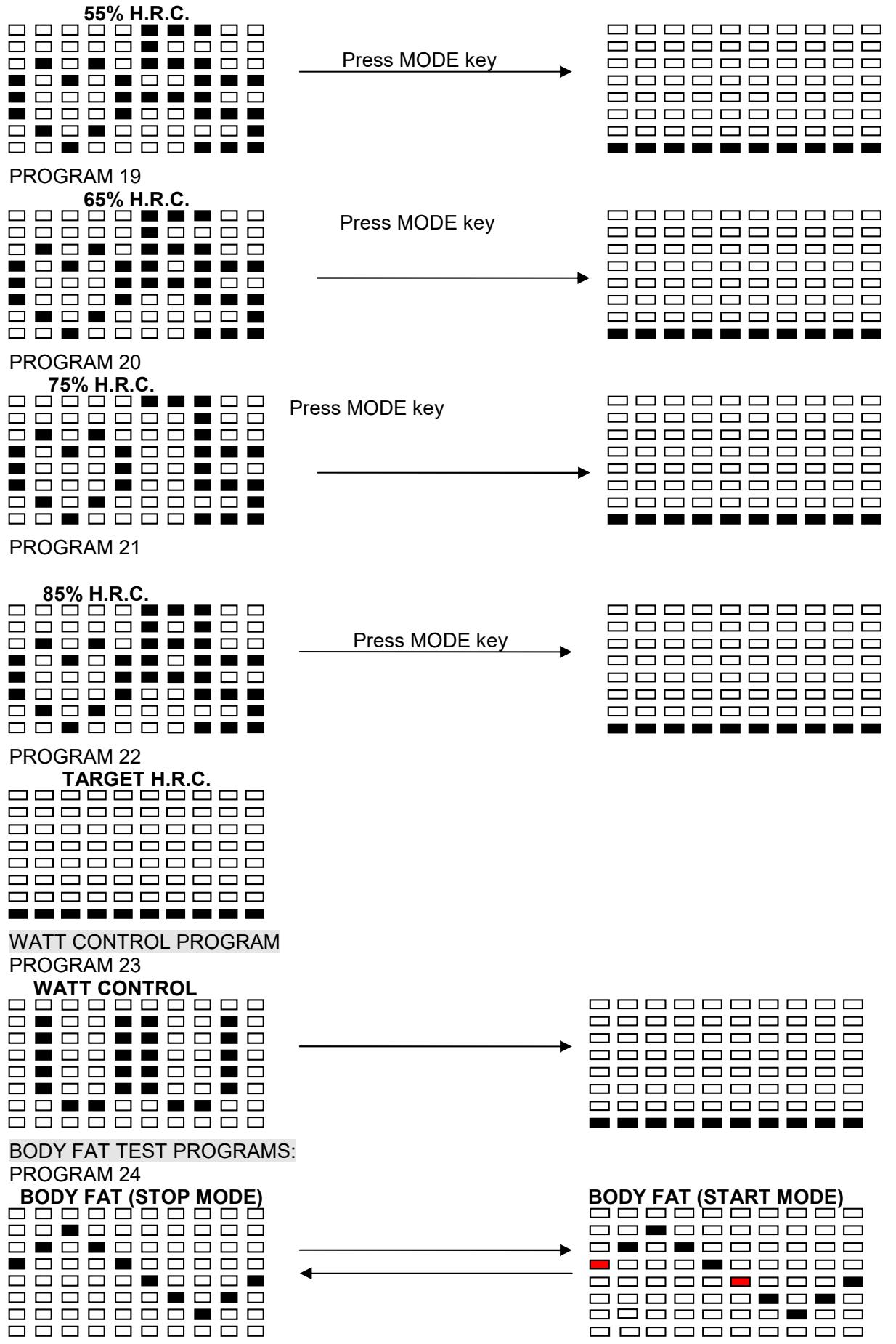

Heart Rate Control Program: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Target H.R.C.

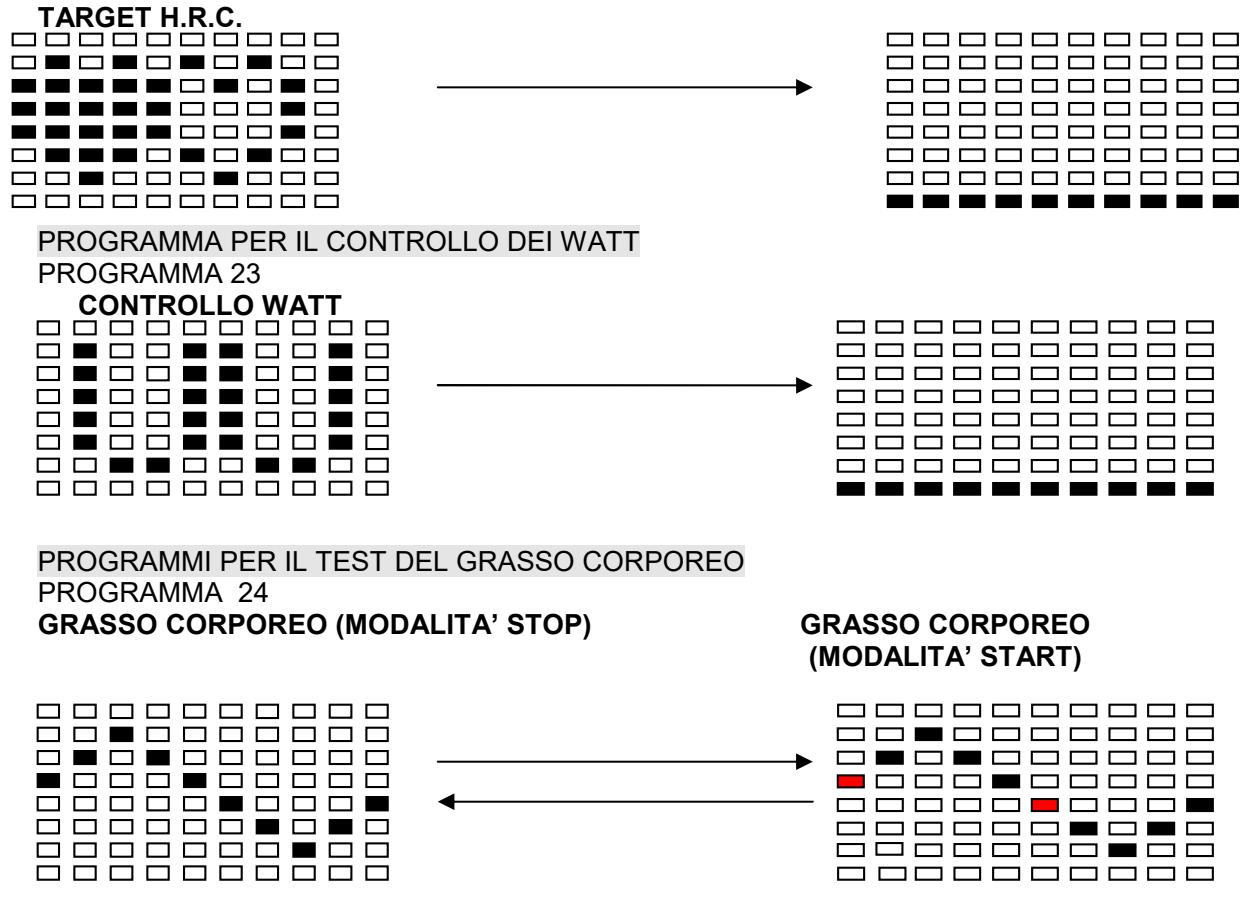

Program 18 to Program 22 is the Heart Rate Control Programs and Program 22 is the Target Heart Rate Control program.

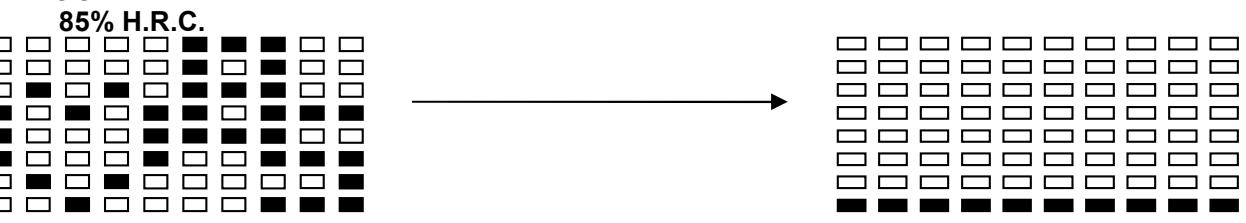

Program 18 is the 55% Max H.R.C. -- Target H.R. = (220 - AGE) x 55% Program 19 is the 65% Max H.R.C. -- Target H.R. = (220 - AGE) x 65% Program 20 is the 75% Max H.R.C. -- Target H.R. = (220 - AGE) x 75% Program 21 is the 85% Max H.R.C. -- Target H.R. = (220 - AGE) x 85% Program 22 is the Target H.R.C. -- Workout by your target heart rate value. Users can exercise according to your desired Heart Rate program by setting CALORIES or TARGET PULSE. In these programs, the computer will act as the heart rate detected. For example, the resistance level may increase or decrease is lower than the TARGET H.R and then the computer will show a window. Also the resistance level may decrease every 20 seconds while the TARGET H.R and then the computer will show "HURRY UP" on the user's heart rate will be adjusted to close the TARGET H.R. between the TARGET H.R. -5 and then the computer will show "KEEP GOING" on the

Operations:

  1. Use UP/DOWN keys to select one of the heart rate control program from P18 to P22.
  2. Press the MODE key to mode your workout program
  3. The AGE will flash at P18 to P21 programs and you can press UP or DOWN keys to set your AGE. The default age is 35.
  4. At program 22, the TARGET PULSE will flash and you can press UP or DOWN keys to set your TARGET PULSE between 80 to 180. The default TARGET PULSE is 120.
  5. The TIME will flash and you can press UP or DOWN keys to set your exercise TIME. Press MODE key to confirm your desired TIME.
  6. The DISTANCE will flash and you can press UP or DOWN keys to set your target DISTANCE. Press MODE key to confirm your desired DISTANCE.
  7. The CALORIES will flash and you can press UP or DOWN keys to set your exercise CALORIES. Press MODE key to confirm your desired CALORIES.
  8. Press the START/STOP key to begin exercise.

Watt Control Program: Watt Control

Program 23 is a Speed Independent Program. Press MODE key to set up the values of TARGET WATT, TIME, DISTANCE and CALORIES. During the exercise mode, the level of resistance is not adjustable. For example, the level of resistance may increase while the speed is too slow. Also the level of resistance may decrease while the speed is too fast. As a result, the calculated value of WATT will close to the value of TARGET WATT setup by users.

Operations:

  1. Use UP or DOWN key to select the WATT CONTROL (P23) program.
  2. Press MODE key to mode your workout program.
  3. The TIME will flash and you can press UP or DOWN key to set your exercise TIME. Press MODE key to confirm your desired TIME.
  4. The DISTANCE will flash and you can press UP or DOWN key to set your target DISTANCE. Press MODE key to confirm your desired DISTANCE.
  5. The WATT will flash and you can press UP or DOWN key to set your target WATT value. Press MODE key to confirm your target WATT. The default WATT value is 100.
  6. The CALORIES will flash and you can press UP or DOWN key to set your exercise CALORIES. Press MODE key to confirm your desired CALORIES.
  7. The PULSE will flash and then you can press UP or DOWN keys to set your exercise PULSE. Press MODE key to confirm your desired Pulse.
  8. Press the START/STOP key to begin exercise.

NOTE:

  1. WATT = TORQUE (KGM) * RPM * 1.03
  2. In this program, the WATT value will keep constant value. It means that if you peddle quickly, the resistance level will decrease and if you peddle slowly, the resistance level will increase. Always try to keep you in the same watt value.

Body Fat Program: Body Fat

Program 24 is a special program design to calculate users' body fat ratio and to offer a specific loading profile for users. There are 3 body types divided according to the FAT% calculated.

Type1: BODY FAT% > 27

Type2: 27 □ BODY FAT% □ 20

Type3: BODY FAT % < 20

The computer will show the test results of FAT PERCENT, BMI and BMR.

Operations:

  1. Use UP/DOWN keys to select the BODY FAT (P24) program.
  2. Press the MODE key to mode your workout program.
  3. The HEIGHT will flash and you can press UP or DOWN keys to set your HEIGHT. Press MODE key to confirm your HEIGHT. The default HEIGHT is 170cm or 5'07" (5feet 7 inches).
  4. The WEIGHT will flash and you can press UP or DOWN keys to set your WEIGHT. Press MODE key to confirm your WEIGHT. The default WEIGHT is 70kgs or 155lbs.
  5. The GENDER will flash and you can press UP or DOWN keys to select your sex. Number 1 means man and number 0 means female. Press MODE key to confirm your Gender. The default sex is 1 (MAN).
  6. The AGE will flash and you can press UP or DOWN keys to set your AGE. Press MODE key to confirm your AGE. The default AGE is 35.
  7. Press the START/STOP key to begin body fat measurement. If the window show E on the window, please make sure your hands are attached well on the grips or the chest belt is touch well on your body. Then press the START/STOP key again to begin body fat measurement.
  8. After finished your measurement, the computer will show the values of BMR, BMI and FAT PERCENT on the LCD display. Furthermore, the computer will show your own exercise profile for your body type.
  9. Press START/STOP key to begin exercise.

Operation guide:

  1. Sleep Mode: The computer will enter the sleep mode when there is no signal input and no keys be pressed after 4 minutes. You can press any key to wake up the computer.
  2. BMI (Body Mass Index): BMI is a measure of body fat based on height and weight that applies to both adult men and women.
  3. BMR (Basal Metabolic Rate): Your Basal Metabolic Rate (BMR) shows the number of calories your body needs to operate. This doesn't account for any activity, it's simply the energy needed to sustain a heartbeat, breathing and normal body temperature. It measures the body at rest, not sleep, at room temperature

D. Bluetooth & application connection

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

And Followw the detailed instruction

Error Message:

E1 (ERROR 1):

Normal state: During workout, when the monitor did not get the count signal from the gear motor more than 4 seconds and check under successive 3 times then the LCD will show E1.

Power on state: The gear motor will return to zero automatically, when the signal of motor cannot be detected for more than 4 seconds then the gear motor's driver will be cut off immediately and show the E1 on the LCD display. All the other digital and function mark are blank, and the output signals are cut off also.

E2 (ERROR 2): When the monitor read the memory data, if the I.D. code is not correct or the memory IC damages then the monitor will show E2 immediately at power on.
E3 (ERROR 3): After 4 seconds by start mode, the computer detects the faulty motor did not leave the zero point then the LCD bar displays "E3".

Error message: When you press "Pulse Recovery"Key but don't hold on hand grips , the computer will show "Err".

Technical data of the current adapter

  1. Available for Input: 230V/50Hz or 60Hz Output: 6V AC/0.5A
  2. Available for Input: 110V/50Hz or 60Hz Output: 6V AC/0.5A

LCD Workout Graphics

PRESET PROGRAM PROFILES:

PROGRAM 1

MANUAL

CARE FITNESS CV-375 - MANUAL - 1

PROGRAM 2

STEPS

CARE FITNESS CV-375 - STEPS - 1

PROGRAM 3

HILL

CARE FITNESS CV-375 - HILL - 1

CARE FITNESS CV-375 - HILL - 2

CARE FITNESS CV-375 - HILL - 3

CARE FITNESS CV-375 - HILL - 4
HEART RATE PROGRAM PROFILES:
PROGRAM 18

One of the Following Six Profiles Will Display Automatically after Measuring Your BODY FAT:

CARE FITNESS CV-375 - HILL - 5
Exercise Time: 40 minutes

CARE FITNESS CV-375 - HILL - 6
Exercise Time: 40 minutes

CARE FITNESS CV-375 - HILL - 7
Workout time: 20 minutes

CARE FITNESS CV-375 - HILL - 8
Exercise Time: 40 minutes

CARE FITNESS CV-375 - HILL - 9
Exercise Time: 40 minutes

CARE FITNESS CV-375 - HILL - 10
Workout time: 20 minutes

Cardio - Training:

Before programming your training, it is essential to take account of your age, particularly for people of more than 35 years of age, as well as your physical condition. If you have a sedentary lifestyle without regular physical activity, it is vital that you consult your doctor to determine the level of intensity of your training. Once determined, do not attempt to achieve your maximum during the first training sessions. Be patient; your performance will quickly improve.

Cardio - Training:

This enables you to develop your cardiovascular system (fitness of the heart / blood vessels). During Cardio-Training, the muscles need a supply of oxygen and nutritive substances. They also need to eliminate waste. Our heart increases its rhythm and sends a larger amount of oxygen to the body by means of the cardiovascular system. The more often you exercise regularly and repetitively, the more your heart will develop, just like any other muscle. In daily life, this translates into the ability to bear greater physical effort and improve your intellectual faculties.

Definition of your work Zone:

The Maximum Heart Rate (MHR) = 220 - age (180 - age for sedentary people).

The Warming Up Zone and Cooling Down Zone are equal to 55% of your MHR.

The Fat Loss Zone is between 55 / 65% of your MHR.

The Aerobic Zone is between 65 / 85% of your MHR.

The Anaerobic Zone is between 85% of your MHR and your MHR.

CARE FITNESS CV-375 - Definition of your work Zone: - 1
Make a diagram of the target zones

The progressive training stages:

1) A warming up phase:

Start each training session by warming up progressively (10-20 min, more if you are over 50) which will put your muscles on standby and gently increase your heart rate. Gently increase your pulse to 55% of your MHR (Maximum Heart Rate).

Keep your Heart Rate at this level for the duration of the warming up time. If you begin your training too quickly, you are in danger of increasing the risk of tendon or muscle injury.

2) A work phase:

This is the main part of the training session. Depending on your specific goals and your initial physical condition, weight loss, improvement of cardiovascular resistance (aerobic work), development of stamina (anaerobic work), it is possible to choose the appropriate target zone.

The Fat Loss Zone, 55 - 65%

The heart rate must be low and the duration of the exercise quite long. This zone is advised for people resuming physical activity after a long period of idleness, who are trying to eliminate excess weight or are susceptible to cardiac problems. Do not forget that for this type of training the duration of the exercise must be at least 30 minutes and the Heart Rate (HR) between 55 and 65% of the MHR.

Gradually increase from 30 to 60 minutes per session.
Exercise 3 or 4 times a week.

The Aerobic Zone, 65 - 85%

This zone is recommended for those who are in good physical condition who train regularly. By training in this zone, you will improve your physical condition but avoid overworking.

Duration: 20 to 30 minutes per session.
- Frequency: At least 3 or 4 times a week.

The Anaerobic Zone, 85% - MHR

This zone is exclusively for experienced athletes and is never recommended without medical approval and supervision. This zone is designed only for very fit people. It is used for interval training (or for short sprints) to help you to improve or measure your level of stamina. The time spent in this zone must be brief to avoid the risk of accident.

3) A cooling down phase:

This entails a reduction of exertion (10 to 20 min). It enables you to return your cardiovascular system to normal (55% of your MHR) and prevent or reduce muscular pain such as cramp and stiffness. You must follow the training with a session of stretching exercises while your joints are still warm. This relaxes the muscles and helps to prevent stiffness. Stretch slowly and gently. You must never stretch until you reach the pain threshold. Hold each stretch for 30 to 60 seconds while breathing out.

Check your progress

As it improves, your cardiovascular system will have an HR which will be lower when at rest. You will take longer to reach your target zone and it will be easier for you to maintain it. Sessions will seem easier and easier and you will have more stamina in your daily life.

If, on the other hand, your HR is higher than usual when at rest, you will have to rest or reduce the intensity of your training.

Do not be discouraged by the initial sessions. Motivate yourself by scheduling specific training times. Work hard!

All defective materials or parts can only be exchanged once we have received them. Shipping is at the sender's expense. No returns of goods will be accepted without our prior approval.

To order spare parts

To guarantee an efficient service, make sure you have the following items before you contact our After Sales Service:

The name or reference of the product.

The manufacturing number shown on the main chassis and on the packing box.

The number of the missing or faulty part shown on the exploded view of the product described in this manual.

After Sales Service

Email: service-uk@carefitness.com

CARE FITNESS CV-375 - To order spare parts - 1

CARE FITNESS CV-375 - To order spare parts - 2

CARE FITNESS CV-375 - To order spare parts - 3

Pulsschlag-Kontroll-Programm: 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C.,

Target H.R.C. (angestrebter Pulsschlag)

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

1.0 F <2.0 means EXCELENTE

2.0≤F≤2.9 means BUENO

3.0≤3.9 means REGULAR

4.0≤F≤5.9 means POR DEBAJO DEL PROMEDIO

6.0 means MALO

Prográmas de control de pulso del corazón (H.R.C): 55% H.R.C., 65% H.R.C., 75% H.R.C., 85% H.R.C., Objetivo H.R.C.

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - ETA') x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - ETA') x 65%

Programma 20: 75% Max H.R.C. -- Target H.R. = (220 - ETA') x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - ETA') x 85%

https://cloud-carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CV-375 - To order spare parts - 4
PROGRAMMA 9 INTERVALL
PROGRAMMA 12

CARE FITNESS CV-375 - To order spare parts - 5
FARTLEK

CARE FITNESS CV-375 - To order spare parts - 6
PROGRAMMA 13
PRECIPIZIO
PROGRAMMA DA IMPOSTARE DALL'UTENTE

CARE FITNESS CV-375 - To order spare parts - 7
PROGRAMMA 14
UTENTE 1

CARE FITNESS CV-375 - To order spare parts - 8

CARE FITNESS CV-375 - To order spare parts - 9

CARE FITNESS CV-375 - To order spare parts - 10
PROGRAMMA 15

CARE FITNESS CV-375 - To order spare parts - 11
PROGRAMMA 16

CARE FITNESS CV-375 - To order spare parts - 12
PROGRAMMA 17
PROFILI DELLA FREQUENZA CARDIACA (H.C.R)

CARE FITNESS CV-375 - To order spare parts - 13
PROGRAMMA 18

CARE FITNESS CV-375 - To order spare parts - 14
PROGRAMMA 19

CARE FITNESS CV-375 - To order spare parts - 15
PROGRAMMA 20
PROGRAMMA 21

CARE FITNESS CV-375 - To order spare parts - 16

CARE FITNESS CV-375 - To order spare parts - 17
PROGRAMMA 22

E mail: service-it@carefitness.com

CARE FITNESS CV-375 - To order spare parts - 18

CARE FITNESS CV-375 - To order spare parts - 19

FUNCTIONS:

Programma 18: 55% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 55%

Programma 19: 65% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 65%

Programma 20: 75% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 75%

Programma 21: 85% Max H.R.C. -- Target H.R. = (220 - LEEFTIJD) x 85%

https://cloud.carefitness.com/index.php/s/E2WD22KMNBQzERL

CARE FITNESS CV-375 - FUNCTIONS: - 1
PROGRAMMA 1 MANUAL
PROGRAMMA 4

CARE FITNESS CV-375 - FUNCTIONS: - 2
PROGRAMMA 2 STAPPEN
PROGRAMMA 5

CARE FITNESS CV-375 - FUNCTIONS: - 3
PROGRAMMA 3 HEUVEL
PROGRAMMA 6

CARE FITNESS CV-375 - FUNCTIONS: - 4
ROLLEN

CARE FITNESS CV-375 - FUNCTIONS: - 5
VALLEI

CARE FITNESS CV-375 - FUNCTIONS: - 6
VETVERBRANDEND

CARE FITNESS CV-375 - FUNCTIONS: - 7
PROGRAMMA 7
HELLING
PROGRAMMA 10

CARE FITNESS CV-375 - FUNCTIONS: - 8
RANDOM

CARE FITNESS CV-375 - FUNCTIONS: - 9
PROGRAMMA 8 BERG

CARE FITNESS CV-375 - FUNCTIONS: - 10
PROGRAMMA 11 HOOGVLAKTE

CARE FITNESS CV-375 - FUNCTIONS: - 11
PROGRAMMA 9 _PAUSE

CARE FITNESS CV-375 - FUNCTIONS: - 12
PROGRAMMA 12 TLEK

CARE FITNESS CV-375 - FUNCTIONS: - 13
PROGRAMMA 13
AFGROND
PROGRAMMA IN TE STEllen DOOR GEBRUiker

CARE FITNESS CV-375 - FUNCTIONS: - 14
PROGRAMMA 14
GEBRUIKER 1
PROGRAMMA 15

CARE FITNESS CV-375 - FUNCTIONS: - 15
GEBRUIKER 2

CARE FITNESS CV-375 - FUNCTIONS: - 16

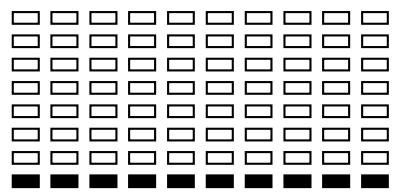

CARE FITNESS CV-375 - FUNCTIONS: - 17

CARE FITNESS CV-375 - FUNCTIONS: - 18

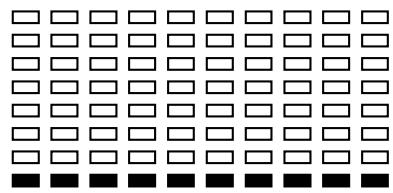

CARE FITNESS CV-375 - FUNCTIONS: - 19

CARE FITNESS CV-375 - FUNCTIONS: - 20
PROGRAMMA 16
GEBRUKER 3
PROGRAMMA 17

CARE FITNESS CV-375 - FUNCTIONS: - 21
PROGRAMMA 19
PROGRAMMA 20

CARE FITNESS CV-375 - FUNCTIONS: - 22
75% H.R.C.

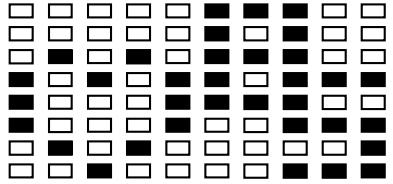

CARE FITNESS CV-375 - FUNCTIONS: - 23
PROGRAMMA 21
85% H.R.C.
PROGRAMMA 22

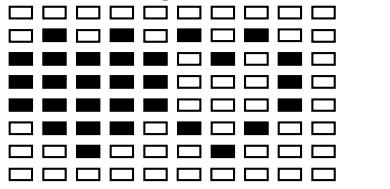

CARE FITNESS CV-375 - FUNCTIONS: - 24
TARGET H.R.C.

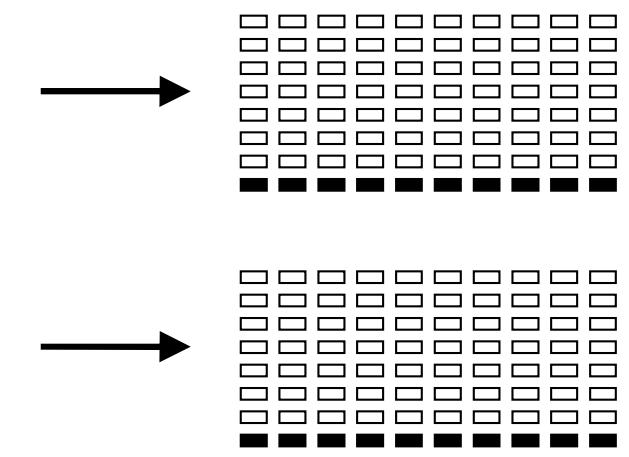

CARE FITNESS CV-375 - FUNCTIONS: - 25

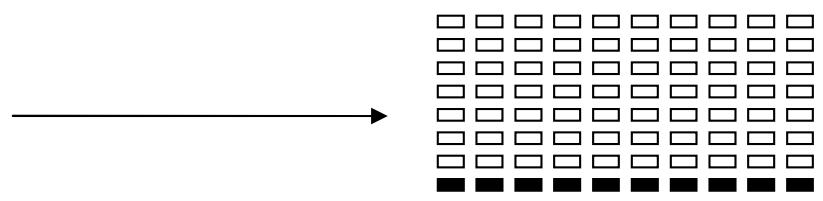

CARE FITNESS CV-375 - FUNCTIONS: - 26

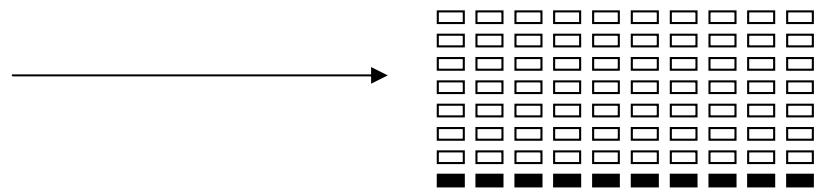

CARE FITNESS CV-375 - FUNCTIONS: - 27

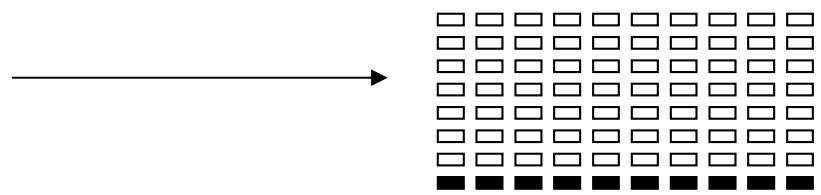

CARE FITNESS CV-375 - FUNCTIONS: - 28

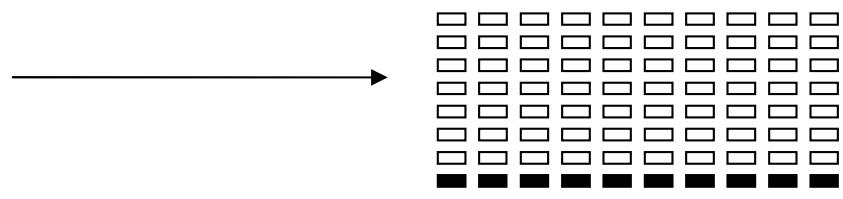

CARE FITNESS CV-375 - FUNCTIONS: - 29

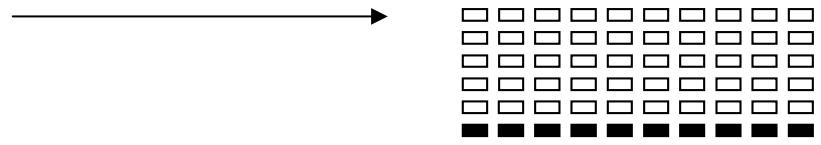

CARE FITNESS CV-375 - FUNCTIONS: - 30

CARE FITNESS CV-375 - FUNCTIONS: - 31
WATT CONTROLE PROGRAMMA
PROGRAMMA 23
LICHAAMSVET TEST PROGRAMMA'S:

CARE FITNESS CV-375 - FUNCTIONS: - 32
PROGRAMMA 24

De harttraining (cardiotraining):

Dagelijke training = circa 10 minutes per keer.

2 tot 3 trainingen per week = circa 30 minutes per keer.

1 tot 2 trainingen per week = circa 50 minutes per keer.

E-mail: service-nl@carefitness.com

CARE

FITNESS

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : CARE FITNESS

Model : CV-375

Category : Exercise bike
