Product type	Space heater
Brand	ANNA
Model	BIG WHITE
Dimensions (W x H x D)	183 x 420 x 183 mm
Weight	3.2 kg
Power supply	220–240 V / 50 Hz
Rated power (max)	2000 W
Minimum consumption	300 W
Temperature range	0 °C (cooling) to 35 °C / Hi
Power levels	8 levels (low to high)
Noise level	28–50 dB(A)
Automatic mode	Yes, with Adaptive Heat technology (patent pending)
Cooling mode	Yes (set to 0 °C)
Air filter	Washable with soapy water
Overheat protection	Yes, automatic shutdown in case of malfunction
LED indicator	Red (heating) / Blue (cooling)
Temperature display	In °C or °F (switchable)
Touch panel	Yes
Warranty	2 years (covering material and manufacturing defects)
Compliance standards	CE / WEEE / RoHS / EAC

Frequently Asked Questions - BIG BLANC ANNA

How to set the desired temperature?

Use the Temperature control panel on the right: press ++ to increase or -- to decrease. The value flashes during adjustment and is saved after 3 seconds without modification.

How to activate Auto mode (Adaptive Heat)?

Press the Auto Mode button (symbol « Auto Mode »). The default temperature is 22 °C, adjustable via the temperature keys. The heat level adjusts automatically to maintain the set point efficiently.

How to switch to cooling mode?

Set the temperature to 0 °C. The heater turns off, the fan blows cold air, and the LED changes from red to blue.

How to clean the air filter?

Remove the air intake grille at the back, take out the filter, and wash it with warm water and a little soap. Rinse thoroughly, dry completely before putting it back.

What safety distances must be observed?

Place the unit at least 50 cm away from walls and objects. In a bathroom, maintain at least 100 cm from showers, bathtubs, sinks, etc.

Can the unit be used by children?

Yes, from age 8 under supervision. Children aged 3 to 8 may only turn the unit on/off if it is installed in its usual location and under supervision.

What to do if the unit stops due to overheating?

Unplug it, let it cool down. Check that it is not covered, that the air inlets/outlets are clear, and that it is at least 50 cm from obstacles. Once cooled, it can be turned back on.

How to switch the display between °C and °F?

Press the Auto Mode button for 5 seconds until the unit changes.

Can I use an extension cord?

No, using an extension cord is not recommended. Plug the unit directly into a socket installed by a professional.

How to dispose of the unit at end of life?

Do not throw it away with household waste. In accordance with the WEEE directive, take it to a recycling center or return it to your retailer.

USER MANUAL BIG BLANC ANNA

Operating instructions

Gebrauchsanweisung

Mode d'emploi

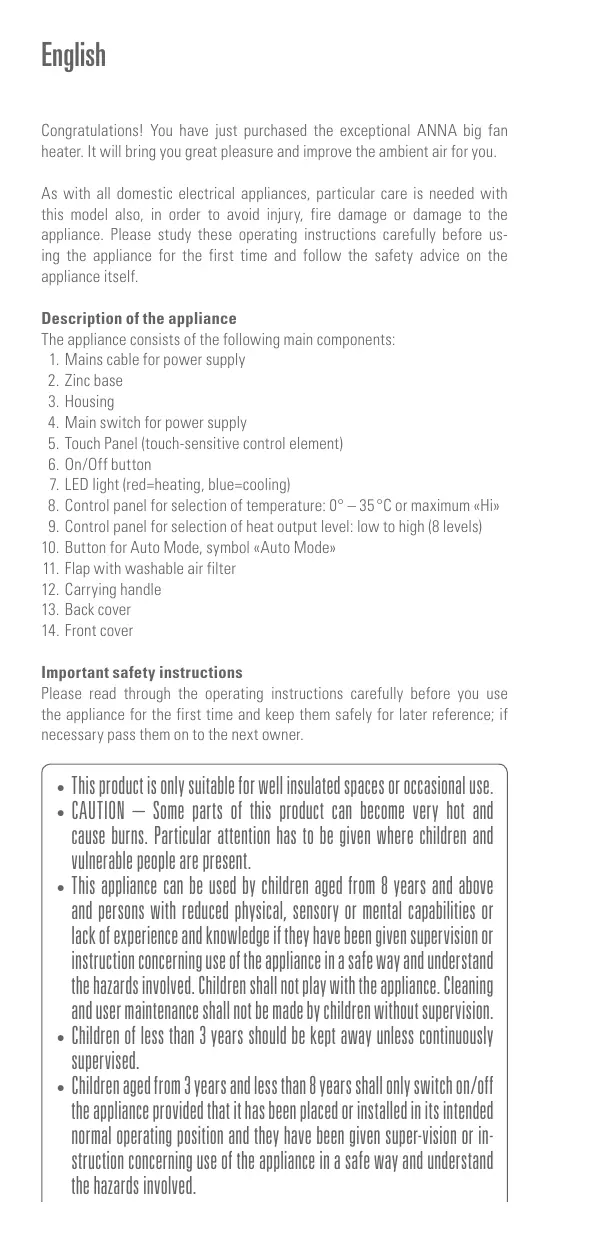

Congratulations! You have just purchased the exceptional ANNA big fan heater. It will bring you great pleasure and improve the ambient air for you.

As with all domestic electrical appliances, particular care is needed with this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the appliance for the first time and follow the safety advice on the appliance itself.

Description of the appliance

The appliance consists of the following main components:

1. Mains cable for power supply
2. Zinc base
3. Housing
4. Main switch for power supply
5. Touch Panel (touch-sensitive control element)
6. On/Off button
7. LED light (red=heating, blue=cooling)
8. Control panel for selection of temperature: 0^ - 35^ or maximum «Hi»

9. Control panel for selection of heat output level: low to high (8 levels)

10. Button for Auto Mode, symbol «Auto Mode»

11. Flap with washable air filter

12. Carrying handle
13. Back cover
14. Front cover

Important safety instructions

Please read through the operating instructions carefully before you use the appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.

• This product is only suitable for well insulated spaces or occasional use.
• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given super-vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• If the supply cord is damaged, it must be replaced by the manufacturer, or its service agent, or a qualified person in order to avoid a hazard.

• Stadler Form refuses all liability for loss or damage which arises as a result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in these instructions. Unauthorized use and technical modifications to the appliance can lead to danger to life and health.
• Never submerge the unit in water (danger of short circuiting).
• Never run a defective unit (e.g. supply cord).
• Never touch energized parts.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance. Do not use extension cords.
• The heater must not be located directly below a socket-outlet.
• Do not open the appliance (repairs only by service agents).
• Do not run the power cord over sharp edges and make sure that it does not get trapped. Do not pull the plug from the socket with wet hands or by holding on to the power cord.
• Do not place the appliance near a heat source. Do not subject the power cord to direct heat (such as a heated hotplate, open flames, hot iron sole plates or heaters for example). Protect power cords from oil.
• Please make sure that the used socket remains accessible.
• Do not run the heater on an uneven or soft surface.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer.
  WARNING: In order to avoid overheating, do not cover the air inlet or air outlet - fire hazard!
• Do not use the heater in small rooms (below 4m^2 in size), in explosive environment, or for drying laundry.
• Do not touch the front part of the appliance, it might reach hot temperature.
• Use the heater only under supervision.
• Do not insert any object and/or finger into the openings of the heater.
• To extinguish burning appliances only use fire blankets.

Setting up / operation

Note: Make sure that there is always sufficient space between the appliance and the wall or other large objects (>50cm). The air flow must not be blocked by objects of any kind. If Anna big is set up in a bathroom, keep a safety distance of at least 100cm to showers, bathtubs, water faucets, washbasins, etc.

1. Having set up Anna big in the desired position connect the cable (1) to the household supply socket.
2. First, push the main switch for power supply (4) on the back of the appliance.
3. Switch on the appliance by pressing the On/Off button (6). The target temperature appears on the display.
4. The target temperature can be changed from 0^ (cooling mode) to 35^ or maximum «Hi» over the right control panel (8) «Temperature». The heating mode is active from 1^ - 35^ & «Hi». The digit flashes in configuration mode. Pushing the «+» button increases the target tem

perature. Pushing the «—» button reduces the target temperature. The setting is saved if no change occurs on the control panel for selection of temperature for three seconds. The current room temperature is subsequently shown on the display.

Info: The appliance switches off the heating element when the target temperature is reached and the temperature indicator flashes on the display. The ventilator remains switched on for 30 seconds at the lowest level to cool down the heating element. The current temperature is then measured approx. every 30 minutes (the fan runs for 1 minute at the lowest level). The appliance switches on again if the room temperature recorded drops below the set target temperature.

1. Cooling mode: the heating element switches off if the temperature is set to 0^ and the ventilator blows cool air out of the appliance. The LED light (7) changes from red to blue. There is no temperature shown on the display in cooling mode.
2. The heat output level can be changed over the left control panel (9) «Power Level». The display flashes during the input process. Typing «+» increases the output level. Typing «-» reduces the output level. The setting is saved if no change occurs on the control panel for selection of heat output level for three seconds. The current room temperature is subsequently shown on the display.
3. Auto mode is activated by pressing the «Auto Mode» button (10). «Auto Mode» is shown in the display. The preset target temperature of 22^ can be changed using the right-hand control panel for selection of temperature (8). The heat output level is selected automatically in auto mode - depending on the room temperature. The smaller the difference between the room temperature and the target temperature, the smaller the heat output level selected. We refer to this as «Adaptive Heat™» technology and we have filed for an international patent. This allows Anna big to make sure that the target temperature is reached, quickly and efficiently, and maintained. Anna big thus prevents a sharp temperature drop and prevents the appliance from being constantly switched on and off. Auto mode is deactivated if the heat output level is changed manually (9).

Info: The appliance switches off the heating element when the target temperature is reached and the temperature indicator flashes on the display.

1. Switch off the appliance by pressing the On/Off button (6). The ventilator remains switched on for 30 seconds at the lowest level to cool down the heating element. The appliance saves the temperature input and the heat output level even if the appliance is switched off.
2. Protection against overheating: the appliance is equipped with overheating protection which switches off the appliance in the event of a technical fault or improper use (the ventilator continues to run for some time at the lowest level to cool down the appliance). Should this occur, rectify the fault or cease the improper use (e.g. 50cm space around the appliance, do not cover the appliance, set the appliance up in an upright position). Once the appliance has cooled down it can be put back into service.
3. The temperature indicator can be changed from Celsius to Fahrenheit and vice versa by pressing the «Auto Mode» button (10) for five seconds.
4. In the first few hours after putting Anna big into operation there might be an unpleasant smell. This smell will dissipate and it is nothing to worry about.

Tip: At the back of Anna big you can find the air inlet. The air inlet is covered with an air filter and a grid. The grid is detachable. Please take off the grid and remove the air filter. You may wash out the air filter with a little bit of soap and warm water. Rinse it well and let it dry completely before you put it back on the air inlet and reattach the grid.

Cleaning

Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable (1) from the socket.

Attention: Never immerse the device in water (danger of short circuit).

• For external cleaning, rub with a damp cloth and then dry thoroughly.
• If the filter (11) behind the back cover (13) is full of dust, please remove the filter, wash it or clean it with the vacuum cleaner.

Repairs

• Repairs to electrical appliances must only be carried out by a qualified electrical technician. If improper repairs are carried out, the warranty lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has malfunctioned, if it has been dropped or has been damaged in any other way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting through the cable and hand it in at the collection point provided for the purpose.

Disposal

The European directive 2012 / 19 / CE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product

reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Specifications

Rated voltage	220 – 240V / 50Hz
Temperature range	0° – 35°C / >35°C = Hi
Power consumption	300W (min.)
Rated power	2'000W (max.)
Dimensions	183 x 420 x 183mm
	(width x height x depth)
Weight	3.2 kg
Sound level	28–50dB(A)
Complies with EU
Regulations	CE / WEEE / RoHS / EAC

Name	Manufacturer / Trade Mark	Type / Model	Technical Data
heater element	Foshan Shunde Esite Electrical Appliances Co. Ltd	2000W	AC 220-240V 50 Hz 650Wx3
fan motor	Foshan Shunde Esite Electrical Appliances Co. Ltd	EST1225S	DC 12V 2500 rpm 8.4 W Class A

Item	Symbol	Value	Unit
Heat output
Nominal heat output	Pnom	1.41	kW
Minimum heat output (indicative)	Pmin	0.4	kW
Maximum continuous heat output	Pmax,c	2.0	kW
Auxiliary electricity consumption
at nominal heat output	elmax	0.0064	kW
at minimum heat output	elmin	0.0044	kW
in standby mode	elsb	0	kW

Item		Unit
Type of heat input, for electric storage local spater heaters only (select one)
manual heat charge control,with integrated thermostat		[no]
manual heat charge control with room and / or outdoor temperature feedback		[no]
electronics heat charge control with room and / or outdoor temperature feedback		[no]
fan assisted heat output		[no]
Type of heat output / room temperature control (select one)
single stage heat output and no room temperature control		[no]
Two or more manual stages, no room temperature control		[no]
with mechanic thermostat room temperature control		[no]
with electronic room temperature control		[yes]
electronic room temperature control plus day timer		[no]
electronic room temperature control plus week timer		[no]
Other control options (multiple selections possible)
room temperature control, with presence detection		[no]
room temperature control, with open window detection		[no]
with distance control option		[no]
with adaptive start control		[no]
with working time limitation		[no]
with black bulb sensor		[no]
Contact details	Stadler Form AktiengesellschaftChamerstrasse 174, 6300 Zug, Switzerland

Deutsch

This warranty covers defects of construction, manufacturing and material. Excluded are all wearing parts and improper usage, or consequential damages due to lack of cleaning and/or descaling of the appliance.

2 Jahre Garantie

Thanks to all people involved in this project: Del Xu for his engagement, ideas and organisation, John Ye for the development, engineering and CAD work, Mario Rothenbühler for the photos, Matti Walker for the timeless, unique, elegant design and graphic work.

Martin Stadler, CEO Stadler Form Aktiengesellschaft
