| Product type | TASSIMO pod coffee maker |
| Brand | Bosch |
| Model | TASSIMO TAS1002N6 |
| Dimensions (H x W x D) | 33 x 20 x 40 cm |
| Weight | Approx. 2.7 kg |
| Power supply | 220-240 V, 50-60 Hz, 1500 W |
| Water tank capacity | 1.3 L |
| Maximum pressure | 15 bar |
| Pod type | T DISC (TASSIMO exclusive) |
| Main functions | Automatic barcode reading, preparation of various beverages (coffee, tea, hot chocolate), individual adjustment of intensity, temperature and volume |
| Automatic shut-off | Yes, after 5 minutes of inactivity |
| Control panel | Touch with LED status, fill and descaling indicators |
| Maintenance and cleaning | Regular cleaning of the brewing system and tank; periodic descaling with specific tablets |
| Safety | Brewing system lock, burn protection, automatic shut-off in case of malfunction |
| Spare parts and accessories | Orange service T DISC (ref. 00576837), descaling tablets (TCZ6004) |
| Repairability | Bosch or TASSIMO Infoline after-sales service; parts available online |
| General information | Household use only; ambient temperature; max altitude 2000 m |
Frequently Asked Questions - TASSIMO TAS1002N6 BOSCH
User questions about TASSIMO TAS1002N6 BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee maker in PDF format for free! Find your manual TASSIMO TAS1002N6 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TASSIMO TAS1002N6 by BOSCH.
USER MANUAL TASSIMO TAS1002N6 BOSCH

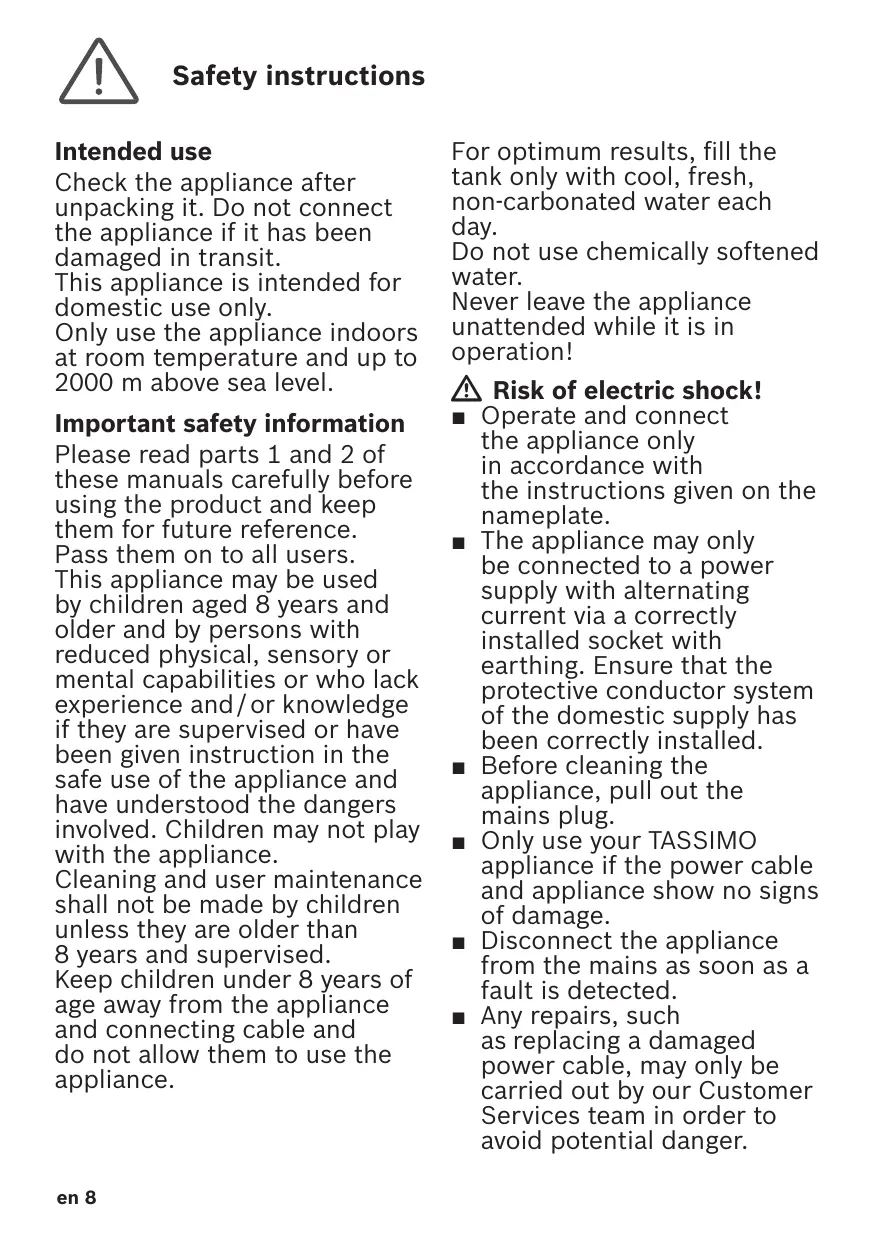

Check the appliance after unpacking it. Do not connect the appliance if it has been damaged in transit.
This appliance is intended for domestic use only.
Only use the appliance indoors at room temperature and up to 2000 m above sea level.
Important safety information
Please read parts 1 and 2 of these manuals carefully before using the product and keep them for future reference. Pass them on to all users. This appliance may be used by children aged 8 years and older and by persons with reduced physical, sensory or mental capabilities or who lack experience and/or knowledge if they are supervised or have been given instruction in the safe use of the appliance and have understood the dangers involved. Children may not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance.
For optimum results, fill the tank only with cool, fresh, non-carbonated water each day.
Do not use chemically softened water.
Never leave the appliance unattended while it is in operation!
Risk of electric shock!
- Operate and connect the appliance only in accordance with the instructions given on the nameplate. The appliance may only be connected to a power supply with alternating current via a correctly installed socket with earthing. Ensure that the protective conductor system of the domestic supply has been correctly installed. Before cleaning the appliance, pull out the mains plug.
- Only use your TASSIMO appliance if the power cable and appliance show no signs of damage.
- Disconnect the appliance from the mains as soon as a fault is detected.
- Any repairs, such as replacing a damaged power cable, may only be carried out by our Customer Services team in order to avoid potential danger.
- Never immerse the appliance or power cable in water.
- Avoid spillage on the connector. Please note the special information on cleaning in the instructions.
Risk of burns!
- Never attempt to open the brewing unit during operation. Please note that any escaping liquids will be very hot. The T DISC, the piercing unit and the beverage outlet may be very hot immediately after brewing. Allow to cool first.
- Do not use T DISCs that are damaged. Only use each T DISC once. After the use the heating element surfaces can be subjected to residual heat.
- Freshly prepared beverages are very hot. Leave to cool a little if necessary.
Risk of fire!
The appliance gets hot. - Never operate the appliance in a cupboard.
Risk of injury!
A misuse of the appliance can potentially lead to injury. Under no circumstances you should drink the descaling liquid.
Risk of suffocation!
- Do not allow children to play with packaging material. Store small parts safely as they can be easily swallowed.
Caution!
- Cleaning surfaces which come into contact with foodstuffs! Please note the special information on cleaning in the illustrated instructions.
Before reading on, please unfold the illustrations page at the start of the booklet.
1 Control panel
a Start / Stop button b Display / LED (Fill water tank) c Status display d Display / LED calc (Descale)
2 Brewing unit
a Lid b T DISC support (removable) c T DISC piercing unit with beverage outlet (removable) d T DISC reading window
3 Removable water tank
a max mark b "Descaling" calc mark c Float
4 Cup stand (removable and height adjustable)
a Drip gate b Drip tray
5 Storage compartment
a Orange Service T DISC b Brief cleaning/descaling instructions
Bosch is the manufacturer of the TASSIMO machine. Therefore, it cannot provide any delivery guarantee for the TASSIMO T DISCs.
TASSIMO T DISCs are available from specialist retailers.
Visit www.tassimo.com to discover the large variety of beverages available.
Here you can discover and order the right TASSIMO accessories online.
Accessories
| Accessories | Order number Webshop |
| Descaling tabs | TCZ6004 / 00311530 www.tassimo.com www.bosch-home.com |
| Orange Service T DISC | 00576837 www.bosch-home.com |
Disposal
Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Please ask your specialist retailer about current disposal facilities.
The following table contains solutions to problems or faults which may occur during operation of the appliance and that can be easily rectified at home. If you are not satisfied with the solutions provided here, please contact our Customer Service department.
Further customer service information can also be found online:
www.tassimo.com
www.bosch-home.com
| Problem | Cause | Solution |
| No LED is lit. | The appliance is in idle mode. | Press Start/Stop button. |
| The appliance is not working and none of the display elements are lighting. | The appliance has no power supply. | Check to see whether the appliance is connected to the mains. |
| The brewing starts, however there is no beverage dispensed. | The water tank is not inserted correctly. | Check that the water tank is correctly inserted. |
| The water tank was removed during the brewing stage or there is air in the system. | Start the cleaning process with the orange Service T DISC. Please refer here to the section First Time Use, Steps 2-14. | |
| The float in the water tank is stuck. | Clean the water tank and free the float. | |
| The brewing will not start and/or the status display LED lights up red. | No T DISC inserted. | Check that a T DISC has been inserted. |
| The appliance does not recognise the T DISC bar code. | Clean the T DISC reading window with a soft, damp cloth. | |
| The displays Buttons for drink intensity, drink temperature and drink size are flashing. | Smooth out the foil of the T DISC with your finger so that the bar code can be read. | |
| Use a new T DISC. | ||
| If the problem persists, contact the TASSIMO careline. | ||
| The brewing unit is not closed properly. | Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area. | |
| The appliance was not plugged in when the T DISC was inserted. | Check that the appliance is plugged into the power supply before inserting the T DISC. | |
| The brewing unit cannot be closed. | The piercing unit and/or the T DISC support have not been correctly inserted. | Press the piercing unit into its holder using both thumbs and check the position of the T DISC support. |
| The T DISC has not been correctly inserted. | Replace the damaged T DISC with a new one. Place the T DISC with the printed side facing downwards so that the tab is resting in the intended slot. | |
| The brewing unit is gumed up or soiled. | Clean the brewing unit with a soft, damp cloth, paying particular attention to the lid area. | |
| When closing the brewing unit, a slight resistance must be overcome. | Press the lid down until it audibly clicks into place. | |
| The brewing unit cannot be opened. | The brewing unit is still locked. | Only open the brewing unit when the status display has stopped flashing and remains lit continuously. |
| Unplug the mains plug. If the brewing unit stays locked, contact the TASSIMO careline. | ||
| Water is dripping from the brewing unit. | The T DISC is damaged or leaky. The T DISC has not been pierced correctly. | Do not use T DISCs that are damaged. Only use each T DISC once. Wait until the brewing stage has come to an end and the appliance has cooled down. Remove the T DISC and clean the brewing unit. Please refer here to the section Cleaning. |
| The piercing unit has not been inserted correctly. | Press the piercing unit into its holder using both thumbs (until an audible click is heard). | |
| The quality of the crema has deteriorated. | The beverage outlet is sticky or dirty. | Clean the beverage outlet. Please refer here to the section Cleaning. |
| Clean the brewing unit with the orange Service T DISC. Please refer here to the section Cleaning. | ||
| Build-up of limescale in the appliance. | Descale the appliance. Please refer here to the section Descaling. | |
| On the surface below the cup stand there is water. | This is condensation. | Condensation may appear and is not caused by any fault with the appliance. Wipe the water away with a cloth. |
| The beverage quantity does not meet your requirements. | The T DISC bar code provides the recommended volume for every beverage selected. This volume can also be adapted to personal requirements. | Reduced quantity: During the brewing process, press the Start/Stop button to interrupt this stage. Increased quantity: Press and hold the Start/Stop button until the required beverage quantity has been reached. |
| Build-up of limescale in the appliance could cause reduced quantity. | Descale the appliance. Please refer here to the section Descaling. | |
| Not enough water in the water tank. | Fill up the tank after making a drink and press the Start / Stop button. Your drink will then be brewed ready for you. | |
| The orange Service T DISC is damaged or lost. | The following accessories can be obtained via Bosch customer service, www.bosch-home.com and www.tassimo.com (see the end of this instruction manual for contact details): Orange Service T DISC (item no. 00576837), descaling tabs (TCZ6004/item no. 00311530) | |
| Descaling tabs are required. | ||
| LED (Fill water tank) lights up. | There is not enough water in the water tank. | Fill the tank with cold, fresh water as far as the max mark. Reinsert the water tank. |
| LED (Fill water tank) lights up even though there is enough water in the water tank. | The float in the water tank is stuck. | Clean the water tank and free the float. |
| The water tank is not inserted correctly. | Check that the water tank is correctly inserted. | |
| LED calc (Descale) and LED (Fill water tank) light up simultaneously and brewing is not possible. | There is a fault on the machine. | Unplug the mains plug. Please contact the TASSIMO careline. |
| LED calc (Descale) and the status display flash simultaneously | The descaling process is running. | Wait until the descaling process is complete. |
| LED calc (Descale) lights up. | The appliance needs to be descaled. | Descale the appliance. Please refer here to the section Descaling. |
| LED calc (Descale) lights up even though decalcified water has been used. | Even decalcified water contains low amounts of calcium carbonate. | Descale the appliance. Please refer here to the section Descaling. |
| LED calc (Descale) flashes. | Appliance must be descaled urgently. | Descale the appliance at once. Please refer here to the section Descaling. |
| All LEDs flashing. | There is a problem with the voltage of the power supply. | Unplug the appliance and then plug back in again. If the problem persists for a lengthy period, have the voltage of your power supply checked by an electrician. |
email: dily@bshg.com
Current service information can be found on the website www.bosch-home.com/cz.
Here you can also arrange a repair using the online form.
During operation, the surfaces of the appliance may remain hot for some time. Freshly prepared drinks are very hot. If necessary, let them cool down a bit.
Danger of fire!
The appliance is heating. Categorically prohibited to operate the appliance in a cabinet.
Danger of poisoning!
Incorrect use of the appliance may lead to injuries. Never drink the liquid used for descaling.
Danger of suffocation!
Do not allow children to play with the packaging material. Keep small parts in a safe place, as a child could swallow them.
Attention!
Cleaning of surfaces that come into contact with food products! Follow the special cleaning instructions provided in the manuals with illustrations.
Before reading further, unfold the page with the figure at the beginning of the manual and unfold it to the left.
1 Control panel
a Start/stop button b Indicator / light (fill the water reservoir) c Status indicator d Indicator / light for descaling (scale removal)
2 Brewing system
a Lid b Holder for T DISC (removable) c Roller for T DISC d Block for brewing cap (removable) e Reading window for T DISC
3 Water container (removable)
a Max mark b Descaling mark «Scale removal» c Float
4 Delivery under the lid (adjustable in height)
a PeWetkaДЯKaIeIb b C6opHa eMkoCTb
5 OTeJeHne Ipn XpaHeHHa
a OpaHKeBbI cepBnchbI T DISC b KpaTka HnCTpyKcIy nO ouHctke/YdaJlEHNIO HaKNII
Bosch YBJIaTcH 3rOToBHTeMeKoΦeBapKn TASSIMO. KOMNaHnB BoschHe rapaHTnpYeT hAnuYne DnCKOB T DISdTASSIMO.TASSIMO T DISC MoXHo npNo6peCTn B cpeuaHn3HPOBaHHbIXMaRa3nHaX.3aJInTe TaKHe Ha caNT www.tassimo.ru, qTO6bl O3HaKoMnTbcraC bONbUHM accOpTmEHTOM HAnITKOHNODxOunMn pPnHaJNeJxHOCTaMNTASSIMO,KOTOpbIe MOxHo 3aKa3aTb BpeXnme OHnaH.
PpHaIeJXHocTn
PpHaadJeXHoCTN
HomepДЯЗаказаВИNTepHET-Mara3иHe
Ta6IeTkn IJydaJIeHnHaKInn
TCZ6004 / 00311530 www.tassimo.ru www.bosch-home.ru
OpaHKeBbI cepBncbI T DISC
00576837 www.bosch-home.ru
YtHnHaZna
YtInn3npyIte ynaKOBky c nCnoB3O- BaHnem 3KOJIoTnueCKn 6e3OnaChbIX MeToIOB. DaHHbI np6Op nMeET OTMeTKy O COOTBeTCTBn EBPoneEcknM HopMaM 2012/19/EU ytInn3aunn 3JeKtpnueCKnx n 3JeKtpoHHbIX np6OpOB (waste electrical and electronic equipment - WEEE). DaHHbIe HOpMbI onpeJeIaOT deiCTByIOuIe Ha TeppInTopn EbpocOIO3a npaBnla BO3BpaTa n ytInn3aunn CtapbIX np6OpOB.
HOpMaunOcuyecTByUxcnocobaxytin3aunMOxHO noyuTbB CneuaHn3npoBaHHo ToproBOOpraHn3aun.
PomouьВpeшени npo6nem
Before you use the device, you may find solutions to problems or malfunctions that may arise in connection with the use of the device and that you can fix yourself. If you do not find an adequate solution for your specific problem, contact the customer service department.
3. This device is intended for use in household and similar applications such as: staff kitchens in shops, offices and other working environments; farmhouses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
- Dear customers, our products meet the requirements and comply with the legislation of the Russian Federation. The product is certified in the form of a certificate of conformity and a declaration of conformity.
Information about the certificate of conformity is available on the manufacturer's website.
The manufacturer of the product is BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany.
The organization authorized by the manufacturer to accept claims from consumers on the basis of an agreement with it is LLC "BSH Household Appliances", 198515, Saint Petersburg, Peterhof, st. Karl Siemens, 1, letter A, and in Moscow, 119071, st. Malaya Kaluzhskaya, 13, phone (495) 737-2777, fax (495) 737-2798.
5. Detailed technical characteristics of the device are given on the device's nameplate and/or in the operating instructions.
6. Accessories and care products
To ensure proper functioning of your appliance and care for it, the manufacturer recommends using only original accessories and care products. Original accessories are developed by the manufacturer, they are ideally matched to the device. Original accessories and care products meet the highest quality requirements of the Bosch brand, they undergo rigorous testing to ensure reliability of operation. For all questions related to accessories and care products for your appliance, you can contact the manufacturer's service center by phone or support service.
7. Manufacturer's warranty
The manufacturer provides a warranty for household appliances sold in the Russian Federation in accordance with the current legislation of the Russian Federation for a period of 1 year. For the purchased product, a warranty card is issued, which is a warranty document and does not contradict the legislation of the Russian Federation.
8. Attention! Important information for the consumer
The device is intended for use exclusively for domestic, household, and similar purposes, not related to entrepreneurial activity, and for satisfying household needs of individuals, institutions, and organizations. Use of the device for other purposes is a violation of the intended use of the device.
Important! Before using the appliance, please read the user manual carefully. Keep it for the entire service life of the appliance. Failure to do so may lead to improper use and damage to the appliance.
The manufacturer is not responsible for any defects that may arise due to improper use, transportation, storage, exposure to third parties, force majeure (fire, natural disasters, etc.), ingress of foreign objects or insects, exposure to external factors, as well as due to significant violations of technical requirements specified in the operating instructions, including instability of electrical network parameters established by GOST 32144-2013.
Please keep the purchase receipt for the appliance for possible warranty repairs or other warranty claims. The receipt must be kept together with the warranty card.
Following the recommendations and instructions in the operating manual (proper use) will help avoid problems during operation of the appliance.
Faulty parts are repaired or replaced with new ones at the authorized service center. The decision on the feasibility of replacement or repair is made by the service department.
9. Service information
During and after the warranty period, our service centers and our partners' service centers are always ready to offer you their services. The addresses of authorized service centers are available on the official website: www.bosch-home.ru.
The service life of small household appliances (except for coffee machines and vacuum cleaners) is 2 years. The service life of coffee machines and vacuum cleaners is 5 years. The service life is calculated from the date of purchase, or if it is impossible to determine, from the date of manufacture indicated on the rating plate. According to the manufacturer's standard, the date of manufacture is indicated as MM.YYYY, where YYYY is the year of manufacture plus 1920, and MM is the month of manufacture. To determine the year of manufacture, add 1920 to the number indicated.
- Round-the-clock hotline for calls within the Russian Federation.
B34C065N1-1M00 03/2017
Information about household appliances manufactured under the control of BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany, complies with the requirements of the Federal Law of the Russian Federation dated November 23, 2009 No. 261-FZ, legislation on technical regulation, and legislation on consumer protection of the Russian Federation.
Products: coffee makers, coffee machines, appliances for hot drinks TASSIMO, water heating appliances, toasters, kettles, electric frying pans, multicookers, portable grills.
Trademark Bosch
ATTENTION! ACCOMPANYING OPERATING MANUAL. TECHNICAL CHARACTERISTICS OF THE PRODUCT, INCLUDING ENERGY EFFICIENCY, ARE CONSTANTLY IMPROVED. PRODUCTS REGULARLY UNDERGO MANDATORY CONFORMITY ASSESSMENT IN ACCORDANCE WITH CURRENT LEGISLATION. INFORMATION ON CURRENT CONFORMITY CERTIFICATES AND THEIR VALIDITY PERIODS, CURRENT INFORMATION AND CLASSES OF ENERGY EFFICIENCY OF PRODUCTS, INFORMATION ON THE CURRENT ACCOMPANYING PRODUCT DOCUMENTATION CAN BE OBTAINED FROM THE MANUFACTURER'S AUTHORIZED IMPORTER IN THE RUSSIAN FEDERATION: LLC "BSH HOUSEHOLD APPLIANCES", 198515, SAINT PETERSBURG, PETERHOF, KARL SIEMENS STREET, 1, LITER A, BRANCH IN MOSCOW, 119071, MALAYA KALUZHSKAYA STREET, 15, PHONE (495) 737-2777, FAX (495) 737-2798.
The company LLC "BSH HOUSEHOLD APPLIANCES", 198515, SAINT PETERSBURG, PETERHOF, KARL SIEMENS STREET, 1, LITER A, BRANCH IN MOSCOW, 119071, MALAYA KALUZHSKAYA STREET, 15, PHONE (495) 737-2777, FAX (495) 737-2798, carries out all activities for confirming the conformity of products on behalf of the manufacturer within a single customs territory in accordance with the technical regulations, as an authorized importer, and also fulfills the requirements stipulated by Federal Law No. 184-FZ "On Technical Regulation" for products manufactured by a foreign manufacturer on the territory of the Russian Federation.
The importer into the Russian Federation of products certified as serial production is LLC "BSH HOUSEHOLD APPLIANCES", 198515, SAINT PETERSBURG, PETERHOF, KARL SIEMENS STREET, 1, LITER A, BRANCH IN MOSCOW, 119071, MALAYA KALUZHSKAYA STREET, 15, PHONE (495) 737-2777.
The organization indicated on the product and carrying out product identification and initial placement of the product on the market of the European Economic Area is Robert Bosch Hausgeräte GmbH, Carl-Wery-Straße 34, 81739 München, Germany.
The manufacturer, carrying out the production of products on its own behalf and responsible for their compliance with the requirements of applicable technical regulations, is BSH Hausgeräte GmbH, Carl-Wery-Straße 34, 81739 München, Germany.
When transporting, loading, and unloading the product, you should be guided by the instructions set out in the operating instructions, following the following requirements:
Protect the product from significant mechanical loads that may lead to damage to the product or its packaging.
- It is necessary to avoid getting moisture or other liquids into the product packaging.
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
To arrange an engineer visit, to order spare parts and accessories or for product advice please visit
www.bosch-home.co.uk
Or call
*Calls are charged at the basic rate, please check with your telephone service provider for exact charges
GR Greece, EAAa
BSH Ikiakes Siskeves A.B.E.
Central Branch Service
17 km E.O. Athinon-Lamias & Potamou 20
14564 Kifisia
Tel.:
181 82 (Local rate)
mailto: nkf-CustomerService@bshg.com
www.bosch-home.gr
IE Republic of Ireland
BSH Home Appliances Ltd.
Unit F4, Ballymount Drive
Ballymount Industrial Estate
Walkinstown
Dublin 12
Service Requests, Spares and Accessories
Tel.: 01450 2655*
www.bosch-home.co.uk
*0.03 € per minute at peak. Off peak 0.0088 € per minute.
NO Norge, Norway
For information, questions or locations of authorised Bosch service centres nearest you, please contact TASSIMO:
Phone: 0800 0328833
www.tassimo.co.uk
FR TASSIMO Conseil
- IMPORTANT SAFETY INFORMATION
- RISK OF ELECTRIC SHOCK
- RISK OF BURNS
- RISK OF FIRE
- RISK OF INJURY
- RISK OF SUFFOCATION
- CAUTION
- CONTROL PANEL
- BREWING UNIT
- REMOVABLE WATER TANK
- CUP STAND (REMOVABLE AND HEIGHT ADJUSTABLE)
- STORAGE COMPARTMENT
- ACCESSORIES
- DISPOSAL
- DANGER OF FIRE
- DANGER OF POISONING
- DANGER OF SUFFOCATION
- ATTENTION
- BREWING SYSTEM
- WATER CONTAINER (REMOVABLE)
- DELIVERY UNDER THE LID (ADJUSTABLE IN HEIGHT)
- OTEJEHNE IPN XPAHEHHA
- PPHAIEJXHOCTN
- PPHAADJEXHOCTN
- YTHNHAZNA
- POMOUЬВPEШЕНИ NPO6NEM
- ACCESSORIES AND CARE PRODUCTS
- MANUFACTURER'S WARRANTY
- ATTENTION! IMPORTANT INFORMATION FOR THE CONSUMER
- SERVICE INFORMATION
- INFORMATION ABOUT HOUSEHOLD APPLIANCES MANUFACTURED UNDER THE CONTROL OF BSH HAUSGERÄTE GMBH, CARL-WERY-STR. 34, 81739 MUNICH, GERMANY, COMPLIES WITH THE REQUIREMENTS OF THE FEDERAL LAW OF THE RUSSIAN FEDERATION DATED NOVEMBER 23, 2009 NO. 261-FZ, LEGISLATION ON TECHNICAL REGULATION, AND LEGISLATION ON CONSUMER PROTECTION OF THE RUSSIAN FEDERATION
- GR GREECE, EAAA
- IE REPUBLIC OF IRELAND
- NO NORGE, NORWAY
- FR TASSIMO CONSEIL
Brand : BOSCH
Model : TASSIMO TAS1002N6
Category : Coffee maker
