UH 17151-2 E - Range hood AMICA - Free user manual and instructions

Product Type	Cooker hood
Brand	AMICA
Model	UH 17151-2 E
Use	Domestic use only
Operating modes	Extraction or recirculation (recirculation)
Number of speeds	3 speeds (1, 2, 3)
Lighting	Integrated, independent of motor
Grease filter	Aluminum, washable (monthly cleaning)
Charcoal filter	Active for recirculation mode, replacement every 2 months
Power supply	220-240 V ~ 50 Hz (according to rating plate)
Exhaust duct diameter	120 mm or 150 mm
Mounting height	Refer to product card (≥ 65 cm for electric hob, ≥ 75 cm for gas)
Exterior cleaning	Damp cloth and neutral detergent (no solvents or abrasives)
Interior cleaning	At least once a month
Disconnect before maintenance	Mandatory (plug or bipolar switch)
Prohibitions	Do not flambé, do not use without grease filter
Warranty	Yes, according to warranty card
Standards	CE (Low Voltage, EMC, RoHS)
Repairability	Power cord replaceable by professional only
Weight and dimensions	Not specified in the manual

Frequently Asked Questions - UH 17151-2 E AMICA

How to clean the grease filter of the hood?

The aluminum grease filter must be cleaned at least once a month. It can be washed in the dishwasher or by hand with a mild detergent. After several washes, the color may change, but this does not affect its operation.

When to replace the charcoal filter?

The activated charcoal filter used in recirculation mode cannot be washed. It must be replaced every 2 months or more often with intensive use. Its removal is illustrated in figure 6 of the manual.

Can I use the hood without the grease filter?

No, it is strictly forbidden to use the hood without the aluminum grease filter. The filter prevents grease from entering the motor and reduces fire hazards.

How to switch from extraction mode to recirculation mode?

For some models, you need to toggle an internal lever (figure 8). In recirculation mode, a charcoal filter is required and the filtered air is returned to the room through side slots. For drawer/telescopic hoods, an exhaust pipe is required even in recirculation.

What mounting height should I respect?

The height depends on the hob type: for an electric hob, the minimum distance is indicated on the product card (usually 65 cm). For a gas hob, follow the distance indicated in the cooktop instructions (often 75 cm). Never install the hood too low.

What to do if the power cord is damaged?

The damaged power cord must be replaced only by the manufacturer, its after-sales service, or a similarly qualified person to avoid any danger. Do not use the appliance in the meantime.

How to clean the exterior of the hood?

Use a damp cloth soaked in soapy water (neutral detergent). Do not use solvents, alcohol, abrasive products, or rough cloths, especially on stainless steel surfaces.

Why is the hood noisy?

Excessive noise may come from a clogged grease filter, a poorly installed exhaust duct, or a motor defect. Start by checking and cleaning the grease filter. Also check that nothing is blocking the air outlet.

Can I use the hood with an external timer or programmer?

No, it is forbidden to use a timer, programmer, or remote control system that would power the appliance automatically. The hood must be plugged directly into a socket or bipolar switch.

How to ensure optimal safety when used simultaneously with other combustion appliances?

Ensure adequate ventilation of the room (air supply). The negative pressure must not exceed 0.004 mbar at the location of the combustion appliances. This instruction does not apply in recirculation mode.

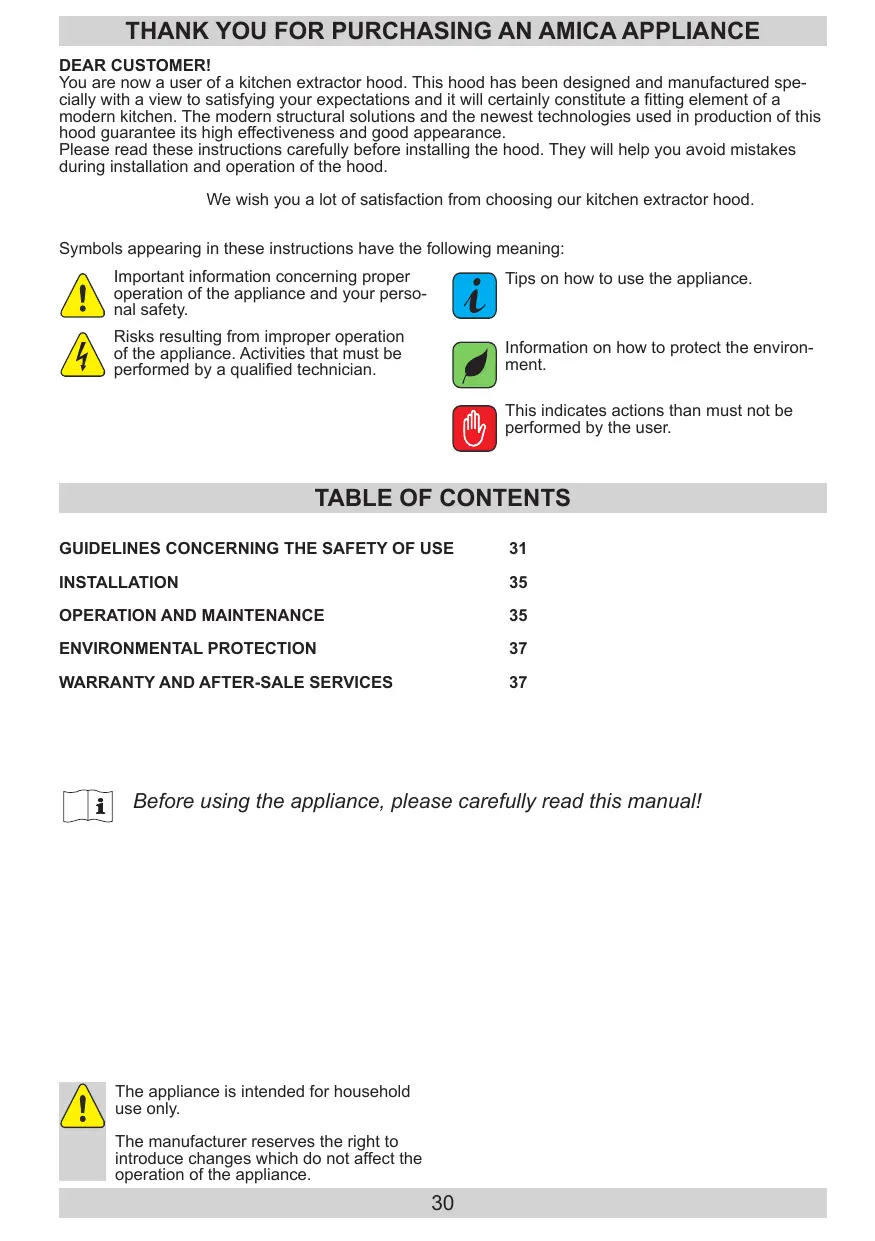

USER MANUAL UH 17151-2 E AMICA

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Tips on how to use the appliance.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS

GUIDELINES CONCERNING THE SAFETY OF USE 31

INSTALLATION 35

Before using the appliance, please carefully read this manual!

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

The cook hood features independent lighting and exhaust fan that can be operated at one of several speeds.
Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

• Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.

Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.

• The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).

• If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is maintained at the location of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

• Do not abut against the hood

• The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See "Cleaning section" in this manual.

• If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.
  Before installing unwind and straighten the power cord.
• Warning! The packaging materials (polyethylene bags, small pieces of foamed polystyrene etc.) should be kept away from children while unpacking.
• NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.
• Never use the hood without effectively mounted grating!
  The flaming of foods beneath the hood itself is severely prohibited.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazardsii

Installation

Step-by-step appliance installation is shown on Fig. 3...

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

In some universal hoods you need to switch lever inside the hood (Fig. 8) to switch between the extraction and air recirculation modes. The cleaned air is returned to the room through the holes in the top of the unit.

Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Fan speeds

The lowest and medium speeds should be used under normal conditions and with low concentration of fumes. The maximum speed should be used in case of high concentration of kitchen fumes, e.g. during frying or grilling.

Use control panel to control your cooker hood (Fig. 4)

0 -Appliance on/off
- Low speed
Medium speed
- High speed
- Lighting turn on / turn off

Maintenance

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

Dismantling of charcoal filter is shown on Figure 6.

Lighting

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

Recycling of the packaging

Our packaging is made of environmentally friendly materials, which can be reused:

• The external packaging is made of cardboard/foil
  The FCKW free shape of foamed polystyrene (PS)
  Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EQUIPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scraping. We also recommend that the appliance is locked or render it useless so that the appliance presents no

danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

WARRANTY AND AFTER-SALE SERVICES

Warranty

Warranty service as stated on the warranty card

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

Low Voltage Directive 2014/35/EC
- Electromagnetic Compatibility (EMC) Directive 2014/30/EC
ErP Directive 2009/125/EC
- Directive RoHS 2011/65/EC

and has thus been marked with the CE symbol and been issued with a declaration of compliance made available to market regulators.
