DWC041650 / DWC041650B / DIC043650

Empty rectangular frame with three vertically aligned dotted lines at the bottom (no text or symbols)

Household Appliances

de Seite 3–10

en page 11–18

fr page 19–26

nl pagina 27–34

it pagina 35–42

es página 43–50

pt página 51–58

SV sid 59–66

no side 67–74

fi sivu 75–82

da side 83–90

pl strony 91–98

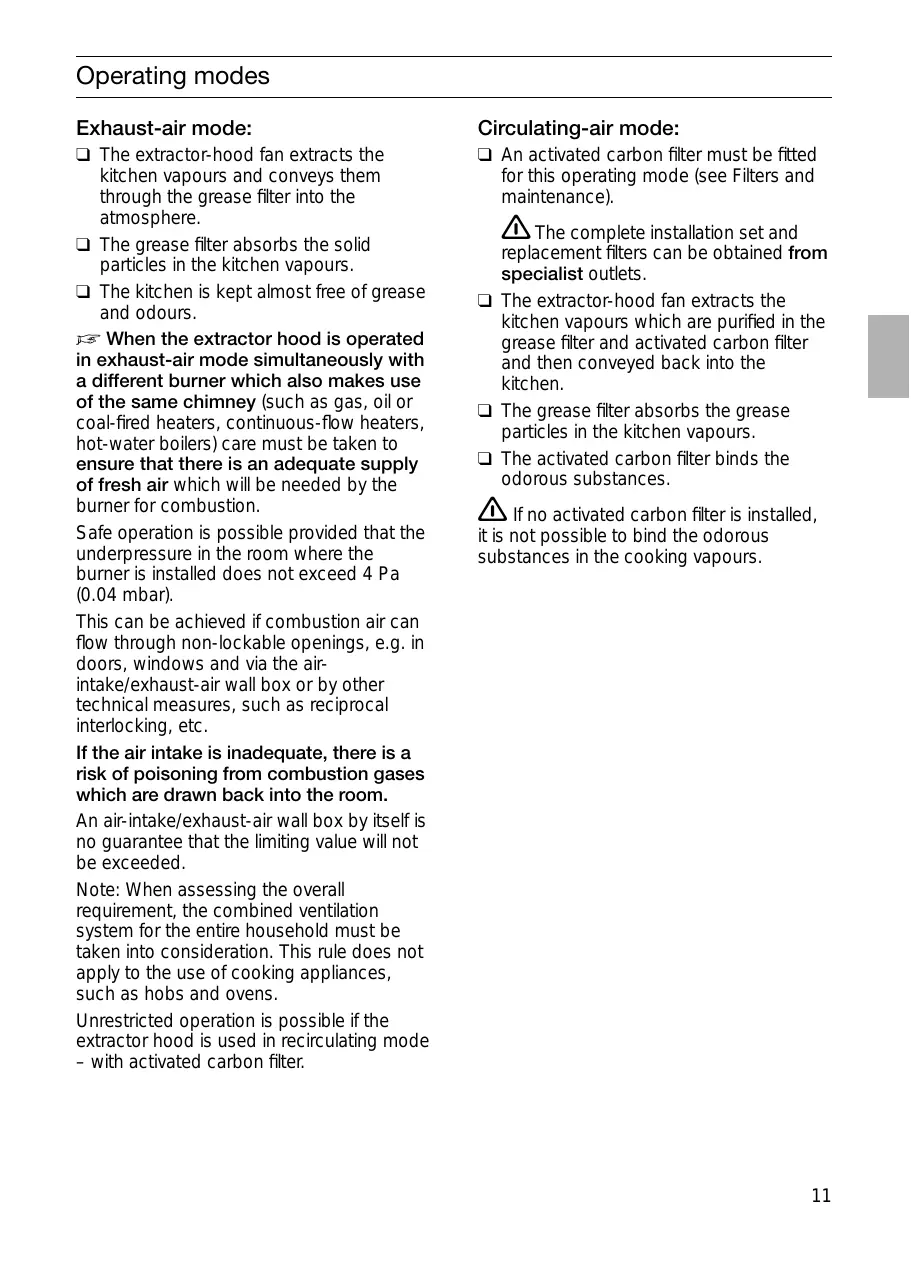

Abluftbetrieb:

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Diagram of a showerhead with perforated metal panel and circular holes, showing a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with fan and housing components, no visible text or symbols

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
☐ The grease filter absorbs the solid particles in the kitchen vapours.
☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).
⚠ The complete installation set and replacement filters can be obtained from specialist outlets.
☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.
☐ The grease filter absorbs the grease particles in the kitchen vapours.
☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

☐ This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Gas hobs / Gas cookers

⚠ Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Note that one large burner of more than 5 kW (Wok) is equivalent to the power of 2 gas burners.

Never operate a gas cooking area without a cooking utensil on it. Regulate the flame in such a way that it does not project over the cooking utensil.

Safety instructions

⚠ Do not flambé food directly under the extractor hood.
! Risk of grease filter catching fire due to flames.
⚠ The hotplates must always be covered with a utensil.
Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).
⚠️ Do not use the appliance if damaged.
⚠ The appliance is not intended for use by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.
⚠ The appliance may be connected to the mains by a qualified technician only.
⚠ Dispose of packaging materials properly (see Installation instructions).
⚠ This extractor hood is designed for domestic use only.
Light bulbs must always be fitted when the extractor hood is in use.
⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.
⚠️ Never operate the extractor hood without a grease filter.
⚠️ Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

⚠️ Carefully clean the extractor hood before switching on for the first time.
⚠️ Never allow children to play with the appliance.

Do not let adults or children operate the appliance unsupervised:

- if they are mentally or physically unable to use the appliance safely and correctly,
- if they don't have the knowledge and experience to use the appliance safely and correctly.

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.
☐ Switch the ventilator OFF a few minutes after you have finished cooking.

Ventilator settings

ON / OFF

Light

Setting the required fan speed:

☐ Press the corresponding button.

Lighting:

☐ The light can be switched on at any time, even though the fan is switched off.

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned 1 x a month.
☐ The filters can be cleaned in a dishwasher. It is however possible that they will become slightly discoloured.
☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

☐ When cleaning the filters by hand, soak them in hot soapy water first of all.
Do not use aggressive, acidic or caustic cleaners.
Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be switched off and cool.

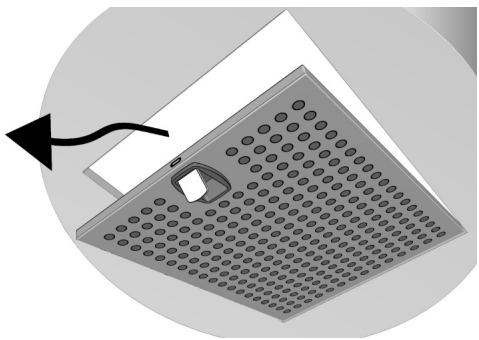

1. Press the handles on the grease filters downwards and fold the grease filters down.

Diagram of a perforated metal tray with a handle and circular holes, showing a curved arrow indicating rotation (no text or symbols)

1. Clean the filters.
2. Insert the clean filters back into the hood.

Activated carbon filter:

For neutralizing odours in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

Installation:

Attention: The halogen bulbs must be switched off and must have cooled down.

1. Remove the metal filters (see "Removing and inserting the metal grease filters").

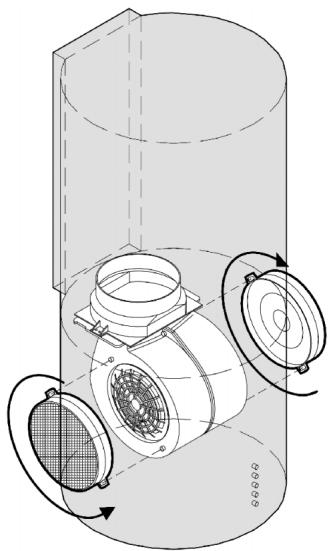

2. Insert the activated-carbon filters. To do this, connect the filters to the pins on the sides of the fan.

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

1. Rotate the filters in the direction of the arrow until they engage. If the filters have been installed correctly, they can no longer be removed.

2. Insert the metal grease filters (see "Removing and inserting the metal grease filters").

Removing the filter:

Attention: The halogen bulbs must be switched off and must have cooled down.

1. Remove the metal filters.
2. Rotate the filters against the direction of the arrow and pull them out.
3. Insert the metal grease filters.

Replacing the activated carbon filter:

☐ During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately 1 x year.
☐ A replacement filter can be obtained from any authorized dealer.
☐ Use original filters only.
By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

☐ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!

☐ Clean the extractor hood with a hot soap solution or a mild window cleaner.
☐ Do not scrape off dried-on dirt but wipe off with a damp cloth.
☐ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.
☐ Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner.
☐ Clean the surface in the same direction as it has been ground and polished.
☐ We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address.

Aluminium and plastic surfaces:

☐ Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.

Observe the warranty regulations in the enclosed service booklet.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
   ⚠ When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.

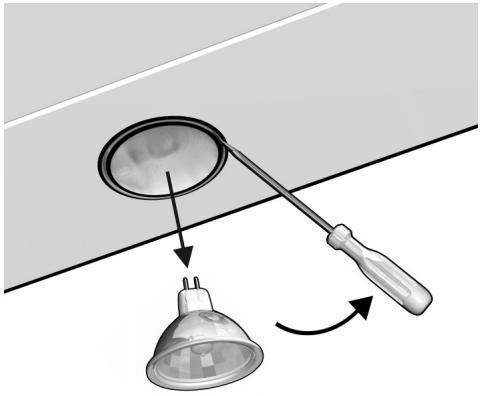

2. Using a screwdriver, carefully remove the halogen bulb.

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Attention: If the halogen bulb is not removed properly, the appliance may be damaged.

1. Replace the halogen bulb (commercially available halogen bulb 12 V, max. 20 W, G4 bulb holder). Ensure that the contacts are in the correct position.
   Attention: Take hold of the halogen bulb with a clean cloth.
2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

If you encounter a problem

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a metal grate with perforated surface and central hole, no text or symbols present

Technical line drawing of a mechanical device with fan and housing components (no text or symbols)

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a metal grate with perforated surface and central hole, showing a curved arrow indicating direction (no text or symbols)

Technical diagram of a mechanical device with rotating components and a cylindrical housing (no text or symbols)

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Diagram of a metal grate with perforated surface and central hole, showing a curved arrow indicating direction (no text or symbols)

Technical diagram of a mechanical device with rotating components and a central fan (no text or symbols)

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a showerhead with perforated metal panel and circular holes, showing a curved arrow indicating direction (no text or symbols)

Technical diagram of a mechanical device with rotating components and a central fan (no text or symbols)

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a showerhead with perforated metal panel and circular holes, showing a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with fan and housing (no text or symbols)

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Diagram of a metal grate with perforated surface and central hole, no text or symbols present

Technical line drawing of a mechanical component with fan and housing (no text or symbols)

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Gassplater / Gasskomfyr

Diagram of a metal grate with perforated surface and central hole, showing an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with rotating parts and a central fan-like structure (no text or symbols)

Diagram showing a lamp and a magnifying glass pouring liquid into a ceiling, with no text or symbols present.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Diagram of a metal grate with perforated surface and circular holes, no text or symbols present

Technical diagram of a mechanical device with rotating components and fan-like elements (no text or symbols)

Diagram showing a lamp being lifted by a tool, with no text or symbols present.

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Diagram of a showerhead with perforated metal panel and circular holes, showing a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with rotating parts and a base plate (no text or symbols)

Diagram showing a lamp and a magnifying glass on a surface, with no text or symbols present.

Symbol of a trash bin crossed out by a diagonal line, representing no waste or elimination (no text or labels present)

Diagram of a metal grate with perforated surface and central opening, showing a curved arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with fan and housing (no text or symbols)

Diagram showing a lamp being lifted by a tool, with no text or symbols present.
