| Product Type | Kitchen hood |
| Brand | FALMEC |
| Model | MIZAR 600 |
| Usage | Domestic, extraction of cooking fumes |
| Evacuation modes | External (exhaust) or internal recirculation (filter) |
| Number of speeds | 4 (including speed 4 timed) |
| Timer | Automatic shut-off after 15 minutes |
| Control type | Electronic touch controls |
| Lighting | High-efficiency LED spots |
| Anti-grease metal filters | Washable (at least once a month, or after 30 hours of use) |
| Activated carbon filters (optional) | Replace every 3-4 months |
| Filter maintenance alarm | Steady red LED, reset by long press (3 s) on button ( ) |
| Minimum distance above a cooking hob | 65 cm (25.6 inches) for gas, may be reduced according to instructions |
| Electrical connection | 220-240 V, with grounding, accessible plug |
| Safety device | Automatic shutdown if overheating, non-return valve on models ≥800 m³/h |
| Material | Brushed stainless steel |
| Cleaning of external surfaces | Damp cloth with neutral detergent or denatured alcohol |
| Cleaning of metal filters | Hand wash or dishwasher (55°C max) |
| Repairability | Interventions by qualified personnel only, original parts |
| Warranty | Coverage by the manufacturer in case of non-compliance with instructions |
Frequently Asked Questions - MIZAR 600 FALMEC
User questions about MIZAR 600 FALMEC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kitchen hoods in PDF format for free! Find your manual MIZAR 600 - FALMEC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MIZAR 600 by FALMEC.
USER MANUAL MIZAR 600 FALMEC
INSTRUCTIONS BOOKLET
INSTRUCTION BOOKLET
For further details see the "MAINTENANCE" chapter.
ELECTRONIC CONTROL PANEL
Installation operations are to be carried out by skilled and qualified installers in accordance with the instructions in this booklet and in compliance with the regulations in force.
DO NOT use the hood if the power supply cable or other components are damaged: disconnect the hood from the electrical power supply and contact the Dealer or an authorized Servicing Dealer for repairs.
Do not modify the electrical, mechanical, or functional structure of the equipment.
Do not personally try to carry out repairs or replacements. Interventions carried out by incompetent and unauthorized persons can cause serious damage to the unit or physical and personal harm, not covered by the Manufacturer's warranty.
WARNING FOR THE INSTALLER
TECHNICAL SAFETY
Before installing the hood, check the integrity and function of each part. Should anomalies be noted, do not proceed with installation and contact the Dealer.
Do NOT install the hood if an aesthetic (or cosmetic) defect has been detected. Put it back into its original package and contact the dealer.
No claim can be made for aesthetic (or cosmetic) defects once it has been installed.
During installation, always use personal protective equipment (e.g., safety shoes) and adopt prudent and proper conduct.
The installation kit (screws and plugs) supplied with the hood is only to be used on masonry walls: in case of installation on walls of a different material, assess other installation options keeping in mind the type of wall surface and the weight of the hood (indicated on page 2).
Keep in mind that installations with different types of fastening systems from those supplied, or which are not compliant, can cause electrical and mechanical seal danger.
Do not install the hood outdoors and do not expose it to atmospheric elements (rain, wind, etc.).
ELECTRICAL SAFETY
The electrical system to which the hood is to be connected must be in accordance with local standards and supplied with earthed connection in compliance with safety regulations in the country of use. It must also comply with European standards regarding radio antistatic properties.
Before installing the hood, check that the electrical mains power supply corresponds with what is reported on the identification plate located inside the hood.
The socket used to connect the installed equipment to the electrical power supply must be within reach: otherwise, install a mains switch to disconnect the hood when required.
Any changes to the electrical system must be carried out by a qualified electrician.
The maximum length of the flue fastening screws (supplied by the manufacturer) must be 13 mm. Use of non-compliant screws with these instructions can lead to danger of an electrical nature.
Do not try to solve the problem yourself in the event of equipment malfunction, but contact the Dealer or an authorised Servicing Department for repairs.
When installing the hood, disconnect the equipment by removing the plug or switching off the main switch.
FUMES DISCHARGE SAFETY
Do not connect the equipment to discharge pipes of fumes produced from combustion (for example boilers, fireplaces, etc.).
Before installing the hood, ensure that all standards in force regarding discharge of air out of the room have been complied with.
Deviation for Australia and New Zealand:
Range hoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases.
These gases can potentially result in carbon monoxide poisoning. After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.
(AS/NZS 60335.2.31:2013/A4:2020)
USER WARNINGS
These warnings have been drawn up for your personal safety and that of others. You are therefore kindly asked to read the booklet carefully in its entirety before using or cleaning the equipment.
The Manufacturer declines all responsibility for any damage caused directly or indirectly to persons, things, and pets as a consequence of failing to comply with the safety warnings indicated in this booklet.
It is imperative that this instructions booklet is kept together with the equipment for any future consultation.
If the equipment is sold or transferred to another person, make sure that the booklet is also supplied so that the new user can be made aware of the hood's operation and relative warnings.
After the stainless steel hood has been installed, it will need to be cleaned to remove any residues remaining from the protection adhesive as well as any grease and oil stains which, if not removed, can cause irreversible damage to the hood surface. To properly clean the unit, the manufacturer recommends using the supplied moist wipes, which are also available sold separately.
Insist on original spare parts.
INTENDED USE
The equipment is solely intended to be used to extract fumes generated from cooking food in non-professional domestic kitchens: any other use is improper. Improper use can cause damage to persons, things, pets and exempts the Manufacturer from any liability.
The equipment can be used by children over the age of 8 and by persons with reduced physical, sensory or mental abilities, or with no experience or knowledge, as long as they do so under supervision or after having received relative instructions regarding safe use of the equipment and understanding of the dangers connected to it.
Children are not to play with the equipment. Cleaning and maintenance by the user must not be carried out by children without supervision.
USE AND CLEANING WARNINGS
Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.
Do not use the hood with wet hands or bare feet. Always check that all electrical parts (lights, extractor fan) are off when the equipment is not being used.
The maximum overall weight of any objects placed or hung (if applicable) on the hood must not exceed 1.5 kg. Always supervise the cooking process during the use of deep-fryers: Overheated oil can catch fire.
Do not leave open, unattended flames under the hood. Do not prepare food over an open flame under the hood. Never use the hood without the metal anti-grease filters: in this case, grease and dirt will deposit in the equipment and compromise its operation.
Accessible parts of the hood can be hot when used at the same time as the cooking appliances.
Do not carry out any cleaning operations when parts of the hood are still hot.
There can be a risk of fire if cleaning is not carried out according to the instructions and products indicated in this booklet.
Disconnect the main switch when the equipment is not used for long periods of time.
If other appliances that use gas or other fuels are being used at the same time (boiler, stove, fireplaces, etc.), make sure the room where the fumes are discharged is well-ventilated, in compliance with the local regulations.
INSTALLATION
Only intended for qualified personnel.
Before installing the hood, carefully read the chapter 'SAFETY
INSTRUCTIONS AND WARNING:
TECHNICAL FEATURES
The technical specifications are exhibited on the labels located inside the hood.
POSITIONING
The minimum distance between the highest part of the cooking equipment and the lowest part of the hood is indicated in the installation instructions.
Generally, when the hood is placed over gas cookers, the distance must be at least 65 cm (25.6"). However, according to standard EN60335-2-31, the minimum distance between the cooker and the lower part of the hood can be reduced to the value reported in the installation instructions.
Should the instructions for the gas cooker specify a greater distance, this must be taken into consideration.
Do not install the hood outdoors and do not expose it to outdoor environment (rain, wind, etc.).
ELECTRICAL CONNECTION
(only intended for qualified personnel)
Disconnect the equipment from electrical mains power supply before carrying out any operations on the hood.
Ensure that the wires inside the hood are not disconnected or cut: in the event of damage, contact your nearest Servicing Department.
Refer to qualified personnel for electrical connections.
Connection must be carried out in compliance with the provisions of law in force. Before connecting the hood to the electrical mains power supply, check that:
- voltage supply corresponds with what is reported on the data plate located inside the hood;
- the electrical system is compliant and can withstand the load (see the technical specifications located inside the hood);
- the power supply plug and cable do not come into contact with temperatures exceeding 70°C;
- the power supply system is effectively and properly connected to earth in
compliance with regulations in force;
- The socket used to connect the hood is within reach.
In case of:
- Devices fitted with cables without a plug: the type of plug to use is a "standardised" one. The wires must be connected as follows: yellow-green for earthing, blue for neutral and brown for the phase. The plug must be connected to an adequate safety socket.
- Fixed equipment not provided with a power supply cable and plug, or any other device that ensures disconnection from the electrical mains, with an opening gap of the contacts that enables total disconnection in overvoltage category III conditions.
Said disconnection devices must be provided in the mains power supply in compliance with installation regulations.
The yellow/green earth cable must not be cut off by the switch.
The Manufacturer declines all responsibility for failure to comply with the safety regulations.
FUMES DISCHARGE
EXTERNAL EXHAUST HOOD (SUCTION)
In this version the fumes and vapours are discharged outside through the exhaust pipe.
To this end, the hood outlet fitting must be connected via a pipe, to an external output.
The outlet pipe must have:
- A diameter not less than that of the hood fitting.
- A slight slope downwards (drop) in the horizontal sections to prevent condensation from flowing back into the motor. The minimum required number of bends.
- The minimum required length to avoid vibrations and reduce the suction performance of the hood.
You are required to insulate the pipes if they pass through cold environments. In the presence of motors with a capacity of 800 m³/h or higher, a check valve is installed to prevent external air from flowing back.
Deviation for Germany:
When the kitchen hood is used at the same time as appliances that are powered by energy other than electricity, the negative pressure in the room must not exceed 4 Pa (4 x 10⁻⁵ bar).
HOOD WITH INTERNAL RECIRCULATION (FILTERING)
In this model, the air passes through the charcoal filters to be purified and recycled into the environment.
Ensure that the active carbon filters are assembled into the hood; if not, install them as indicated in the assembly instructions.
In this version, the check valve must not be assembled: remove it if it is on the air outlet fitting of the motor.
ASSEMBLY INSTRUCTIONS
Only intended for qualified personnel.
The hood can be installed in various configurations.
The generic assembly steps apply to all installations; for each case, follow the specific steps provided for the required installation.
OPERATION
WHEN TO TURN ON THE HOOD?
Switch on the hood at least one minute before starting to cook to direct fumes and vapours towards the suction surface.
After cooking, leave the hood operating until complete extraction of all vapours and odours. By means of the Timer function, it is possible to set an auto switch-off function which will allow the hood to turn off automatically after 15 minutes of operation.
WHICH SPEED IS TO BE SELECTED?
1st speed: maintains the circulation of clean air with low electricity consumption.
2nd speed: normal conditions of use.
3rd speed: presence of strong odours and vapours.
4th speed: rapid disposal of odours and vapours.
WHEN SHOULD THE FILTERS BE WASHED OR REPLACED?
The metal filters must be cleaned every 30 hours of operation.
The active carbon filters must be replaced every 3-4 months, depending on the use of the hood.
For further details see the "MAINTENANCE" chapter.

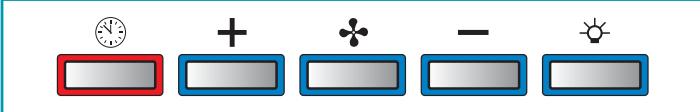

ELECTRONIC PUSHBUTTON PANEL
| Motor ON/OFF Upon start-up, the speed is that stored at the previous operation. | ||
| + | Increase speed from 1 to 4 Speed 4 is only active for a few minutes, then speed 3 activates. | The speeds are indicated by the LEDs on the keys: + + - Speed 1 + + - Speed 2 + + - Speed 3 + + - Speed 4 ("+" LED flashing) |
| - | Reduce speed from 4 to 1 | |
| Light on/off | |
| TIMER (red LED flashing) Auto switch-off after 15 min. The function deactivates (red LED off) if: - The TIMER key (▲) is pressed again. - The ON/OFF key (▲) is pressed. | |
| FILTER ALARM (red LED steady on with (▲) off) Anti-grease filter maintenance after approximately 30 hours of operation. Press (▲) the meter for 3 seconds to reset. |
If the pushbutton panel is completely inactive, before contacting the Technical assistance service, disconnect power temporarily to the appliance (about 5 seconds), possibly by acting on the main line to restore normal operation.
If this measure has no effect, contact the Technical assistance service.
| OFF | 1 | 2 | 3 |
| Light on/off | |||
| OFF button Press this button to switch the motor off | |||
| 1 | Button 1: Press this button (button in) to start or set the motor at minimum speed | ||
| 2 | Button 2: Press this button (button in) to start or set the motor at medium speed | ||
| 3 | Button 3: Press this button (button in) to start or set the motor at maximum speed | ||
Before cleaning or carrying out maintenance operations, disconnect the equipment by removing the plug or switching off the main switch.
Do not use detergents containing abrasive, acidic or corrosive substances or abrasive cloths.
Regular maintenance guarantees proper operation and performance over time. Special attention is to be paid to the metal anti-grease filters: frequent cleaning of the filters and their supports ensures that no flammable grease is accumulated.
CLEANING OF EXTERNAL SURFACES
You are advised to clean the external surfaces of the hood at least once every 15 days to prevent oily substances and grease from sticking to them. To clean the brushed stainless steel hood, the Manufacturer recommends using "Magic Steel" wipes.
Alternatively and for all the other types of surfaces, it can be cleaned using a damp cloth, slightly moistened with mild, liquid detergent or denatured alcohol. Complete cleaning by rinsing well and drying with soft cloths.
Do not use too much moisture or water around the push button control panel and lighting devices in order to prevent humidity from reaching electronic parts.
The glass panels can only be cleaned with specific, non-corrosive or non-abrasive detergents using a soft cloth.
The Manufacturer declines all responsibility for failure to comply with these instructions.
CLEANING OF INTERNAL SURFACES
Do not clean electrical parts, or parts related to the motor inside the hood, with liquids or solvents.
For the internal metal parts, see the previous paragraph.
METAL ANTI-GREASE FILTERS
It is advised to frequently wash the metal filters (at least once a month) leaving them to soak in boiling water and cleaning solution for 1 hour, taking care not to bend them.
Do not use corrosive, acid or alkaline detergents.
Rinse them well and wait for them to be completely dry before reassembling them.
Washing in a dishwasher is permitted, however, it may cause the filter material to darken: to reduce the possibility of this problem from happening, use low-temperature washes (55°C max.).
To extract and insert the metal anti-grease filters see the assembly instructions.
ACTIVE CARBON FILTERS
These filters retain the odours in the air that passes through them. The purified air is recirculated into the environment.
The active carbon filters must be replaced on average every 3-4 months under normal conditions of use.
See assembly instructions to replace the active carbon filters.
LIGHTING
The range hood is equipped with high efficiency, low consumption LED spotlights with an extremely long life-span under normal use conditions.
Should the LED spotlight need to be replaced, proceed as shown in the figure.
DISPOSAL AFTER END OF USEFUL LIFE
The crossed-out trash or refuse bin symbol on the appliance means that the product is WEEE, i.e. "Waste electrical and electronic equipment", accordingly it must not be disposed of with regular unsorted waste.
ed waste (i.e., with "mixed household waste"), but it must be disposed of separately so that it can undergo specific processing for its re-use, or a specific treatment, to remove and safely dispose of any substances that may be harmful to the environment and remove the raw materials that can be recycled. Proper disposal of these products contributes to saving valuable resources and avoids potential negative effects on personal health and the environment, which may be caused by inappropriate disposal of waste.
You are kindly asked to contact your local authorities for further information regarding the designated waste collection points nearest to you. Penalties for improper disposal of such waste can be applied in compliance with national regulations.
INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
The EU WEEE Directive was implemented differently in each country. Accordingly, if you wish to dispose of this appliance, we suggest contacting your local authorities or dealer to find out the correct method of disposal.
INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES
The crossed-out trash or refuse bin symbol is only valid in the European Union: if you wish to dispose of this appliance in other countries, we suggest contacting your local authorities or dealer to find out what the correct method of disposal is.
WARNING!
The Manufacturer reserves the right to make changes to the equipment at any time and without prior notice. Printing, translation and reproduction, even partial, of this manual are bound by the Manufacturer's authorisation.
Technical information, graphic representations and specifications in this manual are for information purposes and cannot be divulged.
This manual is written in Italian. The Manufacturer is not responsible for any transcription or translation errors.
ACTIVE CARBON FILTERS
SAFETY AND PRECAUTIONS
Installation must be carried out by qualified and experienced installers in accordance with the instructions in this manual and applicable regulations.
If the power cord or other parts are damaged, do not use the hood: disconnect it from the power supply and contact the distributor or an authorized service center for repair.
Do not make electrical, mechanical or functional changes to the appliance.
Do not attempt to replace parts or repair the appliance yourself. Work performed by unqualified or non-certified personnel may cause damage, including serious damage, to property and/or persons, for which the manufacturer's warranty does not apply.
PRECAUTIONS FOR THE INSTALLER
SAFETY TECHNICAL DATA
Before starting the installation of the hood, it is necessary to check the integrity and correct functioning of all its parts. If any damage is found, do not proceed with the installation, but contact the distributor.
If any damage or defects of any kind are found, do not install the hood; put it back in its original packaging and contact the distributor.
After installation is complete, no claims for external defects will be accepted.
When installing the hood, always use personal protective equipment (e.g., protective footwear) and proceed with caution and care.
The kit of fasteners (screws, plugs) supplied with the hood can be used exclusively on brick walls. If installing on walls made of other materials, consider alternative fastening systems taking into account the wall strength and the weight of the hood (indicated on page 2).
Please note that installation using fastening systems other than those supplied or not suitable for the intended purpose may lead to electrical or mechanical hazards.
Do not install the hood outdoors or in places where it would be exposed to atmospheric conditions (rain, wind, etc.).
ELECTRICAL SAFETY
The electrical system to which the hood is connected must comply with current regulations and must be grounded in accordance with the requirements of the regulations in force in the country of use; it must also comply with European standards regarding interference suppression devices.
Make sure that the voltage in the electrical system matches that indicated on the rating plate, which is located inside the hood.
The socket used for connecting the hood to the mains must be easily accessible after installation. Otherwise, it is necessary to provide a main switch in an accessible location to disconnect the hood if needed.
Any modifications to the electrical system must be carried out only by a qualified electrician.
The maximum screw length for fixing the hood (supplied by the manufacturer) is 13 mm. The use of screws that do not comply with these instructions may lead to electrical hazards.
In case of malfunction, do not attempt to repair the appliance yourself; contact the distributor or an authorized technical support center for repair.
! During installation of the hood, disconnect the appliance by unplugging it from the socket or using the main switch.
SAFETY OF EXHAUST AIR DISCHARGE
Do not connect the appliance to flues used for exhausting fumes from combustion (boilers, fireplaces, etc.).
Before installing the hood, ensure that all requirements of current regulations regarding air discharge outside the room are met.
WARNING: Installation of kitchen hoods and other devices for removing kitchen vapors can negatively affect the safe operation of appliances that run on gas or other fuel (including in other rooms) due to the backflow of gaseous combustion products. These gaseous combustion products can lead to poisoning with flue gas. After installing a kitchen hood or another device for removing kitchen vapors, the operation of gas appliances with the removal of combustion products into the chimney must be checked by a competent person to ensure there is no backflow of gaseous combustion products. (AS/NZS 60335.2.31:2013/A4:2020)
SAFETY PRECAUTIONS FOR THE USER
These safety precautions are compiled for your safety and also for the safety of other persons, so we ask you to read them carefully before using or cleaning the appliance.
The manufacturer is not liable for any damage, direct or indirect, caused to persons, property, or pets due to failure to comply with the instructions given in this manual.
It is important that this manual with instructions is kept together with the equipment for future reference when needed.
In case of sale or transfer of the appliance to another person, make sure that this manual is also transferred so that the new user can familiarize themselves with the operation of the hood and the corresponding warnings. After installing the hood, remove any protective film and possible residues of oil or lubricant from its surfaces. If they are not removed, they can irreparably damage the surface of the hood. For this operation, the manufacturer recommends using the cloths from the supply kit, which are also available for purchase.
Spare parts required.
INTENDED USE
The appliance is intended exclusively for extracting fumes generated during cooking in domestic environments, not in professional settings. Any other use, different from that described, is considered improper and may cause harm to people, property, and pets, and relieves the manufacturer of all liability.
The appliance can be used by children aged 8 years and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they are supervised or have been given instruction on the safe use of the appliance and understand the associated hazards. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.
SAFETY PRECAUTIONS FOR OPERATION AND CLEANING
Before performing any cleaning or maintenance operation, disconnect the appliance from the electrical power supply by unplugging it or switching off the main switch.
Do not touch the hood with wet hands or use it barefoot.
When the appliance is not in use, always check that all electrical components (lights, aspirator) are switched off.
The total weight of items placed on the hood (where provided) must not exceed 1.5 kg.
Monitor the fryers during use: heated oil can ignite.
Do not leave open flames under the hood.
Do not cook over an open flame under the hood.
Never use the hood without metal grease filters; in this case, grease and dirt will settle in the appliance, negatively affecting its operation.
The accessible parts of the hood may heat up when used with gas appliances.
Do not touch the hood when its parts are still hot.
If the cleaning is not carried out in accordance with the methods and using the means specified in these instructions, there is a risk of fire.
When the hood is not used for a long period of time, it is necessary to turn off the main switch.
In case of simultaneous use of other devices (boilers, stoves, fireplaces, etc.) operating on gas or other fuel, provide appropriate ventilation in the room where the hood is installed, in accordance with current regulations.
INSTALLATION
This section is intended only for qualified personnel.
Before starting the installation of the hood, carefully read the "SAFETY TECHNIQUES AND PRECAUTIONARY MEASURES".
TECHNICAL CHARACTERISTICS
The technical data of the electric appliance are given on the labels located inside the hood.
POSITIONING
The minimum distance between the high part of the appliance and the low part of the hood is indicated in the installation instructions.
Usually, when the hood is installed with a flat bottom surface, this distance must be no less than 65 cm (25.6"). However, based on the EN60335-2-31 standard, the minimum distance between the flat surface and the lower part of the hood can be reduced to the mark indicated in the installation instructions.
If the gas hob instructions specify a greater distance, this must be taken into account.
Do not install the hood outdoors or in places where it would be exposed to atmospheric agents (rain, wind, etc.).
ELECTRICAL CONNECTION
(This section is intended only for qualified personnel)
Before performing any operations on the hood, disconnect the appliance from the electrical power supply.
Check that there are no detached or torn wires inside the hood: if so, contact the nearest technical service center.
The electrical connection must be carried out by qualified personnel.
The connection must be made in compliance with the requirements of current legislation.
Before connecting the hood to the electrical network, check that:
The voltage in the electrical network corresponds to that indicated on the rating plate, which is located inside the hood; the electrical network meets the requirements of current standards and can withstand the load (see technical characteristics inside the hood); the plug and cable of the electrical supply must not come into contact with temperatures above 70°C; the electrical system is equipped with proper grounding in accordance with current standards; the socket used for connection is easily accessible after installation of the hood.
In case:
- of appliances with cable without plug: use a plug of the "standardized" type. The wires must be connected as follows: green-yellow for grounding, blue for neutral, and brown for phase. The plug must be connected to a suitable protective circuit. Fix the appliance without a power cable plug or without a device that ensures the possibility of disconnection from the network with a distance between open contacts that ensures complete disconnection under overvoltage category III conditions.
Disconnect switches must be provided in the electrical supply network in accordance with installation regulations.
The grounding conductor must not be disconnected by the disconnecting switch.
The manufacturer is not liable in case of failure to comply with safety regulations.
Exhaust outlet
Wall-mounted hood with external discharge (suction)
In this version, cooking vapors are discharged outside through an air duct.
When to turn on the hood?
The hood should be turned on at least a few minutes before starting to cook, to create an air flow to direct cooking vapors toward the suction surface.
Disposal information for countries of the European Union
Disposal information for countries outside the European Union
The symbol of the crossed-out waste bin is valid only in countries of the European Union. If you wish to dispose of this appliance in other countries, we recommend contacting local authorities or the distributor for information on correct disposal.
Attention!
The manufacturer reserves the right to make changes to the appliance at any time without prior notice. Printing, translation and reproduction, including partial, of this manual are possible only after obtaining prior permission from the manufacturer.
Technical information, graphic images and specifications provided in this manual are indicative and are not subject to disclosure.
This manual was written in Italian; the manufacturer is not responsible for possible errors or translation mistakes.
SAFETY INSTRUCTIONS AND WARNINGS
EXTRACTOR HOOD WITH EXTERNAL DUCTING
EXTRACTOR HOOD WITH INTERNAL RECIRCULATION (FILTERING)
WHEN SHOULD THE EXTRACTOR HOOD BE TURNED ON?
- INSTRUCTIONS BOOKLET
- ELECTRONIC CONTROL PANEL
- WARNING FOR THE INSTALLER
- TECHNICAL SAFETY
- ELECTRICAL SAFETY
- FUMES DISCHARGE SAFETY
- USER WARNINGS
- INTENDED USE
- USE AND CLEANING WARNINGS
- INSTALLATION
- TECHNICAL FEATURES
- POSITIONING
- ELECTRICAL CONNECTION
- FUMES DISCHARGE
- EXTERNAL EXHAUST HOOD (SUCTION)
- HOOD WITH INTERNAL RECIRCULATION (FILTERING)
- ASSEMBLY INSTRUCTIONS
- OPERATION
- WHEN TO TURN ON THE HOOD
- WHICH SPEED IS TO BE SELECTED
- WHEN SHOULD THE FILTERS BE WASHED OR REPLACED
- ELECTRONIC PUSHBUTTON PANEL
- CLEANING OF EXTERNAL SURFACES
- CLEANING OF INTERNAL SURFACES
- METAL ANTI-GREASE FILTERS
- ACTIVE CARBON FILTERS
- LIGHTING
- DISPOSAL AFTER END OF USEFUL LIFE
- INFORMATION ON DISPOSAL IN EUROPEAN UNION COUNTRIES
- INFORMATION ON DISPOSAL IN NON-EUROPEAN UNION COUNTRIES
- WARNING
- SAFETY AND PRECAUTIONS
- PRECAUTIONS FOR THE INSTALLER
- SAFETY TECHNICAL DATA
- SAFETY OF EXHAUST AIR DISCHARGE
- SAFETY PRECAUTIONS FOR THE USER
- SAFETY PRECAUTIONS FOR OPERATION AND CLEANING
- TECHNICAL CHARACTERISTICS
- THE CONNECTION MUST BE MADE IN COMPLIANCE WITH THE REQUIREMENTS OF CURRENT LEGISLATION
- IN CASE
- EXHAUST OUTLET
- WALL-MOUNTED HOOD WITH EXTERNAL DISCHARGE (SUCTION)
- DISPOSAL INFORMATION FOR COUNTRIES OF THE EUROPEAN UNION
- DISPOSAL INFORMATION FOR COUNTRIES OUTSIDE THE EUROPEAN UNION
- ATTENTION
- SAFETY INSTRUCTIONS AND WARNINGS
- EXTRACTOR HOOD WITH EXTERNAL DUCTING
- EXTRACTOR HOOD WITH INTERNAL RECIRCULATION (FILTERING)
- WHEN SHOULD THE EXTRACTOR HOOD BE TURNED ON
Brand : FALMEC
Model : MIZAR 600
Category : Kitchen hoods
