CHLOE XL - Kitchen hood FABER - Free user manual and instructions

Brand	FABER
Model	CHLOE XL
Product type	Range hood
Insulation class	Class I
Minimum safety distance (cooking surface)	650 mm
Exhaust duct diameter	120 mm minimum
Number of speeds	3 (0, 1, 2, 3)
Grease filter	Dishwasher safe, clean every 2 months
Active carbon filter	Not washable, replace periodically
Lighting	Bulbs, replacement by after-sales service
Power supply	Mains supply with bipolar switch (contact opening ≥ 3 mm)
Use	Domestic, elimination of kitchen odors
Exterior maintenance	Damp cloth and neutral liquid detergent
Safety instructions	Do not flambé under the hood, monitor deep fryers, not for use by children < 8 years without supervision

Frequently Asked Questions - CHLOE XL FABER

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. Also check your gas cooker instructions if it requires a greater distance.

How to clean the grease filters?

The grease filters should be cleaned every 2 months. They can be washed in the dishwasher or by hand with a neutral detergent.

Can the active carbon filter be cleaned?

No, the active carbon filter cannot be cleaned and cannot be regenerated. It must be replaced periodically depending on use.

How to replace the hood lighting?

To replace the bulbs, contact an authorized after-sales service. Do not attempt to do it yourself if you are not qualified.

Can I use the hood with a gas cooker?

Yes, but ensure the room is adequately ventilated and the negative pressure does not exceed 0.04 mbar. The hood must not be connected to a chimney flue used for combustion.

What are the important safety precautions?

Never leave a high flame under the hood, do not flambé food, monitor deep fryers, and turn off the hood before any maintenance. Accessible parts may become very hot.

What are the available speed levels?

The hood has 3 speeds: speed 1 for low steam, speed 2 for normal use, speed 3 for high emissions. Position 0 stops the motor.

What to do if the power cord is damaged?

Do not use it. Have it replaced by the manufacturer or an authorized after-sales service to avoid any risk.

Can the hood be used by children?

This appliance can be used by children aged 8 years and above under supervision. Cleaning and maintenance must not be done by children without supervision.

How to install the hood correctly?

Respect the safety distance of 650 mm, use appropriate screws, connect to the duct with a tube of at least 120 mm and plug into a bipolar switch. The electrical installation must be earthed for Class I appliances.

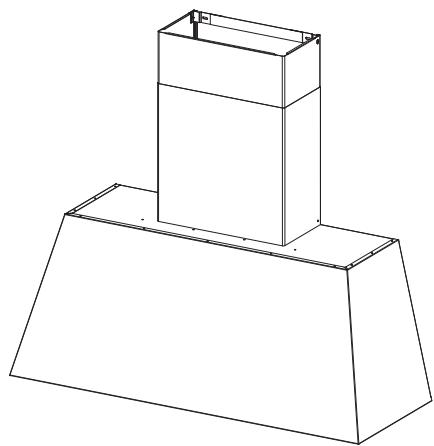

USER MANUAL CHLOE XL FABER

EN COOKER HOOD DE DUNSTABZUGSHAUBE FR HOTTE DE CUISINE NL AFZUIGKAP ES CAMPANA PT EXAUSTOR CAPPA SV SPISFLAKT NO KJØKKENVIFTE FI LIESITUULETIN DA EMHAETTE RU BbITJXKA ET PLIIDIKUMM LV TVAIKU NOSUCEJSE LT DANGTIS UK BITRAKKA H MOTORHÁZTETÖ C ODSAVAÇ PAR SK KAPUCNA RO CARTIER PL OKAP KUCHENNY HR NAPA SL NAPA GR ANOPPOΦHTHPA OCAK DAVLUMBAZ BG ACINIPATOPA KK COPbI MK ACINPATOPOT SQ KAPAK TENXHERE SR KUXYHbCKoT ACnIPATOPA AR

EN USER MANUAL 3 DE GEBRAUCHSANLEITUNG 6 FR MANUEL D'UTILISATION 9 NL GEBRUKSAANWIJZING 12 ES MANUAL DE USO 15 PT LIVRO DE INSTRUÇÕES PARA UTILIZAÇÃO 18 IT LIBRETTO DI USO 21 SV ANVÄNDNINGSHANDBOK 24 NO BRUKSVEILEDNING 27 FI KÄYTTÖOHJEET 30 DA BRUGSVEJLEDNING 33 RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ 36 ET KASUTUSJUHEND 39 LIETOSANAS PAMĀCĪBA 42 LT NAUDOTOJO VADOVAS 45 UK ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 48 HU HASZNÁLATI ÚTMUTATÓ 51 CZ NÁVOD K POUŽITÍ 54 SK NÁVOD NA POUŽÍVANIE 57 RO MANUAL DE FOLOSIRE 60 PL INSTRUKCJA UŻYTKOWANIA 63 KNJIZICA S UPUTAMA 66 SL NAVODILO ZA UPORABO 69 GR ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ 72 TR KULLANIM KİTAPÇIĞI 75 BG РЪКОВОДСТВО ЗА ПОТРЕБИТЕЛЯ 78 KK ПАЙДАЛАНУШЫ НҰСҚАУЛЫҒЫ 81 MK УПАТСТВО ЗА КОРИСНИК 84 SQ UDHËZUES PËR PËRDORIMIN 87 SR КОРИСНИЧКО УПУТСТВО 90 AR 93

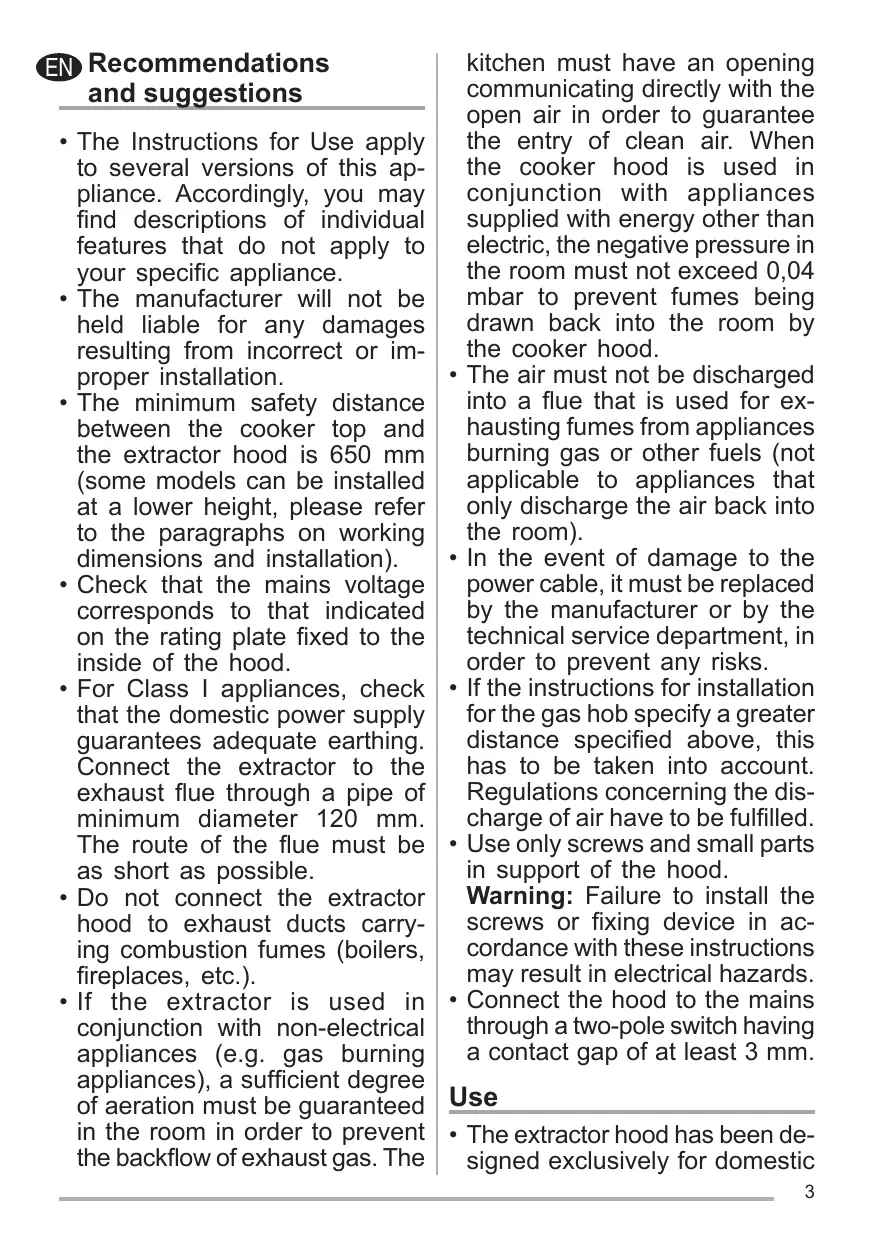

EN Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The

kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the installation instructions for the gas hob specify a greater distance than the one mentioned above, this must be taken into account. Regulations concerning the discharge of air must be fulfilled.
• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

Use

• The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambe under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• CAUTION: Accessible parts may become hot when used

with cooking appliances.

Maintenance

• The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Failure to carry out cleaning as indicated will result in a fire hazard.

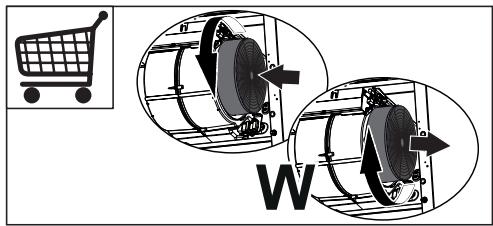

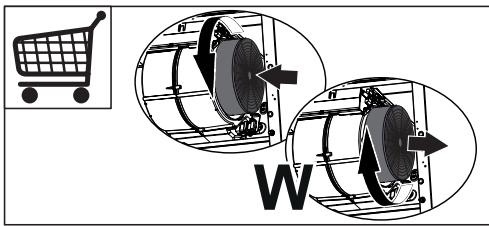

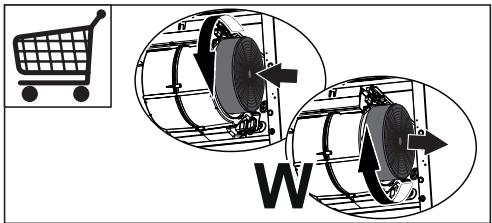

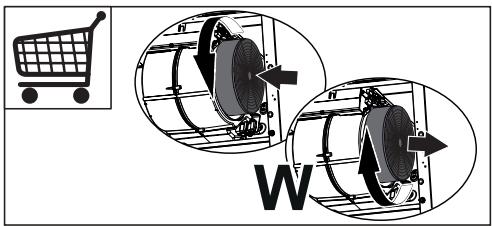

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

L	Light	Switches the lighting system on and off.
V	Speed	Sets the operating speed of the extractor: 0. Motor Off. 1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour. 2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio. 3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Lighting

• For replacement contact technical support ("To purchase contact technical support").

WARNING: Accessible parts may become hot during operation of gas appliances.

Care

The symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. - Before performing any cleaning or maintenance operations, disconnect the appliance from the power supply. Clean or replace the filters as per the specified time intervals (risk of fire). "Risk of fire if the appliance is not cleaned in accordance with the instructions."

-Filter on activated

carbon cannot be washed and reused; it should be replaced approximately every 4 months of operation or more frequently in case of intensive use of the appliance (W).

• Grease filters must be cleaned every 2 months of operation or more frequently in case of intensive use of the appliance; grease filters can be washed in a dishwasher (Z).

Clean the hood with a damp cloth moistened with neutral liquid detergent.

Buttons

UK Recommendations and advice

• This instruction manual applies to several models of the appliance. Differences may exist between the manual and your specific model. For information on specific functions, refer to the documentation provided with your appliance. The manufacturer is not responsible for any damage or injury resulting from incorrect or improper installation. The minimum safety distance between the hob and the hood is 650 mm (some models may be installed lower; refer to the installation instructions). -Check that the voltage in your home corresponds to the voltage indicated on the rating plate, located inside the hood.
• If the appliance is used in class I, ensure that the electrical supply is properly earthed. Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The path to the flue should be as short as possible. Do not connect the hood to exhaust ducts that carry combustion fumes (from boilers, fireplaces, etc.). If the hood is used together with non-electrical appliances (e.g., gas appliances), the room must have adequate ventilation.

The exhaust outlet must be open and directly connected to the outside air source to ensure the removal of stale air. If the hood is used in combination with appliances that operate on non-electrical energy sources, the negative pressure in the room must not exceed 0.04 mbar to avoid backflow of flue gases into the room.

The appliance is intended for use with gas or other fuels (this does not apply to appliances that only exhaust air back into the room). - In case of damage to the power cord, it must be replaced by the manufacturer or its service agent to avoid a safety hazard. If the installation instructions for the gas hob specify a greater distance, they must be taken into account. It is necessary to comply with the standards for the release of exhaust gases. Use only the screws and small parts provided for mounting the hood.

Warning. To install the appliance or the mounting device with the damage described in the instructions, may lead to the risk of electric shock.

electric shock.

-Connect the hood to the mains socket using a two-pole switch with a contact gap of at least 3 mm.

Use

The hood was developed specifically for domestic use to eliminate odors in the kitchen. Never use the hood for other purposes, as it is not intended for that. Never leave the high heat setting on the hood unattended while it is operating. - Adjust the flame intensity so that it is directed only at the bottom of the pan, not allowing the flame to spread to the sides. - While using the hood, always keep an eye on it to prevent oil from spilling onto the floor. Do not use it without a pan (with an open flame directly under the hood) due to the risk of fire. - This appliance can be used by children aged 8 and above, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• WARNING: Accessible parts may become very hot during use. Keep away from children.

Maintenance

-The symbol 串 on the product or its packaging indicates that this product must not be disposed of as household waste. Instead, it should be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service

or the shop where you purchased the product.

Wash or wipe the filter with a damp cloth before performing any maintenance. - Clean or replace the filter through the specified period (risk of fire). - If you do not perform cleaning according to the instructions, there is a risk of fire.

Filters that are clogged with grease cannot be washed or restored. They must be replaced periodically, depending on the intensity of use (W).

Filters that absorb odors must be replaced periodically, depending on the intensity of use. They can be washed in the dishwasher (Z).
