USER MANUAL HGA9.5AMX HOTPOINT

Operating Instructions

COOKER HOOD

Contents

Operating Instructions,1

Warnings,10

Assistance,28

Installation,35

GLASS controls,36

Maintenance and care,37

Troubleshooting,38

PT

Portuges

Illustration of two gloves with a warning symbol (no text or labels)

220-240 V ~ 50-60 Hz 32 cm min. 65 cm min. 90° 55 cm min.

1A

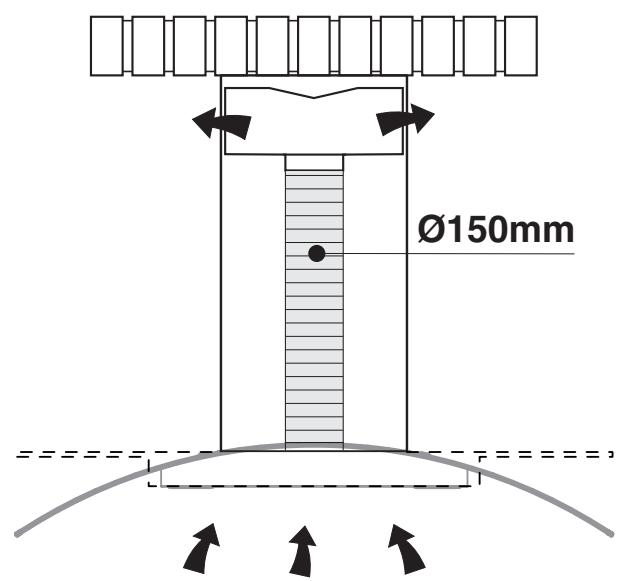

Ø150mm Ø120mm Ø120 Ø150

Ø150mm

Ø120mm Ø120 Ø150

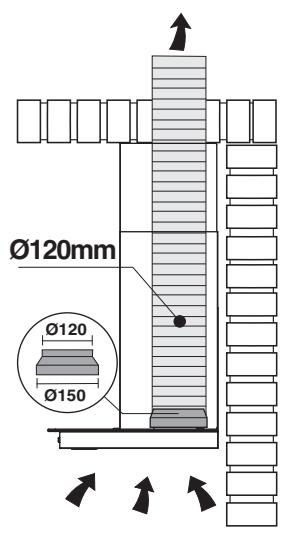

1B

Ø150mm

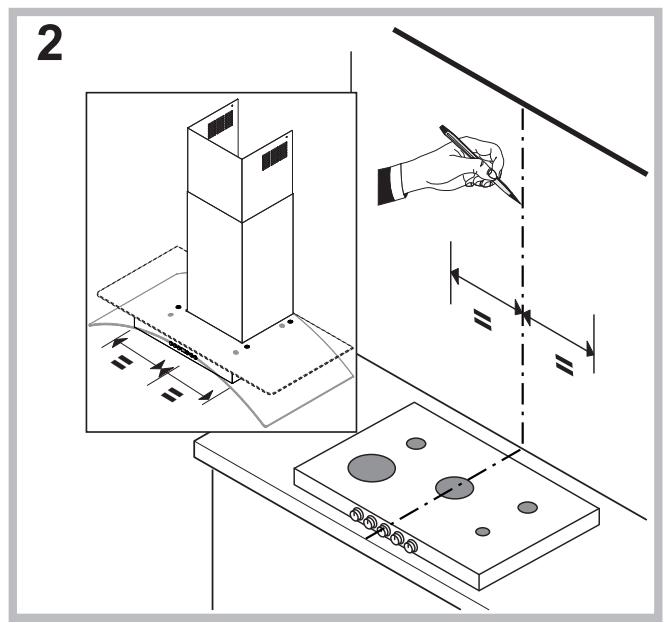

2

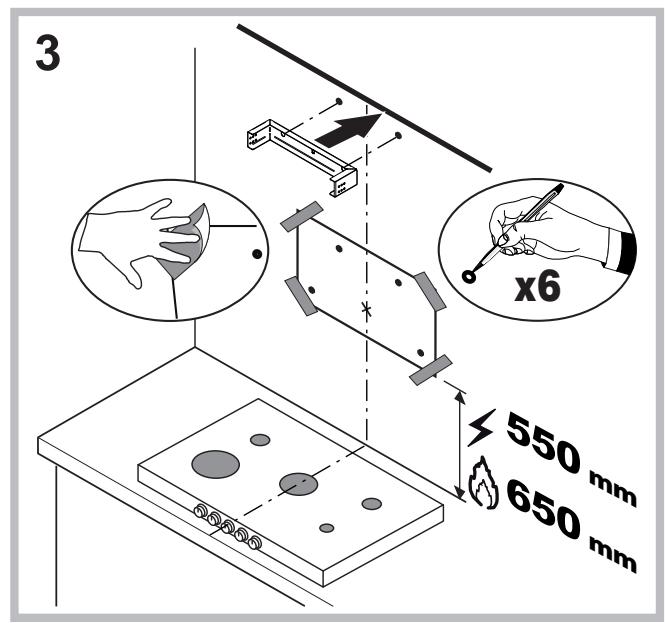

3 x6 550 mm 650 mm

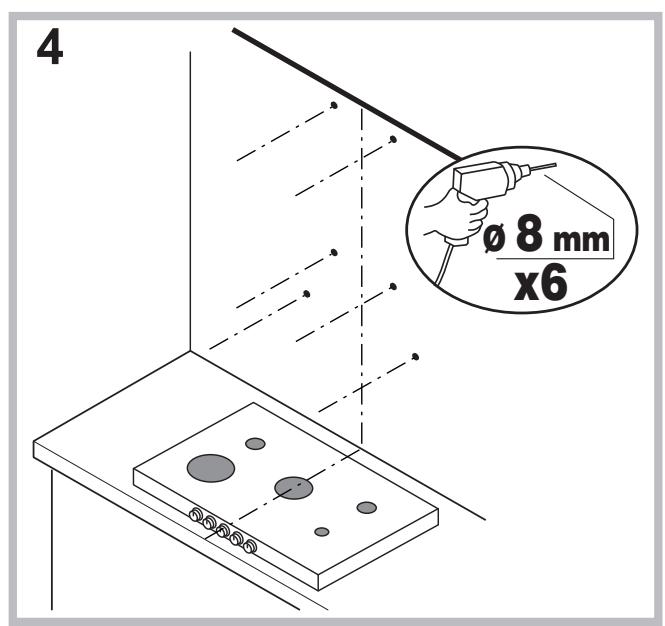

4 Ø 8 mm x6

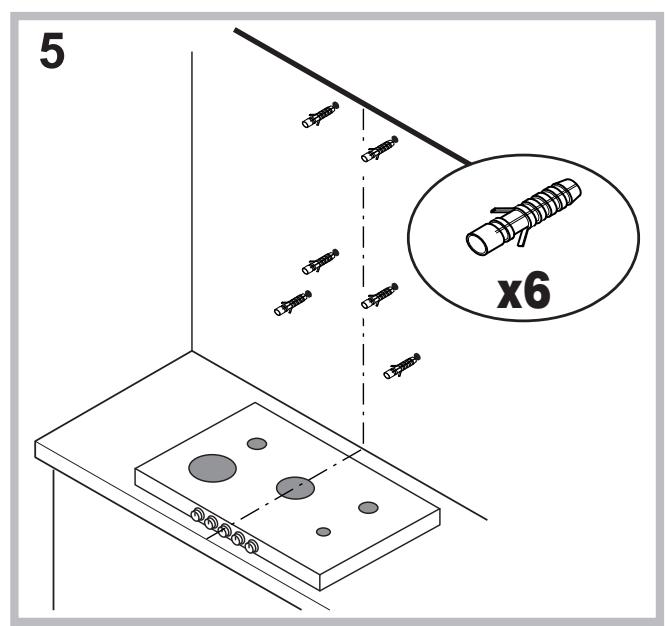

5 x6

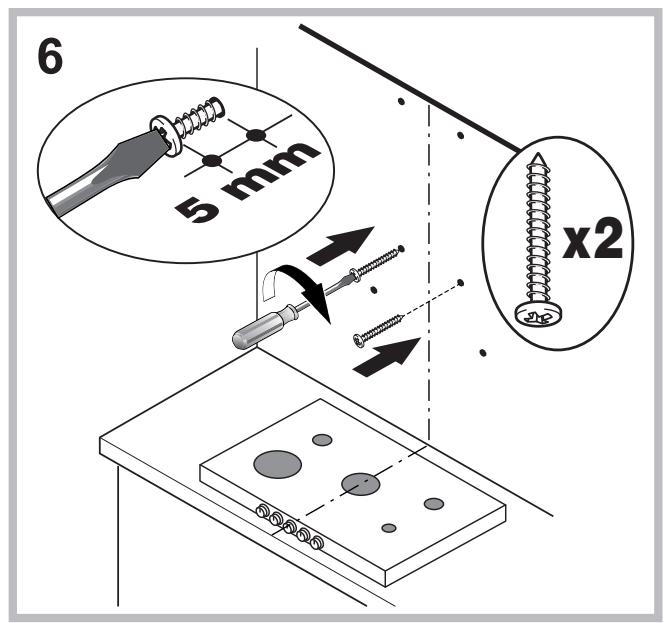

6 5 mm x2

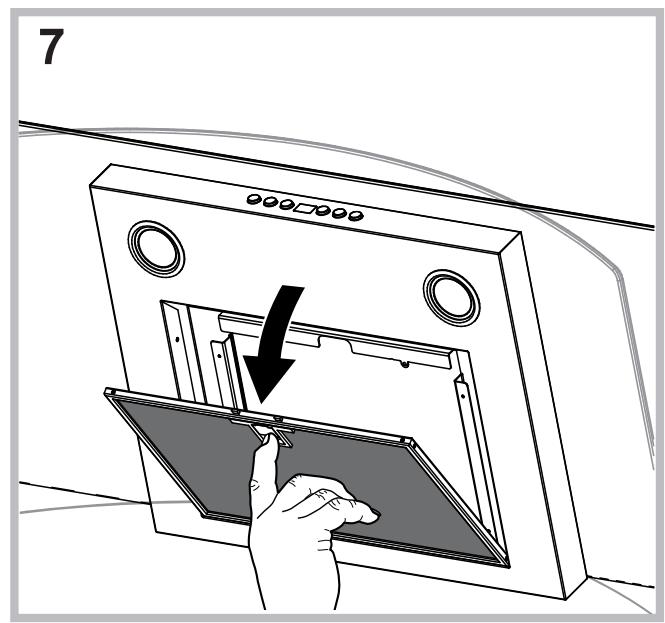

Illustration of a hand inserting a device into a device panel, showing a black arrow indicating the component (no text or symbols present)

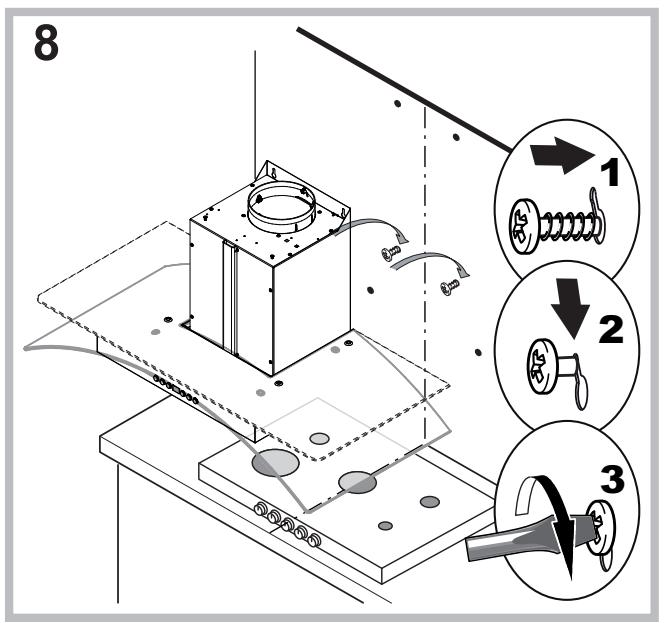

8 1 2 3

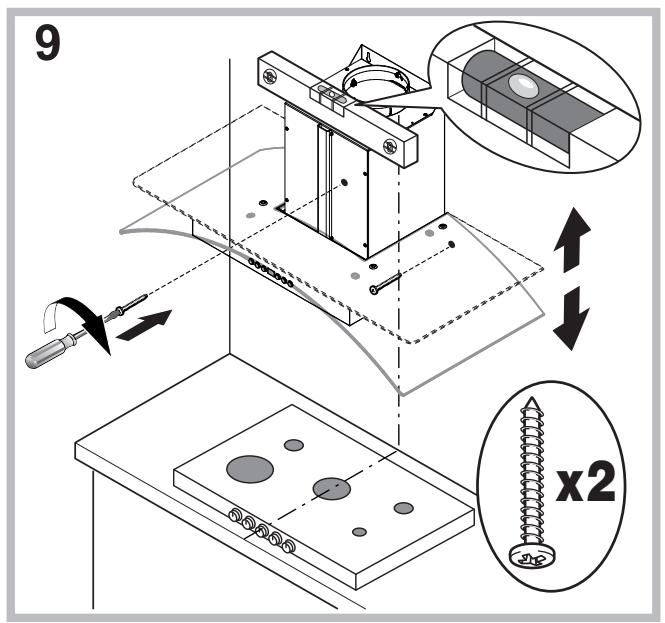

9 x2

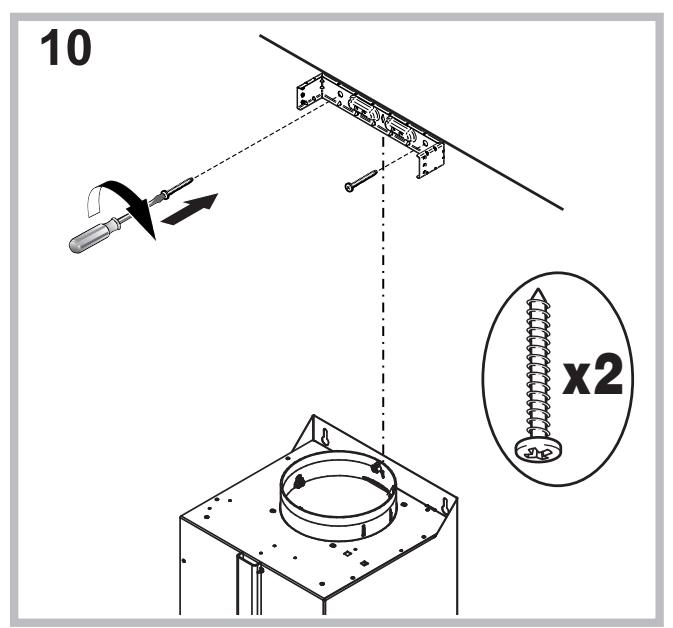

10 x2

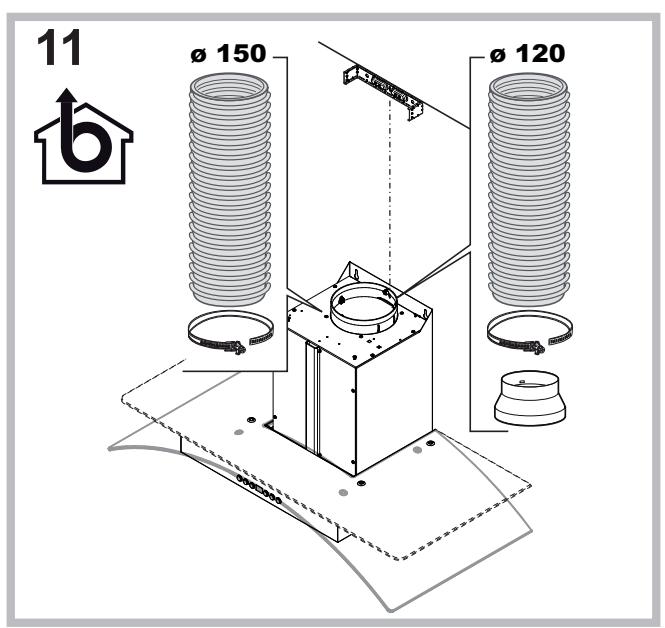

11 ø 150 ø 120

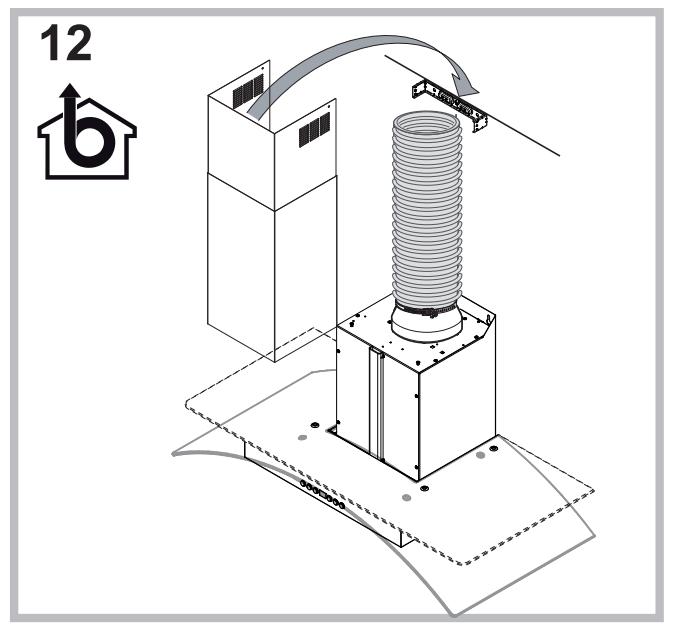

12 b

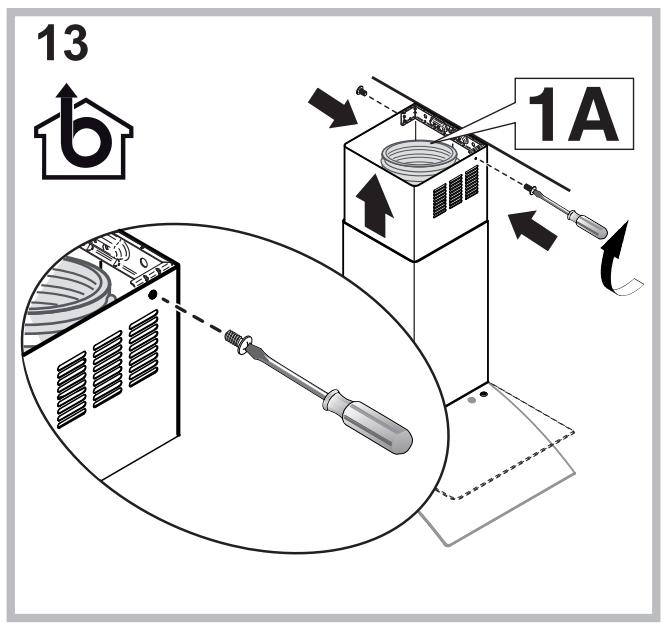

13 b 1A

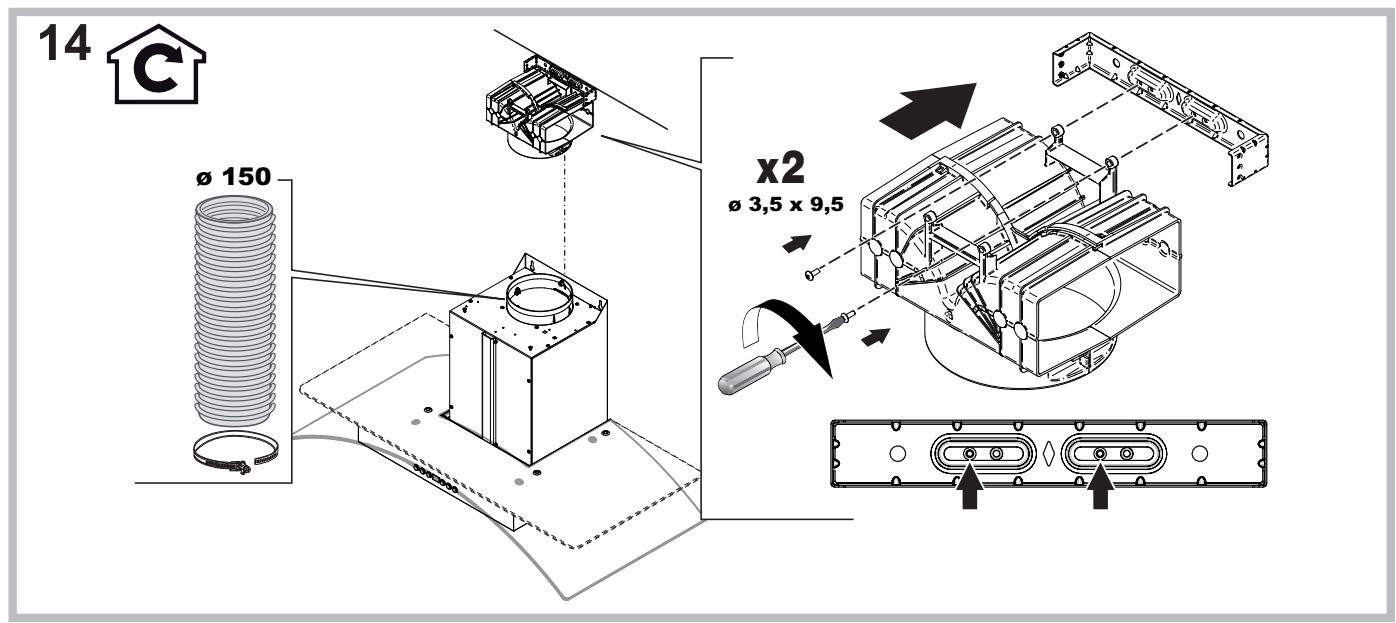

14 C ø 150 x2 ø 3,5 x 9,5

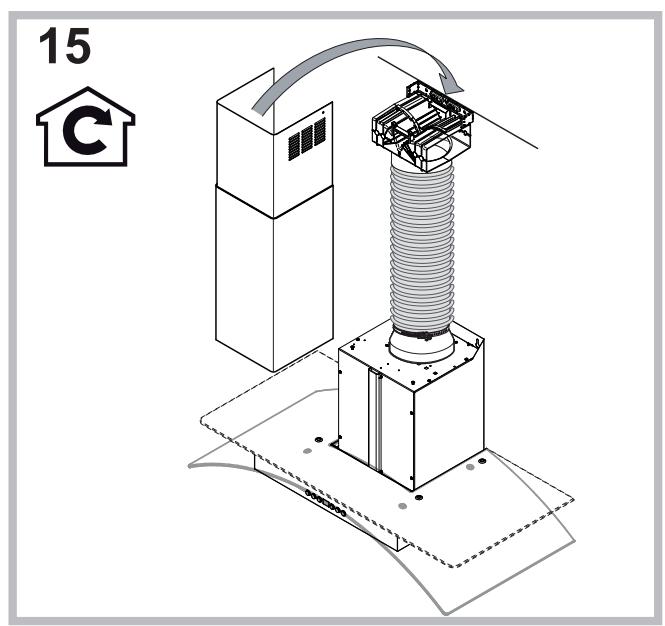

15 C

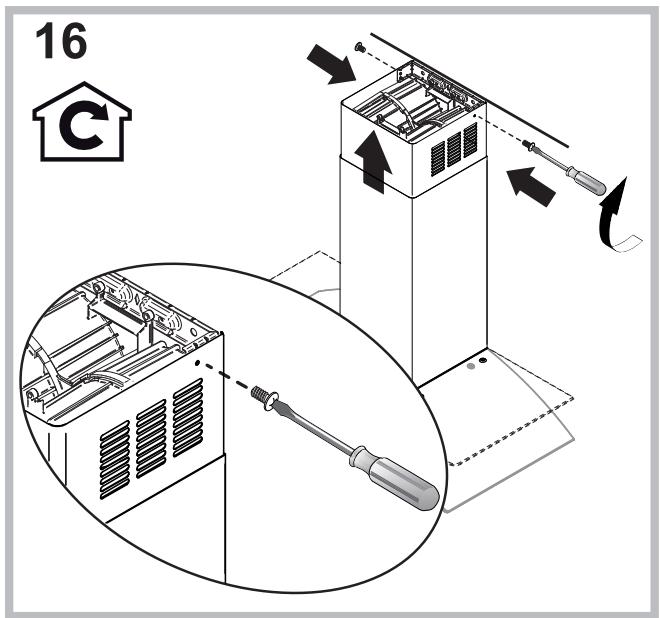

16 C

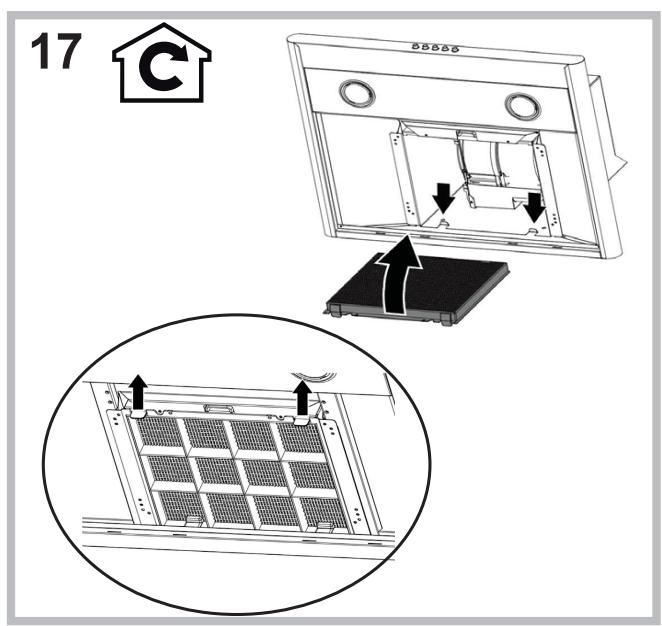

17 C

18 A

IT

Avvertenze

! Keep this manual for reference. If you sell, transfer or move the unit to another location, make sure to keep the manual with the product.

! Read the instructions carefully - they contain important installation, user and safety information.

! Do not tamper with the electrical or mechanical equipment of the product or its exhaust ducts.

General safety information

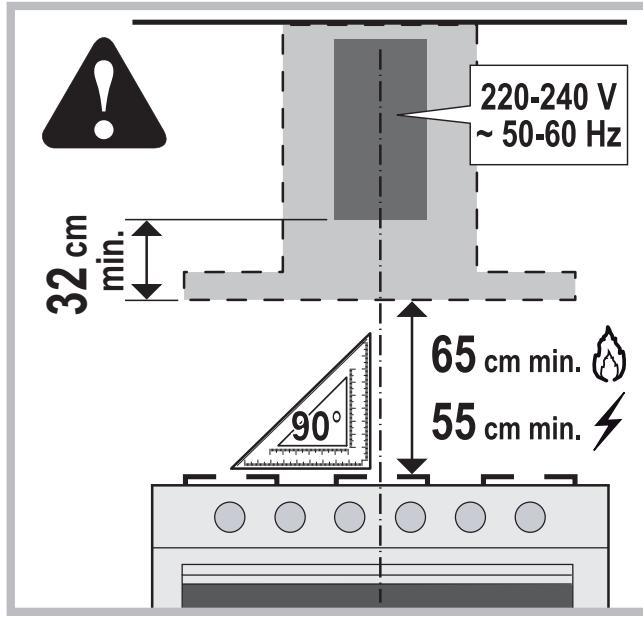

• The distance between the cookware support surface on top of the cooking appliance and the lowest part of the cooker hood must be at least:
  65 cm if the hood is installed over a gas cooktop
  55 cm if the hood is installed over an electric cooktop.
  If the installation instruction manual for the gas cooking appliance specifies a greater distance, this measurement should be taken into account.
• The cooker hood comes with anchor plugs which are suitable for use with most walls/ceilings.
  However, you must contact a qualified technician to check the suitability of the materials in relation to the type of wall/ceiling, which must be strong enough to support the weight of the unit.

• Caution! Do not hook the unit up to its electrical power supply until the installation has been completed.

• Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

• Always wear work gloves when installing and servicing the unit.
• It is not intended for use by children or persons with sensory or mental disability and lack of experience or familiarity, except under the supervision or instruction of a person responsible for their safety.
• Make sure children do not play with the unit.
• Never operate the unit without its grease filter installed!
• NEVER use the hood as a support, unless expressly instructed to do so.
• The room must be adequately ventilated if the hood is used at the same time with other equipment burning gas or other fuels.
• Extracted air must not be conveyed into a duct used for exhausting combustion fumes from gas or other fuel-fired equipment.
• Observe all regulations in relation to air extraction.

• NEVER cook food with an open flame under the hood; open flames will damage the filters and may cause fires. Never do this.
  • Always supervise frying to make sure the heated oil does not catch fire.

• Strictly observe all local regulations in relation to the technical and safety measures to be employed in fumes extraction.

• Clean the product frequently, inside and out (AT LEAST ONCE A MONTH, and in observance of the maintenance instruction given in this manual).
• Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires.
• Never use the hood without its bulbs properly installed - electrocution hazard.
• The manufacturer is not liable for any inconvenience, damage or fire caused by the unit as a result of failure to observe the instructions given in this manual.
• Caution! The unit's accessible parts can get very hot when used with cooking equipment.

FR

Avertissements

! Never use the services of an unauthorised technician.

Please have the following information to hand:

• The type of problem encountered.
• The appliance model (Mod.).
• The serial number (S/N).

The latter two pieces of information can be found on the data plate located on the appliance.

FR

Assistance

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1 T2 T3 T4 T5

T1 Reset motore

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1 T2 T3 T4 B T5 T6

T1 Reset motore

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

T1 ON/OFF motore

Diagram of a panel being installed with a lightning bolt, showing structural damage (no text or symbols)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

The installation procedure is illustrated in the first pages of this manual.

The installation must be done by a qualified technician.

Electrical hook up

The mains voltage must match that given on the ratings label inside the hood itself. If the hood has a power plug, connect the hood to an easily accessible regulatory power socket. If it does not (direct connection to the mains), or the socket is not easily accessible, install a two-pole regulatory switch to enable total disconnection from the mains in case of category III overvoltage, as required by the installation regulations.

Caution! Always check that the mains cable is hooked up properly and check that it operates correctly before reconnecting the hood to the mains.

Air exhaust (for ducted units)

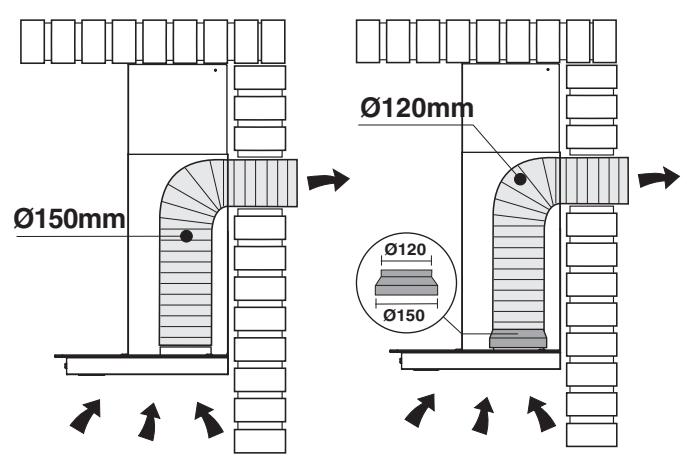

Connect the hood to a duct and wall exhaust hole of a diameter equal to that of the air outlet flange. Using a smaller diameter tube and exhaust hole reduces the extraction capacity of the hood and also increases its running noise. The manufacturer is not liable for any consequences of doing so.

! Use the shortest duct required to achieve the purpose.
! Use a duct with as few bends as possible
! Avoid suddenly changing the diameter of the duct.
! The duct must have as smooth an inner surface as possible.
! The duct must be made of regulatory material.
! Do not connect the hood to flues carrying combustion fumes from other equipment (boilers, GLASSs, stoves, etc.).
! Observe the instructions of the competent authorities in relation to the air exhaust. The air being exhausted may not be exhausted into a wall cavity unless the cavity in question is specifically intended for this purpose.
! Equip the room with air intakes to prevent the hood creating suction pressure in the interior (this must not exceed 0.04 mbar).
! The manufacturer is not liable for any consequences of failure to observe these instructions.

Filter or ducted?

! Your hood is supplied as a ducted unit.

If you wish to use it as a filter unit, you must install the proper ACCESSORY KIT.

Note: If supplied with the hood, the accessory active charcoal filter unit may already be installed.

Instructions for transforming the hood from the ducted to the filter version are given in this manual (see "Filter version").

Ducted version

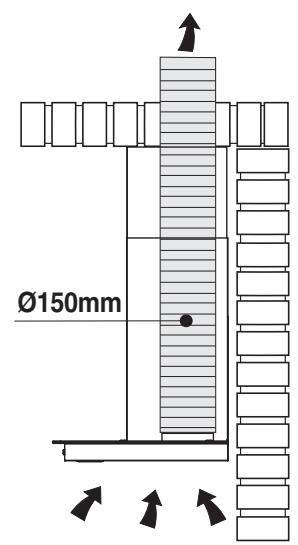

The hood purifies the air and expels it outdoors via an exhaust duct (dia. 150mm) connected to its outlet flange. The diameter of the exhaust tube must be equal to that of the outlet flange.

Caution! The exhaust duct is not supplied and must be purchased separately.

When routed horizontally, the tube must be angled slightly upwards (around 10^ ) to enable the air to be conveyed outdoors more easily. If the hood is fitted with charcoal filters, they must first be removed.

Filter version

The hood purifies the air and returns it to the room. This version of the hood requires installation of an accessory active charcoal filter unit.

This version requires an air deflector, a reduction adapter and the charcoal filter/s. The top tube must have its air outlet slots uppermost.

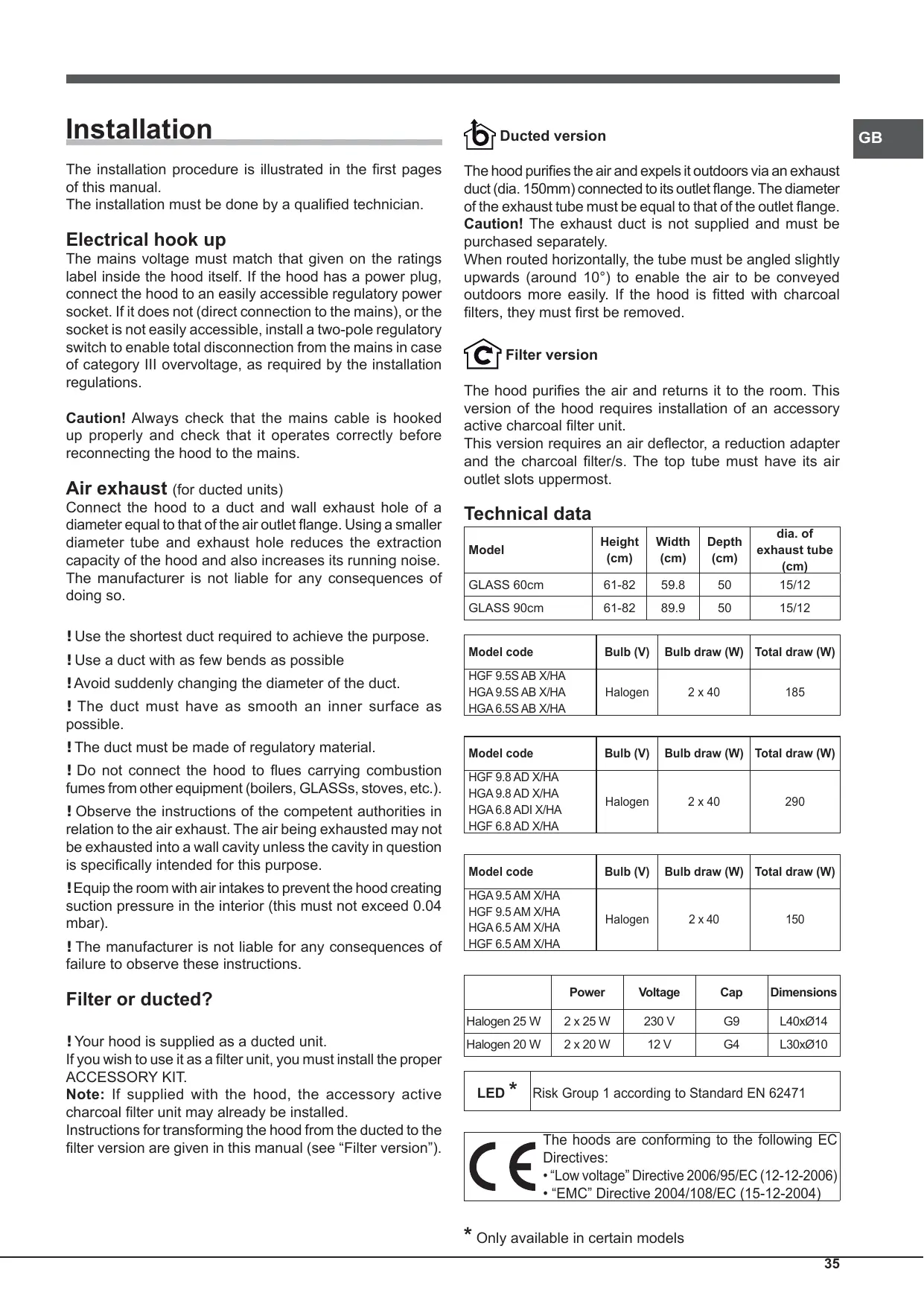

Technical data

Model	Height (cm)	Width (cm)	Depth (cm)	dia. of exhaust tube (cm)
GLASS 60cm	61-82	59.8	50	15/12
GLASS 90cm	61-82	89.9	50	15/12

Model code	Bulb (V)	Bulb draw (W)	Total draw (W)
HGF 9.5S AB X/HA	Halogen	2 x 40	185
HGA 9.5S AB X/HA
HGA 6.5S AB X/HA

Model code	Bulb (V)	Bulb draw (W)	Total draw (W)
HGF 9.8 AD X/HA	Halogen	2 x 40	290
HGA 9.8 AD X/HA
HGA 6.8 ADI X/HA
HGF 6.8 AD X/HA

Model code	Bulb (V)	Bulb draw (W)	Total draw (W)
HGA 9.5 AM X/HA	Halogen	2 x 40	150
HGF 9.5 AM X/HA
HGA 6.5 AM X/HA
HGF 6.5 AM X/HA

	Power	Voltage	Cap	Dimensions
Halogen 25 W	2 x 25 W	230 V	G9	L40x∅14
Halogen 20 W	2 x 20 W	12 V	G4	L30x∅10

LED *

Risk Group 1 according to Standard EN 62471

CE	The hoods are conforming to the following EC Directives:“Low voltage” Directive 2006/95/EC (12-12-2006)“EMC” Directive 2004/108/EC (15-12-2004)

* Only available in certain models

GLASS controls

Models with mechanical keypad

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

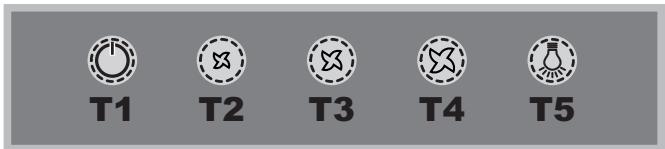

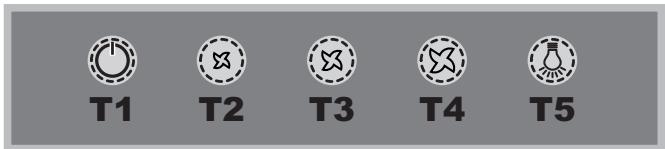

T1 T2 T3 T4 T5

T1 Motor reset

Pressing the button while the hood is in operation turns it OFF.

T2 Speed 1

Pressing the button sets the hood to speed 1.

T3 Speed 2

Pressing the button sets the hood to speed 2.

T4 Speed 3

Pressing the button sets the hood to speed 3.

T5 Lights ON/OFF

Models with soft button keypad

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA HGA 6.5S AB X/HA

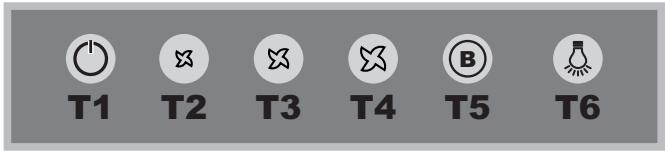

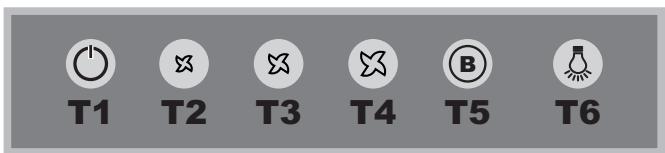

T1 T2 T3 T4 B T5 T6

T1 Motor reset

Press the button with the hood off to set speed 1. Pressing the button while the hood is in operation turns it OFF.

T2 Speed 1

Pressing the button sets the hood to speed 1.

T3 Speed 2

Pressing the button sets the hood to speed 2.

T4 Speed 3

Pressing the button sets the hood to speed 3.

T5 Booster

Pressing the button sets the hood to high speed. After 5 minutes, the hood returns to the previous speed; pressing a speed button (T2, T3 or T4) quits booster mode and sets the selected speed.

T6 Lights ON/OFF

Grease/odour filter warnings

The T2 icon flashes to indicate that the grease filter is saturated, while T3 flashes to indicate that the odour filter is saturated, and if both are flashing then both filters are saturated. You must then clean/replace the grease filter (A) or odour filter (B) or both, accordingly (see “Maintenance and care”).

To reset the filter counter:

Hold down T5 for three seconds while the hood is on.

The warning led flashes three times, then returns to its normal mode. If both filter warnings are active at the same time, you must reset each separately.

The first sequence resets the grease filter, while the second sequence resets the odour filter.

Hood configuration:

To set the operating mode of the hood, hold down T5 for 6 seconds while the product is off. Icons T2 or T3 will light up to show the type of installation: T2 ventilation, T3 filtering. You can change the type of installation by pressing T4 cyclically.

To save the new configuration press T1 individually.

Models with soft button keypad and display

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

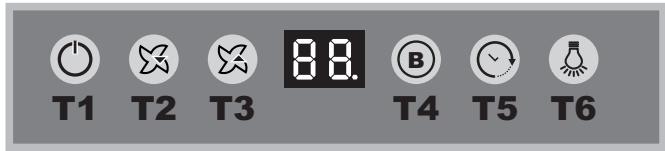

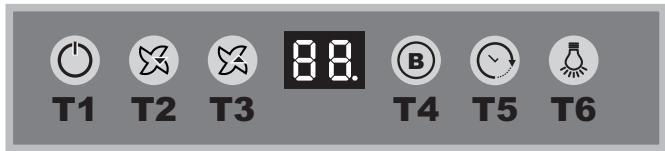

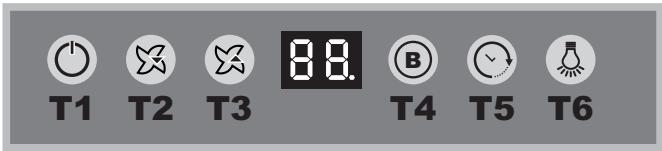

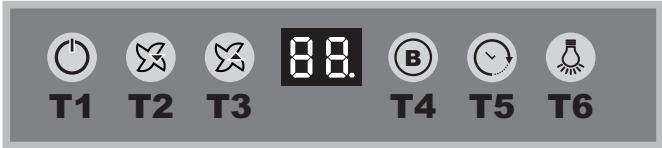

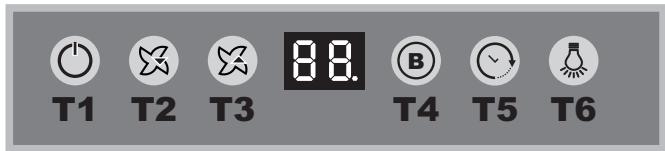

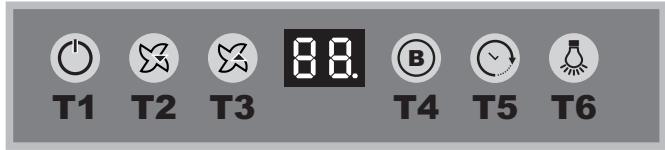

T1 T2 T3 88. B T4 T5 T6

1 Motor ON/OFF

Press the button with the hood off to set speed 1. Pressing the button while the hood is in operation turns it OFF.

T2 Speed -

Pressing the button returns the hood to the previous speed.

T3 Speed +

Pressing the button returns the hood to the next speed.

T4 Booster

Pressing this button sets the hood to high speed; the letter "b" flashes slowly on the display. After 5 minutes, the hood returns to its previous speed; this can also be done while booster mode is on by pressing either speed button (T2 or T3).

T5 Timer

Pressing this button delays the hood turning off automatically by 5 minutes. The timer counts down on the display in minutes. The timer can only be set for manual speeds, not for booster mode.

T6 Lights ON/OFF

Grease/odour filter warnings

The bar at the top left flashes to indicate that the grease filter is saturated.

The bar at the top right flashes to indicate that the odour filter is saturated.

If both bars are flashing, then both filters are saturated.

You must then clean/replace the grease filter (A) or odour filter (B) or both, accordingly (see “Maintenance and care”). The latter only applies to the filter version.

To reset the filter counter:

Hold down T4 for three seconds while the hood is on. If both filter warnings are active at the same time, you must reset each separately. The first sequence resets the grease filter, while the second sequence resets the odour filter.

Configuring the hood

To set the operating mode of the hood, hold down T4 for 6 seconds, while the product is off. After a long beep, the type of installation displays:

Ducted

(square at bottom left flashing).

Filter

(square at bottom right flashing).

You can change the type of installation by pressing T4. To quit configuration mode, press T1 once; this switches the unit off and saves the last displayed setting.

Maintenance and care

Caution! Before cleaning or servicing the unit, disconnect it from the mains by pulling the power plug or disconnecting the main circuit breaker.

First cleaning

• Remove the protective film
• Clean with a damp sponge and a little neutral soap
• Rinse off with a damp cloth
• Dry with a soft cloth; if the hood is stainless steel, dry along the metal's grain

Periodic cleaning

The hood must be cleaned frequently (at least as often as you service the grease filter), inside and out. Use a damp cloth and a neutral liquid detergent with lukewarm water. Do not use abrasive or corrosive products.

Warning: Failure to observe the hood cleaning and filter cleaning/replacement instructions can result in fires. Follow the instructions carefully. The manufacturer is not liable for any damage to the motor or fires caused by incorrect care or failure to follow the above instructions.

Servicing the grease filter (A)

A

The grease filter retains the particles of grease produced during cooking; it must be cleaned at least once a month with a non-aggressive detergent, either by hand or with a low temperature, short dishwasher cycle.

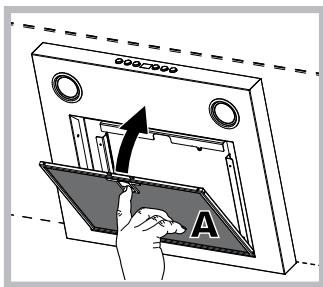

To extract the grease filter, pull the spring loaded handle.

If washed in a dishwasher, the metal filter may change colour, but this does not affect its performance.

Servicing the charcoal filter (B)

The charcoal filter retains unpleasant cooking odours. The filter saturates after a variable time, depending on the type of cooking and how often the grease filter is cleaned. The cartridge must be replaced at least once every twenty months.

This filter can NOT be washed or regenerated

Diagram of a hand installing or adjusting a grid panel with arrows indicating movement (no text or symbols present)

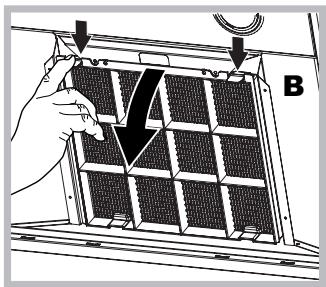

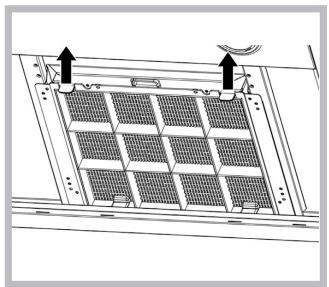

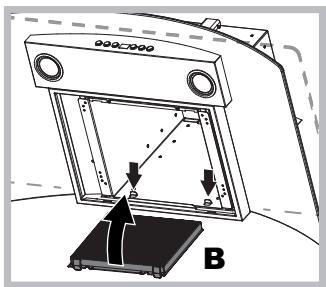

Disassembly: Remove the activated-carbon filter by pressing the two front levers which secure it to the hood.

Diagram of a device with labeled components and directional arrows, no readable text or symbols present

Assembly: Secure the activated-carbon filter first in the back using the hood's metal tabs and then in the front by pressing the two levers.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Replacing the bulbs

Disconnect the unit from the mains and remove the grease filter.

Caution! Make sure the bulbs are cool before touching them.

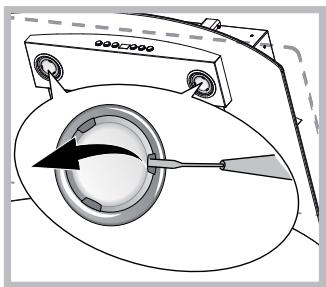

1. Extract the guard by prising it out with a small flat head screwdriver or something similar.
2. Replace the faulty bulb. Use only bulbs of the same type (for details, see the technical data in the following manual).
3. Refit the guard (push it in).

Diagram of a mechanical device with a circular component and directional arrow, no visible text or symbols

Replacing the lights LED \*

The hood is fitted with a lighting system based on LED technology. The LEDs ensure optimal lighting, longer life and lower consumption compared with traditional lights. To replace them please contact the assistance service.

Electrical cable

If the power cable is damaged, it can be replaced by the manufacturer or his technical service, to prevent any attendant risks.

SCRAPPING

The unit is marked for conformity with European Directive 2012/19/EC, Waste Electrical and Electronic Equipment (WEEE). By ensuring that the unit is scrapped properly, the user contributes to safeguarding the environment and public health.

The symbol on the product or on its accompanying documents indicates that the product may not be treated as domestic waste but must be handed over to a sorting centre for electrical and electronic waste. Dispose of it in accordance with local waste disposal regulations. For further information on the handling, recovery and recycling of this product, contact the local authority, domestic waste disposal service or the reseller from whom you purchased it

Troubleshooting

If something does not work, make the following simple checks before contacting Technical Service:

If the hood does not operate:

Check that:

• the unit is powered up.
• a speed has been set.

If the hood is not working effectively:

Check that:

• the selected motor speed is sufficient to handle the amount of smoke and steam being produced.
• the kitchen is adequately ventilated for the unit to take air in.
• the charcoal filter is not exhausted (filter version).

If the hood turns off during normal operation:

Check that:

• the unit is powered up.
• the circuit breaker has not tripped.

In case of faulty operation, before contacting Technical service, first disconnect the machine from the mains for at least 5 seconds by pulling its plug, then reconnect it. If the fault persist, contact Technical Service.

Installation

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

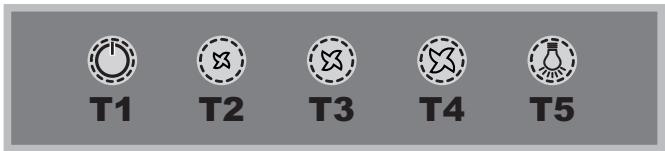

T1 T2 T3 T4 T5

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1 T2 T3 T4 B T5 T6

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

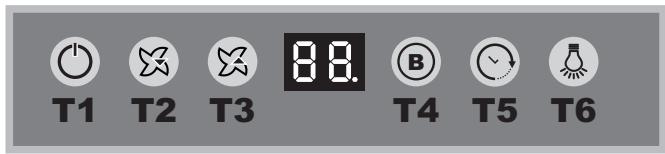

T1 T2 T3 88. B T4 T5 T6

Diagram of a panel being installed with a tool, showing grid structure and mounting bracket (no text or symbols)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Diagram of a mechanical device with a circular component and directional arrow, no visible text or symbols

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1

T2

T3

T4

T5

T1 Reset motor

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1

T2

T3

T4

T5

T6

T1 Reset motor

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

T1 ON/OFF motor

Illustration of a hand installing or adjusting a grid panel with arrows indicating direction (no text or symbols present)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two arrows indicating orientation or movement (no text or symbols present)

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1 T2 T3 T4 T5

T1 Reset motor

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1 T2 T3 T4 B T5 T6

T1 Reset motor

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

1 ON/OFF motor

Diagram of a panel being installed with a lightning bolt, showing structural grid and mounting bracket (no text or symbols)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1

T2

T3

T4

T5

T1 Reset motor

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1

T2

T3

T4

T5

T6

T1 Reset motor

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

T1 ON/OFF motor

Diagram of a hand installing or adjusting a grid panel with arrows indicating movement (no text or symbols present)

Technical diagram of a device with mounting base and internal components, labeled B (no text or symbols present)

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

De lampen vervangen

• "Low voltage" Directive 2006/95/EC (12-12-2006)
• “EMC” Directive 2004/108/EC (15-12-2004)

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1 T2 T3 T4 T5

T1 Reset silnika

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1 T2 T3 T4 B T5 T6

T1 Reset silnika

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. T4 T5 T6

T1 ON/OFF silnika

Illustration of a hand installing or adjusting a grid panel with arrows indicating direction (no text or symbols present)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two arrows indicating direction (no text or symbols)

Wymiana żarówek

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1 T2 T3 T4 T5

T1 Motor sifirlama

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA HGA 6.5S AB X/HA

T1 T2 T3 T4 B T5 T6

T1 Motor sıfırlama

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

1 Motor AÇIK/KAPALI

Illustration of a hand installing or adjusting a grid panel with arrows indicating direction (no text or symbols present)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Diagram of a washing machine with a circular dial and needle inserted, showing mechanical components without any text or symbols.

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1

T2

T3

T4

T5

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1

T2

T3

T4

T5

T6

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

Diagram of a hand installing or adjusting a grid panel with arrows indicating direction (no text or symbols present)

Diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Diagram of a mechanical device with a circular component and directional arrow, no visible text or symbols

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1 T2 T3 T4 T5

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1 T2 T3 T4 B T5 T6

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

Diagram of a hand installing or adjusting a grid panel with arrows and a black arrow, labeled 'B' (no text or symbols on the diagram itself)

Technical diagram of a mechanical device with labeled components and directional arrows (no readable text or symbols)

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Заміна лампочок

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1 T2 T3 T4 T5

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1 T2 T3 T4 B T5 T6

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

T1 ZAPNUTÍ/VYPNUTÍ motoru

Diagram of a panel being installed with a lightning bolt, showing structural damage (no text or symbols)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Výměna žárovek

Diagram of a mechanical device with a circular component and directional arrow, no visible text or symbols

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1

T2

T3

T4

T5

T1 Vynulovanie motora

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA - HGA 6.5S AB X/HA

T1

T2

T3

T4

T5

T6

T1 Vynulovanie motora

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1

T2

T3

T4

T5

T6

T1 ZAPNUTIE/VYPNUTIE motora

Illustration of a hand installing or adjusting a grid panel with arrows indicating direction (no text or symbols present)

Technical diagram of a device with labeled components and directional arrows, no readable text or symbols present.

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Výmena žiaroviek

Diagram of a mechanical device with a circular component and directional arrow, no visible text or symbols

HGA 9.5 AM X/HA - HGF 9.5 AM X/HA

HGA 6.5 AM X/HA - HGF 6.5 AM X/HA

T1

T2

T3

T4

T5

T1 Моторды токтату

HGF 9.5S AB X/HA - HGA 9.5S AB X/HA HGA 6.5S AB X/HA

T1

T2

T3

T4

T5

T6

T1 Моторды токтату

HGF 9.8 AD X/HA - HGA 9.8 AD X/HA

HGA 6.8 ADI X/HA - HGF 6.8 AD X/HA

T1 T2 T3 88. B T4 T5 T6

Diagram of a hand installing or adjusting a grid panel with arrows indicating direction (no text or symbols present)

Technical diagram of a mechanical device with labeled components and directional arrows (no readable text or symbols)

Diagram of a solar panel array with two directional arrows indicating orientation (no text or symbols)

Шамдарды ауыстыру

Diagram of a mechanical device with a circular component and directional arrow, no visible text or symbols
