Product type	Extractor hood
Brand	EICO
Model	TRIBE P
Use	Domestic, extraction of cooking fumes and vapors
Power supply	220-240 V (according to rating plate)
Number of speeds	4 speeds (including timed intensive 5 min)
Lighting	Halogen 12 V, 20 W max, type G4
Grease filter	Washable metal (monthly or saturation signal)
Charcoal filter (recirculation)	Washable or non-washable depending on model; replacement max 4 months
Extraction mode	External extraction or internal recirculation version
Minimum installation distance	50 cm for electric cooktop, 65 cm for gas or mixed
Filter saturation indicator	Digital display: 1 flashing for grease (40h), 2 for charcoal (160h)
Temperature alarm	Temperature detector: activates speed 3 if display area too hot, flashing "t" display
Timer	Intensive speed automatically reduced after 5 min
Grease filter maintenance	Manual cleaning or dishwasher (short cycle, low temperature) once a month
Washable charcoal filter maintenance	Wash with hot water or dishwasher at 65°C; oven dry 10 min at 100°C; replace pad every 3 years
Bulb replacement	Unplug the appliance, use a flat screwdriver to open, replace with halogen 12V 20W G4 without touching with hands
Safety	Unplug before maintenance; do not use without filter; avoid flambéing; sufficient ventilation if gas
Compliance with standards	EN/IEC 60335-1, EN/IEC 60335-2-31, EN/IEC 62233 (safety); EN/IEC 61591 (performance); EMC EN 55014
Recycling	Compliant with WEEE (Directive 2002/96/EC) - do not dispose with household waste

Frequently Asked Questions - TRIBE P EICO

How to install the hood in external extraction version?

Use an exhaust duct of the same diameter as the connecting flange (not supplied). The duct should have a slight upward slope (approx. 10°). Remove the charcoal filter if present. Comply with local regulations.

How to install the hood in recirculation version?

Install an activated charcoal filter (available from the dealer). The extracted air is degreased and deodorized before being returned to the room through the top grille.

What type of bulb for the lighting?

The lighting uses halogen bulbs 12 V - 20 W max - type G4, suitable for an open lighting system. Do not touch the bulb with bare hands when replacing.

How to clean the grease filter?

The metal grease filter must be cleaned once a month (or when the saturation signal appears). Wash by hand with a non-aggressive detergent or in the dishwasher at low temperature and short cycle. Remove by pulling the spring handle.

How to replace the charcoal filter?

For the non-washable charcoal filter, replace every 4 months maximum. For the washable filter, clean every 2 months with hot water or in the dishwasher at 65°C, then oven dry for 10 min at 100°C. The pad must be changed every 3 years.

What to do if the display flashes (maintenance signal)?

A 1 flashing indicates that the grease filter needs cleaning (40h of use). A 2 flashing indicates that the charcoal filter needs replacing (160h). To reset, press the '2' button for more than 3 seconds.

Why does the hood start on its own?

The hood is equipped with a temperature sensor. If the temperature in the display area becomes too high, the motor activates at speed 3 (flashing 't' display). This stops when the temperature drops.

What is the minimum distance between the hood and the cooktop?

The minimum distance is 50 cm for electric cooktops and 65 cm for gas or mixed cooktops. If the cooking appliance instructions specify a higher distance, that takes precedence.

How to reset the maintenance signal?

With the hood on, press the '2' button for more than 3 seconds until the signal turns off. For the charcoal filter (if active), repeat the operation a second time.

What to do if the hood no longer works?

First check the power supply (plug, fuse). Ensure the hood is properly plugged in and the circuit breaker has not tripped. Check that the bulbs are fully inserted. If the problem persists, contact after-sales service.

USER MANUAL TRIBE P EICO

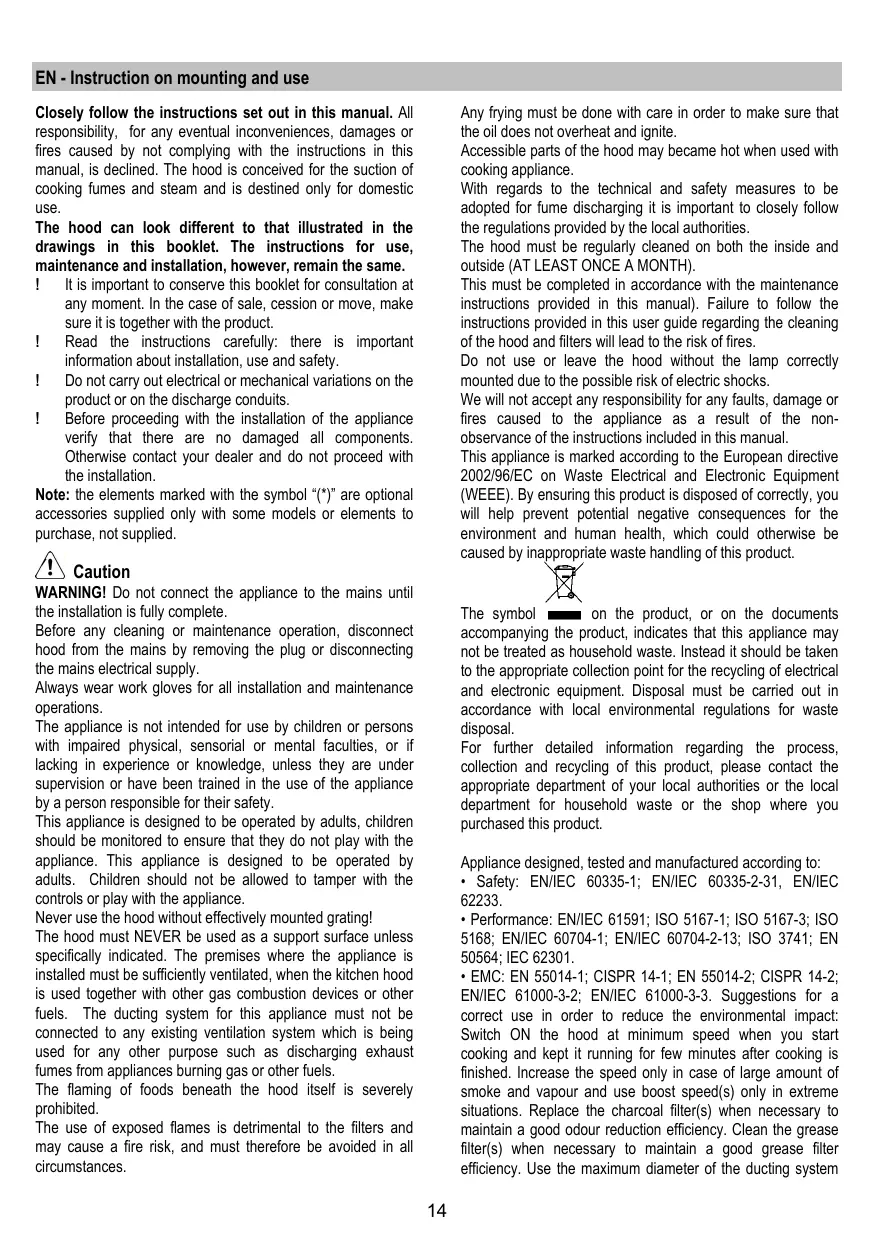

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol (*) are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system

indicated in this manual to optimize efficiency and minimize noise.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).
Avoid drastic changes in the duct cross-section.
Use a duct as smooth as possible inside.
The duct must be made of certified material.

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (), guarantees (), etc.), eventually removing them and keeping them.
• If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it.
• In addition check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available and it is possible to connect a fumes discharge device to the outside (only suction version).
• Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

1. Lights ON/OFF

2. Motor ON/OFF

When key "2" is pressed the motor passes to speed 1.

If the key is pressed during working, the hood passes to OFF state.

3. Speed decrease

When key "3" is pressed the speed decreases from 4 (intense) to 1.

4. Speed increase

When key "4" is pressed with the hood in OFF state, the hood passes to speed 1.

If the key is pressed during working, the speed increases from 1 to 4 (intense).

The intense speed is timed. The standard timing is 5^ , at the end of which the hood sets at speed 2.

To deactivate the function before the end of the time, press key "3", the hood sets at speed 3, when key "2" is pressed the hood turns off.

A signal on the display corresponds to each speed:

OFF: No signal

Speed 1:1

Speed 2:2

Speed 3:3

Speed 4: 4 flashing

5. Display

Grease filter signalling

The grease filter is signalled by the display with number 1 flashing after 40 hours of use.

This means that the grease filter needs to be washed.

The signalling is visible with the hood in ON state.

To eliminate the grease filter signalling, press key "2" for more than 3", until it turns off.

The signalling can be eliminated with the hood in ON state.

Carbon filter signalling (only for filtering version)

The carbon filter is signalled by the display with number 2 flashing after 160 hours of use.

This means that the carbon filter installed must be replaced.

The signalling is visible with the hood in ON state.

To eliminate the carbon filter signalling, press key "2" for more than 3", until it turns off.

The signalling can be eliminated with the hood in ON state.

In case both filters are signalled at the same time, numbers 1 and 2 flash on the display alternately.

The signalling can be reset by carrying out the above

described procedure twice.

First it resets the grease filter signalling, then the carbon filter signalling.

In the standard mode the carbon filter signalling is not active.

In case the filtering version hood is used, it is necessary to enable the carbon filter signalling.

Activation of carbon filter signalling:

Set the hood to OFF and keep keys "2" and "3" pressed contemporaneously for 3".

Numbers 1 and 2 flash alternately for 2^

Deactivation of carbon filter signalling:

Set the hood to OFF and keep keys "2" and "3" pressed contemporaneously for 3".

Number 1 flashes for 2^

Temperature Alarm

The hood is equipped with a temperature sensor which activates the motor at speed 3 in case the temperature in the display zone is too high.

The alarm condition is indicated by the display with the letter t flashing.

This condition remains as such until the temperature falls below the alarm threshold.

This mode can be quit by pressing key "2", "3" or "4".

Every 30^ the sensor checks the ambient temperature of the display zone.

Display Symbols

Symbol	State
1	Speed 1
2	Speed 2
3	Speed 3
4	Speed 4 (intense)
5	Grease filter maintenance
6	Carbon filter maintenance
7	Grease filter and carbon filter maintenance
8	Temperature Alarm

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

Grease filter

Fig. 26-31

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 28

It absorbs unpleasant odours caused by cooking.

The activated charcoal filter can be one of these types:

• Washable activated charcoal filter.
• NON-washable activated charcoal filter.

Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Assembly

Hook the charcoal filter at the back on the metal tongue of the hood first, then on the front with the two knobs.

Disassembly

Remove the charcoal filter by turning the knobs fixing it to the hood by 90^ .

Replacing lamps

Fig. 32

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace the old light bulb with the one of the same type as specified in the feature label or near the light lamp on the hood.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SuITABLE FOR USE IN OPEN LUMINAires. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

Signal fibre anti-graisse

ANVAND INTE ALKOHOL!

OFF: Ikke noe signal

Hastighet 1:1

Hastighe2:2

Hastighet 3:3

Hastighet 4: 4 blinkende

1. Display

Odsavani's recilkulaci

Pred zahajenim instalace:

Acnipatobt He Tp8bHa HIKOgA da ce n3no3Ba KaTo pa6oTeH pIoT, OCBHe Ako ToBa He e CnEuaJHo Yka3aHO.

PomeeHneTo Tp86Ba Da mHa Do6po npOBetpBaHe, KOrato KxHyHenckmT acnnpatOp Ce n3no13Ba eNHOpeMeHHo C dpyrnyepiC rA30BO uIN Dpyr BnD rOpNo.

AcnnpnarnT B3dyx He Tp6Ba Da ce OTBExda npe3 OTBO, npe3 KOIto Ce OTBExda DIma OypeDIne, paoboteu c ra3 nn npyro ropno.

Ctporo ce 3a6paHraBa roTbeHTo Ha oTKpnt PnIaMbK nOd acnnpatopa.

I3noI3BaHeto HA OTKpNT PnAmbK E BpeH0 3a pInTpTe moKe Da npuHn NoXap, 3aTObA a6coJIHTHO Tp86Ba da ce n36ra.

TbpxhenTo Tp6Ba Da ce N3BbPbwa NaHabNIOJeHne, 3a Da Ce N36eHRe Bb3nPaMeHBAHe Ha ONMOTO.

IocbHnHTe HaTr MoT a Da Ce HapTe3HaHHTeJIHO KOrato Ce 3nON3BAT 3aeHNO C roTBapckn ypei.

Lc ce OTHaCdo TexHnuecknte MepKn m MepKnte 3a 6e3oNaChOCT, KOtTO Tp8Ba Da Ce npInarat 3a OTBeXdahe Ha dIma, Tp8Ba CToPO Da CE npInbPkATE KbM npEdBnDeHOTOB PnabuNHa Ka MeCTHnTE KOMNETEHn Bnactn.

AcnnpatopbT Tp6Ba Da ce nouchTa Bue cTo, KaKTo OTBtpe, Taka n OTbBn (IOHE BEHbX B MECELJ, Tp6Ba pni BCNkN Cnyan Da ce cna3Bat NCHctpyKunTe 3a noDpBXKa, NOcoeHN B Tei yka3aHnra).

HecnzaBaHeTo Ha HOpMITE 3a NOUcTBAHe Ha acnnpatopu 3a NoDMHa N IOUcTBAHe Ha FmIITPnte, BOnn Do ONaCHOCT OT NOXkapn.

He n3noI3BaIte n He octabIe acnupatopa 6e3 npaBnIO MOHTnpaHn lamnNkn! OnaCHOCT OT TKOB yap!

He ce Noema HNKAKBa OTROBOPHcT npn eBeHTyAINHa HEN3npaBHOCT, UeTa NIM NOxap, HAnecEH Ha ypeDa BCNECDTBHe Na HeCnA3BaHe Ha HactOaUnte NHTCPKUn.

To3n ypeD otroBapa Ha n3NCKBaHnraTa Ha :

• Ebroponckata DnpeKtmba 2002/96/EC
• Waste Electrical and Electronic Equipment (WEEE).

YBepaikn Ce, Ye To3n ypei 6bJe peuKlnpaH no nOo6abaunr 3a TOBa NaHn, Bne DOnpHacrTe 3a Oan3BaHeto Ha OKJIHaTcpea N BaWTo 3dpabe.

CmBbIbT BbPx ypea nIN B npDpykBaauata ro DOKyMeHTaunnnoocOBA,Ye To3n npDyKTH He Tpr6Ba da 6bde CHTAH 3a DomaaHEn OTNaBbK, a Tpr6Ba da 6bde npEDAen B CneuAInHO npDeHaHaehNITE 3a TOBA NYKTOBE 3a peUHKnPaHa He eJKeTPrueCe N eJKeTPOHnA TexHnka. PnpDpKJaTe Ce KbM MeCTHNe HOpMaTnBn 3a npepaBoTka HA OTNaBbU. 3a No-nPpO6Ba INHΦopMaZn BbBb3Ka c npedabAHeto, Cb6npaHeTo n PeUHKnPaHeto Ha To3n npOyKT Bn CbBETBame Da ce ObpHete KbM KOMNTeHTHNTE MeCHn CnyKbN, CnyKbnte 3a Cb6npaHe Na DomaaHHo OTNaDbuN ININ MaraHbT, B KOITO CTe 3akynnnn To3n en. ypei.

YpeIbTe npoeKtnpaH, TcTbAH n npOu3BeDeH B CbOTBETCTBHe C:

• Бразносяст: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• PaobTmX xapaKTepeNCTnKn: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
• EMC - EnektpomarHHTha CbBMecTmocT: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.

IpeJIOXeHn 3a npabInHa ynTope6a, 3a da ce HamaJIb B3JeCTBnETo Bpxy OkJHATA cpeA: BkIouTe (ON) acNIPAtoPA ha MNHMaJIHa ckOpCt, KORATO 3anoUHeTe da rotBnTE n ro octabeTc Da paBoTn HAKOJIKO MHNyTHn CneI prNKJIOvBaHe Ha rotBeHTo. YBeJIuVaaJIte ckOpocTtca CAMo B ClyauHa HA TOLMAO KOINueCTBO DmN I napi N 3NOJ3BaHTe YBEJIuHENITE CKOPoCTn CAMo B EKCTpeMHN CNTyaUIM. CmeHnIE ΦnITbpa/ΦnITPnTE C aKTNBEN BByJEn, KORAto e Heo6xOdIMO, 3a Da NoDlbPkaTe Do6pa eFeKTNBHOCT Ha HamaJIaBAHe Ha MmPi3MaTA. POnCTBaTe ΦnITbpa/ΦnITPnTE 3a Ma3HNH, KORATO e Heo6xOdIMO, 3a Da NoDlbPkaTe Do6pa eFeKTNBHOCT Ha ΦnITbpa 3a Ma3HNHInTE. N3No13BaTe MaKcMImAnH JnAmETbp Ha CNCTeMTa 3a OTBXKaHHe Ha B3Jdyxa, NOCOH H TOBa pKOBODCTBO 3a ONTNIM3npaHe Ha eFeKTNBHOCTTa n 3a HamaJIraBaHe Ha Uyma.

BHINAHHE! Hein3BbPbBaHeto Ha MOHTaJa Ha BInHtOBeTe Ha qKcnpaUte MexaHn3Mn B CbOTBeTCTBne C HAcTOnuTe NCHtpkU. MoKe da DoBeDe Do pNCKOBE OT eNeKTpNuecko eCTeBO.

YnoTpe6a

Acnipatobt mma cneHOTOpnpedHa3NaueHHe: BCMyKBa n OTBeJda HabbH INIINΦIIITpIPA Bb3dYxa, KaTO eNHOBpeMeHHOC TOBA ro peuNKJIIPA.

Acnnpupaa Bercn

Napata ce OTBeJda HaBbN NocpeIcTBOM Bb3dYxOBoHa Tpb6a CbBy3aHa CbC CbeHInHTenHnF pHaNeU.

DnAmetbpt Ha B3dUxOBoJHaT a Tp6a Ta p6Ba Da OTroBapr Ha DnAmetbpa Ha CbeEINHInTeJHHnI p6CTeH.

BnMaHHe! Bb3dyXoBODHaTAp b6 He e BKIOUeHa KbMaKcceCoapTe n Tp6Ba Da 6Be 3akyneHa OTdeJIHo.

B xopn30ntaHnHa Ta cct Tp6bata Tp8Ba Da 6bNe IeKo n3BtA Harope (okono 10^ ) 3a da ynechn OTBeJdaHeto Ha Bb3DyxA HABh.

Ako acnnapatopbte cnaedcn C nntpu n aKTNBEN Bbrn, BnpoCHnte Tpba da bdat OCTPaeHH.

Cbpxte acnnapatopa KbM B3xvXOBODHn Tp6n n OTBOPn Ctehata. DnAmETbpT Ha Tp6bnte Tp8Ba da CbOTBeCTBa Ha DnAmETpa Ha CbeHNHTeHnnaHe 3a OTBeXdaHe Ha B3dyxa.

Cbbp3BaHETo KbM Bb3dYXOBODn Tp6bn N OTBOpn C NoMaIbK DnAmEeTp HamaJIaRa KaNAcHTeTa Ha acNIpRupeHa yBeJIuHabA 3NaUHeTNO UyMa N O BpeHa pa6Ota.

B Te3n CnyanФmpMaTa He Noema HnKaKBa OTROBOPHOCT.

I N3noJ3BaIe Tp6a C Heo6xOIMMaTa DbJKNHa.
！N3noTBAaTe Tpb6a C Bb3MOxHO Ha-MaIko Tpb6Hn KOJIeHa (CMAKCImaJIe HbJL Ha N3BvBaK: 90^
He npomehraTe p3Ko ceheneto Ha Tpb6nte!
I N3noN3BaMTe Tpb6n C Bb3MOxHo Hai-ΓlaKo BbTpeuHO nOKpNTne.
I MaTePnAJIbT,OT KOITo Ca n3pa6OteHn TpB6Nte Tp8Ba Da OTROBAPHa HOpMITE B Cnla.

Фильтпраа Версья

AcnpnpanHrt B3dyx Ce npuecTBA n Ocbexkaba npedn da Bne 0THOBO B o6bIeHMe B nOmeuHMeTo. 3a Da n3no13BaTE acnpatopa B To3n BapnHT Ha pa6ota Tp86ba DA IHCTanPate DoBnHInTeIIHa fNtprpaCa CnCTema Ha 6Baata HA fNtPrCAkTNBeH BByIeN.

MoJeIte 6e3 acnnpaau MTOp ca npedha3naHEn 3a paBota cAmo BvB BapnAHT ha acnnpaua Bepcna I Tp86ba da 6bDat CbP3aH N KbM nepupephno acnnpupa0 3BeHO, KOEtO ce 3akynyBa OTdeJHo.

Инструкцinte 3a CBbp3BaHe ce Doctabrt 3aeHOb c nepmepnHOTo acnpnpupaO 3BEO.

MOnTipaHe

MHHMaHHTO pa3CToHHe MEXdy NOBbpxHOCTTa, Ha KOrTO ce NOCTaBRT CbDOBeTe 3a ORTBeHe HauHmCKaTa YAcT Ha KxHyENckn acnHapToP, Tp6Ba Da 6Je He No-MaIKO OT 50cm B cnyaH na EneKtpnuCheek NeeKn Hne Mo-MaIKO OT 65cm, B cnuyaH ra3oBN INN KOMbUnHpaHn neeKn.

Ako B INCHTpykUHTne Ha ra3OBu ypeI 3a roTBeHe e nocOeHo no-ToJMA POa3CToHnE, To Tp8Ba Da ce Ima npEdnI.

En.Bpb3ka

HanpexeHnTo B en.MpeXaTa Tpa6Ba da OTRObAp Ha HapexeHnTo, KOTo e NocOeHO BbpyxEtNKeTa C daHNHTe 3a acnnpaTopa, NoCTabEn OT BbTpeUHATA My CtpaHa. Ako e ChabDen C uenCen CBpKete acnnpaTopa KbM KONTAK, CbOTBeTCTBaUc Ha DeIcTBaUHTE HopMN HAMnpaUc Ce Ha JleCHO DoCTbHNO MAcTOpD npu CneJ PnIKNIOVAHe HA MOThaxa. AKe He cChAbEN C uenCeN (dIpEKTHO CbPb3BaHe KbM MPexaTa), INN UeNCeNT He e Ha DoCTbHNO MAcTO CneJ PnIKNIOVAHe HA MOThaxa, INN0N3BaTe DByN0NIOCEH PNeKbCBay CnpoeHOPMITE, Taka Ye Da ce OCNtypn PbHNo IN3KIOUHBe HA MPexaTa pni CBpbXHAnpexeHne III, B CbOTBeTCTBne C npABINlata 3a MOHTnpaHe.

BnmaHne! Ppei Da CbPkeTe OTHOBO acnnpatopKa bM MPekata N da npOBepTe daNf yHKUHOHPa npABuHNO, npOBepTe daNkabEJIbT e MOHTpah KaKTO Tp6Ba.

AcnipatobTe cahbden CbC cneuaen Kaeb 3a 3axpaHbahe; Bcnya, YeKaebTb6bDe yBpeHnOBpHete Ce KbM rapaHcuOnHHn cepBn3 3a Na nOyHnTe HOB.

MOHTAX

Ppei Da npctbntte KbM MONTXka:

• Ybepete ce, Ye 3aKypeHnT oBac npOyKT oTROBaPn no pa3MePNHa n36paHTo MxCTo 3a HnCTaInpaHe.
• OTeTpaHeteФnITbpa/ФnITpnte c aKTHBEN BbIeN (pa3bnpa ce, ako n36bpAnrT OT Bac moJe p3nOra c TaKbB). 3a da n3bPbWite TOBA npocLeTe onepaunITE B cbOTBeTHna naparpa. MoTHnPaTe FnITpnte OTHOBo CAMO b Cnyauh, ye XeKaetae Da n3nOJI3BaTE acnIpaToPA BbB BapnAHT HaФnITpnpaua BepCn.
• YBepete ce, ye no BpeMe ha TpaHcnpTa BBB BbTpeuHa t aCt Ha acnpuTopa He ca nonaHaJI INpe6Hn PnpdmTe, KATO HApnPmEp PInkCheta C BNHTObE,

TapaHcMOHH KAPTN Ip.; aKO HamePnte TaKINBa OCTpaHete Tn n nn 3ana3ete.

Ako e Bb3MOxH opa3rNo6eTe n IpemecTe Me6eJIte, KOINTO ce HAMnpat B HenocpeDCTBeHa 6n3oCT Do MxCTOTO, KDeTo Bb3HamePraBate Da MOHTnPATE acnnpaTOpA. No To3n NaHmIe NcE IMATE no-Do6bp DocTbn Do TabaHa IIN CTeHata, KbTeTo 6bDe IHCTanPAn. B npTHe CNyau, BHIMabaIte Ha ne YbpeTe No BpMe Ha MoTaxa Me6eJIte N BCNUO octaHAn npEmTe. N6epete paBaN NobbpxHOCT n Okpnite c NoDxOJIo pNaTHO, BbPxY KoTo da NOctBaNTe acnnpaTOpA n CbOTBeTHnte AKCEcoApn.
- YBepete Ce, Ye B 6JIn3OCT Do MrcTOTO, KbIeTo Bb3HaMePraBe Tda MOHTnPaTe acnnpaTopa Nma IeCHO DoCTbNEH KOHTaKT N CbIoo TaKa, Ye E Bb3MOxHO Da ce CBbpXe COTduuHNK (cAmO 3a acnnpipaNTe Bepcn).
- ɪnɪbɪnɪte BCɪnɪ Kɪ HeōBXOДMɪN Oɪepaɪnɪ, Hʌpɪmɪpeː MOHTɪpɑʌne en. KOHTAKT Wɪŋ Nɪn Hʌnpaɪbete OTBOP 3a npokapbahe Naɪ ɪzXODHATA Tɒb6a. AcɪnpaʊtpbT e chədɛh ānɒbɛnɪ 3a ΦɪkCɪpɑʌne NoDxOJDɪs 3a no- rɔfəmata qæct O TCTeHNTe N TətabiHæ.

Pn BCE TOBA, Bn npenopbYBaMe Da ce nocBbETBaTe c KBaHnФmUpaH texHnK, 3a Da CTE cnTyprHn, Ye DoCTaBeHNte akcecoapn Ca noDxOJaIz 3a CEJTa. CTeHata, CbOTBeTHo TABaHbT, Tp8Ba Da 6bDat DcctaTbUHO CTaBmHn 3a Da N3DbpKAT Ha HATOBaPaHTo.

Haun Ha ynoTe6a

Ako npn roTbe ce otJe MhOro npa, npemHHeTe Ha makcImaen pexmHa pa6ota. IpenopbTuTeIHo e da BkJIOHTe acnnpatopa 5 MNHyTu npedn da zanoHHeTe da roTBe N da ro octabte da pa6toN OSe 15 MNHyTu cneI KaTO npNKJIOUHTe.

1. ON/OFF CBeTNIHn

2. ON/OFF Motop

Pn Hatackae Ha 6ytoh No "2" acnpaTopbT npemHaba Ha 1-8a ckopocHa pa6ota.

Пин Натиcke He 6уToHa no Врeme Ha pa6oTa acnnpaToBt ce n3KlnHouBa (PpeMHaba B pexIM OFF).

3. HamaJIaBaHe Ha ckOpocTta

Пин haTnCKaHа 6byToN 日 3" cKopoCtTa Ha pa6Ota HAmJIyBa,OT YeTBpTa CKoPcT (WHTeH3nBHa) acnIpaTopbT npemHnaba Ha npbPa ckOpocT.

4. YBeJIuHaBaHe Ha ckOpocTtA

Пин Натиcke He 6byToH № "4"В поцю OFF acnnpaTopbT ce 3aedcTBa Ha nbpBa ckopocT.

Пинатпсане Ha 6уToHa NO BpeMe Ha pa60Ta Ha acnIpaTopa, ckOpocTt Ce yBeJImHaba И пeMnHaba O T 1-BA Ha 4-Ta ckOpocT (INHTeH3NbHA).

HHTeH3nBhata ckOpoCT e c onpeJeHEn HHTepBaH Ha pa6oTa, KOTo NO npHcHmnpOdbJxKabA 5 MmHyTn, CneD Koeto acnHapOpbT npemHaba Ha 2-pa ckOpoCT.

3a da De3akTbBnPaTe Ta3nФyHKuI npede Da n3teye

OnpeIeJIeHToB Bpeme, HATNCHEt 6yToH N2 "3", acnnpaTopbT npemInaba Ha 3-ta ckopoCT. PnHaNTCKaHe Ha 6yToH N2"2"acnnpaTopbTe cN3KJIIOUBA.

IpnakTnBupaHe Ha BcKa eHa cKOpOCT BbPxy DnCpNpeCe NoBraBAT cbOTBeTHne 063NaueHn:

OFF: Bbpydncnpe He ce n3nncba Hnso

Ckopoct Ne 1:1

CKopoCt No 2:2

CKopoCt No 3:3

CkopoocT No 4: 4 npemirBa

5. Dusnnein

CnHann3aTop Ha nJITbpa 3a Ma3HHN

CnHnM3atOpbT 3a npEHaCNUaHe Ha nHTbpa 3a Ma3HNHc Ce 3aIeCTBa HA BcEKN 40 Yaca H paBOTA KATO Bbpxy DnCIIpe Ce NOBRA YcNtOTo 1, KOEt 3anOuBa Da npemIRBa. Korato Ce NOBn TOBa Cbo6BJeNE O3NaUaBa, Ye FInLTbPbT 3a Ma3HNHn Tp6Ba Da bDe N3MT.

Cb06uHHeTo Ce nOaBBA, KOrato acnnpaTopbTe BkIIOUeH (B IO3nua ON).

3a da n3tpnTe cbo6eHneTo OT dncnIe HATNCHe 6yTOH No "2" u 3aDpXKe T npOblxKeHne Ha NOBHe o 3"doKATO Cbo6eHneTo N3ye3He.

Cb6uHHeTo MoKe Da 6Be De n3TpInTo, KOraTo acnnpaTopbTe BkIoueH (B no3uON).

CnHaJIH3aTOp HaФИNTbpa cakTNBEN BByrIeN (cAmO 3aФИNTpIpaunBepCuN)

CnHnHa3atOpb3a npeHacnUaHe Ha nntbpa C aKtNBen BbIe Hc aKTHBpHa HcEKN 160 Yaca Ha paBota KaTO Bbpy DnCnIe HcNoBBA YcNtOto 2, KoEtO 3anoBa da npemirBa.

Korato ce noBn TOBA cboBSeHne O3NaHabA, Ye fNtbpTc AKTNBeH BbIJIe Tp8Ba Da 6bDe NoMeHeH.

Cb06uHHeTo Ce nOaBBA, KOrato acnnpaTopbTe BkIouHe (B No3nua ON).

3a da n3tpnTe cbo6uEHeMeTo OT dncnIe HaTNCHeTe 6yTOH No "2" u 3aDpBkTe B npOdbJxKeHne Ha NobeYe ot 3"doKATO cb06uEHeMeTo N3ye3He.

Cb6uHHeTo MoKe Da 6Be De n3TpInTo, KOraTo acnnpaTopbTe BkIoueH (B no3nUa ON).

Пи дновремно сгнанлзпаре за пенасиане надвата Фпttba вьрху дсплег пемгbat посядовateнho услata 1и2.

3aHnBaHTo CTaba Ype3 N3BbPbBaHe Ha rOpEnocOeHaTa npOeDpya Dba TbTn.

CneI n3BbprBaHe Ha ropeNoocHeHa IpoueDpya 3a Tpbn bTc 3aHyJRA BcHnAIm3aTopa Ha fNITbpa 3a Ma3HNH, a CneI NOBTOPHOTo N3bJIHeHne, Ha fNITbpa c AKTINBEH BbJIeH.

B cTaNdapTeH pexMM Ha pa6Ota cnHnM3aTOpbT Ha ФиNTbpa C aKtNBEN BbIeN He e aKtNBiPah.

B cnya, ue nIIOJI3BaTe acnnpaTopa BbB BapnAHT Ha ФИПТРИрацla Всрсь, TpЯбba Да akTINbIpaTe CInHAnI3Topa Ha ФИПТБра CakTNBEH BByIeH.

AkTNBnPaHa CnHaJIIN3aTopa HaΦnTbpa CakTNBeH BbIeH:

U3KJIuOHe TaCINIPAtopa (no3nua OFF), HATNCHETe 6yToHn No "2" n "3" n 3aDpBkTe B npOdbJnxEHe Ha 3".

Yncnata 1 n 2 ue 3aOnuHaT da npemirbat nocJeobatnoB npoDbJxKeHne Ha 2".

Ie3akTNbnpaHnCnHaHn3atopaHaΦnTbpa cakTNBeH BtJIeH:

U3KJIUcHte ACnIPAtopa (no3nua OFF), HATNCHe 6yToHN No "2" u "3" u 3aJpBxTe B npOdbIKeHne Ha 3".

Yncnoto 1 ue 3anoHne da npemrBa b npodJIxKeHne Ha 2".

Anapma 3a temnepaypata

Acnipatobt paoNoIara cbc ceH3Op 3a Tempepatypata, KOITo 3aedctba MOTopa Ha 3-ta ckopocT, B Cnyaaye Tempepatypata B o6cera Ha dncnner e MHORO BVcoka.

BTo3n CnyaB Bbpy DnCnpe 3anOyBa Da npemirBa 6ykBaT "K, KOTo He n3Ye3Ba DOkato TEMepaTypa He CNe3e NODONYCTUMTE CTOnHOCTN.

Mokete Da n3ne3eTe OT TO3n peXMM Ha pa60ta Ype3 HATnCKaHe Ha 6yToH No "2", "3" mIn "4".

Ha Bcekn 30" cH3OpbT OTHTa Temnepatypata B obcera Ha dincnne.

N3nncBaHe Bbpxy DnCnpee

BHMaHHe! He nouchTaBaiTe HNKora cbc Cnpt！

BhImaHHe! HecnBaHaTe Ho HopMITE 3a noHcTbaHe Ha acnIpaTopa Na 3a noIMMaHa ha qInTPte BOn Do pNCKOBe OT noXap. Cna3BaIte cTporo nocOeHIne IHCTpyKuIN!

He ce noema HnKakBa OTROBOPHcT 3a eBeHTyaJIHn 5eTeHaHeceHn PO MOTopa IN IOXapu, Bb3HnKHaJN CNECTBne HaHenpabINHa NOIpbjXka IIN HeCnA3BaHe Ha HCTOaIInTeHNCTpyKlM.

ΦnTbP 3a Ma3HnHn

Фиг.26-31

ФИNTbpyT 3aIbPka Ma3HnTe Yactn,OTdEJIHN npri rotBeHe.

Ja ce NOUcTBa BEdHbX MeCeyHO Nn KOraTO INDnKaTOpbT 3a npEhAcuHa He fNITPte rO nOKa3Ba (pa3bnpa Ce B CnyaH, Ye MOeJIbT, KOITo cTe 3akyInn e Cha6deH CTakBb INDnKaTOp).

I3noJI3BaIte He MHOrO CnJIH N MIIJIH nIpenapaTn I noIcHTBaIte pIyHO INI B CbIOMJIAHa MaIINHa, HO Ha HNCKa TEMpepaTya I KpaTbK peXIM HA I3MIBaHe.

Pn MneHe Ha MeTaHnHa FmTb3a Ma3HnHnTe B CbDMnAHHATA MaUNHa e Bb3MOXHO ToI da Ce 06e3UBeM, HO TOBa IIO HnKaKbB Cnyuay He HAMJRABa Bb3MOXHOCTNe MY 3a FmTPnpaHe.

3a da paarIIO6bTe pnnTbpa 3a Ma3HNHnTe, npbHHeTe dpbkata C npyKIneH MexaHn3bM.

ФиNTbP cakTNBeH BbIeH (cAmO 3a ФиNTpnpaHaBepcn)

Фиг.28

3aIbpxKa HnepnraTHnTe Mnpn3Mn, KOHTo ce OTdEJrT npn IpbxKeHe.

CbIeCTByBat DbBnDa QInTpn CakTNBeH BblHeH:

• ΦЛТБСАКТИВЕНВБЛДЕН,ΚΟΥΤΟCEМЕ.
  ΦnntbpcakTbENBbIeH，KoToHEceMne.

Mneu ce cnIITbpcakTNBEH BByJHe

ФИЛТьрБТСАКТINBEHВБгПЕСе MINEHa BCEKNДBA MECEGA C TОПЛВОДA NODXODЯПМИЛNIM PENAPATIN ININ B CBDOMYINA MaMHNA Ha 65^ （n3PbHHTe ZMKBNa H a N3MBAHe DOKpA, B CBDOMYINHATA MaMHNA He TpRbDA Na IMaDpyrN CBDoBE).

Iocyuwe BHNMaTeHNO fntbpa, 3BaadeTe Bb3rnaBnHkata OT nactMacobata pamka n noctabeTe BbB FpHata 30 MNHTHa 100°C 3a da ce n3cuHn HantbNo. Bb3rnaBnHkata Tp6ba Da ce noJMeHa H BCEK 3 rOHHn IIN KOrato 3abeneKeTte, ye e 3axaBeHa.

Hemnue ce nntbpcakTbeBbIe

ФИNTbPbT CakTNBEN BbTIIeN ce 3anyuBa pnp6IIN3ITEnHO CnEД bIbIg nepNOd Ha n3NoJI3BaHe B 3aBNCIMOCT OT hauHHa rOTBeHE N OT TOBA KOLKO YECTO NOYCTBaTeФИNTbPa.

BbB BCEk ncluya e Heo6xOIMO da noidmeHrte fnnIbpa cakTNBeH BfIeH Ha BCEk YeTnpi MecuHa Nn KOrato INdKATOpbT 3a 3acnUaHe Ha fnnITpnte Noka3Ba, Ye e Heo6xOIMO.

He ce mne HnTo MoKe Da ce n3non3Ba nobTOpHO.

MOHTIPAHE

ФИКСИРаTeФИЛТьраСАKTИВЕнБыгелНиH-NaПпeДOT3аднATERCTPаHA BbPxyMeTALHOTe eNueHaACnIPAToPA nCleDTOBAOTJIINCEBATACTPаHcNOMOHTaHaDbeteKpbTlnpbKoxBaTKn.

DemOHHTupahe

ФИNTbPbT CakTNBEN BByIeH Ce DeMOnTHipa KaTO Ce 3aBbPtT Ra 90^ KpbIITe pkoXBaTKN, KOINTO rnpuIbpxkAT KbMa cAnipaTopa.

POnmHa Ha en. KpyuShK

Фиг.32

U3knIouhe ypea ot en. mpekata.

BnMaHHe! IpeDn Da B3eMeTe B pKa eI. KpyuKInTe npOBepTe daJI ca n3CTnHaJI.

IOnMeHeTe NOBpeDeHata NaMa n C HObA O T CbUma TnT, TaKa KaKTo e NocOeHO Bbpy EtnKeTa C XapakTePncTnKeTe IIn6bn3o Do camata NaMa n Bbpy acnnpaTopa.

1. C nomoasa Ha majaika OTbeptka HIN NOo6eH INCTpymEnT OTcpanetke Kanaka Ha Iinafohneepata.
   2.Подмeheteи3roрялata кушka.

Изплбайтecамохалогенллamпг ot 12V,makcIMyM 20W-G4,катOBHMaBaTeДа He ГдOKOCBaTe cpbka.

1. 3aTbOpTe nlafoHnepaTa (npu 3aTbApAne npuPakBa).

Ako en. KpyuKnTe He CBeTt, npOBepTe DaIa Ca MOnTHpAnH npabINHO npedn da Notbpcnte NOMOHTa Ha cneuaJIInCT.

He octabnIte detei be3 npncmToPa, YTO6bI OHn He nrgpAln C npnbopom.

He nCnOJIb3yIe BbITaKky, ecIn peWetka HnPaBnIbHO yctahOBnEHa!

Kateropnueckn 3anpeuetaTcNIOJIb3OBAbBbITJxKy BkaeeCTBe ONOPHON PINOCKOCTN,ecNI 3TO CNEUaIbHO He OROBOpeHO.

O6ecneythe HaIeKaun B03dyXoo6MeH NomeuEHHa, KOrda BbI cNoJIb3yeTe BbITaKky B KxHHe OJHOBpeMeHc DpyrMM npIbopamHa ra3y HnHa dpyrom rOpUcHm.

BbIyBaemB O3dyH He DOnJKeH BbIpaBbTaBcH HApKy uepe3 Bo3dyXOBOD, NcONlb3yEmB IINBbPoCa DbIMOB OT np60OB C ra3OBbIM CxNraHnEM mIn C nITaHnEM dpYrMMrTopuHMn.

Kateropuueckn 3anpeaetcra roTOBNTb 6IIOda NaI pIamHeHem, NocOJIbky CBO6OdHoe IINAMr MOxET NOBpeiHTb fNtBpI IN CTaT b PnUHHo NOKapa; IO3TOMy, BO3depKJBauTEcB O T3T0R B LIO6OM clyuae.

KapeHbe B 60JIbIOM KOJIuYeCTBe MacIa IOnIKHO npOu3BOuNTbcra IOI NOCTOARHHbIM KOHTpOIeM, IMeB BVNDy, yTO nepepeToe MaCIO MOKeT BOcPiMaHErTaC.

UcTpoCTBO pa3pa6oTaHO,MCbIaHO uN 3roTOBNeHO B COOTBETCTBmC:

BHMaHHe! BbIbOHaN TaYb6 He BxOaNT B KOMPJIeKT I dONKHa 6bIt npNo6peTeHa OTDeJIbHO.

B ropno3oHTaIbHOn qactn Tpy6a DoJNka 6bItb HEmHoro npinoDnHaT K Bepxy (npimepHo Ha 10^ ) Tak, YTo6bl Bo3dyx 6bictpee MOr BbIXOuTH hApuyk. Ecnn BbITraKKa ChabKeHa yroIbHbIM fMlbTprom, To y6epe t erO

ПОДСЕДИНТВ ВITЯKKУ K BыIBODнОТ pyбe C ДИАмETPOM COOTBEТСТBYUOLIM OTBEPCTNIO BbIXOДA BO3dYxA (coEDHINTeINbHbI ΦlaHeu).

UctahOBka Tpy6 C MehBzIM DnAmETpOM DaCT yMeHbIeHne MOUHOCTN BCaCbIBaHnBa B03Dyxa N pe3Koe YBeINuHHe HypOBH YAma.

ПОНЗВОДИТЕСИМАЕТСЕБАВСЕКУОТВETCTBEHHOCTь NO OTOHOLEHIMBOBIISECKA3aHHORO.

I NcnoIb3ObaTb Tpy6y C MmHImaJIbHO Heo6xoDIMOJdINHOJ.
I NcnoJb3ObaTb Tpy6b C HnMHebUIM KOJIueCTBOM n3rN6OB (MAKcImaJIbHbIy rOJn 13r6a:90°).

！ N36eRaTbpe3KOro n3MeHEnIceEHnIpybI.
I BNYtpenHnra NOBepxHocTb NcNtB3yEmo Tpy6bl DOnKHa 6bItkak MoXHo 60nee rJaKn.
I MaTePnaI Tpy6bl DoJxKeH COOTBETCTBOBaTb HOpMaTINBaM.

IcnoHHeNBeBpeXnmepeunpkyJauu

coCKopoCTn4 (HHTeHCNBHa) Ha CKopoCTb 1.

4. YBeJIuHHe cKOpOCTn

Haxmna Ha konky 4C bItkko B coctoHN OFF, Btka nepeiTeHa ckopoctb 1.

Haximma Ha KhoIky Bo BpempaObI, yBeIyIMCKoPoCTb n CO CKoPoCTn 1 nepeIdEm Ha CKoPoCTb 4 (HHTeHCMBHa).

VHTEHCBHNAckopocTb nporpammpyetycno BpeMeHH.
CTaHdaptHOe nporpammpoBaHne -5'，no ncteeHHIO
3TOrO BpeMeHHBtJkKa nepeKJIPOaETcHa CKOpocTb 2.
TObbl OTKJIOuHTb daHHU FOHKUHO HeOBxODMBO
Hakatb KHNKY "3" npexJe Yem NCTeHT BpeMBA
BtJIKKa nepeKIIIOHTcHa CKOpocTb 3，hAKIma Ha
KHONKY "2”，BbITAKKa BBKIOHHTCn.

Kazdoi CKOpOCTN COOTBETCTByeT CBOIcHnHaIm3aun Ha DCnPHee:

OFF: Het cnHnIm3aun

Ckopoocb 1:1

CkopoocTb 2:2

CkopoocTb 3:3

Ckopoocb 4:4 Mrraiooia

5. Dusnnein

CnHann3aunxKipOBoroФnJIbTpA

CnHnHa3aunJxIpOBOroФnIbTpBaBkIIOuHaetcNocNe40
YacOB NcNoJIb3OBAHnBa BbITaXKn Ha DnCnIee HauHnae
MrratbLppa1.

Korda nOraBJIeTc DaHnA CnHaJIa3aIg XJIpOBoI pIbTp Heo6XoIMo NOMItb.

CnHaJIIm3aUIO BVDIO KOrDa BbITJxKa BkIHOeHa ON.

ДяTORO yTO6bIy6paTb CnHaNIN3aMuXJxipoBOrOФиNbTpA, HaxMNTe Ha KHOIIKу“2"И-depXInTe ee HaxaToi 6oone 3" NOKA He OTKNIOHTcCnHaNIN3aUJN.

OTKJIOUeHne CnHAn3aun BbIOnHReTc HbKIOUeHHoB BbITJAKKe ON.

CnHaHn3aun yrobnHoro fnbtpa (Tolko nncnoJIHeHcpeuRpyIeB03dyxa)

CnHnHa3auny yroIbHoro qinIbTa BkInOuaetcnoe 160
YacOB NcNoJIb3ObaHnB BbITaKKn Ha DnCInIee HauHnaet
MIRatb Lppa2.

Korda noBraTcA daHna CnHaN3aZy yroIbHbI ΦIbTp Heo6xOJIMO 3aMeHHTb.

CnHaJIn3aUIO BmHO, KOrJa BbITaKka BkIIOueHa ON.

ДяTOROуTO6bIy6paTbCnHaNIN3aUIO yOJNbHOrOФnIbTpA, HAKMITE Na KHOIIky“2"иDEpKIne ee HaxaToB 6oee 3" NOKA He OTKNIOHTcRnHaNIN3aUIN.

OTKJIOUeHne CnHAn3aun BbIOnHReTc HbKIOUeHHoB BbITJAKKe ON.

EcnOJHOBPeMeHHo BkIIOaETcCnHnI3aunOobnxФnIbTPOB,HaIncPiee NaHyT no OuepeDN Mrratb cnpb1 1 n2.

Ytobc6pocntb CnHnHa3aUIO, BblONHnTe 2 pataBblweonncanHHyI npOeDpy.

3a nepBbI pa3 cbpaBbIaETc rHnHaIImaIzJxHPOBOrO
fNlbTpA, 3a BTOPO pa3 cbpaBbAEETc rHnHaIMaIzJyroIbHorO fNlbTpA.

B cTaHdApTHOM pexKIMe CnHaIN3aUra yroIbHoro fInIbTp a He AKTIBNPOBaHa.

Ecnn nCnoIb3yetc BbITJkA B NcNoJIHeHne C peuKpyLneB03dyxa, Heo6xOJmo AKTNBIPOBaTb cHrHaIIIN3auN yroIbHO rPbTa.

AknBaunCnHann3aun yroJbHoro cnJbTpa:

BkIIOuHTb BbITJAKKy OFF n DejkaTb 3"OJHOBpeMeHNO HaxKaTbIMN KHOJIKN "2" n "3".

BbIyKaObOpdyoBaHa DaTChNKOM TempepaTybl, KOTOpbIK BKNJUoyaEt DnIraTeNb Ha 3 CKOpOCTN, ecN OueHb BbICOKaTeMnePaTaPb BO3Je DnCnPe.

AbarinHbI CNrHaJ OTO6paXaETcHa IINCnIe B BInDe MrraiUcE 6yKBbl t.

AbarinHoe coctoHnO octaetcdoTex nop, noka He ynaedemTmepaTaHa NHXe yOBNBAKLIUChEnia abarinHOro CInHana.

YTo6bI BByiNt C DaHHOrO pexnMa Haxmnte Ha KhoNky "2", "3" ININ "4".

Kazdie 30" daTHNK cHnMaet 3NaueHnE TEmpeaTpbl OkpykaiouSe CpeDbI BO3Ne DnCIIeJ.

Bzayabhbe oTo6paKeHnHa DncPiie

Ppnilad cnpoeKToBaHO, Bnnpo6yBaHO i BnroTOBneHO 3riHNO 3:

• Be3neka: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Eknnyatauihi kocti: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
  EMC:EN55014-1; CISPR 14-1; EN55014-2; CISPR 14-2; EN/IEC61000-3-2; EN/IEC61000-3-3. Iopadn nIpaBnHoi ekcNpyatai Ta dIa 3HmKHeHH BpInbY Ha cepeoBniue:BMkaiTe BtRkXy Ha MImAImbHy WbNdkCTb nepeod nowatkom npiroTsyBaHH iKi, i Zalnae Te II npauObatn Ha DekiBka XbInn niCra 3akHcHnn

npiroTyBaHHa.36InbUyTe 5BnDkCtB tInbKn y paai BeNkoi KInbKOci DmMy i napy Ta BnKopncTObYte HAdyB TInbKn y KpaHix BnAndKaX.ДЯ NiDtpMaHnHa BnCOKOe eFekTNBHOCTI BnAedaneHn 3anaxiB,3a Heo6xHOnCTi,BNKOHye 3amiHy ByrIbHorO(-nx) pInbtpy(-iB).ДЯ NiDtpMaHnHa BnCOKOe eFekTNBHOCTi pInbtpy XkpB,3a Heo6xHOnCTi,BNKOHye YChcTkpyInbtpy(-iB) XkpB.BnKopncTObYte MaKcImaHbHni diAmet CnCTemM NOBITPOBOD,IO BkA3AHn y IHCTpyKuii dny ONTMIsaui eFekTNBOCTi Ta Mihimisaui Shmy.

YBAGA! BiCyTHICTb yCTaHOBNeHHra BnHtIB Ta deTanee KpInIeHHa Y BiNobiDIOHcTi Do cixn IHCTpyKuIM MoKe np3BcTe N do pnsKy eJeKTPnuHOrO xapaKtepy.

BnKOpncTahnn

Bntjka po3po6IeHa dIJI pO6OTn BpeXIMi BCMOKTyBaHHRA, BVBIOJH NOBITPR Na3OBHI a60 B φilbtpyUoyMpeXIMi 3 peuRPyIaJcIe NOBITPra.

Pekim BiYOu

N BnBIOaTbCn H3oBHi cepe3 BnBiHy Tpy6 3akpinHny Do pHaHc4 3'EdHnn.

Diametp BmBjnoi Tpyb NOBHN BIDNOBdatn Diametpy 3cndhybaJbHoro KJIbura.

Ybara! BnBiHa Tpy6a He noctaAeTbC8i TOMy Heo6xIHO II npI6bAtn Okpemo.

B ropn3oHTaIbHni cactnHi BvBIDHa tpy6a MaE 6yTu TpOx NiDHaTa (NiD KytOM 6n3bKO 10^ ) Tak uo6 MoKHa 6yIo WbNDUe BVBOuNT NoBITpr Ha3OBHI.

KIO BNTXKN KOBNAK Mae ByrIbHi fiJIbTpN, To iX Tpe6a 3HRTN.

Пд' endaTN KOBnak Do hactinHoi BnBidnoi Tpyb Ta BnBidnHoro OTbOpy 3 OndaKOBIM diaMetpom BnXoY nobitpr (3'edHyOch nФlaHeCb).

Bukopnctaan Hn HactiHn X BvBiHnx Tpy6 Ta OTbopib 3 MeHIM diAMetpom npBBeDo 3MeHWeHH eefektNBHOCTI BCMOKTyBaHHaTa 3NaHHe 3bIbWeHH pIBHa My.

Tomy Mm 3Himaemo 3 c6e Bc8ky BiDnOBiDaIbHiCtB no Bmuecka3aHOMy! BnKOpNCTaTn YKOMoRa KopoTKn BnTJxHNI KaHAn.

! BnKOpIcTaN BuTЯKHm KaHaJ 3 YaKOMora HaMHeMuO KInbKiCTIO NOBOPOTIB (MAKCMaJIbHm KYT NOBOPOTy: 90^
YHnKaTn pi3kXn 3mIH nNoCi nepepi3y BtRxAHorO kaHaNy.
I BnKOpNCtOByBaTn KaHan 3 YKOMoRa rJaDeHbKOHO noBepxHeIO.
I Matepian BITRAHORO kaHaJy Mae BiINOiAtn HOpMaTINBaM.

Pexm peunpkyiaii

BTRHyTe NOIbITp3HExNIOeTcBa Ta OUYuETcBa Ta 3HOBy NOBepTaecTcB B pImiueHn. IJr TORO, 0o6 BVKOpNCTOBYATNI KOBnak y cboMy pexnmi, Heo6xIdNo BCTAHOBtIN DoaTkoBy CNTeMf My jInbTpiB 3 aKTINBOBAHm ByrillnM.

MoJeni KOBnakib 6e3 MOTOPHOro 6IOKy MoKyb npaOuBaTn JInue B ODHOMY pexkmi BiIDBOy NOBITpHa HAOBH, TOMy NOBHHI 6Ty NiIeEhahi Do 3OBHIshBoi BNrJXHO YCTaHOBKn (He BXODHTB B NOCTABK).

IHTpykuii zoIO nID'edHaHHa NOCTaHaOTbC3 nepeipepiHMM 6bnadhaHm.

Ihctajia

BiDCTaHb HNKBBoi BiUcaCTnH BNTJAKKn Do nocyDu Ha KxOHHiPiMa 6ByT He MeHsE 50cm, y BnPaKy eEnktpuHnx Pnt, ta 65cm, y BnPaKy ra3OBHX Ta KOM6IHOBAnx PnIT.

Heo6xioH npimmatn do ybaru BiDctahi, kkuO Bka3yOtbcB iHCTpykui 3 iHCTaIaui raoBOoi nnTn.

Пд'еданнда щелктромереки

Hanpyra B eIeKtpomepexi Maé BiIDnoBidaTn Bk3aHIMXapakTepeNtKam Ha etKeTci, Ra 3hAxOoDnTcB CBepeNHI BnTRAKKM. RaIoo B KOMPiEKT BXoDnTb BNJa Nid'EdHNNB EeKtpomepexy, To cnI nd iEcnHm BNTRkyy Do p03eTKN, zo BiNDIOAe ICHyOuHM HOPMaT Ta 3hAXoDnTcB B DOCTYNHOMY Micci, 0o MoKHa BnKoHaN Ti nicla IHCTanJI. KaIoo X BNka HE BXoDnTb B KOMPiEKT (npIe MII EDHNNB EeKtpomepexy), a6o po3eTKa He 3haxoDnTbc B DOCTYNHOMY Micci, TAKOX i nicla IHCTanJI,To cnI d BMOHTyBaTN HALEXHH DBOx-NOIHOChIN BIMMKau, JIKM 3a6e3neHTb NOBHe BIDKnIOeHenn BId MepeKi ByMOBX npehanpyr lll kateropii, B NOBH BiNDNoBDHOCTI 3 npabINAm imHCTANJI.

Ybara! nepeT TmM YK 3HOBy nIDKnIOUHTN BNTJCKy Do eKeTpOmepeXi I nepeBipInn PabINbHicThb pOBoTn, 3aBXKn KOthPoiJIte 5o6 uHpy MepeXi 6by 3MOHTOBAHn BIPHO.

Bntjxhnn KOBnak Mae cneuaIbHnn npoBid XmBnHeHHa; y BnnaIky noIkuOdKeHHn npOBOy, 3amOBte Ioro y cnyKbTexniHoro o6cnyroByBaHH.

Inctanuaia

Peped noatkom MoHTaxy:

• IpeBipTe 06 po3mipn npD6aHOro Bamn Bnp6y nIXOINI Do BV6paHOrO Micra Iro MOtaxy.
  3HIMITbByIbHNHnΦIbTp/nRAKUO BIn/BOHN npCytHi (DNBNTcB taKo BiINOBiHN po3dIn).ΦIbTp/n 3HOby BCTaHOBNIIObCe RAKUO Bu XOyete BHKOpNCOTByBatN KObnak B pexmIpceuPKyIaII.
• IpeBipnTn Ⅲ6 BCEpeDnHi KOBnaka He 3aIiuaIocR npEometi, NOMIeHnx Tyn Ha Yac Ioro TpaHCnOpTyBaHHa (HaPnKJNa,IaKeTnKiB 3 uypyamn, NtCTB rapaHTii i T.n.) ,KaIIO BOH e, BmIMt bix i 3bepexitb.
  Kkuo MoKJINBO,BiD'edHaIe i BIDcHbTe KxyOHHi Me6JI, 3hAHOaTbCnPiKOBaKOM i HABKpyr3OHN HoRIO hCTaJIqI, Iyra3abEzneHHa 6Bilw BInbHorO doctyny Do CTNI/CIH De KObKnBaSyde npKpinnen. KaUo ce HeMOKJINBO kOMORA petelbHIe 3axNtTB Me6JI i Hui npEmMe NT Ha cac MOnTyBaHH. BBeepitb pibHy NOBepxHIO, HAKPnTE II 3axCHIM NOKpTTmI p03MICITb HA Hi KOBaNkI Detani dNk PKNHeHH.
  Takokn nepebipte 06 npra i3 3oHO MOHTaKy KObnaKa

(B 30hi, DoctyniT takoxn icnna MOHTaKo KOBnaka) 3haxOuInacmepekeBa pe3etka i OTBip nIy DnMOxOy, kN BvBOINb DN M Ha ByUNIO (Nlue B pexmBiDBody).

Bukohatn Bci Heo6xidiHpo60Tu (HapnKlaad: BCTaHOBJIeHH MepeXeBOI pe3eTK n/a60 BukOHaHH OTBOPy IJIAIMBOI Tpy6N).

B KOMNJIeK T BITXKK BxOJaTB UpyuN DnI KpINHeHn, po3paxoBaH a biIbIeTb TtinB CTIn/CTeN. IIpote Heo6xIdNo 3BepHyTnCn Do KbanicikOBaHOro Texhika DnI nepeBipKn npdaTHocTi MATEpiAIB B 3aJexHoCTi BiD TIny CTIn Hc CTeni. CtHa/CTeN NOBHHbTy nOCTaTHbO MiHNM, Uo6 BHTPIMATn Bary BITXKKN.

FyHKcioHyBaHHa

BnKOpncTObyIte INTeHcNbHy 7uBnDkicTb y BnPaIky oc6bnBO BnCokoi KOHcHTpaIi KxOHHNx napiB. PeKOMeHdyEmo BKJIOUHTNI BNTAKKy 3a 5 XBNIN Do NOyATKy roTyBaHH iXi i 3aJIINITNI Ioro BKIOUChEM Ha npOTa3i 15 XBNIN nICJI 3aIKHcHHraTGYBaHH iXi.

1. ON/OFF Cbitno

2. ON/OFF dBvrgyh

HaTnckyHOn Ha KHOIpKy “2” DnBHyN nepeJe Ha 1.

HatackyOHa KaHONky NiD Yacpo6OT BNTJxHNI KOBnA KpepeDe B pexmM OFF.

3. 3mehuennha wBnKocti

HaTnCKyOuH Ha KhoNky “3”, OTPMaeMo 3MeHWeHHaBnKoCTi - BiD BnKnKoCTi 4 (IHTeHCNBHO) Do BWnKoCTi 1.

4. 36iNbWeHnWbNdkocti

HaTnCKyHOn Ha KHOJky “4” KOJI N BHTaXka BVMKHeHa - OFF, BHTaXka nepeJe Ha WbUdKicTh 1.

HaTnCKyOuHa KhoNkY niD vac po60Tu 36IbHmO uBnKicTB BiD 1 Do 4 (iHTeHCMBHOI).

IHTeHcBHy 乌BnKicTb MoKHa 3anPorpamyBaTu B yaci. CtaHapThe npOrpamyBaHHa -5'nicra 3akHcHnHa zboRo uacy KOBnak nepeJde Ha WbNkicTb 2.

IooB BiKIOUOHTN FyHKJIO, Do 3aKiHHeHHaCy, HATNCiTb KHOKNy «3», BNTKka NepeKIOUHTbCra Ha WBIKnICTb 3, HATNCaOuH Na KHOKNy «2», BNTKka BmNKKaetbCra.

KoXHiI uBnKOcTi BiNobiJa e 3o6paKeHna Da nCnJIe:

OFF:3o6paqKeHHBicCyTHc

UWBIDKICTb 1:1

Ubnikcb 2:2

Ubnikcb 3:3

Bttkka 3aIIuAeTbCBAIMKHYTOO DToN,doKIN TEMnepatypa He noHn3tcbc HnKcpeipHbAKTBaUJI abapHHOro cmHany.

I06 BnTn 3 zuo ropeKIMy Heo6xioHaTHCHTu Ha KhoNky “2”，“3”uH“4"

KoJHnX 30 ceKyHd DaBaay KOHTpOJIHe TEMpePATypcepeOBuHa HABKOJIO DCNJIeIO. 306paXeHHa

dncnnei

He BnKOpNCTOByTe 3ac06n 10 MaHbT abpa3nBnI MaTepiAIn.

HE BVKOPNUCTOBYNTCINPT!

Ybara: He BnKOHaHn npaBn YIeHn H i 3aMiHn pfIbTpIb MoKe npVBecTn Do pN3NKy BnHKHeHn NoKexi. Tomy peKomeHdycMo DToPmByBaTncB npBeDeHnx IHCTpykui.

3HimaTbCBA KcA BiIIOBdAaJIbHiCTb B 38'3Ky 3 MOXJIINBMIMU yIKoJKeHHMa MDbIgHa i NOKeXaMn, 10 BuHNIH BHaCniOk HeBipHOro peMOHT a60 He BUNKOHNa HBuSeONCaHNx nonepedKeHb.

ΦIbTp 3aTpIMKn XkpIB

Man. 26-31

3atpmyc xnpoBi cnoIyehn, 0o BnHnKaHb nIac npirotoBaHH iKi.

Повинец сгпнся одinh pa3В micaь (a60 kOIN CnCTema iHnkaJII nepenOBHENHЯФlbTPIB,якsoуBaWIMMOeJI, Bkazye Ha daHy Heo6xHicHTb), 3 BnKOpNCTAHNM HearpecuBHXMIOCHX 3ac06IBBypyHy a60 BnocydomIOHiy

MaunHnPi NnH3bKII Tempeatypi I KopoTkOMy ZIKJI.

Pn MNTI B NocyDmIOH MaunH MoKe MaTn Mice DeKe 3He6apBLeHHa PInbTpY,npTe Ioro PInbtpyOHi XapaKTEpNtMn 3aJIuAIObTCb He3MiHHMM.

Дя 3нгглд рфыту 3атрмки кичуnotянь ha cebe npухину рсу bIDнелпеня рфы.

ByrilbHnIpbTp (TilbKn B pexmippeunpkyraii) Man. 28

B6npae HenpneMHI 3anax Kyxhi.

ByrInbHnΦijbTpMOKe 6yTn ODNHM i3 uNx TINiB:

ByrilbniΦijbtp, 0o nipnlae MmTTIO.
ByrInbHn FInbTp, 10o HE niDnae MmTTIO.

ByrilbniΦinbtp, nidaera MmTTIO

ByirblnHn fijbTp MoKHa MNTu KoxHi Dba MicaCi B TeNlI BODi BiDnOBiDHMn MNUOHyMn 3ac6aMn, a6oB NocyDomnHi MaunHi npn 65^ (B octaHbOMy BnAaKy BnKoHaTn NobHn ZKJI MNTTg 6e3 nocyDi BCEpeDnHi nocyDomnHO MaunHi).

O6epeXHO, 0o6 He noIkoDHTn 0iNbTp, 3NtHn HADNIKOBy BDOY, nOTIM BInHrTn 3 NpactMacOBoi pAMn NOdykU i nOTPMaTI II B Nei npotarom 10 XB. npi Tempepatyi 100^ dIy 3a6e3neHHN NOBHorO OcUeHHN.

3amHnTn noDyUkky KOKHi 3 pokn i KOxHorO pa3y, KOJIN NOIOTHO BnBnTBcR NoXKOJKeHM.

ByrInbHn fInbTp, HE nIDnrae MmTtio

IpeBipka ByrInbHoro fInbtpy Ha hAcnueHn npBoDntbCnicn6bnMnHdOroRnpOyoBVKOpNCtAnnB3aJeNxoCTBI TmynKxHy i pernyrpHoCTO uChktni pInbtpxKxpiB. Y 6dy-koKOMBynAADKy Heo6xIdHO zAmHrtn NaTPOHN MAKCNYM KOKHI QOTnPiMciUJI.

HE niDnIrae MmTTHO NOHOBHeHHIO.

BctaHOBJeHHA

IiDbcNTn ByrIbHn FInbTp CnoaTky 3aHbHO CTopoHOHa MetaJIeBn J3uOK KObNaKa, NOTIM nepeHNO YactHy 3akpINITn DbOMa pyKamn.

3HATTT

3HnByrInbHnΦinbTp noBepTaOuyn pyKn Ha 90° 00
ΦiKcyoTb NOro Do KOBnaka.

3amHa JAmn - Man. 32

Biklouchtn npnaad bi eektpomepexi.

Ybara! Iepi HIX TopkATn lamn Heo6xIDHO BneBHTncs IO BOHNOXONNI.

3aMHINI NIOKOJEny IaMNoKHy Ha HOBy TAKORO X TIny, Jk 3aHaueHo Ha etNKeTci, a6o npuy 3 JaMnOcKIOu HbBraKJI.

1. BnMItb 3axncn enMeHt 3a DOnOMoro HeBeNkoI BnKpyTkn a6o NODi6HOro IHCTpymeHTy.
2. 3amHitb neperopiny lamny.

BukopncToByIe Inyo IyIe raIoreHnI lamnn Ha 12V-20W maKc-G4, He doTOpkyuChcdo Hx pykam.

1. 3akpiTe piafoh (KpInIeHHa 3acyBkoHO).

Kkuo cnctema niccbitkn He npaioe, nepebeipte Bipny yctahOBky lamn B rH3da, neped TmN Jk 3bepTaTcra do ceHTpy TexhiHOI donOMOrn.

iill 1ylll l 1ylll l 1ylll sll

90^ c.qlbill la

C

a

50

32.

a 1

all woc.2

12V 20W max G4 a jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

y

(sdy) bcll lgl 3

a 1

aill sclalw pi Juii jis

aill

i 1

g a 2e j y ayyssll 1 c bct 1b

Sswll gjy jy jy jy

a.b.c.

y jai Jia 1 kai bai Ie baie y

（a）（a）

a aabaa aahll

Aulla sla lgl g jill algall Juaaii

Jgssll Jannni

gul 1

g 1

a jiall clogall

gbcuai jue auiy iuy uiai laiy

j 1

0e i o jsslll l

jdoall oolal all

31-26.

gablljagaiiaaiiaaiiaai jai jai

jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie jie

[\therefore {l}{2}{b}{2} = 0]

J 1

gill g b

（）

28.

a a a a a a a a a

i: j

Jauall aaii aaii ciis

aill sll aalaaal llll

cillgssllolaa ojulbui

juiybi jol OFF 1 1 bil

3 3"g"2

. 2 1

:cligjllil

juiybiiaioff 1 bial

3 3"g"2

sod 1 jie

jll

aall jie 1000

j j a a a a a a a a a a a a a a a a a a a a a a a a a a a a

e

aai jjia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

i 1

a

jll bain jil lgl g aal o jn

“4”“3”.2".

a 30 J S

C

sail jzj

1.1 ac jall jll jll jll 2" jll bcally

ailll l jzj Jlll jll jll 1

OFF

a yll jyjil.3

1 1 a jll jn jj jll jll jll jll

a4 4 a

5 1 y waiall gill . jao Jao aiakal ae

2.2e jull aiaa, gll ciall lgs iie gill

158,“3”jill biali. 158 jil aia

"alil gbiy" 2" jll biy,3 a rll gll alil

aaiia aaiiaiei iaiiaaiiae

OFF

1:1a

2:2acw

3:3ac

4:4c

C. a = 1 .5

jglal

40 1

1 1

eai

j jll j bll j jll j jll

jLgJlglal g j 1j

aJia jai jai alalal jai

aillg 10111111111111111111111

A

jso（）uill jaoa aai dlls

j 000 (01)

C

(baiill aci jai biai)

（）a jyjzllgl 11

（.）

a a a a a a a a a a a a a a a a a a a

山

y

oaii i 1

J. Electrical and Electronic Equipment (WEEE)

aill

aall aill 1e alaiall aull lll

g 100

aal 1

Juaia jS yj all j 1y jai jai jai jai jai

a jyjyjyj yjyjyj 1

a aallll jiljol jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

1. A Juaizi wolal c! golsai wylg laa jai

y

y j 1000

iill 1

ylll lgy jai yjia jgai

EN/IEC EN/IEC 60335-2-31 EN/IEC 60335-1

62233

ISO 5168 ISO 5167-3 ISO 5167-1:EN/IEC 61591

EN/IEC 60704-1

. IEC 62301; EN 50564; ISO 3741; EN/IEC 60704-2-13

EN 55014- CISPR 14-1:EN 55014-1:

. EN/IEC 61000-3-3: EN/IEC 61000-3-2: CISPR 14-2:2

i 1

gaii gaii 1

a 1

gbaac yll jai pdu w g lly jdaas 2

aall jssll jldjldl lll

a a a a a a a a a a a a a a a a a a a a

jbiipaii. jaiiwai oeiS iie abilalll srrnall

Jlalj 1 jll l 128 jll Jlll 11

.

ycllll liss ylllll lss 14

aill

i 1

e e 1

a 1

Juauiuuaiaiie bieiliebcjlyis

laai

Aa 1g. Jaa aai jai jai jai jai

jz jz jz jz

S ACD = S COD + S BDO - S CDA

i 1

aill 8a y

a a 1

jll jll jill jill

i 1

j" (^*) jorjogjol

jiaiyao jai jbi bjjgjjjla laoljai

Lai jilui Juyu jia yue laa u jsi

LgJ L aell gill aXuall aayll aally
