Ballerina W - Range hood EICO - Free user manual and instructions

Product Type	Range Hood (Ballerina W)
Brand	EICO
Model	Ballerina W
Installation Type	Wall-mounted
Dimensions (W x D x H)	90 cm x 50 cm x 60 cm (approx.)
Weight	Approximately 15 kg
Power Supply	220-240 V, 50 Hz
Motor Power	200 W
Number of Speeds	3
Max Airflow	650 m³/h
Noise Level (max)	65 dB(A)
Lighting	2 x 40 W halogen or LED (depending on version)
Control Type	Push buttons
Filter Type	Aluminum grease filter (washable)
Ducting Options	Recirculation (with charcoal filter) or extraction
Charcoal Filter	Optional, replaceable
Energy Class	A+ (typical)
Annual Energy Consumption	~50 kWh/year
Grease Filter Cleaning	Every 2 months in dishwasher or manually
Charcoal Filter Replacement	Every 3-6 months
Safety Features	Automatic shut-off, overheat protection
Spare Parts Availability	Filters, bulbs, motor (contact EICO support)
Warranty	2 years (subject to terms)

Frequently Asked Questions - Ballerina W EICO

How do I install the Ballerina W range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above electric hobs or 75 cm above gas hobs. Refer to the manual for detailed step-by-step instructions.

How often should I clean the grease filter?

Clean the aluminum grease filter every 2 months. You can wash it in a dishwasher (low temperature) or by hand with warm soapy water. Allow it to dry completely before reinserting.

When should I replace the charcoal filter?

If you use the recirculation mode, replace the charcoal filter every 3 to 6 months depending on usage. A saturated filter reduces efficiency and increases noise.

Why is my range hood noisy?

Noise can be due to loose parts, dirty filters, or improper installation. Check that the grease filter is clean and the ducting is secure. If noise persists, contact support.

How do I change the light bulb?

First, disconnect power. Remove the bulb cover (usually clipped). Replace with a 40W halogen or compatible LED bulb (G4 base). Reattach the cover and restore power.

Can I use the hood without ducting?

Yes, you can use it in recirculation mode. You need to install a charcoal filter (not included) to absorb odors. The air will be filtered and returned to the kitchen.

The hood does not start. What should I do?

Check the power supply: ensure the plug is connected and the circuit breaker has not tripped. If using a remote control, replace batteries. If still no power, contact service.

How do I set the timer function?

Press the timer button (if available) to set a delay shut-off. The hood will run for 5-10 minutes then automatically turn off. Refer to manual for exact operation.

What is the warranty period?

Eico offers a 2-year warranty for the Ballerina W range hood against manufacturing defects. Keep your purchase receipt for service claims.

Where can I buy spare parts?

Spare parts such as filters, bulbs, and motors are available through Eico customer service or authorized dealers. Use the model number Ballerina W when ordering.

USER MANUAL Ballerina W EICO

Line drawing of a laboratory flask with a conical top and side outlet (no text or symbols)

GB

INSTRUCTIONS ON MOUNTING AND USE

DK

MONTERINGS- OG BRUGSVEJLEDNING

NO

INSTALLASJONS INSTRUKSJONER OG BRUK

SV

MONTERINGS- OCH BRUKSANVISNINGAR

FIN

ASENNUS- JA KÄYTTÖOHJEET

The remote control must be encoded to the hood Husk at fjernbetjeningen skal kodes til emhætten Husk at fjernbetjeningen skal kodes til ventilatoren Kom ihåg att aktivera fjärrkontrollen till fläkten

L= X-H-300

Version : CRISALIDE Lux

Version : CRISALIDE Lux

Version : Eco

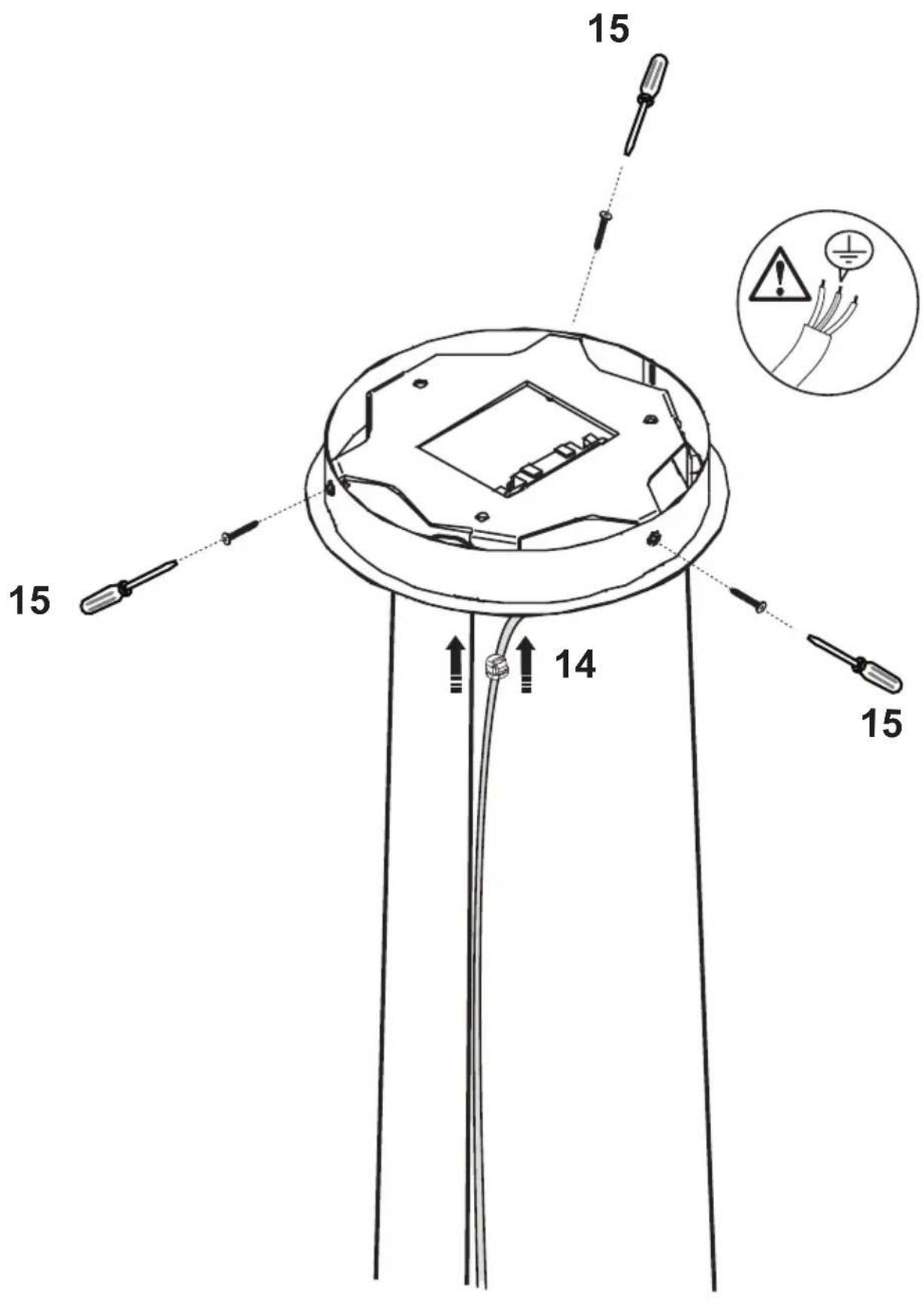

Simple line drawing of a support structure with a vertical support and horizontal bar (no text or symbols)

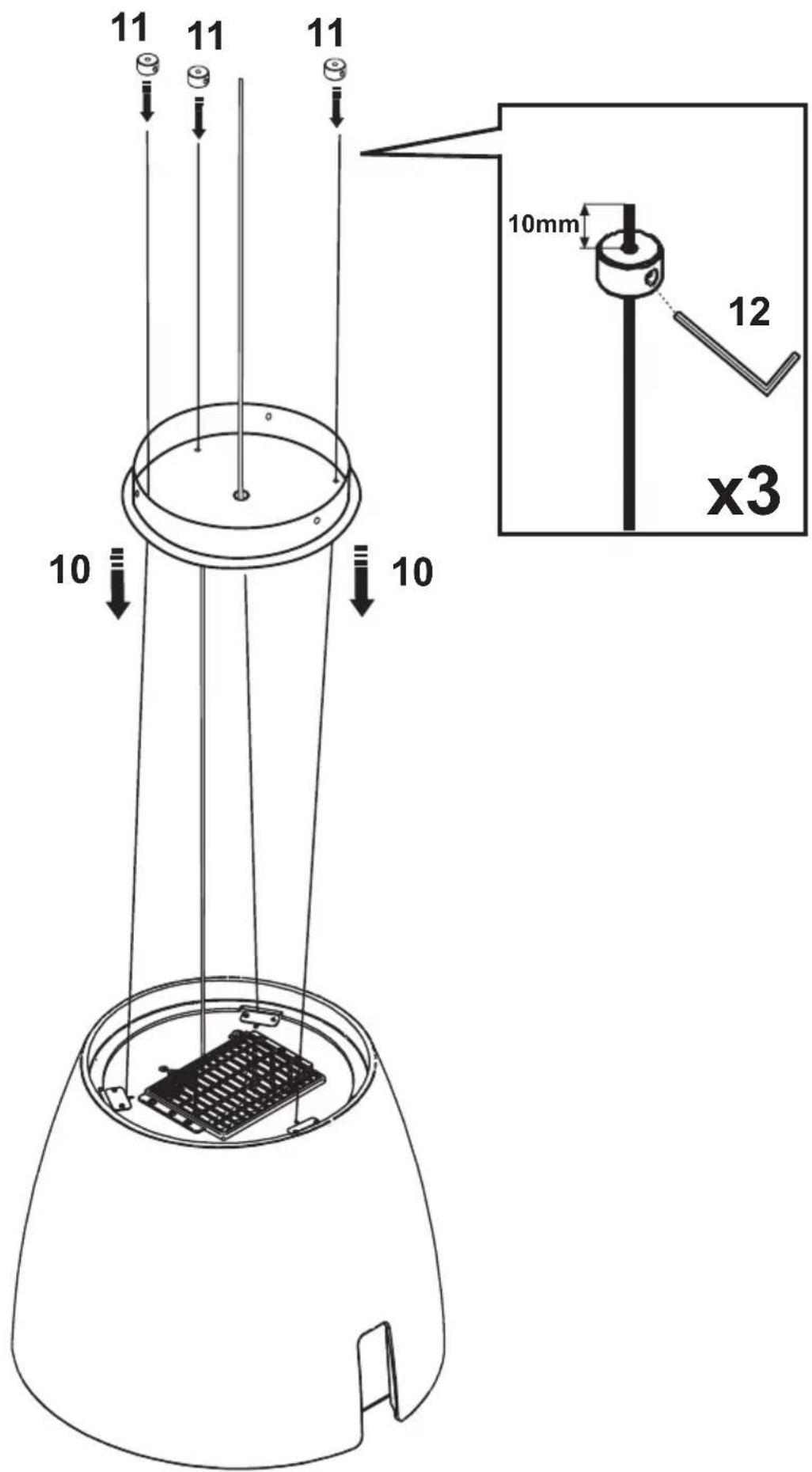

1

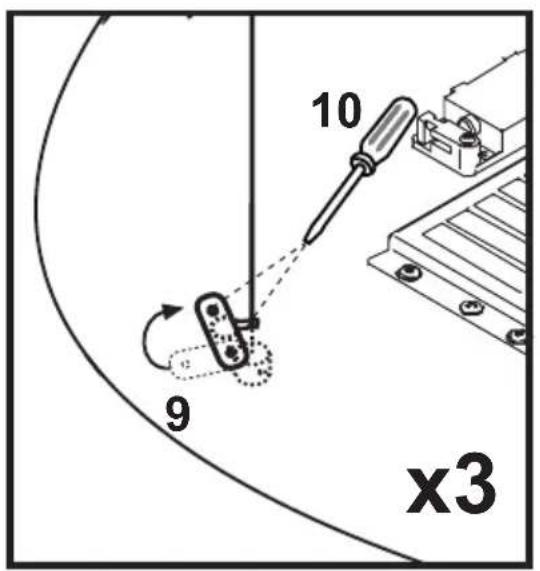

Diagram showing a circular frame with internal components and an arrow indicating rotation or assembly (no text or symbols)

2 - Turn on the motor at the higher speed
3

Diagram showing a square panel mounted on a circular base, with a grid panel being inserted and finally into a separate panel (no text or symbols present)

4

Diagram showing a square panel mounted on a circular base with a curved arrow indicating rotation or movement (no text or symbols present)

Warnings

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!

The accessible components can overheat when the cooktop is in use.

The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.

This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.

The symbol 📄 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.

Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.

You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 65cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.

Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.

If the cooking top is in use, the cooker hood must always operate.

Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591

Maximum performance is achieved by placing the mobile panels, if any, in the open position.

TLC

1: + motor

2: On/Off motor

3: - motor

4: On/Off light

5: Led

Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

Initialization procedure:

1. Cut off power to the hood
2. Power the hood again
3. Within the first 5 sec, press the light button and release it after the lights turn on (the control must be turned on via key 3)
4. Within 5 sec, press the motor key and release it

Now you have to wait for about 10 seconds – then you can use the hood normally.

Notes: after 4 hours from the last use of a key, the hood turns off automatically.

Should there be interferences with other nearby remote controls, carry out the code change procedure.

Should it be required to replace the radio control, the frequency of the electronic system of the new radio control must be calibrated again via the initialization procedure.

Procedure for generating a new code for the radio control.

The radio control is supplied with default codes. If you want to generate new random codes you need to follow the procedure below: simultaneously press the plus and minus keys for at least 10 seconds; the LED will turn on, then press the two buttons again (within 3 seconds). The LED flashes three times to indicate that the operation has been completed. Once you changed the radio control you must run again the initialization procedure.

CRISALIDE

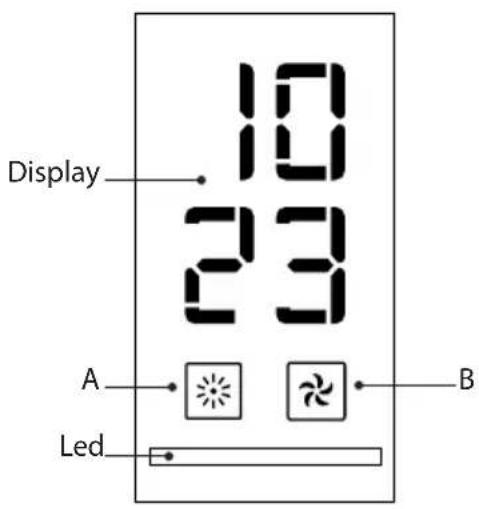

A.Light ON/OFF key: press this key to switch on or off the hood lights.

B.Motor ON/OFF key: press this key to start/stop the motor and scroll cyclically among the extraction speeds. (0-1-2-3-timed intensity-0)

Time adjustment: to set the time, simultaneously press keys A and B, the display starts to flash. Use key A to adjust the hours, key B the minutes. Once the time is set, simultaneously press A and B to end the procedure.

Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.

This product is equipped with a receiver that allows operating it from a distance via remote control (available as optional) or from the hob (sold separately).

If you do not have the remote control, follow the procedure below to disable the receiver and prevent any interferences:

1 Unplug the device for at least 10 seconds
2 Plug it back in
3 Press the light key on the hood control panel until the lights turn on
4 Press the start key. If all the lights are off, it means that the receiver has been disabled successfully.
To re-enable the receiver, follow the remote control or hob pairing procedure.

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with neutral liquid detergents. Never use products containing abrasives.

Warning

Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

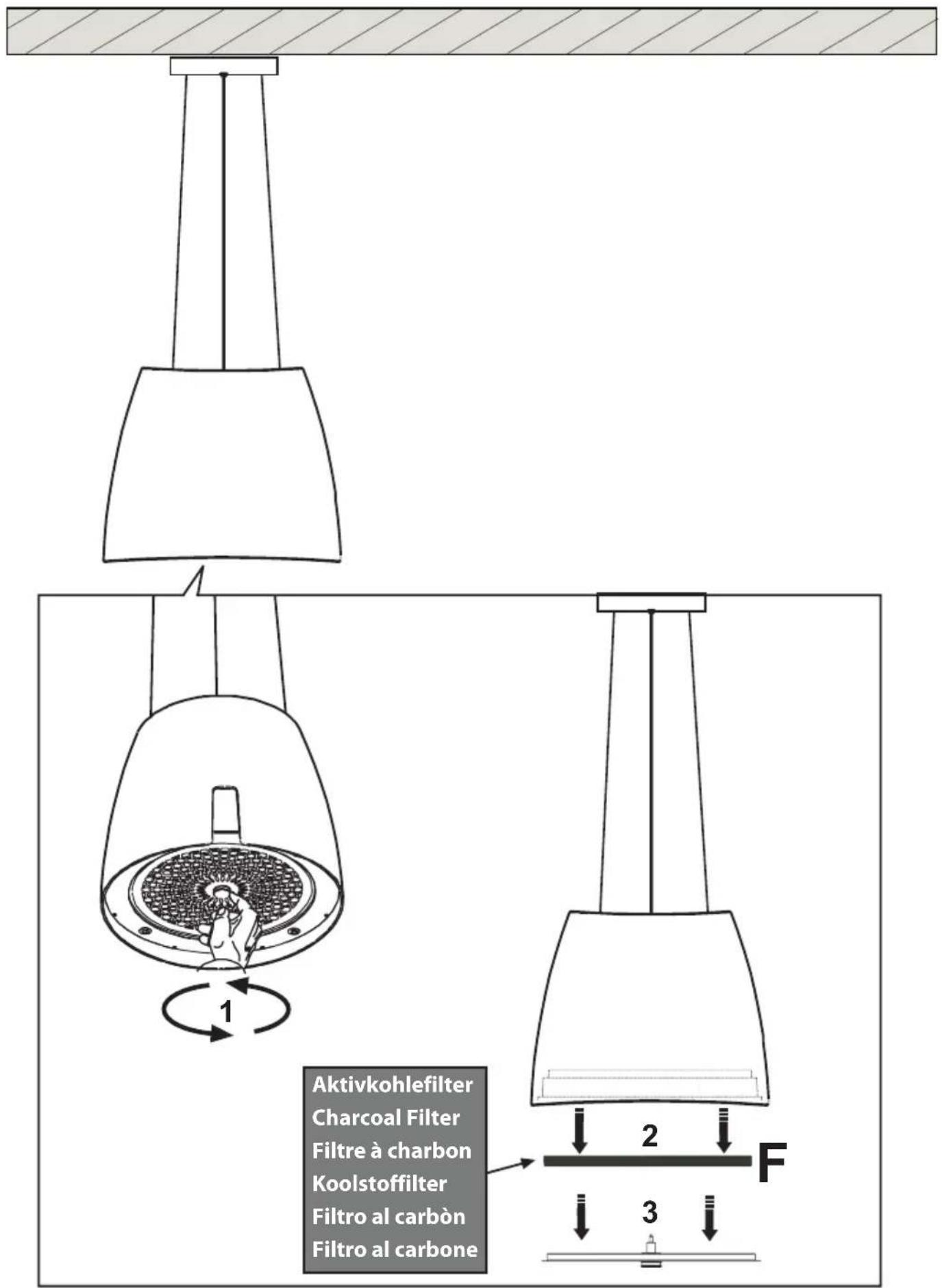

Charcoal Filter - (only for filter version)

The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.

Reducing environmental impact:

To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.

Replacing lightbulbs

Led Light

If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.
