PRESENTATION OF THE PARROT SWING

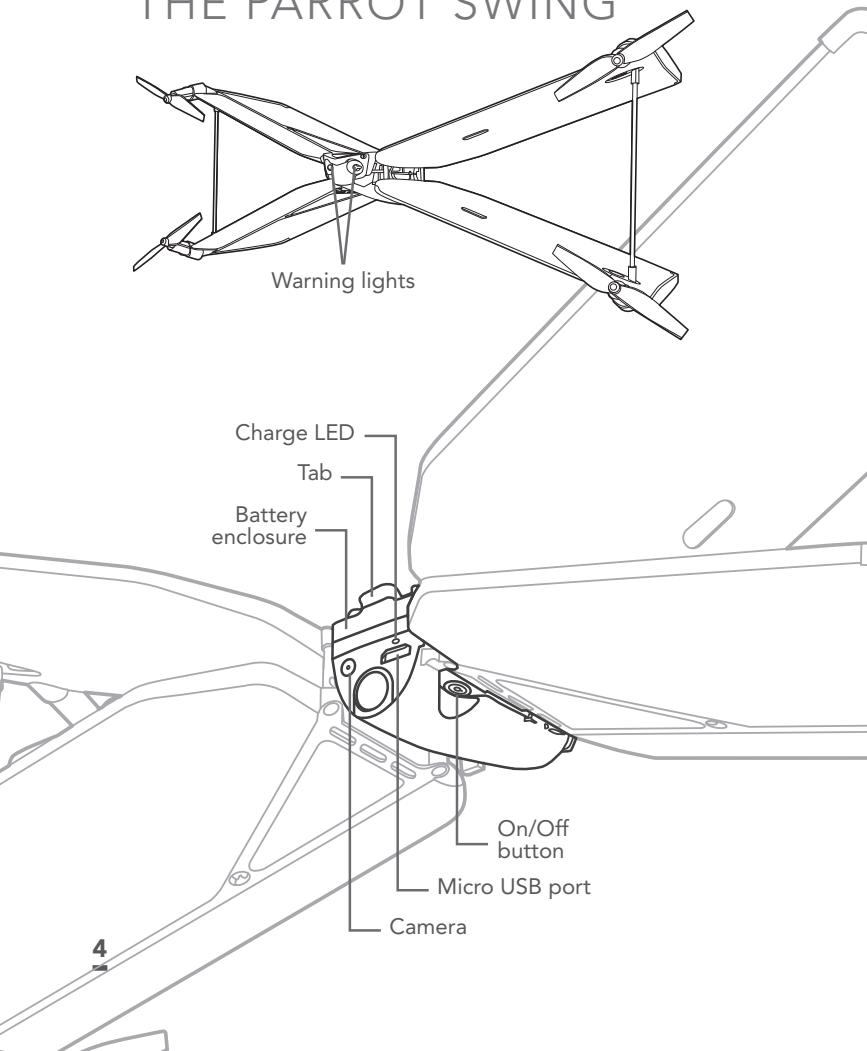

THE PARROT SWING Warning lights Charge LED Tab Battery enclosure On/Off button Micro USB port Camera 4

PRESENTATION

OF THE PARROT FLYPAD

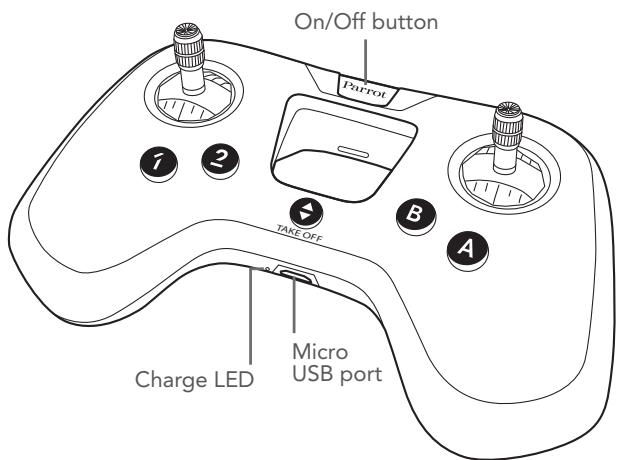

On/Off button Parrot Take Off Charge LED Micro USB port

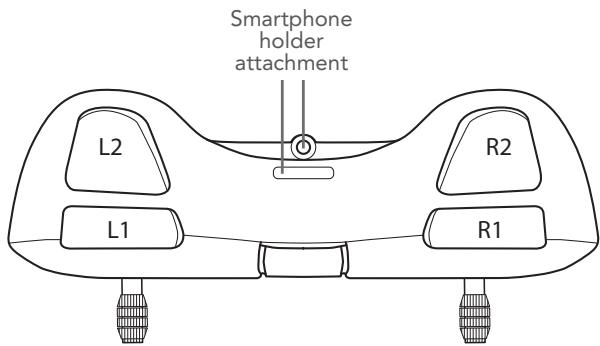

Smartphone holder attachment L2 R2 L1 R1

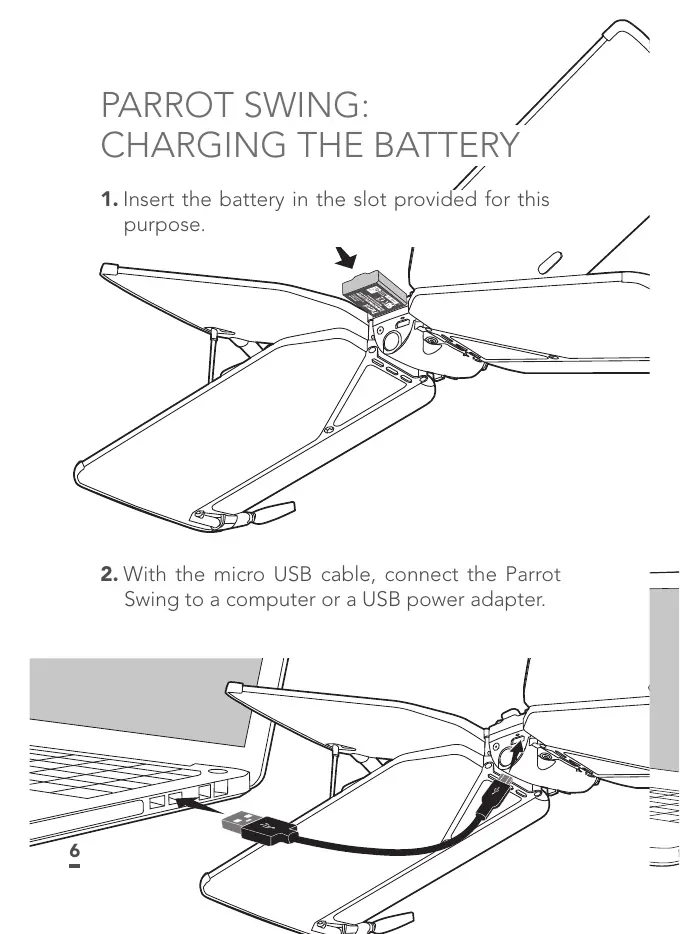

PARROT SWING:

CHARGING THE BATTERY

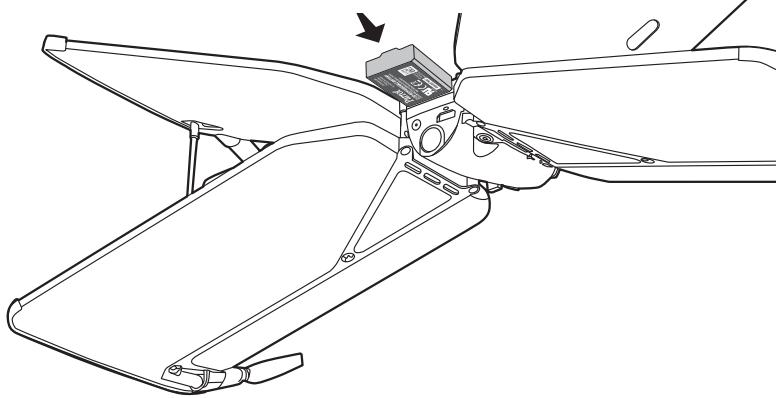

1. Insert the battery in the slot provided for this purpose.

Technical line drawing of a mechanical assembly with no visible text or symbols

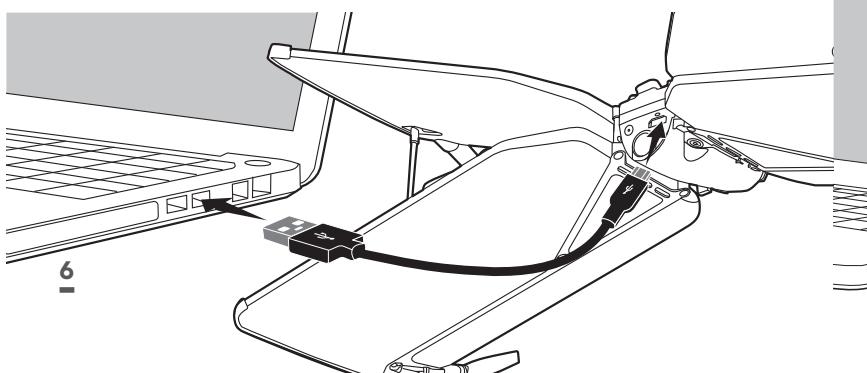

1. With the micro USB cable, connect the Parrot Swing to a computer or a USB power adapter.

Line drawing of a car interior showing a seatbelt and connector, with no visible text or symbols

The charge LED is steady red when charging.

The charge time is approximately 30 minutes with a 2.1A charger. Once charging is complete, the charge LED turns green.

To remove the battery, lift the tab and slide the battery backwards.

PARROT FLYPAD: CHARGING THE BATTERY

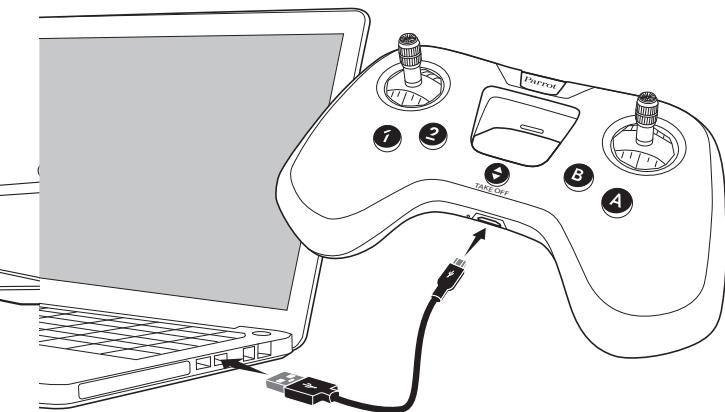

1. Connect the micro USB cable to the Parrot Flypad's micro USB port.
2. Connect the USB port to a computer or a USB power adapter.

The charge LED turns red to indicate that charging is in progress. Once charging is complete, the LED turns green.

Line drawing of a laptop connected to a handheld device via USB cable (no text or symbols)

The charge time is approximately 2 hours. Once charged, the Parrot Flypad has a battery life of about 6 hours.

CONNECTING THE PARROT FLYPAD TO THE PARROT SWING

1. Insert the battery in the slot provided for this purpose or press the On/Off button.

The Parrot Swing turns on.

1. Place the Parrot Swing on a flat surface with the propellers up.

Technical line drawing of a propeller or fan assembly with blades and mounting brackets (no text or symbols)

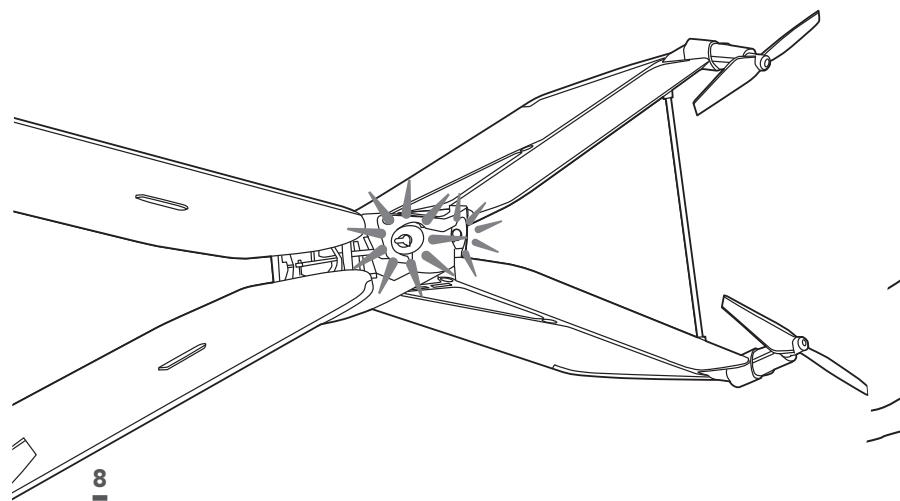

1. Wait until the warning lights turn green.

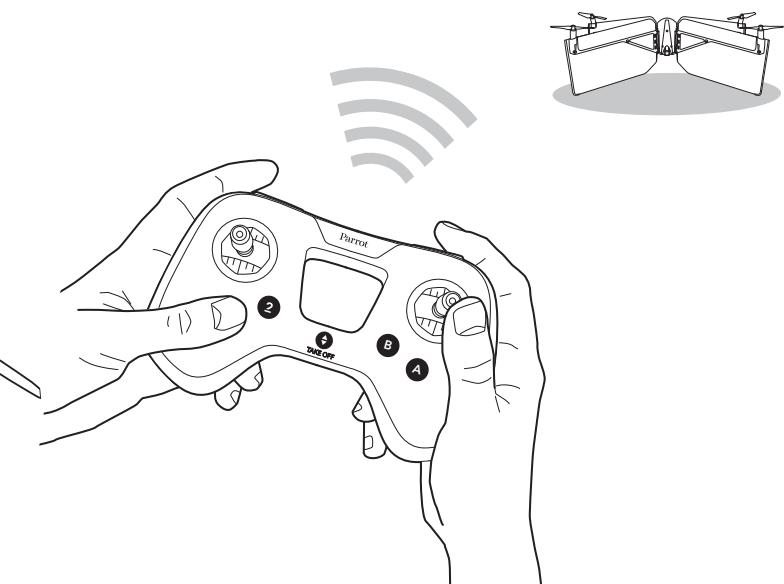

2. Press the Parrot Flypad's ON/OFF button to turn it on.

The Parrot Flypad's warning light flashes green and then becomes a steady green when the connection is established.

Parrot 2 3 4 5 6 7 8 9 A B Red Off

TAKING OFF

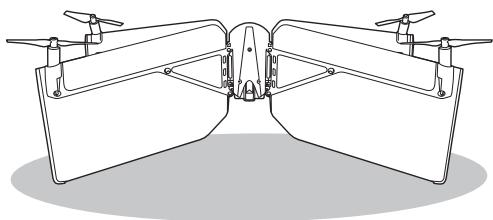

1. Place the Parrot Swing on a flat surface with the propellers up.

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

1. Press

The Parrot Swing takes off and stabilises at 1 meter above the ground waiting for a command.

LANDING

To land the Parrot Swing, press the ⬆ button.

The Parrot Swing lands.

FLYING

You can fly the Parrot Swing in:

Quad mode:

Diagram of a four-blade quadcopter with propellers and wings (no text or symbols)

Plane mode: ✗

Diagram of a four-bladed drone with no visible text or symbols

Press R2 for the plane mode on the Parrot Swing's back, or L2 for the plane mode on the Parrot Swing's front.

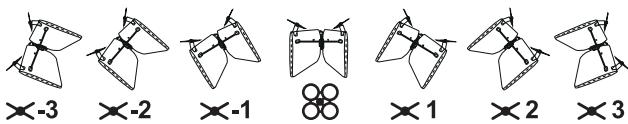

While in plane mode, the Parrot Swing has several gears:

×-3 ×-2 ×-1 ×1 ×2 ×3

The more parallel to the ground the wings of the Parrot Swing are, the faster the Parrot Swing will go.

For the quad mode, lower the gears or press ⬇.

LEFT CONTROL

Diagram of a mechanical lever mechanism with labeled parts 1 and 2

Go up

RIGHT CONTROL

Diagram of a mechanical switch or lever with labeled points A and B

Accelerate

Go forward

Diagram of a mechanical component with numbered parts, likely indicating parts of a tool or assembly.

Go down

Diagram of a car's keyhole with labeled points A and B, showing internal components and positioning.

Slow down

Go backward

Diagram of a mechanical component with numbered parts, likely indicating parts of a tool or assembly.

× Quarter turn to the left ○ Rotate left

Diagram of a mechanical component with labeled parts A and B, showing a bolted joint and circular features.

Turn left

Move left

Diagram of a mechanical component with numbered parts, likely indicating parts of a tool or assembly.

× Quarter turn to the right ○ Rotate right

Turn right

Move right

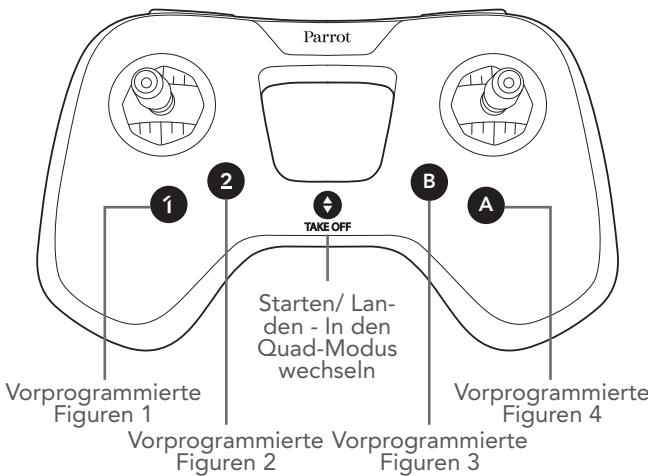

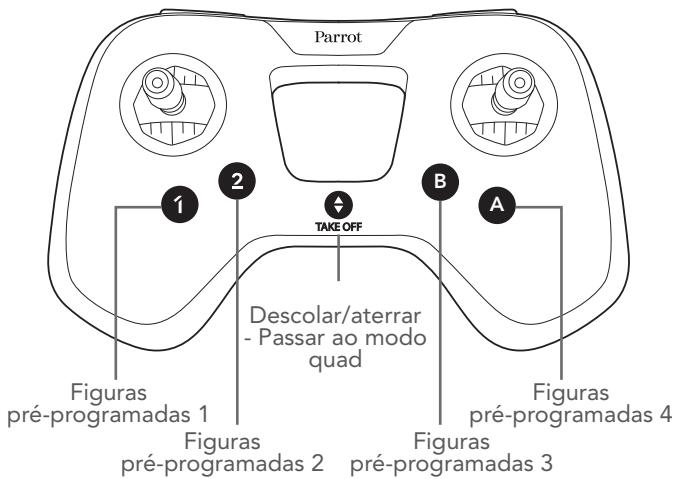

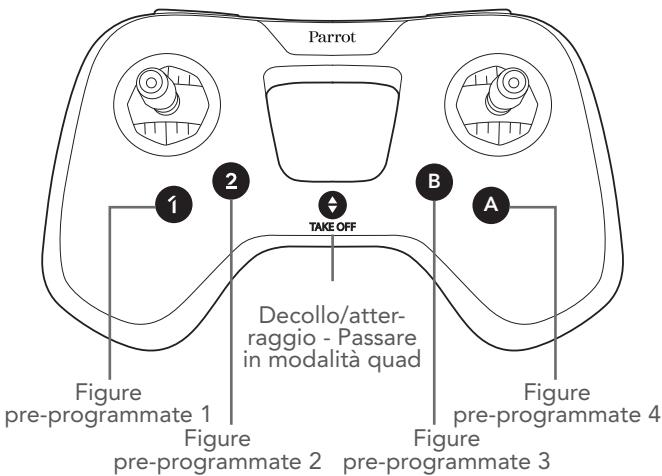

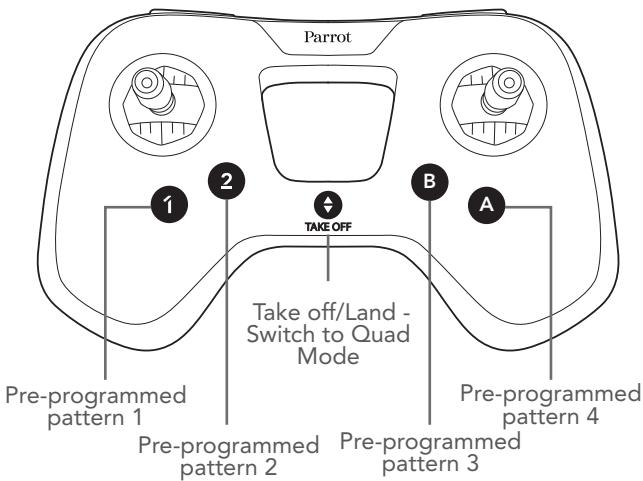

Parrot 1 2 Take OFF Take off/Land - Switch to Quad Mode B A Pre-programmed pattern 1 Pre-programmed pattern 2 Pre-programmed pattern 3 Pre-programmed pattern 4

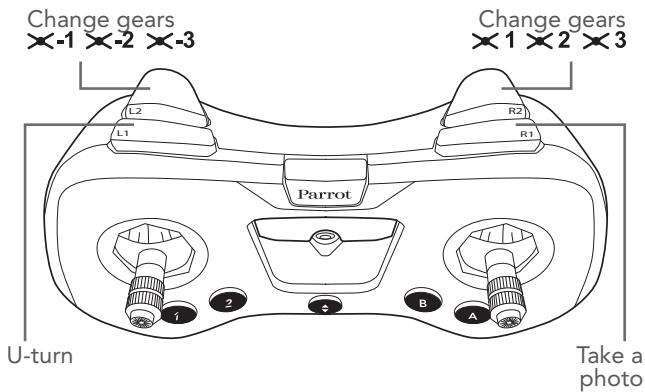

Change gears ×-1 ×-2 ×-3 L2 R2 ×1 ×2 ×3 L1 Parrot 1 2 $ B A U-turn Take a photo

This configuration is the default configuration. Change and customise the Parrot Flypad's commands (see Configuring the buttons).

WARNING LIGHT

INDICATIONS

PARROT SWING

Steady orange light	The Parrot Swing is starting up.> Place the Parrot Swing on a flat surface with the propellers up.
Steady green light	The Parrot Swing is ready for use.
Flashing red light	The Parrot Swing's battery is low.> Charge the battery.
Steady red light	The Parrot Swing has detected a problem.> Make sure Bluetooth®is enabled on your smartphone. If the problem persists, visit www.parrot.com.

PARROT FLYPAD

Steady green light	The Parrot Flypad is connected to the Parrot Swing or your smartphone.
Flashing green light	The Parrot Flypad is waiting for a connection.
Flashing red light	The Parrot Flypad is waiting for a connection, but its battery is low.> Charge the Parrot Flypad's battery.
Steady red light	The Parrot Flypad is connected to your smartphone or your Parrot Swing, but its battery is low.> Charge your Parrot Flypad's battery.
Steady red light and the Parrot Flypad is vibrating	The Parrot Flypad is connected to your smartphone or your Parrot Swing, but the Parrot Swing's battery is low.> Charge your Parrot Swing's battery.

FREEFLIGHT MINI

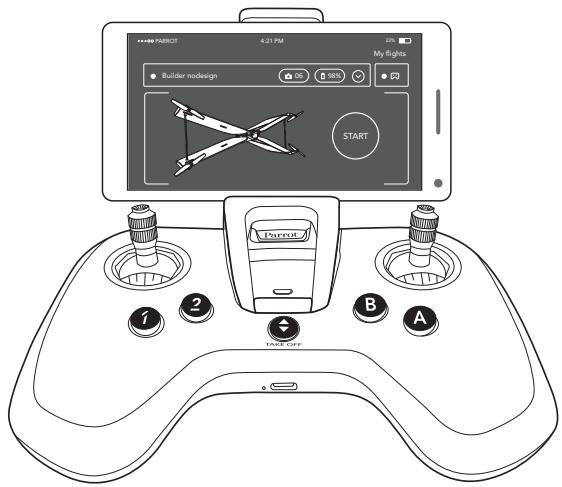

You can configure the settings of your Parrot Swing and your Parrot Flypad.

To do this:

Login to the App Store ^® or Google Play ^TM and download the free FreeFlight Mini application.

PARROT 4:21 PM My flights Builder nodesign START PARROT B A TARROT 1 2 3 4

GENERAL INFORMATION

PRECAUTIONS FOR USE AND MAINTENANCE

The Parrot Flypad is intended to fly the Parrot Swing and is not suitable for children under 14 years of age.

Check the list of drones that are compatible with the Parrot Flypad in the Support section on www.parrot.com.

Only use accessories specified by Parrot Drones SAS.

If sand or dust gets into the Parrot Flypad, it may be irreparably damaged and no longer function correctly.

Do not expose the Parrot Flypad to rain or sun for an extended period.

Do not use this device near liquids.

Risk of ingestion of small objects. The packaging is not part of the product and must be discarded as a safety measure.

PARROT SWING

The Parrot Swing is not suitable for children under 14 years of age.

The Parrot Swing is a model aircraft designed for recreation and leisure. The pilot must, at all times, maintain eye contact with the Parrot Swing and control its trajectory. The Parrot Swing must be used according to the rules of civil aviation in your country. The places where it is used must be suitable for its progression in order to continuously ensure the safety of people, animals and property. Using the Parrot Swing in some public places (for example: train stations, airports, etc.) or on public roads may not be allowed.

The Parrot Swing's propellers in flight can cause damage to people, animals or objects. Always stay a safe distance away from the

Parrot Swing. Do not touch the Parrot Swing in flight. Wait for the propellers to fully stop before handling the Parrot Swing.

Only use accessories specified by Parrot Drones SAS.

If sand or dust gets into the Parrot Swing, it may be irreparably damaged and no longer function properly.

Do not use the Parrot Swing in adverse weather conditions (rain, strong wind or snow) or when visibility is poor (at night).

Keep the Parrot Swing away from high voltage power lines, buildings or any other potentially hazardous areas.

Do not use this device near liquids. Do not place the Parrot Swing on water or on a wet surface as this could cause irreparable damage.

Do not leave the Parrot Swing in the sun.

WARNING REGARDING PRIVACY AND RESPECT FOR IMAGES OF PROPERTY

Recording and broadcasting an individual's image without their permission may constitute an invasion of privacy and you may be held liable. Ask permission before filming people, especially if you intend to keep your recordings and/or broadcast them. Do not broadcast degrading images which may affect an individual's reputation or dignity.

Recording and broadcasting the image of property without permission from its owner and or any third party holding intellectual property rights on the pro-

perty may constitute a violation of the property's image rights and you may be held liable. Ask permission from its owner and/or any third party with ownership rights.

HOW TO RECYCLE THIS PRODUCT

This symbol on the product or its documentation indicates that it must not be disposed of with household waste. Uncontrolled waste disposal may harm the environment or human health. Please separate your device from other types of waste to recycle it responsibly. This will help to foster the sustainable re-use of material resources. We invite you to contact your retailer or inquire at your local town hall to find out where and how the Parrot Flypad can be recycled.

WARRANTY

For the warranty conditions, please read the Terms and Conditions of sale of the retailer where you purchased the Parrot Flypad/Parrot Swing.

CONFORMITY DECLARATION (PARROT FLYPAD)

PARROT DRONES, 174 quai de Jemmapes, 75010 Paris, France, hereby declares that it is solely responsible for the compliance of the product described in this user guide with technical standards, EN 301489-17, EN300328, EN71-1, EN71-2, EN71-3, EN62115, EN62321 (1-7), according to the provisions of the R&TTE Directive 1999/5/EC and the General Product Safety Directive 2001/95/EC, the ROHS Directive 2011/65/EU. http://www.parrot.com/uk/ce/?parrot-flypad

CONFORMITY DECLARATION (PARROT SWING)

PARROT DRONES, 174 quai de Jemmapes, 75010 Paris, France, hereby declares that it is solely responsible for the compliance of the product described in this user guide with technical standards, EN 301489-17, EN300328, EN71-1, EN71-2, EN62115 according to the provisions of the R&TTE 1999/5/CE and the General Product Safety Directive 2001/95/EC. The statement of compliance is available at the following address: http://www.parrot.com/uk/ce/?parrot-swing

DECLARATION OF CONFORMITY IN CANADA & FCC

This device complies with the Industry Canada RSS applicable to license-exempt radio apparatus. Operation is permitted subject to the following two conditions: (1) the device must not produce interference, and (2) the user of the device must accept any radio interference encountered, even if the interference is likely to compromise operations.

FCC AND IC COMPLIANCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules / with Industry Canada Licence-exempt RSS standard(s). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful in-

terference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with Part 15 of the FCC Rules / with Industry Canada Licence exempt RSS standard(s). Operation is subject to the following two conditions: This equipment may not cause harmful interference. This equipment must accept any interference received, including interference that may cause undesired operation. Modifications not authorized by the manufacturer may void the user's authority to operate this device.

Caution: Exposure to Radio Frequency Radiation

The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada's website at http://www.hc-sc.gc.ca

To meet the FCC/IC requirements on exposure to RF for transmission devices, a distance of at least 20 cm must be maintained between the product's aerial and people.

To ensure compliance, it is recommended that the device not be used at any shorter distance.

FCC RADIATION EXPOSURE STATEMENT

This equipment complies with FCC RF radiation exposure limits set for an uncontrolled environment. This transmitters must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation.

CAUTION!

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

BATTERY

WARNING: Failure to follow all the instructions may result in serious injury, irreparable damage to the battery and may cause a fire, smoke or explosion.

Always check the battery's condition before charging or using it. Replace the battery if it has been dropped, or in case of odour, overheating, discolouration, deformation or leakage. Never use anything other than the approved LiPo charger to charge the battery. Always use a balancing charger for LiPo cells or a LiPo cell balancer. It is recommended that you do not to use any other charger than the one

provided with the product. Never trickle charge or charge under 2.5 V per cell. The battery temperature must never exceed 60 °C (140 °F) otherwise the battery could be damaged or ignite. Never charge on a flammable surface, near flammable products or inside a vehicle (preferably place the battery in a non-flammable and non-conductive container). Never leave the battery unattended during the charging process. Never disassemble or modify the housing's wiring, or puncture the cells. Always ensure that the charger output voltage corresponds to the voltage of the battery. Do not short circuit the batteries. Never expose the LiPo battery to moisture or direct sunlight, or store it in a place where temperatures could exceed 60 °C (car in the sun, for example). Always keep it out of reach of children. Improper battery use may result in a fire, explosion or other hazard.

The battery terminals should not be allowed to short-circuit. The product should be connected only to class II appliances which display the symbol.

TRADEMARKS

Parrot Flypad, Parrot Swing as well as their respective logos are trademarks of Parrot Drones SAS.

Parrot and the Parrot logos are trademarks of Parrot S.A.

App Store is a trademark of Apple Inc.

Google Play is a trademark of Google Inc.

The Bluetooth ^® name and logo are registered trademarks of Bluetooth SIG, Inc. and any use of these trademarks by Parrot Drones SAS is done under licence.

All other trademarks mentioned in this guide are the property of their respective owners.

MANUFACTURER INFORMATION

The Parrot Flypad/Parrot Swing is manufactured by: PARROT DRONES SAS - 174 Quai de Jemmapes - 75010 Paris (France) - Corporate and Trade Register Paris 808 408 074

FCC ID: 2AG6IWINGX

IC ID: 21053-WINGX

PRÉSENTATION

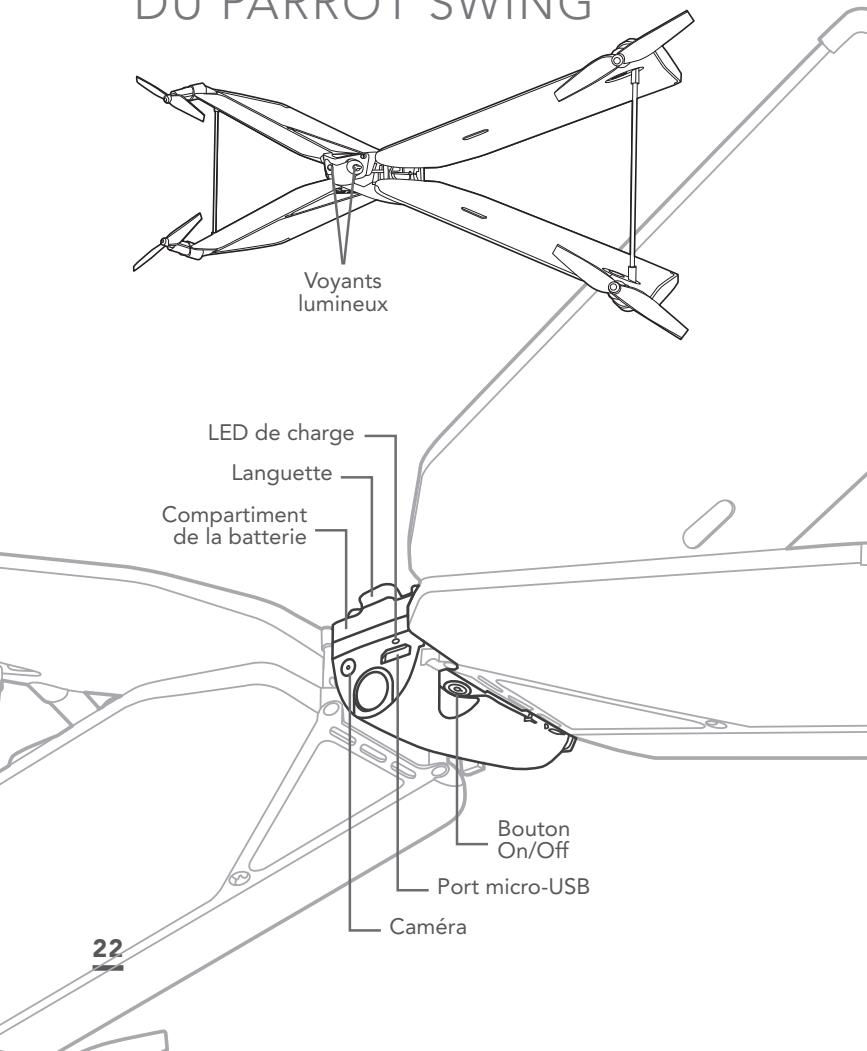

DU PARROT SWING

DO PARROT SWING Voyants lumineux LED de charge Languette Compartiment de la batterie Bouton On/Off Port micro-USB Caméra 22

PRÉSENTATION DU PARROT FLYPAD

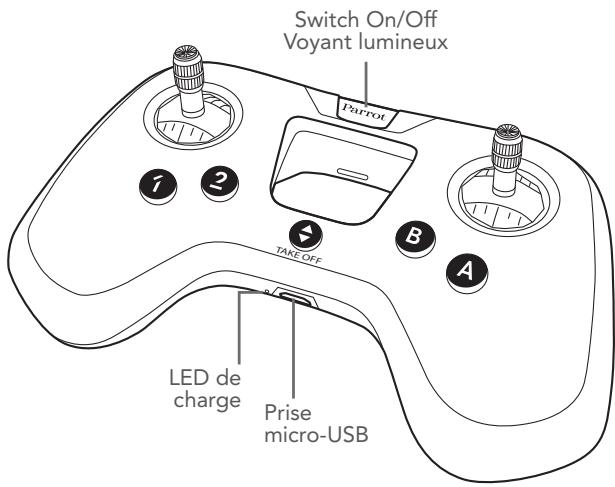

Switch On/Off Voyant lumineux Parrot 1 2 B A TAKE OFF LED de charge Prise micro-USB

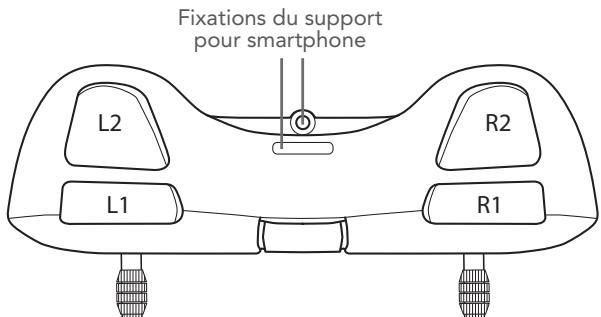

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a car's seat assembly with a laptop and connector (no text or symbols)

Line drawing of a laptop connected to a handheld game controller with USB cable (no text or symbols)

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

Diagram of a four-blade helicopter with propellers and wings (no text or symbols)

En mode avion : ✗

Diagram of a four-bladed drone with four propellers and a central hub (no text or symbols)

Diagram of a mechanical lever mechanism with labeled parts 1 and 2

Monter

COMMANDE DROITE

Diagram of a mechanical lever with labeled points A and B, showing pivot and adjustment mechanism

Accélérer

Avancer

Diagram of a mechanical component with numbered parts, likely indicating parts of a tool or assembly.

Descendre

Diagram of a car interior showing labeled parts A and B with a central valve or knob

Ralentir

Reculer

Diagram of a mechanical component with numbered parts, likely indicating parts of a tool or assembly.

Diagram of a mechanical component with labeled points A and B, showing a circular feature with a hexagonal hole.

Tourner à iche

Diagram of a mechanical component with numbered parts, likely indicating parts of a valve or knob.

COMMENT RECYCLER CE PRODUIT

DÉCLARATION DE CONFORMITÉ UE (PARROT FLYPAD)

http://www.parrot.com/ce/?parrot-flypad

DÉCLARATION DE CONFORMITÉ CANADA ET FCC

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with labeled components and a 40-unit scale indicator (no text or symbols beyond basic lines)

Line drawing of a laptop connected to a handheld device via USB cable (no text or symbols visible)

Technical line drawing of a propeller or fan assembly with no visible text or symbols

Line drawing of a quadcopter drone with wings and propellers (no text or symbols)

DESPEGAR

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

Diagram of a mechanical lever mechanism with labeled points A and B (no text or symbols beyond labels)

Acelerar Avanzar

Bajar ① ②

B A

RECICLAJE DEL PRODUCT

Technical line drawing of a mechanical assembly with labeled components and a scale indicator (no text or symbols beyond measurement markers)

Line drawing of a handheld game controller connected to a laptop via USB cable (no text or symbols)

Technical line drawing of a propeller or fan assembly with no visible text or symbols

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

1. Drücken Sie auf ⬇.

Diagram of a mechanical component with labeled parts 1 and 2, showing a bolt and shaft assembly.

Nach oben

RECHTER JOYSTICK

Diagram of a mechanical lever with labeled points A and B, showing pivot and adjustment parts.

Accelerate

Vorwärts

Diagram of a mechanical component with labeled parts 1 and 2, showing a bolted joint or fastener.

Nach unten

Diagram of a mechanical component with labeled parts A and B, likely indicating a lever or actuator mechanism.

Slow down

Rückwärts

Diagram of a mechanical component with numbered parts, likely indicating a step or section view.

Diagram of a mechanical component with labeled points A and B, showing a valve or knob mechanism.

Nach links wenken

Nach links gen

Diagram of a mechanical or electrical component with numbered parts labeled 1 and 2

Diagram of a mechanical component with labeled points A and B, showing a circular feature with a handle and a rectangular part.

Nach rechts wenken

Nach rechts gen

Technical line drawing of a mechanical assembly with labeled components and a scale indicator (no text or symbols present)

Line drawing of a handheld game controller connected to a laptop via USB cable (no text or symbols)

Technical line drawing of a propeller or fan assembly with no visible text or symbols

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

1. Premi

Diagram of a mechanical component with labeled parts 1 and 2, showing a bolt and shaft assembly.

Salire

COMANDO DESTRO

Diagram of a mechanical lever with labeled points A and B, showing pivot and adjustment parts.

Accelerare

Avanzare

Diagram of a mechanical component with labeled parts 1 and 2, showing a bolted joint or fastener.

Scendere

A B

Rallentare

Indietreggiare

Diagram of a mechanical component with numbered parts labeled 1 and 2

Quarto di

giro verso sinistra

Girare a

sinistra

Diagram of a mechanical component with labeled points A and B, showing a circular feature with a hexagonal nut.

Spostarsi a

sinistra

Girare a

sinistra

Diagram of a mechanical or electrical component with numbered parts labeled 1 and 2

Quarto di

giro verso destra

Girare a

destra

Diagram of a mechanical component with labeled points A and B, showing a knob and adjustment knob.

Spostarsi a

destra

Girare a

destra

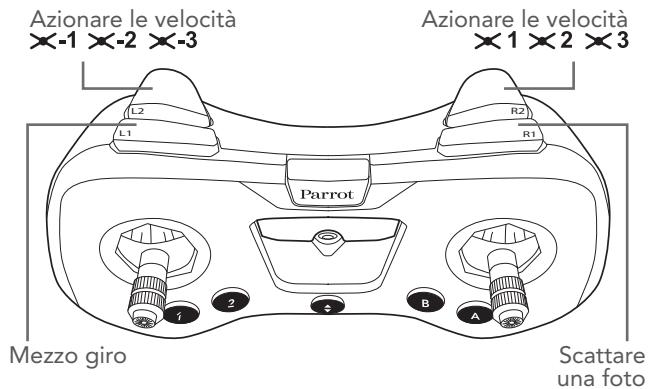

Parrot 1 2 B A TAKE OFF Decollo/atter- raggio - Passare in modalità quad Figure pre-programmate 1 Figure pre-programmate 2 Figure pre-programmate 3 Figure pre-programmate 4

L2 R2 L1 R1

PARROT SWING: BATTERIJ OPLADEN

compartment.

Technical line drawing of a mechanical assembly with labeled components and a scale indicator (no text or symbols present)

Line drawing of a laptop connected to a handheld device via USB cable (no text or symbols)

Technical line drawing of a propeller or fan assembly with no visible text or symbols

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

1. Druk op ◆.

Diagram of a mechanical component with labeled parts 1 and 2, showing a bolt and shaft assembly.

Stijgen

RECHTERKNOP

Diagram of a mechanical lever with labeled points A and B, showing pivot and adjustment mechanism

Diagram of a mechanical component with labeled parts 1 and 2, showing a bolted joint or fastener.

Dalen

× Afremmen
Achteruit

Diagram of a mechanical component with numbered parts labeled 1 and 2

×Naar links gaan
Naar links

Diagram of a mechanical component with numbered parts, likely illustrating a valve or adjustment mechanism.

L2 L1 R2 R1 Parrot 1 2 4 B A

WAARSCHUWING MET BETREKKING TOT PRIVACY EN RECHT OP EEN AFBEELDING

RECYCLEN VAN HET PRODUCT

PARROT DRONES, 174 quai de Jemmapes, 75010 Paris, France, hereby declares that it is solely responsible for the compliance of the product described in this user guide with technical standards, EN 301489-17, EN300328, EN71-1, EN71-2, EN71-3, EN62115, EN62321 (1-7), according to the provisions of the R&TTE Directive 1999/5/EC and the General Product Safety Directive 2001/95/EC, the ROHS Directive 2011/65/EU.

http://www.parrot.com/uk/ce/?parrot-flypad

VERKLARING CONFORMITEIT (PARROT SWING)

The Bluetooth ^® name and logo are registered trademarks of Bluetooth SIG, Inc. and any use of these trademarks by Parrot Drones SAS is done under licence.

L2 R2 L1 R1

PARROT SWING:

CARREGAR A BATERIA

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with labeled components and a 104-unit scale indicator (no text or symbols beyond the scale marker)

Line drawing of a laptop connected to a handheld game controller with labeled buttons (no text or symbols beyond labels)

Technical line drawing of a propeller or fan assembly with no visible text or symbols

Line drawing of a quadcopter drone with wings and propellers (no text or symbols)

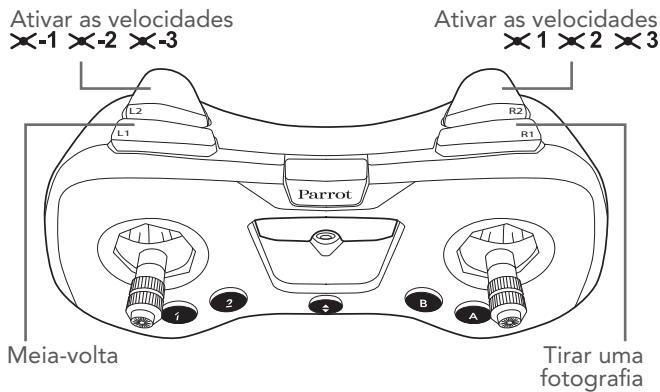

DECOLAGEM

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

1. Premir

Technical diagram of a mechanical component with labeled parts 1 and 2

Montar

COMANDO DIREITO

Diagram of a mechanical lever mechanism with labeled points A and B

Acelerar

Avançar

Diagram of a mechanical component with labeled parts 1 and 2, showing a central knob and base.

Descer

B A

Abrandar

Recuar

Diagram of a mechanical component with numbered parts labeled 1 and 2

Quarto de

volta à esquerda

Virar à

esquerda

B A

Deslocar-se

para a esquerda

Virar à

esquerda

Diagram of a mechanical component with numbered parts, likely indicating parts of a tool or assembly.

Quarto de

volta à direita

Virar à

direita

B A

Deslocar-se

para a direita

Virar à direita

Parrot 1 2 B A TAKE OFF Descolar/aterrar - Passar ao modo quad Figuras pré-programadas 1 Figuras pré-programadas 2 Figuras pré-programadas 3 Figuras pré-programadas 4

Technical line drawing of a mechanical component with an arrow indicating assembly or adjustment (no text or symbols present)

Technical line drawing of a mechanical assembly with labeled components and a 120mm scale indicator (no text or symbols beyond measurement markers)

Ye Kirik Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk Yiyuk

Line drawing of a laptop connected to a handheld device via USB cable (no text or symbols)

Technical line drawing of a propeller or fan assembly with no visible text or symbols

Diagram of a drone with four wings and propellers, shown in flight (no text or symbols)

الإقلاع

Line drawing of a multi-rotor drone with wings and propellers (no text or symbols)

.2. اضغط على
