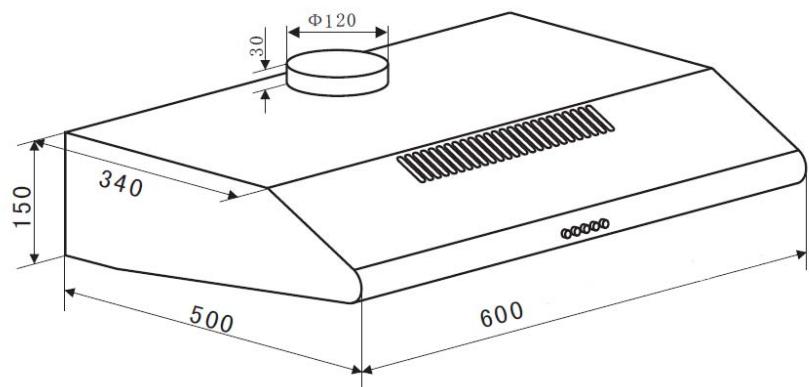

2 / INSTALLING YOUR APPLIANCE

3 / USING YOUR APPLIANCE

4 / CARING FOR AND CLEANING YOUR APPLIANCE

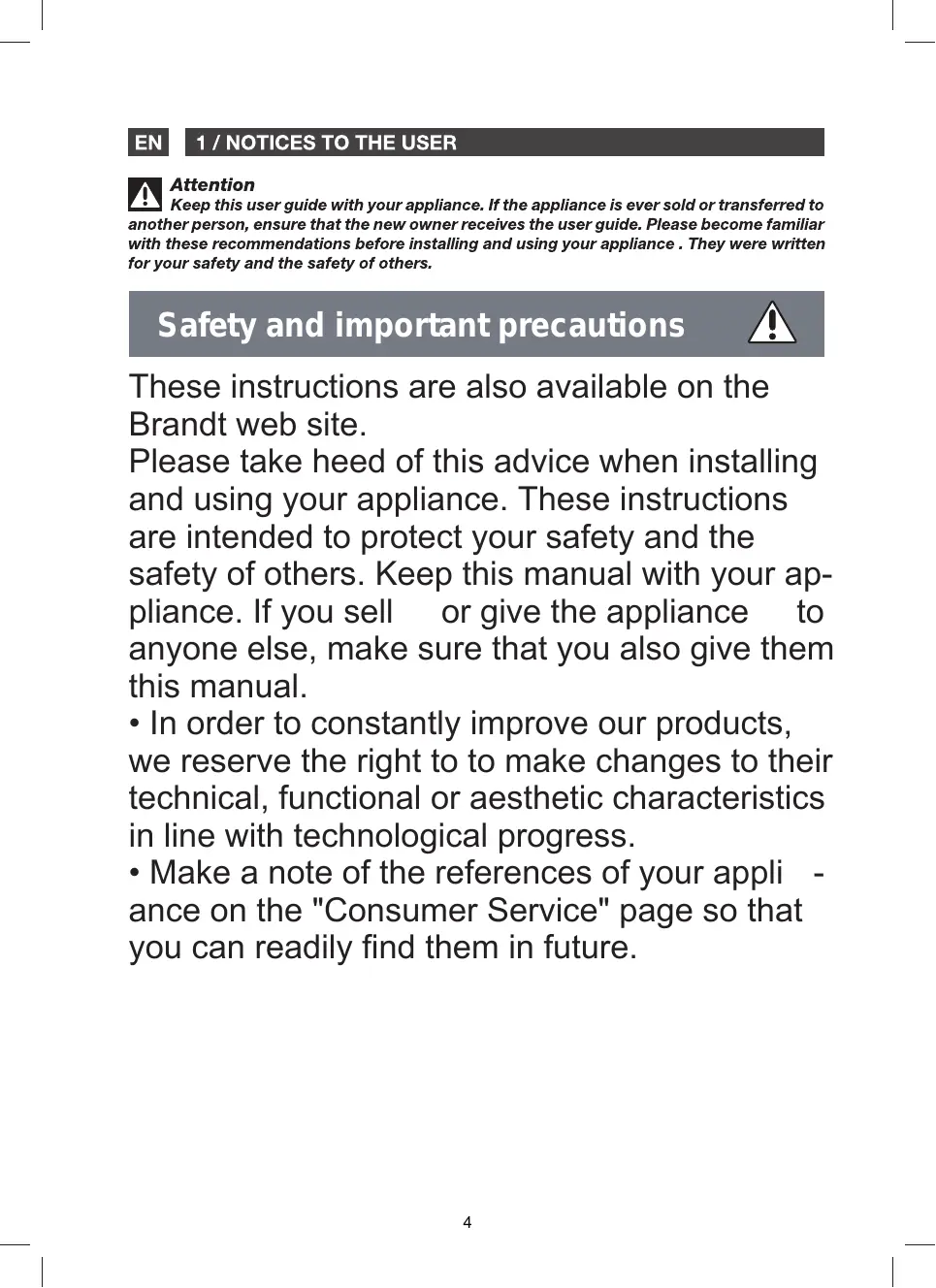

Safety and important precautions These instructions are also available on the Brandt web site. Please take heed of this advice when installing and using your appliance. These instructions are intended to protect your safety and the safety of others. Keep this manual with your appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual.

• In order to constantly improve our products, we reserve the right to to make changes to their technical, functional or aesthetic characteristics in line with technological progress.
• Make a note of the references of your appli ance on the "Consumer Service" page so that you can readily find them in future.

Important precautions

• This appliance is designed for use by consumers in the home. Do not use it for commercial or industrial purposes or for any other purpose for which it is not intended.
• Unpack the appliance as soon as you receive it. Check its general appearance. Make a note of any reservations on the delivery slip and keep a copy.
• This appliance can be used by children aged under 8 and by persons with diminished physi cal, sensory or mental capacities, or persons without any experience or knowledge, provided that they are properly attended to or are given the instructions on how to use the appliance in complete safety and that any potential risks are anticipated. Children must not play with this appliance. The appliance must not be cleaned and maintained by unattended children.
• Caution: The accessible parts of this appli ance may become hot when used with cooking equipment. Electrical risks
• All the power supply circuits must be discon nected before touching the connection terminals. If the power cord is damaged, it must be

1 / NOTICES TO THE USER

replaced by the manufacturer, its after-sales service or a similarly qualified person in order to avoid any danger.

• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
• Always disconnect the hood before cleaning or maintaining it.
• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety).
• The appliance can be disconnected by using an accessible power outlet or by incorporating a switch in the fixed lines, in accordance with the installation rules.
• Do not change or attempt to change the characteristics of this appliance. Doing so can be dangerous.
• The appliance must only be repaired by an approved specialist.
• Always disconnect the the hood before clean

ing or maintaining it.

• Never use steam or high-pressure tools to clean your appliance (for the purposes of electrical safety). Risk of asphyxiation
• The regulations applying to the evacuation of air must be obeyed. The air must not be sent into a duct used to evacuate fumes from appli ances that use gas or other fuels (this does not apply to appliances that only emit air into the room).
• The room must be suitably ventilated when the range hood is used at the same time as appli ances that use gas or other fuels (this does not apply to appliances that only emit air into the room). Risk of fire
• It is forbidden to flambé food or to turn on gas rings that are not covered by a cooking recipient beneath the hood, as the flames may sucked in and damage the appliance.
• Keep a constant eye on fryers used beneath the hood. When heated to very high tempera tures, oil and fat can catch fire.
• Clean the appliance and replace the filters at

1 / NOTICES TO THE USER

the recommended frequency. Accumulated deposits of grease can cause a fire.

• It is forbidden to use the hood above a fuel fire (wood, coal, etc.).
• If the hood is installed above a gas-fired appliance, leave at least 70 cm between the top of the range and the underside of the hood. If the instructions of the range installed under the hood specify a distance greater than 70 cm, then this distance must be respected.

• ENVIRONMENTAL PROTECTION — This appliance’s packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. — Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home. — We thank you doing your part to protect the environment. Warning Installation should only be performed by installers and qualified technicians. Warning Remove the protective film from the cartridge filter before use.

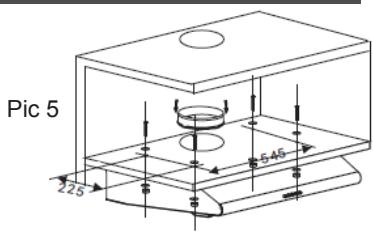

Pic 8 Air ventilation setting Outdoor air ventilation: Turn the adjuster to outdoor position(pic.9A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet. Indoor air ventilation: Turn the adjuster to indoor position (pic.9B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet. Pic 9

3 / USING YOUR APPLIANCE

• DESCRIPTION OF CONTROL PANEL Push button

1. Push stop button, and the motor will

2. Push the Low button, the motor runs at

3. Push the Mid button, the motor runs at

4. Push the High button, the motor runs

5. Push the light button and the light will

come on. Push it again and the light will turn off.

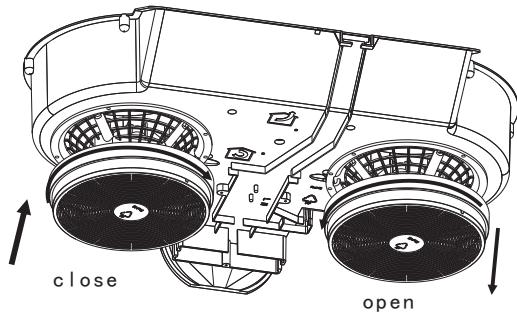

Pic.11. Pic 11 INSTALLING THE CARBON FILTER (OPTIONAL), SEE PIC.12 Pic.11. (Pic.12) are located close open Pic 12 Contact after sales service.

Warning Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

Never use metal scouring pads, abrasive products or excessively stiff brushes. To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth. This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a nonabrasive cream, then rinse with clean water. Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher. Top surface and accessories Filter cartridge Activated carbon filter PRODUCTS /

This filter traps odours and must be changed at least once a year depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed. To preserve your appliance, we recommend that you use Clearit cleaning products. Professional expertise serving individuals Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens. They are on sale at your regular retailer, along with a complete line of accessories and consumable products.

5 / TROUBLESHOOTING SYMPTOMS SOLUTIONS Ensure that: The hood is not working...

• The power is not cut off.
• A speed has been selected. Ensure that:
• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared. The hood is not operating effectively...

• The kitchen is sufficiently ventilated to allow for fresh air intake.
• The carbon filter is not worn (hood operating in recycling mode). Ensure that:
• The power is not cut off. The hood stopped working

• The single-pole cut-off device was not activated. 6 / AFTER-SALES SERVICE Any maintenance on your equipment should be undertaken by: - either your dealer, - or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer’s nameplate attached to your equipment.

This device complies with the delegated regulations (EU) 65/2014 and 66/2014 of the European Commission on the eco design requirements and energy labeling of household hoods. symbol Value Unit Brandt

AEC kWh/annum Brand Model number Annual energy consumption Energy efficiency index EEi FDE Fluid dynamic effciency index Lighting efficiency index Grease filtering efficiency

Time increase factor

Maximum volumetric airflow of the cooker hood Qmax

m3/h Volumetric airflow at best efficiency point

Static pressure at the best efficiency point P BEP

Power consumption at the best efficiency point W BEP

Nominal power consumption of lighting system

Average illumination of the lighting system E middle

Lux/W Power consumption in off mode

Power consumption in standby mode

Volumetric airflow at the highest speed setting in normal use

m /h Volumetric airflow at the lowest speed setting in normal use

m /h Volumetric airflow in intensive or boost mode

m /h dB(LWA) Sound power emissions at the highest speed setting in normal use

Sound power emissions at the lowest speed setting in normal use

Sound power emissions in intensive / boost mode
