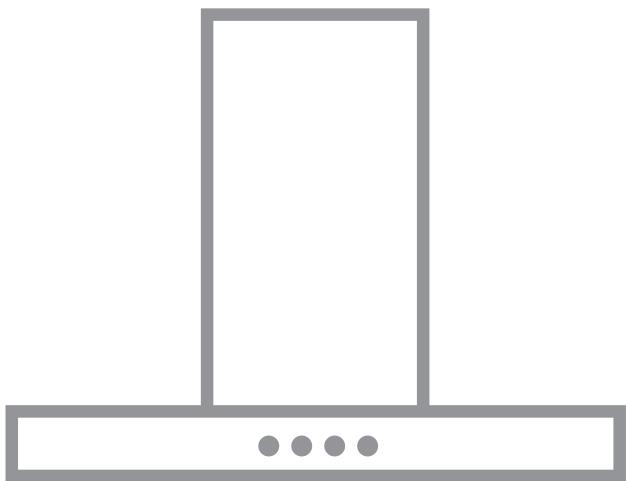

Simple line drawing of a kitchen chimney with three dots on the base (no text or symbols)

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol 📋. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol 📋 with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

⚠ Warning / Caution-Safety information.

Subject to change without notice.

SAFETY INFORMATION

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not be allowed to tamper with the controls or play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas

combustion devices or other fuels. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. The flaming of foods beneath the hood itself is severely prohibited.

1.SAFETY INSTRUCTIONS

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2.USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation or filtering with internal recirculation.

3.INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products.

DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

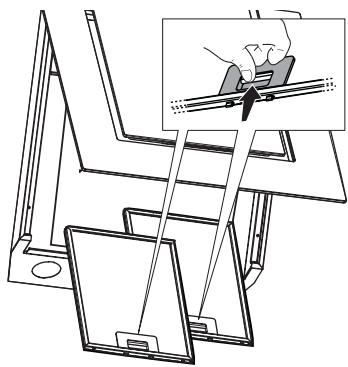

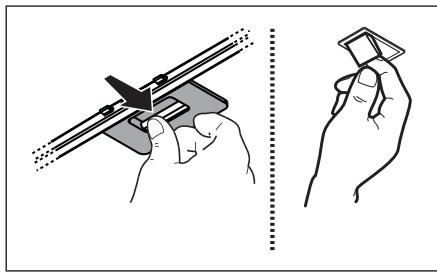

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

4.2 Charcoal filter

Type 20 LONG LIFE - Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65^ C (if the dishwasher is used, select the full cycle function and leave dishes out).

Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100^ C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

4.3 Type 15 - NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

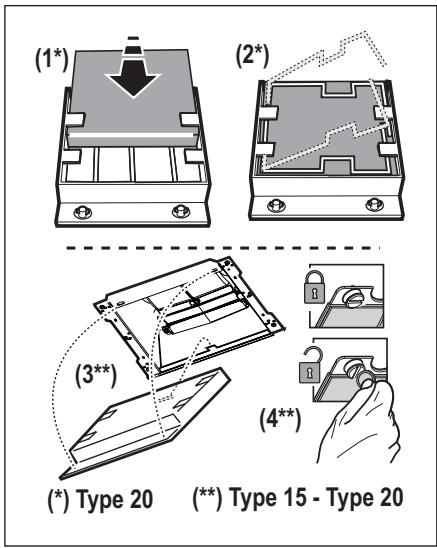

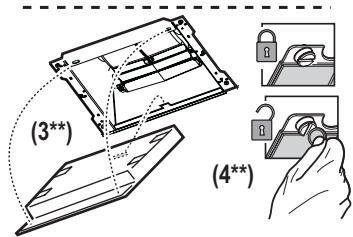

(1*) (2*) (3**) (4**) (*) Type 20 (**) Type 15 - Type 20

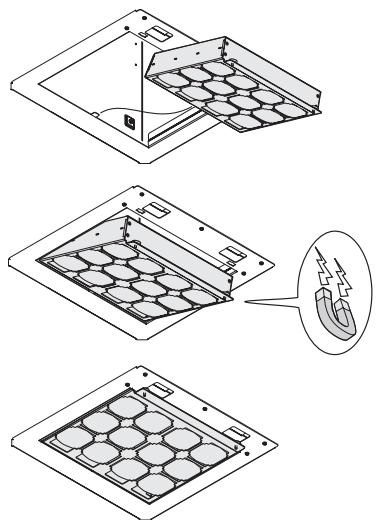

4.4 Regenerable carbon filter

The carbon filter must be regenerated every two months (or when the filter saturation indicator - if present - indicates the need for it) and in accordance with the procedure as shown here below:

1. Disconnect the electrical appliance from the mains.
2. Clean the filter's surface with a damp cloth to remove grease deposits.
3. Put the filter in an oven at 200 degrees for 45 minutes.
4. Turn off the oven and wait for an hour before taking out the filter.

Attention! Make sure the filter has cooled down before touching it.

Type SUPCHARC-E

Three technical diagrams showing a hexagonal grid structure inside a device casing, with an inset close-up of the component (no text or symbols present)

5. CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights. Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction

is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

The control switches are located on the unit's front panel:

1 Speed ON/OFF button Control panel on/off key
2 Suction speed (power) key 1:
3 Suction speed (power) key 2:
4 Suction speed (power) key 3:
5 Suction speed (power) key 4: Note: suction speed (power) key 4 has a limited duration of 5 minutes, after which the previous suction speed is reactivated.
6 "Breeze" function key (Room ventilation) The hood switches on at low suction speed (power) for 60 minutes, after which it switches off.
7 Filter saturation control and activation/deactivation key
8 Hob2 ^H ood function indicator
9 Lights ON/OFF key

Control panel on/off function

With the hood in standby, press key 1, all led lights will switch off: the control panel is off.

Press key 1 again, all led lights will turn on: the control panel is active.

Carbon filter saturation control activation/deactivation function

With the hood in standby, press key 5 for longer than 3 seconds Key 7 will flash to indicate that the carbon saturation filter has been activated. Key 7 will remain lit to indicate that the carbon saturation filter has been deactivated.

Filter saturation control and reset function

At regular intervals and depending on the hood temperature, key 7 lights up to indicate that the filters need to be maintained in accordance with the instructions in the relative paragraphs. Key 7 on with a fixed light: maintenance is required on the grease filters Key 7 on and flashing: maintenance is required on the carbon filter.

Filter saturation indicator reset

With the hood in standby, press key 7 for longer than 3 seconds.

Repeat the operation if necessary.

5.1 Hob ^2 Hood

The hood is equipped with a function for wireless connection with the cooktop for automatic adjustment of the most suitable speed. Refer to the instruction manual of the cooktop to verify the presence and compatibility of this function.

In the case of first connection to the mains or abrupt disconnection from power supply (blackout), wait 1 minute to allow the hood to restore the connection with the cooktop.

When the hood is working in Hob ^2 Hood mode, key 8 is lit.

6. LIGHTING

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

Caution! Do not look directly into the LED light.

To replace lights, contact authorised spare part center.

Illustration showing two hand positions: one holding a tool with a clip, the other holding a card (no text or symbols present)

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. BEDIENELEMENTE

Illustration showing two hand positions: one using a tool to cut the blade, the other holding a small object (no text or symbols present)

Three technical line drawings of a device's internal structure, showing top, front, and side views with no visible text or symbols.

5. COMMANDES

1 2 3 4 5 ① #1 #2 #3 #1

6 7 8 9

www.aeg.com/productregistration

Illustration showing two hand positions: one holding a tool, the other holding a paper (no text or symbols present)

4.2 Type 20 LONG LIFE - Wasbaar kool-stofffilter

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. BEDIENINGSELEMENTEN

Illustration of two hands holding a tool, one with a pointed tip and the other holding a flat object (no text or symbols)

Technical diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Technical diagram of a mechanical component with internal structure and mounting holes (no text or symbols)

(3*) (4*)

Illustration showing two hand gestures: one with a lock and the other with an open lock, both pointing at a padlock.

(*) Type 20
(**) Type 15 - Type 20

4.4 Filtro de carbón regenerable

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

5. MANDOS

www.aeg.com/productregistration

Illustration showing two hand positions: one holding a tool with a pointed tip, the other holding a small object (no text or symbols present)

4.2 Type 20 LONG LIFE - Filtro de carvão acrivolavável

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with internal components and mounting holes, no text or symbols present

(3*) (4*)

Illustration of two hand gestures: one with a lock, the other with an open padlock (no text or symbols)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. COMANDOS

www.aeg.com/productregistration

Illustration showing two hands holding a tool, one with a knife and the other holding a paper (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with internal components and mounting holes, labeled (2*), showing no readable text or symbols.

(3*) (4*)

Illustration of a hand holding a padlock with lock, no text or symbols present

(*) Type 20
(**) Type 15 - Type 20

4.4 Filtro al carbone rigenerabile

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

5. COMANDI

www.aeg.com/productregistration

Illustration showing two hand positions: one holding a tool, the other holding a clip (no text or symbols present)

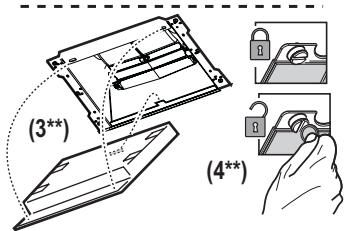

4.2 Kolfilter - Type 20 LONG LIFE - Aktivt kolfilter som kan rengöras

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a 3D electronic component with internal structure and mounting holes, no text or symbols present

(3*) (4**)

(*) Type 20
(**) Type 15 - Type 20

4.4 Regenererbart kolfilter

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of a mechanical component (no text or symbols present)

5. KOMMANDON

www.aeg.com/productregistration

Illustration of two hands holding a tool, one with a pointed tip and the other holding a flat object (no text or symbols)

4.2 Type 20 LONG LIFE - Vaskbart aktivt kullfilter

www.aeg.com/productregistration

Illustration showing two hands holding a tool, one with a clip and the other holding a clip (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a mechanical or electronic component with internal structure and mounting holes (no text or symbols)

(3*) (4**)

(*) Type 20 (**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

5. OHJAIMET

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

5. BETJENING

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a rectangular electronic component with internal circuitry and mounting holes, no text or symbols present

(3*) (4*)

Illustration of a hand holding a padlock with an open lock, no text or symbols present

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

4.2 4.2 Type 20 LONG LIFE - Pestav aktiivsöefilter

Technical diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

(2*)

Technical diagram of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

(3*) (4*)

(4**)

Illustration of two hand gestures: one with a lock, the other with a closed padlock (no text or symbols)

(*) Type 20
(**) Type 15 - Type 20

4.4 Regenereeritav söefilter

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. JUHIKUD

www.aeg.com/productregistration

Illustration showing two hands holding a tool, one with a clip and the other holding a clip (no text or symbols present)

Technical diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

(2*)

Diagram of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

(3**) (4*)

(4**)

Illustration of two hand gestures: one with a lock and the other with an open padlock (no text or symbols)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of a component (no text or symbols present)

5. VADĪBAS ELEMENTI

Illustration showing two hands holding a tool, one with a knife and the other holding a card (no text or symbols present)

4.2 Type 20 LONG LIFE - Plaunamas aktyviosios anglies filtras

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a mechanical or electronic component with internal structure and mounting holes (no text or symbols)

(3**) (4*)

Illustration of two hand gestures: one with a lock, the other with an open padlock (no text or symbols)

(*) Type 20
(**) Type 15 - Type 20

4.4 Regeneruojamas anglies filtras

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. VALDYMAS

www.aeg.com/productregistration

Illustration of two hands holding a tool, one with a pointed tip and the other holding a flat object (no text or symbols)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Technical diagram of a mechanical component with mounting holes and internal structure (no text or symbols)

(3**) (4**)

Illustration of two hand gestures with a padlock, showing lock states (no text or symbols)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of a component (no text or symbols present)

Illustration showing two hands holding a tool, one with a pointed tip and the other holding a card (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a rectangular electronic component with internal circuitry and mounting holes, no text or symbols present

(3*) (4*)

Diagram showing two hand gestures: one with a lock and lock icon, the other with an open lock and lock icon.

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of a component (no text or symbols present)

5. KEZELŐSZERVEK

Illustration showing two hands holding a tool, one with a knife and the other holding a card (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a mechanical or electronic component with internal structure and mounting holes (no text or symbols)

(3*) (4*)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

5. PŘÍKAZY

Illustration showing two hand positions: one holding a tool, the other holding a card (no text or symbols present)

4.2 Type 20 LONG LIFE - Aktívno uhlíkový filter umývatel'ný

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with internal components and mounting holes, no text or symbols present

(3*) (4*)

Illustration of a hand holding a padlock with an open lock, no text or symbols present

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. OVLÁDAČE

www.aeg.com/productregistration

Use the correct length for the screws which are identified in the Installation Guide.

Illustration showing two hand positions: one holding a tool, the other holding a card (no text or symbols present)

4.2 Type 20 LONG LIFE - Filtru cu carbon activ lavabil

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a mechanical component with mounting holes and internal structure, no text or symbols present

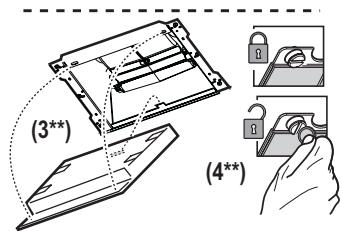

(3*) (4**)

(*) Type 20 (**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. COMENZI

www.aeg.com/productregistration

Illustration showing two hands holding a tool, one with a clip and the other holding a clip (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a mechanical component with internal structure and mounting holes, no text or symbols present

(3*) (4*)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of a mechanical component (no text or symbols present)

5. STEROWANIE

www.aeg.com/productregistration

Kupovinu dodatne opreme, potrošnog materijala i originalnih rezervnih dijelova za vaš uređaj:

www.aeg.com/shop

BRIGA ZA OKOLIŠ

Reciklirajte materijale sa simbolom 📋. Ambalažu za recikliranje odložite u prikladne spremnike.

Pomozite u zaštiti okoliša i ljudskog zdravlja, kao i u recikliranju otpada od električnih

i elektroničkih uređaja. Uređaje označene simbolom ☒ ne bacajte zajedno s kućnim otpadom. Proizvod odnesite na lokalno reciklažno mjesto ili kontaktiraje nadležnu službu.

BRIGA O KUPCIMA I SERVIS

Illustration showing two hands holding a tool, one with a knife and the other holding a paper (no text or symbols present)

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. NAREDBI

Illustration showing two hands holding a tool, one with a pointed tip and the other holding a card (no text or symbols present)

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

5. UPRAVLJALNI GUMBI

Illustration showing two hand positions: one holding a tool, the other holding a card (no text or symbols present)

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. XEIPISTHPIA

Illustration showing two hand positions: one holding a tool, the other holding a small object (no text or symbols present)

4.2 Type 20 LONG LIFE - Yıkanabilir aktif karbon filtre

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

5. KONTROLLER

1 ↓ 2 ↑ 3 ↓ 4 ↑ 5 ↓ I ↑ 2 ↑ 3 ↑ 4 ↓ I

6 7 8 9

www.aeg.com/productregistration

Купете принадлежности, консумативи и оригинални резервни части за вашия уред:

www.aeg.com/shop

ОПАЗВАНЕ НА ОКОЛНАТА СРЕДА

Illustration showing two hand positions: one holding a tool with a triangular ruler, the other holding a square object (no text or symbols present)

Diagram of a mechanical component with a downward arrow and base plate (no text or symbols)

Diagram of a mechanical component with internal structure and mounting holes, no text or symbols present

(3*) (4*)

Illustration showing two hand gestures: one with a lock and the other with an open lock, both pointing at a padlock.

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. УПРАВЛЕНИЯ

www.aeg.com/productregistration

Illustration showing two hand positions: one holding a tool, the other holding a clip (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a mechanical component with internal structure and mounting holes, no text or symbols present

(3*) (4*)

Illustration of two hand gestures: one with a lock and the other with an open padlock (no text or symbols)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the component (no text or symbols present)

www.aeg.com/productregistration

Illustration showing two hands holding a tool, one with a pointed tip and the other holding a small object (no text or symbols present)

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. КОНТРОЛИ

www.aeg.com/productregistration

Illustration showing two hands holding a tool, one with a clip and the other holding a clip (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Technical diagram of a mechanical component with mounting holes and internal structure (no text or symbols)

(3*) (4*)

Illustration of two hand gestures: one with a lock and the other with an open padlock (no text or symbols)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of the final component (no text or symbols present)

5. KOMANDIMET

www.aeg.com/productregistration

Illustration of a person holding up a blank board on an easel, with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a hand operating a workpiece (no text or symbols present)

Diagram of a mechanical component with a downward arrow and mounting holes (no text or symbols)

Diagram of a device casing with internal components and mounting holes, no text or symbols present

(3*) (4**)

(*) Type 20
(**) Type 15 - Type 20

Three technical diagrams showing a device's internal structure with hexagonal patterns, including a magnified inset of a mechanical component (no text or symbols present)

5. КОМАНДЕ

Illustration showing two hand positions: one using a tool to cut a component, the other holding a small object (no text or symbols present)

Mechanical component diagram showing a downward arrow mounted on a base plate (no text or symbols)

(2*)

Technical diagram of a mechanical housing or enclosure with internal components and mounting holes (no text or symbols)

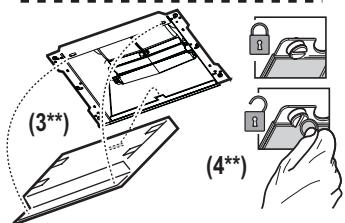

(3*) (4**)

(*) Type 20 (**) Type 15 - Type 20

.5. الأزرار

www.aeg.com/productregistration
