Brand	Beko
Model	FN129420
Product type	Freezer
Net capacity	Approximately 250 L (estimate)
Dimensions (H x W x D)	Approximately 180 x 60 x 65 cm (estimate)
Weight	Approximately 70 kg (estimate)
Power supply	220-240 V, 50 Hz
Climate class	SN, N, ST, T (according to label)
Refrigerant	R600A (flammable)
Quick freeze function	Yes, with indicator light, automatic cancellation after 34 h
Temperature setting	From -18 °C to -24 °C in steps
Energy saving mode (Eco-Fuzzy)	Yes, activates after 6 hours of operation
Control lock	Yes, simultaneous activation of 2 buttons
Freezer shutdown	Yes, press and hold the Setting button for 3 seconds
Ice maker	Yes, with ice cube tray and storage container
Maintenance and cleaning	Interior cleaning: warm water + baking soda; exterior: damp cloth
Child safety	Door lock (key out of reach of children)
Spare parts / repairability	10-year lifespan, parts available; repairs by authorized service only
Warranty	2 years (standard, check conditions)

Frequently Asked Questions - FN129420 BEKO

How to activate quick freeze?

Press the Quick Freeze button. The indicator lights up. The function deactivates automatically after 34 hours or manually by pressing the button again.

What is the temperature range of the freezer?

The freezer can be set from -18 °C to -24 °C in 2 °C steps using the adjustment button.

What does the energy saving light mean?

The light turns on when the temperature is set to -18 °C, indicating optimal operation to save energy.

How to lock the controls?

Press the Quick Freeze and Freezer Setting buttons simultaneously for 3 seconds. The lock icon lights up. To unlock, repeat the operation.

What to do if the door does not close properly?

Check that food or packaging is not blocking the closure. Ensure the refrigerator is level by adjusting the front feet. Clean or replace the gasket if necessary.

Why are there liquid or gas noises?

These noises are normal and come from the circulation of the refrigerant in the system. They are not a defect.

How to clean the interior of the freezer?

Unplug the appliance. Use a damp cloth with a solution of warm water and baking soda (1 teaspoon per 0.5 L water). Dry thoroughly.

What to do if the compressor does not start?

Wait about 6 minutes after a power cut for the pressure to equalize. If the problem persists, check the power supply and contact after-sales service.

Is it safe to freeze bottled drinks?

No, never place bottled or canned drinks in the freezer compartment as they may burst.

How long can I keep food in case of a power outage?

Generally, a full freezer keeps frozen food for about 24 hours if the door remains closed. Avoid opening the door frequently.

USER MANUAL FN129420 BEKO

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

Important information or useful usage tips. Warning against dangerous conditions for life and property. Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use 4

For products with a water dispenser;.6

Child safety. 6

HCA Warning 6

Things to be done for energy saving . 7

3 Installation 8

Points to be considered when re-transporting your refrigerator .8

Before operating your refrigerator ....8

Electric connection 8

Disposing of the packaging .8

Disposing of your old refrigerator .......9

Placing and Installation 9

Adjusting the legs 9

4 Preparation 10

5 Using your refrigerator 11

Indicator Panel. 11

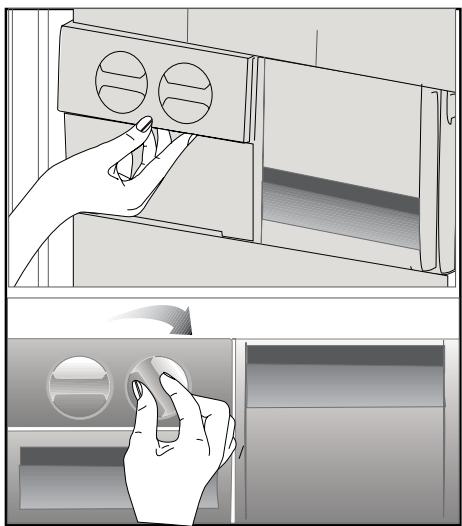

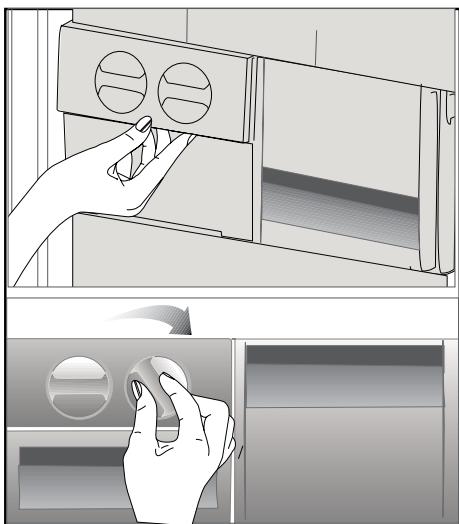

Icematic and ice storage container . 13

6 Maintenance and cleaning 14

Protection of plastic surfaces 14

7 Recommended solutions for the problems 15

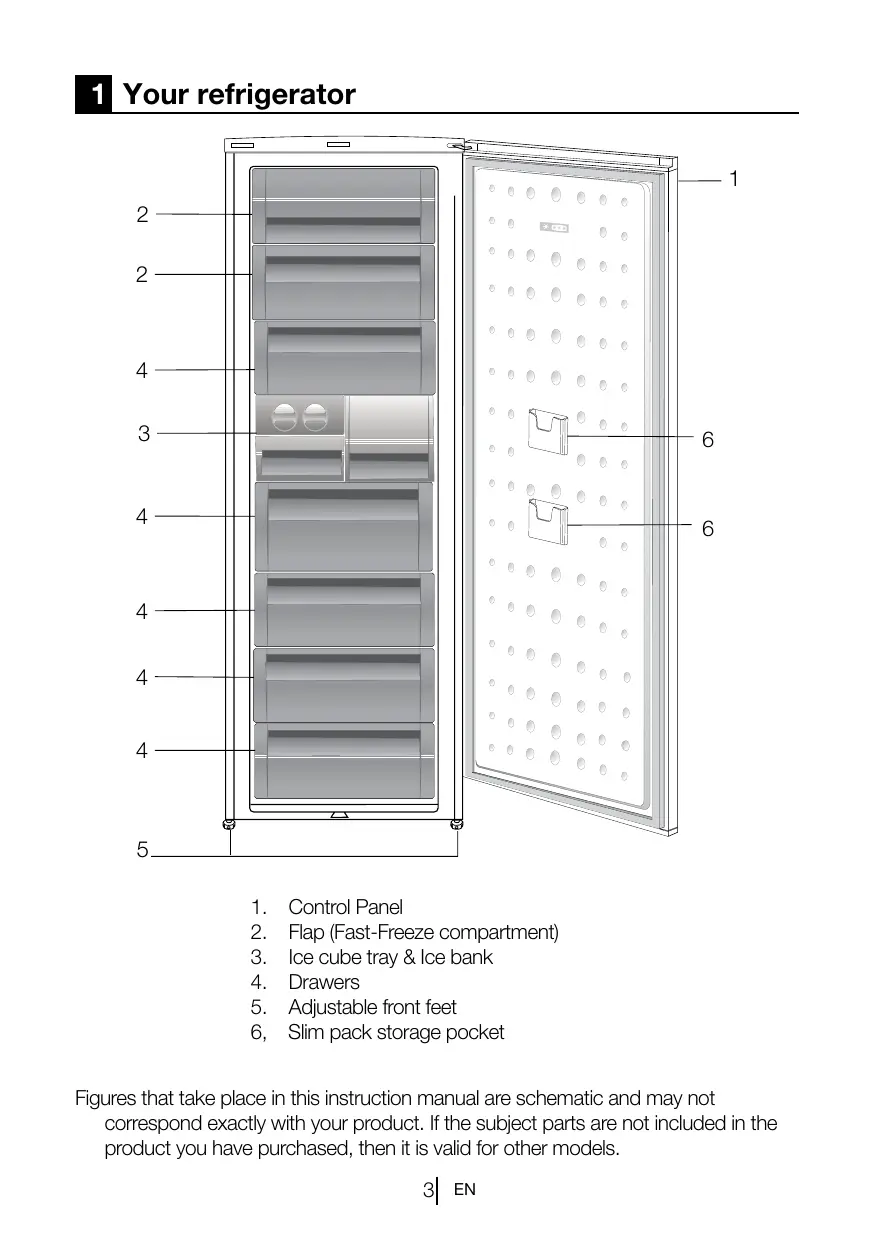

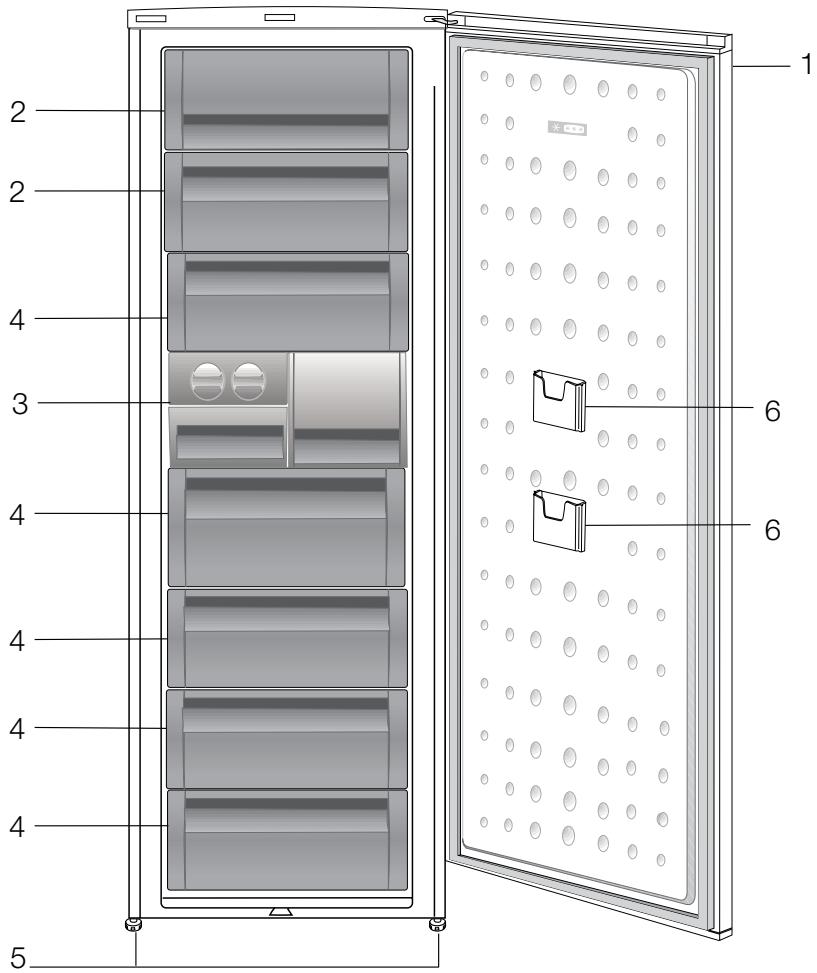

1. Control Panel
2. Flap (Fast-Freeze compartment)
3. Ice cube tray & Ice bank
4. Drawers
5. Adjustable front feet 6, Slim pack storage pocket

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

• indoors and in closed areas such as homes;
• in closed working environments such as stores and offices;
• in closed accommodation areas such as farm houses, hotels, pensions.
• This product should not be used outdoors.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.
• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause

frostbite in your mouth.)

• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.
• Do not touch frozen food with your bare hands; they may stick to your skin.
• Unplug your refrigerator before cleaning or defrosting.
• Never use steam or vaporized cleaning materials when cleaning or defrosting your refrigerator. In such cases, the vapor may come into contact with electrical parts and cause a short circuit or electric shock.
• Never use parts of your refrigerator, such as the door, as a support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the parts where the refrigerant circulates with drilling or cutting tools. If the gas channels of the evaporator, pipe extensions, or surface coatings are punctured, the refrigerant that may blow out can cause skin irritation and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Electrical devices must be repaired only by authorized persons. Repairs performed by incompetent persons create a risk for the user.
• In case of any failure or during maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.
• Do not pull the cable when pulling off the plug.
• Place beverages with higher alcohol content tightly closed and upright.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory, or mental disabilities, or by unlearned or inexperienced people (including children) unless they are supervised by a person responsible for their safety or who has instructed them on the proper use of the product.
• Do not operate a damaged refrigerator. If you have any concerns, consult the service agent.
• The electrical safety of your refrigerator is only guaranteed if the grounding system in your house complies with standards.
• Exposing the product to rain, snow, sun, or wind is dangerous with respect to electrical safety.
• Contact authorized service if the power cable is damaged to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended only for storing food items. It must not be used for any other purpose.
• The label with technical specifications is located on the left wall inside the refrigerator.
• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.
• If the refrigerator has a blue light, do not look at it with optical tools.
• For manually controlled refrigerators, wait at least 5 minutes before starting the refrigerator after a power failure. This operation manual should be handed over to the new owner of the product when it is transferred to others.

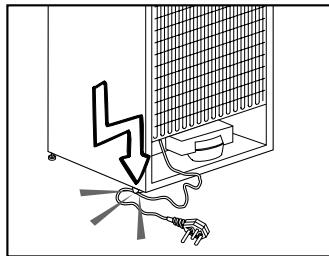

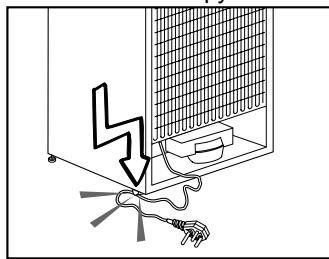

• Avoid damaging the power cable when transporting the refrigerator. Bending the cable may cause fire. Never place heavy objects on the power cable. Do not touch the plug with wet hands when plugging in the product.

• Do not plug the refrigerator into a loose wall outlet.
• For safety reasons, do not spray water directly on the inner or outer parts of the product.
• Do not spray substances containing flammable gases, such as propane, near the refrigerator to avoid the risk of fire and explosion.
• Never place containers filled with water on top of the refrigerator, as this may cause electric shock or fire.
• Do not overload your refrigerator with excessive amounts of food. If

overloaded, food items may fall and injure you or damage the refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, they may fall when you open or close the door.

• Vaccines, heat-sensitive medicines, scientific materials, and similar items should not be kept in the refrigerator, as they require precise temperatures.
• If the refrigerator will not be used for a long time, unplug it. A potential problem in the power cable may cause a fire.
• The plug's tip should be cleaned regularly; otherwise, it may cause a fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause a fire.
• The refrigerator may move if the adjustable legs are not properly secured on the floor. Properly securing the adjustable legs on the floor can prevent the refrigerator from moving.
• When carrying the refrigerator, do not hold it by the door handle. Otherwise, it may break.
• If you place your product next to another refrigerator or freezer, the distance between the devices should be at least 8 cm. Otherwise, adjacent side walls may become damp.

For products with a water dispenser:

The pressure of the water mains should be at least 1 bar and at most 8 bars.

• Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children. Children must be supervised to prevent them from tampering with the product.

HCA Warning If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator. Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation. 2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
2. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

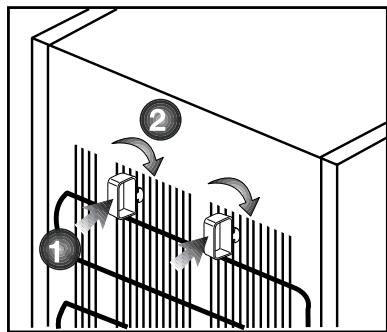

2. Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.) 3. Clean the interior of the refrigerator as

recommended in the "Maintenance and cleaning" section.

1. Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.
2. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
3. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket that is protected by a fuse with the appropriate capacity. Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician. The product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance

with the waste instructions. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

• You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the

floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

1. Place your refrigerator on an even floor surface to prevent jolts.
2. Do not keep your refrigerator in ambient temperatures under 10°C.

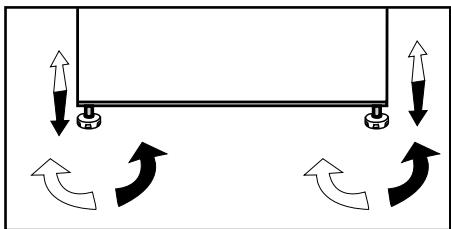

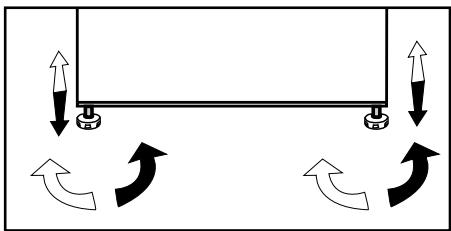

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

4 Preparation

i Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight. The ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency. Please make sure that the interior of your refrigerator is cleaned thoroughly. If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them. When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the "Recommended solutions for the problems" section.

Original packaging and foam materials should be kept for future transportations or moving.

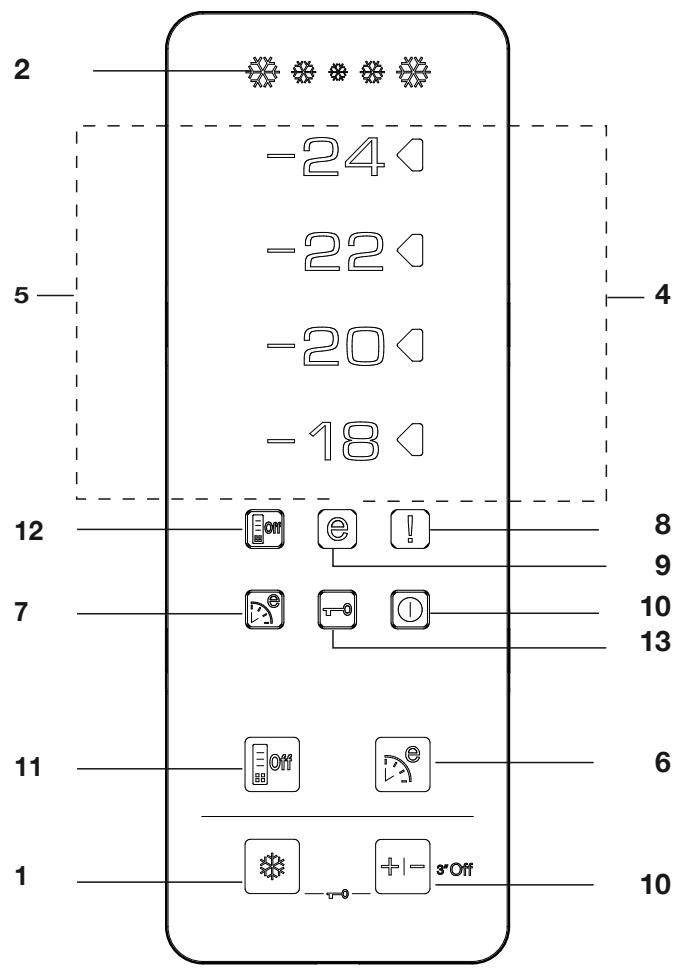

Indicator Panel

1. Quick Freeze Function:

Quick Freeze indicator turns on when the Quick Freeze function is on. Press QuickFreeze button again to cancel this function. QuickFreeze indicator will turn off and normal settings will be resumed. QuickFreeze function will be cancelled automatically 34 hours later if you do not cancel it manually.

If you want to freeze plenty amount of fresh food, press QuickFreeze button before you place the food into the freezer compartment. If you press the QuickFreeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

2. Quick Freeze Indicator

This icon flashes in an animated style when the QuickFreeze function is active.

3. Freezer Set Function:

This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to -18, -20, -22 and -24 respectively.

4. Temperature Setting Indicator

Setting indicator on the right hand side of the temperature value set by Freezer Set Function turns on and the other temperature setting indicators remain off.

5. Temperature Indicators:

-24, -22, -20 and -18 indicators light up continuously.

6. Eco-Fuzzy (Special Economic Usage) Function:

Press the Eco-Fuzzy button to activate the Eco-Fuzzy Function. The refrigerator will start operating in the most economic mode at least 6 hours later, and the economic usage indicator will turn on when the function is active. Press the Eco-Fuzzy button again to deactivate the Eco-Fuzzy function.

7. Eco-Fuzzy (Special Economic Usage) Indicator:

This icon lights up when the Eco-Fuzzy Function is active.

8. High Temperature/Error Warning Indicator:

This light comes on during high temperature failures and error warnings.

9. Economic Usage Indicator:

The Economic Usage Indicator turns on when the Freezer Compartment is set to -18°C.

10. Freezer Off Function:

Press the Freezer Set button for 3 seconds to activate the Freezer Off Function. The refrigerator stops cooling. All indicators except the Freezer Off on the display turn off. Buttons on the display do not function. Press the Freezer Set button for 3 seconds to cancel this function.

11. Energy Saving Function

When you press this button, the Energy Saving icon will light up and the Energy Saving Function will be activated. If the Energy Saving Function is active, all icons on the display other than the Energy Saving icon will turn off. When the Energy Saving Function is active, if any button is pressed or the door is opened, the Energy Saving Function will be exited and the icons on the display will return to normal. If you press this button again, the Energy Saving icon will turn off and the Energy Saving Function will not be active.

12. Energy Saving Indicator

This icon lights up when the Energy Saving Function is selected.

13. Key Lock Mode

Press Quick Freeze and Freezer Set buttons concurrently for 3 seconds. Key Lock icon will light up and key lock mode will be activated. Buttons will not function if the Key Lock mode is active. Press Quick Freeze and Freezer Set buttons concurrently for 3 seconds again. Key Lock icon will turn off and the Key Lock mode will be exited.

Iceumatic and ice storage container

Using the Icemic

• Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.
• Turn the knobs on it clockwise by 90 degrees.

Ice cubes in the cells will fall down into the ice storage container below.

• You may take out the ice storage container and serve the ice cubes.
• If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

6 Maintenance and cleaning

Never use gasoline, benzene or similar substances for cleaning purposes. We recommend that you unplug the appliance before cleaning. Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. Make sure that no water enters the lamp housing and other electrical items. If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar. Check door seals regularly to ensure they are clean and free from food particles. To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket. • Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree. • Decreasing the time the door left open or using it less frequently. • Covering the food stored in open containers with a suitable material. • Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period. • The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically. • Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket. • Are the temperature adjustments correctly made? • Power might be cut off.

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. • The ambient room temperature may be high. This is quite normal. • The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer. • Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature. • Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently. • Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed. • The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved. • Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level. • Doors might have been opened frequently or left ajar for a long time; open them less frequently. • Door might have been left ajar; close the door completely. • Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature. • The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

· The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

· The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level. · The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

· Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

· Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

· Hot and humid weather increases icing and condensation. It is normal and not a fault. · Doors might have been left ajar; make sure that the doors are closed fully. · Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

· There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

· Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water. · Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

· Food packages may prevent the door's closing. Replace the packages that are obstructing the door. · The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws. · The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

· The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Dear customer,

5. Temperature indicators:

-24, -22, -20 and -18 indicators light up continuously.

Adverse effect due to power supply.

13. Key lock mode

Electrical equipment, not included in the process of sorting household waste, represents a potential danger to the environment and health due to the presence of hazardous substances.

1 Description of the refrigerator 3

2 Important safety instructions 4

Intended use 4

Products with dispenser

Cooled water 6

Safety of children.. 6

Table of contents

Safety instructions 6

Energy saving recommendations 7

Installation 8

Transportation rules

of the refrigerator 8

Preparation for operation

Utilization of packaging

Utilization of the old refrigerator 9

Placement and installation

Adjustment of legs

4 Preparation 10

5 Operation of the refrigerator 11

Description of indicators 11

Storage container for food products...13

6 Maintenance and cleaning 14

Protection of plastic surfaces 14

7 Recommendations for troubleshooting 15

1. Draining.
2. Valve (quick freezing chamber)
3. Drip tray
4. Removable baskets
5. Adjustable front legs
6. Thin container for storage

The illustrations in this manual are schematic and may not correspond to your model. Some components that are not part of the product you purchased are used in other models.

2 Important safety instructions

Be sure to read the following information.

Failure to follow this information may result in injury or damage to property. In addition, warranty obligations and obligations regarding operational reliability will be void.

The service life of the product you purchased is 10 years. This is the period during which spare parts necessary for normal operation of the product are provided.

Purpose of the product

This product is intended for use

in enclosed spaces, for example, at home; in enclosed work areas, such as shops and offices; in enclosed living areas, such as holiday homes, hotels, and boarding houses. - This product is intended for use only indoors.

General safety rules

If it becomes necessary to dispose of the product or to obtain the necessary information, it is recommended to contact the manufacturer's service center, as well as local authorities. - For all questions regarding the product, contact the manufacturer's service center. Do not interfere with the operation of the product and do not allow others to do so without the knowledge of the manufacturer's service center.

For products with a freezer compartment: Do not eat ice cream in cones or cups immediately after removing them from the freezer compartment! (This can cause frostbite to the mouth.) For products with a freezer compartment: Do not place drinks in bottles and cans in the freezer compartment. They may burst. Do not touch frozen products - they may stick to your hands. - Disconnect the refrigerator from the power supply before cleaning or defrosting. Never use steam or aerosol cleaning agents to clean or defrost the refrigerator. In this case, steam may come into contact with electrical components, leading to a short circuit or electric shock. Never use the refrigerator or its parts (e.g., the door) as a support or base. Do not use electrical appliances inside the refrigerator. Do not damage the circuits in which the refrigerant flows, using sharp or drilling tools. The refrigerant may escape from a damaged evaporator, piping, or surface coating and cause skin irritation or eye damage. Never cover or block the ventilation openings of the refrigerator. - Electrical repairs must be carried out only by qualified specialists. Repairs carried out by incompetent persons can

create a danger for the consumer.

During operation, as well as during maintenance or repair, disconnect the refrigerator by switching off the corresponding circuit breaker or by pulling the power plug out of the socket. Do not pull on the power cord when unplugging. Strong alcoholic drinks should be stored in a tightly closed bottle and in an upright position. Do not store cans with flammable or explosive substances in the refrigerator. To speed up the defrosting process, do not use mechanical devices or other means, except those recommended by the manufacturer. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Never use a damaged refrigerator. If problems arise, contact a qualified specialist. Electrical safety is guaranteed only if the grounding system in your home complies with standards. Exposure of the device to rain, snow, sun or wind is dangerous from the point of view of electrical safety. In case of damage to the power cord, etc., contact the manufacturer's service center to avoid danger.

to avoid danger.

Never plug the refrigerator into a socket during installation. This can lead to serious injury or death. This refrigerator is intended only for storing food products. Do not use it for any other purposes. - The plate with technical characteristics is located on the inner wall of the refrigerator. Never connect the refrigerator to electronic energy-saving systems, as this can lead to its breakdown. - If there is a blue backlight in the refrigerator, do not look at it through optical devices. When disconnecting the refrigerator from the power supply with electronic control, wait at least 5 minutes before connecting it again. In case of product sale, these operating instructions should be handed over to the new owner. - When transporting the refrigerator, avoid damaging the power cord. A bent power cord can cause a fire. Do not place heavy objects on it. When connecting the refrigerator to the power supply, do not touch the plug with wet hands.

Never connect the refrigerator to a wall socket that is not properly grounded.

To avoid safety hazards, do not allow children to play on or inside the refrigerator. Do not spray flammable gases, such as propane, near the refrigerator, due to the risk of fire or explosion. Do not place containers of water on the refrigerator, as this may lead to electric shock or fire. Do not overload the refrigerator with products beyond measure. If the refrigerator is overloaded, products may fall out when the door is opened and injure you or damage the refrigerator. Do not place objects on the refrigerator, as they may fall when the door is opened or closed. Do not store substances that require specific temperature conditions in the refrigerator, such as medicines, thermosensitive medications, materials for scientific research, etc. The refrigerator should be disconnected from the power supply if it will not be used for an extended period. A faulty power cord may cause a fire. It is necessary to regularly clean the plug contacts of the power cord; failure to comply with this condition may lead to a fire. It is necessary to regularly clean the contacts and plug of the power cord with a dry cloth. Failure to comply with this rule may lead to a fire. The refrigerator may shift if the adjustable feet are not fixed on the floor. Fixing the adjustable feet on the floor will prevent the refrigerator from shifting.

The type of gas used in the appliance

is indicated on the rating plate located on the left side of the inner wall of the refrigerator. Do not dispose of the appliance in unsorted municipal waste.

Recommendations for energy saving

Do not leave the refrigerator door open for an extended period. Do not place hot foods or drinks in the refrigerator. Do not overload the refrigerator to avoid disrupting air circulation. Do not install the refrigerator in places where it is exposed to direct sunlight or near heat sources, such as stoves, dishwashers, or heating radiators. Make sure that containers with products are closed. For the freezer compartment: The freezer compartment of the refrigerator can hold the maximum amount of products if the shelves or drawers are removed. The energy consumption of the refrigerator, as indicated in the technical specifications, is determined under the condition that the shelves or drawers of the freezer compartment are removed and the maximum possible amount of products is loaded into it. The shelves and drawers can be used for freezing products according to their shape and size. Storing frozen products in the freezer compartment ensures energy savings and preserves the quality of the products.

Remember that the manufacturer is not responsible in case of failure to comply with the instructions provided in this manual.

Do not forget that...

Secondary use of materials is very important for preserving nature and national wealth.

If you decide to send packaging materials for recycling, contact the environmental protection organization or local authorities for information.

Preparation for operation

Before operating the refrigerator, perform the following actions.

1. Make sure the area around the refrigerator is dry and that air can circulate freely behind the refrigerator.
2. You can install two plastic spacers, as shown in the figure. The plastic spacers will ensure the necessary distance between the refrigerator and the wall for proper air circulation. (The image in the figure is for illustration only and does not exactly match your product.)

1. Clean the refrigerator according to the recommendations given in the "Maintenance and Cleaning" section. 4. CONNECT THE REFRIGERATOR TO THE ELECTRICAL OUTLET. WHEN THE REFRIGERATOR DOOR IS OPENED, THE INTERIOR LIGHT TURNS ON.
2. When the compressor starts, some noise may be heard. The refrigerant liquid inside the sealed cooling system may also make noise, regardless of whether the compressor is running, which is quite normal.
3. The front edges of the refrigerator may feel warm to the touch. This is normal. These areas are heated to prevent condensation.

Electrical Connection

Connect the refrigerator to a grounded outlet with a fuse of the appropriate rating.

Important Note

The connection must be made in accordance with local standards and regulations. - The location of the power cord connection to the outlet must be easily accessible. - The mains voltage must correspond to the data specified in the refrigerator's characteristics.

It is forbidden to use extension cords or multi-socket outlets during installation. A damaged power cord must be replaced by a qualified electrician. It is forbidden to use the appliance until it has been repaired! This may lead to electric shock.

Packaging Disposal

Packaging materials can be dangerous for children. Keep packaging materials out of reach of children or dispose of them, sorting them in accordance with waste disposal regulations. Do not throw them away with regular household waste.

The refrigerator packaging is made of materials that can be recycled.

Disposal of the Old Refrigerator

Information about the use of the device can be obtained from the official importer or from the waste collection point in your area.

Before using the refrigerator, you should cut the power cord and remove the locks on the doors (if any) to prevent dangerous situations for children.

Placement and installation

If the door of the room where the refrigerator will be installed is not wide enough, you can remove the refrigerator doors and bring it in sideways. To remove the doors, contact a qualified service center.

1. Install the refrigerator in a dry place for normal use. 2. The refrigerator should be installed in places protected from direct sunlight, away from heat sources and high humidity. 3. For more efficient operation, it is necessary to ensure good air circulation around the refrigerator.

If the refrigerator is installed under a ceiling, the minimum distance from the ceiling and walls must be at least 5 cm.

Protection of plastic surfaces

Therefore, the area of triangle OBC is equal to 1/2 times CO times BC, which is 1/2 times CD times 5.

Therefore, the area of triangle APQ is equal to the area of triangle AOB plus the area of triangle OBC.

(x t^2 + x)(1 - x) = x f'

Therefore, the area of triangle OBC is equal to the area of triangle COD plus the area of triangle BOC.

Therefore, the area of triangle OBC is equal to the area of triangle COD plus the area of triangle BOC minus the area of triangle BOC.

Therefore, the area of triangle ACD is equal to the area of triangle COD plus the area of triangle BDO minus the area of triangle CDO.

C

J 1

Therefore m = 3/11

Therefore m - 1 ≠ 0;

J 1

AaAsSASAS

.

()

45

jbi jdi d 10

4a12c1yblglgSgJgO

0i j 10dai d2j0 jui

jgai jia jia jia

jia jiaaba yjjgao jia jia jia jia jia

C. ①②③④⑤

C. 210 2²210 2² and the square number ( a² + 1) ( b² + 1) ( ab( a - 1) ( b² + 1) )

Jguaa 15

1234567890

J 45 gils

aia j

j jaiilw 5 g aaw j alal jiailw 5 Jda

cui 0o 000000000000000000000000000000000000

wJyL 2.5 a1s yly a

.

C 4

12

10 j 5

1

10 × 12 × 5 = 64

:

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 1

444444444444444444444444444

42 42

24-22-20-18

J 4

42

auii 15ac buaa ciu aie j j

42

aI aI g aI bI g aI

J 5

1-18 2-20 -22 -24

.

:0g slaaiol oaiu) gsl yas .6

Jec Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc Jc

J 1

Eco Fuzzy

Therefore, m = 3/11

Therefore, assume a_n = 1( 3n - 1) ( 3n + 5)

Therefore, S ΔOBC = S ΔABC + S_ΔBOC
