HCA93640BH - HCI91845 - Basket BEKO - Free user manual and instructions

Brand	BEKO
Model	HCA93640BH / HCI91845
Product Type	Extractor hood
Width	596 mm
Depth	410 mm
Height (min/max)	750 mm / 1080 mm
Power supply	220-240 V, 50 Hz
Motor power	210 W
Total power	216 W
Lighting	2 x 3 W (halogen)
Number of speeds	3 levels
Duct diameter	120 / 150 mm
Minimum distance from hob	65 cm
Filters	Aluminium filter (washable), charcoal filter (replaceable)
Special features	Delayed automatic shut-off (15 min), cooking zone lighting
Maintenance	Clean aluminium filters every 60 hours, replace charcoal filter every 6 months
Spare parts available	Filters, bulbs (10 years)
Colour	Grey (HCA93640BH)
Use	With or without exhaust duct

Frequently Asked Questions - HCA93640BH - HCI91845 BEKO

How to install the BEKO HCA93640BH hood?

Installation must be carried out by an authorised service agent. Prepare the location respecting a minimum distance of 65 cm between the bottom of the hood and the hob. Drill the suspension holes according to the template (10 mm and 6 mm drills), fix the wall plugs and screws, then hang the hood. Connect the exhaust duct (diameter 120/150 mm) or install a charcoal filter if using without duct.

What is the minimum distance between the hood and the hob?

The minimum distance between the lower surface of the hood and the upper surface of the cooker/oven must be at least 65 cm.

How to clean the aluminium filters?

Remove the filters by pushing the lock forward and lowering them. Wash them with a liquid detergent, rinse with water and dry. You can also wash them in the dishwasher. Reassemble once dry. Cleaning is recommended every 60 hours of operation.

When to replace the charcoal filter?

The charcoal filter should be replaced approximately every 6 months, depending on frequency of use and cooking style. Never wash this filter. It is fixed by turning the tabs after removing the aluminium filters.

How to activate the automatic shut-off function?

During operation, press one of the speed buttons (B, C or D) for more than 2 seconds. A 15-minute timer is displayed and the hood stops automatically after this time. The function deactivates if you change speed.

What type of bulb to use and how to replace it?

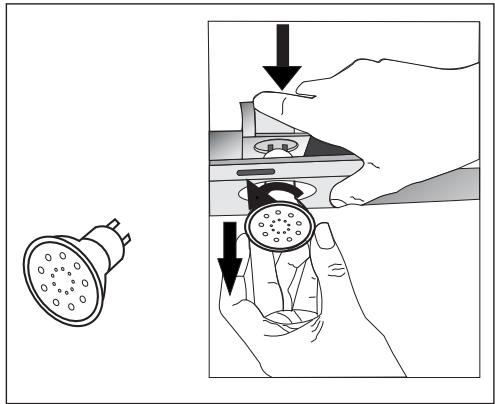

Use halogen bulbs of 3 W. To replace, unplug the appliance, press the bulb downwards to loosen it, turn it a quarter turn anticlockwise and remove it. Follow the reverse for the new bulb.

What to do if the hood does not work?

Check that the appliance is properly plugged in and that the fuse has not blown. Make sure the aluminium filters are in place. If the problem persists, contact an authorised service agent. Do not attempt to repair it yourself.

Can I use the hood without an exhaust duct?

Yes, by using a charcoal filter. In this case, remove the deflectors from the duct adapter and install the charcoal filter. The air is then filtered and recirculated into the room. The aluminium filters must always be in place.

How to adjust the extraction speed?

Use the buttons (A) for speed 1, (B) for speed 2, (C) for speed 3. Press once to turn on, a second time to turn off. Low speeds (1-2) are suitable for normal cooking, high speed (3) for intense odours and steam.

Where to find spare parts for my BEKO hood?

Original spare parts (filters, bulbs) are available for 10 years after purchase. Contact an authorised BEKO service agent or visit notice-facile.com for references.

USER MANUAL HCA93640BH - HCI91845 BEKO

Illustration of a kitchen range hood with three buttons (no text or symbols)

HCA63640B

HCA63640BH

HCA93640BH

DE

EN

ES

FR

PL

NL

CZ

IT

SL

SK

UA

RU

RO

(Abbildung 1)

Technical line drawing of a metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

1 x Kunststoffabzugadapter (∅ 120/150 mm)

Technical line drawing of a mechanical device with a central component and an inset showing a bracket detail (no text or symbols)

(Abbildung 3b)

Technical line drawing of a cabinet or enclosure with an inset showing a close-up of the top panel (no text or symbols present)

(Abbildung 6)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Abbildung 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Abbildung 10)

Hinweis:

Technical illustration of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

(Abbildung 11)

Achtung!

Hinweis:

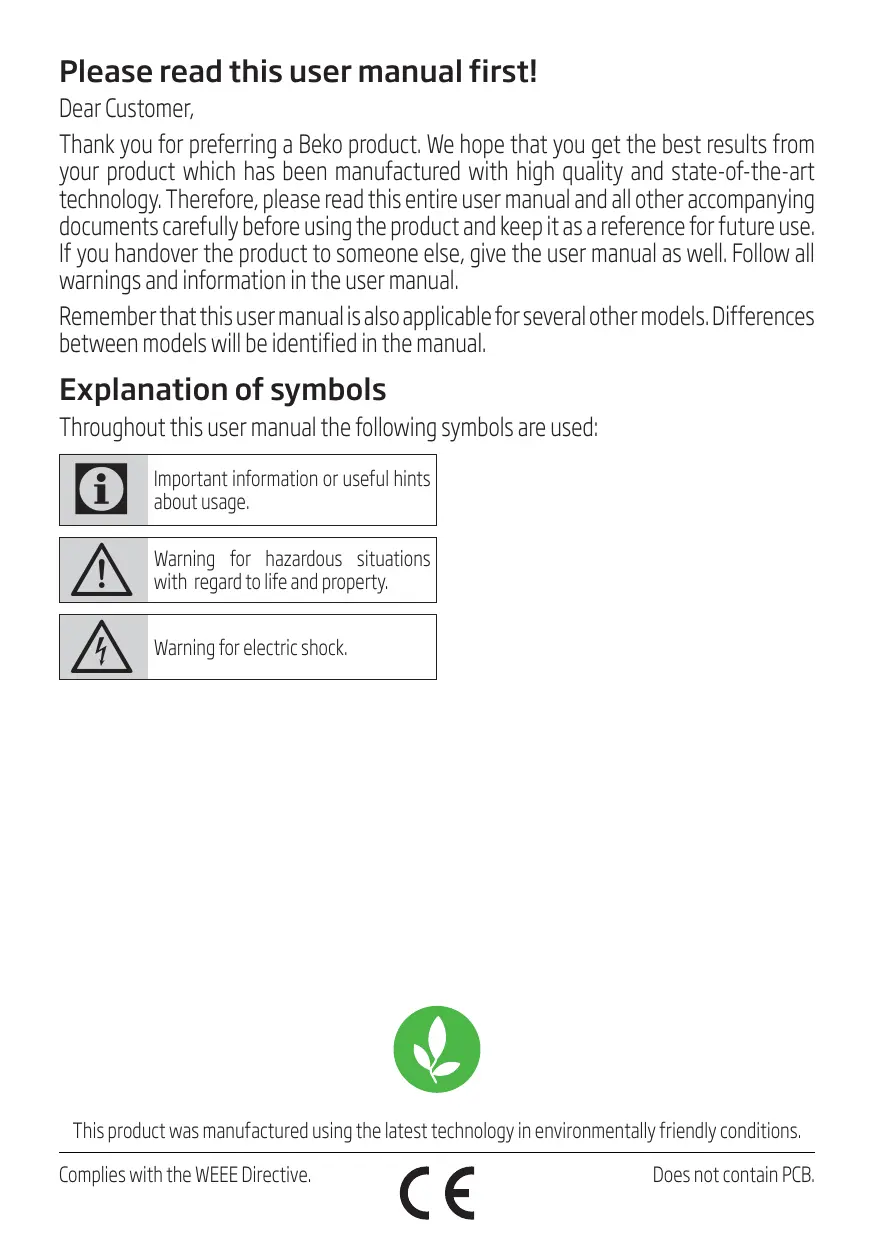

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning for electric shock.

This product was manufactured using the latest technology in environmentally friendly conditions.

1

Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. All warranties will become void if you do not follow these instructions.

1.1 General safety

• Always have the installation and repairing procedures carried out by the Authorised Service Agent. Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Children should be supervised to ensure that they do not play with the appliance.

1.1.1 Electrical safety

- Disconnect the product from the mains during installation, maintenance, cleaning and repairing procedures.

• If the power cable is damaged, it must be replaced by the manufacturer, after sales service or a similarly qualified person (preferably an electrician) or someone designated by the importer in order to avoid possible risks.
• Operating voltage is 220 to 240 volts.
• If the appliance has a failure, it should not be operated unless it is repaired by the Authorised Service Agent. There is the risk of electric shock!
• Do not route power cable close to hobs. Otherwise power cable may cause fire since it melts down easily.
• Never plug the hood before installation is completed.
• In order to obtain the best performance, external conductor must not be longer than 4 m. It must not contain more than 2 perpendicular (90°) angles and its diameter must be min. ∅120 mm.
• Disconnect the appliance before any intervention to the internal parts of the appliance.

1

Important instructions for safety and environment

1.1.2 Product safety

• You can use a pipe with a diameter of 120 mm or 150 mm on the flue connection of the hood.
• Do not make connections to the flues connected with stoves, exhaust shafts or flues with rising flames. Observe the rules set by authorities on the discharge of exhaust air.
• The height between the lower surface of the hood and upper surface of the stove/oven should not be less than 65 cm.
• Do not operate the hood without aluminum filters and do not remove the filters while it is operated.
• Never touch the hood's lamp after they operated for a long time. Hot lamps may burn your hand.
• Avoid big flames beneath the product. Otherwise, particles on oil filter may ignite and lead to a fire.
• Turn on the hobs after placing pans or pots on it. Otherwise, rising temperature may deform certain parts of your product.

• Turn off the hobs before taking away pans or pots.

• Avoid inflammable materials under the hood.

• Oil may ignite while frying foods. Therefore, be careful about cloths and curtains.
• Never leave the cooker unattended when frying foods; otherwise boiled oil may cause fire.
• There is the risk of fire if your hood is not cleaned in the specified periods.
• Be extremely careful and wear gloves when cleaning the hood.
• We advise you to operate the appliance a few minutes before starting to cook in order to increase the suction power. Thus, you shall have a continuous and stable suction power when the vapors arises.
• Operate your hood for 15 minutes more after the end of cooking or frying in order to remove smell cooking vapour in the kitchen.
• When the hood is in use, especially together with gas cookers, make sure that environment is ventilated with clean air.
• Pay attention not to connect the appliance to the flues used by non-electrical devices. (E.g.: Heater flue).

1

Important instructions for safety and environment

- When a non-electrical device is concurrently used in the same room together with the hood, the negative pressure in the room must be maximum 0.4 mbar in order to prevent hood from sucking other device's exhaust into the room.

1.1.3 Children's safety

• Packaging materials are dangerous to children. Keep packaging materials in a safe place out of reach of children.
• Electrical appliances are dangerous to children. Keep children away from the product. Do not allow children play with the appliance.

1.2 Intended use

• This appliance is intended for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• The manufacturer shall not be liable for any damage caused by improper use or handling.
• The period required for the availability of spare parts for the correct operation of the appliance is 10 years.

1.3 Compliance with WEEE regulation and disposal of the waste product

This product does not contain harmful and forbidden materials described in the "Directive on the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and Electronic

Equipment" (WEEE) issued by the T.R. Ministry of Environment and Urbanization.

Complies with the WEEE Directive.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products.

1.4 Package information

The product package is made of recyclable material as per the National Legislation. Do not dispose of the package waste together with the household

waste or other waste and deliver them to the package collection points indicated by the local authority.

2 Technical specifications of your appliance

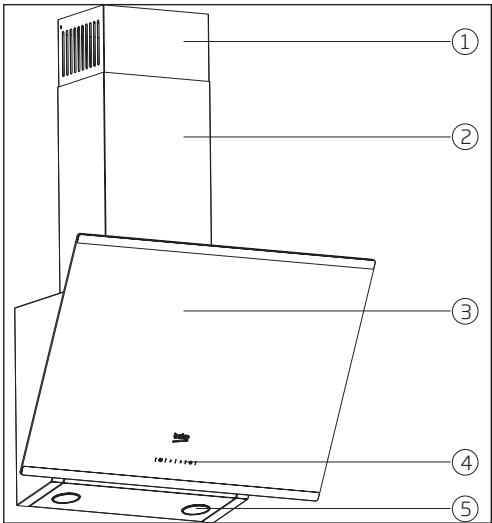

(Figure 1)

1. Internal flue
2. External flue
3. Glass cover
4. Control panel
5. Illumination

	HCA63640B	HCA63640BH	HCA93640BH
Width	596 mm	596 mm	596 mm
Depth	410 mm	410 mm	410 mm
Height	750 mm /1080 mm	750 mm /1080 mm	750 mm /1080 mm
Supply voltage	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz
Control	With 3 levels	With 3 levels	With 3 levels
Lamp power	2 x 3 W	2 x 3 W	2 x 3 W
Air outlet pipe	120 / 150 mm	120 / 150 mm	120 / 150 mm
Motor power	210 W	210 W	210 W
Total power	216 W	216 W	216 W
Colour	Black	White	Grey

Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. These values may vary depending on operational and environmental conditions of the product.

3 Installing your appliance

Please consult the nearest Authorised Service Agent for the installation of your hood.

*Preparation of location and electrical installation for the product is under customer's responsibility.

Caution!

Remove the protective film (if any) on the hood and flue surface after the installation.

(Figure 3b)

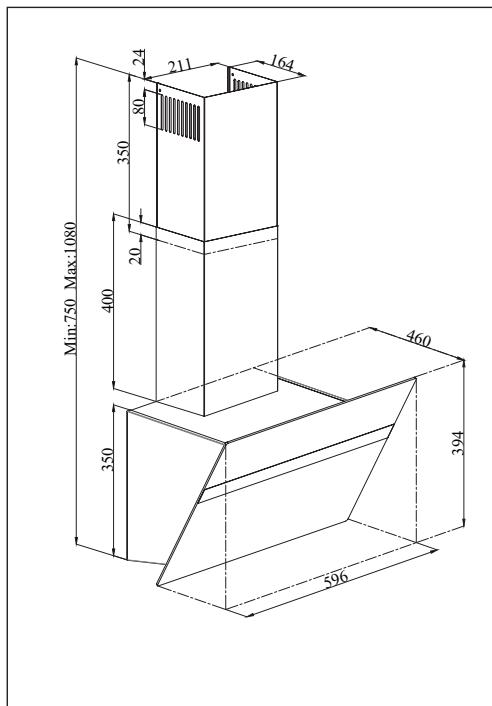

Distance between lower surface of the hood and upper surface of the hob should be at least 65 cm.

Have a qualified electrician make the electrical connection.

Install your appliance so that you can reach the power connection (plug, outlet) easily after installation.

Dimensions are given in mm.

3.1 Installation accessories

Line drawing of a metal bracket with two recessed slots (no text or symbols)

1 x flue connection plate

Simple line drawing of a conical object with three concentric rings (no text or symbols)

1 x ∅120/150 mm plastic flue adapter

3 Installing your appliance

Information required for the preparation of the installation place for your hood is given below.

3.2 Installing the hood onto the wall

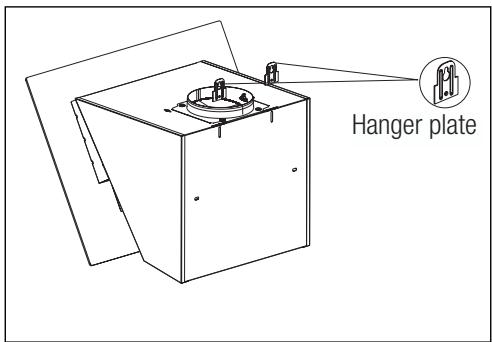

To install the hood onto the wall, loosen the screws of hanger plates on the motor housing and pull the plates upwards. Then, tighten the screws of the hanger plates. (Figure 3a).

If you will use ∅ 120 mm flue pipe, install ∅ 120 mm flue adapter onto it.

(Figure 3a)

(Figure 3b)

3 Installing your appliance

3.2.1 Boring the hanger holes

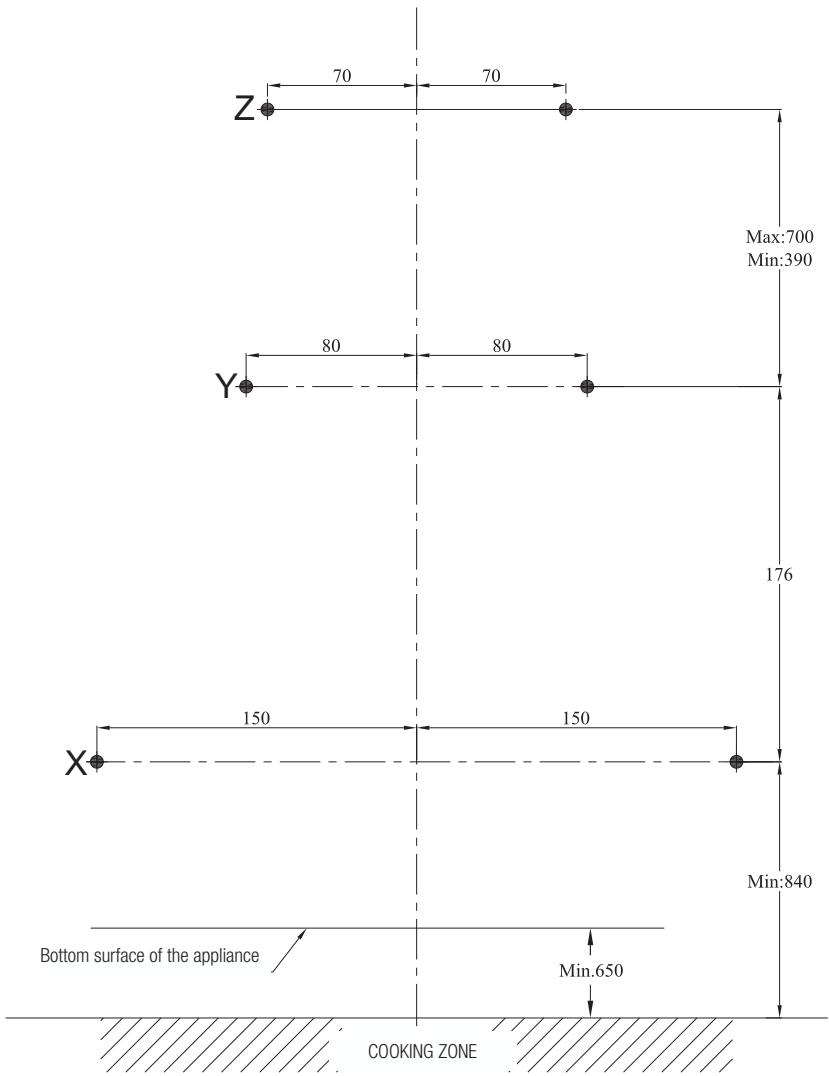

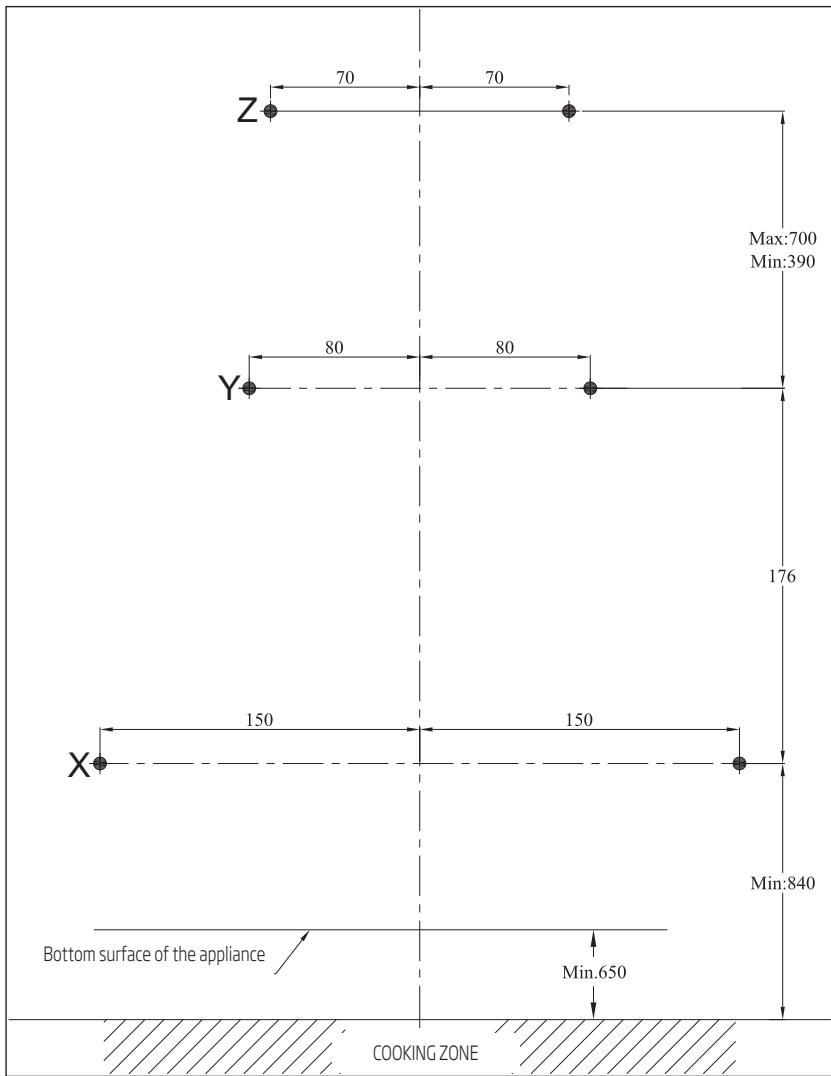

Affix the installation template onto the installation place of the hood. Drill the points market with (X,Y) (Figure 4) using a ∅ 10 mm bit and points market with (Z) (Figure 4) using a ∅ 6 mm bit.

(Figure 4)

3 Installing your appliance

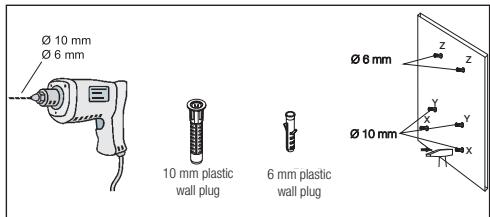

3.2.2 Hammering the wall plugs

Hammer ∅ 10 mm wall plugs (X,Y) into the holes drilled for hanger screws. Hammer 2 x ∅ 6 mm wall plugs (Z) into the holes drilled with a ∅6 mm bit for the external flue connection plate. (Figure 5)

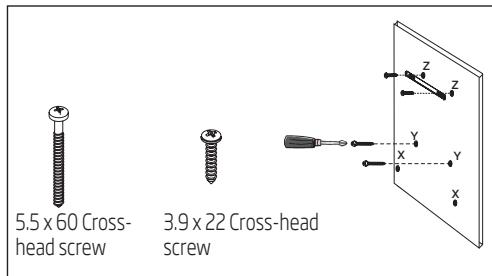

3.2.3 Installing the hanger screws

Install 5.5x60 hanger screws into the ∅ 10 mm wall plugs (Y) you have hammered into the wall. There must be a gap of 5 mm between the screw head and the wall. (Figure 5)

Connect the internal flue connection plate to the 6 mm wall plugs (Z) on the wall using ∅ 3.9x22 screws. (Figure 5)

(Figure 5)

3.2.4 Hanging the hood onto the wall

• Hang the hood onto the screws you have installed into the Y holes.
• Open the side suction window of the hood by pulling it towards yourself. Install the 5.5x60 screws through the X holes located inside in order to secure the appliance.

3 Installing your appliance

3.3 Installing the hood flue

Disconnect the product from mains supply before starting flue installation. Fit the sheet metal flue parts around the body.

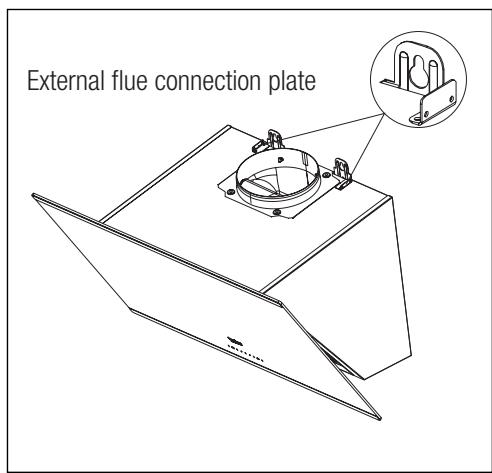

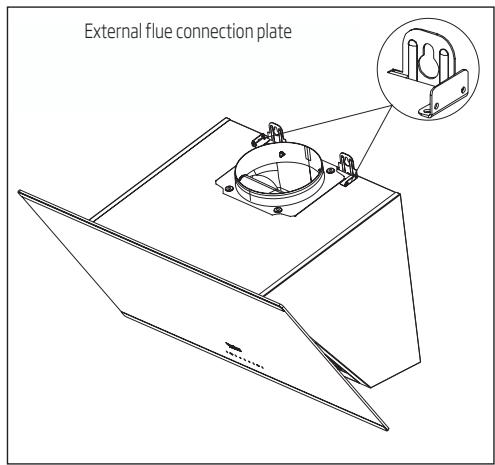

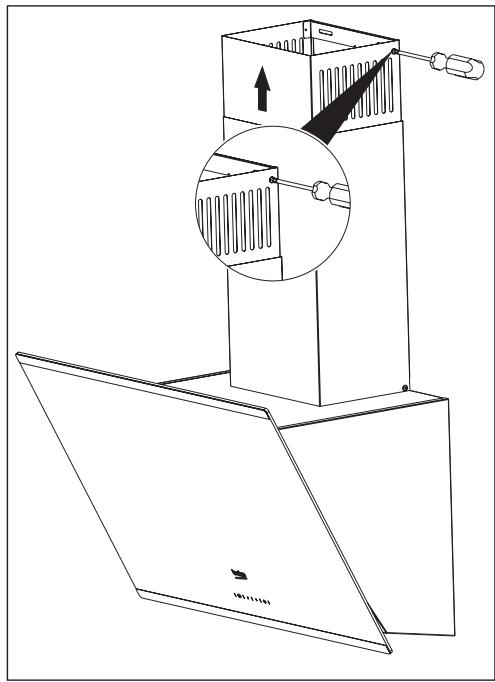

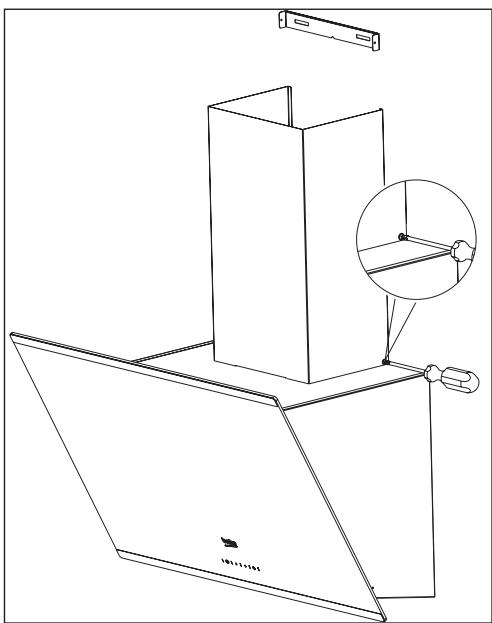

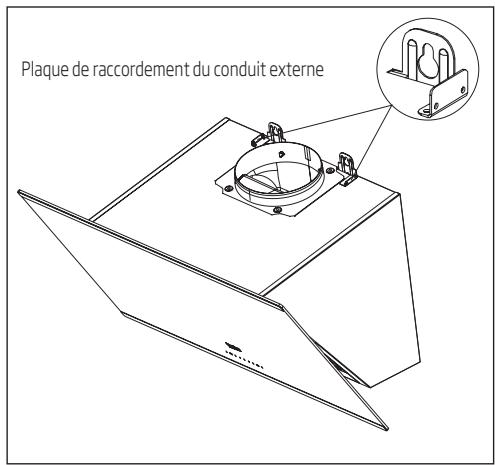

Screw the external flue to the external flue connection plates located on the motor housing. (Figure 3b / 6)

Technical line drawing of a cabinet with an open lid and a magnified inset showing internal components (no text or symbols)

(Figure 6)

Extend and screw the internal flue from its outer edges onto the flue connection plate which was secured to the wall (Figure 7).

Technical line drawing of a mechanical device with an inset showing a magnified view of internal components (no text or symbols)

(Figure 7)

3 Installing your appliance

3.4.1 Using with flue connection

• The vapour is removed via flue pipe which is secured to the connection head on the hood.
• Diameter of the flue pipe should be equal to the diameter of connection ring. To allow the air be removed easily out of the room in horizontal arrangements, the pipe should be slightly tilted upwards (approximately 10^ ).

3.4.2 Using without flue connection

• Air is filtered by the carbon filter and returned to the room. Carbon filter is used when there is no flue in the house.
• if the hood will be used without flue connection remove the diverters inside the flue adapter.

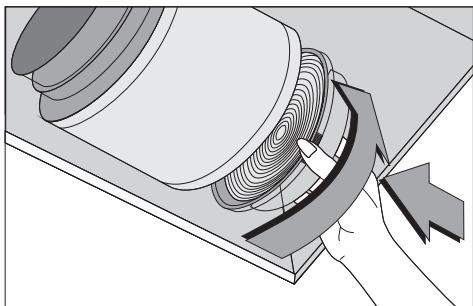

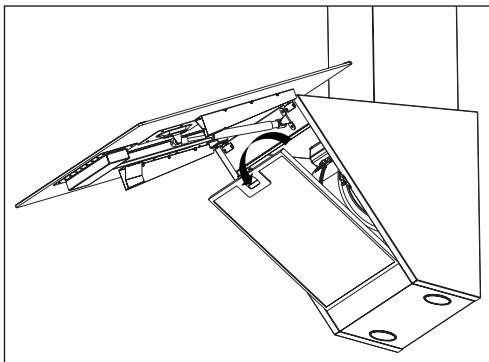

• Remove the aluminum filter. To install the carbon filter, center the carbon filter on the plastic part on both sides of the fan body, and secure it on the tabs. Secure the filter by turning the tabs to right or left.
  • Install the aluminum filter.

3.5 Flue connection:

Place adapter supplied together with the hood into the ventilation hole located on the top section of the hood. Procure a pipe with a diameter of 120/150 mm. Connect one end of the pipe to the adapter and the other end to the flue.

Make sure that these two connections are secure enough

so that they will not dislocate when the hood is operated in max. speed. Check that the flaps inside flue are functional when tightened with the clamp. Fit the flue connection pipe onto the adapter. If you fit the flue connection pipe inside the adapter, air suction will not occur since the flaps that prevent air backflow will remain closed.

It is not advisable to make connections to the flues connected with stoves or exhaust shafts. Do not make connections to such flues.

Pipe connection must be as short as possible and have minimum number of elbows.

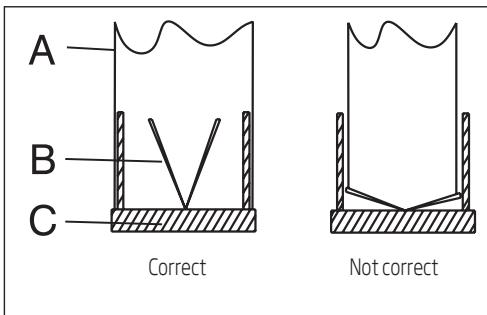

A: Flue outlet pipe

B: Flaps that prevent backflow

C: Plastic flue

3.5.1 Backflow prevention system (N-RV)

When the hood is operated, flaps are closed in order to prevent possible odours and dust from entering into the ambient from outside.

(Figure 7)

4 Operating your appliance

(Figure 8)

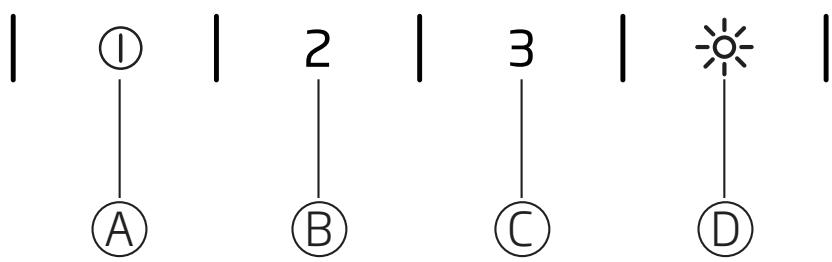

(A): 1st level key
(B): 2nd level key
(C): 3rd level key
(D): Light On / Off key

4.1 Digital electronic control with 3 levels

(A) You can start your hood at speed level 1 by pressing this key.

When you press this key again to switch off the appliance, speed level indication on the display disappears.

(B) key: You can start your hood at speed level 2 by pressing this key.

When you press this key again to switch off the appliance, speed level indication on the display disappears.

(C) key: You can start your hood at speed level 3 by pressing this key.

When you press this key again to switch off the appliance, speed level indication on the display disappears.

(D) key: Light On/Off Key: You can illuminate the cooking area by pressing this key.

Auto-stop in 15 min.:

This appliance is equipped with an Auto-Stop function which allows the appliance to ventilate the room for an additional period of time in order to remove the unpleasant odour and vapour in the room after the cooking is over. Appliance stops automatically after a certain period of time.

To enable the Auto-stop function, press any of the speed level keys (B, C, D) on the control for longer than 2 seconds. A timer with 15 minutes will be activated.

If you press the same speed level key while the Auto-stop function is enabled, function will be disabled and the appliance will stop.

If you select a different speed level this function will be disabled.

If you want your appliance to stop automatically, you must enable the Auto-stop function again.

Periodical cleaning of metal filters:

Filters must be cleaned at about every 60 hours of operation or 4 weeks depending on the frequency of usage.

4 Operating your appliance

4.2 Energy efficient usage:

• When operating the hood, adjust the speed level according to the odour and vapour intensity in order to prevent unnecessary power consumption.
• Use low speeds in normal conditions (1-2), and high speed (3) when smell and vapors are intensified.
• Lights on the hood are intended for illuminating the cooking zone.

Using them to illuminate the ambient/kitchen will result with unnecessary power consumption and inadequate illumination.

4.3 Operating the hood:

• Hood is equipped with a motor having various speed settings.
• For a better performance, we advise you to use low speeds in normal conditions, and high speeds when smell and vapors are intensified.
• You can start the hood by pressing the desired speed level key (B,C,D).
• You can illuminate the cooking area by pressing the light key. (A)

5 Cleaning and maintenance

Prior to cleaning and maintenance, unplug the appliance or turn the main switch off or loosen the fuse that supplies the hood.

5.1 Aluminum filter

This filter captures oil particles in the air. You are recommended to clean your filter every month under normal usage conditions. First remove the aluminum filters for this process. Wash the filters with liquid detergent and rinse them with water and install them back after they get dry. Aluminum filters may get discolored as they are washed; this is normal and you don't need to change your filter.

5.1.1 Removing the aluminum filters

1. Push the aluminum filter lock forward.
2. Then, slightly lower it and pull forward. Otherwise, you may bend the filter. (Figure 9) After the aluminum filter is washed and dried, reinstall the filter to its slot by applying above steps in reverse order.

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figure 9)

Note:

You can also wash aluminum filters in dishwasher.

Carbon filter (Using without flue)

This filter removes the cooking odours. If it is not possible to use a flue, it purifies the air which is circulated inside the kitchen. Carbon filter of your appliance will get clogged in time depending on the frequency of use, style of cooking and regular cleaning of the aluminum filters.

Caution!

Carbon filter should never be washed.

You may obtain carbon filters from Beko Authorised Service Agents.

5.2.1 Replacing the carbon filter

• Remove the aluminum filters. (Figure 9)
• To remove carbon filter, turn the tabs counterclockwise and release the filter. (Figure 10)
  • Install the new carbon filter.
  • Install the aluminum filters.

Technical illustration of a mechanical assembly with curved components and directional arrows (no text or symbols)

(Figure 10)

Anti-odor filters contain charcoal (active carbon). They must be changed with periods of approximately 6 months.

Regardless of using a carbon filter or not, aluminum filters must always be installed.

Do not operate your appliance without the aluminum filter in place. Using with carbon filter will decrease suction performance of the appliance.

5 Cleaning and maintenance

5.3 Cleaning

Particularly do not neglect to clean your hood immediately after you have made frying.

Use a soft cloth soaked with liquid detergent to clean the outer surface of your hood.

Never use abrasive or scratching materials for cleaning.

You may use the cleaning agents commercially available for persistent grease etc. by following the warnings on the product. In order not the scratch the brushed steel body, wipe in the same direction with the bush trace.

Do not use cleaning agents containing hydrochloric acid, bleach or abrasive powders in order to maintain the surface quality of your product. Use a cloth dampened in soapy water or special stainless steel cleaning spray for stainless steel steel surfaces. Remove the protective foil on the appliance.

Caution!

You may cause a fire if you do not follow the instructions on the cleaning and replacement of the filters of your hood.

If you need to transport the appliance:

- Keep the original packaging of the appliance. Transport the appliance with its original package, and follow the transport markings on the original package.

If you do not have the original package:

• Do not place any objects on the hood.
• Protect the outer surface from impacts.
• Pack the appliance so that it would not be damaged during transport.

5.4 Replacing the lamps

Disconnect the hood from the mains supply.

This appliance is equipped with 3 W halogen lamps.

To replace the halogen lamps, press the lamp downwards from the rear section of the lamp holder to release the lamp. Then turn it counterclockwise by 1/4 tour and remove it.

Perform the above steps in reverse order to fit the new lamps.

Note:

You may procure lamps from Authorised Service Agents.

Atención:

Line drawing of a metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Technical line drawing of a cabinet or enclosure with an inset showing a close-up of the top panel (no text or symbols present)

(Figura 6)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Figura 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figura 9)

Nota:

Technical illustration of a mechanical assembly with a rotating component and a curved arrow indicating motion (no text or symbols)

(Figura 10)

Atención:

Nota:

(Figure 1)

Technical line drawing of a metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

(Figure 3a

Technical line drawing of a cabinet with an inset showing a close-up of the top panel (no text or symbols present)

(Figure 6)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Figure 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figure 10)

Remarque :

Technical illustration of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

(Figure 11)

Remarque :

(Rysunek1)

Technical line drawing of a rectangular metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Technical line drawing of a mechanical assembly with a box, clamping tool, and housing (no text or symbols)

(Rysunek 7)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Rysunek 8)

3 Montaż okapu

Technical line drawing of a mechanical assembly with no visible text or symbols

(Rysunek 11)

Uwaga:

Technical illustration of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

(Rysunek 12)

Ostrzeżenie!

Uwaga:

(Afbeelding 1)

1. Intern rookkanaal
2. Extern rookkanaal
3. Glazen kap
4. Bedieningspaneel
5. Verlichting

	HCA63640B	HCA63640BH	HCA93640BH
Breedte	596 mm	596 mm	596 mm
Diepte	410 mm	410 mm	410 mm
Hoogte	750 mm /1080 mm	7750 mm /1080 mm	750 mm /1080 mm
Stroomvoltage	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz	220 - 240 V, 50 Hz
Bediening	Met 3 standen	Met 3 standen	Met 3 standen
Lampvermogen	2 x 3 W	2 x 3 W	2 x 3 W
Luchtuitlaatpijp	120 / 150 mm	120 / 150 mm	120 / 150 mm
Motorvermogen	210 W	210 W	210 W
Totaal vermogen	216 W	216 W	216 W
Kleur	Zwart	Wit	Gray

Technical line drawing of a mechanical bracket or support plate (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Technical line drawing of a mechanical assembly with a box and bracket, showing no text or symbols

(Afbeelding 5)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Afbeelding 6)

3 Uw apparaat installeren

5.1 Aluminium filter

Technical line drawing of a mechanical assembly with no visible text or symbols

(Afbeelding 9)

Opmerking:

U kunt de aluminium filters ook in de vaatwasmachine wassen.

Technical illustration of a mechanical assembly with curved components and directional arrows (no text or symbols)

(Afbeelding 10)

Waarschuwing!

Opmerking:

(Obrázek 1)

Isometric line drawing of a metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Technical line drawing of a cabinet or enclosure with an inset showing a close-up of the top panel (no text or symbols present)

(Obrázek 6)

Technical line drawing of a kitchen fan with an inset showing internal components (no text or symbols)

(Obrázek 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Obrázek 10)

Poznámka:

Technical illustration of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

(Obrázek 11)

Poznámka:

(Figura 1)

Attenzione!

Simple line drawing of a metal bracket with two side slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Technical line drawing of a cabinet or enclosure with an inset showing a close-up of a component (no text or symbols present)

(Figura 6)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Figura 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a mechanical assembly with curved arrows indicating motion or force direction (no text or symbols)

(Figura 11)

Nota:

(Slika 1)

Simple line drawing of a metal bracket with two side slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

(Slika 3a)

Če ima cev za dimni plin premer ∅ 120 mm, namestite vmesnik ∅ 120 mm.

(Slika 4)

(Slika 5)

3.2.4 Obesiti napo na steno

• Napo obesite na vijaka, ki ste ju namestili v luknji Y.
• Odprite stransko sesalno okno na napi tako, da ga potisnete proti sebi. Namestite vijaka 5.5x60 skozi odprtini X na notranji strani, tako da ju pri-trdite na napravo.

Technical line drawing of a mechanical assembly with a box, bracket, and mounting bracket (no text or symbols)

(Slika 6)

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Slika 7)

Technical line drawing of a mechanical assembly or mounting bracket (no text or symbols)

(Slika 10)

Opomba:

Technical illustration of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

(Slika 11)

V filtrih, ki očistijo vonje, je oglje (aktivni ogljik). Filtre je treba menjati približno na 6 mesecev. Tudi će ogljikovega filtra ne uporabljate, obvezno namestite aluminijasta filtra.

Opomba:

Svetilke nabavite na pooblaščenem servisu.

(obrázok 1)

Line drawing of a rectangular metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a cylindrical object with concentric rings (no text or symbols)

Technical line drawing of a mechanical assembly with a box, clamped parts, and a magnified inset showing a detail (no text or symbols)

(obrázok 6)

Technical line drawing of a mechanical device with an inset showing a magnified view of internal components (no text or symbols)

(obrázok 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(obrázok 10)

Poznámka:

Technical illustration of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

(obrázok 11)

Illustration of hands using a tool to adjust a circular component with arrows indicating downward motion (no text or symbols)

Poznámka:

(Рисунок 1)

Technical line drawing of a metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

Technical line drawing of a cabinet with an inset showing a close-up of the top panel (no text or symbols present)

(Рисунок 5)

З Установка приладу

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(Рисунок 6)

Simple line drawing of a mechanical or structural component with no text, numbers, or symbols.

Неправильно

(Рисунок 7)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Рисунок 9)

Примітка:

Technical illustration of a mechanical assembly with curved components and a hand holding a tool (no text or symbols)

(Рисунок 10)

Увага!

Примітка:

(Рисунок 1)

Technical line drawing of a metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a conical object with three concentric rings (no text or symbols)

Technical line drawing of a cabinet or enclosure with an inset showing a close-up detail (no text or symbols)

(рисунок 6).

3 Установка прибора

Technical line drawing of a mechanical device with an inset showing internal components (no text or symbols)

(рисунок 7)

Simple line drawing of a mechanical or structural component with no text, numbers, or symbols.

Неправильно

(рисунок 8)

Technical line drawing of a mechanical assembly with no visible text or symbols

Рисунок 10

Примечание.

Technical illustration of a mechanical assembly with curved arrows indicating motion or force direction (no text or symbols)

Рисунок 11

5

Чистка и уход

Illustration of hands using a tool to adjust a circular component with holes, showing motion arrows (no text or symbols)

Примечание.

(Figura 1)

Technical line drawing of a metal bracket with two recessed slots (no text or symbols)

Simple line drawing of a three-tiered cylindrical object (no text or symbols)

1 x adaptor evacuare din plastic ∅120/150 mm

Technical line drawing of a cabinet with an inset showing a close-up of the top panel (no text or symbols present)

(Figura 6)

Technical line drawing of a kitchen fan with an inset showing internal components (no text or symbols)

(Figura 7)

3.4.1 Utilizarea cu racord de evacuare

Simple line drawing of a mechanical or structural component with no text, numbers, or symbols.

Incorrect
(Figura 8)

Technical line drawing of a mechanical assembly with no visible text or symbols

(Figura 10)

Notă:

Technical illustration of a mechanical assembly with a rotating component and a curved arrow indicating motion (no text or symbols)

(Figura 11)

Notă:
