212042.01.001 - Electric cooking appliance PRINCESS - Free user manual and instructions

Product type	Soup robot (Electric cooking appliance)
Brand	PRINCESS
Model	212042.01.001
Power supply	220-240 V ~ 50/60 Hz
Cooking programmes	3 programmes: heating + blending, heating only, blending only
Operating time	Heating + blending: approx 25 min; Heating only: approx 35 min; Blending only: approx 60 sec
Bowl capacity	Between min and max level indicators (capacity not specified)
Blade material	Stainless steel, very sharp
Overflow sensor	Yes
Heating plate	Integrated
Level indicators	Minimum and maximum on the pot
Handle	Ergonomic on the pot
Safety	Automatic stop at end of cycle; do not use with empty pot; overheat protection (motor stops)
Cleaning the motor unit	Clean with a soft, damp cloth, do not immerse
Cleaning the pot	Wash the inside with running water using a soft brush; do not put in dishwasher
Cleaning the blade	Under running water, be careful of cuts
Maintenance	Regularly check for damage; dry thoroughly after cleaning
Use	Domestic, indoor only

Frequently Asked Questions - 212042.01.001 PRINCESS

How to start a programme?

Select the programme using the selection button (12) then press the start/stop button (11) to start. The corresponding indicator lights up.

What are the available programmes?

Three programmes: Heating + blending (approx 25 min), Heating only (approx 35 min), Blending only (approx 60 sec).

Can I use the appliance without ingredients?

No, never power on the appliance if the pot is empty. This could damage the appliance.

How to clean the blade?

Clean the blade under running water. Caution: it is very sharp. Handle with care.

Can I put the pot in the dishwasher?

No, the pot and accessories are not dishwasher safe. Wash them by hand with a soft brush.

What to do if the motor stops during use?

Immediately turn off the appliance and unplug it. Let it cool before using again. Check the ingredient level (between min and max).

How to know if the programme is finished?

The appliance beeps and the programme indicator flashes. Press the start/stop button to confirm.

Can the appliance be used by children?

Yes, from 8 years old under supervision. Children must not play with it. Cleaning by children under 8 is prohibited.

Can I add ingredients during cooking?

It is not recommended to open the lid during operation. Wait until the end of the cycle or interrupt the programme before adding ingredients.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, an authorized repairer or a qualified person.

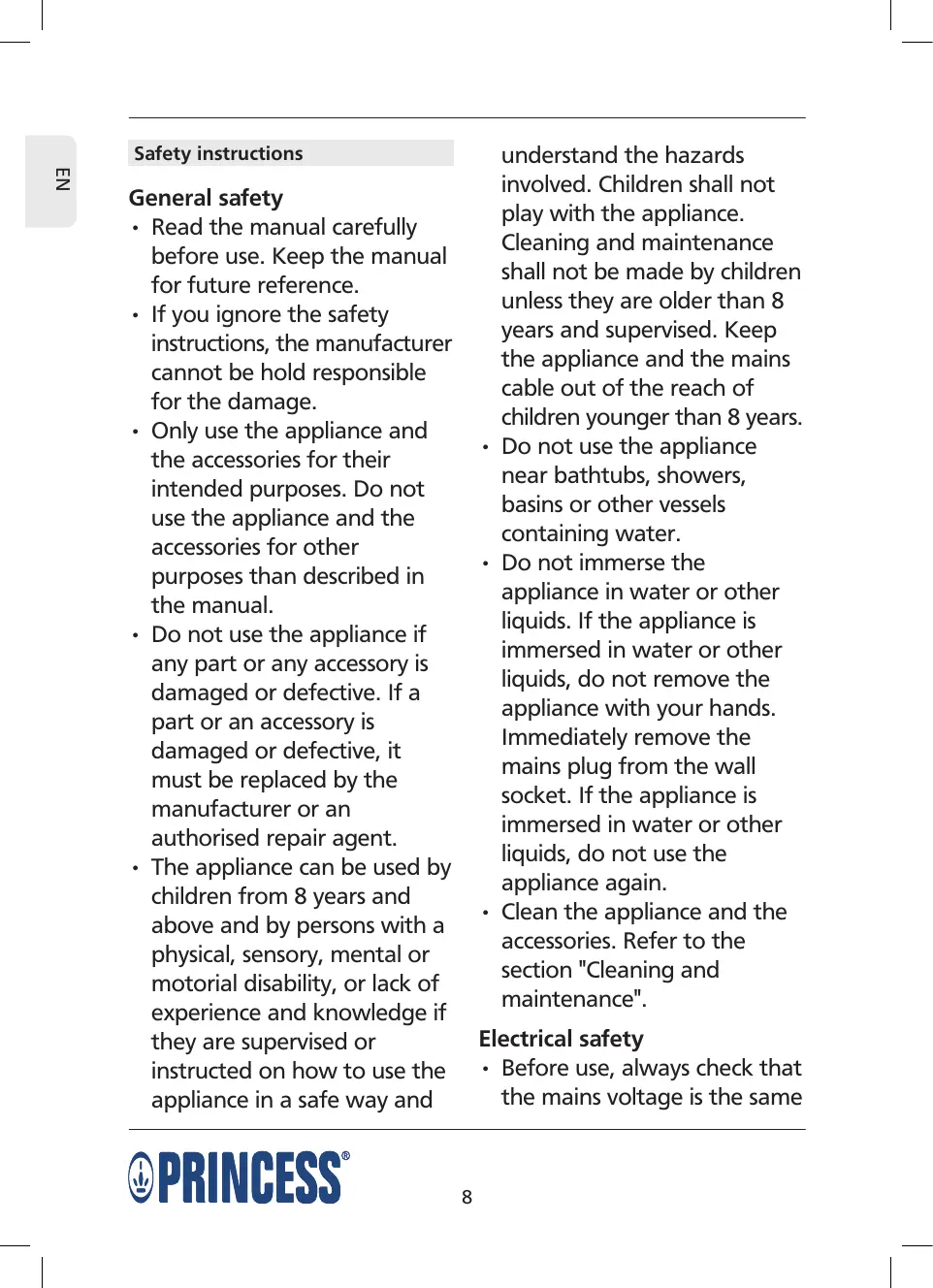

USER MANUAL 212042.01.001 PRINCESS

• Read the manual carefully before use. Keep the manual for future reference.
• If you ignore the safety instructions, the manufacturer cannot be hold responsible for the damage.
• Only use the appliance and the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual.
• Do not use the appliance if any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
• The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years.

• Do not use the appliance near bathtubs, showers, basins or other vessels containing water.
• Do not immerse the appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.
• Clean the appliance and the accessories. Refer to the section "Cleaning and maintenance".

Electrical safety

• Before use, always check that the mains voltage is the same

as the voltage on the rating plate of the appliance.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Connect the appliance to an earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 × 1 ~mm^2 ).
• For additional protection, install a residual current device (RCD) with a rated residual operating current that does not exceed 30mA .
• Do not immerse the connector in water or other liquids.
• Make sure that water cannot enter the contact plugs of the mains cable and the extension cable.
  Always fully unwind the mains cable and the extension cable.
• Make sure that the mains cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.
• Keep the mains cable away from heat, oil and sharp edges.
• Do not use the appliance if

the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.

• Do not pull the mains cable to disconnect the mains plug from the mains.
• Disconnect the mains plug from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance.

Safety instructions for soup makers

• The appliance is suitable for domestic use only.
• Do not use the appliance outdoors.
• Place the appliance on a stable and flat surface.
• Place the appliance on a heat-resistant and splashproof surface.
• Make sure that there is sufficient space around the appliance to allow heat to escape and provide sufficient ventilation.

• Do not cover the appliance.

• Make sure that the appliance does not come into contact with flammable material.

• Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.
• Do not use the appliance with an empty jug.
• Always mount the motor unit before switching on the appliance.
• Make sure that your hands are dry before touching the appliance.
• Beware of hot parts. Wait until the appliance has cooled down before touching the housing and the parts of the appliance. The appliance becomes hot during use.
• Be careful with hot water and steam to avoid burns.
• Beware of sharp parts. Keep your hands away from the moving parts during use and during cleaning and maintenance. The appliance uses a sharp blade.
• Be extra careful during cleaning and maintenance.

Be extra careful when emptying the jug. Be extra careful when handling the sharp blade.

• Do not move the appliance while it is switched on.
• Do not leave the appliance unattended during use.
• Store the appliance in a dry place when not in use. Make sure that children do not have access to stored appliances.

Cleaning and maintenance

Warning!

• Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
• Do not immerse the appliance in water or other liquids. Do not immerse the accessories in water or other liquids.
  Always be careful when cleaning the blade. The blade is very sharp. Risk of personal injury.

Caution!

• Do not use aggressive or abrasive cleaning agents to clean the appliance.
• Do not use sharp objects to clean the appliance.
• Do not use scouring pads to clean the appliance.

• Do not clean the appliance and the accessories in the dishwasher.

• Regularly check the appliance for possible damage.
  Clean the motor unit after each use:

• Clean the upper part of the motor unit with a soft, damp cloth.

• Clean the blade and the overflow sensor under running water

• Thoroughly dry the motor unit with a clean, dry cloth.

Clean the jug after each use:

• Clean the outside of the jug with a soft, damp cloth.
• Clean the inside of the jug under running water. If necessary, use a soft brush.
• Thoroughly dry the jug with a clean, dry cloth.

Description (fig. A)

Your 212040 Princess soup maker has been designed for making soups. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

Fig. A1

1. Control panel
2. Motor unit
3. Overflow sensor
4. Blade
5. Jug connector
6. Jug

7a. Minimum level indicator
7b. Maximum level indicator

1. Handgrip

2. Motor unit connector

3. Heating plate

Fig. A2

1. Start/stop button
2. Program selection button

13a. Heating/blending indicator ("HEAT+STIR")
13b. Heating indicator ("HEAT")
13c. Blending indicator ("STIR")

Use

Setting the program (fig. A)

• Press the program selection button (12) 1 × to heat and blend the ingredients. The heating/blending indicator (13a) comes on. The process takes approximately 25 minutes. (Note: The appliance first heats the ingredients, but does not directly start blending the ingredients.)
• Press the program selection button (12) 2x to heat the ingredients.

The heating indicator (13b) comes on. The process takes approximately 35 minutes.
- Press the program selection button (12) 3x to blend the ingredients. The blending indicator (13c) comes on. The process takes approximately 60 seconds.

Hints for use (fig. A)

Warning!

• Before assembly or disassembly, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down.
  Always make sure that the ingredients are between the minimum level indicator ("MIN") and the maximum level indicator ("MAX").
• Do not switch on the appliance when the jug is empty.

• Do not overload the appliance. If the motor stops, immediately switch off the appliance, remove the mains plug from the wall socket and allow the appliance to cool down.

• Prepare the ingredients. Make sure that the ingredients fit in the jug.

• Place the jug (6) on a stable and flat surface.
• Put the ingredients into the jug (6).
• Mount the motor unit (2) onto the jug (6).
• Insert the mains plug into the wall socket.
• Set the program. Refer to the section "Setting the program". The corresponding program indicator (13) comes on.
• Press the start/stop button (11) to start the process.
• To interrupt the process, press the start/stop button (11) again.
  If the process is completed, the appliance will beep. The corresponding program indicator (13) starts flashing.
• Press the start/stop button (11) to stop the process.
• Remove the mains plug from the wall socket.
• Allow the appliance to cool down completely.
