DIAMOND 2 PLUS - Smartphone ARCHOS - Free user manual and instructions

Product type	Smartphone
Brand	ARCHOS
Model	DIAMOND 2 PLUS
Power supply	Rechargeable lithium-ion battery, charging via USB Type-C
Connectivity	4G (dual micro-SIM), Wi-Fi, mobile data
Main features	Dual 4G SIM, fingerprint reader, laser focus, Turbo Download, camera
Security	Lock by PIN code, password, pattern, fingerprint
Compliance	Directive 1999/5/EC
Warranty	Warranty booklet and legal notices provided
Support	FAQ at faq.archos.com

Frequently Asked Questions - DIAMOND 2 PLUS ARCHOS

How to install the SIM card and micro-SD card?

Use the provided tool to open the tray. Place the SIM card (micro-SIM) in slot 1 or 2, and the micro-SD card in slot 2, following the indicated direction. Close the tray.

How to charge the battery for the first time?

Connect the USB Type-C cable to the charger and the phone. Before first use, fully charge the battery. Then turn on the device by pressing and holding the ON/OFF button.

How to activate mobile data (4G)?

Pull down the status bar twice to access quick settings. Tap the Settings icon, then under "Wireless & networks", select "Data usage" and the SIM card tab. Turn on the "Mobile data" switch.

How to connect to a Wi-Fi network?

Pull down the status bar twice, tap the Wi-Fi icon to enable it, then select "Wi-Fi" at the bottom. Choose the network name and enter the password if required.

How to set up the fingerprint reader?

Go to Settings > Security > Fingerprint. Follow the on-screen instructions to register up to 5 fingerprints. You will also need to set a backup pattern.

What is the laser focus for and how to activate it?

The laser focus improves camera focusing. Go to Settings > Laser focus to enable or disable it.

What to do if the SIM card is not detected?

Check that the SIM card is valid and inserted correctly according to the tray diagram. If damaged, contact your operator for a replacement.

My phone is unresponsive, what should I do?

Press and hold the ON/OFF button for 10 seconds to force a restart. If the problem persists, check for updates in Settings > About phone > System update.

How to reset the phone in case of problem?

Go to Settings > Backup & reset. Back up your data then select "Factory data reset". Confirm the operation.

What to do if I forgot my password or PIN code?

If you set a backup email, use it to reset. Otherwise, you will need to fully reset the phone. Check the FAQ at faq.archos.com for more help.

USER MANUAL DIAMOND 2 PLUS ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

ARCHOS Diamond 2 Plus

Warranty, legal and safety notice

Quick start guide

Charger adapter

USB type-C Charging cable

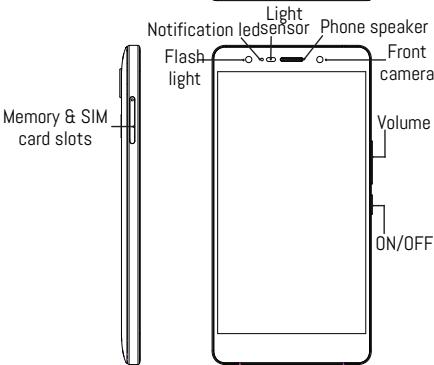

Describing your device

Headphone jack

Assembling

After you have unpacked your mobile phone box:

1. Remove the card tray by inserting the tool provided, into the tray release hole.
2. Insert 1 micro SIM card into slot 1 and a micro SD Memory card into slot 2 OR 2 micro SIM cards into slots 1 and 2 as shown in the diagram.
3. Replace the tray in the right position and push it inside to close.

4G	slot 1	Micro-SIM
4G	slot 2	Micro-SIM
Micro-SD card	slot 2

When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card.

4

Starting up

Charging your battery completely

Plug the charging cable in the USB type-C port and the adapter in a power outlet.

Leave the device until the battery is fully charged. Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device. Activating mobile date connection (4G)
3. Touch and pull down the status bar to display it.
4. Touch again the bar to reveal the quick settings.
5. Select the Settings icon.
6. In Wireless & networks, select Data usage, then the SIM card tab.
7. Slide the Mobile data switch to turn on/off. Activating WiFi connection
8. Touch and pull down the status bar to display it.
9. Touch again the bar to reveal the quick settings.
10. Select the WiFi icon to activate the WiFi connection
11. Select "WiFi" below the WiFi icon.
12. Touch the name of network you want to

connect to.

Private networks are shown with a lock icon and will require you to enter your password.

Fingerprint reader

Use the fingerprint option to secure your device.

1. Select Settings>Security, then Fingerprint.
2. Select Continue.
3. Select a pattern as an alternative in case of being not able to use the fingerprint option.
4. Follow the onscreen instructions.
5. Record your finger in different positions for a better detection.
6. You can add up to 5 fingerprints.

Laser focus

For better photos, the laser focus helps improve the camera focus. Go to Settings> Laser focus to activate/deactivate.

Turbo download

Download large files faster by combining your Data and WiFi connections.

1. Go to Settings > Wireless & networks.
2. Select Turbo download, then turn it ON

Troubleshooting

• My SIM card is not detected: make sure to have a valid SIM card. Insert the SIM card according to the process shown in the Assembling page. Try to contact your provider to renew the card if it is faulty.
• My device is frozen: press the ON/OFF button for more than 10 seconds.
• My device encounters dysfunctions: go to Settings > About phone > Check for update system to check for updates. If your device is up-to-date, try to reset the device from Settings > Factory data reset > Backup & restore. We recommend to save your files before resetting.
• My WiFi reception is too low: make sure you are not far from the WiFi hotspot. Update the firmware of the device: http://www.archos.com/support. Reset and redefine your connection parameters. Contact your WiFi connection provider.
• My device bootlogo is playing in a loop: you need to completely reset your device. Go to faq.archos.com and select your device. In Backup & Recovery, select How to reinitialize my ARCHOS.
• My device doesn't recognize my password or PIN: when setting a lock screen, select a code easy to remember. In some cases, you need to enter your email or to reset totally your device. See our FAQs.

FOR MORE ANSWERS ABOUT YOUR TECHNICAL DIFFICULTIES, DO NOT HESITATE TO VISIT: FAQ.ARCHOS. COM

Contactez-nous

www.archos.com, click Support > After-sales support

www.archos.com, cliquez Support > Telechargesments > Déclaration de conformité

4G	1	Micro-SIM
4G	2	Micro-SIM
Micro-SD card	2

4G	1	Micro-SIM
4G	2	Micro-SIM
Scheda micro-SD	2

www.archos.com, kliknj Support > After-sales support

www.archos.com, kliknij Support > Downloads > Declaration of conformity

www.archos.com, Support> Indirme > Declaration of comfornity

4G	slot 1	Micro-SIM
4G	slot 2	Micro-SIM
Micro-SD card	slot 2

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About phone\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 24 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian Federation	None	Only for indoor applications

Note: Frequencies 2454-2483.5MHZ are restricted to indoor use in France.

SAR

After the laboratory measurements, the SAR values for this mobile are:

Head Max:0.571w/kg(10g)

Body Max:1.650w/kg(10g)

Archos company (Contact adress : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this device is in compliance with the essential requirements and other relevant provisions of

Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC55D12P.pdf

http://www.archos.com/support/download/conformity/CE_DOC_AC55DI2P.pdf

C E 0700

032
