USER MANUAL VAPORETTO PRO 90 POLTI

MANUALE DI ISTRUZIONI

MANUEL D’INSTRUCTIONS

MANUAL DE INSTRUÇÕES

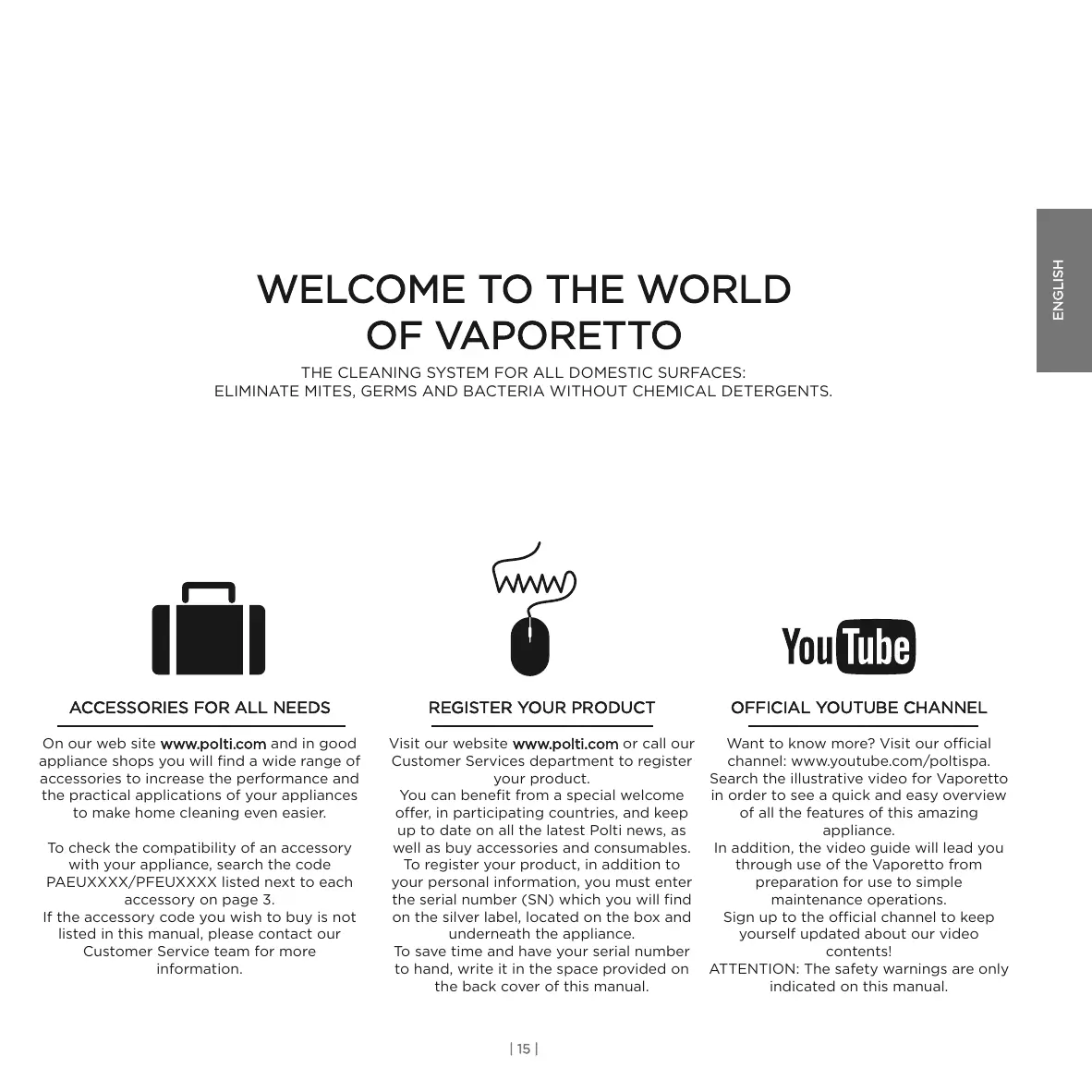

THE CLEANING SYSTEM FOR ALL DOMESTIC SURFACES: ELIMINATE MITES, GERMS AND BACTERIA WITHOUT CHEMICAL DETERGENTS.

ACCESSORIES FOR ALL NEEDS

On our web site www.polti.com and in good appliance shops you will find a wide range of accessories to increase the performance and the practical applications of your appliances to make home cleaning even easier. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX/PFEUXXXX listed next to each accessory on page 3. If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information. Visit our website www.polti.com or call our Want to know more? Visit our official channel: www.youtube.com/poltispa. Customer Services department to register Search the illustrative video for Vaporetto your product. in order to see a quick and easy overview You can benefit from a special welcome of all the features of this amazing offer, in participating countries, and keep appliance. up to date on all the latest Polti news, as In addition, the video guide will lead you well as buy accessories and consumables. through use of the Vaporetto from To register your product, in addition to preparation for use to simple your personal information, you must enter maintenance operations. the serial number (SN) which you will find Sign up to the official channel to keep on the silver label, located on the box and yourself updated about our video underneath the appliance. contents! To save time and have your serial number to hand, write it in the space provided on ATTENTION: The safety warnings are only indicated on this manual. the back cover of this manual. | 15 | ENGLISH

IMPORTANT PRECAUTIONS FOR USE

WARNING! BEFORE USING THE

APPLIANCE, CAREFULLY READ

ALL THE INSTRUCTIONS AND

WARNINGS IN THIS MANUAL, AND ON THE APPLIANCE ITSELF. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty. SAFETY SYMBOLS:

WARNING: High temperature.

Risk of scalding! If shown on the product, do not touch as parts may be very hot.

WARNING: Steam.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try to repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.
• This appliance must not be used if it has been dropped, if there are visible signs of damage or if it leaks.
• The plug must be removed from the socket before the tank/boiler is filled with water.
• To carry out any maintenance or cleaning requiring access to the boiler, ensure that the appliance is switched off the power switch and disconnected from the mains for at least two hours.
• Always unplug the appliance if it is not in use.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities lack experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance.
• Keep the appliance out of reach of children when it is plugged in or cooling down.
• Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation. | 16 | | 17 | ENGLISH

• The appliance must not be left • Do not use electrical extension leads unattended if plugged in to the mains. that are unsuitable for the power rating
• Steam must not be directed towards or which are not compliant with the law. equipment containing electrical They may overheat and possibly lead to components, such as the interior of short circuiting, fire, power outage or ovens. damage to the equipment. Only use
• This appliance is intended exclusively extension leads which are certified, for indoor domestic use. suitable for the power rating, In order to reduce the risk of accidents, supporting 16A and earthed. including: fires, electrocution, personal • Always turn the appliance off at the injury and scalding, both during use and ON/OFF switch before unplugging it. during preparation, maintenance and • To remove the plug from the socket, do storage, always take the basic not pull the power cable, but hold the precautions listed in this manual. plug itself to avoid damage to the plug and the cable.

RISKS CONNECTED TO THE POWER

• Fully unwind the cable from the cable SUPPLY – ELECTROCUTION winder before connecting the appliance
• The earthing system and highly to the mains and before use. Always use sensitive residual-current circuit the product with the cable completely breaker, complete with magnetothermic unwound. cut-out for your domestic system, • Do not pull or jerk the cable or expose it guarantee safe use of electrical to stresses (twisting, crushing or appliances. stretching). Keep the cable away from Therefore, for your own safety, check hot and/or sharp surfaces and that the electrical system to which the elements. Avoid crushing the cables in appliance is connected complies with doors and windows. Do not pull the current laws. cable tightly around corners. Avoid
• Do not connect the appliance to the treading on the cable. Do not wind the mains if the voltage does not power cable around the appliance, especially if the appliance is hot. Do not correspond with that of the domestic place the appliance on top of the power electrical circuit in use. cable, this can be dangerous.
• Do not overload sockets with adaptors and/or transformers. Only connect the • Do not change the plug on the power cable. product to a single socket with current that is compatible with the supplied • If the power cable is damaged, it must be replaced by the manufacturer, its plug. ENGLISH service agent or similarly qualified persons in order to avoid all possible hazards. Do not use the product if the power cable is damaged.
• Do not touch or use the appliance barefoot and/or with wet body or feet.
• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.
• Do not immerse the appliance, including the power cable and plug, in water or other liquids.

• Do not position the product near sources of heat such as fireplaces, stoves and ovens.
• Do not position the product near electromagnetic fields such induction plates.
• Re-wind the cable when the appliance is not in use.
• Use the special carry handle for transport. Do not pull the power cable. Do not use the power cable as a handle. Do not lift the appliance using the power cable the steam

RISKS DURING USE OF THE PRODUCT –

hoses/vacuum tubes. INJURIES/SCALDING

• Do not obstruct the openings and grills
• The product should not be used in areas on the product. where there is a danger of explosions or • Do not direct the steam jet on any part in the presence of toxic substances. of the body of people or animals.
• Do not pour toxic substances, acids, • Do not direct the steam jet on clothes solvents, detergents, corrosive while they are being worn. substances and/or explosives or • Cloths, rugs and fabrics which have perfumes into the boiler. been subjected to a deep steam reach
• Only pour water or the water mix very high temperatures, above 100°C. indicated in the section “WHICH Wait a few minutes and check that they WATER TO USE” into the boiler. have cooled before handling them.
• Do not direct the steam jet onto toxic Therefore, avoid contact with the skin if substances, acids, solvents, detergents they have just been steamed. or corrosive substances.
• During use, keep the base in a
• Do not direct the steam jet onto horizontal position on stable surfaces. explosive powders liquids, • The steam lock on the handle guarantees greater safety, as it prevents hydrocarbons, open flames the accidental activation of steam extremely hot objects. delivery by children or people who are
• The handling and removal of dangerous unaware of the function of the substances must be carried out appliance. When steam is not being according to the indications of the used, engage the steam lock. manufacturers of these substances. | 18 |

RISKS RELATED TO USE OF THE

IRONING ACCESSORY (For the PRO 90_TURBO model only)

• Iron only on surfaces that are heat resistant and which allow the steam to permeate.
• When placing the iron on its stand, make sure that the surface on which the stand is placed, is stable.
• If the iron rest mat needs to be replaced, only use original spare parts.
• The iron must be used with the ironing mat provided.
• The iron must be used and rested on a flat stable surface.
• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Do not place the hot appliance on heatsensitive surfaces.
• If ironing whilst sitting down, take care to ensure that the jet of steam is not angled towards your legs. Steam can scald.
• Before connecting the appliance to the current, ensure that the continuous steam jet button is not pressed (if present).
• Never leave the iron unattended when it is plugged in.

CORRECT USE OF THE PRODUCT

This appliance is intended for internal domestic use as a steam cleaner, in accordance with the descriptions and instructions contained in this manual. Please read these instructions carefully and keep them. If this manual is lost, it can be consulted and/or downloaded from the website www.polti.com. Never leave the appliance exposed to weathering. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the warranty. POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice. Before leaving our factory all our products are rigorously tested. This is the reason why your VAPORETTO may contain some residual water in the boiler.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the sanctions envisaged by current legislation. WHICH WATER TO USE IN THE BOILER This appliance has been designed to function with normal tap water between 8°f and 20°f. If the tap water contains a lot of limescale use a mix composed of 50% tap water and 50% demineralised water which is widely available to purchase. Do not use pure demineralised water.

Warning: check the hardness of the water at the technical

office at your local council or the local water supplier. If you only use tap water, you can reduce the formation of limescale by using the special Kalstop (PAEU0094) antilimescale product, distributed by Polti, and available for sale at all major domestic-appliance stores and online at www.polti.com. Never use distilled water, rain water or water containing additives (e.g. starch, perfumes), or water produced by other | 19 | ENGLISH To continue steam delivery, return the switch to its original position. domestic appliances, by water softeners or filter jugs. Do not add chemical, natural, detergent, or limescale removing substances, etc.

• Minimum level: to steam plants, clean delicate fabrics, wall coverings, sofas, etc.

4. CLEANING FLOORS

1. PREPARATION FOR USE

1.1 Open the tank closing cap (1) and fill the tank with about 1l

of water, making sure that it does not overflow. This operation must always be carried out when the boiler has cooled and with the power cable disconnected from the mains. Thanks to the continuous refill system you do not need to stop the ironing and wait for the appliance to cool down because the tank can be filled as needed.

1.2 Replace the tank closing cap.

1.3 Only for the Pro90_Turbo model open the door of the builtin socket and insert the built-in plug of the steam hose (2), pressing the specific button and making sure that the hooking pin is inserted perfectly in the specific locking hole on the socket.

1.4 Connect the cable plug to an earthed power supply of the

correct voltage (3). Completely unwind the power cable before plugging it into the mains and before use, and always use the appliance with the power cable completely unwound.

1.5 Press the boiler switch ( ) (4) which will light up together

with the “steam ready” indicator light ( ).

1.6 Wait for the “ready steam” indicator light ( ) to turn off.

The appliance is ready for use.

WARNING: When first operating steam, there may be some

drops of water mixed with the steam due to temperature imbalances. Direct the first jet of steam onto a rag.

2. CONNECTION OF ACCESSORIES

All Vaporetto accessories can be connected directly to the handle of the steam hose or extension tubes as follows:

• Move the locking button on the accessory to the OPEN position (7).
• Attach the required accessory to the hand gun or to the extension tube.
• Move the locking button back to the position CLOSED (7).
• Check that the locking button has engaged and the accessory is fully connected.

3. STEAM ADJUSTMENT

You can optimise the steam flow by means of the steam adjustment knob. To increase the flow, turn the knob clockwise. Turning anti-clockwise reduces the flow. Here are some tips for regulating it:

• Maximum level: to remove encrustation, stains, grease and to sanitise;
• Medium level: for carpets, rugs, glass and floors; Before using the appliance on delicate surfaces, ensure that the part in contact with the surface is free from foreign bodies that could cause scratches.

4.1 Make sure that Chapter 1 has been followed and connect

the accessories as indicated in Chapter 2.

4.2 Connect the extension tubes to the steam hose and the floor

brush to the extension tubes.

4.3 Attach the supplied cloth to the floor brush, locking it in

place with the special lever hooks (8).

4.4 Adjust the intensity of the steam by turning the adjustment

knob; for this type of surface we recommend Medium level steam (5).

4.5 Deactivate the steam lock (6) and continue with steam

delivery, pressing the steam trigger on the handle of the steam hose (6).

4.6 Clean the floors by moving the brush.

Before removing the cloth from the brush, wait a few minutes to allow the cloth to cool.

WARNING: Do not use the appliance without the cloth.

WARNING: For additional safety, test steam delivery on a

hidden part, leave the steamed part to dry to ensure that no changes in colour or deformations have occurred.

5. CLEANING RUGS AND CARPETS

WARNING: Before cleaning fabrics with steam, consult the

manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred.

5.1 Make sure that Chapter 1 has been followed and connect the

accessories as indicated in Chapter 2.

5.2 Connect the extension tubes to the steam hose and the floor

brush to the extension tubes.

5.3 Adjust the intensity of the steam by turning the adjustment

knob (5); for this type of surface we recommend Medium level of steam.

5.4 Deactivate the steam lock (6) and continue with steam

delivery, pressing the steam trigger on the handle of the steam hose (6).

5.5 Pass the brush without cloth over the surface to bring dirt

5.6 Attach the supplied cloth to the floor brush, locking it in

place with the special lever hooks (8).

5.7 Go back over the surface to collect the dirt.

Before removing the cloth from the brush, wait a few minutes to allow the cloth to cool. | 20 |

9. CLEANING BATHROOM FIXTURES,

GROUTING AND KITCHEN WORKTOPS

WARNING: To clean glass surfaces during cold weather,

preheat the windows starting to vacuum from a distance of about 50 cm from the surface.

6.1 Make sure that Chapter 1 has been followed and connect the

accessories as indicated in Chapter 2.

6.2 Adjust the intensity of the steam by turning the adjustment

knob (5); for this type of surface we recommend Medium level of steam.

6.3 Ensure that the steam lock on the handle is deactivated (6).

6.4 Press and hold the steam trigger on the handle of the steam

hose (6) and steam the surface thoroughly to dissolve the dirt.

6.5 For the Pro90_Turbo model go back over the surface with

the window cleaner to remove the dirt, without steaming. For a more abrasive action and more effective dirt removal, the bristles supplied with the window-cleaning accessory can be used For the Pro80 model use the manual window-cleaning accessory to remove the dirt dissolved by the steam.

7. CLEANING UPHOLSTERY

(mattresses, sofas, car interiors, etc.)

WARNING: Before cleaning leather or fabrics with steam,

consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred.

9.1 Make sure that Chapter 1 has been followed and connect the

accessories as indicated in Chapter 2.

9.2 Connect the concentrator accessory, equipped with bristly

round brush, to the hose. For the Pro90_Turbo model the steam lance can be attached to the concentrator accessory. This is recommended for reaching the most difficult-to-reach areas, ideal for cleaning radiators, door and window frames, bathrooms and shutters. To connect the steam lance to the steam concentrator, simply screw it on. The same operation can be carried out for the brush, which can in turn be screwed onto the steam concentrator and onto the steam lance. For the Pro90_Turbo model the different coloured brushes allow for a different colour for each surface or environment.

9.3 Adjust the intensity of the steam by turning the adjustment

knob (5); for this type of surface we recommend Maximum level of steam.

9.4 Ensure that the steam lock on the handle is deactivated (6).

9.5 Press and hold the steam trigger on the steam hose (6) to

10. OUT OF WATER

7.1 Make sure that Chapter 1 has been followed and connect the

accessories as indicated in Chapter 2.

7.2 Connect the small brush to the hose.

7.3 Attach the cap to the small brush.

7.4 Adjust the intensity of the steam by turning the adjustment

knob (5); for this type of surface we recommend Minimum level of steam.

7.5 Ensure that the steam lock on the handle is deactivated (6).

7.6 Press and hold the steam trigger on the handle of the steam

hose (6) and pass over the surface.

8. CLEANING FURNITURE AND DELICATE

WARNING: Do not direct the steam jet directly onto surfaces.

Before cleaning the surface, always do a test on a hidden part and see how it reacts to the application of steam. The lack of water in the boiler is identified by the out-of-water light coming on ( ). To resume use, simply: - switch off and disconnect the Vaporetto. - fill the tank as described in Chapter 1. - connect and turn the Vaporetto back on.

WARNING: This operation must always be done after having

disconnected the appliance from the mains.

11. TURBO FUNCTION

only for the PRO90_TURBO model When the TURBO function is active, the appliance adjusts to the ideal steam pressure to remove the most stubborn dirt. To activate the function, press the Turbo (9) button and wait for the “ready steam” indicator light ( ) to turn off. To deactivate the Turbo function, press the Turbo button again.

8.1 Ensure that Chapter 1 has been followed.

8.2 Adjust the intensity of the steam by turning the adjustment

knob (5); for this type of surface we recommend Minimum level of steam.

8.3 Ensure that the steam lock on the handle is deactivated (6).

8.4 Press and hold the steam lever on the handle of the steam

hose (6) and direct the jet onto a cloth.

8.5 Use the cloth previously steamed to clean the surface,

avoiding prolonged use on the same spot. Before carrying out any maintenance on the device, always unplug it from the power mains making sure that the product has cooled down before proceeding. To clean the outside of the appliance, only use a damp cloth and tap water. All accessories can be cleaned using running water, ensuring they are completely dry before the next use. Do not use detergents of any type. After using the brushes, we recommend letting the bristles cool down in their natural position, in order to avoid any | 21 | ENGLISH

6. CLEANING GLASS, WINDOWS AND TILES

deformation. Periodically check the status of the coloured washer located in the built-in socket and the connection seals of the extension tubes and the steam hose. If necessary, replace with the corresponding spare part, as described below. ENGLISH - Remove the damaged seal. - Insert the new seal, attaching it on the steam nozzle and pushing it into place. - Lubricate the gasket with silicone grease or Vaseline, or alternatively with small quantities of vegetable oils.

13. KALSTOP

Kalstop is thelimescale product for appliances with boiler for ironing and steam cleaning. Regular use of Kalstop, every time the tank is filled with water: - Extends the life of the appliance. - Allows emission of a “drier” steam - Prevents limescale build up. - Protects the walls of the boiler. - Contributes to saving energy.

HOW TO USE KALSTOP

13.1 Dilute one phial in 5 litres of water before putting it in the

13.2 Fill the tank as described in Chapter 1.

13.3 Proceed with the normal cleaning operations.

Kalstop is sold in packages of 20 phials at household appliance stores, at Polti authorized service centres and at www.polti.com.

14. STORAGE

14.1 Turn off the appliance and disconnect from the mains

14.2 Wait for the appliance to cool down completely before

14.3 The hoses, brush and flexible hose can be housed on the

body of the appliance, sliding the hook on the floor brush into the parking system on the appliance (11).

14.4 The extension tubes can be replaced in the special tube

holder compartment (12).

14.5 The small accessories can be placed in the accessories

compartment. To open the compartment, press gently on the word “PUSH” (near the bottom of the lid), and open it (10). | 22 | PROBLEM CAUSE SOLUTION The appliance does not turn on. No power. Check that the appliance has been disconnected from the mains, as indicated in Section 1. Boiler switched off. Turn on the boiler as indicated in Chapter 1. No water in the boiler. Fill the boiler as indicated in Chapter 1. Flexible hose not inserted correctly. Correctly insert the flexible hose all the way down, as indicated in Chapter 1. Steam adjustment dial set to the minimum. Adjust the position of the dial for the desired increase. Steam lock activated. Disconnect the steam lock from the steam hose handle. Steam is dispensed mixed with drops of water. The steam hoses are cold. Direct the steam jet onto a cloth to heat up the tubes. Loss of steam or drops of water between the connection of the accessories. The seals are damaged. Replace the seals, as indicated in Chapter 11. Accessories are difficult to assemble. The seals produce friction. Lubricate the seals with silicone grease or Vaseline, or alternatively with a small amount of vegetable oil. The blocking button is not in the correct position. Turn the blocking button to the correct position as indicated in Chapter 2. The appliance is pressurized but little steam comes out. Should the problems persist, contact an Authorised Polti Service Centre (see www.polti.com for the up-to-date list) or Customer Services. | 23 | ENGLISH

15. TROUBLESHOOTING

ENGLISH WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompanied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold with respect to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the client is not liable to pay for any work or materials. In case of irreparable defects, Polti may replace the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.
• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.
• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).
• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti. Damage caused by the customer.
• Parts (filter, brush, hose, etc.) damaged by use (consumable goods) or normal wear and tear.
• Any damage caused by limescale.
• Defects resulting from lack of maintenance/cleaning according to the manufacturer’s instructions.
• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance. To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.com. | 24 |

FRANCE SERVICE CLIENTS
