Product type	Smartphone
Brand	ARCHOS
Model	45C Helium
Display	4.5 inches (estimated)
Network	4G / 3G / 2G, dual SIM
Operating system	Android
Processor	Not specified (estimated: quad-core)
Internal memory	Not specified
Expandable storage	Yes, via micro-SD card
Front camera	Yes
Rear camera	Yes, with flash
Battery	Removable, charging via micro-USB
Connectivity	WiFi, Bluetooth, GPS
Sensors	Proximity sensor, ambient light sensor
Dimensions	Not specified
Weight	Not specified
Box contents	Phone, headset, USB cable, charger, guides
Care and cleaning	Use a soft, dry cloth; avoid liquids
Security	Screen lock (pattern, PIN, password); anti-theft function
Spare parts and repairability	Removable battery; accessible SIM and micro-SD card

Frequently Asked Questions - 45C HELIUM ARCHOS

How to insert the SIM card and memory card?

Remove the back cover using the notch. Insert the SIM card into the corresponding slot (slot 1 for 4G/3G/2G, slot 2 for 2G) and the micro-SD card into slot 3. Replace the cover.

How to turn on the phone for the first time?

Fully charge the battery using the charger and micro-USB cable. Press and hold the ON/OFF button until the screen turns on. Follow the on-screen setup wizard. If prompted, enter your SIM card PIN code.

How to connect to a WiFi network?

Pull down the status bar, then tap it again to display quick settings. Tap the WiFi icon to enable it, then select your desired network. Enter the password if required.

How to enable mobile data?

Pull down the status bar, tap it again to access quick settings, then select the Settings icon. Go to 'Wireless & networks' > 'Data usage', select your SIM card tab, then toggle on 'Mobile data'.

How to add a Google account?

Go to 'Settings' > 'Accounts' > 'Add account'. Select 'Google', then follow the on-screen instructions to enter your credentials or create a new account.

How to back up my contacts to my Google account?

Open the Contacts app, tap the Menu button and select 'Import/Export'. Choose 'Import from SIM card', select your Google account, then the contacts to import. Then go to 'Settings' > 'Accounts' > 'Google', select your account and tap 'Sync now'.

How to lock the screen with a pattern or PIN?

Go to 'Settings' > 'Security' > 'Screen lock'. Choose the lock type (pattern, PIN, password). Follow the instructions to set it up. The screen will lock automatically after each standby.

What to do if the SIM card is blocked (wrong PIN)?

Contact your network operator to get the PUK code. Enter the PUK code on the phone screen to unlock the SIM card.

How to set up the 4G connection?

Go to 'Settings' > 'Wireless & networks' > 'More' > 'Mobile networks'. Select 'Network operators' to choose your operator, then 'Access point names' to add the APN settings provided by your 4G operator.

How to enable the anti-theft function?

Make sure you have a SIM card inserted. Go to 'Settings' > 'Security' > 'Mobile Antitheft' and follow the on-screen instructions to set up protection.

USER MANUAL 45C HELIUM ARCHOS

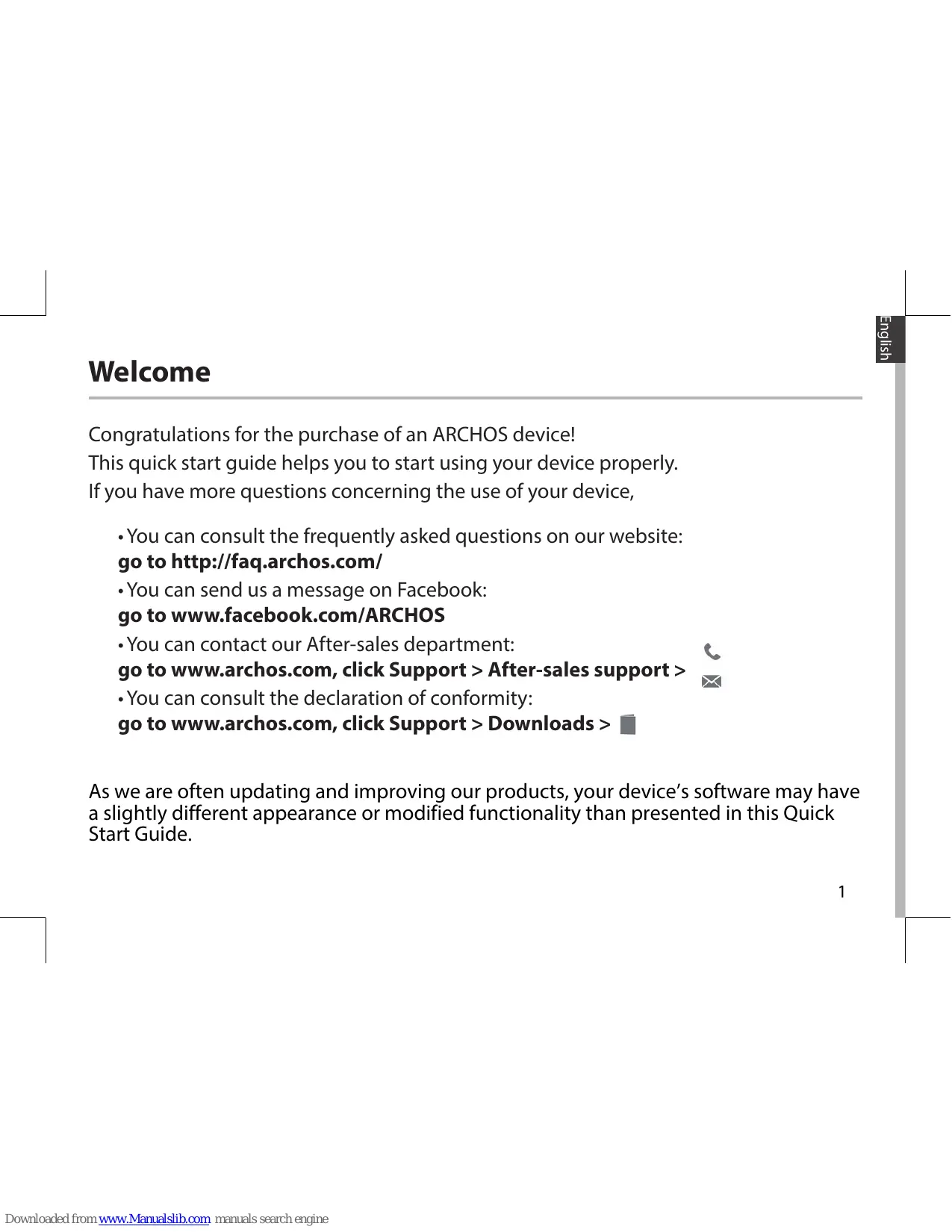

Congratulations for the purchase of an ARCHOS device!

This quick start guide helps you to start using your device properly.

If you have more questions concerning the use of your device,

• You can consult the frequently asked questions on our website:

go to http://faq.archos.com/

• You can send us a message on Facebook:

go to www.facebook.com/ARCHOS

• You can contact our After-sales department:

go to www.archos.com, click Support > After-sales support >

• You can consult the declaration of conformity:

go to www.archos.com, click Support > Downloads >

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

Check your product box for the following items:

• ARCHOS 45c Helium
• Headset
• USB cable
• Charger
• Quick start guide
• Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider. The supplied items are designed only for your device and may not be compatible with other devices. Unapproved accessories may cause your device to malfunction.

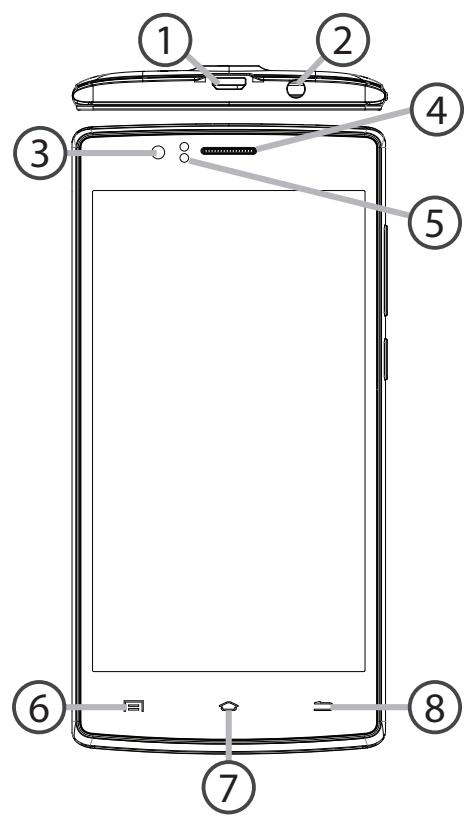

Description of the phone

(1) Micro-USB port
(2) Headset jack
(3) Front camera
(4) Phone speaker
(5) Light sensor
(6) Recent apps
(7) Home/Google NOW
(8) Back

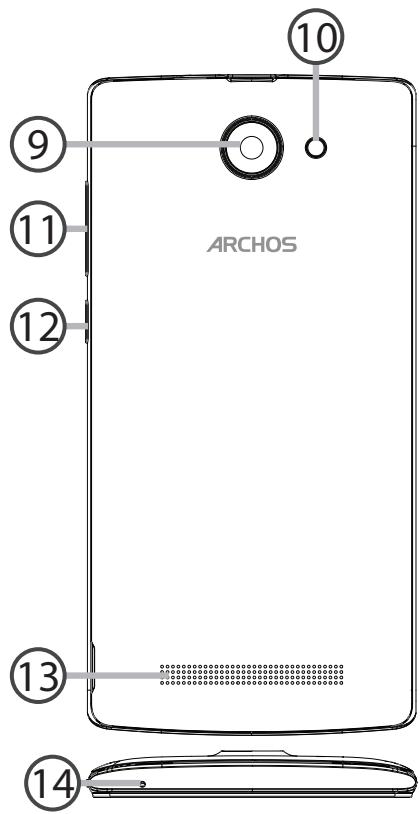

Description of the phone

Camera
⑩ Flash light
Volume buttons
(12) ON/OFF button
(13) Loudspeaker
(14) Microphone

ON/OFF: when the device is off, long press to turn on. When the device is on, short press to turn off the screen and long press to display options.

Volume + / - : press + / - to adjust the volume. When you press the button, notification options are displayed. You can select the most appropriate one.

Back: press to go back to the previous screen.

Home: short press to return to the homescreen, long press to access Google Now.

Recent apps: press to display recent apps.

Micro-USB port: plug the provided cable to charge the device or to connect it to a computer.

Headphone jack: connect the provided earphones to make hand-free calls.

Camera & Flash: take pictures or make movies. To extend movies duration, insert a micro-SD card. Activate the flash option in a dark environment and use it as a torch through the quick settings.

Light sensor: it turns off the screen when the device is close to your ear during a call.

Getting started

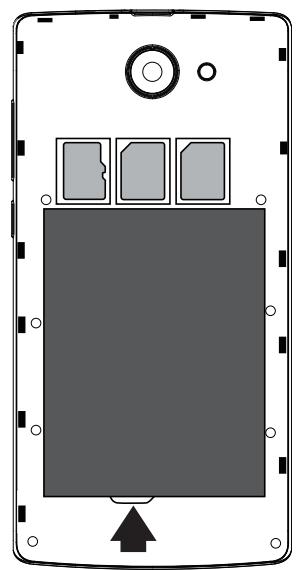

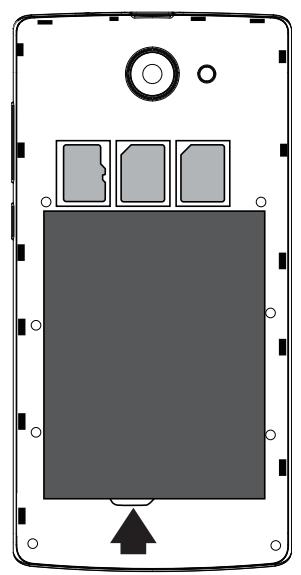

Assembling

After you have unpacked your mobile phone box:

1. Remove the device's back cover using the notch.

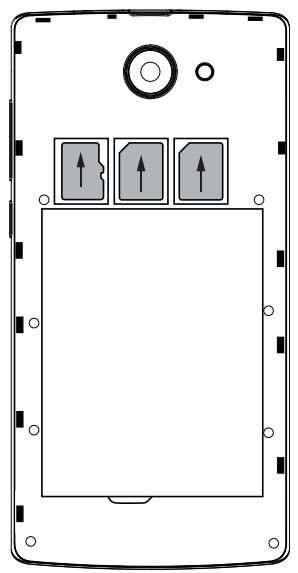

2. Insert your SIM card or Memory card in the corresponding slot.
3. Insert the device's battery.
4. Replace the back cover.

4G/3G/2G	slot 1	When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card.
2G	slot 2
Micro-SD card	slot 3

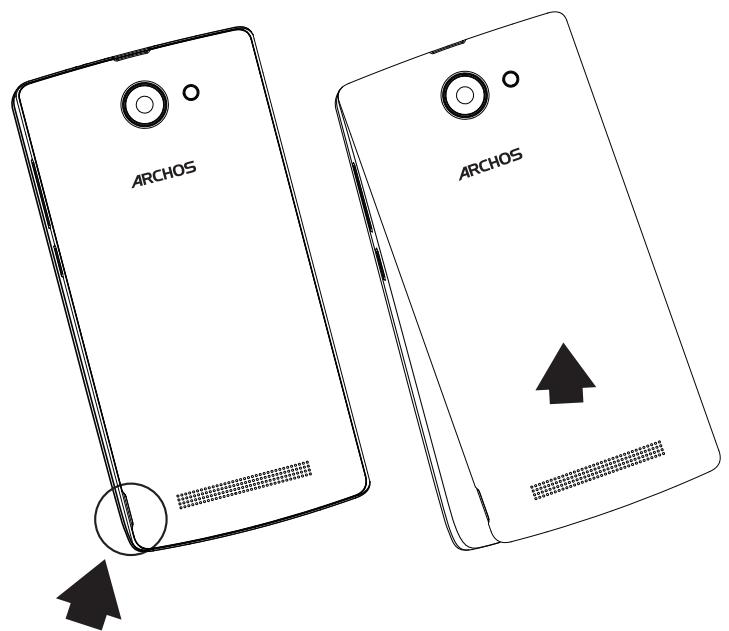

Lift the back cover using the notch

Getting started

Turning on

1. Plug the charging cable in the Micro-USB port and connect it to its charger.

Before using your device for the first time, charge its battery completely.

1. Press and hold the ON/OFF button to turn on the device.

The first time you start up your ARCHOS, the installation wizard will help you set up your device.

1. Follow the instructions.

If you have inserted a SIM card, you may need to enter a PIN code.

Beware of typing a wrong PIN code.

Tip:

Your device goes in standby mode when you do not use it for a specific period of time. To wake up your device, press the ON/OFF button. To set the duration, go to Settings > Display > Sleep.

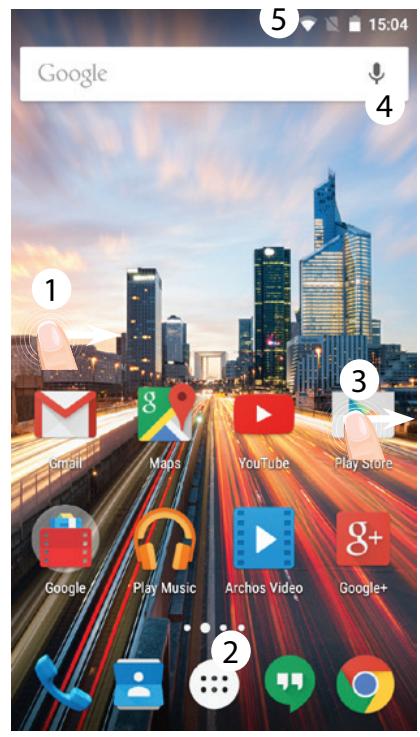

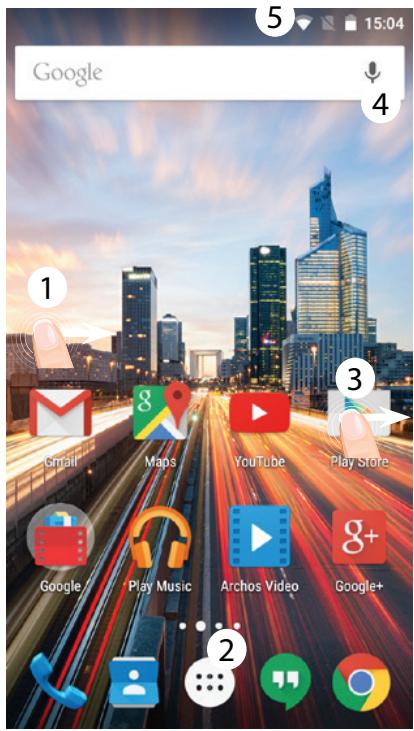

On your homescreen

1. Swipe right
2. Press
   3.Hold your finger on an app
3. Say "Ok Google"

to access Google Now
to access all your apps
to move it right and create a new homescreen.
to launch the search page.

1. Touch and pull down the status bar to display it. Touch again the bar to reveal the quick settings.

Mobile Data & WiFi connection

Mobile data connection

If your mobile phone subscription includes a mobile data option, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your provider's 4G or 3G network.

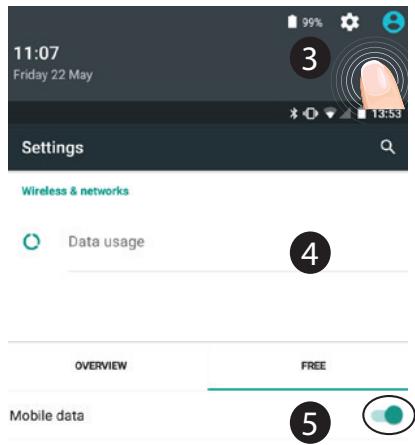

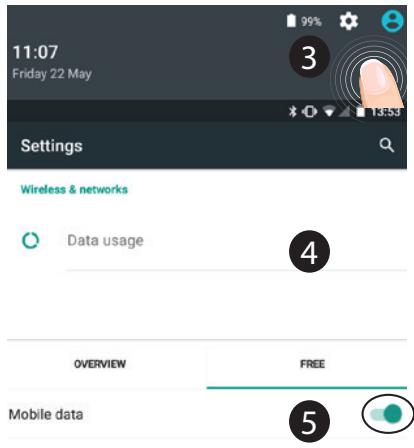

Activating/Deactivating the mobile data

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the Settings icon.
4. In Wireless & networks, select Data usage, then the SIM card tab.
5. Slide the Mobile data switch to turn on/off.

WiFi connection

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connecti
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to.
   Private networks are shown with a lock icon and will require you to enter your password.

Google & Contacts

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" > "Accounts" > "Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen instructions to enter information about the account.

Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data is backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".
2. Select your account.

The list of information that can be sync are displayed.

Automatic sync should be activated. To launch the sync, press the Menu button 3 , then Sync now. You can get them back in case of loss of your device or SIM card. When your Google account is added to a new device, all your saved information is transferred.

Saving your contacts

When your contacts are saved, they are always available on the web and can be syncsed to any Android phone that's set up with your Google account.

1. Install the SIM card with your contacts in your phone.
2. From the Home screen or the All Apps screen, select the Contacts app.
3. Touch the Menu button > "Import/Export".
4. In Import/export contacts, select "Import from SIM card".
5. Select your Google account.
6. Check contacts to be imported

and validate.

1. Once the contacts are imported in the Google account, go to "Settings" > "Accounts" > "Google".
2. Select you Google account.
3. Select the Menu button, then "Sync now".

Your contacts are saved to your Google account.

Hints & tips for Android™

Moving a home screen item:

Touch and hold your finger onto it, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a homescreen at an empty location. Touch "Widgets".

Changing your wallpaper:

Hold your finger on a home screen at an empty location.

Touch "Wallpapers".

Locking the touchscreen:

Select the "Settings" app, then scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Mobile anti-theft:

1. Insert a SIM card in the device.
2. Go to Settings > Security and select Mobile anti-theft.
3. Follow the onscreen instructions.

Troubleshooting

My phone is frozen or cannot switch on

1.Remove and replace the battery.

1. Charge your device.

My phone cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

To configure a new 4G network:

On your device, tap Settings.

1. Select Wireless & networks > More... > Mobile networks.
2. In Mobile network settings, select your operator in Network operators.
3. In Mobile network settings, select Access point names, then select to add new parameters and enter the exact connection parameters provided by your 4G provider.

Bienvenue

Impossible de receivevoir des appeals

go to www.archos.com, click Support > After-sales support >

TelefoH He pearnpyET Ha deiCTBnI IIN He BKJIIOUaETcA

1.ИЗВLEКЛТЕ aKKуМлЯТОР И yCTaHOBNTe erO CHOBA.
2.3apanyTe yctpoiCTBO.

He ydaetcnoiklouHTb TelefoH He MoKET K cetu, nIi OTo6paxaetc coo6eHne No service (Het cetu)

He ydaetc npHnMaTb BXOJaIe Bbl3OBbl

Y6eIITecb, YTO TeIefoH BkIIOueH IN NOdkIIOueH K cETn (PpOBepbTe, YTO cTb DOCTynHa N He nepeerpyxKeHa).

3a6noknpoBaH PIN-KoD SIM-KapTbI

JUUU UUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu uu

.4GàodJzua Jdzj

aaii i 1

.

:JLJI 1

. 10g 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

: widgetsjolic

.aaai jn jai , aai jai aai i jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

:blall gg

.aaal jn j 1, aai jll aai l l g jk o c b

:aaJl

< < 15y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1 y1

Jlalll, lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll

.3Gddg4Gdd

JJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

a0jol lalbwrw 9.1

a 2

1.3

aIbI J 1, k& & dLwU dKwU.4

.5

aJU| & JlJlJl

aLswuI aKJU JuaI

JgJU J, aSLWUaBzJgJUJ:

a0j 1111 b0w w00.9.1

aJ 12

JUyI JyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI yIyI y

iJgjyI JwI dSLSU I 4

Jy Jlll lal Jkwhl w 1.5
j00 jLl lal b g Jg a o h jb aol ll kwhl

A

Google now

jIJI JxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJxJx

jglal bwl odclwal yogj wjg jglll ojj gljolw dic

laalalglj1.3

PIN jor Jldal no jr jy, PIN jor Jldal ubw aIb yoldd wll

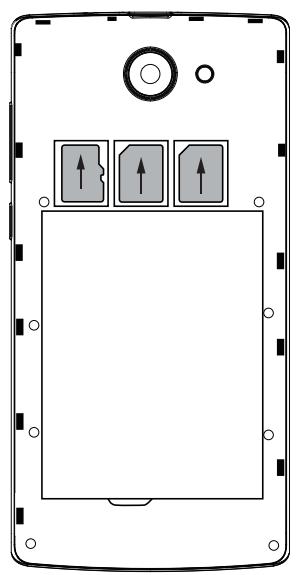

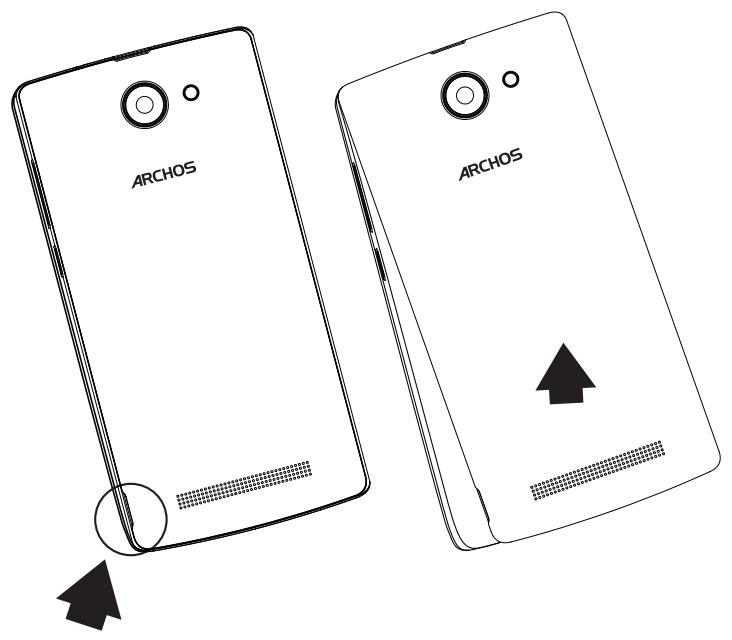

Ucgo:

jglb, cgl jod o dol alldyll od ic dldeyll gog jlg jg lgsd .g - 0e - 1d yll jle yll gddd bdo , qdyg jkssl

D

JU 1

jLJI 1 aIc 2 ic

1

Jauaiaai jkaai i aai baiu 2.2

aJbU U S J a9.3

11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11

y g> clall lgl jy rj y gl alb by gl aIbll Jg j 12

4G/3G/2G 1

2G 2

Micro-SD card 3

O

goggljlll jnlll lalaoa aolaoa oohw wsh gwhd

aJll aJll Jlglqicg100rao oJoofoolao jLooCulluiojlojUeuluiuui

[e-mail] ojjjlll jg pE oj0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0j0

:JjwJdawu:ui

o rog 1E UJU (uJU uJU uJU uJU uJU uJU uJU uJU uJU uJU u

aJgaii i jyraaijia jia jia jia jia jia jia jia jia jia jia jia jia jia

aJUJI JUJUJIOJIOJGd

Joo

/ :

:JUJI JUJU

:EjoJrWl

JUJUJUJrOj

aayrall aljll ojgl olc jgdoal gjul glg hghl lol

.

120 aclnl Ug 2d Aul lUe JgW P Uoal o

: aJlUul UjUoUuUcUaUdUOio UgUqUuUo UjjUuUuUo UeU

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About phone\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian

None

Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/ declaration_conformity.html

SAR

After the laboratory measurement, this mobile phone SAR value is:

Head SAR: 0.495 W/Kg (10g)

Body SAR: 0.712 W/Kg (10g)

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC45CHE.pdf
