Product Type	Mobile phone (smartphone)
Brand	ARCHOS
Model	FLIP PHONE
Operating System	Android
Screen	Capacitive touchscreen
Front camera	Yes
Rear camera	Yes with flash
Mobile connectivity	4G/3G/2G
Wi-Fi	Yes
Bluetooth	Not specified
Micro-USB port	Yes (charging and data)
Headphone jack	Yes (handsfree kit)
SIM cards	Dual SIM (1x 4G/3G/2G + 1x 2G)
Memory card	microSD (dedicated slot)
Battery	Removable, included
Charger	Included
Sensors	Light sensor, accelerometer (not specified)
Speaker	Built-in
Microphone	Built-in
Box contents	Phone, battery, handsfree kit, USB cable, charger, guides
Maintenance	Clean with a soft dry cloth; avoid moisture
Security	PIN code, PUK code from operator
Warranty	Refer to the included warranty guide

Frequently Asked Questions - FLIP PHONE ARCHOS

My phone won't turn on or is unresponsive. What should I do?

Remove the battery, wait a few seconds, then reinsert it. If the problem persists, plug in the charger and wait a few minutes before trying again.

How do I insert the SIM card and memory card?

Remove the back cover using the notch. Insert the SIM card into slot 1 (4G/3G/2G) or slot 2 (2G) as needed, and the microSD card into slot 3. Follow the indicated orientation.

How do I activate mobile data?

Pull down the status bar, tap it again to display quick settings, then select the Settings icon. Go to 'Wireless & networks > Data usage', select the SIM card, and toggle the 'Mobile data' switch to enable.

How do I connect to a Wi-Fi network?

Pull down the status bar, tap it again for quick settings, then select the Wi-Fi icon to enable. Choose the desired network from the list (encrypted networks require a password).

Why does my phone display 'No service'?

Check that you are in an area covered by your operator. Move to another location. If the problem persists, contact your operator to check network coverage.

How do I add a Google account?

Go to Settings > Accounts > Add account. Select 'Google' and follow the on-screen instructions to enter your credentials. A Google account gives access to Play Store, Gmail, Maps, etc.

What if the SIM card is blocked (wrong PIN)?

Contact your network operator to obtain the PUK code. Enter this code when prompted by the phone. Do not attempt random codes as this may permanently block the card.

How do I set up the 4G connection?

Go to Settings > Wireless & networks > More > Mobile networks. Select 'Network operators' then the appropriate network. If necessary, modify 'Access Point Names' with the settings provided by your 4G operator.

How do I transfer contacts from an old phone?

Sync your contacts with a Google account. On the old phone, export contacts to this account. Then sign in to the same account on the new phone, go to Settings > Accounts > Google and enable contact sync.

The battery drains quickly. What should I do?

Check apps consuming power in Settings > Battery. Disable unnecessary features like Wi-Fi, Bluetooth, or GPS. Reduce screen brightness. If the problem persists, replace the battery with a new compatible one.

USER MANUAL FLIP PHONE ARCHOS

Description of the phone. 3

Getting started. 6

Mobile data & WiFi connection. 10

Google account & Contacts. 12

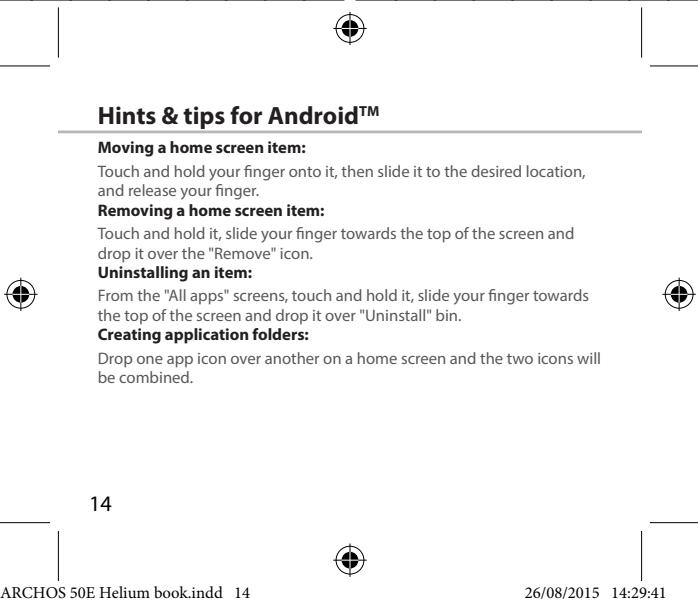

Hints & tips with AndroidTM 14

Troubleshooting. 16

For more information, please consult the FAQs on www.archos.com.

Make sure to read them before considering any product return. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Consult the declaration of conformity on http://www.archos.com/gb-en/support/support和技术/downloads.html

Package Contents

Check your product box for the following items:

• ARCHOS 50E Helium
• Battery
• Headset
• USB cable
• Charger
• Quick start guide
  Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices.

Unapproved accessories may cause your device to malfunction.

2

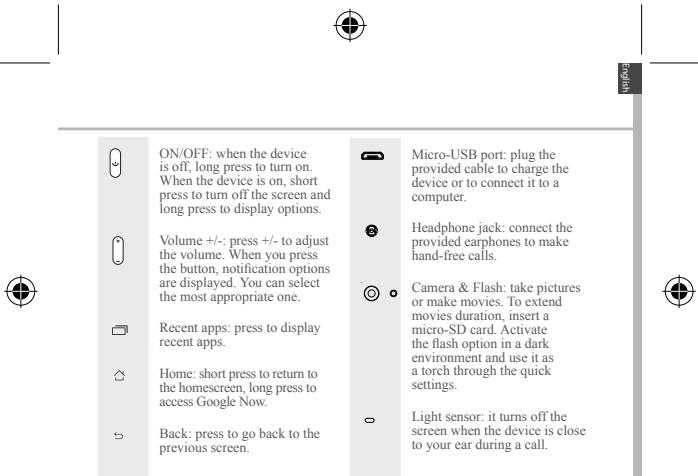

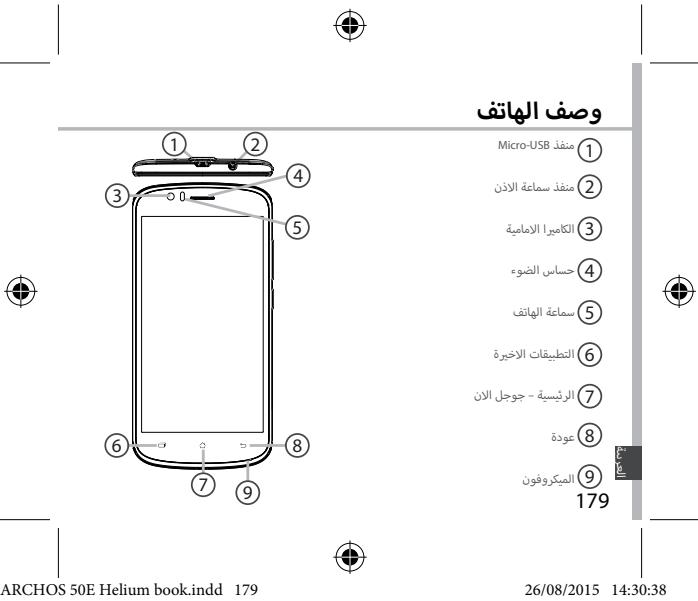

Description of the phone

① Micro-USB port
② Headset jack
③ Front camera
④ Phone speaker
⑤ Light sensor
⑥ Recent apps
⑦ Home/Google NOW
8 Back
9 Microphone

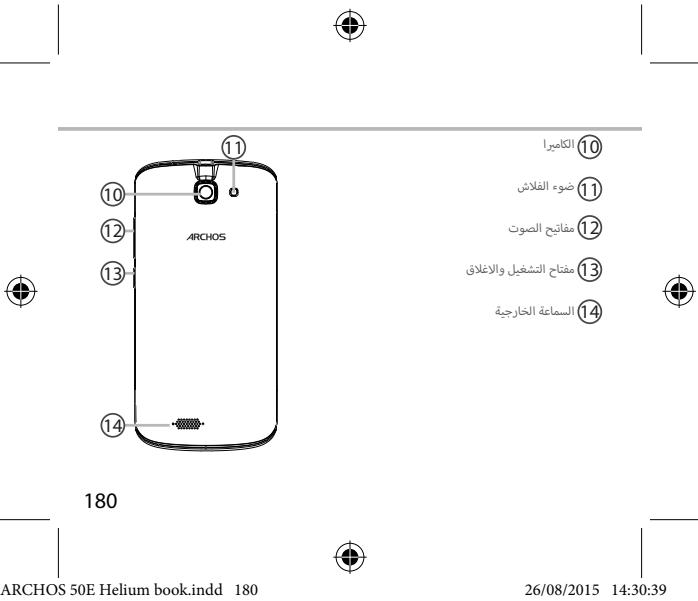

Description of the phone

10 Camera
⑪ Flash light
Volume buttons
⑬ON/OFF button
14 Loudspeaker

4

Getting started

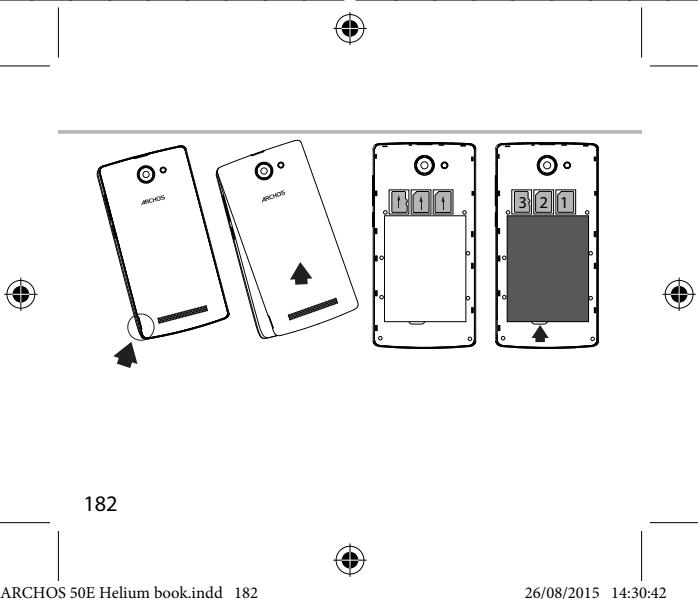

Assembling

After you have unpacked your mobile phone box:

1. Remove the device's back cover using the notch.
2. Insert your SIM card or Memory card in the corresponding slot.
3. Insert the device's battery.
4. Replace the back cover.

4G/3G/2G	slot 1	When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card.
2G	slot 2
Micro-SD card	slot 3

6

English

Lift the back cover using the notch

7

Getting started

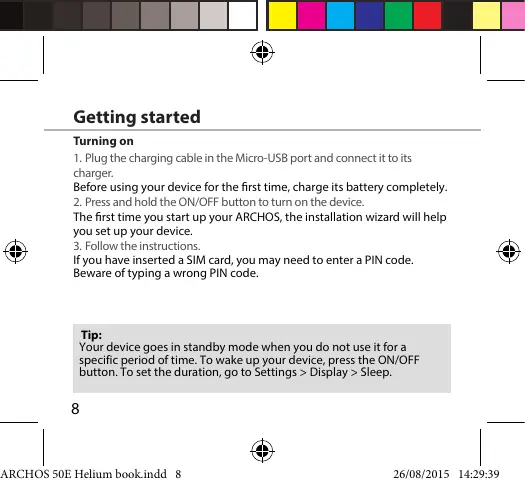

Turning on

1. Plug the charging cable in the Micro-USB port and connect it to its charger.
   Before using your device for the first time, charge its battery completely.
2. Press and hold the ON/OFF button to turn on the device.

The first time you start up your ARCHOS, the installation wizard will help you set up your device.
3. Follow the instructions.

If you have inserted a SIM card, you may need to enter a PIN code. Beware of typing a wrong PIN code.

Tip:

Your device goes in standby mode when you do not use it for a specific period of time. To wake up your device, press the ON/OFF button. To set the duration, go to Settings > Display > Sleep.

8

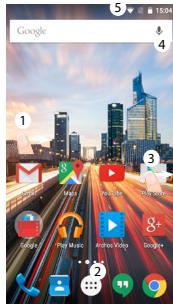

On your homescreen

1. Swipe right
2. Press
3. Hold your finger on an app
4. Say "Ok Google"

to access Google Now
to access all your apps
to move it right and create a new homescreen.
to launch the search page.

1. Touch and pull down the status bar to display it. Touch again the bar to reveal the quick settings.

Mobile Data & WiFi connection

Mobile data connection

If your mobile phone subscription includes a mobile data option, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your provider's 4G or 3G network.

Activating/Deactivating the mobile data

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the Settings icon.
4. In Wireless & networks, select Data usage, then the SIM card tab.
5. Slide the Mobile data switch to turn on/off.

Wireless networks

Data usage

WiFi connection

WARNING: Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Touch and pull down the status bar to display it.
2. Touch again the bar to reveal the quick settings.
3. Select the WiFi icon to activate the WiFi connection
4. Select "WiFi" below the WiFi icon.
5. Touch the name of network you want to connect to.
   Private networks are shown with a lock icon and will require you to enter your password.

Google & Contacts

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" > "Accounts" > "Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen instructions to enter information about the account. Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data is backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".
2. Select your account.

The list of information that can be sync are displayed.

Automatic sync should be activated. To launch the sync, press the Menu button then Sync now. You can get them back in case of loss of your device or SIM card. When your Google account is added to a new device, all your saved information is transferred.

12

Troubleshooting

My phone is frozen or cannot switch on

1. Remove and replace the battery.
2. Charge your device.

My phone cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

To configure a new 4G network:

On your device, tap Settings.

1. Select Wireless & networks > More... > Mobile networks.
2. In Mobile network settings, select your operator in Network operators.
3. In Mobile network settings, select Access point names, then select

to add new parameters and enter the exact connection parameters provided by your 4G provider.

16

Table des matieres

Wireless networks
Data usage

WLAN-Verbindung

Wireless networks
Data usage

WiFi-verbinding

DenHCTaJIaIcIaIe IJIeMeHTa:

PnKoCHNTecb KJIeMEnTy HkApeHa BcpeNIOXeHnR N yDepKINBAI naneL, PpOBeITeero K BepxHaeCtAnKpAHa NOTyCTNeHd NpIKTOrPAMMOUnInstal (DeuHCTaIINPOBaTb).

Co3dahne nanok npnloxehn:

NOMECTYE NIKTOKPAMGY MUNOHORI PNIOHKONHIA NOBEXP DYPORHO DAOMAJIHEM 3KPAhe, N DBE NIKTOKPAMMBI 6b8dEINHTCRA.

UcTpaHHe HEnOJaOK

TeneoHpearnpyetHaJeCTBmIINHe BKNIOaETCA

1.ИЗВЕКЛТЕ АKKМУЛТОР И YСТАНБИТЕ ERО CHOBА.
2.3apndte yctpoiCTBO

He yadetca noqknoohytbe nefoeh He moket K cetn, imn Oto6paKaetca coo6eHne No service (Het cetr)

PnIbtaeBc. tcyahonbts coedneHne Bpyrom Mecte.PnpoeBte y onepatoa hauHme NoxpRTH Cetn.PnpoeBte y onepatoa, dEmCTbEtnBa Hua BaA Sim-Kapra.TpnIbtaeBc bUbpaBt dcOyTuHyo Cetb (Cetn) Bpuhyo. PnpoeBte tcyahonbts coedneHne No3ke, cecn Cetb nepergyXha.

He ydaetcBbInonHrTbNcXoJaUne Bbl30Bbl

Y6eHNTcB, YTO TeneoH NOdkIouen K Cetn, IN TO CeT DOCTynHa IN He nepeRpyKeHa.

He ydaetc npHHMaTb BXoJaIue Bbl3OBbl

Y6BjTeTcB, YTO TEJEOH BKNIOHN H NIOKNIHOEN K CETI (npOBeTp, TTO cEBTOCTOyTHA IN HE peRyEzHAp.

3a6nokmpoBaH PIN-koD SIM-kapTbI

ObatittebckopotaryMoobhNbCWBnIraonnyuHnPK-KoPa (Personal Unblocking Key — nepcoahanabpa3noKpUpyoukOjok).

HactpoKa HOBOcTn 4G:

Ha 3kpae yctpoenCTBa KOCHNTecb nyHKta Settings (Hactpoikn).

1. Béguérine Wireless & networks (BeçnpoBodnôhne i npoBODnôhne cét)n) >More... (Boljhe...)> Mobile networks (Möbelnôhne cét).
2. HaxoIaBcB aBa3dJeHbAeKoMo6MbIbXb cTeiB, Ba6BePitoe onepatopar B cnmcKe Network operators (Onepatopb cTei).
3. HaxodibcB a 4aabeJe hactpoek MObIbIbIbCt cebn, BbIbePte IMMeHaTOeK DoCTynA. BbIbePte TcObBoI doBaobTb HObIe naPamETpy NBeCtin ToHcyIbnaPamETpy NoKIOKnOHEny, Ykaa3AHbIe NoCTabUINOM KYNLT CBN34G.

128

Spis tresci

Wireless networks
Date usage

Połaczenia Wi-Fi

a aaiy dai gaiy aaiy alal oaii y jgglgglg baa i

.

178

aillg

kaai:1 gaii (ai) 1gai iia
jaii aia:1 jaiii aia 1aii aiai
aiai 1aii aaiai aaiai aiai
aiai 1aii aaiii aaiii aiai
aiiu 1aiiu aaiiu aiui

gl jglllgljgljgljgljgljgljgljgljgljglj

egall sglw gwlz::/+gwlz
gwlz gwlz lwlz
jwlz kwlz, cylwlz, cylwlz

cokai kkiy

0 1

g, gallil gallil gallil baliyil a
aalaa aalaa aalaa aalaa aalaa
j, jaa, micro-SD aja, j, jla, jla
jla, jaa, cllss aalaa, j, jla, jla
daas cllss cllss

J3aagai 8aaai aai baiu 1gai 4aigai 5ai aiai aai 1aii

aaiwll aaiwll 1j0s0l baiol

J

jglalldsc

jglll jaiy jiaiy jaiy jiaiy tao jcdol bai.2

jglalbol oolall jwogj wagj bkgj gylg jgalj glall oaii

clalssll 3

jbl PIN joi jssol joi jiall jy, PIN joi jssol cllb olai olai aIb

:abgolo

cnae bawl jgall buaill, cogll no dul alswll aac sic slwll gjll jgal lgs

aulll lalll ll gssll ybaol.2

JUJIAYI JALAW ASWOWJWJ5

jao daol jdoi lubag jao doo jbi aooll

1

187

Google

gawgl gllwgl 1aalwl 6.6

Google -cllssll -cllssll jj jj jj j,Google -clljj jj jj jj j,6.7 Google -clljj jj jj jj j

Google 已 _ 1 ^ 已 Jds j slawll bao jui jj baoi o, aaiill ciao baoi.9

:

aolg dablo 3 lao aabull oao g w g sl gabi agal lc gabi agal gog y

: widgets, polic

aaiall joojao,aaajll aaiwjjgoklbeaally

：bll

aaiall joojao,aaasll aaalw jgolko lbaaally

：a

Jaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa aalaa

. jsl, PIN joi, "jaiu ciao" uK igaw aaii Jaa

190

Jusyll

:aaai jia aiai

a a a a a a a a a a a a a a a a a a a a a a a a a

aaiiiaaiiaaaie

a"di" 200000000000000000000000000000000000000000000000

:aaic

3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70

[ \Leftrightarrow \frac{y}{x} = \frac{1 - k}{x}]

aaglljz

jglj1jxw1-

baiol baiol ola! jj alsiw. baiol ola! jj alsiw gl a10 0d wgl lll jj le baiol 2

jLwyl alJ 13a 40g jolal olssuWU Caii ciis bawd oale! JJ

a 1y ygl kbl jllg

a aai g g g g g g g g g g g g g g g g g g

aJlKcIjLd

aTo g Jasi aai j g, aaiy iil Jui j no sll

aJalka Jaa aJg d

.（aio g Jasi aai 1g），auiu Jao g Jaa ai all jn ao Stll

aIPIN jao

. PUK joo Jgauu aJusu Jusu Juaaiy

4G

Entertainment your way

U

...

wJg o a Jn 9

Uni-Group

19043

www.uni-grp.com

/ArchosEgypt

/ArchosEgypt

aullal aolb uocgalllllloa oollbui j

jLJUJU

uuluguloljogjglgabayallllulllggtaley

jua aooJUoJIOuOaouoJUoo aoo ooooooo

Jg

:jgulalaiwJLdagolglgoglljajduggugg:

auiu uo 100gugaoallugagaijia jy jy jy jy jy

uullll juiuui ruiuall oio qieo joiil aull uiau uua uua uua

yjg j0 uuguagall a(jo (bdo dlaol) a

00000000000000000000000000000000000000

.

JgOoIgQyUulUdUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuUuU

yuljolaljioJlaoiJooJooJogUgOJIoo（aIJIIO）

Jl 1

UuuaUaUcU

J000000000000000000000000000000000000000

g jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

aulll jlljuligic100rajjgaoiao jloguilljoljglfuiuuiyraai

[e-mail] jgjjlllglpE ojjjllgjlllqjll

jLjwJdawu:ju

（）Ugaggluuejgljuae

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About phone\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/License-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country
Bulgaria
France

Restriction
None
Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz

ReasonRemark
General authorization required for outdoor use and public service

Military Radiolocation use. Reforming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy
Luxembourg

None
None

If used outside of own premises, general authorization is required.
General authorization required for network and service supply (not for spectrum)

196

Norway Implemented This subsection does not apply for the geographical aera within a radius of 20km from the centre of Ny-Alesund

Russian None Only for indoor applications Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/ declaration_conformity.html

SAR After the laboratory measurement, this mobile phone SAR value is: Body 1.003W / kg ;Head:0.325 W/kg Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC

€ 2200
