KRUPS ESPRESSERIA AUTOMATICS
ESPRESSERIA AUTOMATIC SERIE EA80 EA81
KRUPS
KRUPS
ESPRESSERIA AUTOMATIC
SERIE EA80 EA81
www.krups.com
HU SK CS PL UK

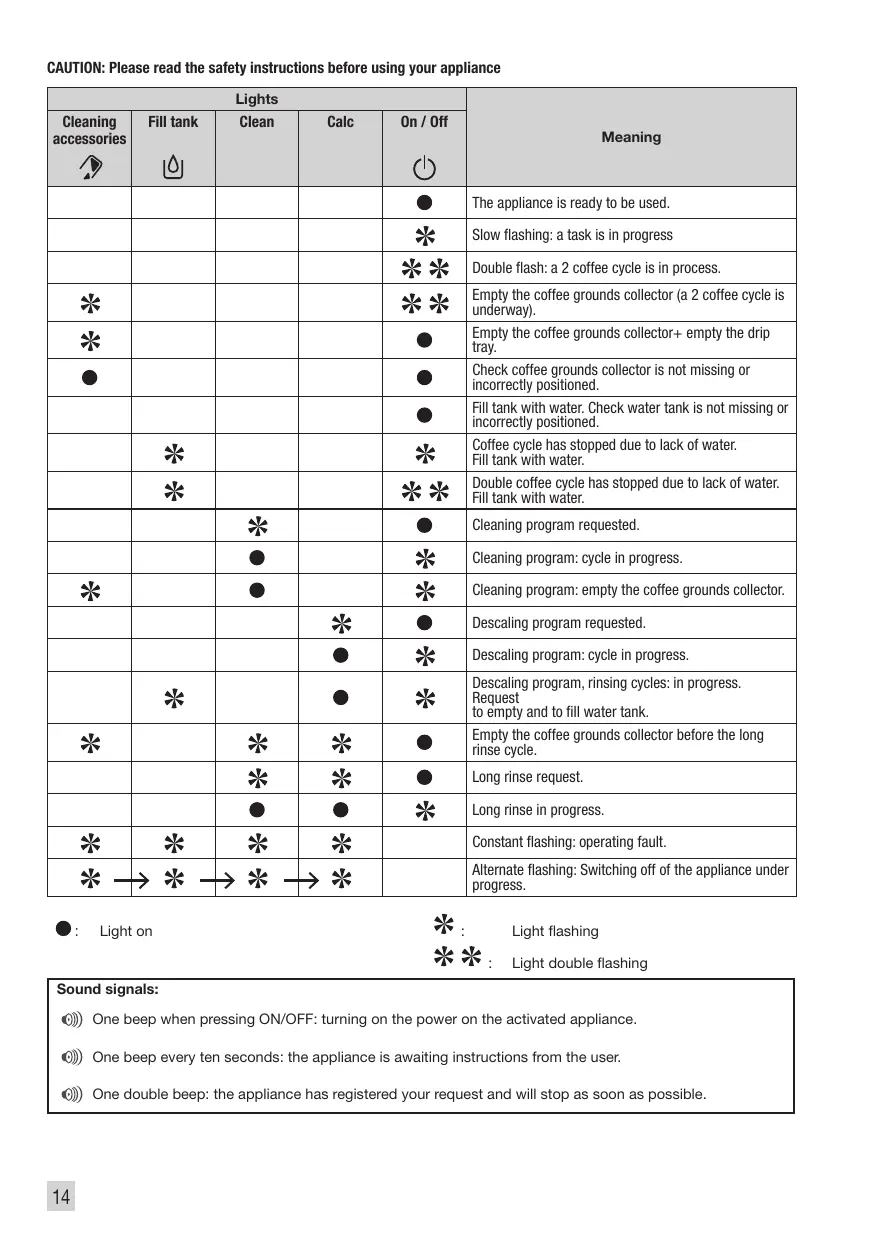

CAUTION: Please read the safety instructions before using your appliance
| Lights | Meaning |
| Cleaning accessories | Fill tank | Clean | Calc | On / Off |
| | | | ● | The appliance is ready to be used. |
| | | | * | Slow flashing: a task is in progress |
| | | | * * | Double flash: a 2 coffee cycle is in process. |
| * | | | | * * | Empty the coffee grounds collector (a 2 coffee cycle is underway). |
| * | | | | ● | Empty the coffee grounds collector+ empty the drip tray. |
| ● | | | | ● | Check coffee grounds collector is not missing or incorrectly positioned. |
| | | | ● | Fill tank with water. Check water tank is not missing or incorrectly positioned. |
| * | | | * | Coffee cycle has stopped due to lack of water. Fill tank with water. |
| * | | | * * | Double coffee cycle has stopped due to lack of water. Fill tank with water. |
| | * | | ● | Cleaning program requested. |
| | ● | | * | Cleaning program: cycle in progress. |
| * | | ● | | * | Cleaning program: empty the coffee grounds collector. |
| | | * | ● | Descaling program requested. |
| | | ● | * | Descaling program: cycle in progress. |
| * | | ● | * | Descaling program, rinsing cycles: in progress. Request to empty and to fill water tank. |
| * | | * | * | ● | Empty the coffee grounds collector before the long rinse cycle. |
| | * | * | ● | Long rinse request. |
| | ● | ● | * | Long rinse in progress. |
| * | * | * | * | | Constant flashing: operating fault. |
| *→ | *→ | *→ | * | | Alternate flashing: Switching off of the appliance under progress. |
Light on
One beep when pressing ON/OFF: turning on the power on the activated appliance. One beep every ten seconds: the appliance is awaiting instructions from the user. One double beep: the appliance has registered your request and will stop as soon as possible.
Dear Customer,
Thank you for having purchased this Krups Espresseria Automatic. We are sure you will enjoy both the quality of the coffee it makes and how easy it is to use.
Whether you want a short, strong shot of a ristretto, a good espresso, a larger and milder lungo, or a creamy cappuccino, your automatic coffee / espresso machine has been designed so you can enjoy the same quality at home as at the bistro, whatever the time of day and right through the week.
Thanks to its Thermoblock System, its 15 bar pump, and because it uses real coffee beans that are ground just before the coffee is made, your Espresseria Automatic will give you a drink containing maximum aroma, with a fine creamy golden brown top produced by the natural oils contained in coffee beans.
To obtain an espresso at just the right temperature and a nice compact creamy top, we advise you to pre-heat your cup. After a few trial runs you will find the type of mix and roast of the coffee beans that suits your taste. The quality of the water used is obviously another essential factor in the coffee you get.
Make sure the water is fresh from the tap (contact with the air tends to make it stale), that it is free from chlorine odours and relatively cold.
Espresso coffee is richer in aroma than a conventional filter coffee. Despite its stronger, longer-lasting taste, espresso in fact contains less caffeine than filter coffee.

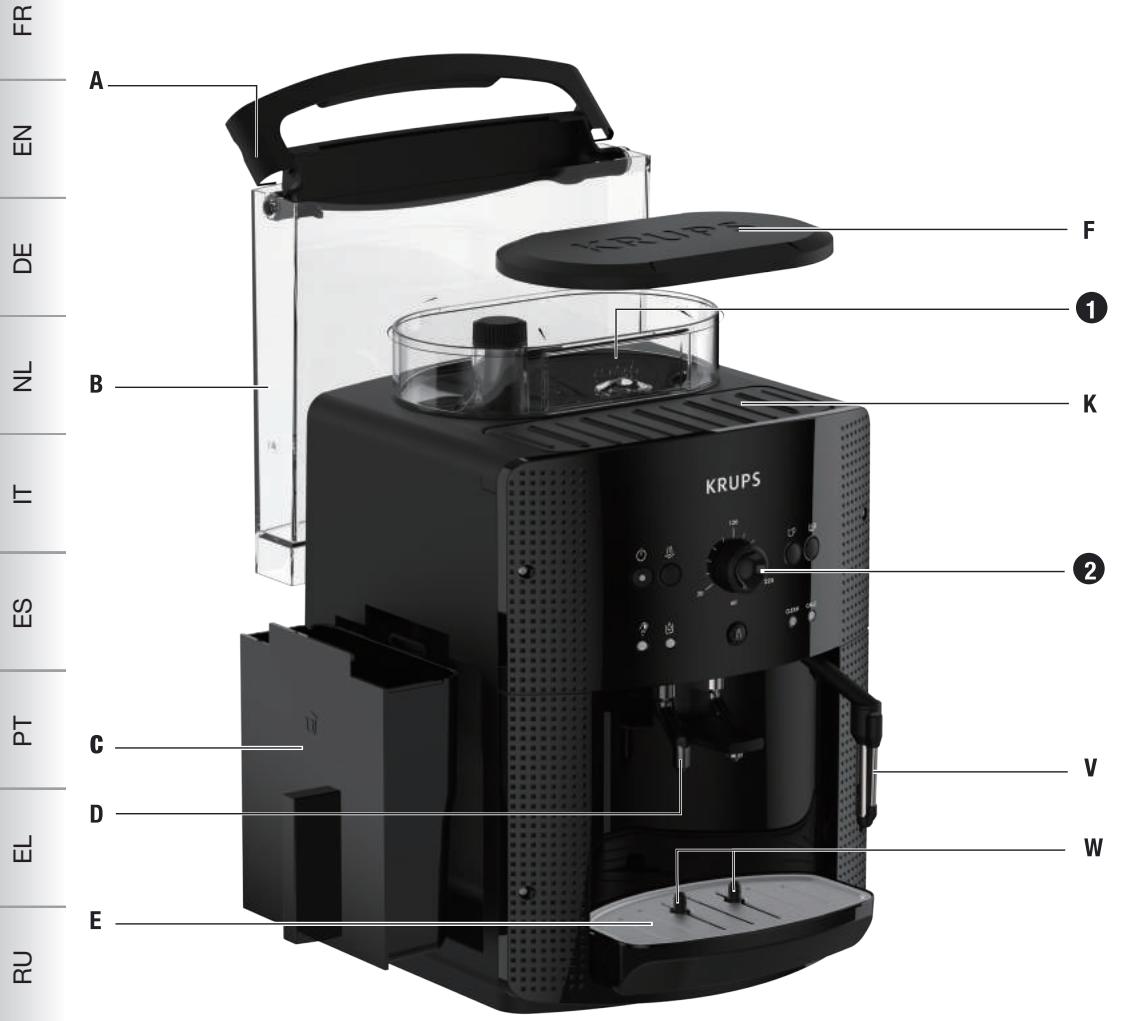

DESCRIPTION
A Water tank handle/lid B Water tank C Coffee grounds collector D Coffee outlets with height adjusting handle E Removable drip grid and tray F Coffee bean container lid

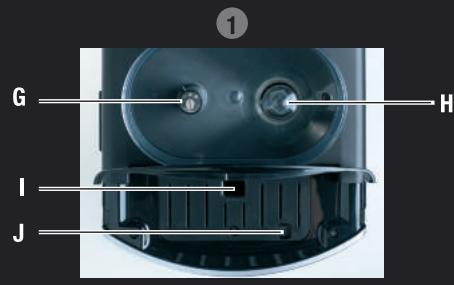

Coffee bean container
G Grinding fineness setting knob H Metal grinding wheel Cleaning inlet J Digital display for parameter setting K Cup tray

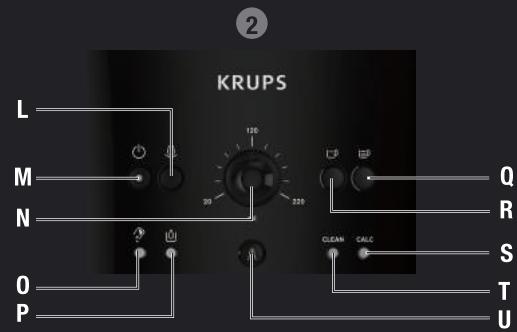

Control panel
L Steam button M "On/Off" key and light N Coffee volume rotating button 0 "empty the coffee grounds" and "empty the drip tray" warning light P "Fill water tank" light Q Strong coffee key R Standard coffee key S "Scale removal" light T "Clean" light U "Rinsing/servicing" key
V Steam nozzle
W Water level floats
Danger :
Warning against the risk of serious or fatal injuries.
The lightning bolt symbol warns against electrical dangers.
Attention:
Warning against the risks of incorrect operation, damage or destruction of the appliance.
Important:
General or important note on the operation of the appliance.
Warning signals
Empty the coffee grounds collector and the drip tray, and wipe clean the area where the coffee drawer sits; the pot will remain on if the coffee grounds collector is not properly inserted or if it has been put back in place 4 seconds earlier.
Fill water tank
CLEAN Proceed with cleaning
CALC Proceed with scale removal
CLEAN + CALC Carry out a long rinse
Coffee bean grinding fineness setting
Standard
Steam button
Rinsing/servicing
Strong coffee
BEVERAGE PREPARATION
| TYPES OF COFFEE | Number of cups possible | Possible volume settings (ml) | Possible strength settings |
| RISTRETTO | 1 | 20 to 30 ml | ☐ or ☐ |
| 2 x 1 | 2 x 20 to 30 ml in two cycles |
| ESPRESSO | 1 | 30 to 70 ml | ☐ or ☐ |
| 2 x 1 | 2 x 30 to 70 ml in two cycles |
| COFFEE or LUNGO | 1 | 80 to 220 ml | ☐ or ☐ |
| 2 x 1 | 2 x 80 to 220 ml in two cycles |
BEFORE FIRST USE
Preparing the appliance
Pull out and fill the water tank - Fig. 1 and 2.
Put it back in place by pressing firmly and close the lid again - Fig. 3.
Open the coffee bean container lid. Add the coffee beans - Fig. 4.
Close the coffee bean container lid again.
Do not fill the water tank with hot water, milk or any other liquid. If you turn on the appliance when the water tank is not in place or not correctly filled (under the "min." level.), the light will come on and making an espresso or a cup of coffee will be made impossible.
NEVER PUT GROUND COFFEE IN THE COFFEE CONTAINER.
It is recommended that you do not use oily, caramelised or flavoured coffee beans for this appliance. These kinds of beans may damage the appliance.
Check that the coffee beans do not contain any foreign particles such as grit, as any damage caused by the presence of foreign particles will invalidate the guarantee.
Do not put water into the coffee bean container.
Remember to fit the drip tray to avoid waste water flowing onto the work surface and staining it or scalding you.
Check that your water tank is clean.
Initialisation cycle - total duration: around 3 minutes
Turn on the appliance by pressing the button Ⓥ - Fig. 5. The light Ⓥ is constant.
Put a container with a minimum capacity of 0.6 litres underneath the two coffee outlets and steam nozzle.
Press the 且 - Fig. 6 button: the appliance starts the initialisation cycle for rinsing of the steam and coffee circuits. The light 日 flashes.
The cycle is finished when the light Ⓥ becomes constant. The appliance is now ready to use.
It is preferable to rinse the 2 circuits out at least once after the appliance has not been used for several days. Each time you plug your appliance in, it will carry out an initialisation cycle.
Preparing the grinder
You can choose the strength of your coffee by setting the coffee bean grinding fineness. The finer the grinding setting, the stronger and creamier the coffee should be. Set the desired fineness for grinding by turning the 'Grinding fineness setting' knob. Turn to the left for finer grind. Turn to the right for coarser grind.
CHANGE THE SETTING DURING GRINDING.
Never force the grinding fineness setting button.
PREPARING ESPRESSO AND LONG COFFEES
YOUR APPLIANCE IS DESIGNED TO MAKE COFFEE FROM COFFEE BEANS ONLY.
When you first make coffee with the appliance or after a long period of absence or a cleaning or scale removal procedure, a little steam and hot water will come out of the steam nozzle (priming).
Splashing or scalding may occur if the coffee outlets are set too high in relation to the size of the cups.
Note:
The amount of water needed to make an espresso is between 30 and 70 ml.
The amount of water needed to make a coffee is between 80 and 220 ml.
Production of an espresso or coffee
Plug in your appliance.
Press button ①. The light will flash during the pre-heating and initialisation cycle.
The light ① becomes constant.
Place a cup under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cups - Fig. 7.
Select the key to get a strong espresso or the key to get a standard espresso - Fig. 8.
You can change the volume of water at any time - Fig. 9.
To stop coffee flowing into the cup, you can either press one of the ① or ② keys again, or turn the knob to the min. position.
The ground coffee is moistened with a little hot water after the grinding stage. A few moments later, percolation as such starts. Beyond a certain amount of coffee in the cup, we recommend - in order to obtain a stronger coffee - to divide your preparation into two separate cycles. Example: 2 x 70 ml cycles for a cup of 140 ml.
2 cup function
You can prepare 2 cups of coffee or espresso with your appliance.
Press button ①. The light flashes during the pre-heating of the appliance.
The light ① becomes constant.
Place 2 cups under the coffee outlets. You can lower or raise the coffee outlets to suit the size of your cup - Fig. 10.
Select the button or according to your choice, by quickly pressing the button twice. The light comes on with a double flash to inform you that you have requested two cups of coffee.
The appliance will automatically sequence 2 complete coffee-making cycles.
Make sure that you don't remove the cups after the first cycle.
If you press the button once and the button a second time (or the other way round), the second one isn't taken into account.
PREPARING STEAM
Steam froths up the milk to make a cappuccino or a caffe latte, for example, and also heats up liquids. As you need a higher temperature to produce steam than to make an espresso, the appliance runs an additional pre-heating phase for steam.
Plug in your appliance.
Press the button: the light flashes during the pre-heating of the appliance.
The light becomes constant.
Press the button - Fig.11.
The light flashes during the pre-heating.
Once the pre-heating is finished, the light stays constant and you can start the steam production by pressing the button again.
Press the button again to stop the cycle.
The appliance goes back to its initial position if the steam control is not used after 2 mins.
Frothing milk
We recommend that you use pasteurised or UHT milk that has been recently opened. Untreated milk does not give the best results.
Pour the milk into your milk jug. Immerse the nozzle in the milk - Fig. 12.
Initiate the steam function as explained in the paragraph above.
Once your milk is frothy enough - Fig. 13 - again press the button to stop the cycle.
To remove any milk traces from the steam nozzle, place a container under the nozzle and restart a preparation with steam (around 10 seconds).
The steam nozzle can be removed for more intense cleaning. Wash it out with water and a little washing up liquid and a small non-abrasive brush. Rinse and dry it - Fig. 14. Before putting it back, ensure that the air inlet holes are not blocked by any milk residues. If necessary, unblock them using the needle supplied - Fig. 15.
Do not wash the steam nozzle in a dishwasher.
To interrupt the steam function, simply press any button.
If the nozzle is obstructed, unblock it with the needle provided.
Steam can be produced for a maximum of 2 minutes per cycle.
After the steam function has been used, the nozzle can be hot, and we recommend that you wait for a few moments before handling it.
Auto-cappuccino XS 6000 Set (sold separately)
This auto-cappuccino accessory enables you to make cappuccinos or lattes - Fig. 16. Connect the different parts to each other. Ensure that you do not pierce the pipe by keeping the button in the correct place.
After removing the lid, fill the jug with milk (Fig. 17) and place a cup or glass under the auto-cappuccino nozzle (Fig. 18).
- Select the cappuccino or latte position on the special nozzle (Fig. 19).
Start the steam, as indicated in the chapter 'Making drinks with steam'.
Once you have made the milk froth, place your cup under the coffee outlets and start a coffee cycle (Fig. 20).
To prevent the milk from drying on the auto-cappuccino accessory, ensure that you clean it thoroughly. You are advised to wash it immediately by running a steam cycle with the accessory jug filled with water in order to clean the inside of the nozzle. You can use the KRUPS liquid cleaner for this, available separately.
MAINTAINING YOUR APPLIANCE
Emptying the coffee grounds collector and the drip tray.
If the light flashes,
Remove, empty and clean the coffee ground collector (Fig. 21).
Replace the coffee grounds collector (Fig. 22).
Remove, empty and clean the drip tray (Fig. 23).
The drip tray is equipped with floats to indicate when it needs to be emptied.
Put all parts back in place.
As soon as you remove the coffee grounds collector, you will have to empty it completely to avoid any overflow.
The light will remain on if the coffee drawer area is not cleaned thoroughly and if the used grounds collector is not pushed firmly into place or is incorrectly installed.
You cannot make espresso or coffee while the light is on or is flashing. The coffee grounds collector has a capacity of 9 coffees.
Rinsing of circuits
These 2 functions are available anytime, except if the appliance requests a 'CLEAN' and/or 'CALC' cycle.
Rinsing out the coffee circuit:
Place a container under the coffee nozzles. Press the button - Fig. 6 quickly to start a coffee circuit rinsing cycle, which will automatically stop after around 40 ml.
Rinsing out the steam circuit:
Place a container under the steam nozzle and press the button for 3 seconds to start a steam circuit rinsing cycle, which will automatically stop after around 300 ml.
Appliance cleaning program - total duration: about 13 minutes
When a cleaning operation is necessary, the appliance warns you of this by flashing the 'CLEAN' light.
This program is only accessible when the appliance requests it (i.e. approximately every 300 coffees or espressos).
To benefit from the guarantee conditions, it is essential to perform the appliance cleaning cycle when informed to do so. Be sure to follow the procedure closely, step by step.
Only use KRUPS cleaning tablets. You can obtain cleaning tablets from KRUPS Service Centres.
When the indicator light flashes, you can continue to use the appliance but it is recommended that you carry out the program as soon as possible.
Start the cleaning program by pressing the button. The 'CLEAN' light becomes constant and the indicator lights and flash.
Remove, empty and clean the coffee ground collector - Fig. 21.
Replace the coffee grounds collector - Fig. 22
Remove, empty and clean the drip tray - Fig. 23.
Put all parts back in place.
The light goes out.
Remove, fill and put the water tank back into place.
Place a container with a minimum capacity of 0.6l under the coffee outlets - Fig. 24.
Open the maintenance hatch - Fig. 25 and insert a KRUPS cleaning tablet (XS3000) in the cleaning duct - Fig. 26.
Press the button to start a cleaning cycle.
The first phase (approximately 10 min) begins. At the end of this phase, the sound signal emits a beep every 10
seconds and you can empty the used water container and the drip tray.
Put the drip tray and container back in place for the next phase.
Press the button again to start the final phase. The sound signal stops.
Final phase (±3 min)
The program continues. It rinses the appliance and removes any traces of cleaner.
When the cleaning cycle is finished, the indicator light 'CLEAN' goes out.
Remove and empty the used water container.
Empty the drip tray and put it back into place.
Refill the water tank.
Your appliance is ready for the next use.
If there is not enough water in the water tank when you start the program, the light will come on to warn you. Add the appropriate amount of water to the container and cleaning will continue automatically.
If you unplug the appliance during cleaning, press the ① button, or if there is an electrical power cut, the cleaning program will start again from the beginning. In this case, another cleaning tablet may be necessary. Make sure to carry out the full cleaning cycle to ensure good maintenance of your appliance.
The cleaning cycle is intermittent: do not put your hands under the water outlets 'E' and 'W' while the cycle is in progress.
Only use KRUPS (XS3000) cleaning tablets. We cannot be held responsible for any damage that may result from the use of tablets from other brands.
You can obtain cleaning tablets from KRUPS Service Centres.
Scale removal program - total duration: about 20 minutes
The quantity of scale deposited depends on the hardness of the water used. The appliance will automatically warn you by the 'CALC' light coming on when you need to proceed with scale removal.
This program is only accessible when the appliance requests it.
To benefit from the guarantee conditions, it is essential to perform the appliance's scale removal cycle
when informed to do so. Be sure to follow the procedure closely step by step. You can continue to use the appliance when the light is on, but you are advised to perform the program as soon as possible.
If your appliance is fitted with our Claris - Aqua Filter System F088 cartridge, please remove the cartridge during the descaling operation.
Only use KRUPS scale removal products. You can obtain scale removal products from KRUPS Service Centres.
We cannot be held responsible for any damage that may result from the use of tablets from other brands.
Make certain to protect your work surface during cleaning and scale removal cycles, especially if it is made of marble, stone or wood.
Start the descending program by pressing the button. The 'CALC' light becomes constant and the indicator lights △ and ◇ flash.
Remove and clean the drip tray.
Place a container with a minimum capacity of 0.6 I under the coffee outlets as well as under the steam nozzle - Fig. 24.
Empty the tank and refill it with warm water up to the line 'CALC' - Fig. 33.
Dissolve a sachet of Krups (40 g) F054 descaler in the tank - Fig. 33.
Replace the water tank. The indicator light ○ switches off.
Press the button after carrying out all of these operations.
The first phase (approximately 8 min) begins.
The descending cycle will start automatically.
At the end of this phase, the sound signal beeps every 10 seconds and the indicator light ⟩ᵀ⟨ flashes.
Empty the used water container and put it back in place.
Empty and rinse the water tank - Fig. 34.
Refill the tank with water and put it back into place. The warning light goes out.
Press the button again to start the second phase. The sound signal stops.
The second phase (about 6 min) begins.
The program continues. It rinses the appliance and removes any traces of the descaler.
At the end of this phase, the sound signal beeps every 10 seconds.
Remove and empty your used water container and put it back in place.
Press the button again to start the final phase. The sound signal stops.
The final phase (approximately 6 min) begins.
The program continues. It removes the last particles of descaler.
When the descending cycle is finished, the indicator light 'CALC' goes out.
Refill your water tank.
Your appliance is ready for the next use.
If there is not enough water in the water tank, you will be warned by the light.
Add the appropriate amount of water to the tank and scale removal will continue automatically.
If you unplug the appliance during cleaning, press the button, or there is an electrical power cut, the cleaning program will start again from the beginning. In this case, another cleaning tablet may be necessary. Make sure to carry out the full cleaning cycle to ensure good maintenance of your appliance.
The cleaning cycle is intermittent: do not put your hands under the water outlets 'E' and 'W' while the cycle is in progress.
Long rinsing program - total duration: about 2 minutes
When it is necessary to make a long rinsing program, the appliance warns you of this by flashing the 'CLEAN' and 'CALC' lights.
Remove, fill and replace the water tank.
Place a container with a minimum capacity of 0.6 I under the coffee outlets and the steam nozzle.
Start the long rinsing program by pressing the button. The lights 'CLEAN' and 'CALC' become constant and the indicator light starts flashing.
When the long rinse is finished, the lights 'CLEAN' and 'CALC' go out and the indicator light becomes constant.
Your appliance is ready for the next use.
The appliance can ask you to empty the coffee ground collector.
OTHER FUNCTIONS
To switch the appliance off
You can switch off your appliance at any time. As the appliance is switching off, a double beep is emitted and all of the red lights flash, one after the other. The appliance has registered your request and will stop as soon as possible.
Installation of the filter cartridge - total duration: around 2 min
To get the best taste from your coffee and extend your appliance's service life, we advise you to use only the Claris - Aqua Filter System cartridge sold as an accessory.
Fig. 30 : Mechanism to indicate the month the cartridge was fitted and when to replace it (after 2 months at most).
Installing the cartridge in the appliance. On first use, screw the filter cartridge into the bottom of the water tank - Fig. 31.
Place a 0.6 I container under the steam nozzle.
Press the button for more than 3 seconds (unless the appliance requires a 'CLEAN' and/or 'CALC' maintenance).
The indicator light ① flashes.
When the installation of the filter cartridge is finished, the indicator light becomes constant.
Your appliance is ready for the next use.
The Claris cartridge needs to be replaced after about every 50 litres of water or every two months at least. If you are using the Claris - Aqua Filter System cartridge, set the water hardness to level 0.
Settings
Connect the appliance to the mains power supply but do not turn it on.
Lift the cup grid by pressing on the back to make it tilt - Fig. 25.
Press the and p simultaneously - Fig. 27.
The digital display for parameter setting is under the servicing flap - Fig. 28.
Look down vertically to the bottom of the window - Fig. 29.
Proposed settings order:
- Adjust water hardness
- Adjust coffee temperature
- Adjustment of the auto-off function
- Info
1. Setting water hardness
Appliances are pre-set in the factory for hardness level 4.
Before using the appliance for the first time or if you have noted a change in water hardness, it is advisable to adapt the appliance to the water hardness. Please contact your water supplier to find out the water hardness in your area.
| Degree of hardness | 0 Verv soft | 1 soft | 2 moderately hard | 3 hard | 4 extremely hard |
| °f | < 5,4° | >7,2° | >12,6° | >25,2° | >37,8° |
| °dH | < 3° | >4° | >7° | >14° | >21° |
| °e | < 3,75° | >5° | >8,75° | >17,5° | >26,25° |
| Settings | 0 | 1 | 2 | 3 | 4 |
The "water tank" light will come on.
Press the E^D button (Fig. 32) as many times as needed to select the hardness level for the water used: 0 = very soft, 1 = soft, 2 = moderately hard, 3 = hard, 4 = very hard.
To go to the next phase, press the button, or to leave the settings mode press O.
2. Setting the coffee temperature
Appliances are pre-set in the factory to level 2.
The 'CALC' light comes on.
Press the E^p button (Fig. 32) as many times as needed to adjust the desired coffee temperature: 1, 2 or 3.
To go to the next phase, press the button, or to leave the settings mode, press Θ.
3. Setting the automatic electrical power supply cut-off (auto-off)
Appliances are pre-set in the factory to 1 hour.
You can set your appliance to turn off after a pre-programmed number of hours.
The 'CLEAN' light comes on.
Press the button (Fig. 32) as many times as necessary to select the desired duration: 1 = 1h, 2 = 2h, 3 = 3h, 4 = 4h.
To go to the next phase, press the down arrow button, or to leave the settings mode, press the up arrow button.
4. Info (number of cycles)
The light comes on.
To go to the next stage, press the button. You will go back to adjustment 1.
To leave settings mode, press the button.
At any of these stages, you can leave settings mode by pressing the button if you have finished your adjustments. All
of the lights will go off. These settings stay applicable even if there is an electric power cut. You can change these settings
at any time by repeating these operations.
TROUBLESHOOTING, CORRECTIVE ACTIONS
| PROBLEM MALFUNCTION | CORRECTIVE ACTION |
| Your appliance detects a fault. | Switch off and disconnect the appliance, remove the fil-
ter cartridge, wait for a minute and restart the appliance. |
| The appliance does not turn on when the ① button is
pressed. | Check your fuses and plug sockets.
Check that the two power plugs are correctly pushed in
the socket. |
| The coffee grinder makes a strange noise. | There is a foreign body in the grinder. Disconnect the
apppliance before investigating. See if you can extract
the foreign body using your vacuum cleaner. |
| The steam nozzle makes a noise. | Check that the steam nozzle is correctly attached to its
corresponding end piece. |
| The steam nozzle on your appliance seems partially or
completely clogged. | Ensure that the opening in the end piece is not ob-
structed by milk residue or limescale. Unclog the holes
with the needle supplied with your appliance. |
| The steam nozzle makes little or no milk froth. | For milk-based drinks, use very fresh, very cold pa-
seurised or UHT milk. It is also advisable to use a cold
container. If the results do not improve, try changing the
brand of milk. |
| No steam comes out of the nozzle. | Empty the tank and temporarily remove the filter car-
tridge. Fill the water tank with mineral water which is
high in calcium (>100 mg/l) and run successive steam
cycles. |
| The auto-cappuccino set makes little or no froth.
The auto-cappuccino set does not take in milk. | Check that the accessory is correctly attached to the
apppliance, remove it then replace it.
Check that the flexible tube is not obstructed or pierced
and that it is correctly attached to the accessory so as
to make it airtight. Rinse and clean the accessory (refer
to the "Auto-cappuccino accessory" chapter). |
| There is water underneath the appliance. | Before removing the water tank, wait for 15 seconds
after the coffee has finished flowing so that the appli-
ance finishes its cycle properly.
Check that the drip tray is correctly positioned on the
apppliance; it should always be in place, even when the
apppliance is not in use.
Check that the drip tray is not full.
The drip tray should not be removed during a cycle.
Clean the tank and its connection regularly to avoid the
build up of scale, which can cause leaks. |
| After emptying the coffee grounds collector, the warning
message is still displayed on the screen. | Remove the coffee grounds collector and ensure it is
empty and clean. Wait at least 6 seconds before replac-
ing, and ensure it is correctly installed. |
| The coffee dispenses too slowly. | Turn the coffee fineness dial to the right to make the grounds courser (this could also depend on the type of coffee used).Run one or several rinsing cycles.Change the Claris Aqua Filter System cartridge (see “Installing the filter”). |
| The water/steam is not dispensed normally from the steam nozzle. | At the beginning or end of making a drink, the steam nozzle may drip slightly. |
| The coffee fineness dial is difficult to turn. | Only change the grinder setting when it is running. |
| The espresso or coffee is not hot enough. | Change the coffee temperature setting. Warm the cup by rinsing it with hot water before making the drink. |
| The coffee is too lightly coloured or too weak. | Avoid using oily, caramelised or flavoured coffee. Check that the coffee bean container has coffee in it and that it is dispensing correctly.Decrease the drink volume, increase the drink strength. Turn the coffee fineness dial to the left to make the grounds finer.Make the drink in two cycles by using the 2 cups function. |
| The appliance is not producing coffee. | A problem has been detected during preparation of the drink.The appliance has restarted automatically and is ready for a new cycle. |
| Why can I not start the descending or cleaning program? Why does my appliance not request to be descaled or cleaned? | The appliance only requests to be cleaned once it has made several types of coffee. The appliance only requests a descending cycle once it has made a certain number of drinks using steam. |
| A power failure occurs during a cycle. | The appliance is automatically restarted when power is switched back on. |
| Coffee flows behind the coffee nozzles. | Pour cold or room-temperature water into the tank. Reduce the temperature level. |
| The appliance is working but no liquid comes out. | Check that the water tank is in the correct position and that the cord is not jammed between the appliance and the water tank. |
| Ground coffee is in the drip tray. | Yes, to stay clean the appliance clears ground coffee which has fallen out of the percolation tank. |
Danger: Only a qualified technician is authorised to carry out repairs on the power cord and the electrical system. Failure to respect this exposes you to fatal injuries due to the presence of electricity. Do not use an appliance that is visibly damaged.
Here are some recipes you can make using your Espresseria Automatic:
Cappuccino
For a cappuccino in the rules of the art, the ideal proportions are as follows: 1/3 hot milk, 1/3 coffee, 1/3 milk froth.
Caffe Latte
To make coffee with milk, also often called Latte Macchiato, the proportions are as follows: 3/5 hot milk, 1/5 coffee, 1/5 milk froth.
- For these milk-based preparations, it is best to use cold skimmed milk straight from the refrigerator (ideally between 6 and 8°C).
- To finish off, you can sprinkle with cocoa.
Café Crème
- Prepare a conventional espresso in a large cup.
- Add a little cream to get a café crème.
Café corretto*
Prepare a cup of espresso as usual.
Then add 1/4 or 1/2 of a liqueur glass of Cognac to taste.
- You can also use anisette, brandy, Sambuca, Kirsch or Cointreau.
- There are many other ways to give some punch to your espresso.
- Just use your imagination.
Coffee liqueur*
Mix 3 cups of espresso, 250 g of brown sugar candy and 1/2 litre of Cognac or Kirsch in an empty 0.75 litre bottle.
Leave the mixture to macerate for at least 2 weeks.
- You will obtain a delicious liqueur. A real treat for coffee lovers.
Italian style iced coffee
4 scoops of vanilla ice-cream, 2 cups of espresso with sugar to taste, 1/8 litre of milk, fresh cream, grated chocolate. - Mix the cold espresso with the milk. - Serve the scoops of ice-cream into the glasses, pour the coffee onto them and decorate with fresh cream and grated chocolate.
Café à la frisonne*
Add a small glass of rum to a cup of sweetened espresso.
Decorate with a good layer of fresh cream and serve.
Flambéed espresso*
2 cups of espresso, 2 small glasses of Cognac, 2 teaspoons of brown sugar, fresh cream. - Pour the Cognac into heat-resistant glasses, heat and light. - Add the sugar, mix, pour in the coffee and decorate with fresh cream.
Espresso Parfait*
2 cups of espresso, 6 egg yolks, 200 g sugar, 1/8 litre of sweetened fresh cream, 1 small glass of orange liqueur. - Beat the egg yolks with the sugar until it forms a thick, frothy mass. - Add the cold espresso and the orange liqueur. - Then mix in the whipped fresh cream. - Pour the mix into saucer champagne glasses or ordinary. - Put the champagne glasses in the freezer.
(Remember, over-indulgence in alcohol is bad for the health.)
MAKING ESPRESSO AND COFFEE
THE MACHINE IS DESIGNED EXCLUSIVELY FOR MAKING COFFEE WITH COFFEE BEANS.
NOTE: THE CYCLE SERVICE IS NOT IMMEDIATE.
Milk froth
LIGHT INDICATOR
*: The light indicator flashes
**: The light indicator is on
Sound signals:
1 short beep when pressing the "ON/OFF" button: power supply on, device on. 1 short beep every 10 seconds: the device is waiting for a user command. 1 long beep: the device has received a request and will perform a maximum quick stop.
Dear Customers!
Congratulations on your purchase of the Espresseria Automatic Krups appliance. You will be able to appreciate the quality of this appliance and at the same time the ease of its use when preparing coffee.
Espresso, Lungo, Ristretto, Cappuccino: this fully automatic espresso coffee machine is designed to allow you to enjoy at home the same quality of coffee as in a café at any time of the day or week.
The Espresseria Automatic appliance is equipped with a 15-bar system and, since the coffee grinder works exclusively with coffee beans, freshly ground just before preparation, it allows you to produce a drink with a rich aroma, a thick and golden crema, a product obtained from the natural oil of coffee beans.
If you want to get espresso with an optimal temperature and good crema, we recommend that you preheat the cups. After a few preparations, you will be able to determine the type of blend and roast of coffee beans that best suits your tastes. The quality of the water used will affect the quality of the coffee that will be in your cup.
He warned that the water was fresh (the water had not been in contact with air), and that it does not taste of chlorine.
Espresso has a stronger aroma compared to coffee prepared with a regular filter. Despite the more intense taste, which will be felt longer and stronger, espresso contains practically less caffeine than coffee prepared through a filter.
Description
A Handle/lid of the water reservoir B Water reservoir with filter holder C Height-adjustable coffee outlet D Handle E Grille and drip tray for cups F Lid of the coffee bean container
1 Container for coffee beans
G Knob for adjusting the fineness of grinding and coffee grinder with metal burrs Hole for tablets Descaling J Rotary display for setting parameters
To the grille, supply for cups
2 Control panel
L Button «Steam» M Button «On/Off» with light indicator N Rotary knob for adjusting the amount of coffee O Light indicator «Empty water tank» P Light indicator «Empty drip tray» Q Light indicator «Fill water reservoir» R Button «Strong coffee» S Button «Standard coffee» T Light indicator «Descale» U Light indicator «Clean» V Button «Rinse/maintenance»
W Steam nozzle X Water level indicator
DESCRIPTION OF SYMBOLS
Z Danger!
Warning about the risk of death or serious injury.
The symbol warns of dangers associated with the presence of electricity.
Attention!
Warning about possible malfunctions, damage, or destruction of the device.
Important:
General or important note about the operation of the device.
Warning symbols and indicators
Empty the container for used coffee grounds or the drip tray: the indicator will stop glowing if the container for used coffee grounds is inserted incorrectly or if it is installed faster than 4 seconds.
Fill the water tank
CLEAN Perform cleaning
CALC Perform descaling
CLEAN + CALC Perform a long cleaning cycle
Adjusting coffee strength
Standard
Coffee button
A Rinse/cleaning
E Coffee grinder
PREPARING BEVERAGES
BEFORE FIRST USE
Preparing the appliance
Remove the water reservoir and fill it - fig. 1 and 2.
Place it back in position, pressing firmly down until the lid closes - fig. 3.
Open the lid of the coffee bean container. Pour in the coffee beans - fig. 4.
Close the lid of the coffee bean container.
Do not fill the container with hot water, milk, or any other liquid. If the appliance is switched on and the water reservoir is empty or not filled to the maximum, the indicator light ⦠will flash and coffee or espresso preparation will be temporarily impossible.
Never fill the coffee bean container with ground coffee.
In this context, it is not recommended to use oily, caramelized, or flavored coffee beans. Their use may lead to appliance malfunction.
Make sure that the coffee bean container does not contain any foreign objects, such as small stones, which may be present in coffee beans. The warranty does not cover damage caused by foreign objects entering the container.
Do not pour water into the coffee bean container.
To avoid burns and water leakage, do not forget to empty the drip tray regularly.
Make sure that the water reservoir is clean.
Initialization - approximate duration: about 3 minutes
Switch on the appliance by pressing the button â - fig. 5. The indicator light will illuminate continuously.
Install the container with a minimum capacity of 0.6 liters under the coffee spout.
Press button 1 - fig. 6, the device performs a rinse cycle for the coffee system or the milk system. The indicator flashes.
Wait until the indicator lights up continuously. The machine is ready to prepare your recipes.
Carefully perform one or more rinse cycles of the systems in case the appliance has not been used for several days. Each time you connect the appliance to the power supply, the machine performs a rinse cycle.
Preparing coffee
You can adjust the coffee strength by adjusting the coffee grinder. The finer the grind set in the coffee grinder, the stronger and more aromatic the coffee will be. Set the required fineness by turning the grinder adjustment knob. Turn left - finer grind. Turn right - coarser grind.
The adjustment can only be made during grinding.
Never try to change the position of the grinder adjustment knob by force.
The amount of water for one coffee is 80-220 ml.
Starting preparation of espresso or coffee
Plug the appliance into a power outlet.
Press button ①. The indicator flashes during the preheating of the machine.
The indicator lights up continuously.
Place a cup under the coffee spouts. You can lower or raise the coffee spouts according to the cup size - Fig. 7.
Press button P for strong espresso or button P for standard espresso - Fig. 8.
To set the required water volume - Fig. 9.
To stop filling the tank, you can either press one of the buttons \(\mathbb{O}\mathbb{P} {\text{NII}}\mathbb{O}\mathbb{P} {\text{NII}}\) or turn the steam regulator to the minimum position.
The coffee is moistened with a small amount of hot water after the grinding process. After a few seconds, the infusion process begins. Starting with a certain amount of coffee in the tank, we recommend dividing the preparation into two cycles to get a stronger coffee. For example, 2 times 70 ml to get a cup with 140 ml of coffee.
The "2 Cups" function
The device allows you to prepare 2 cups of coffee for espresso.
Press the button. The indicator lights up during the preheating of the machine.
The indicator flashes.
Place the two cups under the coffee outlets. You can adjust or remove the coffee outlets according to the cup size - Fig. 10.
Press the [P] button twice. A double flash of the indicator confirms that you have selected two cups of coffee.
The device will automatically perform 2 full preparation cycles.
Be careful, do not remove the cup after the first cycle.
If you press the P button first and then the P button (or vice versa), the last press is not taken into account.
STEAM PREPARATION
Steam is used to obtain milk foam for cappuccino or latte, as well as to heat liquids. The steam function requires a higher temperature than espresso preparation, and the combination allows for an additional preheating stage for preparation.
Plug in the device.
The indicator lamp lights up during the preheating of the machine.
The indicator lamp lights up continuously.
Press the button - Fig. 11.
The indicator lamp lights up during the preheating.
When the preheating phase is complete, the indicator lamp lights up continuously and you can start the steam production by pressing the button again.
Press the button again to stop the cycle.
The machine returns to its initial position if the regulator is not activated within 2 minutes.
The cycle stop does not occur instantly.
We recommend using freshly opened pasteurized or ultra-pasteurized milk. Raw milk does not guarantee optimal results.
Place the steam nozzle into the milk - Fig. 12.
Start the steam production function as described in the previous section.
When a sufficient amount of foam has formed - Fig. 13 - press the button again to stop the cycle.
To rinse the milk residues from the steam nozzle, place a container under it and start the steam production again (about 10 seconds).
For deep cleaning of the steam nozzle, it can be removed. Wash it with a brush in water with a small amount of mild detergent. Then rinse and dry it - Fig. 14. When reinstalling the nozzle, make sure that the air intake hole is not clogged with milk residues. If necessary, clean it with the needle included in the kit - Fig. 15.
Do not immerse the machine in water.
To turn on the function, simply press any button.
If the spout is clogged, clean it with the needle included in the kit.
The maximum duration of steam generation in one cycle is no more than 2 minutes.
After using the steam function, the nozzle may be hot; we recommend you wait a few
minutes before performing any manipulations with it.
Automatic milk frother XS 6000 (sold separately)
This automatic frother speeds up the preparation of cappuccino for five people - Fig.16. Connect its parts together. Make sure the plug is not twisted for convenient storage of the button.
After removing the lid of the container, fill it with milk - Fig. 17 and place the cup or glass under the nozzle of the automatic frother - Fig. 18. Set the special nozzle to the position for preparing cappuccino for five people - Fig.19. Generate steam as indicated in the section "Preparation with steam".
As soon as the milk froths, place the cup under the coffee outlet and start the coffee cycle - Fig.20.
To avoid milk splashing on the automatic frother, it must be cleaned thoroughly. It is recommended to wash it immediately with the help of the rinse function using hot water and mild detergent for cleaning. For this, you can also use a liquid cleaning agent.
CARE FOR THE APPLIANCE
Empty the container for used coffee and the drip tray.
If the indicator flashes
Remove, empty, and clean the coffee grounds container - Fig.21.
Put the container for used coffee back in place. - Fig.22.
Open, empty and rinse the drip tray. Fig. 23.
The drip tray has notches that signal the need to empty the water tank.
INSTALL ALL ELEMENTS IN PLACE.
As soon as you remove the coffee grounds collector, you must empty it completely to avoid overflow in the future.
Indicator 1 continues to flash if the coffee grounds collector is not inserted or is inserted incorrectly, and also if it is inserted in place less than 4 seconds ago.
When the indicator lights up or flashes, preparing espresso is impossible. The collector is designed to collect coffee grounds from 9 coffee doses.
System cleaning
Access to these two functions can be obtained at any time, except in cases where the machine requires 'CLEAN' or 'CALC' maintenance.
Cleaning the coffee brewing system:
Place a container under the coffee outlet nozzle. Quickly press the button. - Fig. 6 for the coffee system cleaning cycle, which automatically stops after dispensing 40 ml of water.
Cleaning the milk system:
Place a container under the milk nozzle. Then press and hold the button to start the milk system cleaning cycle, which automatically stops after dispensing 300 ml of water.
Cleaning program - total duration: approximately 13 minutes
The device signals the need for cleaning with the 'CLEAN' light indicator.
This program is available only when the device needs cleaning (approximately after 300 brewing cycles of coffee or espresso).
Under normal conditions, it is necessary to perform the appliance cleaning when it requires it. Try to follow the correct order of operations.
Use only KRUPS cleaning tablets. You can purchase cleaning products at KRUPS service centers.
When the indicator lights up, you can continue using the appliance, but it is advisable to run the program as quickly as possible.
Start the cleaning program by pressing the button. The 'CLEAN' indicator lights up continuously, and the indicators flash.
Remove, empty, and clean the coffee grounds container - Fig.21.
Put the container for used coffee back in place. - Fig.22.
Remove, empty, and clean the drip tray - Fig.23.
Install all elements back in place.
The indicator goes out.
Remove, fill, and put the water reservoir back in place.
Place the coffee outlet with a container of at least 0.6 L - Fig.24.
Open the service door - Fig. 25 and place the KRUPS cleaning tablet (XS3000) in the cleaning channel - Fig. 26.
Press the button to start the cleaning cycle.
The first stage (about 10 min) starts. At the end of this stage, a beep sounds every 10 seconds, and you can empty the container with used water and the drip tray.
Put the drip tray and container back in place for the next stage.
Press the button to start the last stage. The sound signal is interrupted.
Last stage (±3 min.)
The program continues. It allows you to rinse the device and remove all remaining cleaning agent.
When the cleaning cycle is finished, the 'CLEAN' indicator goes out.
Remove the empty container and rinse it with clean water.
Follow the drip tray and put it back in place.
Fill the reservoir with water.
The device is ready for operation.
If at the start of the program the water in the reservoir is insufficient, the device will notify you via the indicator O1. Add the required amount of water to the reservoir, and the cleaning cycle will continue automatically.
If you disconnect the device from the power outlet during cleaning, press the button ① again. In case of a power failure, the cleaning program will be executed from the very beginning. In this case, you will need a new cleaning tablet. Perform the cleaning cycle again to ensure proper care of the machine.
The cleaning cycle is interrupted; during its execution, do not place objects under the water inlets 'E' and 'W'.
Only use KRUPS cleaning tablets (XS3000). The manufacturer is not responsible for damage resulting from the use of tablets of other brands.
You can purchase cleaning tablets at KRUPS service centers.
Remove the used water from the container and put it back in place.
Empty and rinse the water reservoir - Fig. 34.
Fill the water reservoir and put it in place. The indicator flashes.
Press the button again to start the second stage. The audible signal is interrupted.
The second stage (about 6 min.) starts.
The program continues. It allows water to pass through the device and remove the remaining descaling agent.
At the end of this stage, an audible signal sounds every 10 seconds.
Remove the container used during the first stage and put the container back in place.
Press the button again to start the last stage. The audible signal is interrupted.
The last stage (about 6 min.) starts.
The program continues. It allows you to remove the last traces of the descaling agent.
When the cycle is complete, the 'CALC' indicator goes out.
Fill the reservoir with water.
The device is ready for use.
If there is not enough water in the reservoir, the device will warn you with the help of the indicator.
Add enough water to the reservoir, and the descaling cycle will continue automatically.
If you unplug the device from the outlet during descaling, press the button again and in case of power failure, the descaling program will be restarted from the beginning. In this case, it is not necessary to repeat the descaling agent. Perform the full descaling cycle to ensure proper maintenance of the machine.
The appliance is equipped with an intermittent tone; during its execution, do not place your hands under the water outlet.
Intensive rinse program - duration: approximately 2 minutes.
The appliance must undergo intensive cleaning of the light indicators 'CLEAN' and 'CALC'.
Remove, fill, and place the reservoir back.
Install the nozzle on the container with a capacity of at least 0.6 L.
Start the intensive rinse program by pressing the button. The 'CLEAN' and 'CALC' indicators light up continuously, and the indicator starts flashing.
When the intensive rinse is complete, the 'CLEAN' and 'CALC' indicators turn off, and the indicator starts flashing intermittently.
The appliance is ready for use.
The machine may prompt you to empty the coffee grounds container.
OTHER FUNCTIONS
Turning off the appliance
You can interrupt the appliance's operation at any time. When turning off, a double acoustic signal sounds, and all red indicators flash one after another. The appliance performs a quick stop after a brief pause.
Installing the filter element - total duration: approximately 2 minutes
To optimize the taste of the coffee being prepared and the appliance's performance, we recommend using the Claris - Aqua Filter System water filter, which is sold as an accessory.
Fig. 30: Mechanism that allows recording in the memory the month of filter installation and the month of its recommended replacement (maximum after 2 months).
Install the filter into the appliance: remove the filter from the reservoir. - Fig. 31.
Place the cup 0.6 l under the steam outlet nozzle.
Press and hold the button for 3 seconds (except when the machine requires maintenance
'CLEAN' N/NJN 'CALC'). The indicator flashes.
When the installation of the filter element is complete, the indicator starts to light continuously.
The device is ready for operation.
The Claris cartridge must be replaced approximately every 50 liters of water or every two months. If using the Claris - Aqua Filter System cartridge, set the water hardness level to 0.
Settings
Connect the appliance to the electrical outlet, but do not turn it on.
Lift the grid on the cup, pressing on its rear part, so that it changes position - Fig. 25.
Simultaneously press buttons 1 and 2 - Fig. 27.
The digital display for setting parameters is located under the service cover - Fig. 28.
Look carefully at the display - Fig. 29.
List of available adjustments:
- Water hardness adjustment
- Temperature regulator
- Regulation of the automatic shut-off mechanism of the power supply 4. Information
1. Adjusting the stiffness of the water
The device is pre-set by the manufacturer to 4 levels of water hardness.
Before first use, the water hardness must be adjusted to the local water hardness. For the water hardness, contact your local water utility.
FAULTS AND ACTIONS TO REMEDY THEM
If any of the faults listed in the table persists, contact the KRUPS service center.
Coffee can be sent with hot chocolate.
Coffee with cream
Prepare a classic espresso in a large cup.
Add a little whipped cream to the coffee with cream.
Coffee Correto*
Prepare a classic espresso.
Add 1/4 or 1/2 cup of liqueur to give the coffee a new flavor.
For this, use: grape vodka, sambuca, or Cointreau.
To diversify the taste of espresso, there are many other options.
Imagination knows no bounds.
Coffee Liqueur*
In an empty 0.75-liter bottle, mix 3 espresso cups, 250 g of ground roasted coffee, 1/2 liter of cognac or kirsch.
Let the mixture sit for 2 weeks.
You will get an excellent liqueur, which above all will be appreciated by coffee lovers.
Coffee Italian style
You will need: 4 scoops of vanilla ice cream, 2 cups of cold strong espresso, 1/8 liter of milk, whipped cream, grated chocolate.
Mix the cold espresso with the milk.
Distribute the ice cream among the glasses, pour the coffee over it, and decorate with whipped cream and grated chocolate.
Coffee French style*
Add a shot of rum or cognac to the strong espresso.
Top with a thick layer of whipped cream and serve.
2 Control panel
L Power button M "On/Off" button with indicator light and rotary knob for adjusting the coffee strength 0 Indicator light "Coffee grounds container" and "Drip tray" P Indicator light "Fill water tank" Q "Espresso" button R "Standard coffee" button S Indicator light "Descale" T Indicator light "Clean" U "Maintenance/Service" button V Steam wand W Water level indicator
DANGER
Warning about the risk of serious injury or death.
The flashing symbol warns of danger from electric current.
Warning about possible malfunctions, damage, or device failure.
General safety warning about device operation.
Warning pictograms and symbols
Clean the water container and drip tray: the indicator continues to flash if the water container is not installed correctly or is placed in the wrong position. Wait 4 seconds.
FILL WATER TANK
CLEAN Perform cleaning
CALC Perform descaling
CLEAN + CALC Perform long rinse cycle
Adjustable steam steps
Standard coffee
Steam button
PREPARING THE APPLIANCE
It is not recommended to use the appliance with oily, caramelized or flavored coffee beans. This can damage the appliance.
Check that the power cord is not damaged on the side of the appliance. Especially when the appliance is in the coffee bean container. This warranty is void if the power cord is damaged by the appliance or by third parties.
Do not pour water into the reservoir for coffee beans.
To avoid clogging the working surface and the risk of getting burns from hot steam that can come out of the appliance, do not forget to install the drip tray.
Check the cleanliness of the water reservoir.
Initialization - total duration: approximately 3 minutes
Turn on the appliance by pressing the button - Fig. 5. The indicator will light up continuously. The water hardness is set to 0.6 liters per minute at the coffee and steam inlet. Press the button - Fig. 6, the initialization cycle will start for the steam system and the coffee preparation system. The indicator will blink. It will stop when indicator 1 lights up continuously. The appliance is ready to prepare your recipes.
Rinse the system several times if the appliance has not been used for a long time. Each time you plug in the appliance, the machine performs an initialization cycle.
COFFEE PREPARATION
You have the ability to adjust the coffee strength by regulating the degree of grinding of the coffee beans. With a finer grinding of the coffee beans, the coffee will be stronger and have more crema. To adjust the degree of grinding of the coffee, turn the regulator to adjust the degree of grinding. When turning the regulator, the degree of grinding will be different.
Press the button. The indicator will blink during the preheating of the machine.
The indicator will light up continuously.
The coffee machine is ready, place the cup under the coffee spout and start making coffee - Fig. 20.
Rinse the coffee machine with water so that it does not clog. Rinse the inside immediately after preparation. If the coffee is too strong, use the milk container, filled to the brim. For cleaning, you can use the accessories included with the KRUPS machine, available as accessories.
CARE AND MAINTENANCE
Empty the container for coffee grounds and the drip tray.
The indicator flashes.
Remove, empty and clean the container for coffee grounds - Fig. 21.
Place the container for coffee grounds back in place - Fig. 22.
Remove, empty and clean the drip tray - Fig. 23.
The drip tray is equipped with a float that indicates from time to time the need to empty it. Keep all parts and put them back in place.
If you have removed the coffee grounds container, clean it thoroughly and fill it with the ground coffee according to the number of cups through the spout.
The indicator lights up if the coffee grounds container is not inserted or is inserted incorrectly, and also if it is in place but full, check through the window.
When the indicator lights up or flashes, the coffee is not ready or the coffee is impossible. The container is designed for 9 servings of coffee grounds.
System maintenance
Access to these two functions can be obtained at any time, except during operation, when the machine displays 'CLEAN' and/or 'CALC'.
Maintenance of the coffee preparation system:
Fill the tank with clean water. Press and hold the button to start the rinse cycle of the descaling system, which will automatically stop after 40 ml of water has been dispensed.
Rinsing the system with steam:
Place the container under the steam outlet. Press and hold the button to start the rinse cycle of the steam system, which will automatically stop after 300 ml of water has been dispensed.
Empty the used water from the container and put it back in place.
Dry and rinse the water reservoir - see fig. 34.
Fill the reservoir with water and put it back in place. The indicator goes off.
Press the button again to start the second stage. A sound signal is emitted.
The second stage begins (duration approximately 6 min).
The program continues. It will allow the descaling solution to act on the internal parts and dissolve all limescale deposits.
During the second stage, a sound signal sounds every 10 seconds.
Empty the container, pour the used water out of it, and put it back in place.
Press the button again to start the last stage. A sound signal is emitted.
The last stage begins (duration approximately 6 min).
The program continues. It will allow the descaling solution to act on the internal parts and dissolve all limescale deposits.
The descaling cycle is complete, and the 'CALC' indicator goes off.
Fill the water tank.
Prepare the appliance for operation.
If the water tank is not sufficiently filled, the appliance will remind you via the indicator (O).
Add enough water to the tank, and the rinsing cycle will start automatically.
To unplug the appliance from the outlet during the rinsing cycle, press the button (一) or the switch to stop the cycle. The rinsing program will be executed from the beginning. In this case, you will need to use the tablet for rinsing. Perform the rinsing cycle completely to ensure proper operation with the automatic system.
The rinsing cycle proceeds with pauses. During its execution, do not touch the outlet pipes 'E' and 'W'.
Add cold espresso and sparkling water.
Then mix with the beverages.
Pour into a glass or cup.
Place in the freezer compartment.
(Excessive alcohol consumption is harmful to your health.)
To get the best taste from your coffee and extend your appliance's service life, we advise you to use only the Claris -
Aqua Filter System cartridge sold as an accessory.
PROBLEM AND SOLUTIONS
If the problem described in the table persists, please contact the KRUPS customer service point.
CLEAN Provides cleaning
CALC Perform descaling
You can set your appliance to turn off after a pre-programmed number of hours.
