USER MANUAL AVANZA MYSTIC TITAN F270-100 MELITTA

1 Overview of the appliance 33

1.1 Appliance at a glance 33
1.2 Overview of the control panel 34
1.3 The Cappuccinatore at a glance 35

2 For your safety. 35

2.1 Proper use 35
2.2 Danger from electric current 35
2.3 Risk of burns and scalds 36
2.4 Other dangers 36

3 First steps. 37

3.1 Unpacking the appliance 37
3.2 Checking the delivery contents 37
3.3 Installing the appliance.. 37
3.4 Connecting the appliance 37
3.5 Connecting the Cappuccinatore 37
3.6 Switching on the appliance for the first time 37

4 Basic operation 38

4.1 Switching the appliance on and off 38
4.2 Filling coffee beans into the bean container 39
4.3 Filling with water 40
4.4 Adjusting the outlet for coffee beverages 40
4.5 Using milk 40
4.6 Emptying the drip tray and coffee grounds container 41

5 Preparing beverages 41

5.1 Setting the coffee strength 41
5.2 Setting the coffee quantity 42
5.3 Preparing the coffee beverage 42
5.4 Stopping coffee preparation 42
5.5 Preparing two coffee beverages simultaneously 42
5.6 Preparing milk foam 43
5.7 Preparing hot water 44

6 Changing basic settings 44

6.1 Service mode 1. 44
6.2 Setting Auto OFF 44
6.3 Setting the water hardness.. 45
6.4 Activating/deactivating switch-off rinsing 45
6.5 Setting the brewing temperature 46
6.6 Service mode 2. 46

6.7 Resetting the appliance to the factory settings 47
6.8 Setting the grinding fineness 47

7 Care and maintenance 47

7.1 General cleaning 48
7.2 Cleaning the Cappuccinatore 48

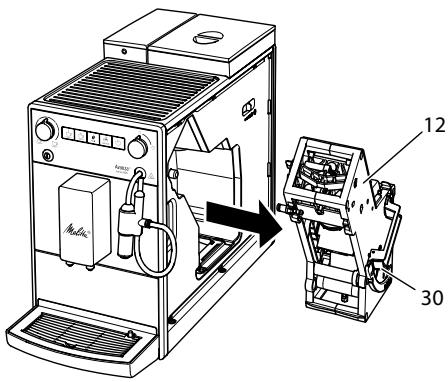

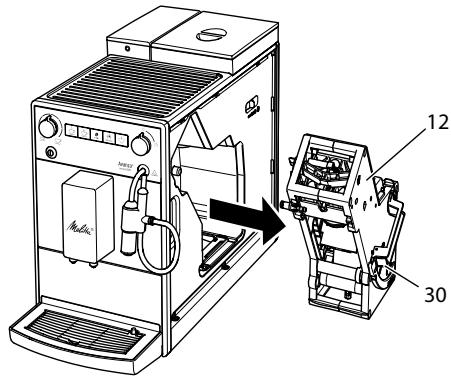

7.3 Cleaning the brewing unit 48
7.4 Running the cleaning programme 49
7.5 Running the descending programme 50
7.6 Using a water filter 52

8 Transport, storage and disposal 54

8.1 Venting the appliance 54
8.2 Transporting the appliance 55
8.3 Disposing of the appliance 55

9 Technical data. 55

10Trouble shooting 56

1 Overview of the appliance

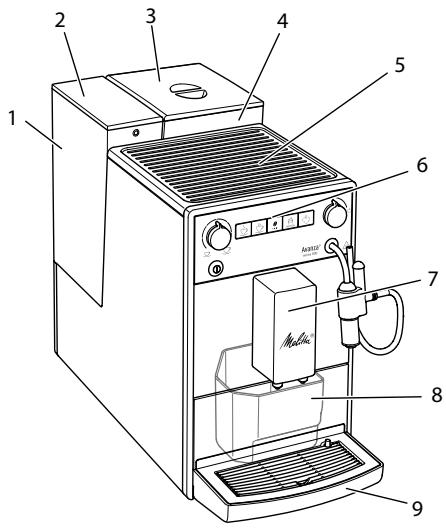

1.1 Appliance at a glance

Fig. 1: Front left of the appliance

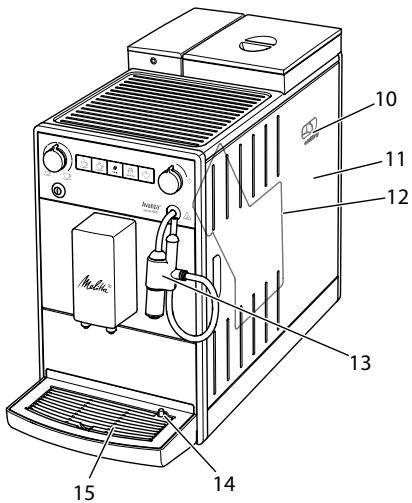

Fig.2: Front right of the appliance

1 Water tank
2 Water tank lid
3 Lid of the bean container
4 Bean container
5 Cup rest
6 Control panel
7 Outlet with 2 coffee nozzles for coffee beverages
8 Coffee grounds container (inner)
9 Drip tray
10 "Grinding fineness adjustment" lever (inner)
11 Cover
12 Brewing unit (inner)
13 Cappuccinatore
14 Float
15 Cup plate

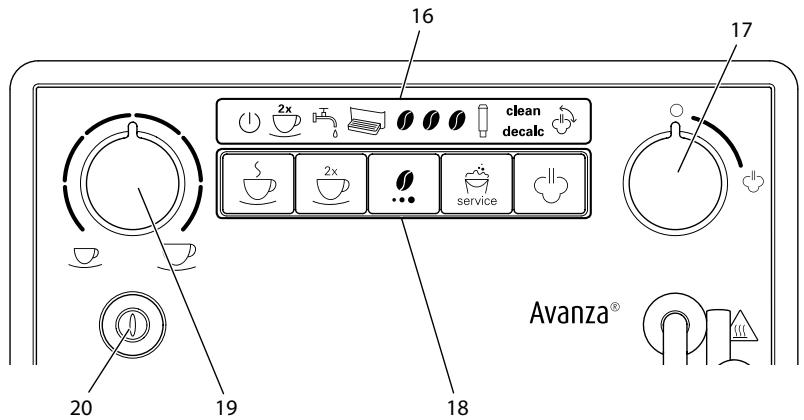

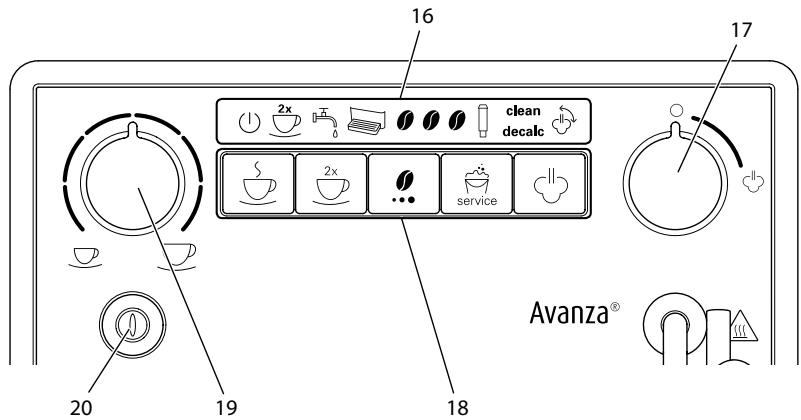

1.2 Overview of the control panel

Fig.3: Control panel

16 Indications
17 "Valve"
18 Buttons
19 "Coffee quantity" rotary regulator
20 ON/OFF button

Display	Designation
1	Ready display
2x	2 cups display
5	Water display
	Drip tray display
0	Coffee beans display
	Filter display
clean	Clean display
decalc	Dscaling display
	Steam display

Control	Designation
S	"Coffee" direct key
2x	"2 cups" button
	"Coffees strength" button
	"Service" button
	"Steam dispenser" button

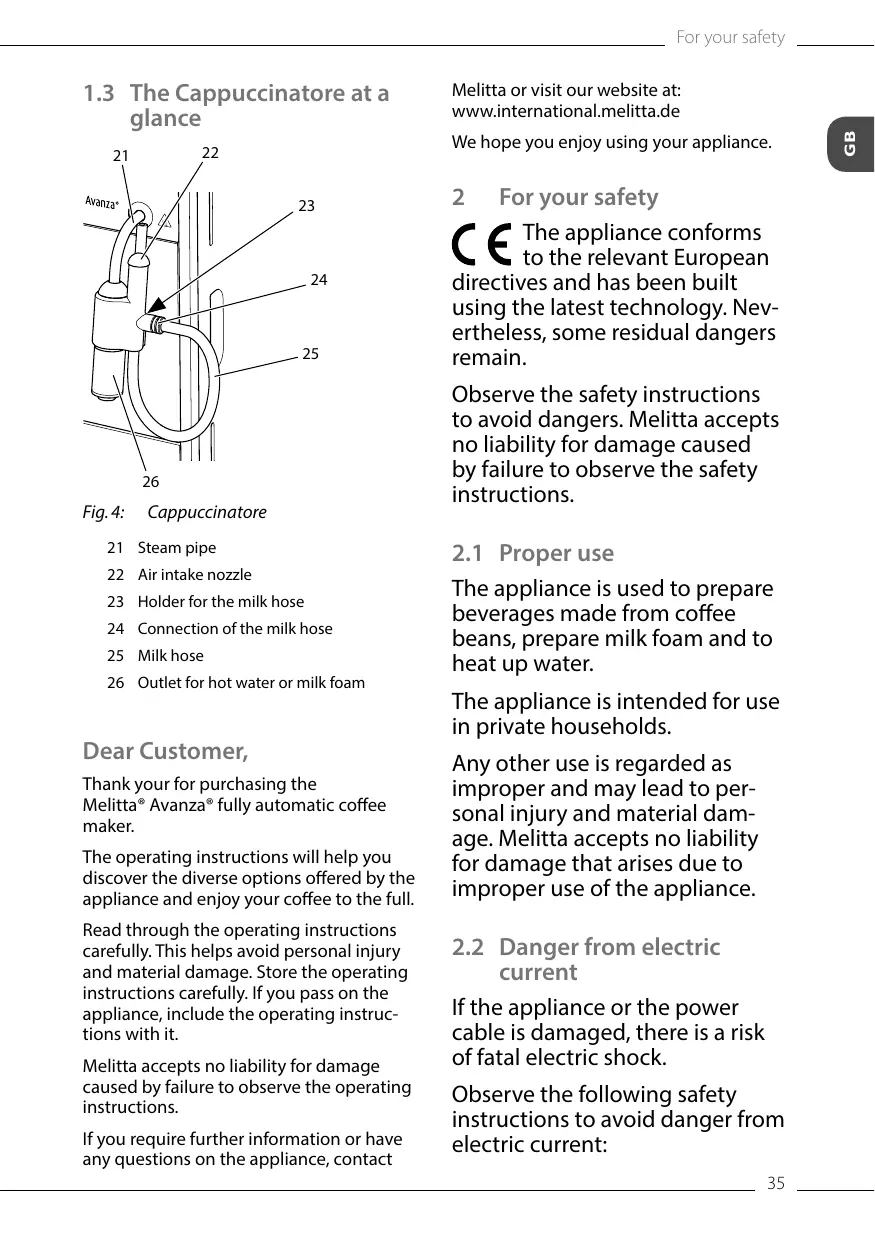

1.3 The Cappuccinatore at a glance

21 Steam pipe
22 Air intake nozzle
23 Holder for the milk hose
24 Connection of the milk hose
25 Milk hose
26 Outlet for hot water or milk foam

Dear Customer,

Thank your for purchasing the Melitta® Avanza® fully automatic coffee maker.

The operating instructions will help you discover the diverse options offered by the appliance and enjoy your coffee to the full.

Read through the operating instructions carefully. This helps avoid personal injury and material damage. Store the operating instructions carefully. If you pass on the appliance, include the operating instructions with it.

Melitta accepts no liability for damage caused by failure to observe the operating instructions.

If you require further information or have any questions on the appliance, contact

Melitta or visit our website at: www.international.melitta.de

We hope you enjoy using your appliance.

2 For your safety

The appliance conforms to the relevant European directives and has been built using the latest technology. Nevertheless, some residual dangers remain.

Observe the safety instructions to avoid dangers. Melitta accepts no liability for damage caused by failure to observe the safety instructions.

2.1 Proper use

The appliance is used to prepare beverages made from coffee beans, prepare milk foam and to heat up water.

The appliance is intended for use in private households.

Any other use is regarded as improper and may lead to personal injury and material damage. Melitta accepts no liability for damage that arises due to improper use of the appliance.

2.2 Danger from electric current

If the appliance or the power cable is damaged, there is a risk of fatal electric shock.

Observe the following safety instructions to avoid danger from electric current:

• Do not use a damaged power cable.
• A damaged power cable may only be replaced by the manufacturer or its customer service or service partner.
• Do not open any covers firmly screwed onto the appliance housing.
• Only use the appliance when it is in a technically flawless condition.
• A defective appliance may only be repaired by an authorised workshop. Do not repair the appliance yourself.
• Do not make any changes to the appliance, its components or its accessories.
• Do not immerse the appliance in water.
• Do not let the power cable come into contact with water.

2.3 Risk of burns and scalds

Escaping fluids and steam may be very hot. Parts of the appliance can also become very hot.

Observe the following safety instructions to avoid scalds and burns:

• Avoid escaping fluids and steam coming into contact with the skin.
• Do not touch the nozzles on the outlet and the steam pipe during and immediately after dispensing a beverage. Wait until the components have cooled down.

2.4 Other dangers

Observe the following safety instructions to avoid personal injury and material damage:

• Do not operate the appliance in a cabinet or similar.
• Do not reach into the interior of the appliance during operation.
• Keep the appliance and its power cable out of the reach of children under 8 years of age.
• This appliance may be used by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge if they are supervised or have been instructed in using the appliance safely and understand the resulting risks.
• Children must not play with the appliance. Cleaning and maintenance must not be undertaken by children younger than 8 years of age. Children over 8 years of age must be supervised during cleaning and maintenance.
• Disconnect the appliance from the power supply when left unsupervised for a long time.
• The appliance must not be operated at altitudes over 2000m .
• Please observe the instructions in the corresponding section when cleaning the appliance and its components (Care and maintenance on page 47).

3 First steps

This chapter describes how to prepare your appliance for use.

3.1 Unpacking the appliance

• Unpack the appliance. Remove the packaging material, the adhesive strips and the protective films from the appliance.
• Keep the packaging material for transport and any return shipments.

Information

The appliance may contain traces of coffee and water. The appliance has been tested in the factory to ensure that it functions perfectly.

3.2 Checking the delivery contents

Check the completeness of delivery using the following list. If parts are missing, contact your retailer.

Cappuccinatore
Milk hose
Screw-in aid for the water filter
- Test strip for determining the water hardness.

3.3 Installing the appliance

Observe the following instructions:

• Do not install the appliance in damp rooms.
  Install the appliance on a stable, flat and dry surface.
• Do not install the appliance in the vicinity of sinks or the like.
• Do not install the appliance on hot surfaces.
  Install the appliance at a sufficient distance (approx. 10cm ) from the wall and other objects. The space above the appliance should be at least 20cm .
• Route the power cable so it cannot be damaged by edges or hot surfaces.

3.4 Connecting the appliance

Observe the following instructions:

• Check that the supply voltage matches the operating voltage specified in the technical data (see table Technical data on page 55).
• Only connect the appliance to a properly installed earthing contact socket. If in doubt, consult a specialist electrician.
• The earthing contact socket must have a fuse of at least 10A .

3.5 Connecting the Cappuccinatore

You can prepare hot water and milk foam with the Cappuccinatore.

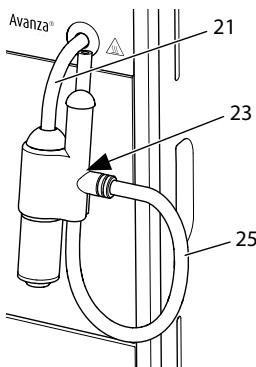

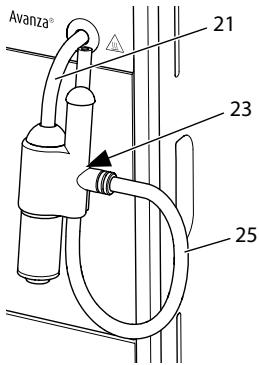

Fig.5: Connecting the Cappuccinatore

1. Connect the Cappuccinatore to the steam pipe (21). Slide the connection of the Cappuccinatore to the stop of the steam pipe.
2. Connect the milk hose (25) to the Cappuccinatore.
3. If you do not want to use milk, clamp the milk hose in the holder (23).

3.6 Switching on the appliance for the first time

Once you switch on the appliance for the first time, the appliance performs automatic rinsing. Hot water first flows out of the Cappuccinatore, then out of the outlet. The appliance is vented.

CAUTION

Hot water and hot steam flowing out of the pipe

• Do not reach into the outflowing hot water.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

Information

• We recommend pouring away the first two cups of coffee after initial start-up.
  If you want to use a water filter, only insert this after starting up for the first time.

Fig.6: ON/OFF button

Requirement: The appliance has been installed and connected.

1. Place a vessel beneath the Cappuccinatore.
2. Press the ON/OFF button (20).

The Ready display lights up briefly.
The Water display lights up and requests you to fill the water tank.

1. Open the lid of the water tank and pull the water tank upwards out of the appliance by the handle.
2. Rinse out the water tank with clean water. Fill the water tank with fresh water.
3. Insert the water tank into the appliance from above and close the lid.

The Steam display lights up and requests you to open the "valve".

Open the "valve".

Hot water first flows out of the Cappuccinatore.

Once no more water flows he Cappuccinatore, close the

» Hot water flows out of the outlet.
The appliance is vented.

1. Fill coffee beans into the bean container (see section 4.2 Filling coffee beans into the bean container on page 39).
2. As required, you can now either a) set the water hardness (see section 6.3 Setting the water hardness on page 45) or
   b) screw in a water filter (see section 7.6 Using a water filter on page 52).

4 Basic operation

4.1 Switching the appliance on and off

Before switching on after starting up the appliance for the first time, read section 3.6 Switching on the appliance for the first time on page 37.

Information

• When switched on and off, the appliance performs automatic rinsing.
  During rinsing, rinsing water is also conducted into the drip tray.

Switching on the appliance

1. Place a vessel beneath the outlet.
2. Press the "ON/OFF" button (20).

The appliance heats up and performs automatic rinsing.
The appliance is ready for operation.

Information

If the appliance was only switched off briefly, there is no automatic rinsing after switching on.

Switching off the appliance

1. Place a vessel beneath the outlet.
2. Press the "ON/OFF" button (20).
   The appliance performs automatic rinsing.
   The appliance switches off.

Information

• The appliance switches off automatically when it is not operated for a long time. Automatic rinsing is also carried out in this case.
• You can set the off time in Service mode 1 (see section 6.2 Setting Auto OFF on page 44).
  If no beverage has been prepared since switching on or if the water tank is empty, no rinsing takes place.

4.2 Filling coffee beans into the bean container

Roasted coffee beans lose their aroma. Only fill the bean container with as many coffee beans as you will consume over the next 3 to 4 days.

ATTENTION

The use of unsuitable types of coffee can lead to clogging of the grinder.

• Do not use freeze-dried or caramelised coffee beans.
• Do not use any coffee powder or instant products.

Information

When changing the type of beans, remains of the old type of beans can still be in the grinder.

Even if the bean container runs empty and a new type of bean is filled in, there

are still remains of the old type of bean in the grinder. For this reason, the first two coffees dispensed can contain remains of the old type of bean.

The flashing Coffee bean display requests you to refill coffee beans.

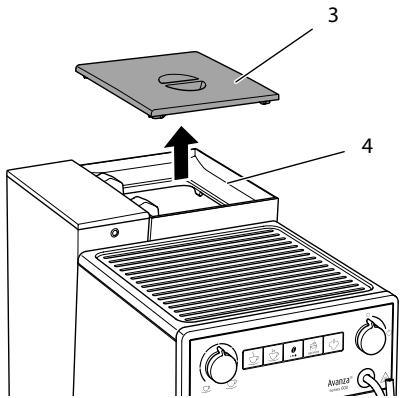

Fig. 7: Opening the lid of the bean container

1. Open the lid (3) of the bean container (4).
2. Fill coffee beans into the bean container.
3. Close the lid of the bean container. The next time a coffee is dispensed, the display no longer flashes.

If the bean container runs empty during beverage preparation, output is interrupted and the Coffee bean display flashes. When you fill the bean container with coffee beans, the display will initially continue to flash. After pressing the "Coffee" direct key, coffee beans fall into the grinder.

Coffee is prepared and the display stops flashing. The Ready display and the Coffee beans display light up.

4.3 Filling with water

Only use fresh, cold water without carbon dioxide for optimum coffee enjoyment. Change the water daily.

Information

The quality of the water largely determines the flavour of the coffee. Therefore, use a water filter (see section 6.3 Setting the water hardness on page 45 and section 7.6 Using a water filter on page 52).

The Water display lights up and requests you to refill water.

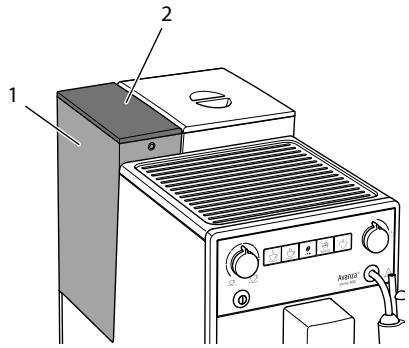

Fig.8: Removing the water tank

1. Open the lid (2) of the water tank (1) and pull the water tank upwards out of the appliance by the handle.
2. Fill the water tank with water.
3. Insert the water tank into the appliance from above and close the lid.

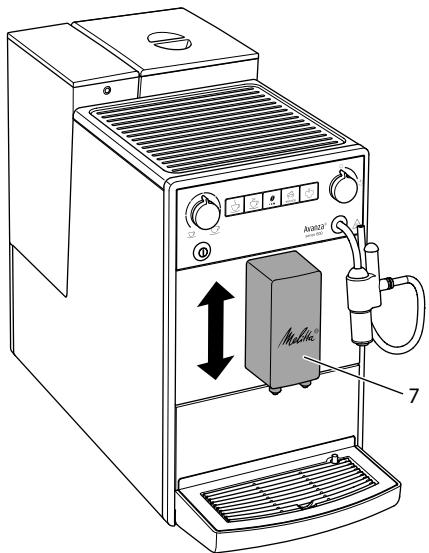

4.4 Adjusting the outlet for coffee beverages

The outlet (7) is height-adjustable. Set the greatest possible distance between the outlet and the vessel. Depending on the vessel, push the outlet up or down.

Fig. 9: Adjusting the outlet for coffee beverages

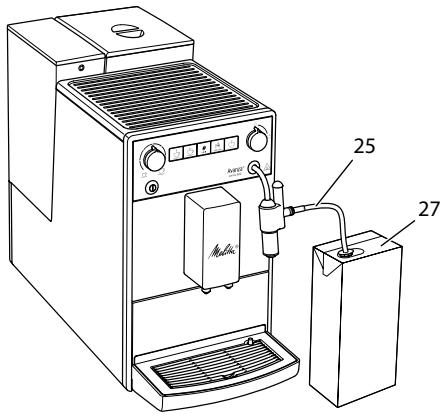

4.5 Using milk

Use cooled milk for optimum coffee enjoyment.

Fig. 10: Commercial milk pack

1. Remove the milk hose (25) from the holder.
2. Insert the milk hose into a conventional milk pack (27) or into a vessel filled with milk.

To ensure that sufficient milk can be drawn in, the end of the hose must not touch the bottom of the vessel.

4.6 Emptying the drip tray and coffee grounds container

When the drip tray (9) and the coffee grounds container (8) are full, the Drip tray display lights up and requests you to empty the container. The display appears after preparing approx. 8 beverages.

The projecting float (14) also indicates that the drip tray is full.

Always empty both containers. When the drip tray is pulled out, the Drip tray display flashes.

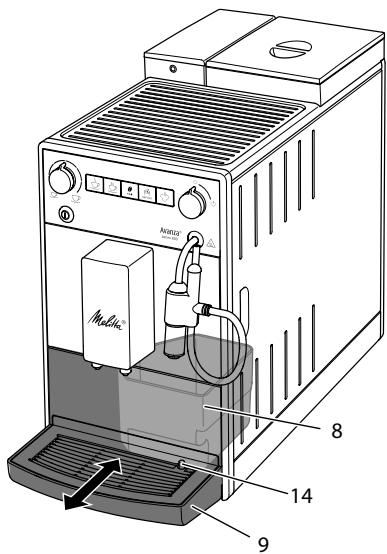

Fig. 11: Emptying the drip tray and coffee grounds container

1. Pull the drip tray (9) forwards out of the appliance.
2. Remove the coffee grounds container (8) and empty it.
3. Empty the drip tray.
4. Insert the coffee grounds container.
5. Push the drip tray into the appliance up to the stop.

Information

If you empty the drip tray and the coffee grounds container while the appliance is switched off, the appliance does not register this process. Therefore, it is possible that you are requested to empty the containers although the drip tray and the coffee grounds container are not yet full.

5 Preparing beverages

There are two options for preparing beverages:

Preparing coffee beverages at the outlet for coffee beverages or
Preparation of hot water and milk foam at the Cappuccinatore.

Please note:

• There should always be sufficient water in the water tank. If the filling level is too low, the appliance requests you to refill it.
• There should always also be sufficient coffee beans in the bean container. If there are no longer any coffee beans present, the appliance stops the preparation of a coffee beverage.
  The appliance does not indicate a lack of milk.
• The vessels for the beverages should be sufficiently large.
  The maximum coffee quantity is 220 ml.

5.1 Setting the coffee strength

As soon as the appliance is ready for operation, it displays the current setting of the coffee strength.

The following settings for the coffee strength are possible:

Display	Coffee strength
0	Mild
1 0	Normal
1 0 0	Strong

You can adjust the coffee strength by pressing the "Coffee strength" button one or more times.

You can adjust the coffee strength before the beverage is dispensed or during the grinding process.

Information

When switching off the appliance, the last set coffee strength is stored.

5.2 Setting the coffee quantity

Fig. 12: Setting the coffee quantity

You can set the coffee quantity with the "Coffee quantity" (19) rotary regulator.

You can adjust the coffee quantity before the beverage is dispensed or during the grinding process.

Coffee quantities are continuously adjustable between 25ml and 220ml .

5.3 Preparing the coffee beverage

Requirement: The appliance is ready for operation.

1. Place a vessel beneath the outlet.

Press the "Coffee" direct key.

The grinding process and beverage dispensing start.

Beverage dispensing ends automatically.

1. Remove the vessel.

5.4 Stopping coffee preparation

If you want to stop the preparation of a coffee beverage prematurely, press the direct key again.

5.5 Preparing two coffee beverages simultaneously

You can prepare two coffee drinks simultaneously with the "2 cups" button. For two-cup dispensing, the appliance carries out two grinding processes.

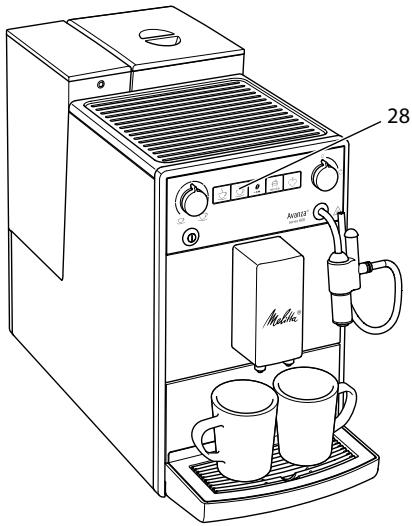

Fig. 13: Two-cup dispensing

1. Place two vessels beneath the outlet.
2. Press the"2 cups" button (28).

The 2 cups display lights up.

Press the "Coffee" direct key.

The grinding process and beverage dispensing start.

Beverage dispensing ends automatically.

1. Remove both vessels.

Information

• The setting only applies to the single beverage that is prepared.

If a coffee beverage is not prepared within 1 minute, the appliance switches to single-cup dispensing.

5.6 Preparing milk foam

You prepare milk foam on the Cappuccinatore. Steam is required for the preparation of milk foam.

CAUTION

Outflowing steam and hot steam pipe

• Do not reach into the steam that is flowing out.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

Requirement: The appliance is ready for operation. The Cappuccinatore is connected to the appliance and milk is connected.

1. Place a vessel beneath the Cappuccinatore.
2. Press the "Steam dispenser" button.

The flashing Steam display indicates that the appliance is heating up for the steam dispenser.
» Afterwards, the lit Steam display indicates that the steam dispenser is ready.

Open the "valve".

Beverage dispensing starts.

Close the "valve".

» Beverage dispensing stops.

1. Remove the vessel.
2. Prepare further beverages or rinse the Cappuccinatore:

a) Prepare further beverages and rinse the Cappuccinatore later.
b) Rinse the Cappuccinatore as described below.

Information

After 30 seconds the appliance automatically switches from steam mode to ready mode. Press the "Steam dispenser", button to switch to ready mode beforehand.

Rinsing the Cappuccinatore

1. Fill a vessel with clear water.
2. Immerse the milk hose in the filled vessel.

To ensure that sufficient water can be drawn in, the end of the hose must not touch the bottom of the vessel.

1. Place an empty vessel beneath the Cappuccinatore.
2. Press the "Steam dispenser" button.

The flashing Steam display indicates that the appliance is heating up for the steam dispenser.
» Afterwards, the lit Steam display indicates that the steam dispenser is ready.

1. Open the "valve".

1. As soon as a clean water/steam mixture flows into the empty vessel, close the "valve".
   The Cappuccinatore is rinsed.

Information

We recommend:

• Not only rinsing the Cappuccinatore, but dismantling and cleaning it at regular intervals (see section 7.2 Cleaning the Cappuccinatore on page 48).
  Rinsing the Cappuccinatore each week with the Melitta® PERFECT CLEAN milk system cleaning agent for fully automatic coffee makers. Use the milk system cleaning solution instead of fresh water.

5.7 Preparing hot water

You prepare hot water on the Cappuccinatore.

CAUTION

Hot water and hot steam flowing out of the pipe

• Do not reach into the hot water that is flowing out.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

Requirement: The appliance is ready for operation. The Cappuccinatore is connected.

1. Place a vessel beneath the Cappuccinatore.

Open the "valve".

Beverage dispensing starts.

Beverage dispensing stops.

1. Remove the vessel.

6 Changing basic settings

You can change the basic settings of the appliance with several functions. The functions are divided into two service modes.

6.1 Service mode 1

Each function is assigned a display.

Service mode 1
Display	function
2x	Auto OFF
δ	Water hardness
	Switch-off rinsing
	Filter programme
clean	Cleaning programme

Service mode 1
Display	function
decalc	Dscaling programme
←→	Brewing temperature

To call up Service mode 1, proceed as follows:

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1. 山 ^ 2 x The Ready display flashes rapidly and the 2 cups button lights up.
2. Press the "Service" button one or more times to access the desired function.
   » A display lights up according to the function selected, see Service mode 1 table.
   The number of lit bean symbols indicates the current setting of the function.

Press the "Coffee" direct key to exit the service mode without saving the settings.

Information

If no further input is made within 1 minute, the appliance returns to Ready mode.

6.2 Setting Auto OFF

If you do not operate the machine for a long time, it initially switches to energy save mode. After a further preset time, the appliance switches off.

The following settings are possible:

Display	Energy save mode after:	Switch off after:
0	3 minutes	30 minutes
10	10 minutes	1 hour
20	20 minutes	4 hours
0001 flash	30 minutes	8 hours

Information

Press any button to exit Energy Save mode.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. Press the "Service" button repeatedly until the display for the Auto Off function appears.
3. Press the "Coffee strength" button repeatedly until the desired time is set.
4. You can call up the next function or exit Service mode:

a) Briefly press the "Service" button to navigate to the next function.
b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.3 Setting the water hardness

Setting the water hardness regulates how frequently you are requested to descale the appliance. The harder the water, the more frequently the appliance has to be descaled.

Information

Water hardness cannot be set while using a water filter (see section 7.6 Using a water filter on page 52). If a water filter is used, the water hardness is set to soft.

Determine the water hardness with the enclosed test strip. Observe the instructions on the test strip packaging and in the table Water hardness range on page 56.

The following settings are possible:

Display	Water hardness
➁	soft, descale after 150 litres
➂➂	medium, descale after 100 litres
➂➂➂	hard, descale after 70 litres
➂➂➂ flash	very hard, descale after 30 litres
no coffee beans	A water filter is used. No adjust-ment is possible.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. Press the "Service" button repeatedly until the display for the Water hardness function appears.
3. Press the "Coffee strength" button repeatedly until the desired water hardness is set.
4. 3 You can call up the next function or exit Service mode:

a) Briefly press the "Service" button to navigate to the next function.
b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.4 Activating/deactivating switch-off rinsing

Rinsing is always carried out immediately after switching on the coffee system. Only switch-off rinsing can be activated or deactivated. If it is activated, the coffee system is rinsed after being switched off.

Information

We recommend that you do not permanently deactivate switch-off rinsing, because switch-off rinsing cleans the coffee system.

The following settings are possible:

Display	Switch-off rinsing
0	activated
no coffee beans	deactivated

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. Press the "Service" button repeatedly until the display for the Switch-off rinsing function appears.
3. Press the "Coffee strength" button repeatedly until switch-off rinsing is activated or deactivated.
4. 2 You can call up the next function or exit Service mode:

a) Briefly press the "Service" button to navigate to the next function.
b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.5 Setting the brewing temperature

The brewing temperature influences the flavour of the coffee beverage.

The following settings are possible:

Display	Brewing temperature
1	Low
1 1	Medium
1 1 1	High

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.

2. Press the "Service" button repeatedly until the display for the Brewing temperature function appears.

3. Press the "Coffee strength" button repeatedly until the desired brewing temperature is set.
4. You can call up the next function or exit Service mode:

a) Briefly press the "Service" button to navigate to the next function.
b) Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

6.6 Service mode 2

Each function is assigned a display.

Service mode 2
Display	function
2x	Factory settings
	Venting

To call up Service mode 2, proceed as follows:

Requirement: The appliance is ready for operation.

1. Press the "Service" button as well as the "Coffee" direct key for more than 2 seconds to enter Service mode 2.
   The Ready display and the 2 cups display flash rapidly.
2. Press the "Service" button one or more times to access the desired function.

» A display lights up according to the function selected, see Service mode 2 table.
The number of lit bean symbols indicates the current setting of the function.

Press the "Coffee" direct key to exit the service mode without saving the settings.

Information

If no further input is made within 1 minute, the appliance returns to Ready mode.

6.7 Resetting the appliance to the factory settings

The appliance can be reset to the factory settings. When resetting, your settings in the functions will be lost.

Requirement: The appliance is ready for operation.

1. Press the "Service" button as well as the "Coffee" direct key for more than 2 seconds to enter Service mode 2.
2. Press the "Service" button repeatedly until the display for the Factory settings function appears.
3. Press the "Coffee strength" button repeatedly until the display of one coffee bean appears.
4. Press the "Service" button for more than 2 seconds to reset the appliance to the factory settings and exit the service mode.

6.8 Setting the grinding fineness

The grinding fineness of the coffee powder influences the flavour of the coffee.

If the grinding fineness is set finer, the coffee flavour is stronger.

ATTENTION

Very finely ground coffee powder can clog the brewing unit.

• The grinding fineness has been optimally set prior to delivery. Adjust grinding fineness at the earliest after about 100 coffees are dispensed (after

approx. 1 month, depending on coffee consumption).

• Do not set the grinding fineness too fine. The grinding fineness is optimally set when the coffee flows evenly out of the outlet and a fine, dense crema appears.

Adjust the grinding fineness while the grinder is running.

Requirement: The appliance is ready for operation.

Fig. 14: Setting the grinding fineness

1. Open the cover (11). To do this, reach into the recess on the right of the appliance and pull the cover off sideways.
2. Prepare any coffee beverage.
3. Move the lever (10) to the left or right while the grinder is running. To the left = grinding fineness finer To the right = grinding fineness coarser
4. Insert the cover (11) sideways until it engages.

7 Care and maintenance

Regular care and maintenance of the appliance ensure the consistent high quality of your beverages.

7.1 General cleaning

Clean the appliance regularly. Immediately remove external soiling caused by milk and coffee.

ATTENTION

The use of unsuitable cleaning agents may lead to scratched surfaces.

• Do not use any abrasive cloths, sponges or cleaning agents.

Requirement: The appliance is switched off.

Clean the outside of the appliance with a soft, damp cloth and normal washing-up liquid.
- Rinse off the drip tray, the coffee container and the cup plate. Use a soft, damp cloth and normal washing up liquid for this. The coffee container is dishwasher-safe.
Clean the bean container with a soft, dry cloth.

7.2 Cleaning the Cappuccinatore

To avoid damage to the appliance, we recommend regularly cleaning the Cappuccinatore and the milk hose.

Fig. 15: Dismantling the Cappuccinatore

1. Detach the Cappuccinatore from the steam pipe (21).
2. Detach the following individual parts from the Cappuccinatore:

Milk hose (25)
Air intake nozzle (22),
- Outlet for milk foam (26)
Insert outlet (29).

1. Clean the Cappuccinatore and the individual parts with warm water.
2. Re-assemble the Cappuccinatore.
3. Connect the Cappuccinatore to the appliance (see section 3.5 Connecting the Cappuccinatore on page 37).

7.3 Cleaning the brewing unit

To avoid damage to the appliance, we recommend cleaning the brewing unit once a week.

Fig. 16: Removing the brewing unit

Fig. 17: Cleaning the brewing unit

Requirement: The appliance is switched off.

1. Open the cover (11). To do this, reach into the recess on the right of the appliance and pull the cover off sideways.
2. Press and hold the red lever (30) on the brewing unit handle (12) and turn the handle clockwise until it engages at the stop.
3. Pull the brewing unit out of the appliance by the handle.
4. Rinse the entire brewing unit thoroughly from all sides under running water. In particular, make sure that coffee residues are removed from the sieve (31).
5. Allow the brewing unit to drip dry.
6. Use a soft, dry cloth to remove coffee residues from the surfaces inside the appliance.
7. Insert the brewing unit into the appliance. Press and hold the red lever on the handle of the brewing unit and turn the handle anticlockwise until it engages at the stop.
8. To do this, insert the cover sideways until it engages.

When the appliance is switched on, an alternating flashing of the Ready display and the Clean display indicates a missing brewing unit. After the brewing unit has been inserted, the appliance switches to Ready mode.

7.4 Running the cleaning programme

This cleaning programme is used to remove residues and coffee oil residues with the aid of fully automatic coffee maker cleaning agents.

To avoid damage to the appliance, we recommend running the cleaning programme every 2 months or as requested by the appliance.

clean The Clean display light requests you to clean the unit.

CAUTION

Contact with fully automatic coffee maker cleaning agent may lead to eye and skin irritation.

• Observe the processing instructions on the packaging of the fully automatic coffee maker cleaning agent.

ATTENTION

The use of unsuitable fully automatic coffee maker cleaning agent can damage the appliance.

Only use Melitta® PERFECT CLEAN cleaning tablets for fully automatic coffee machines.

The cleaning programme takes approx. 15 minutes and should not be interrupted.

The cleaning programme runs in several stages. Progress is indicated by the number of coffee beans displayed.

The appliance performs several rinsing operations during the cleaning programme. The drip tray is also rinsed.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. clean Press the "Service" button repeatedly until the display for the cleaning programme appears.
3. Press the "Service" button for more than 2 seconds to start the cleaning programme.

clean The Clean display flashes until the cleaning programme is finished.

The first stage of the cleaning programme starts. One coffee bean lights up.

The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray without the coffee grounds container.
3. Place the coffee grounds container beneath the outlet.

The appliance rinses twice.
» clean The Clean display flashes rapidly and requests you to remove the brewing unit and insert a cleaning tablet.

1. Remove the brewing unit. Do not switch off the appliance.
2. Rinse the brewing unit under running water (see section 7.3 Cleaning the brewing unit on page 48).
3. Place a cleaning tablet in the brewing unit. Insert the brewing unit into the appliance.

Fig. 18: Placing a cleaning tablet in the brewing unit.

The second stage of the cleaning programme starts. Two coffee beans light up.

The appliance performs several rinsing operations.
The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

The third stage of the cleaning programme starts. Three coffee beans light up.

1. Empty the drip tray and the coffee grounds container.
   11.Insert the drip tray without the coffee grounds container.

The fourth stage of the cleaning programme starts. The three coffee beans flash.

1. Place the coffee grounds container beneath the outlet.

The appliance performs several rinsing operations.
The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray and the coffee grounds container.

The cleaning programme is finished.
The Clean display goes out.
The appliance is ready for operation.

Information

If the cleaning programme has been interrupted, e.g. because you unintentionally switched off the appliance, you must switch the appliance on again and follow the instructions from step 10. The appliance is then ready for operation, even if it has not been completely cleaned. For complete cleaning, you must run the cleaning programme from the beginning.

7.5 Running the descending programme

The descending programme is used to remove limescale deposits in the interior of the appliance with fully automatic coffee maker descending agents.

To avoid damage to the appliance, we recommend running the descending programme every 3 months or as requested by the appliance, unless you regularly use a water filter.

decalc The Descaling display light requests you to descale the appliance.

CAUTION

Contact with descending agent may lead to eye and skin irritation.

• Observe the processing instructions on the packaging of the descaling agent.

CAUTION

Hot water and hot steam flowing out of the pipe

• Do not touch the steam pipe during and immediately after use.
  Wait until the steam pipe has cooled down.

ATTENTION

Use of unsuitable descending agents and failure to observe the processing instructions may damage the appliance.

Only use Melitta® ANTI CALC liquid descaling agent for fully automatic coffee machines.
- Observe the processing instructions on the packaging of the descaling agent.

ATTENTION

A water filter may be damaged if it is screwed in during the descending programme.

• Remove the water filter (see Fig. 19 on page 53).
• Place the water filter into a vessel filled with tap water during the descaling programme.
• The water filter can be reinserted and reused when the descending programme is complete.

The descending program lasts approx. 25 minutes and should not be interrupted.

The descending programme runs in several stages. Progress is indicated by the number of coffee beans displayed.

The appliance performs several rinsing operations during the descending programme. The drip tray is also rinsed.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. decalc Press the "Service" button repeatedly unit the display for the descending programme appears.
3. Press the "Service" button for more than 2 seconds to start the descending programme.

decalc The Descaling display flashes until the descending programme is finished.

The first stage of the descending programme starts. One coffee bean lights up.

The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray without the coffee grounds container.
3. Place the coffee grounds container beneath the Cappuccinatore.

The Water display lights up and requests you to fill the water tank with descending fluid.

1. Remove the water tank.
2. Fill 0.5 litres of descending fluid into the water tank. Observe the corresponding instructions for use of the fully automatic coffee maker descending agent.
3. Insert the water tank again.

The second stage of the descending programme starts. Two coffee beans light up.

The descaler needs approx. 20 minutes to take effect, Several rinsing operations are carried out during this time.

The Steam display then lights up and requests you to open the "valve".

1. Open the "valve".

The Steam display flashes. The appliance performs several rinsing operations.
The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
2. Insert the drip tray without the coffee grounds container.
3. Place the coffee grounds container beneath the Cappuccinatore.

The Water display lights up and requests you to fill the water tank.

1. Remove the water tank.
2. Thoroughly rinse out the water tank and fill it with fresh water.
   16.Insert the water tank.

The third stage of the descending programme starts. Three coffee beans light up.

Hot water flows into the coffee grounds container.
The Steam display flashes.

1. Once the Steam display lights up, close the "valve".

The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.
   19.Insert the drip tray and the coffee grounds container.

The descending programme is finished.
The Descaling display goes out.
The appliance is ready for operation.

Information

If the descending programme has been interrupted, e.g. by unintentionally switching the appliance off, you must switch the appliance on again and follow the instructions from step 11. The appliance is then ready for operation, even if it has not been completely descaled. For complete descending, you must run the descending programme from the beginning.

7.6 Using a water filter

The use of a water filter extends the service life of the appliance and the appliance has to be descaled less frequently. The water filter filters calcium and other pollutants out of the water.

Only use Melitta® Pro Aqua filter cartridges for fully automatic coffee machines. Observe the processing instructions on the packaging of the water filter.

Information

When using and regularly replacing the Melitta® Pro Aqua filter cartridge, the appliance only needs to be descaled once a year.

This information is based on an average of 6 coffee beverages with 120ml per day and 6 filter changes per year.

Fig. 19: Screwing/Unscrewing the water filter

The water filter (33) is screwed in and unscrewed from the thread (32) on the base of the water tank (1) using the screwing aid (32).

Information

The water filter should not be left standing dry for a long period of time. When it is not used for a long time, we recommend storing the water filter in a vessel filled with tap water in the refrigerator.

Inserting the water filter

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.

2. Press the "Service" button repeatedly unit the display for the filter programme appears.

3. Press the "Coffee strength" button until one bean lights up.

4. Follow the instructions from step 3 in section Changing the water filter.

Changing the water filter

In order to maintain a constant effect of the water filter, we recommend changing the water filter every 2 months – or when the device requests you to do so.

The Filter display light requests you to change the water filter.

Information

• The water hardness cannot be set if you use a water filter. The water hardness is automatically set to soft (see section 6.3 Setting the water hardness on page 45).
• Place the water filter into a vessel filled with fresh tap water for a few minutes before inserting it.

Requirement: The appliance is ready for operation.

1. Press the "Service" button for more than 2 seconds to call up Service mode 1.
2. Press the "Service" button repeatedly unit the display for the filter programme appears.

One bean lights up.

1. Press the "Service" button for more than 2 seconds to start the filter programme.

The Filter display flashes until the filter programme is finished.
The Drip tray display lights up and requests you to empty the drip tray and the coffee grounds container.

1. Empty the drip tray and the coffee grounds container.

2. Insert the drip tray without the coffee grounds container.

3. Place the coffee grounds container beneath the Cappuccinatore.

The Water display lights up and requests you to remove the water tank and insert the water filter.

1. Remove the water tank.
2. Empty the water tank.
3. Insert a new filter in the water tank (see Fig. 19).
4. Fill the water tank.
5. Insert the water tank again.

The Steam display lights up and requests you to open the "valve".

1. Open the "valve".

If the appliance requests you to fill the water tank during this procedure, close the "valve" first. Fill the water tank and afterwards open the "valve".

The filter is rinsed with water.
Water flows into the vessel beneath the Cappuccinatore.
The Steam display lights up and requests you to close the "valve".

1. Close the "valve".

The filter programme is finished.
The Filter display goes out.
The appliance is ready for operation.

Permanently de-registering the water filter

If you have removed an inserted water filter and want to continue operating the appliance without a water filter, deactivate the water filter on the appliance:

1. Remove the water tank.
2. Empty the water tank.
3. Remove the water filter (see Fig. 19).
4. Fill the water tank.

5. Insert the water tank again.

6. Press the "Service" button for more than 2 seconds to call up Service mode 1.

7. Press the "Service" button repeatedly until the display for the Filter function appears.
8. Press the "Coffee strength" button repeatedly until no coffee beans are lit.
9. Press the "Service" button for more than 2 seconds to save the setting and exit the service mode.

The water filter is de-registered.
The water hardness is reset to the water hardness that the appliance had stored prior to inserting a water filter.

1. Adjust the water hardness if necessary (see section. 6.3 Setting the water hardness on page 45).

8 Transport, storage and disposal

8.1 Venting the appliance

We recommend venting the appliance when it is not used for a long period, prior to transport and when there is a risk of frost.

During venting, residual water is removed from the appliance.

If you put the appliance back into operation, automatic rinsing is carried out after switching on and the appliance vented (see section 3.6 Switching on the appliance for the first time on page 37).

CAUTION

Outflowing steam and hot steam pipe

• Do not reach into the steam that is flowing out.
• Do not touch the steam pipe during and immediately after use. Wait until the steam pipe has cooled down.

Requirement: The appliance is ready for operation.

1. Press the "Service" button as well as the "Coffee" direct key for more than 2 seconds to enter Service mode 2.
2. Press the "Service" button repeatedly until the display for the Venting function appears.
3. Press the "Service" button for more than 2 seconds to start venting.

The Ready display flashes until venting is ready to start.
The Water display lights up and requests you to remove the water tank.

1. Remove the water tank and empty it.
   The Steam display lights up and requests you to open the "valve".

Open the "valve".

Water and steam escape from the Cappuccinatore.
The Steam display flashes.
The Steam display lights up and requests you to close the "valve".

1. Close the "valve".

The appliance is vented and switches off automatically.

8.2 Transporting the appliance

ATTENTION

Freezing residual water can damage the appliance.

Prevent the appliance from being exposed to temperatures below 0^ C .

Transport the appliance in the original packaging. This avoids damage in transit.

Before transporting the appliance, carry out the following activities:

1. Vent the appliance (see section 8.1 Venting the appliance on page 54).
2. Empty the drip tray and the coffee grounds container.
3. Empty the water tank.
4. Empty the bean container.
5. Clean the appliance (see section 7.1 General cleaning on page 48).
6. Package the appliance.

Information

• When sending the appliance to Melitta's service centres, it is not necessary to send in the cup plate. This prevents scratches during transport.
• Do not use commercially available adhesive and packing tapes to attach loose parts. When detached, adhesive residues remain on the appliance which are difficult to remove.

8.3 Disposing of the appliance

Appliances marked with this symbol are subject to European Directive 2002/96/EC for WEEE (Waste Electri

cal and Electronic Equipment).

Electrical appliances do not belong in domestic waste.

Dispose of the appliance in an environmentally friendly manner via suitable collection systems.

9 Technical data

Technical data
Operating voltage	220 V – 240 V, 50 Hz – 60 Hz
Power consumption	1450 W
Pump pressure	max. 15 bar
Dimensions
Width	200 mm
Depth	460 mm
Height	353 mm
Capacity
Bean container	250 g
Water tank	1.5 l
Weight (empty)	8.1 kg
Ambient conditions
Temperature	10 °C – 32 °C
Relative humidity	30 % – 80 % (non-condensing)

Water hardness range	°dH	°e	°fH
Soft	0 to 10	0 to 13	0 to 18
Medium	10 to 15	13 to 19	18 to 27
Hard	15 to 20	19 to 25	27 to 36
Very hard	>20	>25	>36

10 Trouble shooting

If the actions listed below fail to rectify the problems or other problems not listed here occur, contact our hotline (local rate).

You will find the hotline number in the lid of the water tank or in the Service section on our website.

Problem	Cause	Action
Coffee only emerges from the outlet in drips.	Grinding fineness is too fine.	■ Set a coarser grinding fineness (see section 6.8 on page 47).
	Appliance is soiled.	■ Clean the brewing unit (see section 7.3 on page 48).■ Run the cleaning programme (see section 7.4 on page 49).
	Appliance is covered inside with limescale.	■ Run the descaling program (see section 7.5 on page 50).
Coffee does not flow.	Water tank is not filled or is not correctly inserted.	■ Fill the water tank and ensure it is positioned correctly (see section 4.3 on page 40).
	Brewing unit is clogged.	■ Clean the brewing unit (see section 7.3 on page 48).
When foaming milk, there is not enough milk foam.	Cappuccinatore is soiled.	■ Clean the Cappuccinatore (see section 7.2 on page 48).
Although the bean container is full, the appliance indicates that coffee beans must be filled.	Coffee beans do not drop into the grinder.	■ Press a direct key.Tap lightly on the bean container.Clean the bean container.Coffee beans are too oily. Use different coffee beans.
Loud grinder noise.	Foreign objects in the grinder.	■ Contact the hotline.
Brewing unit cannot be inserted after removing.	Handle for the locking mechanism of the brewing unit is not in the correct position.	■ Check that the handle for the locking mechanism is correctly engaged (see section 7.3 on page 48).
	Drive is not in the correct position.	■ Press the "Coffee" direct key and the "2 cups" button simultaneously for more than 2 seconds.The appliance initialises.
Rapid alternate flashing of the displays:☐☐	Software problem.	■ Switch the appliance off and on again (see section 4.1 on page 38).■ Contact the hotline.
Rapid alternate flashing of the displays:☐clean	Brewing unit is not inserted.	■ Insert and lock the brewing unit.
The display lights up without having been activated:☐	Appliance is not fully vented.	■ Vent the appliance, turn the rotary regulator clockwise to the stop for this. Once the Steam display lights up permanently, turn the rotary regulator anti-clockwise up to the stop.Clean the brewing unit (see section 7.3 on page 48).

Sommaire

Chere clientele, cher client,

www.melitta.nl of www.melitta.be

Fig.6: Tasto "ON/OFF"

Fig.3: Panel de control

1. Retire el recipient.

Fig. 13: Brygning of to kopper

1. Stil to kopper under udlbet.
2. Tryk på betjeningsknappen "2 kopper" (28).

2 kops-symbolet lyser.

1. Tryk på brygknappen "Kaffe".

(Waste Electrical and Electronic Equipment).

Sette inn vannfilter

Forutsetning: Apparatet er driftsklart.

Trykk pa betjeningsknappen

"Service" longer enn 2 sekunder for Å apne Servicemodus 1.

Trykk pa betjeningsknappen

Unngå a utsette apparater for temperaturer under 0^

Transporter apparatet i originaleballasjen. Dermed unngar du transportskader.

for WEEE (Waste Electrical and Electronic Equipment).

5 PpuiroTOBJIeHne HAnITKOB 296

5.1 Hacrpoika kpeooctn Kofoe 297
5.2 Hacroika koiueCTBa Kofoe 297
5.3 PnpiroToBnHeHne HapntKa 297
5.4Перьване пиютовеля Кофe 297
5.5ПригOTOBJIeHneДБУнHaNTKOB OndOBpeMeHHO 297
5.6 PnpuroToBnHeMmIoUHnIeHbI 298
5.7 PnpiroToBleHne ropeuB BObl 299

6 I3MeHeHne OCHOBbIX HAcTpoek 299

6.1 Pekim o6cnyxmbnna 1. 299
6.2 HacrpoKa aBtOMaTnueCKoTo BbIKNoUeHnra 300
6.3 HactpoJa KecTKocTn BOJbl 300
6.4 BkIIOueHne/ByIKIOueHne npOMbIKn npBbIKIOueHn 301
6.5 HacrpoKa TempepaTpybI npiroToBJIeHnI 302
6.6 Pekim o6cnyxuBaHn 2... 302

6.7 BocstahOBHeHne 3aBODCKnx yCTaHOBOK aannapaTa 303
6.8 Hacrpoika ToHKoCTn NOMOla 303

7 yxoI texHnueckoe o6cnyKuBaHne 304

7.1 067a ynctka 304
7.2 Ouchstka kanyuHaTopa 304
7.3 Yucstka 6Ioka 3aBapuBaHnna 304
7.4 BbIopJIHeHne npoRpaMMbl OUcTkn 305
7.5 BbIopHeHne nporpaMMbI Ia ydaJeHna HauPiN 307
7.6 IcnoIb3OBAHne fInIbTpA dJa BODbl 309

8 TpaHcnpOpuOBka, xpaHene n yTuInnaZaun. 311

8.1 BbIapuBaHne annapaTa 311
8.2 TpaHcnpotnpoBka annapaTa 312
8.3 Ytulnizauia aannapata 312

9 TexHnueckne xapaKTepeNCTIKN 313

10 HenncpabHocTn 313

1 063op annapata

1.1 06uBn aannapata

Puc.1: Bu annapama cnepedu cneba
Puc.2: Buə annapama cnepeodu cnpaea

1 KoHTeHepIaIbOdbI
2 KpbiIka KOHTeHepa IJIy BObl
3 KpbIiKa KOHTeHepa DnKoFeiHbIX 3epeH
4 KoHTeHep dIg KoFeiHbIX 3epeH
5 NpOOrpeBaemn noCTabKa nlaaew
6 NaHeIb ynpaBLeHnIa
7 BbIyckHoe OTBepCTne IJRA HAnITKOB C DByMHaCaJaKMn
8 EMKoCTbДЯ KOFeHOrO XMbIXa (BHyTpNi)
9 PoiDOn dIa c6opa KaIeIb
10 Pbyar «PeRyIINPOBka TOHKOCTn NOMOJa» (BHyTpni)
11 CbemHa nHaHeIb
12 BLOK 3aBapuBaHnA (BHyTpN)
13 KanyuHaTOp
14 PonnabOK
15 PndorpeBaemn noctabka nlaaew

1.2 06uBn BnD nAHeN ynpaBneHna

Puc.3: Panaheynynpaeneuia

Ybaxaemblnokynatelb,

BlarodaPIM BAC 3a NOKyNk KofoeHoro abTomata Melitta Avanza.

Данhoe руковоствно Экплuyaатци ПOMOЖET BAM O3HaKOMTbCЯ pa3HOO- бpa3HBIMN BO3MOЖHOCTЯМaN apapataи пригOTOBNTb Koфe,doCTоHbI BOCXnue- ня.

BhimateIbHo npOuTnTe daHHe o pyKoBOCTBO. 3To IIOZBoIIT Bam NCKJIouHTb ONaCHOCTb IOnyEHHa TpaBMbl nI prUnHHeHHaMaTePnaIahOBoro uJep6a.XpaHIne TaHHOpyKoBOdCTBO BHaIeXaUeM BnJe.DaHHOpyKoBOdCTBO DOJxHoo 6bITb nepedaHOHOBOMByBaJaIeNbCu BYMeCTe c aIppapaTOM.

Kompanna Melitta He Hecet OTBeTCTBENHOCTN 3a NOBpeKdEHH, OBCNLOBHeHHbIe

Hec6JIIOJeHHeM Tpe6OBAHn DaHHORo pyKOBOdCTBa.

Pn Heo6xOJIMoCTn POnJuCyHn 60lee
NoIpRo6HoN INHΦOpMaζn IInn Pn HauNc
BONPoCob ObpaaIeTecb B OΦuIaJIbHbIe PpeDCTaBnteJIbCTBa KOMNaHn
Melitta nIi NocTe NaH caIT:
www.melitta.ru

Kenaem Bam npnTHoro BpemnpoBOKeHnC KOe, pnproTOBneHHbIM C NOMOuBo Hauero HOBOra annapata.

2ДЯВашев6e3oNaChOCTN

C E AnnapaT COOTBeTCTByeT DeiCTBvUoIIM eBpOneiCKIM DInpeKtNBam N npOn3BeJeH B COOTBeTCTBnC COBpeMeHHbIM yPoBHeM TexHNKn. Tem He MeHee, cyueCTByIOT OCTaToUHbIe PNCKN.

Bo n36eXaHne onaCHOCTn Heo6xOIMo CO6JIOpAToYka3aHNy ITO TexHnke 6e3OnaCHOCTN. KompanHnMy Melitta He Hecet OTBeTCTBeHHOCHTn 3a NOBpeKJdeHnry, O6yCNoBLeHhble Heco6JIOpDeHnem Yka3aHnI PO TexHnke 6e3OnaCHOCTN.

KanyuHaTOp MOxHO NcNoB3OBaTb dIa HarpeBa BODbl I pNiroTOBNeHnro MOnoH OH NeHb.

Puc.5: PpucoeduHeHue kanyuHaMaopa

1. CoeHInHe KaynuHaTOp c Tpy6kOJ nJa nOaun napa (21).PnI 3ToM BCTaBBTe CoeINHeHne KaynuHaTOp a Do yNopa Tpy6Kn nOaun napa.
2. CoeHHnte Tpy6ky dny MoIoka (25) c KaIyHHaTOPOM.
3. EcIN Bbl eue He XOTnTe NcNoIb3OBA Tb MOLOKO, TO MOXHO 3aKaTb Tpy6Ky dIy MoLOKA B depKaTeNe (23).

3.6 Перboaевский annapaata

При первом BKЛЮЧЕни annapараз OH BылОнягд ATВOMATNUECKYIO npOMbIBKY. Горчая ВODA BHAQUE BblTeKaeT N3 KanyuHaTopa, a 3aTeM n3 BblNyCKHOrO OTBepCTnI. При NTOM n3 annapapa ydaJIЯ-ETcR BO3dUx.

A OCTOPOXHO

BbIXoJaIaI rOpaua BOa n rOpaua Tpy6ka dIpaN npaH npa

He kacaitec bIbouie cra ropey BOdbI.
He kacaiTeCb Tpy6Kn IJn Ipoaun npa BO BpeMn cpa3y JKe Iocne IcnoJIb3OBAHn. IoKdntecb, noka Tpy6Ka IJn Ipoaun npa OXJaIITcJ.

①Инфорmaцья

• PekomehnyetcH He ynoTpe6nIb nepBbIe DBe YauKIn KoΦe nocIe nepBOrO BkJIuOyehN.

• EcIN Bbl XOTIne INCNoIb3OBAbT ΦnIbTp ДЯ BODbl, TO eRO peKOMeHnyETc YCTaHOBnTB TOLbKO NOCNe ПepBOrO BKJIQUHeHnA.

Puc.6: Khonka «Вкл./Выкл.»

Heo6xoJnMoeyCNoBne:annapat ycta-HOBJIeH I NOJKNIOUeH.

1. Noidctabbte emkoctb noi KaynuHaTOp.
2. Hαχmnte KhoNkγ «Bκι./Bbɪкŋ.» (20).

》 KpaTkoBpeMeHHo 3aRopaetcnaHdkaTop Tomobhocmb Ka6ome.
3aropaeTcHnDnKaTOpBoda, cnHann3npyOHeo6xOnMocTn HanoHNbKoHTeHepIraBObl.

1. Řткроче кршу контейнера за воры и вьнбтешег за ручу Вьерх за ппара. [ \text{Ворчы} = \frac{\text{Pursky}}{\text{Pursky}} ]
2. Помоше erо чстоь ВОДо. HanолиНITE KOHTeHep CBexKe ВОДо.
3. Bctabte KohteHep dIa BObl aIpanpaT cBepxu n 3akpoTe KpbIkuy.

3aropaeTcHnDnKaTOp Nap, cmHann3npyO Heo6xOaMocTOn OTKpbITb KJanaH

1. OTKpoIte KlaHn
   » TogyaB ODa BbIeKaET n3 KaIyHnHaTopa.

1. 3akpoIte «KlaanH», KaT OToIbKO BOda IpeceTaHET BbTeKaTb N3 KaNyUnHaTopa.

》TopyaB Oda BbITEKaET N3 BblnyCKHOrO OTBepCTnY.
Bo3dyx n3 annapata ydaJIeH.

1. HanonHnTe 3epHaMn KOHTeHep Iyra KofoehhIX 3epeH (CM. rnaBy 4.2acbI- nahue Kofoeuhix 3epeH B KOHmeuHep Ha cTp. 294).
2. Пи НEOбхдмocг Tepeь Bbl MOжete

a) HactpoNTb JceTkoCTb BObl (CM. rnaBy 6.3 HacmpouKa JecmKocmu BObl Ha cTp. 300) nnn
b) yCTaHOBnTb ΦnIbTp nIa BOblc (cM. rnaBy 7.6 IVcnOJIb3OeAHeue fUInbmpa dIra BObl Ha cTp. 309).

4 OchoBhIe npHcunbly npaBHeHn

4.1 BkIIOUeHne N BBIKIOUeHne aannapata

IpeepnepBbIM BkIIOueHnem annapaTa npOHTte rnaBy 3.6 IpeBoe BkIOueHue annapama Ha cTp.292.

iHΦopMaun

-Прив BKЛIOЧЕнИ ВБКЛIOЧЕнИ annapaT BblIOJIHЯТ aBTOMaTIчeCKYIO npOMblKу.
IcnoJIb3yeMaJ npn npomblKe BOa BblBOJNTC8 B NOJOnH nla c6opa KaJIb.

BkIIOueHne annapapaT

1.Подстаьтеб EMKOCt b NOД BblnyCKHoe OTBepCTne.
2. Haxmte KhoNkY «BKn./Bbikn.» (20).

》AnnapaT HarpeetcN BbIOnHnT aBtOMaTnueckyIO npomblkY.
» AnnapaT nepexoNT B pexkIM rOTOB-HOCTN.

UHΦopMaunu

Ecn annapat 6bl BbKIOUeH NnB Ha KOpOTKoe Bpem,TO NocJIe BKIOUeHn He BbIOnHReTcABTomATuYeCKa IpOMbIBKa.

Bbikluoyene annapata

1. Повстаьтеб EMKOCTB по ВынчКhoe OTВерстne.
2. HaxmTe KhoNkY «BKn./BbIKn.» (20).

» AnnapaT BbIOnJIHIT aBtOMaTHueCKyIO npomblkY.
》3aTeMaannapatBbIKIOUHTcA.

UHΦopMaunu

• AnnapaT aBTOMaTnueckN BbIKIouHITcB CnUyae npoJOnJXnTeJIbHOrO npocToJ. B daHHom cLyuaye taKke 6yJeT BblONHeHa aBTOMaTnuecka npomblBa.
  BpeMBAkIIOueHnMoJHOHaCTpoNTbBpeKIMeO6CnyKINBaHN1（CM.rnaBy6.2HacmpouKaabmomamuecko20BbIKIOueHnHa cTp.300).
• Ecni nocle BkIIOueHnHaHNTKn He roTOBUNICb, IIN KOHTeHep DInA BObl OCTaBaCLy NcYtBIM, IpOMbIBKa He BblONHAreTc.

4.2 3acbIaHne KofoeHbIX 3epenB KOHTeHep

06xapenHbIe KofeiHbIe 3epHa TepaOT CBOI apOMaT. 3acbIbTe B pe3epByap CTolbKO KofeiHbIX 3epH, CKoJIbKO CMOKeTe yOnTp6nTB 3a 6nXkaiuNe 3-4 dHa.

BHIMMAHNE

IcnoJIb3ObaHne HenoXoJaunx COPTOB KOeMOxET PnBecTu K 3aCopeHIO KOeOMONK.

He nCnoIb3yIte KofoeIhble 3epHa, BbICyuIeHHbIe MeToIDom cy6IImaun, IJI KApAMeJIN3OBaHHbIe 3epHa.
He nCnoIb3yIte MoIOTbI KOe nnI 6bIcTpopaCTBOpMbIe npOdyKTbl.

UHΦopMaunu

KoJIuYeCTBO KoOe MoXHo HaCTpOnTb Do npIroTOBJeHnHaNtKa Nn BO BpEma Hero.

Bo3MoXHa 6ecctyneHuaTae HacTpoKa KOJIuYeCTBa KoΦe ot 25 do 220 mI.

Heo6xoImoe ycNoBne: annapaT roTOB K pa60Te. KaynHaTOP npncOeDInHeN.

1. NoidctaBte eMKoCTb noK kanyuHaTOp.

ОткpoITE «Кланан».

HauHaetc npdaa HauNTka.

1. 3akpoiteKnaanaH
   》Полачahannitka npekpaataetc.
2. ChIMITE emKoctb c noDCTaBKn.

6 I3MeHeHne OCHOBbIX HacTpoEK

CyuectByeT HeckoJbKO fYHKnI dJa n3MeHEnN OCHOBhIx HaCTpoEk aPnApata. 3Tu fYHKnI paCnpedeJeHb I Ha Dba pexkma o6cnyKBaHNJ.

6.1 Pekim o6cnykBaHn 1

YKaKdoIyHKcINNMeETcRcBOrHdNkaCnI.

Heo6xOumoe ycNoBne: annapaT roTOB K pa6ote.

1. Haxmnte KhoNky «O6cnyxmbaHne» n ydepxnbaiTe ee 60onee 2 cekynd, uTo6bl nepeiTu B pexmm o6cnyxmbaHn1.
2. Heckolbko pa3 HaxMMte KhoNky «O6CnyKnbAHne», noka He NOBNTc3HaQOK fYHKunn AbmomaMuueCKoe bIKIOUeHue.
3. Heckolbko pa3 haxMMTE KhoNkY «KpenocTb KoΦe», NOKa He 6yndet HacTpOeHO Tpe6yEmoe Bpemr.
4. Bbl MojkeTe nepeTn K cIeNyUoSei yHKuIN NII IN BbIITN N3 peXIma 06cIyXnBaHnI:

a) KpaTkoBpeMeHHo HaxMnte KhONKy «O6cIyJxNBAHne», YTO6bI nepeiTuK cJeDuOuSe fYHKuIN.
b) Hαχmnte KhoπiKy «O6cnyxuBaHnne» U yndePKuBaIte ee 6oJee 2 cekyH, YTO6bI COXPaHnTb HAcTpOky I BblTN i3 peKmMa o6cnyxuBaHnna.

6.3 HactpoJa XeCTKocTn BOdBi

Ipyem HactpoKn JcctKocTn BOblpeyI npyETc, KaK qacto aannapat CunHaN3IpyeTo Heo6xOaMnOCTN ydaJeHnaHaKnPi. Yem JeCTYe BODa, Tem yaae aannapat HyJkaTeCB ydaJeHmHaKnPi.

iHΦopMaun

Ecn nCnOJb3yETc HnIbTp dIy BObl,To NaCTPOJka JecTKOCTN BObl HeBO3MOxHa (CM. rIaBy 7.6 VcNoJIb3ObaHue funIbmpa dIy BObl Ha cTp. 309).Pnp yCTaHOBJIeHNOM HnIbTpE Iy BObl JecTKOCTb BObl yCTaHOBJIeHa Ha «MraKaI»

Дяо nppeelenenna JecTKOCTN BObl nCNoIb3yIte npnilaraemyIO INHdNKaTOPHyIO NOLOCKy. Co6nIOdaIte INHcTpkyUIN, yKa3aHHbIe Ha ynaKOBKe INHdNKaTOPHOI NOLOCKN, nВ tabNIue Duana3OH JecmKocMu BObl Ha cTp. 313.

Bo3MOxKbI cIeDyUOuIe HAcTpoiKn:

Heo6xoJumoe ycNoBne: annapaT roTOB K pa6ote.

1. Haxmte KhoNky «O6cnyKbA-Hne» uyepeXnBaIte ee 60Jee 2 cekynd, yTo6bl nepeiTn B pexm o6cnyKbAHn 1.
2. HeckoIbko pa3 haxMnte KhoNkU «O6cnyKmbaHne», NOKa He NOBNTc3HaQOK fYHKuIN IpombIeKa npu BvIKIQUeHuU.
3. HeckoIbko pa3 haoMnte KhoIky «KpeNoctb KoΦe», noka He 6yndeT

BKVJIUOeHa NIN BbIKJIIOeHa PpOMbIBKa PnBbIKJIIOeHIn.

BbIMoKTepeeTnKcIeDyUoSei KcUN NIN BbIITN N3 pexkMa lyxkBaHna:

a) KpaTkoBpeMeHHo HaxMnte KhONKy «O6cIyJxNBAHne», uTO6bI nepeiTuK cnJeDyuOuSei fyHKun.
b) Hαχmnte KhoNkU «O6cnyxuBaHnne» U ydeprxuBaIte ee 6olee 2 cekyHd, UTO6bI coXpaHnTb NaCTpOnKy U BbiTn n3 peKIma o6cnyxuBaHnra.

6.5 HactpoJa TempeaTpybI npuroTOBJeHn

TempepaTpa npriroTOBneHnBblnEeT ha Bkyc HApNTka.

Bo3mOxHbI cIeIyUoIe HaCTpoIKn:

7.2 Ounchka kanyuHaTopa

Bo n36exkHne noBpeKdHnA annapaTa peKoMeHnyeTcpeRyIaRHO BbINOJIHrTo bOuNCTky KaNyUHaTopa N Tpy6Kn dJa MOJOKa.

Puc.15:Pa36opka kanyuhamopa

1. OToCoeHInHTe KaIyUnHaTOp OT Tpy6Kn IJra nOaun npa (21).
2. Chmnte c kanyuHaTopa cneyuOuNe DeTaJIn:

Tpy6ka dnia moIoka (25)
- Patapy6ok Дя BCaCbIbAHnB BO3-Dyxa (22),
BbIpyckHoe OTBepCTne dIy MoOnOu-HoI neHbI (26)
BCTaBka BbInyckHoro OTBepeCTnA (29).

1. BbINOHNHe YnCTky KaNYuHaTopa N OTeJIbHbIX DeTanei TeIIOI BOIOI.
2. Co6epnTe kaynuHaTOp.
3. Побсөдүнөгіе каунинатор ка па-paту (см. галу 3.5 Рухошүнөнүхүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүдүdэл. Канчунhamopa настр. 292).

7.3Чистka 6лoka 3aВарИВаня

Bo n36eKaHne NOBpeJdeHn aappapaTa peKOMeHnyeTcBAIIOJIHrTb YNCTKy 6Joka 3aBaPUNBaHnOdIN pa3 B HeJeIIO.

Puc.16:Демонмaxблoka3a8apu8aHua
Puc.17: Yucmka 6noka 3a8apu8aHua

Heo6xoJumoe ycnoBne: annapaT BbIKnO-ueH.

1. OTKpoIte CbemHyIO naHeJIb (11).ДЯЗТOrO BO3bMITEcB 3a yrIy6JIeHne CпраВо CTOPOnbl aannapTa NNotAHnTe CbemHyIO NaHeJIb B CTOPOHy.
2. Haxmnte u yedePxnbaiTe hkaTbIM KpaChbI pyuar (30) Ha puYe 6noka 3aBapuBaHnra (12), nobepHnte pykoTky no yacoboi cTreJIke do ynpora co ⅢeJyKOM.
3. BbItaIe 6LoK 3aBapuBaHn8 3a pyUky n3 aannapaTa.
   4.OchOBaTeIbHO npOMoIte 6IoK 3aBapINBaHnIeJIkOM IOI npOTOuHO BODo co BCex CToPOH. B nepByIO oupeIb CJeIte 3a TEM, UTO6bIB CnTE (31) He 6blIO OCTaTKOB Kofoe.
4. Пождпг, пoka с 6лoka заразива-hя CTeчET BDA.
5. C nOMOuI MOrKoI cyXoTkaHn ydaJIte oCTaTKn KoΦe c NOBepxHOCTeB HByTpI aIInapaTa.
6. BctaBte 6nok 3aBapuBaHna B aannapat. HaxmTe u ydepXnBaIte HaxaTbIM

KpaChbI pyUar Ha pyUke 6LoKa 3aBapuBaHnI, NOBepHnTe pyUKy npOTIN YacOBoI CTpeKNI Do ynpopa co ueJyKom.

1. BctaBbTe cbeMHyIO paHeIb c6Oky Do ee _NKcauN

PnB BKHIOUeHHOM annapaTe nonepemEHoe MINGAHNE INHINKATOPOB FomOBHocmb Kpa6ome n OucmcKa yka3bIbaIOT HaOTcyTCTBne 6Joka 3abapuBaHnia. PocJe YCTaHOBKn 6Joka 3abapuBaHnia annapaT nepeXoDNT B pexIM rOTOBHOCTN.

7.4 BbInOpHeHne nporpaMMbl OuNCTKl

ПрогамmaЧИСТКИ NOЗВOLЯТУДАЛТБ ПЯТHA И OCTаТКИ KOфЕИНО МACla C NOMOШьЮ С redeCTBA ДЯ NYСТКИ KOфЕИ- Hых abTOMaTOB.

Bo n36exkaHne NOBpeJxHeHnna aannapaTa peKOMeHdyETcBAbIOnJIHrTb pOporpaMMy ouNCTKN kaxDbIe 2 MeCya nn npn pOABLeHNn COOTBeCTByUoSei NHdNKaun Ha aannapate.

clean ToprauHnDnKaTOp Oucmka CnHann3npyeTo Heo6xOumOCTN BbIOnJI-HNTb OcNCTKy aannapata.

A OCTOPOXHO

KoHTaKT CO cpeDCTBOM dIy UNCTKn KOeHbIX ABTOMaTOB MOXET CTAb npuHnO pa3dpaKeHnCIn3nCTbIX 06JOnueK rna3 n Koxn.

Co6IouaIte HNCTpyKcH NIO npIMHeHnIO, yKa3aHHbIe Ha yNaKOBKe cpeIcTBa DnIyNCTKn.

BHUMAHVE

Ucnolb3ObaHne HenoDxOJaux CpeIcTB dIy NCTKN KoFeiHbIX aBTOMaTOB MOKet cTaB npuHoiN IOBpeXdHn annapata.

IcnoJIb3yIteToJIbKOuHCTaIeTa6JIeTKnMelittaPERFECTCLEANJIA KOeHbIXABTOMaTOB.

BbIIOJIHeHHe IpOgPamMbI OUcIcTKn 3aHmMaet OKoI 15 MInHyT n erO HeJb3a IIpepbIbTaB.

》AnnapaT BbIapenH n aBTOMaTnueCKN BbIKJIIOUaETcR.

8.2 TpaHcnpTnpoBka annapaTa

BHIMAHVE

3aMep3aHHe OCTaTkoB BOdBi B aannapate MoKTe npNBecTu K NOBpeKdeHIO annapata.

He octablaIte annapat npu tempe-type Hnke 0^

TpaHcnpOpTuPyIte annapaT B opunHaJIbHOI yIaNokBKe. 3TO nOMOKeT npEIoTbPaTnTB NOBpeJdeHne annapaTa BO Bpemr TpaHCnpOpTuOBKn.

Ipeep TeM KaK TpaHcnpOpTnpoBaTb annapaT, BbINOHHTe CNeDyUOuNe DeiCTBnA:

1. BbINOJIHnTE BbInapuBaHne BoDbln3 annapata (cm. rnaBy 8.1 BbInapueaHue annapama Ha cTp. 311).
2. Cneite XnDIOCTb n3 NOIOna dIy c6Opa KaIeJIb I eMKoCTb dIy KofoH Horo XMbIXa.
3. Cneite Body n3 KOHTeHepa Jnla BObl.
4. OuHCTnTe KOHTeHep IJIa KoOeINbIX 3epen.
5. BbIOnHInTe OUnCTKy aNnapata (cM. rnaBy 7.1 ObuaJ yucmka Ha cTp. 304).
6. YnakyuTe annapaT.

UHΦopMaunu

• Пи OTnpaBke apnapaTa B cepBncHbI ΚeHTP KOMpaHm Melitta He Tpe6yEeTc TaKxe OTnpaBnTb NOCTaBky NOJ YauShKy. 3TO N03BOJNT N36ExKaTb BO3MOxHbIX capaAnH pNi TpaHCnOpTnPoBKe.
  He nCnOJb3yIte cTaHdapTHyIO KJIeKJYIO yNaKOBouHyIO JeHTy dIraΦHKCaunu He3aKpEnIeHHbIX DeTale.IPi CNrTmN IeHTbI Ha aIppaTe OCTaIOTc CJeDbI KJIe, KOtOpbie OueHb CLOXHO yJaIINTB.

8.3Утллзаць annapaata

Длг OTмочьд даньс CMBOJOM annapaTOB DeiCTByeT Ebponeckay ДиpeKTnBa 2002/96/EC дя WEEE

(otpa6oTaHHoe 3neKtpnueckoe n 3neKtpoHnOe o6OpydoBaHne).

3JNeKtpOnpns6OpblyTuInn3npyUoTcO TDeIbHOOT 6bITOBbIX OTOxOIOB.

Yttnn3nyte annapat 6e3onacbIM JIg OkpykaIoSei cpebl o6pa3OM C nOmoIbIO CneuaJIbHbIX cnCTem c6opa.

9 TexHnueckne xapaKaTepunctuKu

Ecnn He ydaetcyaCTpaHntb HenncpabHOCTN C NOMOsbIO HIXepeuNCleHHbx ININhIx,He Yka3aHHbx 3dEcB Mep,6oPaTnTEcb 3a NOMOsbIO K CneuaJIaNTam HaWeI ropaeJ nnHIn (MeCTbI TaPnΦ).

Homep ropaeyinHHyka3aHa KaKpbIshKe KOHTeHepa IJn BODbl. TaKxpe erO MoXHo y3HaTb Ha Hauem Be6-caTe B pa3dene «CepBnc».

2.4 Diger teh likeler

uz WEEE (Waste Electrical and Electronic Equipment).

Elektrioerices aizliegs izmest sadzives atkritumos.

Utilizejietierici videidraudziga veidapiemerotasavaksanaspunkta.

9 Tehniskie dati

Division Household Products

Ringstr. 99

D-32427 Minden

Germany

www.melitta.de

Editorial department:

ZINDEL AG

www.zindel.de
