USER MANUAL MTD 231 S ECG

m = 311

Stop/Clear

Clock/Timer

Start/
+30Sec./Cor

Microwave

(Mikrovlny vkyon)

Weight/Time Defrost

Start/+30Sec./Confirm

(Start/+30 s/Potvrdit)

Timer/Weight/Auto Menu

Start/+30Sec./Confirm

(Start/+30 s/Potvrdit)

Timer/Weight/Auto Menu

Start/+30Sec./Confirm

(Start/+30 s/Potwierdz)

Timer/Weight/Auto Menu

Start/+30Sec./Confirm

Start/+30Sec./Confirm

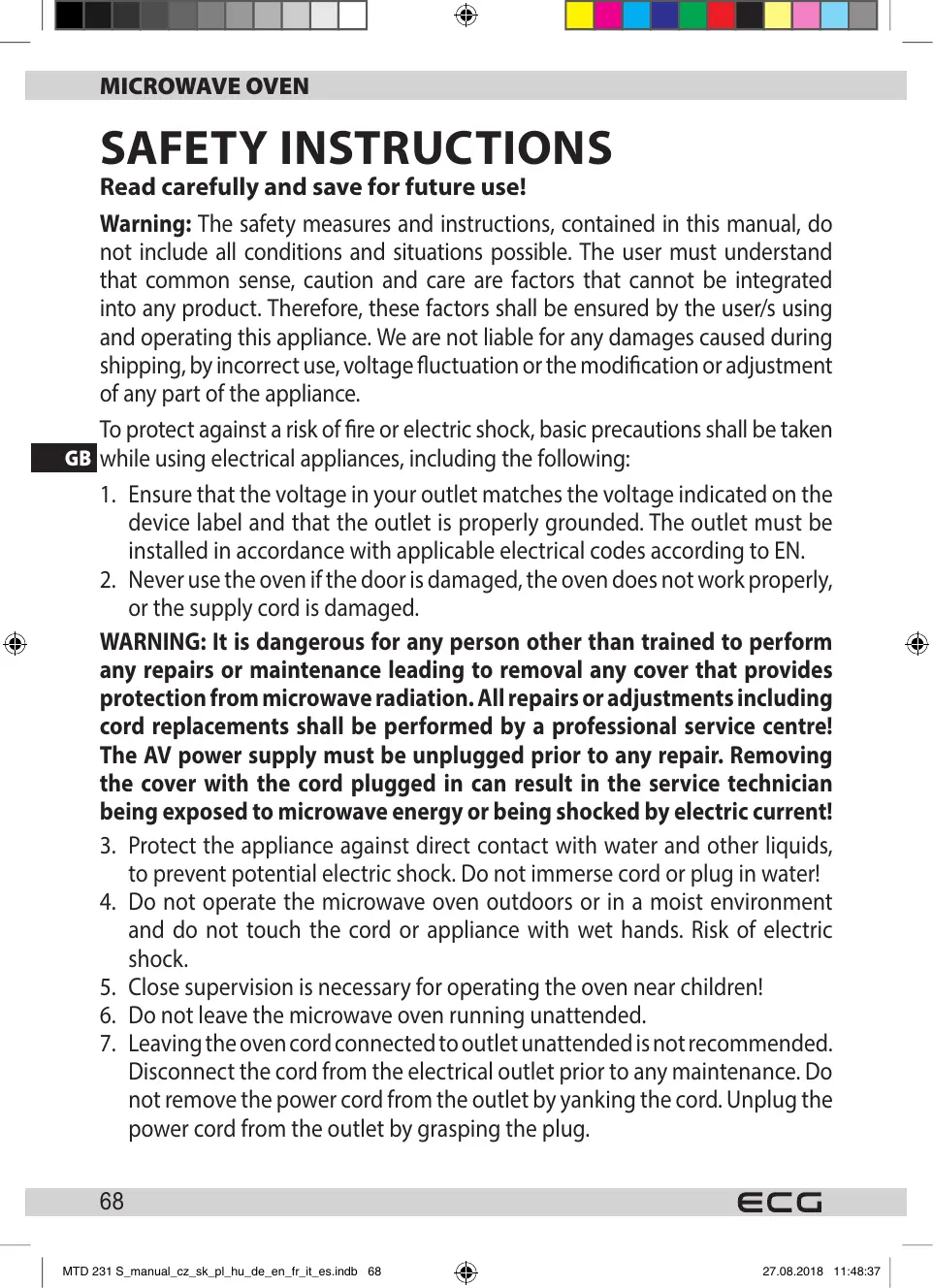

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Ensure that the voltage in your outlet matches the voltage indicated on the device label and that the outlet is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Never use the oven if the door is damaged, the oven does not work properly, or the supply cord is damaged.

WARNING: It is dangerous for any person other than trained to perform any repairs or maintenance leading to removal any cover that provides protection from microwave radiation. All repairs or adjustments including cord replacements shall be performed by a professional service centre! The AV power supply must be unplugged prior to any repair. Removing the cover with the cord plugged in can result in the service technician being exposed to microwave energy or being shocked by electric current!

1. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock. Do not immerse cord or plug in water!
2. Do not operate the microwave oven outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.
3. Close supervision is necessary for operating the oven near children!
4. Do not leave the microwave oven running unattended.

5. Leaving the oven cord connected to outlet unattended is not recommended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.

6. Do not use the microwave oven near a source of heat, for example, stove hotplates. Protect the appliance against direct sunlight.

7. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.

10.Prevent fires inside the oven by observing the following:

a) Do not overheat the food.
b) Before placing paper or plastic bags in the oven remove paper clips from them.
c) Do not heat oil or frying fat in the oven because you cannot regulate the temperature of the oil. Do not fry food inside the oven. Hot oil can damage parts of the oven and kitchen dishes and also cause burns.
d) After use, wipe the door, the door seal and inside of the oven with a cloth soaked in a mild detergent solution and wipe dry. All stains, greases and food residue are removed this way.

WARNING: If the door or door seal is damaged, the oven should not be used until it has been repaired by a trained person. The oven should be properly cleaned and any food residue removed. Failure to keep the oven clean may result in damage to the surface, which could adversely affect the life of the appliance and result in a hazardous situation. The piled up grease may overheat and could start a fire. Do not use abrasive cleaning agents. The appliance must not be cleaned with a steam cleaner.

e) If the cooked food inside the oven starts to smoke or ignites, leave the oven door closed, turn off the oven and pull out the plug of the power supply from the outlet to prevent the spread of fire.
f) When using disposable containers made of plastic, paper or other combustible materials, do not leave the oven unattended to prevent ignition.

1. Limit the risk of explosion or sudden boil by observing the following:

WARNING: Liquids and other dishes must not be heated in airtight containers because they are susceptible to explosion. Baby bottles with screw-on caps or pacifiers are also considered as sealed containers.

a) When heating liquids, use wide-mouth container and after heating allow it to stand for 20 seconds, to prevent eruptive boiling over.
b) Eggs in shell, whole hard-boiled egg, water containing grease or oil and sealed glass containers must not be heated in the microwave oven as they can explode even after the microwave heating has ended. Potatoes,

GB

frankfurters or chestnuts shall be peeled or pricked before inserting them into the oven.

c) Microwave heating of beverages can cause delayed boiling, which must be taken into account when holding the container.
d) The contents of infant bottles and baby food must be stirred or shaken prior to administration and their temperature before consumption should be checked to prevent burns.

12.Containers are very hot after being heated. Use oven mitts when removing containers from the oven. Be careful not to burn your face and hands by coming into contact with hot steam.
13. Always lift the furthest edge of the lid or food wrap. Open popcorn bags and baking bags at a sufficient distance away from the face.

1. Protecting the turntable against breaking:

a) Let the glass tray cool off before cleaning.
b) Do not place hot dishes or containers on a cold glass tray.
c) Do not place frozen foods or cold containers on a hot glass tray.

15.Make sure the containers do not touch the inside walls of the oven during the heating process.
16. Do not store food or other objects inside the oven. The oven can be switched on spontaneously if the network is struck by lightning.
17. Do not use the oven if it does not contain any food or liquids. This may cause damage to the oven. Do not cover or block any openings on the microwave oven.
18.Use accessories only advised by the manufacturer, otherwise you risk losing the warranty.
19.Use the microwave oven only in accordance with the instructions given in this manual. This microwave oven is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
20. The microwave oven is designed to heat food and beverages. Drying food or clothing and heating cushions, slippers, sponges, wet fabric and similar items may lead to injury, explosion or fire.
21.This appliance is intended for household use and similar areas, such as:

• kitchen corners in markets, offices and other work environments

• appliances used in the agricultural industry

• appliances used by guests in hotels, motels and other residential environments

• appliances used in bed and breakfast establishments.

• This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand the risks involved with the improper use of the appliance. Children must not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision.

Do not expose yourself to excessive microwave energy

1. Do not attempt to operate the microwave oven if the door is open. By doing so, you can become exposed to harmful microwave energy. Do not attempt to break or hold safety locks on the oven door.
2. Do not insert foreign objects between the oven door. Make sure dirt or residue from cleaning agents are not left on the door seal or sealing elements of the oven.
3. Do not use the oven if damaged. The oven door should be perfectly tight upon closing and should not be damaged.

Examples of damage caused to the oven door:

a) DENTING the oven door.
b) Loose or broken door HINGES or SAFEGUARDS.
c) OVEN DOOR SEAL OR SEALING AREAS ON THE FRAME HEAD.

Adjustments or repairs to the microwave oven should only be performed by a qualified person.

1. As with the majority of appliances intended for baking, strict supervision is necessary to reduce the risk fire around the oven.

In case of fire:

1. Do not open oven door.
2. Turn off the oven and unplug cord from socket.
3. Turn off the master power switch.

CLEANING

Make sure you unplugged the oven from the outlet by disconnecting the plug from the outlet.

1. Use a damp cloth and clean the inside of the oven.

1. Clean accessories as usual in soap water.
2. Clean the door frame, seal and neighbouring parts carefully using a damp cloth dipped into dishwashing detergent and wipe dry.

The microwave oven must be grounded. The plug should be connected only to a properly grounded outlet. Refer to a qualified electrician or service technician if you have any doubts regarding proper wiring or experience malfunctioning.

1. The microwave oven is equipped with a short cord to reduce the risk of tripping or tangling.
2. Long extension cords must meet the following requirements:

a) With respect to electric load, the rated values of the extension cord and outlet should comply with the rated values of the microwave oven.
b) The extension cord must be three-wire and the plug must be equipped with a grounding pin.
c) The cable must be well hidden so that it does not hang over the worktop of the kitchen unit and to prevent the children from tripping over it or pulling it out.

UTENSILS AND DISHES

WARNING

Risk of injury

Only use containers that are suitable for use in microwave ovens. Tightly closed containers can explode when heated. Closed containers must be opened prior to cooking and plastic containers shall be pierced, see Materials to find out what material can and can not be used in the microwave oven. Some non-metal material may not be safely used for oven heating. If you are not sure whether or not the material is safe for oven heating, proceed as follows:

Hot surface!

Test the container:

1. Fill the container, to be heated in the microwave oven, with cold water (250 ml).
2. Heat for 1 minute at maximum cooking power.
3. Check the temperature of the tested container carefully. If the tested container is warm, do not use it for oven heating.
4. Do not cook more than 1 minute.

DANGER for children: Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

Material that can be used in the microwave oven

Containers Notes

Baking trays	Follow the instructions of the manufacturer. The bottom of the baking container must be at least 5 mm above the turntable. Improper handling can lead to cracking the turntable.
Plates	Use only plates and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Do not use cracked or otherwise damaged bowls.
Glass jars andjugs	Always remove the cover. Only heat the food. Do not cook! Most glassjugsand jars are not resistant to high temperatures and can crack.
Glass bakingdishes	Use only those glass baking dishes resistant to high temperatures. Make sure the bowl does not have a metal border or other metal objects. Do not use cracked or otherwise damaged bowls.
Baking bags	Follow the instructions of the manufacturer. Do not close using metal clips. Leave the bag slightly opened enabling the free release of hot steam.
Paper trays	Suitable only for heating or short cooking. Do not leave the oven unattended while cooking.
Paper towels	Use these to cover food or remove melted grease. Use for short-term cooking only. Do not leave the oven unattended while cooking.
Parchment paper	Use for covering food, packing food for stewing and as protection against spattering.
Plastic material	Use only plates and dishes specified for microwave oven use. Follow the instructions of the manufacturer. Plastic material, suitable for microwave oven use, should be equipped with a specific label: "Suitable for microwave ovens." Some plastics become softer as a result of long-term exposure to high temperatures. "Boiling bags" and baking sacks must be cut, pieced or otherwise vented according to the food manufacturer's instructions.
Plastic packingfoil	Use only plates and dishes specified for microwave oven use. Use them for covering food and to maintain food moist while cooking. Make sure the plastic foil does not touch the food being prepared.
Thermometers	Use only thermometers suitable for microwave oven use. (Thermometers for meat, bread products and candy.)
Wax paper	Use for covering food, as protection against spattering and to maintain food moist while cooking.

Material, which may not be used for oven heating

Utensils and dishes Notes

Aluminium platters and trays	Risk of bending. Move the food to a container suitable for microwave oven use.
Food and cardboard boxes with metal holders	Risk of bending. Move the food to a container suitable for microwave oven use.
Metal dishes and dishes with metal objects	Metal prevents the penetration of microwave energy. Metal borders can bend.
Wired closing rings	Risk of bending and fire inside the oven.
Paper bags	Risk of catching fire. Risk of fire inside the oven.
Foam material	Plastic foam can melt at high temperatures and spoil food.
Wood	Wood dries and can crack when cooked.

PREPARING THE MICROWAVE OVEN

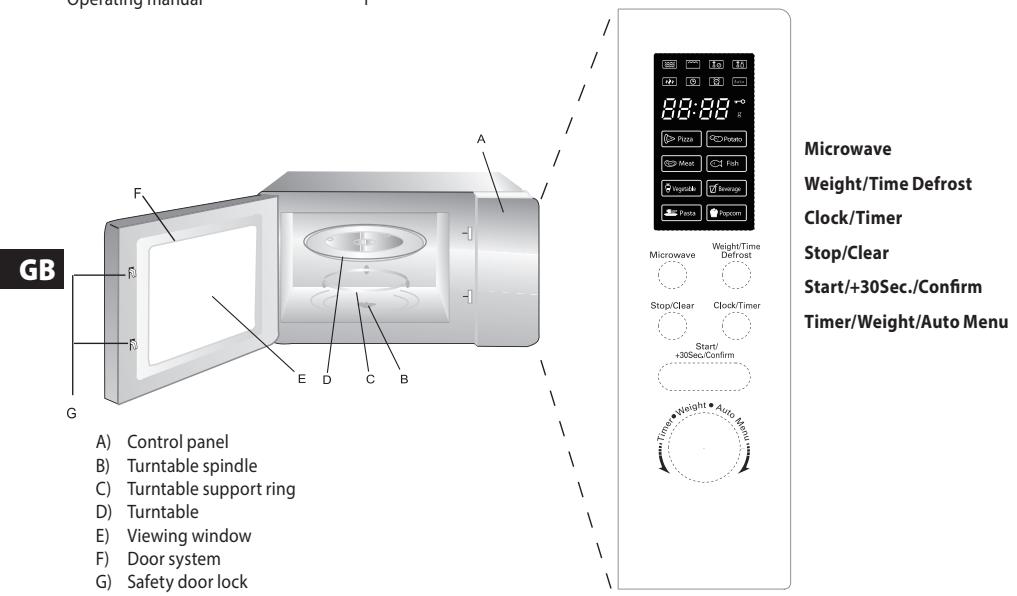

Parts and features of the microwave oven

Unpack the oven and all accessories.

The oven comes with the following accessories:

Glass turntable 1

Turntable support ring 1

Operating manual 1

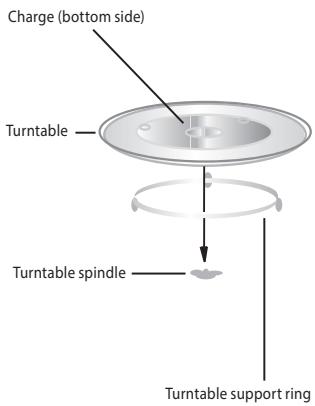

INSTALLING THE TURNTABLE

1. Do not lay the turntable face down. The movement of the turntable should not be limited.
2. Do not use the oven without the support and turntable.
3. All foods and containers shall be placed on the turntable.
4. In case the turntable or support ring becomes damaged, contact the nearest authorized service centre.

KITCHEN COUNTER INSTALLATION

Remove all packaging material and take out all accessories.

Make sure the appliance is not damaged (dented or damaged door etc.). Do not install an appliance showing any signs of damage.

Appliance box: Remove all protective wrapping from the surface. Do not remove the light brown mica protective cover of the magnetron.

Installation

1. Choose a flat surface with enough space for ventilation.

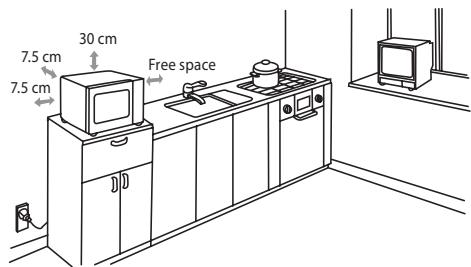

The appliance must be placed at least 7.5cm away from the nearest wall.

At least one side must be open space.

1) Leave at east 30cm of free space above the oven.
2) Do not remove oven legs.
3) Blocking air vents can result in damaging the appliance.
4) Place the oven as far away from the radio or television as possible. Television and radio broadcasting signals may interfere with microwave oven operation.

2 Plug the appliance into a standard socket. Make sure the voltage

and frequencies of the network comply with the information on the appliance label.

ATTENTION: Do not place the microwave oven above stove or hob, nor in the vicinity of another heat source. Placing the oven above or by a heat source could damage the oven and result in losing the warranty.

After plugging the microwave oven in, "0:00" appears on the LED display and a sound is heard.

1) Press Clock/Timer and select the time function. The hours begin to flash.
2) Use " h to set the hours between 0-23.
3) Press Clock/Timer again, the minutes begin to flash.
5) Press Clock/Timer again to complete the time setting process. The time will appear on the display with the " : " symbol flashing.

Note: 1) The clock will not function properly without the time begin set.

2) You can press the Stop/Clear button at any moment during the time setting and the oven will return to its previous state.

2. Cooking in the microwave oven

Press Microwave and turn "h" to select the desired power. Press Start/+30Sec./Confirm and use "h" to set the cooking time. Press Start/+30Sec./Confirm to start the cooking process.

Example: If you wish to cook at 80% power for 20 minutes, perform the following steps:

1) Press Microwave, "P100" will appear on the display.
2) Use "h" to set the power to 80% - turn until "P80" appears on the display.
3) Confirm by pressing Start/+30Sec./Confirm.
4) Turn "h" to set the cooking time (turn until "20:00" appears on the display.
5) Press Start/+30Sec./Confirm to start the cooking time or press Stop/Clear to cancel the setting procedure.

Note: When setting the cooking time, the rotating dial step changes according to the cooking time set as follows:

Time set		Dial step
0–1 min	:	5 s
1–5 min	:	10 s
5–10 min	:	30 s
10–30 min	:	1 min
30–95 min	:	5 min

Cooking power table

Cooking power	100%	80%	50%	30%	10%
Display	P100	P80	P50	P30	P10

3. Quick start

1) Pressing Start/+30Sec./Confirm in idle mode starts cooking at 100% power, each additional push of the button extends the cooking time by another 30 seconds up to a maximum time of 95 minutes.
2) When microwave cooking or defrosting, these processes can be extended by another 30 seconds with each push of Start/+30Sec./ Confirm.
3) While in idle mode, turn "h" to the left to set the cooking time with 100% power and press Start/+30Sec./Confirm to start the cooking process.

4. Defrosting according to weight

1) Press Weight/Time Defrost once, "dEF1" will appear on the display.
2) Turn " _n=1^ h_n " to set the weight of the food between 100 to 2000 g.
3) Press Start/+30Sec./Confirm to start the defrosting process.

5. Defrosting according to time

1) Press Weight/Time Defrost twice, "dEF2" will appear on the display.
2) Set the defrosting duration by turning " " (maximum setting is 95 minutes).
3) Press Start/+30Sec./Confirm to start the defrosting process. The cooking power for defrosting is P30 and may not be changed.

6. Kitchen timer

1) Press Clock/Timer twice. 00:00 will appear on the display and the timer indicator lights up.
2) Use " h " to enter the countdown time (maximum setting is 95 minutes).
3) Press Start/+30Sec./Confirm to confirm the setting, the timer indicator will be on.
4) After the time lapses, the timer indicator will go off and a five beeps will sound. If the time is set on the appliance, the display will return to the showing the current time.

Note: During the kitchen timer sequence, the countdown is shown and not the current time.

7. Automatic programs - Auto menu

1) Turn "h" to the right and select the desired program. Programs are displayed as "A-1" through "A-8".
2) Confirm by pressing Start/+30Sec./Confirm.
3) Turn " " and select the default weight,see the following table listing the programs.

4) Press Start/+30Sec./Confirm to start the cooking process.

Example: To use the "Auto Menu" function for cooking fish weighing 350 g:

1)Turn" h
clockwise until "A-6" is displayed.
2) Confirm by pressing Start/+30Sec./Confirm.
3) Turn "
and select the weight of the fish (turn until "350" is displayed).
4) Press Start/+30Sec./Confirm to start the cooking process.

Auto Menu Programs Table

Menu	Weight (g)	Display
A-1	200 g	200
PIZZA	400 g	400
A-2	250 g	250
MEAT	350 g	350
	450 g	450
A-3	200 g	200
VEGETABLE	300 g	300
	400 g	400
A-4	50 g (with 450 ml of cold water)	50
PASTA	100 g (with 800 ml of cold water)	100
A-5	200 g	200
POTATO	400 g	400
	600 g	600
A-6	250 g	250
FISH	350 g	350
	450 g	450
A-7	1 cup (120 ml)	1
BEVERAGE	2 cups (240 ml)	2
	3 cups (360 ml)	3
A-8	50 g	50
POPCORN	85 g	85
	100 g	100

8. Multi-phase food preparation

Up to 2 different food preparation phases can be entered. If defrosting is part of the preparation, it should be set as the first phase.

Example: If you intend to defrost for 5 minutes and cook for 7 minutes at a power of 80% , perform the following steps:

1) Press Weight/Time Defrost twice and "dEF2" will appear on the display.
" to set the defrosting time to 5 minutes (turn until "5:00" is displayed).
3) Press Microwave once. "P100" is displayed.
4) Press Microwave again or turn "h" to set the microwave power to 80% .
5) Confirm by pressing Start/+30Sec./Confirm. "P80" is displayed.
6) Use "h" to set the cooking time to 7 minutes (turn until "07:00" is displayed).
7) Press Start/+30Sec./Confirm to start the food preparation process. A beep sounds for the first phase and a countdown starts for the defrosting period. Another beep sounds between phases. Five beeps sound after the food is cooked (all phases are done).

9. Checking information

1) Press Microwave during the heating process. The current cooking power is displayed for 3 seconds. After 3 seconds, the display returns to its previous state.
2) During the cooking process, you can press Clock/Timer to check the current time. The current time is displayed for 3 seconds.

10. Child lock

Locking: Press Stop/Clear for 3 seconds in idle mode. A long beep sounds indicating the child lock has been activated and a key icon is displayed. If set, the current time is displayed. Otherwise, the LED display shows "C- - - -".

Unlocking: While locked, press Stop/Clear for 3 seconds in idle mode. A long beep sounds indicating the child lock has been deactivated and the key icon disappears.

ELIMINATING PROBLEMS

Common
The microwave oven interferes with the television reception.	As is the case for other small appliances, microwave oven operation can interfere with television and radio broadcasting. This effect is normal.
The light in the oven dims.	The light in the oven cavity can dim when a lower cooking power is set. This effect is normal.
Steam condensation on the door, hot air from air vents.	Steam can be released from food while cooking. Most of the moisture is conducted via air vents, some can condensate in cooler areas such as the door. This effect is normal.
The oven was started empty by accident.	Operating the microwave oven without food is prohibited. It is very dangerous.

Problem	Possible cause	Correction
The oven will not start.	(1) The power cord is not properly plugged into the socket.	Unplug the power cord and plug in again after 10 seconds.
	(2) The fuse or circuit-breaker blew.	Replace the fuse or seek help from an authorized service center for resetting your circuit-breaker.
	(3) Defective socket.	Try connecting another electrical appliance into the outlet.
The oven does not heat.	(4) Door is not closed correctly.	Close the door properly.
Noisy turntable.	(5) Impurities on support wheels and at the base of the oven	Clean the oven according to the instructions stated in chapter “Cleaning.”

TECHNICAL INFORMATION

23 l capacity

Microwave power output 800 W

Stainless steel design

95 minute timer

8 programmes

Auto weight defrost

5 power settings

Child safety lock

270 ~mm diameter rotating turntable

Weight 12.8kg

Dimensions: 485 × 293 × 410 mm ( w × h × d )

Nominal voltage: 230V 50Hz

Nominal input power: 1250 W

Operating frequency: 2450 MHz

Noise level: 60 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

GB

CONSIGNES DE SECURITE

earClock/Timer
Start/Sec /Confirm

Microwave

Start/+30Sec./Confirm

(Start/+30 s/Validator)

Timer/Weight/Auto Menu

(Temps/Poids/Menu Auto)

INSTALLATION DU PLATEAU TOURNANT

Start/+30Sec./Confirm

(Comenzar/+30seg./Confirmmar)

Timer/Weight/Auto Menu

250 69 Klicany, Czech Rep.

tel.: [phone]

e-mail: [e-mail]

HU

K+B Progres, a.s.

U Expertu 91

250 69 Klicany, Czech Rep.

tel.: [phone]

e-mail: [e-mail]

DE

250 69 Klicany, Czech Rep.

tel: [phone] (English)

e-mail: [e-mail]

IT

K+B Progres, a.s.

U Expertu 91

250 69 Klicany, Czech Rep.

tel.: [phone] (English)

e-mail: [e-mail]

ES

K+B Progres, a.s.

U Expertu 91

250 69 Klicany, Czech Rep.

tel.: [phone] (English)

e-mail: [e-mail]
