YC-MG02EC - Microwave SHARP - Free user manual and instructions

Product type	Grill microwave
Brand	SHARP
Model	YC-MG02EC
Supply voltage	230 V / 50 Hz, single phase
Protective fuse or circuit breaker	10 A min.
Power consumption	1270 W
Microwave power	800 W
Grill power	1000 W
Microwave frequency	2450 MHz
External dimensions (W x H x D)	440 x 258 x 324 mm
Cavity dimensions (W x H x D)	306 x 205 x 304 mm
Oven capacity	20 litres
Turntable diameter	255 mm
Net weight	approx. 11.9 kg
Microwave power levels	11 levels (0 % to 100 %)
Cooking functions	Manual cooking, weight and time defrost, auto menu, grill, microwave+grill combo, timer
Safety functions	Child lock, automatic shut-off when idle, door lock system
Eco mode	Yes (LED display off in standby)
Interior light	LED bulb 1.5 W
Included accessories	Glass turntable, rolling ring, shaft coupling, grill rack
Equipment class	Group 2, Class B (EN 55011)
Maintenance and cleaning	Regular cleaning with soft cloth and mild soap; do not use abrasive products; the waveguide cover is fragile; accessories are dishwasher safe
Repairability	Do not attempt to repair yourself; contact a SHARP authorized technician for any repairs

Frequently Asked Questions - YC-MG02EC SHARP

How to set the clock on the SHARP YC-MG02EC microwave oven?

Press the SET CLOCK button once. The display flashes "00:00". Use the 10 min, 1 min, and 10 s buttons to enter the current time (24-hour format). Press SET CLOCK again to confirm.

How to use the weight defrost function?

Place frozen food on the turntable. Press WEIGHT DEFROST once. The screen displays "dEF1". Use the WEIGHT/SERVING buttons to enter the weight (from 0.1 to 2.0 kg in 0.1 kg increments). Press START/+30s to start defrosting.

What to do if sparks occur inside the oven?

Sparks can be caused by metal objects or aluminum foil too close to the walls. Stop the oven immediately. Remove any metal objects. Ensure utensils are microwave-safe. If the problem persists, contact an authorized technician.

How to clean the inside of the microwave oven?

After each use, wipe spatters with a damp soft cloth. For stubborn dirt, use mild soap. Never remove the waveguide cover. For easy cleaning, heat a bowl of water with lemon for 10-12 minutes at full power, then wipe.

How to activate the child lock?

Press and hold the STOP button for 3 seconds until a long beep sounds and the screen displays "LOC". To deactivate, press and hold STOP again for 3 seconds.

What types of containers are suitable for microwave cooking?

Use glass containers (Pyrex), porcelain without metallic decoration, microwave-safe plastic, paper towel. Avoid metal, aluminum (except small amounts well away from walls), and untreated wood. Always check the manufacturer's instructions.

How to use the grill function?

Press the GRILL button once. The screen displays "G". Set the cooking time (e.g., 20:00) using the time buttons. Press START/+30s. Use the supplied grill rack to place food. Caution: the door and cabinet become very hot.

What to do if the oven does not heat?

Check that the door is properly closed and the locking system is engaged. Ensure the oven is plugged in and the fuse has not blown. Verify that time and power are correctly set. If the problem persists, contact a SHARP technician.

How to use the auto menu for potatoes?

Place washed and pricked potatoes on the turntable. Press the AUTO MENU button until "Jacket Potato" (1) is selected. Use the WEIGHT/SERVING buttons to choose the quantity (1 to 3). Press START/+30s. Let stand for 3-5 minutes after cooking.

How to extend cooking time during operation?

During cooking, press the +30s button to add 30 seconds at a time. You can also press the 10 min, 1 min, or 10 s buttons to add time. The maximum time is 99 minutes 50 seconds.

USER MANUAL YC-MG02EC SHARP

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.conformers.com/documents-of-conformity/

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dustbin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*.

In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product.

Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not insert anything between the oven front face and the door or allow debris or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is very important that the oven door closes properly and that there is no damage to the door, hinges, latches or door seals and sealing surfaces.
4. Do not attempt to repair or adjust the oven.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 3 INSTALLATION 10 SPECIFICATIONS 11 OVEN AND ACCESSORIES 12 CONTROL PANEL. 13 BEFORE OPERATION 14 SETTING THE CLOCK. 14 MICROWAVE POWER LEVEL 15 MANUAL OPERATION 16 MICROWAVE COOKING 17 GRILL COOKING/MIX GRILL COOKING* 18 OTHER CONVENIENT FUNCTIONS 19 TIME DEFROST AND WEIGHT DEFROST OPERATION 20 AUTO MENU OPERATION 21 AUTO MENU CHART 22 SUITABLE OVENWARE 23 CLEANING AND CARE 24 MICROWAVE COOKING ADVICE 25 DEFROSTING ADVICE 27 REHEATING ADVICE 28 TROUBLESHOOTING 29 BEFORE CALLING FOR ASSISTANCE 30

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To avoid the danger of fire, the microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.

This oven is designed to be used on a countertop only. It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency.

The AC power supply must be 230-240 V, 50 Hz, with a minimum 10 A distribution line fuse, or a minimum 10A distribution circuit breaker. A separate circuit serving only this appliance should be provided.

Do not place the oven in areas where heat is generated, for example, close to a conventional oven. Do not install the oven in an area of high humidity or where moisture may collect. Do not store or use the oven outdoors.

If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any flames.

Use only microwave-safe containers and utensils. Utensils should be checked to ensure that they are suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

Clean the waveguide cover and the oven cavity. These must be dry and free from grease. Built up grease may overheat and begin to smoke or catch fire.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings.

Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire.

Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.

To make popcorn, use only special microwave popcorn makers.

Do not store food or any other items inside the oven.

Check the settings after you start the oven to ensure the oven is operating as desired.

Do not leave the oven unattended while it is operating.

To avoid overheating and fire, special care must be taken when cooking or reheating foods with a high sugar or fat content, for example, sausage rolls, pies, or Christmas pudding. See the corresponding hints in the user manual.

To avoid the possibility of injury. WARNING:

Do not operate the oven if it is damaged or malfunctioning.

Check the following before use:

a) Make sure the door closes properly and ensure it is not misaligned or warped. b) Check to make sure the hinges and safety door latches are not broken or loose. c) Ensure that the door seals and sealing surfaces have not been damaged. d) Make sure inside the oven cavity or on the door there are no dents. e) Ensure that the power supply cord and plug are not damaged.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

Never adjust, repair, or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an

object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Clean the oven at regular intervals and remove any food deposits.

Follow the instructions for "Care and Cleaning". Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock.

• Under no circumstances should you remove the outer cabinet.
• Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately, and call an authorized SHARP service agent.
• Do not immerse the power supply cord or plug in water or any other liquid.
• Do not let the power supply cord hang over the edge of a table or work surface.
• Keep the power supply cord away from heated surfaces, including the rear of the oven.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorized by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorized SHARP service agent.
• If the power supply cord is damaged, it must be replaced by an authorized SHARP service agent.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. Microwave heating of beverages can result in delayed eruptive boiling; therefore, care must be taken when handling the container. To avoid the possibility of explosion and sudden boiling:

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build-up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a wide mouthed container to allow bubbles to escape.

Never heat liquids in narrow necked containers such as baby bottles, as this may result in the contents erupting from the container when heated and cause burns.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Do not use excessive amount of time.
2. Stir liquid prior to heating/reheating.
3. It is advisable to insert a glass rod or similar (not metal) into the liquid whilst reheating.
4. Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Do not cook eggs in their shells, and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites. Shell and slice hard boiled eggs before reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

WARNING: The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Use

pot holders or oven gloves when removing food from the oven to prevent burns. To avoid the possibility of burns:

• Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns and eruption of boiling. To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly. Accessible parts may become hot during use. Young children should be kept away.
• Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature.
• Always stand back from the oven door when opening it to avoid burns from escaping steam and heat.
• Slice stuffed baked foods after heating to release steam and avoid burns.
• Keep children away from the door to prevent them burning themselves.

WARNING: Only allow children aged from 8 years and above to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

When the appliance is operated in the GRILL, MIX GRILL, CONVECTION, MIX CONVECTION and AUTO MENU mode (mode applicable to model), children should only use the oven under adult supervision due to the temperature generated.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible

for their safety.

Children should be supervised to ensure that they do not play with the appliance. Cleaning by children should be monitored.

Models with an electronic touch panel are equipped with a child lock mode.

Do not lean on or swing on the oven door. Do not play with the oven or use it as a toy.

Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings - paying special attention to packaging (e.g., self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way.

Do not move the oven while it is in operation.

This appliance is intended for household use. This oven is for home food preparation and may only be used for cooking food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage.

Never operate the oven when it is empty. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the oven base due to heat stress. The preheating time specified in the dish's instructions must not be exceeded.

Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven.

To prevent the turntable or base of the oven breaking:

a) Before cleaning with water, leave to cool. b) Do not put hot or cold foods or hot utensils on a cold

turntable/oven base.

c) Do not place anything on the outer cabinet during operation.

NOTE:

Do not use plastic containers for microwaving if the oven is still hot from using a combination mode (oven model dependant) because they may melt.

Plastic containers must not be used during above modes unless the container manufacturer says they are suitable.

If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure.

Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

This appliance is intended for use in household and similar applications such as; Kitchen areas reserved for staff in stores, offices and other professional environments / Farms / Use by clients of hotels, motels and other residential type environments / Bed and breakfast type environments.

This symbol means that the surfaces are liable to get hot during use.

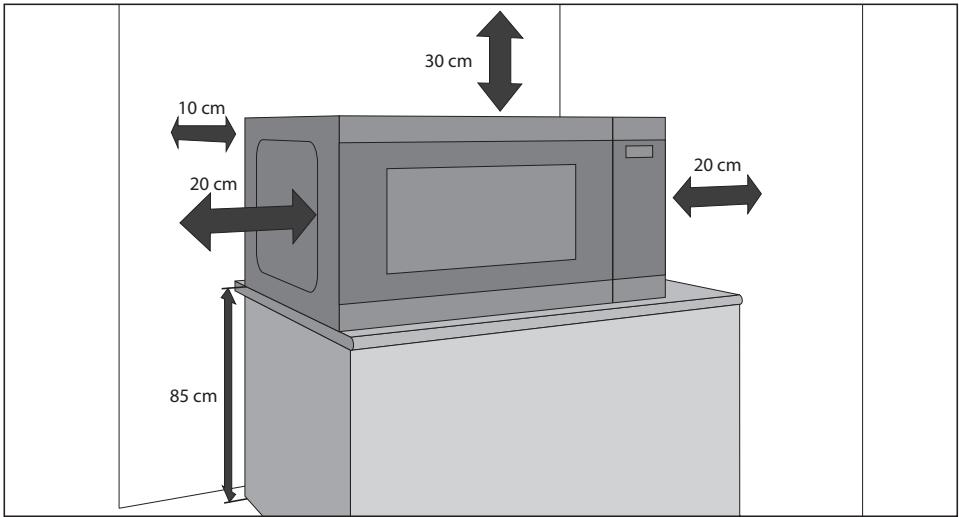

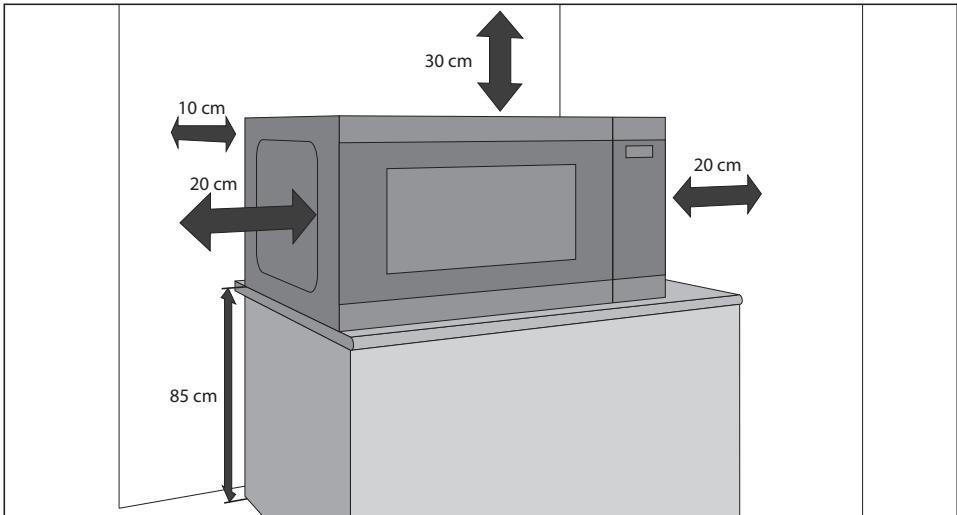

INSTALLATION

1. Remove all packing materials from the inside of the oven cavity and remove any protective film found on the microwave oven cabinet surface.
2. Check the oven carefully for any signs of damage.
3. Place the oven on a secure, level surface, strong enough to take the oven weight, plus the heaviest item likely to be cooked in the oven. Do not place the oven in a cabinet.
4. Select a level surface that provide enough open space for the intake and/or outlet vents. See picture on the first page. The rear surface of appliance can be placed against a wall.
5. The minimum installation height is 85 cm.
6. A minimum space of 20 cm is required between the sides of the microwave oven and any adjacent walls or objects.
7. Leave a minimum space of 30 cm above the oven.
8. Do not remove the feet from the bottom of the oven.
9. Blocking the intake and/or outlet openings can damage the oven.
10. Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Securely connect the plug of the oven to a standard earthed (grounded) household electrical outlet.

WARNING:

Do not place the oven where heat, moisture or high humidity are generated, (for example, near or above a conventional oven) or near combustible materials (for example, curtains).

Do not block or obstruct air vent openings.

Do not place objects on top of the oven.

Do not touch the exterior of the microwave oven during or shortly after operation as it will be hot.

SPECIFICATIONS

Model name		YC-MS02E	YC-MG02E	YC-MS51E	YC-MG51E	YC-MG81E
AC Line Voltage		230 V/50 Hz single phase
Distribution line fuse/circuit breaker		10 A	10 A	10 A	10 A	10 A
AC Power required		1270 W	1270 W	1450 W	1450 W	1450 W
Output power:	Microwave	800 W	800 W	900 W	900 W	900 W
	Grill		1000 W		1000 W	1100 W
	Standby	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W
	Energy Save Mode	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W
Microwave Frequency		2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*
Outside Dimensions (W) x (H) x (D) mm		440 x 258 x 324	440 x 258 x 324	513 x 306 x 394	513x 306 x 394	512 x 300 x 396
Cavity Dimensions (W) x (H) x (D)** mm		306 x 205 x 304	306 x 205 x 304	328 x 206 x 368	328 x 206 x 368	348 x 240 x 356
Oven Capacity		20 litres**	20 litres**	25 litres**	25 litres**	28 litres**
Grill Rack Size (Diameter x Height in mm)		315 x 308	315 x 308	315 x 308	315 x 308	315 x 308
Turntable (Diameter in mm)		255	255	315	315	315
Weight (kg)		approx. 11,3 kg	approx. 11,9 kg	approx. 14,5 kg	approx. 15,4 kg	approx. 15,8 kg
Oven Bulb (LED type)		1,5 W	1,5 W	1,5 W	1,5 W	1,5 W

• This product fulfils the requirement of the European standard EN55011. In conformity with this standard, this product is classified as group 2 class B equipment. Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food. Class B equipment means that the equipment is suitable to be used in domestic establishments. **- Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less. AS PART OF A POLICY OF CONTINUOUS IMPROVEMENT, WE RESERVE THE RIGHT TO ALTER DESIGN AND SPECIFICATIONS WITHOUT NOTICE.

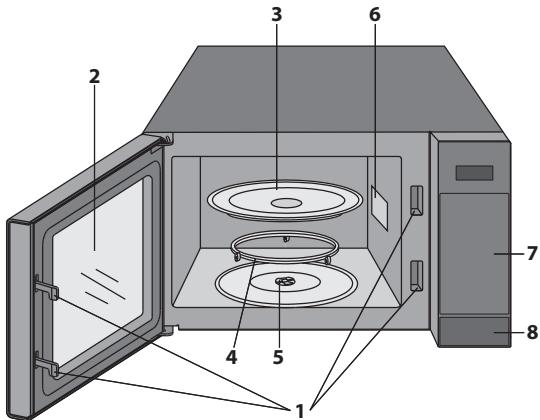

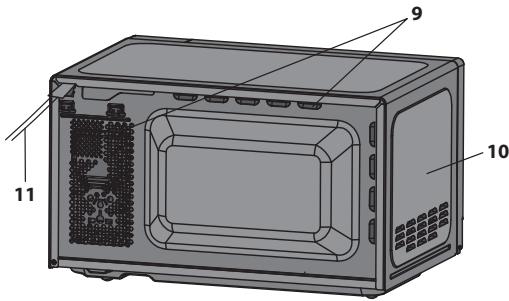

OVEN AND ACCESSORIES

1. Door Safety Lock System
2. Oven Window
3. Glass Tray
4. Roller Ring
5. Turntable Coupling
6. Waveguide Cover (Do Not remove)
7. Power and Time controls
8. Door opening button
9. Ventilation openings
10. Outer cabinet
11. Power supply cord
12. Grill rack

Check to make sure the following accessories are provided: Roller Ring, Turntable Coupling and Glass Tray

Grill ovens only:

• Grill Rack - for use when cooking on the grill function only.
• The Grill Rack is designed for use with grill ovens only. DO NOT use the rack when using the microwave function.
• For use of the Grill Rack refer to the GRILL sections of this User Manual.

Never touch the grill when it is hot.

NOTE: When you order accessories, please mention two items: part name and model name.

NOTES:

• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not damaged.
• After cooking fatty foods without a cover, always clean the cavity and especially the grill heating element thoroughly, these must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.
• Always operate the oven with the turntable and turntable support fitted correctly. This promotes thorough, even cooking. A badly fitted turntable may rattle, may not rotate properly and could cause damage to the oven.
• All food and containers of food are always placed on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you start the oven. This does not affect cooking performance.

WARNING: This symbol means that the surfaces are liable to get hot during use. The door, outer net, oven cavity, accessories and dishes will become very hot during operation. To prevent burns, always use thick oven gloves.

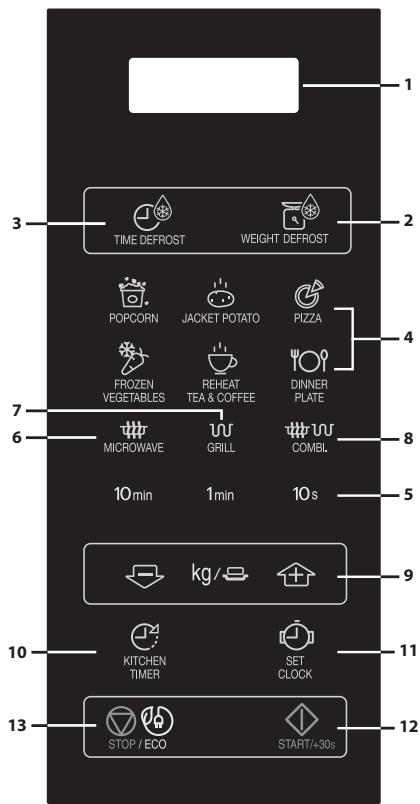

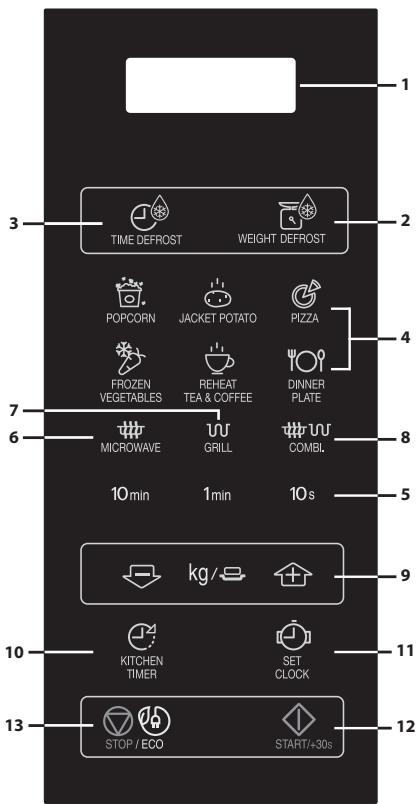

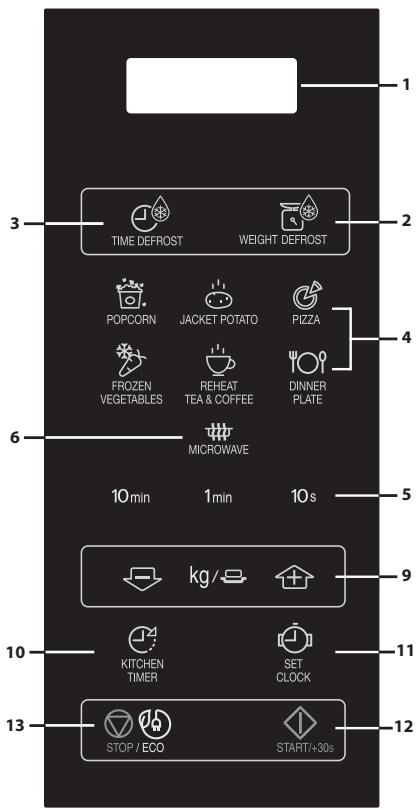

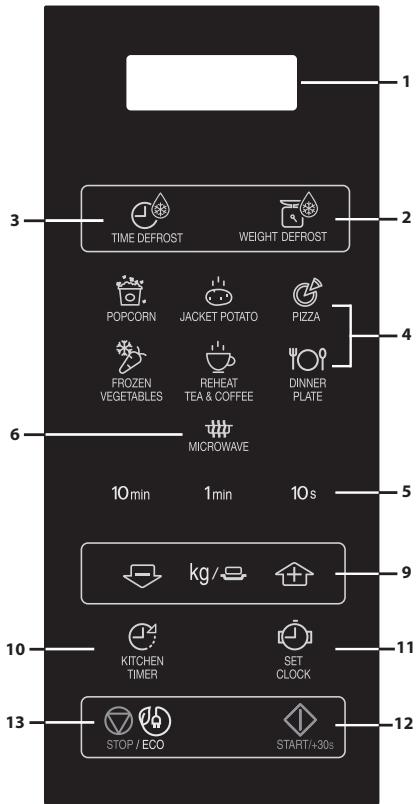

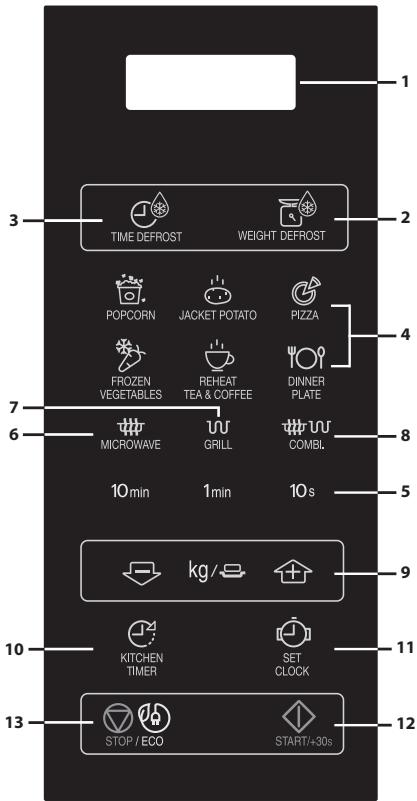

CONTROL PANEL

1. DISPLAY - Cooking time, power, indicators and clock time are displayed.
2. WEIGHT DEFROST - Press once to defrost based on weight.
3. TIME DEFROST - Press to select defrosting by time.
4. AUTO MENU - Press to select auto cooking menu.
5. TIME - Set the clock and timer.
6. MICROWAVE POWER LEVEL - Press to select microwave power level.
7. GRILL - Press to set grill cooking program.
8. COMBI. - Press to set up combination (Microwave and Grill) cooking.
9. WEIGHT/PORTION - Use these buttons to select weight or portions.
10. KITCHEN TIMER - Press to use as a minute timer, or to programme standing time.
11. SET CLOCK - Use to set clock time.
12. START/+30s - Start button. Press once to cook for 30 seconds on full power.
13. STOP/ECO - Press once to pause cooking or twice to cancel operation. Also used to set ECO mode.

Microwave solo

Microwave + grill

BEFORE OPERATION

• Plug in the oven. The oven display will display: "0:00", an audible signal will sound once.
• This model has a clock function and the oven uses less than 1.0 W in standby mode. To set the clock, see below.

SETTING THE CLOCK

Your oven has a 24 hour clock mode.

1. Press the CLOCK SET key once and "00:00" will flash.
2. Press the time keys and enter the current time. Enter the hours by pressing the 10 min key and enter the minutes by pressing the 1 min and 10 s keys.
3. Press the CLOCK SET key to finish clock setting.

NOTES:

• If the clock is set, when cooking is complete, the display will show the correct time of day. If the clock has not been set, the display will only show "0:00" when cooking is complete.
• To check the time of day during a cooking process, press CLOCK SET key and the LED will display the time of day for 2-3 seconds. This does not affect the cooking process.
• While in the clock setting mode, if the STOP key is pressed or if there is no operation within 1 minute, the oven will go back to the former setting.
• If the electrical power supply to your microwave oven is interrupted, the display will intermittently show "0:00" after the power is reinstated. If this occurs during cooking, the programme will be erased. The time of day will also be erased.

• Your oven has 11 power levels, as shown.
• To change the power level for cooking, press the MICROWAVE POWER LEVEL key until the display indicates the desired level. Set up the desired cooking time by pressing time keys. Press the START key to start the oven.
• To check the power level during cooking, press the MICROWAVE POWER LEVEL key.

As long as your finger is pressing the MICROWAVE POWER LEVEL key the power level will be displayed. The oven continues to count down although the display will show the power level.

• If "0P" is selected, the oven will work with fan for no power. You can use this level to remove any odours.

Generally the following recommendations apply:

100P/90P - (HIGH) used for fast cooking or reheating e.g. for casseroles, hot beverages, vegetables etc.

80P/70P - (MEDIUM HIGH) used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as sponge cakes. At this reduced setting, the food will cook evenly without over cooking at the sides.

60P/50P - (MEDIUM) for dense foods which require a long cooking time when cooked conventionally, e.g. beef casserole, it is advisable to use this power setting to ensure the meat will be tender.

40P/30P - (MEDIUM LOW) to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.

20P/10P - (LOW) For gentle defrosting, e.g. cream, gateaux, or pastry.

MANUAL OPERATION

Opening the door:

To open the oven door, press door opening button.

Starting the oven:

Prepare and place food in a suitable container onto the turntable or place directly onto the turntable.

Close the door and press the START/◇ +30s key after selecting the desired cooking mode. You may extend the desired cooking time during manual cooking by pressing TIME keys or START/◇ +30s key.

START/+30s

Once the cooking programme has been set and the START/◇+30s key is not pressed in 1 minute, the setting will be cancelled.

The START/+30s key must be pressed to continue cooking if the door is opened during cooking. The audible signal will sound once when the button is pressed in the correct manner.

Use the STOP key to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, press the STOP key twice.
4. To set and to cancel the child lock.

STOP / ECO

NOTE

• If the Microwave is not used for a period of 5 minutes (and the door is closed) the safety lock will automatically activate. The keypad will no longer operate. To turn the safety lock off simply open the door to the Microwave and the keypad will become active again.

MICROWAVE COOKING

Your oven can be programmed for up to 99 minutes 50 seconds (99.50).

MANUAL COOKING/MANUAL DEFROSTING

• Enter the cooking time and use microwave power levels 100P to 10P to cook or defrost.
• Stir or turn the food, where possible, 2 - 3 times during cooking. After cooking, cover the food and leave to stand, where recommended.
• After defrosting, cover the food in foil and leave to stand until thoroughly defrosted.

Example:

To cook 2 minutes and 30 seconds on 70% microwave power.

1. Input the power level by pressing the MICROWAVE POWER LEVEL key 4 times for 70 P.	2. Enter the cooking time by pressing the 1 min key twice and then the 10 s key 3 times.	3. Press the START/◇ +30s key to start the timer. (The display will count down through the set cooking/defrosting time.)
7:0P	2:30	2:30

NOTE:

• When the oven starts, the oven lamp will light and the turntable will rotate clockwise or anticlockwise.
• If the door is opened during cooking/defrosting to stir or turn over food, the cooking time on the display stops automatically. The cooking/defrosting time starts to count down again when the door is closed and the START key is pressed.
• When cooking/defrosting is complete, open the door or press STOP key and the time of day will reappear on the display, if the clock has been set.
• If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL key. As long as your finger is pressing the MICROWAVE POWER LEVEL key, the power level will be displayed.

IMPORTANT:

• Close the door after cooking/defrosting. Please note that the light will remain on when the door is open, this is for safety reason to remind you to close the door.
• If you cook food for more than the standard time (see chart below) using the same cooking mode, the oven's safety mechanisms automatically activate. The microwave power level will be reduced or the grill heating element will turn on and off.

Cooking Mode	Standard time
Microwave 100 P	30 minutes
Grill cooking*	Intermittent operation, temperature controlled
Mix grill cooking*	99 mins 50 sec

The grill at the top of the oven cavity has one power setting only. The grill is assisted by the turntable which rotates simultaneously to ensure even browning. Use the rack for grilling small items of food such as bacon, gammon and teacakes. Food can be placed either directly onto the rack, or into a flan dish/heat-resistant plate on the rack.

Example:

To grill for 20 minutes, using GRILL key.

1. Press GRILL key once. ∞ x1	2. Enter the required heating time by pressing the 10 min key twice.	3. Press the START/◇ +30s key to start the grilling. (The display will count down through the set grilling time.)
G	20:00	20:00

MIX GRILL combines microwave power with the grill. MIX means to cook by Microwave power and Grill power alternately.

The combination of microwave power with the grill reduces cooking time and provides a crisp, brown finish.

There are 2 choices for the combination:

COMBINATION 1 (Display: C-1)

55% time for microwave power, 45% time for grill cooking. Use for fish and au gratin.

COMBINATION 2 (Display: C-2)

36% time for microwave cooking, 64% time for grill cooking. Use for pudding omelets, and poultry.

Example:

To cook for 15 minutes, using MIX GRILL with 55% time microwave power and 45% grill power (C-1).

1. Press MIX GRILL key once. ∞ x1	2. Enter the required heating time by pressing the 10 min key once and the 1 min key 5 times.	3. Press the START/◇ +30s key to start the cooking. (The display will count down through the set cooking time.)
C-1	15:00	15:00

NOTES for GRILL and MIX GRILL COOKING:

It is not necessary to preheat the grill. - When browning foods in a deep container, place on the turntable. - You may detect smoke or a burning smell when using the grill for the first time. This is normal and not a sign that the oven is faulty. To avoid this problem, when first using the oven, heat the oven without food for 20 minutes on grill.

IMPORTANT: During operation, to allow smoke or smells to disperse open a window or switch the kitchen ventilation on.

NOTE: When using the grill function, the grill will turn on and off at regular intervals to prevent overheating.

WARNING: The door, outer cabinet, oven cavity and accessories will become very hot during operation. To prevent burns, always use thick oven gloves.

-Only for models with Grill.

OTHER CONVENIENT FUNCTIONS

1. SEQUENCE COOKING

This function allows you to cook using up to 2 different stages which can include manual cooking time and mode and/or time defrost as well as weight defrost function. Once programmed there is no need to interfere with the cooking operation as the oven will automatically move onto the next stage. The audible signal will sound once after the first stage.

Note: Auto menu cannot be set as one of the multiple sequences.

Example: If you want to defrost the food for 5 minutes, then to cook with 80P microwave power for 7 minutes.

The steps are as follows:

1. Press the TIME DEFROST key once, in the LED display will appear dEF2.
2. Enter the cooking time by pressing the 1 min key 5 times.
3. Input the power level (80P) by pressing the MICROWAVE POWER LEVEL key 3 times.
4. Enter the cooking time by pressing the 1 min key 7 times.
5. Press the START key once to start cooking.

2. +30s FUNCTION (Auto-start)

The +30s key allows you to operate the two following functions:

a. Direct start

You can directly start cooking on 100P microwave power level for 30 seconds by pressing the +30s key.

b. Extend the cooking time

You can extend the cooking time during manual cooking, time defrost and auto menu operation for multiples of 30 seconds if the +30s key is pressed while the oven is in operation. You may extend the desired cooking time also by pressing TIME keys "10min", "1min", "10s". During the weight defrost, the cooking time cannot be increased.

NOTE: The cooking time may be extended to a maximum of 99 minutes 50 seconds.

3. KITCHEN TIMER FUNCTION:

You can use the kitchen timer for timing where microwave cooking is not involved, for example, to time boiled eggs cooked on a conventional hob or to monitor the standing time for cooked/defrosted food.

Example:

To set the timer for 5 minutes.

1. Press the KITCHEN TIMER key once.

2. Enter the desired time by pressing the 1 min key 5 times.

3. Press the START/◇ +30s key to start the timer.

4. Check the display. (The display will count down through the set cooking/defrosting time.)

When the timer time arrives, the audible signal will sound 5 times and the LED will display the time of day.

You can enter any time up to 99 minutes, 50 seconds. To cancel the KITCHEN TIMER while counting down, simply press the STOP key.

NOTE: The KITCHEN TIMER function cannot be used while cooking.

4. CHILD LOCK:

Use to prevent unsupervised operation of the oven by little children.

a. To set the CHILD LOCK:

Press and hold the STOP key for 3 seconds, a long beep will be heard and the display will indicate "LOC". The oven is now in the CHILD LOCK mode. While in this mode, the display will show the clock; if any key is pressed or the door is opened, "LOC" will be seen for ten seconds.

b. To cancel the CHILD LOCK:

Press and hold the STOP key for 3 seconds until a long beep sound.

5. ECO MODE:

In standby mode, press the "ECO" button once, the LED display will be off and the microwave oven will enter ECO mode. Any operation can light the LED display again, and the microwave oven will return to standby mode.

STOP / ECO

TIME DEFROST AND WEIGHT DEFROST OPERATION

1. TIME DEFROST

This function quickly defrosts food while enabling you to choose a suitable defrost period, depending on the food type. Follow the example below for details on how to operate this function. The time range is 0:10 - 99:50.

Example: To defrost the food for 10 minutes.

1. Select the menu required by pressing the TIME DEFROST key once. x1	2. Enter the cooking time by pressing the 10 min key once.	1. Press the START/◇+30s key to start the defrosting.
the display will show: dEF2	10:00

Notes for Time Defrost:

• After cooking the audible signal will sound five times and the LED will display the time of day, if the clock has been set. If the clock has not been set, the display will only show "0:00" when cooking is complete.
• The preset microwave power level is 30P and cannot be changed.

2. WEIGHT DEFROST

The microwave oven is pre-programmed with a time and power level so that the following food is defrosted easily: Pork, beef and chicken. The weight range for this food is from 0.1 kg to 2 kg in 0.1 kg steps.

Follow the example below for details on how to operate these functions.

Example: To defrost a meat joint weighing 1.2 kg using WEIGHT DEFROST.

Place the meat in a flat dish or microwave oven defrost rack on the turntable.

1. Select the menu required by pressing the WEIGHT DEFROST key once. x1	2. Enter the weight by pressing the WEIGHT/PORTION keys until the desired weight is displayed	3. Press the START/◇ +30s key to start the defrosting. (The display will count down through defrosting time)
the display will show: dEF1	kg/△ display: 1.2

Frozen foods are defrosted from -18°C.

NOTES FOR WEIGHT DEFROST:

• Before freezing foods, ensure food is fresh and of good quality.
• Food weight should be rounded up to the nearest 0.1 kg, for example, 0.65 kg to 0.7 kg.
• If necessary, shield small areas of meat or poultry with flat pieces of aluminium foil. This will prevent the areas from becoming warm during defrosting. Ensure the foil does not touch the oven walls.

AUTO MENU OPERATION

The AUTO MENU keys automatically work out the correct cooking mode and cooking time for the foods. Follow the example below for details on how to operate this function.

Example: To cook two jacket potatoes (0.46 kg) by using the AUTO MENU function.

1. Select the menu required by pressing the Jacket Potato key once. x1	2. Press WEIGHT/PORTION UP/DOWN keys or continue to press the Jacket Potato key to choose the required number of potatoes (up to 3).	3. Press the START/◇ +30s key to start the cooking. (The display will count down through cooking time)
the display will show: 1	kg/2 display: 2

NOTES:

• The weight or quantity of the food can be input by pressing the WEIGHT/PORTION UP/DOWN keys until the desired weight/quantity is displayed. Enter the weight of the food only. Do not include the weight of the container.
• For food weighing more or less than the weights/quantities given in the AUTO MENU chart.

AUTO MENU CHART

Auto Menu	WEIGHT/ PORTION / UTENSILS	Procedure
Popcorn	0.05kg, 0.1kg	Place the popcorn bag directly on the turntable. (Please see the note below: 'Important Information About Microwave Popcorn Feature')
Jacket Potato	1, 2, 3 potatoes (pieces) 1 potato = approx. 0.23kg (initial temp. 20°C)	Please use potatoes with a similar size of approx. 230g. Pierce each potato in several places and place towards the edge of the turntable. Turn over and re-arrange halfway through cooking. Stand for 3 - 5 minutes before serving.
Pizza	0.1kg, 0.2kg, 0.4kg (initial temp 5°C) Plate	Place the Pizza on a plate in the centre of the turntable. Do not cover.
Frozen vegetable e.g. Brussel sprouts, green beans, peas, mixed vegetables, broccoli	0.15kg, 0.35kg, 0.5kg (initial temp -18°C) Bowl and lid	Place vegetables in a suitable container. Add 1 tbsp of water per 100g of vegetables, cover the dish and place on the turntable. Stir halfway through cooking and after cooking.
REHEAT TEA & Coffee (120ml/ cup)	1, 2, 3 (initial temp. 5°C) Cup	Place the cup(s) on the turntable and stir after heating.
Dinner Plate	0.25kg, 0.35kg, 0.5kg (initial temp. 5°C) Plate	Place the plate in the centre of the turntable. Do not cover. Stir after cooking.

Notes:

• The final temperature will vary according to the initial food temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking manually.
• The results when using auto cook depend on variances such as the shape and size of the food and your personal preference as regards cooking results. If you are not satisfied with the programmed result, please adjust the cooking time to match your requirement.

Important Information about Microwave Popcorn Feature:

1. When selecting 100 grams of popcorn, it is suggested that you fold down a triangle on each corner of the bag before cooking. Refer to the picture at right.
2. If/When the popcorn bag expands and no longer rotates properly, press the STOP key once, open the oven door, and adjust the bag position to ensure even cooking.

SUITABLE OVENWARE

To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore, it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook. A variety of cookware can be used as listed below.

Cookware	Microwave Safe	Grill	Comment
Aluminium foil Foil Containers	✓/×	✓	Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2 cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer, e.g. Microfoil®, follow instructions carefully.
Browning dishes	✓/×	×	Always follow the manufacturers instructions. Do not exceed heating times given. Be very careful as these dishes become very hot.
China and ceramics	✓/×	×	Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration.
Glassware e.g. Pyrex®	✓	✓	Care should be taken if using fine glassware as it can break or crack if heated suddenly.
Metal	×	✓	It is not recommended to use metal cookware as it will arc, which can lead to fire.
Plastic/Polystyrene e.g fast food containers	✓	×	Care must be taken as some containers warp, melt or discolour at high temperatures.
Cling film	✓	×	It should not touch the food and must be pierced to let the steam escape.
Freezer/Roasting bags	✓	×	Must be pierced to let steam escape. Ensure bags are suitable for microwave use.
Paper - Plates, cups and kitchen paper	✓	×	Do not use plastic or metal ties, as they may melt or catch fire due to the metal 'arcing'.
Straw and wooden Containers	✓	×	Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire.
Recycled paper and newspaper	×	✓	Always attend the oven when using these materials as overheating may cause fire. May contain extracts of metal which will cause 'arcing' and may lead to fire.

NOTE: Do not leave your oven unattended while in use.

WARNING: When heating food in plastic or paper containers, monitor the oven due to the possibility of ignition.

CLEANING AND CARE

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

Before cleaning, make sure the oven cavity, door, oven cabinet, and accessories are completely cool. CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS - Keep the oven clean, or the oven could lead to a deterioration of the surface. This could adversely affect the life of the appliance and possibly result in a hazardous situation.

NOTE: When cooking, condensation can build up inside the oven cavity, cavity face, and door. The amount of condensation will depend upon the temperature of the oven surfaces and the moisture content of the food being microwaved. Ensure that when you have finished cooking, any moisture that collects on these surfaces is wiped away with a soft, moisture-absorbent cloth.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Control panel

Open the door before cleaning to de-activate the control panel. Care should be taken in cleaning the control panel. Using a cloth dampened with water only, gently wipe the panel until it becomes clean.

Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven Interior

1. For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm.

For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed.

Built-up splashes may overheat and begin to smoke or catch fire, and cause arcing. Do not remove the waveguide cover.

1. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.
2. Do not use spray type cleaners on the oven interior.
3. Heat up your oven regularly by using the grill and heat the oven without food for 20 minutes on grill. Remaining food or fat splashed can cause smoke or bad smell.

Keep the waveguide cover clean at all times.

The waveguide cover is constructed from a fragile material and should be cleaned with care (follow the cleaning instructions above).

NOTE: Excessive soaking may cause disintegration of the waveguide cover.

The waveguide cover is a consumable part and without regular cleaning, will need to be replaced.

Accessories

The accessories like turntable, turntable support and rack should be washed in a mild washing up liquid solution and dried. They are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and adjacent parts with a soft, damp cloth. Do not use abrasive cleaner.

NOTE: A steam cleaner should not be used.

Cleaning tip - For easier cleaning of your oven:

Place half a lemon in a bowl, add 300 ml (1/2 pint) water and heat on 100% for 10 - 12 minutes. Wipe the oven clean using a soft, dry cloth.

Microwaves cook food faster than conventional cooking. It is therefore essential that certain techniques are followed to ensure good results. Many of the following techniques are similar to those used in conventional cooking.

WARNING: Liquids and foods must not be heated in sealed containers or jars/containers with lids on, as pressure will build up inside and may cause the jar/container to explode.

COOKING ADVICE NOTES:

Always attend the oven when in use. - Ensure that the utensils are suitable for use in a microwave oven. - Refer to the charts in the cookbook section for recommended cooking times and power levels. - Only use microwave popcorn within the recommended packaging (follow the manufacturers instructions). Never use oil unless specified by the manufacturer and never cook for longer than instructed.

WARNING: Follow instructions in the SHARP operation manual at all times. If you exceed recommended cooking times and use power levels that are too high, food may overheat, burn and, in extreme circumstances, catch fire and damage the oven.

Arrange

Place the thickest parts of food towards the outside of the dish. e.g. Chicken drumsticks.

Foods that are placed towards the outside of the dish will receive more energy, so cook quicker, than those in the centre.

Cover

Certain foods benefit from being covered during microwave cooking.

Use vented microwave cling film or a suitable lid.

Pierce

Foods with a shell, skin or membrane must be pierced in several places before cooking or reheating as steam will build up and may cause food to explode. e.g. Potatoes, Fish, Chicken, Sausages.

NOTE: Eggs should not be heated using microwave power as they may explode, even after cooking has ended. e.g. poached, fried, hard boiled.

Stir, turn and rearrange

For even cooking it is essential to stir, turn and rearrange food during cooking. Always stir and rearrange from the outside towards the centre.

Stand

Standing time is necessary after cooking so it enables the heat to disperse equally throughout the food.

Food Characteristics
Composition	Foods high in fat or sugar (e.g. Christmas pudding, mince pies) require less heating time. Care should be taken as overheating can lead to fire. Bones in food conduct heat, making the food cook more quickly. Care must be taken so that the food is cooked evenly.
Density	Food density will affect the amount of cooking time needed. Light porous foods, such as cakes or bread, cook more quickly than heavy, dense foods, such as roasts and casseroles.
Quantity	The number of microwaves in your oven remains the same regardless of how much food is being cooked. The cooking time must be increased as the amount of food placed in the oven increases. e.g. Four potatoes will take longer to cook than two.
Size	Small foods and small pieces cook faster than large ones, as microwaves can penetrate from all sides to the centre. For even cooking make all the pieces the same size.
Shape	Foods which are irregular in shape, such as chicken breasts or drumsticks, take longer to cook in the thicker parts. For even cooking, place the thickest parts to the outside of the dish where they will receive more energy. Round shapes cook more evenly than square shapes when microwave cooking.
Temperature of food	The initial temperature of food affects the amount of cooking time needed. Chilled foods will take longer to cook than food at room temperature. The temperature of the container is not a true indication of the temperature of the food or drink. Cut into foods with fillings, for example jam doughnuts, to release heat or steam.

WARNING: Face & Hands: Always use oven gloves to remove food or cookware from the oven. Stand back when opening the oven door to allow heat or steam to disperse. When removing covers (such as cling film), opening roasting bags or popcorn packaging, direct steam away from face and hands.

WARNING: Check the temperature of food and drink, stir before serving. Take special care when serving to babies, children or the elderly. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption to avoid burns.

DEFROSTING ADVICE

Using your microwave oven is the quickest defrosting method. It is a simple process but the following instructions are essential to ensure the food is thoroughly defrosted.

• Remove all packaging and wrapping before defrosting.
• To defrost food, use the Medium/Low or Defrost microwave power setting.
• Please refer to the further information below.

Rearrange

Foods that are placed towards the outside of the dish will defrost quicker than foods in the centre. It is therefore essential that the food is rearranged up to 4 times during defrosting.

Move closely packed pieces from the outside to the centre and rearrange over-lapping areas.

This will ensure that all parts of the food defrosts evenly.

Separate

Foods may be stuck together when removed from the freezer. It is important to separate foods as soon as it is possible during defrosting.

e.g. bacon rashers, chicken fillets.

Shield

Some areas of food being defrosted may become warm. To prevent them becoming warmer and starting to cook, these areas can be shielded with small pieces of foil, which reflect microwaves, e.g. legs and wings on a chicken.

Stand

Standing time is necessary to ensure food is thoroughly defrosted.

Defrosting is not complete once the food is removed from the microwave oven. Food must stand, covered, for a length of time to ensure the centre has completely defrosted.

Turn over

It is essential that all foods are turned over up to 4 times during defrosting.

This is important to ensure thorough defrosting.

REHEATING ADVICE

For the reheating of foods, follow the advice and guidelines below to ensure food is thoroughly reheated before serving.

Plated meals

Remove any poultry or meat portions, reheat these separately, see below.

Place smaller items of food to the centre of the plate, larger and thicker foods to the edge. Cover with vented microwave cling film and reheat on the Medium/Low microwave power level stir/rearrange halfway through reheating.

NOTE: Ensure the food is thoroughly reheated before serving.

Sliced meat

Cover with vented microwave cling film and reheat on the Medium/Low microwave power level. Rearrange at least once to ensure even reheating.

NOTE: Ensure the meat is thoroughly reheated before serving.

Poultry portions

Place thickest parts of the portions to the outside of the dish, cover with vented microwave cling film and reheat on the Medium microwave power level.

Turn over halfway through reheating.

NOTE: Ensure the poultry is thoroughly reheated before serving.

Casseroles

Cover with vented microwave cling film or a suitable lid and reheat on the Medium/Low microwave power level. Stir frequently to ensure even reheating.

NOTE: Ensure the food is thoroughly reheated before serving.

To achieve the best results when reheating, select a suitable microwave power level appropriate to the type of food. e.g. A bowl of vegetables can be reheated using the High microwave power level while a lasagne which contains ingredients that cannot be stirred, should be reheated using power level the Medium/Low microwave power level

NOTES:

• Remove food from foil or metal containers before reheating.
• Reheating times will be affected by the shape, depth, quantity and temperature of food together with the size, shape and material of the container.

WARNING: Never heat liquids in narrow-necked containers, as this could result in the contents erupting from the container and may cause burns.

• To avoid overheating and fire, special care must be taken when reheating foods with a high sugar or fat content, e.g. mince pies or Christmas pudding.
• Never heat oil or fat for deep frying as this may lead to overheating and fire.
• Canned potatoes should not be heated in the microwave oven, follow the manufacturer's instructions on the can.

WARNING: The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption to avoid burns.

TROUBLESHOOTING

If you think the oven is not working properly there are some simple checks you can carry out yourself before calling an engineer. This will help prevent unnecessary service calls if the fault is something simple.

Follow this simple check below:

Place half a cup of water on the turntable and close the door. Set the timer knob to cook for 1 minute using the High microwave power level.

1. Does the oven lamp come on when it is cooking?
2. Does the cooling fan work? (Check by placing your hand above the air vent openings).
3. After 1 minute does the audible signal sound?
4. Is the water in the cup hot?

If you answer "NO" to any question first check that the oven is plugged in properly and the fuse has not blown. If there is no fault with either, check against the troubleshooting chart below.

WARNING: Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a SHARP trained engineer to carry out servicing or repairs. This is important as it may involve the removal of covers that provide protection against microwave energy.

• The door seal stops microwave leakage during oven operation, but does not form an airtight seal. It is normal to see drops of water, light or feel warm air around the oven door. Food with a high moisture content will release steam and cause condensation inside the door which may drip from the oven.
• Repairs and Modifications: Do not attempt to operate the oven if it is not working properly.
• Outer Cabinet & Lamp Access: Never remove the outer cabinet. This is very dangerous due to high voltage parts inside which must never be touched, as this could be fatal.

Your oven is not fitted with a lamp access cover. If the lamp fails, do not attempt to replace the lamp yourself, call a SHARP approved service facility.

TROUBLESHOOTING CHART

QUERY	ANSWER
Draught circulates around the door.	When the oven is working, air circulates within the cavity. The door does not form an airtight seal so air may escape from the door.
Condensation forms in the oven, and may drip from the door.	The oven cavity will normally be colder than the food being cooked, and so steam produced when cooking will condense on the colder surface. The amount of steam produced depends on the water content of the food being cooked. Some foods, such as potatoes have a high moisture content. Condensation trapped in the door glass should clear after a few hours.
Flashing or arcing from within the cavity when cooking.	Arcing will occur when a metallic object comes into close proximity to the oven cavity during cooking. This may possibly roughen the surface of the cavity, but would not otherwise damage the oven.
Arcing potatoes.	Ensure all "eyes" are removed from the potatoes and that they have been pierced, place directly onto the turntable or in a heat resistant flan dish or similar.
Oven does not work when the timer control is turned away from 0.	Check the door is closed properly.
Oven cooks too slowly.	Ensure correct power level has been selected.
Oven makes a noise.	The microwave energy pulses ON and OFF during cooking/defrosting.
Outer cabinet is hot.	The cabinet may become warm to the touch - keep children away.

BEFORE CALLING FOR ASSISTANCE

Before asking for service, please check each item below:

• Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
• Check to ensure that the power and timer knobs are set correctly.
• Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

www.sharpconsumer.com/support/

www.conformity.com

www.sharpconsumer.com/support/

www.conformity.com

CLEANING AND MAINTENANCE

ATTENTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE OR ROUGH CLEANERS, THOSE CONTAINING SODIUM HYDROXIDE OR SCRUBBING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

www.sharpconsumer.com/support/

www.conformity.com/documents-of-conformity/

Remove, turn, and replace

www.sharpconsumer.com/support/

www.conformity.com

A. Disposal information for users (private households)

1. EU

SPECIFICATIONS

Modelavn		YC-MS02E	YC-MG02E	YC-MS51E	YC-MG51E	YC-MG81E
Vekselstrømsspænding		230 V~, 50 Hz, enkelfaset
Strømsikring/overstrømsbeskyttelse		10 A	10 A	10 A	10 A	10 A
Krævet vekselstrømseffekt		1270 W	1270 W	1450 W	1450 W	1450 W
Udgangseffekt:	Mikrobølge	800 W	800 W	900 W	900 W	900 W
	Grill		1000 W		1000 W	1100 W
	Standby	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W
	Energisparetilstand	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W
Mikrobølgefrekvens		2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*
Udvendige mål (B) x (H) x (D) mm		440 x 258 x 324	440 x 258 x 324	513 x 306 x 394	513 x 306 x 394	512 x 300 x 396
Ovnummets mål (B) x (H) x (D)** mm		306 x 205 x 304	306 x 205 x 304	328 x 206 x 368	328 x 206 x 368	348 x 240 x 356
Ovnkapacitet		20 liter**	20 liter**	25 liter**	25 liter**	28 liter**
Grillrist størrelse (Diameter x højde i mm)		315 x 308	315 x 308	315 x 308	315 x 308	315 x 308
Drejetallerken (Diameter i mm)		255.	255.	315.	315.	315.
Vægt (kg)		ca. 11,3 kg	ca. 11,9 kg	ca. 14,5 kg	ca. 15,4 kg	ca. 15,8 kg
Ovnlampe (LED-type)		1,5 W	1,5 W	1,5 W	1,5 W	1,5 W

MANUAL DEFROSTING/MANUAL THAWING

1. DEFROSTING BY TIME

GOOD ADVICE ABOUT DEFROSTING

www.sharpconsumer.com/support/

www.sharperconsumer.com/documents-of-conformity/

MANUAL OPERATION

www.sharpconsumer.com/support/

www.conformity/

2. +30s FUNCTION (Auto-start)

BEFORE REQUESTING HELP

Before requesting service, check each item below:

www.sharpconsumer.com/support/

www.sharperconsumer.com/documents-of-conformity/

www.sharpconsumer.com/support/

www.conformity/

COOKING WITH MICROWAVES

MANUAL COOKING / MANUAL DEFROSTING

1. COOKING USING GRILL ONLY

MANUAL COOKING / MANUAL DEFROSTING

• Set the cooking time and use microwave power levels 100P to 10P to cook or defrost. Stir or turn the food 2-3 times during the cooking time where possible.
• Cover the food and let it rest after cooking where recommended.
• After defrosting, cover the food with foil and let it stand until completely thawed.

Example:

2. +30s FUNCTION (Auto-start)

DEFROSTING BY TIME OR BY WEIGHT

1. DEFROSTING BY TIME

This function quickly defrosts food while allowing you to select a suitable defrosting period, depending on the type of food. Follow the example below for details on how to use this function. The time range is 0.10 - 99.50.

Example: To defrost food for 10 minutes.

1. Velg ønsket meny ved ø trykke TINING PÅ TID-tasten en gang. x1	2. Still inn tilberedningstiden ved ø trykke 10 min-tasten en gang.	1. Trykk START/◇+30s-tasten for ø starte oppitiningen.
Displayet vil vise: dEF2	10:00

2. TRAINING AND HOLDING TO WEIGHT

CLEANING AND MAINTENANCE

Warning: Do not use commercial oven cleaners, steam cleaners, abrasive, harsh cleaning agents, detergents containing sodium hydroxide, or steel wool on any part of the microwave oven.

For cleaning, make sure that the oven cavity, door, oven cabinet, and other accessories are completely cooled. CLEAN THE OVEN REGULARLY AND REMOVE FOOD RESIDUES - Keep the oven clean. Otherwise, the surfaces may be damaged. This can negatively affect the oven's lifespan and lead to dangerous situations.

www.sharpconsumer.com/support/

www.conformity/

OTHER HANDY FUNCTIONS

1. COOKING IN STAGES

2. +30s FUNCTION (Auto-start)

3. KITCHEN TIMER FUNCTION:

www.sharpconsumer.com/support/

www.conformity.com

MANUAL COOKING / MANUAL DEFROSTING

www.sharpconsumer.com/support/

www.conformity/

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

www.sharpconsumer.com/support/

www.conformity/

www.sharpconsumer.com/support/

www.conformity/

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To avoid fire, do not leave the microwave oven unattended during operation. Too high power or too long cooking time may overheat food, which can result in fire.

www.sharpconsumer.com/support/

www.conformity/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

A. Information for Users (Household)

1. In the European Union

Warning: To ensure that this product is disposed of correctly, do not dispose of it with household waste.

The separate collection and recycling of electrical and electronic equipment must be carried out in accordance with the legislation that requires proper treatment, recovery, and recycling of waste electrical and electronic equipment.

According to the practical guidelines on the pages, the member states of the EU should return their used electrical and electronic equipment to designated collection points.

Your local retailer may take back your old appliance for recycling when you purchase a new product.

*) For more information, you can contact your local authorities. If your electrical or electronic device has batteries or accumulators, they must be removed and disposed of separately, in accordance with local requirements. By properly disposing of this product at the end of its life, you help to ensure that waste is treated, recovered, and recycled. This helps to prevent potential negative effects on the environment and human health that could arise from improper disposal.

2. Disposal in the EU

If you wish to dispose of this product, please contact your local authorities and find out the correct disposal method.

For Switzerland: Waste electrical and electronic equipment can be returned to the dealer free of charge, even without purchasing a new product.

Further information on collection and recycling can be found on the homepage of www.swico.ch or www.sens.ch.

5. Information on disposal and recycling for industrial and commercial users

1. In the European Union

If the product was used for business purposes and you wish to dispose of it:

For information on take-back and recycling of the product, contact your nearest representative or SHARP. You may be charged for the costs of take-back and recycling. Small products (or small quantities) may be taken back by your local collection point.

For Spain: Please contact the established collection system or your local authorities for the take-back of your used products.

2. Disposal in the EU

If you do not want to use the product, please contact local authorities to understand the rules for disposal.

SAFETY MEASURES AGAINST MICROWAVE EMISSION

1. Do not operate the oven with the door open. This may lead to microwave emission. Keep the safety interlocks in good condition and do not tamper with them.
2. Do not place anything between the front face and the oven door; do not allow the sealing surfaces to accumulate food residue or cleaning agents.
3. Do not use the oven if it shows signs of malfunction. The door of the oven must close tightly and be in perfect condition, along with the hinges, locking mechanism, and sealing surfaces.
4. Do not attempt to repair or modify the oven yourself.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS. 3 INSTALLATION 11 SPECIFICATIONS 12 OVEN ACCESSORIES 13 CONTROL PANEL 14 BEFORE USING THE OVEN. 15 SETTING THE TIMER. 15 MICROWAVE POWER LEVEL. 16 MANUAL COOKING MODE. 17 MICROWAVE COOKING 18 COOKING WITH GRILL/MICROWAVE GRILL 19 OTHER CONVENIENT FUNCTIONS 20 DEFROSTING BY TIME AND DEFROSTING BY WEIGHT. 21 AUTOMATIC MENU MODE 22 TABLE FOR AUTOMATIC MENU 23 KITCHEN TIMER 24 CLEANING AND MAINTENANCE 25 TROUBLESHOOTING FOR MICROWAVE COOKING 26 TROUBLESHOOTING FOR DEFROSTING. 28 REPAIR AND SERVICE. 29 TROUBLESHOOTING 30 HELP AND SUPPORT 31

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Avoid fire hazards. The microwave oven should not be left unattended during operation. When power levels are very high or cooking times are long, food may overheat and catch fire.

This microwave oven is freestanding and is intended for placement on a kitchen countertop. Do not place it in a cabinet. The electrical cord must be easily accessible so that in case of an emergency it can be unplugged quickly.

The power supply required for the appliance is 230-240 V, 50 Hz, with a fuse or circuit breaker of at least 10 A. Ensure that a separate circuit breaker is provided, suitable for the appliance.

Do not place the oven near other heat sources, such as a convection oven. Do not place the oven in areas with high humidity or where moisture may accumulate. Do not store or use the oven outdoors.

If you notice any damage, unplug the oven from the power supply and do not open the door, to prevent the release of microwave energy.

Read the instructions and warnings before using the microwave oven. Check that the appliance and the accessories are suitable for use in a microwave oven.

If you heat food in plastic containers or packaging, watch the oven to avoid the risk of fire.

Before use, clean the inside and outside of the oven. They must be dry and free of grease, as the unit may heat up and catch fire.

Do not place flammable materials near the oven or in the ventilation openings. Do not allow the ventilation openings to be covered by objects.

Remove all metal clips, ties, etc. from food or food packaging. Metal surfaces can cause sparks.

Do not use the oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.

To make popcorn, use only special popcorn bags designed for microwave ovens.

Do not store food or products in the oven.

After starting the oven, check the settings to make sure it works as you want.

Do not leave the oven unattended while it is operating.

To avoid the risk of overheating and fire, it is necessary to pay special attention when heating food with a high content of fat or sugar, for example puddings, jams or similar. Follow the relevant instructions in the operating manual.

Prevention of possible injuries. WARNING:

Do not operate a damaged or faulty oven. Before use, check the following:

a) Make sure the door closes properly, is not bent or warped. b) Check that the door hinges and locking mechanism are not damaged or loose.

c) Check that the door seals and sealing surfaces are not damaged. d) Make sure that the inside of the oven and the door have no dents. e) Check that the power cord and plug are not damaged.

If the supply cord is damaged, the appliance must not be used until the damage has been repaired by a competent person.

Never attempt to repair or modify the appliance yourself. Any repair work, including replacing the cord, must be carried out by an authorized service center, as it involves dangerous energy and is hazardous if done by unqualified personnel.

Do not operate the appliance with the door open and do not adjust the hinges in any way. Do not use the appliance if the gap between the door and the door seal is blocked by any object.

Do not allow the door seal and the sealing surfaces to become dirty or greasy. Clean the appliance regularly and remove any dirt or residue.

Follow the instructions in the "Care and Cleaning" section. Using abrasive cleaners can damage the surfaces, which may have a negative impact on the operation of the device and could lead to dangerous situations.

People with a pacemaker should consult their doctor or the pacemaker manufacturer regarding the precautions to take in relation to microwave energy.

Prevention of electric shock risk

Under no circumstances should you remove the outer casing.

• Never insert or place objects into the locking openings or ventilation openings. In case of insertion, unplug the appliance immediately and contact an authorized SHARP service center. Do not immerse the power cord or plug in water or any liquid. Do not allow the power cord to hang over the edge of a table or work surface.
• Keep the power cord away from hot surfaces and from the rear of the appliance.
• Keep the appliance and its cord out of reach of children under 8 years of age. Do not attempt to replace the lamp of the appliance yourself and do not allow anyone who is not an authorized SHARP service technician to do so. If the lamp burns out, consult your dealer or an authorized SHARP service center. If the power cord is damaged, it must be replaced by the service center authorized by SHARP.

Do not touch or play with the door of the appliance. Do not play with the appliance and do not use it as a toy.

All important safety instructions must be explained to children, namely: use of kitchen appliances, careful handling of food packaging - special attention should be paid to packaging (for example, self-heating materials) intended to keep food fresh, as they can become very hot.

Other remarks.

Never modify the appliance in any way.

Do not operate the oven while it is empty.

This product is intended for domestic use only. This oven is intended solely for domestic food preparation. Heating food and drinks, as well as heating plates and dishes, trays, damp cloths, etc., may lead to a risk of burns or fire. Use in commercial or laboratory conditions is not recommended.

Cutting the rotating plate or the plate from the glass:

a) Do not place hot food or hot containers on the rotating plate/glass plate. b) Do not place the rotating plate/glass plate in water immediately after use. c) Do not place anything on top of the oven while it is in operation.

WARNING:

When the microwave is heating, do not use plastic containers if the oven is still hot after cooking in combination mode (depending on the model), as they may melt.

When the oven is hot, plastic containers should not be used unless the manufacturer has explicitly stated that they can be used.

If you are not sure how to connect the oven, consult a qualified electrician.

Neither the manufacturer nor the retailer is responsible for damage to the oven resulting from failure to follow the procedure for correct electrical connection.

Do not place the oven near heat sources or in high humidity (e.g., near or on top of a convection oven); do not place it directly against flammable materials (e.g., curtains).

Do not block the ventilation openings.

Do not place objects on top of the oven.

After prolonged use, the surfaces of the microwave oven may become hot and there is a risk of burns when touched.

SPECIFICATIONS

Наименованные на мобеля		YC-MS02E	YC-MG02E	YC-MS51E	YC-MG51E	YC-MG81E
ПROMENЛВО Мразково наразожени		230 V/50 Hz монофазно
Линецн поедлaitentel/празьсвач		10 A	10 A	10 A	10 A	10 A
Избкваня за пROMENЛВOTOKOBа моши noctot:		1270 W	1270 W	1450 W	1450 W	1450 W
Изхочиma моши noct:	Бezорасни за	800 W	800 W	900 W	900 W	900 W
	Грил		1000 W		1000 W	1100 W
	В рекIM на ratов noctot		< 1,0 W	< 1,0 W	< 1,0 W	< 1,0 W
	В рекIM за пес themselves na eнергия	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W	< 0,5 W
Мinkroвл_NOВа чебота		2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*	2450 MHz*
Външи размени (шишина) x (Височина) x (Дълбочина) мм		440 x 258 x 324	440 x 258 x 324	513 x 306 x 394	513 x 306 x 394	512 x 300 x 396
Вътressesни размени (шишина) x (Височина) x (Дълбочина)** мм		306 x 205 x 304	306 x 205 x 304	328 x 206 x 368	328 x 206 x 368	348 x 240 x 356
КалцитET на Фунatable		20 петра**	20 петра**	25 петра**	25 петра**	28 петра**
Размени на поставку за з рIGNI (Длиаметрь x Височина в мм)		315 x 308	315 x 308	315 x 308	315 x 308	315 x 308
Въrtяба симпя (длиаметрь в мм)		255	255	315	315	315
Тergл (kg)		прибл. 11,3 кг	прибл. 11,9 кг	прибл. 14,5 кг	прибл. 15,4 кг	прибл. 15,8 кг
Вътешно LED осв点亮eningе за Фурна		1,5W	1,5W	1,5W	1,5W	1,5W

* - This product complies with the requirements of the European standard EN55011. According to this standard, the product is classified as Group 2 Class B equipment. Group 2 means that this device intentionally generates radio frequency energy and is intended for use in domestic environments. Class B equipment is suitable for use in domestic establishments. **The external dimensions are indicative and may vary. The actual dimensions of the cavity are smaller. As part of our policy of continuous improvement, we reserve the right to change the specifications without prior notice.

FURNACE ACCESSORIES

1. Closing the safety system
2. Window
3. Glass shelf
4. Water tray
5. Lighting element
6. Hook for the oven (DO NOT PULL)
7. Tools for adjusting the microwave power levels
8. Button for opening the door
9. Ventilation openings
10. Oven housing 11. Cable storage 12. Gas supply

Make sure that the following accessories are included: water tray, lighting element, and glass shelf

Installation with gas:

• Gas supply - used only for the gas function. The gas supply is intended for use only with gas. DO NOT USE with microwave. For information about using the gas supply, refer to the manufacturer's instructions.

Never touch the gas while it is hot.

3A6EJIEXKKA: Korato nopbyBate prnHaJNeXHOCTN, MoJy YONMeHete Da eIEMEHTa: HAMHeMOBaHHe Na YaCTTa N HAMHeMOBaHMe Ha MoJaHa.

3A6ELEKKN:

KanaKaBt Ha BbJIHOBOda e KpeXbK. TpIbBa Da ce BHMMAba Da he Ce noBpeNi npi NoOCTBaHe BbTpewHOCTTa Ha fypHata. Cnei npiroTbHeTo Ha Ma3Hn XpaHn 6e3 KanaK, BnHaR nOuNCTBaIte cTaPaTeJHo KyxHnata, OocBeHO HargBaUaIg rpnI eMeENT, KoITo Tp46Ba Da e BnHaR n Cyu N 6e3 Ma3HnHn nO Hero. 3acBxHnA no Hero Ma3HnHa MoKe da nperpee, da zanoUHne da nyuH uIN da ce 3anAIn. BnHa n pabotete c cyphna c npabunno noctabeHn Bbptraa ce yHHn n octBa. Toba nomara npri rotbeHe. loo noctabeHa Bbptraa ce yHHn moKe da dpbHn, da He ce Bbptn npabunho n da doBepe do nobpeHa h cyphhata. - Pnri rotBeHe BCnUckn XpaHn I OnaKOBKn C XpaHn Ce NoCTaBt BnHaRn BbPxy BbptTaaTa Ce YHHNIA. Bbpttata Ce cHnna Moke da ce Bbpttn no nocoka Ha yacobnKOBa t CtePkn Ka nio obaTHe. Nocokata Ha Bbptne H meKe da Ce npomehn BnHaHn npedn CTapTaHa hFpHata. ToBa Hma OTHOseHn KbM pInrOToBHeTo Ha XpaHaTa.

I PNEUYPKEXJEHVE: To3n CmBbON noka3Ba, Ye npn ekCnnoataun NOBbpxHOCTne (BpaTata, KopnycBt, BbTreuHocTtHa h yphnata N akcecoapnte) Morat da ce haropeuart. 3a da npedotbparnte n3rapnna, BNarH n3non3BaIte De6enl pbkauinz 3a yphna.

ПАHEЛ 3A УПРавЛЕнUE

1. INCJIEN -NOKa3Ba BpeMeTpaEHa rOTBeHe, MOUHOCT, INHdNKaTOPn I TOeH qac.
2. WEIGHT DEFROST (Pa3mpa3raBaHe cnPRAMo terIIO) - HATNCHeTe eHOKpaTHO 3a n36Op Ha fynKcTAta 3a pa3mpa3raBaHe cnPRAMo terIIO.
3. TIME DEFROST (Pa3mpa3raBaHe no BpeMe) - NaTnCHte eHOKpaTHo 3a n36op Ha yHKuYraTa 3a pa3mpa3raBaHe no BpeMe.
4. ABTOMATNUHOMEHO- n36Op Ha aBToMaTHUHOMeHIO 3a rotBeHe.
5. BPEME-3aDaBaHe Ha ToeH Yac Nn TaIMepe.
6. HNBO HA MKNPOBbJIHOBA MOUHOCT - 136op Ha MKNPOBbJIHOBA MOUHOCT.
7. GRILL (Грел) - заadingаные на рогама за ratовец с рел. 8.COMBI. (KoM6HnHaHO roTBeHe) - npOgPama 3a KOM6HnHaHO roTBeHe C MmKpOBbJHObA eHeprna n rpnI.
8. TERNO/NOTION - 6yToHn 3a n36Op Ha TERNo nIIN NopCNI.
9. KITCHEN TIMER (Kyxhenck TaHmep) - MoKe Ja 6bJe N3IOn3BaH KaTo MInHyTeH TaMep NJI 3a npOrpaMPaHe Ha BpeMe 3a npecToRaBe.
10. SET CLOCK (YacobnK) - 3aDaBaHe Ha ToyeH yac.
11. START/+30s - By pressing the button briefly, the program starts. Pressing it briefly again adds 30 seconds of cooking time at full power.
12. STOP/ECO (Stop / Energy saving mode) - Pressing the button briefly puts the program on pause; pressing it again cancels the program. It is also used to set the energy saving mode.

Automatic microwave cooking/defrosting

Microwave cooking + grill

BEFORE USING THE APPLIANCE

Turn on the appliance. The display will show "0:00" and an audible signal will sound. Your oven is equipped with a clock, and the energy consumption in standby mode is less than 1 W. For more information, refer to the clock settings section.

SETTING THE CLOCK

Your oven has a 24-hour clock.

1. Press the CLOCK SET button briefly. The display will show "0:00".
2. Set the correct time using the corresponding buttons - 10 min for hours and 1 min and 10 sec for minutes.
3. Press the CLOCK SET button to confirm the setting.

NOTE:

If the clock is set, after the cooking is finished, the display will show the correct time. Otherwise, after the cooking is finished, "0:00" will be displayed. To check the correct time during cooking, press the CLOCK SET button. The correct time will be displayed for 2-3 seconds. This does not affect the cooking process. - If during the clock setting the STOP button is pressed or no action is taken for more than one minute, the oven will return to the previous settings. If the power cord of your oven is disconnected, after the power is restored, the display will show "0:00". If this happens during cooking, the program will be cancelled. The time of day will also be erased.

MICROWAVE POWER LEVEL

After the cooking program has been set, if the START/+30s button is not pressed within 1 minute, the settings will be cancelled.

The door can be opened during cooking, but the START/12 + 30s button must be pressed to continue the interrupted program. When the button is pressed, a short audible signal will sound.

The STOP button can be used for:

1. Erasing a program step by time. 2. Temporarily stopping the oven during cooking. 3. To cancel a program during cooking, press the STOP button twice. 4. Setting and canceling the child lock function.

STOP / ECO

NOTE

If the microwave oven is used for more than 5 minutes and the door is closed, the child lock function will be activated automatically. The digital keypad will stop being active. To deactivate the child lock function, it is necessary to open and close the door. After that, the digital keypad can be used again.

MICROWAVE COOKING

Your oven can be programmed for up to 99 minutes and 50 seconds (99.50).

COOKING / DEFROSTING

Set the cooking time and power level from 100P to 10P for cooking or defrosting. Stir and turn the food when possible, 2-3 times during cooking. After cooking, cover the food and let it stand, when recommended. - For defrosting, cover the food with foil and let it stand until fully defrosted.

Example:

To cook for 2 minutes and 30 seconds at 70% microwave power

1. БъVEDete НИВо на мошист С четпдКратно натусякане на 6утон HИВО HA МИКPOВьЛHOBA мошист do достigated на 70Р. xxxxx4	2. БъVEDete врemeТраены raTBEHeTo, кATO на{TССЧЕТЕ Два пытNi 6уTOH 1 min и сеД тoba 3 пытNi 6уTOH 10 s.	3. на{TССЧЕТЕ 6byToN START/ ◇+30s, за да старитрае таймера. (Bьрух диспley有很大someьдe показано образно оБPORЯваи на за干嘛енOTO врeme за rotvehe/pa3mpa3Яваи.)
7 0P	2:30	2:30

NOTE:

• After pressing START, the interior light will turn on, and the turntable will start rotating clockwise or counterclockwise.
• If during cooking/defrosting the door is opened for stirring or turning the food, the displayed remaining time will stop automatically. The cooking process will resume after the door is closed and the START button is pressed. After cooking/defrosting is finished, open the door and press the stop button, after which the current time will be displayed (if the clock is set).
• If you do not want to switch off the power during cooking, press the button for microwave power. While the buttons are pressed, the power will be shown on the display.

IMPORTANT:

During cooking/defrosting, the door must be closed. Otherwise, due to the safety interlock, the interior lighting will remain on. If the food is cooked longer than the standard time (see the table below), use the same cooking mode, and the safety mechanism of the oven will activate automatically. This will limit the microwave power, and the heater will not be switched on.

Рек imm на готвае	Стодэрно вреемe
Мирочьлна P100	30 минути
Пechения на ггпл*	Конtrолераниnpөкъсант рек imm на пабota и Temnéратура
Тотвае на мінс ггпл*	99 мин 50 сек

COOKING GRILL/MICROWAVE GRILL

1. COOKING ONLY GRILL

The grill heating element is located at the top of the oven and has only one power level. The grill is switched on by turning the knob, which is temporarily pressed, to ensure proper operation. Use the grill for cooking small pieces of food such as bacon, fillets, or skewers. The food must be placed directly on the rack and in the drip tray.

Example:

To cook a grill for 20 minutes using the GRILL button.

1. Hatис Hedge ednokpaTHO 6byToH GRILL. ∞x1	2. Бъединения Нeo6хODIMOTO врeme 3a награване чрз дуКраТно натискане на 6byToH 10 min.	3. Hatис Hedge 6byToH START/+ +30s, за старurate ргILA. (Bьрух дисп leя сьдe показано образно овsprяваи на зада徵�TO врeme.)
G	20:00	20:00

Outer part of the oven

The outer part of your oven should be cleaned with a soft cloth and water. Make sure the cloth is wrung out well and then dry it.

Control panel

Open the door and clean the control panel, being careful not to wet it. Use only a damp cloth, carefully wiping the panel until it is clean. Avoid using any chemical or abrasive cleaners.

Inner part of the oven

• Remove the food from the packaging and place it in a suitable container for cooking.

The cooking time does not depend on the shape, size, quantity, and temperature of the food, nor on the size, shape, and material of the container.

WARNING: Never fill the oven with hot oil, as this may lead to splashing and evaporation.

To avoid a fire hazard, great care must be taken when frying foods with a high fat or sugar content, such as chips or pork crackling. Never fill the oven with oil for deep frying, as this may lead to a fire. Preserved potatoes should not be filled into the microwave oven. Follow the manufacturer's instructions printed on the packaging.

WARNING: To ensure even cooking, it is essential that the food and the glass turntable are at room temperature before use, and the temperature is checked.

TROUBLESHOOTING

If you have a problem, before contacting a specialist service, perform the following simple checks. This may prevent unnecessary calls to technical support.

Perform the following elementary check:

Place half a cup of water in the microwave oven and close the door. Using the timer control, set the oven to cook for 1 minute at high microwave power.

1. Does the interior light of the oven activate during cooking?
2. Do the cooling fans activate? (Check by placing your hand over the ventilation openings).
3. After 1 minute of operation, does a loud sound occur?
4. Is the water hot?

If any of the answers is "NO", check that the oven is plugged into the electrical outlet correctly, and also check the circuit breaker. If both conditions are met, check the troubleshooting table below.

WARNING: Never perform corrections, repairs, or modifications on the oven yourself. Performing repairs by unqualified persons is dangerous, unless carried out by a technician trained for this purpose. This is of particular importance, as the removal of the cover provides protection against microwave radiation.

• The door seal prevents microwave leakage, but does not provide a hermetic seal. It is normal to see drops of water, light, or to feel a slight draft around the oven door. Foods with a high water content release steam and create condensation inside the door. This condensation may drip from the oven.
• Repairs and modifications: Do not attempt to operate the oven if you notice that it is not functioning properly. Unplug the appliance before any servicing: never remove the outer casing. This is very dangerous, due to the high voltage parts, which are never to be touched, and the risk of fatal consequences.

The oven is equipped with a cable for connection to the mains supply. If the cable is damaged, do not attempt to replace it yourself, but contact a service center approved by SHARP.

TROUBLESHOOTING TABLE

www.sharpconsumer.com/support/

www.conformity/

A. Information on disposal for users (private households)

1. In the European Union

Attention: If you wish to dispose of this equipment, please do not use the ordinary dustbin!

Used electrical and electronic equipment must be disposed of separately, in accordance with regulations that require proper treatment, recovery, and recycling of used electrical and electronic equipment.

As is the case in Member States, private households within EU countries can return their used electrical and electronic equipment to authorized collection points for this equipment free of charge*.

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Avoid the risk of fire. The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat food and lead to fire.

This oven is designed for use only on a work surface. It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet. The electrical outlet must be accessible so that the unit can be unplugged easily in case of emergency.

The AC power supply must be 230-240 V, 50 Hz, with a 10 A fuse for the distribution line, or a distribution circuit breaker of at least 10 A. A separate circuit serving only this appliance must be provided.

Do not place the oven in areas where heat accumulates. For example, near a conventional oven. Do not install the oven in areas of high humidity or where moisture may collect. Do not store or use the oven outdoors.

www.sharpconsumer.com/support/

www.conformity.com

A. Information for users (private households)

1. In the European Union

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TROUBLESHOOTING TABLE

www.sharpconsumer.com/support/

www.conformity.com

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Do not use the device if it is damaged or malfunctioning. Do not use it with wet hands or as a toy.

It is necessary to familiarize yourself with all important safety rules: use the device only for its intended purpose, carefully remove the packaging from the products, pay special attention to packaging materials (for example, materials capable of self-ignition), intended for preserving the freshness of products, as they can be very flammable.

Precautions

Do not attempt to repair the device yourself.

The oven becomes hot during operation.

This symbol indicates that the surfaces may become hot during operation of the device.

INSTALLATION

1. Remove all packaging materials from the inside of the oven and remove the protective film from the surface of the oven body.
2. Carefully inspect the oven for any damage.
3. Place the oven on a stable, horizontal surface, in a place that allows you to operate the oven together with the item to be heated, which can be placed inside it. Do not place the oven in a cabinet.
4. Choose a horizontal surface that provides enough space around the ventilation openings on the sides and/or back. See the figure on the first page. You can also place the appliance against a wall. The minimum installation height is 85 cm. The distance between the side walls of the oven and adjacent walls or other objects must be at least 20 cm. The height of the free space above the oven must be at least 30 cm.
5. Do not leave the oven unattended.
6. Blocking the inlet and/or outlet openings may cause damage to the oven.
7. Place the oven away from radio and television receivers. Using the microwave oven may cause interference in radio and television reception.

1. Connect the oven plug to a standard grounded household electrical outlet.

WARNING!

Do not place the oven near sources of heat, water, or in wet places (for example, near a sink or washing machine), as well as near flammable materials (for example, curtains).

Do not cover the ventilation openings.

Do not place any objects on the oven.

Do not touch the device during operation with wet hands: it may be hot.

TECHNICAL SPECIFICATIONS

Do not forget to check the presence of the following accessories: roller ring, turntable coupling, and glass tray.

Only for use with grill:

• Grill rack - only for cooking mushrooms.
• The grill rack is intended only for use with the grill. Using the rack under the microwave is PROHIBITED. The procedure for using the rack is described in the "Grill" section of the operating instructions.

Never touch the grill rack.

NOTE: When ordering the rack, specify the name of the part and the model.

NOTES:

Clean the oven inside and out, be careful not to damage the microwave door seal. After cleaning, thoroughly wipe the interior chamber, the heating element, and the grill. They must always be clean. Failure to maintain the oven in a clean condition may lead to deterioration of the surface and reduce the service life. - Before using the oven, make sure that the turntable and its support are installed correctly. This will ensure proper cooking of food. An incorrectly installed turntable may cause the oven to vibrate, so do not operate it until it is fixed. - For cooking food and containers with it, always place them on the turntable. - The turntable rotates clockwise and counterclockwise. The rotation direction changes each time you turn it on. This does not affect the cooking process.

AND DAMAGE: The symbol indicates that surfaces may become hot during operation. During operation, the door, outer casing, inner chamber, accessories, and dishes may become very hot. To avoid burns, always use thick oven mitts.

CONTROL PANEL

1. Display - shows cooking time, power, indicators, and time of day.
2. DEFROST BY WEIGHT - For defrosting by weight, press once.
3. DEFROST BY TIME - For defrosting by time.
4. AUTOMENU — Select the automatic cooking menu.
5. WEIGHT — Select the weight and temperature.
6. MICROWAVE (MICROWAVE POWER LEVEL) — Select the microwave power level.
7. GRILL (GRILL) — Set the grilling program. 8.COMBI (COMBI) — Select the combined cooking mode (microwave and grill).
8. WEIGHT/TIME — Select the weight or time of the dish.
9. KITCHEN TIMER (KITCHEN TIMER) — Button that allows you to use the timer for cooking.
10. SET CLOCK (SET CLOCK) — Button that allows you to set the time on the clock.
11. START/+30s (START/+30sec) — Start button. Press once to cook for 30 seconds at full power.
12. STOP/ECO (STOP/ECO): a single press allows you to temporarily stop cooking, and a double press cancels it. It is also used to set the energy saving mode.

Microwave only

Microwave with grill

BEFORE FIRST USE

• Remove the oven. On the display, the time "0:00" will appear, and the oven will emit a single sound signal.
• This model has a clock function, and in standby mode it consumes less than 1.0 W. For setting the clock, see below.

SETTING THE CLOCK

To set the timer, press the button for 24-hour mode.

1. Press the "SET TIME" button once. The "00:00" time will start blinking.
2. Press the "HOUR" button to set the hour. Press the "MIN" button to set the minutes, then press the "1 min" and "10 s" buttons.
3. Press the "SET TIME" button to finish setting the time.

NOTES:

• If the timer is set, the display will show the correct time after cooking. If the timer is not set, the display will show "0:00" after cooking is finished.
• To check the time of day during cooking, press the timer button - the time of day will appear on the display for 2-3 seconds. This does not affect the cooking process. If you press the STOP button or if no action is taken for 1 minute, the previous setting will be restored.
• In case of a power outage during cooking, the display will show the blinking message "0:00". If this happens during cooking, the program will be canceled. The time of day will also be reset.

POWER LEVEL

Ровенnotужност	НатOMICity Конь PIBEN ПOTУЖHOCTI MIKPOXBILBOОЛ ЕHEPП.	Ди检пел Прочent
ВИСOKИ	x1	100P
	x2	90P
ПOMIPNO ВИСOKИ	x3	80P
	x4	70P
CEPEДNII	x5	60P
	x6	50P
ПOMIPNO ИЗБКА (POЗМОЮЖУBAHNЯ)	x7	40P
	x8	30P
ИЗБКА	x9	20P
	x10	10P
	x11	0P

• The display shows 11 power levels. To select the desired power level, press the "POWER LEVEL" button repeatedly until the desired power level appears on the display. Enter the desired cooking time using the timer setting buttons. To start cooking, press the "START" button.
• To check the power level during cooking, press the "POWER LEVEL" button. While the button is pressed, the power level will be displayed. At the same time, the remaining cooking time will be displayed.
• If you select the "0P" level, the oven will operate with the fan on but with zero power. This mode can be used for defrosting.

In most cases, it is recommended to use the following power levels:

100P/90P (HIGH) - used for quick cooking and reheating, for example, for vegetables, sauces, and drinks.

80P/70P (MEDIUM HIGH) - used for longer cooking of products with a dense consistency, such as minced meat, meatloaf, and dishes in pots, as well as for lower dishes, for example, for biscuits. All modes with reduced power cook evenly without stirring.

60P/50P - (HIGH) For dense products, to add the required preparation, when cooking traditionally, for dishes with a long history. It is recommended to use this mode so that the meat is tender.

40P/30P - (MEDIUM LOW) Used for defrosting; select the power for even defrosting. It is also ideal for cooking fish, vegetables, and for preparing custard.

20P/10P - (LOW) Used for slow defrosting, for example, cream cakes or pastries.

Cooking modes

Opening the door:

To open the door, press the door opening button.

Starting cooking:

Prepare the product, place it in the microwave and set the required power level. After selecting the desired cooking mode, close the door and press the "START/+30s" button. During cooking, the cooking time can be increased.

START/+30s

Set the time by pressing the "COOK TIME" button or the "START/+30s" button.

If you set the cooking program but do not press the "START/+30s" button within 1 minute, the setting will be cancelled.

The "START/+30s" button must be pressed if the door was opened during cooking. If the button is pressed correctly, it will be accompanied by a single sound signal.

Use the "STOP" button to:

1. Correct a mistake during programming;
2. Temporarily stop cooking at any time;
3. To stop the program during cooking, press the "STOP" button.
4. To turn off the function, press the "STOP" button.

STOP / ECO

NOTE:

- If the microwave is not used for 5 minutes (and the door is closed), the child lock will automatically activate. To deactivate the child lock, simply open the door - then the keypad will work again.

NOTE: The "CHILD LOCK" function cannot be used during cooking.

4. CHILD LOCK FUNCTION:

Used to prevent unsupervised use.

NOTES ON DEFROSTING BY WEIGHT:

- Before freezing, check that the product is fresh and of good quality. Round the weight of the food to the nearest 0.1 kg, for example, 0.65 kg rounds to 0.7 kg. If necessary, cover the food with small pieces of aluminum foil. This prevents the food from heating during defrosting. Make sure the foil does not touch the oven walls.

AUTO MENU OPERATION

The AUTO MENU button automatically sets the optimal cooking mode (see details in UA-4 and UA-23). To understand which function is active, follow the instructions.

Example: Cook potatoes (0.46 kg) in the microwave without using the AUTO MENU function.

TROUBLESHOOTING

www.sharpconsumer.com/support/

www.conformity.com

www.sharpconsumer.com/support/

www.conformity.com

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

MICROWAVE POWER LEVEL

1. MOD (Display: C-1)

www.sharpconsumer.com/support/

www.conformity.com

Sharp Consumer Electronics Poland sp. z o.o.

Ostaszewo 57B, 87-148 Lysomice, Poland

SHARP CORPORATION

1 Takumi-cho, Sakai-ku

Sakai City, Osaka

590-8522, Japan

SDA/MAN/0213
