WARNING:

The appliance and if possible the mains lead have This warns you of dangers to your health and indi- to be checked regularly for signs of damage. If cates possible injury risks. damage is found the appliance must not be used. For safety reasons, alterations or modifications of CAUTION: the appliance are prohibited. This refers to possible hazards to the machine or To ensure your children’s safety, please keep all other objects. packaging (plastic bags, boxes, polystyrene etc.) NOTE: This highlights tips and information. out of their reach.

WARNING:

General Notes Do not allow small children to play with the foil. There is a danger of suffocation! Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions. NOTE: Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged. The illustrations in these operating instructions may differ from the original device. The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. The appliance is only to be used as described in the user manual. Do not use the appliance for any

Special safety Information for this Unit The maximum number of place settings to be washed is 2. The water tank can´t be filled with hot water. This unit is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - in farm houses. The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused. The maximum permissible inlet water pressure is 1 Mpa. The minimum permissible inlet water pressure is 0.04 Mpa. In the appliance bottom are located ventilation openings (depending on model). These may not be clogged e.g. by carpet. Pay attention to a proper loading of the appliance. Follow the instructions in the chapter “Loading the Dishwasher”. Knives and other utensils with sharp points must be loaded with their points down in the cutlery basket (depending on model) or placed in a horizontal position in the dishwasher basket. The door should not be left open, since this could increase the risk of tripping. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children who are younger than 8 years must be kept away from the device. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children, unless they are older than 8 years and are supervised. Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid a hazard. 1 Door handle 6 Detergent hollow 2 Control panel 7 Dishwasher basket Remove the appliance from its packaging. 3 Base board 8 Upper spray arm Remove all packaging material, such as foils, filler 4 Water tank opening 9 Lower spray arm 5 Salt container 10 Filter system Unpacking the Appliance and cardboard packaging. To prevent hazards, check the appliance for any Delivery scope transport damage. In case of damage, do not put the appliance into 1x dishwasher basket, 1x cutlery shelf, 1x salt funnel operation. Contact your distributor. tube, 1x inlet hose, 1x drainage hose (incl. mounting material) NOTE: Production residue or dust may have collected on the appliance. We recommend cleaning the appliance Installation according to chapter “Cleaning and Maintenance”.

WARNING:

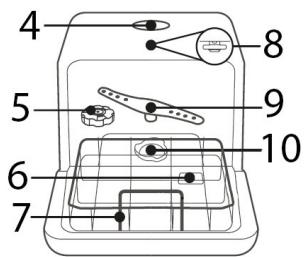

The unit must not be connected to the mains during Appliance Equipment installing. Otherwise there is danger to life or electric shock hazard! Appliance Overview CAUTION: For a correct operation the appliance must be connected properly. The specifications for water supply and drain as well as the electrical connection must fulfill the required criteria.

If necessary, you can order an inlet hose safety sys- Installation location tem from your dealer or in our online accessories Place the appliance so that all controls are easily to reach, and the appliance door can open without reference number found under “Technical Data”. being impeded. Take care of a solid and horizontal position of the Set up drainage appliance. Power cord and water hoses may not kinked or squashed. Avoid the installation:

near heaters, next to a stove, direct sunlight or any other heat sources;

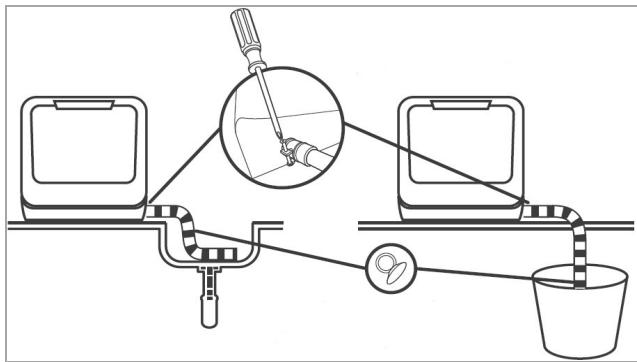

at locations with high humidity (e.g. outdoors), as metal parts would be susceptible to corro Attach the drainage hose to the appliance back. sion under such circumstances;

in rooms where the temperature could drop The connector is provided with clamps and must below freezing. Do not expose the appliance be fixed with a screwdriver. Secure the end of the hose securely in a sink or any weather.

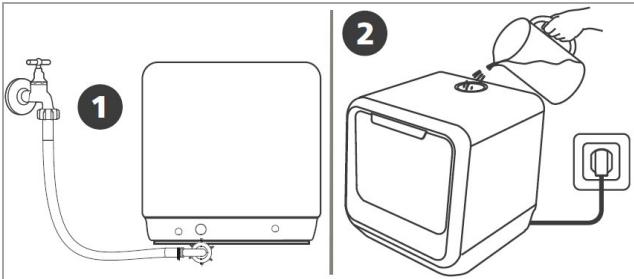

bucket. Fix the drain hose with suction cups. near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.). Set up water supply You can fill the appliance with water in two ways: Water connection CAUTION: The Installation of the water supply must conform to the local laws and regulations. The appliance is not suitable for hot water supply. Use the new supplied hose set to connect the appliance to the water supply. Do not reuse old or Permanent connection via the tap used connection sets. If the water pipe is new or long time not used, NOTE: ensure before connecting to the water system, The water pressure must be between 0.04-1.0 MPa. that the water is clear and free from contamina- With higher pressure: use a pressure regulator. tion. Connect the water inlet hose to a water thread Notes on inlet hose safety system (delivery scope with ¾“. Screw the hose firmly in the direction of depending on model) the screw thread; pay attention for a tight fit. The safety system consists of a double-walled inlet Connect the other end of the inlet hose to the inlet hose. It guarantees to cut off the water supply when valve on the appliance back; pay attention for a leakage of the inner hose. Switching off the water tight fit too. supply leads over an electronic contact.

Using for the first Time Manual filling of the 5 liter water tank Remove the cap of the water tank opening and CAUTION: add about 5 liter of water into the tank. Use only salt and detergent for dishwashers. Oth- How to notice if there is enough water in the tank:

Fill in standby modus: if the tank is filled with Always consider the dosage and storage recom- enough water, several beeps will sound. mendations on the sales packaging. After switching on: if there is not enough water in

WARNING:

the tank, the display shows [ Keep salt and detergent out of reach for children.

As soon as enough water is available in the tank, Filling salt into the salt container (water softener) the symbol goes out and several beeps sound. Water softener Electrical connection The water hardness varies regionally. If hard water is used in the dishwasher, deposits form on the dishes

WARNING:

and kitchen utensils. The appliance is equipped with The installation to the mains supply must conform a water softener, that removes lime and minerals to the local standards and regulations. from the water by using water softening in the salt Improper connection may cause to an electric container. Your local water authority can advise you shock! Do not use multiple sockets or extension cords. on the hardness of the water in your area. It is not allowed to modify the plug provided with Adjusting the salt consumption the appliance! If the plug does not fit properly to The salt consumption can be adjusted according to the outlet, let install a proper outlet by an author- your water hardness therefore optimally regulated. ized specialist. Turn on the appliance. The accessibility of the power plug must always Press the Program button for more than 5 sec- be ensured to disconnect the device from the onds, the setting mode is now activated for ap- power supply in case of an emergency. prox. 60 seconds. By repeatedly pressing the Program button, the Make sure that the voltage supply matches the specifications on the rating label (door frame) be- water hardness can be selected: H1->H2->H3 fore connecting. ->H4->H5->H6. The display indicates the selection (see below table). Connect the mains cable to a properly installed The setting is automatically saved after a few and earthed wall outlet. seconds; alternatively end the setup with the If the plug after installation is not accessible, a Power button. corresponding disconnect device must be available to meet the relevant safety regulations.

Water hardness Setting Regeneration occurs every Salt consumption / X program sequence 1) cycle °dH Mmol/l 0–5 0 – 0.94

1.0 – 2.0

2.1 – 3.0

H3 (Factory setting)

3.1 – 4.0

4.1 – 6.0

6.1 – 9.8

40 g °dH: German degree of hardness

1) Every

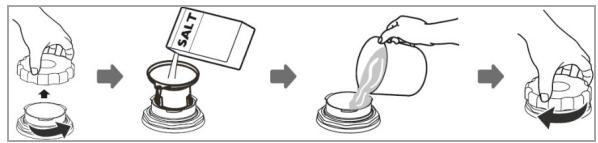

cycle with a regeneration operation consumes additional 0.5 liters of water, the energy consumption increases by 0.01 kWh and the program extends by 4 minutes. the dishwasher. The most commercially, high-quality Fill in the salt cleaning agents are suitable for this purpose. CAUTION: Only refill the salt container when the salt warning Detergent lamp is lighting. Normally new pulverized detergent is without phos- During filling the salt container, salt and water can phate. Thus, the water softener function of phos- escape. Start a program immediately after you phate is not given. In this case we recommend filling have filled the container to prevent corrosion. salt in the salt container even when the hardness of water is only 6°dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case add more Remove the dishwasher basket and unscrew the detergent to reach better results. Detergents without lid of the salt container. chlorine do only bleach a little. Strong and colored Add about 130 g of salt by using the supplied spot will not be removed completely. In this case funnel tube. choose a program with a higher temperature. Full fill the salt container with water (just before Detergent tablets (Tabs) the first use). Dishwasher tablets from different manufacturers Screw the lid firmly on again after filling the con- dissolve at different rates. It is possible that they will tainer. not fully dissolve in programs with short running time Depending on salt resolution, the warning lamp and low water temperature and thus does not reach usually disappears immediately after filling. their full productive efficiency. To ensure the complete removal of detergent residues, we recommend B. Fill in detergent choosing rinse programs with long running times and Function of detergent high-water temperature. Always follow the manufac- Detergents with its chemical ingredients are neces- turer's instructions! sary to remove dirt, crush dirt and transport it out of

Fill in the detergent

Older cutlery with glued parts that are not temperature resistant NOTE:

Bonded cutlery items or dishes rinse cycle, otherwise it could get damp and will

not dissolve properly.

Crystal glass You’ll find information about the amount of deter-

Steel items subject to rusting gent for the respective programs in the „Program

Wooden platters table“. Note that depending on the degree of soil-

Items made from synthetic fibres Always add the detergent just before starting the ing and water hardness differences are possible. ..are limited suitable: Refill the detergent before starting of each rinse cycle

according to the instructions in the "Program table". many washes

The appliance requires less

appliances. Normally one Glazed patterns may fade if machine washed frequently tablespoon of detergent is enough for a normally dirty Recommendations for loading rinse load. Make sure that the tableware is placed securely and cannot tip over. Loading the Dishwasher Place all items so, that the spray arms can rotate freely during rinsing. CAUTION: Arrange all items with openings facing down. Only rinse such dishes and cutlery in the dishwasher, Curved items, or ones with recesses, should be which is expressly marked as "dishwasher resistant". loaded aslant so that water can drain off. NOTE: Make sure that glasses do not touch each other. Remove gross scraps of food and soak burnt Set the dishes and cutlery not into each other or leftovers. Pre-rinse under running water is not covering each other. necessary. Arrange cutlery on the cutlery shelf. Do not overload! Important for adequate cleaning Store long as well as sharp cutlery horizontally in results and reasonable energy consumption. the dishwasher basket. Very small items should not be rinsed in the appliance, as they could easily fall out of the bas- Methods for loading normal dishware kets. Loading the dishwasher basket For rinsing in the dishwasher the following cutlery Load the dishwasher basket by size and from both and dishes.. sides to the middle. ..are not suitable: Cutlery with hand pieces of wood, porcelain mother of pearl

silver and aluminum parts tend to discolor during washing detergent than commercially

some types of glasses can become dull after Plastic items that are not heat resistant

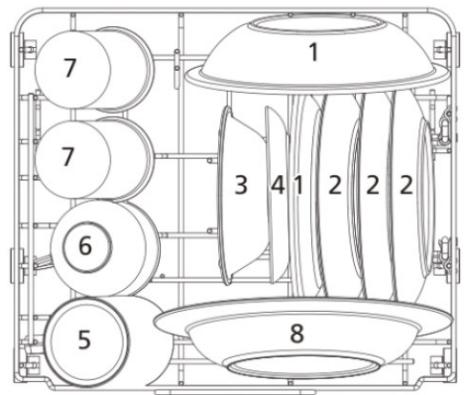

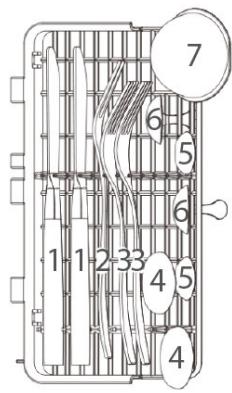

Acc. EN60436 long, large parts are granted on the middle of the shelf. Depending on the space required for loading the dish, the cutlery shelf can be removed. 1 Knife 2 Serving fork 3 Fork 4 Soup spoon 1 Dessert plate deep 4 Soucer 7 Glasses 2 Dessert plate 5 Mug 8 Soup plate 3 Dessert bowl 6 Cup 5 Tea spoon 6 Dessert spoon 7 Gravy ladle Loading the cutlery shelf Rack shelves

WARNING: Risk of injury!

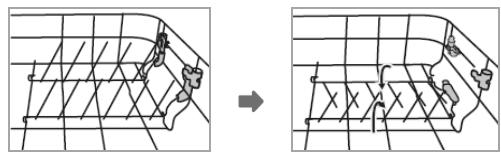

Knives and other utensils with sharp points must be placed with the tip down in the cutlery shelf or in a horizontal position in the dishwasher basket. To create a better arrangement for bulky dishes, the rack shelves can be folded. Lift the racks slightly and As shown beside the cutlery fold them down. shelf need to be add on the upper left side on the dishwasher basket. Sort the cutlery evenly distributed, vertically with the narrow side, so that the water can run off. Especially Startup / Operation Program table The values listed are guide values and recommendations under normal conditions and therefore not binding. Select a suitable program depending on dishes and degree of soiling. Program Program selection information Program sequence Detergent (g) Time Energy Water (Min) (kWh) (l)

standard program for Rinse

normally soiled dishes, Program selection information Program sequence Time Energy Water (Min) (kWh) (l)

Detergent (g) for lightly soiled dishes fast rinse, slightly soiled Rapid Self-Cleaning dishes without drying For effective self- cleaning of the unit Rinse interior (without dishes) Rinse (70°C) slightly sticking, fresh Glass leftovers, for glasses and fine porcelain Extra Dry: extra drying process. The function is available for the programs [ECO] and [Glass]. Anti-Bac.: This function provides fresh air through the ventilation system at regular intervals for about 72 hours. This reduces odor, moisture and mold growth. NOTE: *ECO program is the test cycle. The information for comparability test in accordance with EN60436. General information! The ECO program is suitable for cleaning normally soiled dishes, which is the most efficient program in terms of combined energy and water consumption. The program is used to check compliance with EU ecodesign legislation. Loading the domestic dishwasher to the specified capacity helps to save energy and water. Manual pre-washing of the dishes leads to higher water and energy consumption! Washing dishes in a household dishwasher generally uses less energy and water than hand washing, provided the dishwasher is used according to the instructions. Control panel

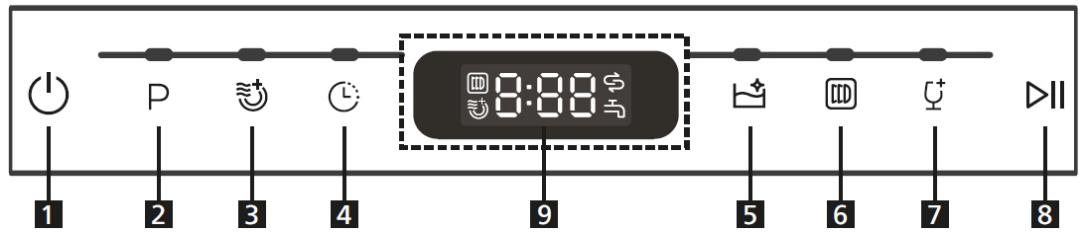

Power: Press the button for about 3 seconds Interior light to turn on/off the power supply.

The interior light switches on automatically: Program: Button to select the rinse pro-

Extra Dry: Button to activate / deactivate the

[Extra Dry] function. Note that the function is the last button press, the interior light switches off. Delay: Button to select the start delay by 1-24 hours. Press the Start/Pause button and Changing the program the appliance start automatically after the se- CAUTION: lected time delay has expired.

A program change should be done only a short Self-Cleaning: Button to select the program time after starting the program. Otherwise, maybe [Self-Cleaning].

by pressing a button during the rinse cycle After about 5 minutes with the door open or after program dependent!

by opening the unit door in power-on or detergent has been dissolved and rinse water Anti-Bac.: Press the button for about 3 sec- drained off. onds to activate / deactivate the [Anit-Bac.] function.

Glass: Button to select the program [Glass].

First press the Start/Pause button to stop the current rinse program. lected or running program. Press the Program selection button for about 9 Display: Salt consumption (water hardness) 3 seconds. and start delay are selected via the display. Select a new program and start the new opera- The start delay (when activated), the program tion. remaining time and any error codes are dis- Forgot to add a dish? played. Control lamp: lights up when dishwasher

WARNING:

salt needs refilling. Open the door very carefully during operation, there is a risk of water squirting out. Control lamp: lights up when the water supply is closed, or the water tank is not filled. Dishware can be added any time before detergent has been dissolved or rinse water drained off. Starting a program The water supply must be opened to maximum pressure OR the water tank must be filled. Load the dishwasher baskets. Press the Start/Pause button to stop the opera- Fill in the detergent. tion. Once the spray arms have stopped, you Turn on the appliance. can fully open the appliance door. Set the required program options. Add forgotten dishware. Start the operation.

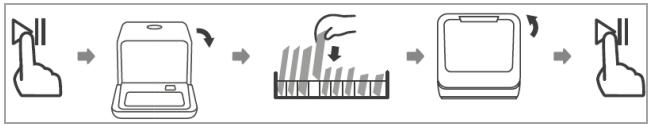

household dishwasher is used according to the Press the Start/Pause button, the operation will instructions. continue after approx. 10 seconds. Always try to operate the dishwasher when it is At the end of program fully loaded. CAUTION: Do not rinse the dishes in advance under running Allow the appliance to cool down a bit after the water. program has ended before you open it. This avoids Use for each type of load the most appropriate that steam escapes that causing long-term dam- rinse program. ages to your furniture. Do not perform a pre-rinse (depending on model), if not necessary. At the end of the rinse cycle will sound a series of signals; then the unit goes into standby mode. Cleaning and Maintenance If no operation takes place within 15 minutes, the device switches off automatically - energy-saving!

WARNING:

Always turn off the appliance and disconnect it Turn off Turn off the appliance. from the power supply before cleaning and user Close the water supply, if necessary! maintenance. Allow the appliance to cool down before clean- Remove the dishes after cooling (see "Unload- ing. Do not use steam cleaners for cleaning the Leave the appliance door slightly open until the appliance; moisture could enter electrical com- next rinse cycle to avoid odors. ponents. Risk of electric shock! Hot steam If the appliance is not in use for an extended could damage the plastic parts. The appliance period, disconnect it from the power supply! must be dry before restarting operation. Unloading the dishwasher CAUTION: CAUTION: Do not use a wire brush or other sharp, abra- Let the dishware cool down for about 15 minutes sive items. before unloading. Hot dishes are sensitive to Do not use any acidic or abrasive detergents. knocks. NOTE: Dirty filters and clogged spray arms de- NOTE: grade the rinsing. At the end of program there could be still water Filter system drops inside the appliance. Open the appliance door and pull out the basket. The filter system prevents Energy saving tips other objects from getting Washing tableware in a household dishwasher inside the pump. larger amounts of food or usually consumes less energy and water in the 1 Micro filter: filters dirt and food residues in the use phase than hand dishwashing when the sump area and prevents it from being redeposited on the dishware during rinse cycle.

2 Main filter: food and soil particles trapped in this Maintenance of the dishwasher filter are pulverized by a special jet on the lower CAUTION: spray arm and washed down to drain. Never use spray cleaners to clean the door panel, this may damage the door lock and electrical com- Cleaning the filter system ponents. CAUTION: The dishwasher must never be used without Clean the appliance outer surfaces and the the filter. door sealing thoroughly with a soft, damp cloth. Improper replacement of the filter can reduce Use only mild cleaning agent. performance and damage the appliance. Use to remove stains inside the appliance a Do not knock out the filter for cleaning to avoid dampened cloth with a little white vinegar or a possible deformations of the filters. special detergent for dishwashers. If necessary, fill detergent in and start the appliance without NOTE: dishware in the program with the highest rinse Check after each rinsing the filter for residues. temperature. Recommendation: allow the appliance to run regularly without loading in the program [SelfCleaning]. Turn the filter system counterclockwise and Dry the outer surfaces thoroughly before taking remove it upwards. in operation again. Remove the micro filter as from the main filter. Remove leftover food and clean the filter under Antifreeze protection running water. Use a soft brush for the coarse If the unit is out of operation and exposed to tem- and micro filter, if necessary. peratures below zero, observe the following pre- Reinstall the filter system in reverse order. cautions: Cleaning the lower spray arm Disconnect the mains plug. Close the water supply and remove the inlet Lime and impurities from the hose from the water valve. rinsing water can block nozzles Drain the water from the inlet hose and the and bearings of the spray arm. water valve. Check the outlet nozzles of the spray arm regularly for block- Reconnect the inlet hose to the water valve. ages. Turn off the lid of the salt container and take off

Pull off the lower spray arm upwards.

Clean the arm under running water; if neces- the filter system. Remove the remaining water in the sump with an absorbent sponge. sary, use a soft brush for the nozzles.

Insert the spray arm again until they click into place.

Troubleshooting Before you contact an authorized specialist Problem Possible cause / Action White film Hard water minerals: clean the on inside interior by using a damp sponge surface with dishwasher detergent. Wear Problem Possible cause / Action Unit doesn’t ∙ Check the power supply. ∙ Is the start unit turned on and the door securely Unsatisfac- ∙ Improper loading ∙ dishes are closed? ∙ Is a program selected? tory drying removed too soon ∙ wrong program ∙ Is the water supply properly con- result has been selected ∙ use of cutlery rubber gloves. with a low-quality coating nected and the water supply opened? Water is not ∙ Check the drain hose. ∙ Are the drained off filters or the kitchen sink clogged? Noise ∙ Make sure that all dishes are se- Error codes For some malfunctions, flashing control lamps will show the following error codes to warn you: cured in the dishwasher. ∙ Place the Code parts so that the spray arms can

rotate freely. Foaming Meaning / possible cause Water inlet fault! Faucet not open, inlet blocked or water pressure too low. Use only special dishwasher deter-

Malfunction of heating element. gent to avoid foaming. If this occurs,

Overflow / water leakage! open the door and let suds evapo-

rate. Add a bit of cold water to the tub. Start a short rinse cycle to drain ∙ Select a stronger program. ware is not ∙ Make sure that the spray arms are clean not blocked by large dishes. Spots and ∙ Extremely hard water ∙ low inlet filming temperature ∙ overloading the bas- tion! CAUTION: out the water. Flat table- If overflow occurs, turn off the main water supply before calling an authorized technician. If there is water in the lower housing part due to an overfilling or a small leak, remove this water before restarting the appliance. NOTE: kets, improper loading ∙ old or damp detergent ∙ incorrect dosage If a problem persists after following the steps of detergent above, please contact your distributor or an au- Cloudiness Use less detergent if you have soft thorized technician. glassware water and select a shortest cycle to rinse and clean glassware. Technical Data Black or Aluminum utensils have rubbed grey marks against dishware. Use a mild abra- Electrical connection / Water supply……………….. sive cleaner to eliminate those Connection power: ………...………….730 – 860 W Stains on Only use detergents without color- inner sur- ants. Water pressure: ……………...…..……0.04 – 1 Mpa Dimension H x W x D / Weight……………………… face Available accessory………………………………….. Inlet hose safety system: ……….Art.-No. 8900 410 For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank: https://eprel.ec.europa.eu The right to make technical and design modifications during continuous product development remains reserved. This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Disposal Meaning of the “Dustbin” Symbol Protect our environment; do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment. Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks if you take the unit out of operation or dispose it.
