USER MANUAL S5070 S5065 AQUATOUCH SHAVER SERIES 5000 PHILIPS

Always here to help you Register your product and get support at www.philips.com/welcome

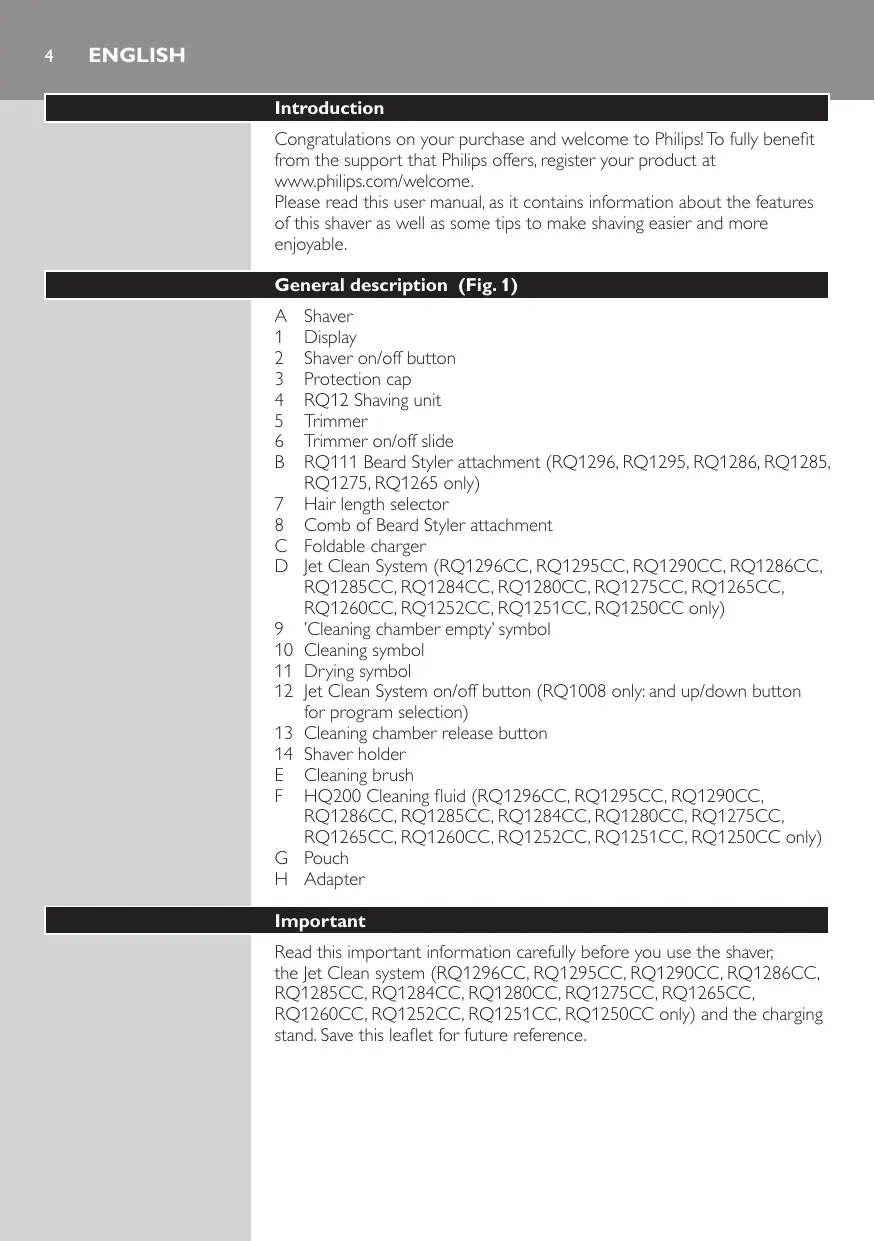

ENGLISH Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable. General description (Fig. 1) A 1 2 3 4 5 6 B 7 8 C D 9 10 11 12 13 14

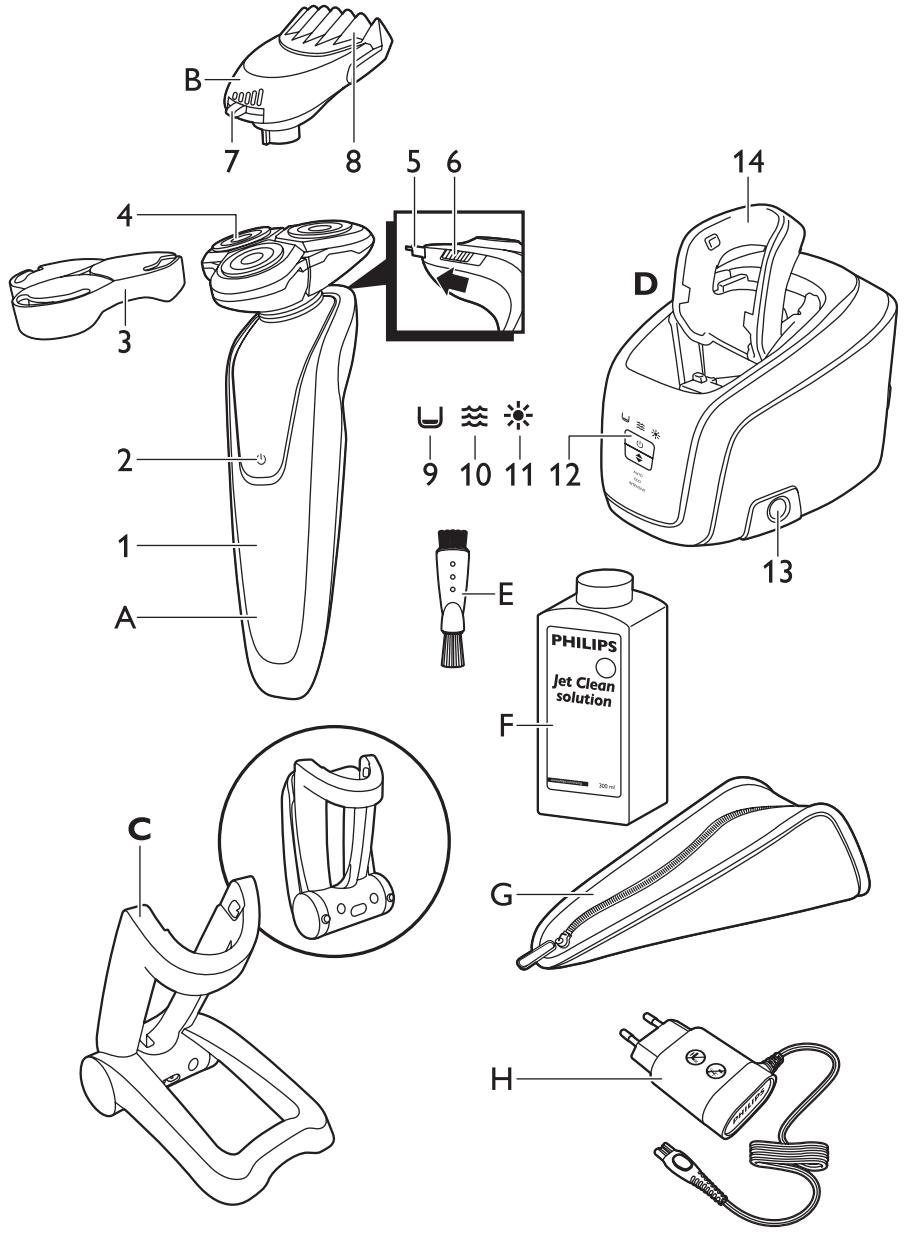

Display Shaver on/off button Protection cap RQ12 Shaving unit Trimmer Trimmer on/off slide RQ111 Beard Styler attachment (RQ1296, RQ1295, RQ1286, RQ1285, RQ1275, RQ1265 only) Hair length selector Comb of Beard Styler attachment Foldable charger Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) ’Cleaning chamber empty’ symbol Cleaning symbol Drying symbol Jet Clean System on/off button (RQ1008 only: and up/down button for program selection) Cleaning chamber release button Shaver holder Cleaning brush HQ200 Cleaning fluid (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) Pouch Adapter

Read this important information carefully before you use the shaver, the Jet Clean system (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) and the charging stand. Save this leaflet for future reference.

-- Keep the adapter dry. Warning -- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation. -- The shaver, the Jet Clean system and the charging stand are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of these appliances by a person responsible for their safety. -- Children should be supervised to ensure that they do not play with the shaver, the Jet Clean system and the charging stand. -- Always unplug the shaver before you clean it under the tap. Caution -- Never immerse the Jet Clean system or the charging stand in water nor rinse it under the tap. -- Never use water hotter than 80°C to rinse the shaver. -- Do not use the shaver, Jet Clean system, adapter, charging stand or any other part if it is damaged, as this may cause injury. Always replace a damaged adapter, charging stand or part with one of the original type. -- Only use the Jet Clean system with the original HQ200 Jet Clean solution. -- Always place the Jet Clean system on a stable, level and horizontal surface to prevent leakage. -- When the Jet Clean system is ready for use, do not move it to prevent leakage of cleaning fluid. -- The Jet Clean system thoroughly cleans but does not disinfect your shaver, therefore do not share the shaver with others. -- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. -- Water may leak from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver. Compliance with standards -- This shaver is waterproof and complies with the internationally approved safety regulations. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used cordlessly. -- The shaver and the Jet Clean system comply with all applicable standards and regulations regarding exposure to electromagnetic fields. General -- The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts. -- The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts. -- Maximum noise level: Lc = 69dB(A)

Note: Before you use the shaver for the first time, remove the protective foil from the display.

The various shaver types have different displays, which are shown in the figures below. -- RQ1296, RQ1295, RQ1290, RQ1286, RQ1285, RQ1280

MINUTES LEFT Charging

-- Charging takes approx. 1 hour. MINUTES LEFT

MINUTES LEFT RQ129x, RQ128x

-- When the shaver is charging, the minutes indication flashes. -- The shaving minutes increase until the shaver is fully charged. -- Quick charge: When the shaver contains enough energy for one shave, the display shows 5 minutes in red. RQ127x, RQ126x, RQ125x Note:The displays of the various shaver types look different, but the charging lights work in the same way. -- When the shaver is charging, first the bottom charging light flashes, then the second charging light, and so on until the shaver is fully charged. -- Quick charge: When the shaver contains enough energy for one shave, the bottom charging light alternately flashes orange and white.

Battery fully charged

MINUTES LEFT MINUTES LEFT RQ129x, RQ128x

-- When the battery is fully charged, the minutes indication lights up continuously. After approx. 30 minutes, the display automatically switches off again. Note:The shaver is equipped with an intelligent self-learning system that monitors the shaver’s energy consumption and converts the remaining battery capacity into shaving minutes.The energy consumption and therefore the remaining number of shaving minutes depend on your skin and beard type and your shaving behaviour (e.g. the use of shaving gel). If the number of shaving minutes of the fully charged shaver is less than 60 minutes, this is completely normal and does not mean that the battery capacity of the shaver has diminished. RQ127x, RQ126x, RQ125x Note:The displays of the various shaver types look different, but the charging lights work in the same way. -- When the battery is fully charged, all charging lights light up continuously. After approx. 30 minutes, the display automatically switches off again. Battery low

MINUTES LEFT MINUTES LEFT RQ129x, RQ128x

-- When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the minutes indication starts to flash. -- When you switch off the shaver, the shaving minutes continue to flash for a few more seconds. You hear a beep when there are no shaving minutes left. RQ127x, RQ126x, RQ125x Note:The displays of the various shaver types look different, but the charging lights work in the same way. -- When the battery is almost empty (when there are only 5 or fewer shaving minutes left), the bottom charging light flashes orange. -- When you switch off the shaver, the bottom charging light continues to flash orange for a few seconds.

ENGLISH Remaining battery capacity

RQ129x, RQ128x MINUTES LEFT MINUTES LEFT

-- The remaining battery capacity is indicated by the number of shaving minutes shown on the display.

RQ127x, RQ126x, RQ125x Note:The displays of the various shaver types look different, but the charging lights work in the same way.

-- The remaining battery capacity is indicated by the flashing charging lights.

For optimal shaving performance, we advise you to clean the shaver after every use.

MINUTES LEFT MINUTES LEFT Note:The displays of the various shaver types look different, but show the same symbol.

-- The tap symbol flashes to remind you to clean the shaver.

Replace shaving unit

For maximum shaving performance, we advise you to replace the shaving unit every two years. MINUTES LEFT

MINUTES LEFT Note:The displays of the various shaver types look different, but show the same symbol.

-- To remind you to replace the shaving unit, the appliance is equipped with a replacement reminder which is activated automatically after approx. two years. The replacement reminder is repeated at 9 successive shaves(RQ128x, RQ127x, RQ126x, RQ125x only) or until you reset the shaver. Travel lock (RQ128x, RQ127x, RQ126x, RQ125x only) You can lock the shaver when you are going to travel. The travel lock prevents the shaver from being switched on by accident. Note:The displays of the various shaver types look different, but show the same symbol.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter the travel lock mode. ,, RQ128x: The display starts to count down from 3. At 1, the appliance beeps to indicate that it is locked. ,, The lock symbol lights up on the display. After a few seconds it goes out. Deactivating the travel lock

1 Press the on/off button for 3 seconds.

,, The motor starts running to indicate that the travel lock has been deactivated. The shaver is now ready for use again. Note:When you place the shaver in the plugged-in charger or Jet Clean System, the travel lock is automatically deactivated. Power-saving mode (RQ129x only) The appliance is equipped with an automatic power-saving mode. When the shaver enters the power-saving mode, the light in the on/off button goes out to save energy. -- When the appliance is switched off but detects movement for 5 minutes (for instance when you are travelling with the shaver in your suitcase), it automatically goes into power-saving mode. This mode prevents the shaver from being switched on by accident. ,, The lock symbol flashes on the display to indicate that the appliance is in power-saving mode. -- To deactivate the power-saving mode, simply press the on/off button. Blocked shaving heads

MINUTES LEFT MINUTES LEFT Note:The displays of the various shaver types look different, but show the same symbol.

-- If the shaving heads are blocked, the shaving unit symbol, the tap symbol and the exclamation mark flash. In this case, the motor cannot run because the shaving heads are soiled or damaged. -- When this happens, you have to clean the shaving unit or replace it. -- The shaving unit symbol, the tap symbol and the exclamation mark continue to flash until you unblock the shaving heads. Charging Charging takes approx. 1 hour. RQ129x, RQ128x, RQ127x, RQ126x: A fully charged shaver has a shaving time of up to 60 minutes. Note: RQ129x, RQ128x:When the battery is fully charged, the display shows the actual remaining shaving minutes (see section ‘Battery fully charged’ in chapter ‘The display’). RQ125x: A fully charged shaver has a shaving time of up to 50 minutes. Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty (see section ‘Battery low’ in chapter ‘The display’).

ENGLISH Quick charge

After the shaver has charged for 3 minutes, it contains enough energy for one shave. Charging in the charger 1 Insert the small plug into the charger.

2 Unfold the charger (‘click’).

3 Put the adapter in the wall socket.

4 Put the shaver in the charger.

,, The display shows that the shaver is charging (see chapter ‘The display’).

Charging in the Jet Clean System (RQ1296CC, RQ1295CC,

RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) 1 Put the small plug in the Jet Clean System. 2 Put the adapter in the wall socket. 3 Hold the shaver upside down above the holder with the back of the shaver pointing towards the holder. Note:The shaver cannot be placed in the Jet Clean System when the protection cap is on the shaving unit. Note: RQ129x only: when you turn the shaver upside down, the minutes indication on the display is also turned upside down so you can still see to what level the battery is charged.

4 Place the shaver body in the holder behind the two clips (1) and press it down until it locks into place (2).

,, The display shows that the shaver is charging (see section ‘Charging’ in chapter ‘The display’).

Shaving Skin adaptation period Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. We advise you to shave regularly (at least 3 times a week) for a period of 3 weeks to allow your skin to adapt to the new shaver. During this period, use your new electric shaver exclusively and do not use other shaving methods. If you use different shaving methods, it is more difficult for your skin to adapt to the new shaving system. 1 Press the on/off button once to switch on the shaver. ,, The display lights up for a few seconds.

2 Move the shaving heads over your skin in circular movements.

-- Do not make straight movements. 3 Press the on/off button once to switch off the shaver. ,, The display lights up for a few seconds and then shows the remaining battery capacity. Wet shaving You can also use this shaver on a wet face with shaving foam or shaving gel. To shave with shaving foam or shaving gel, follow the steps below: 1 Apply some water to your skin. 2 Apply shaving foam or shaving gel to your skin. 3 Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin. 4 Press the on/off button once to switch on the shaver. 5 Move the shaving heads over your skin in circular movements. Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin. 6 Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’). Note: Make sure you rinse all foam or shaving gel off the shaver.

You can use the trimmer to groom your sideburns and moustache. 1 Pull the shaving unit straight off the shaver. Note: Do not twist the shaving unit while you pull it off the shaver. 2 Press the on/off button once to switch on the shaver. ,, The display lights up for a few seconds. 3 Slide the trimmer slide forwards to slide out the trimmer. 4 You can now start trimming. 5 Slide the trimmer slide backwards to retract the trimmer. 6 Press the on/off button once to switch off the shaver. ,, The display lights up for a few seconds and shows the remaining battery capacity. 7 Insert the lug of the shaving unit into the slot in the top of the shaver (1). Then press down the shaving unit (2) to attach it to the shaver (‘click’).

Using the Beard Styler attachment (RQ1296, RQ1295, RQ1286,

RQ1285, RQ1275, RQ1265 only) 1 Make sure the shaver is switched off. 2 Pull the shaving unit straight off the shaver. Note: Do not twist the shaving unit while you pull it off the shaver.

3 Insert the lug of the Beard Styler attachment into the slot in the top of the shaver (1). Then press down the beard styler attachment (2) to attach it to the shaver (‘click’).

Using the Beard Styler attachment with comb You can use the Beard Styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. The hair length settings on the Beard Styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm. 1 Slide the comb straight into the guiding grooves on both sides of the beard styler attachment (‘click’).

2 Press the length selector (1) and then push it to the left or right (2) to select the desired hair length setting.

3 Press the on/off button on the shaver to switch it on.

4 You can now start styling your beard.

ENGLISH Using the Beard Styler attachment without comb

You can use the Beard Styler attachment without the comb to contour your beard, moustache or sideburns. 1 Pull the comb off the Beard Styler attachment.

Note: Grab the comb in the centre to pull it off the Beard Styler attachment.

Do not pull at the sides of the comb. 2 Press the on/off button to switch on the shaver.

3 You can now start contouring your beard, moustache, sideburns or neckline.

Beard styles Below you find some examples of beard styles you can create.

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the shaver, its accessories and the Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only). -- The best and most hygienic way to clean the shaver is in the Jet Clean System. You can also rinse the shaver under the tap or clean it with the cleaning brush supplied. -- Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt. -- Clean the shaver after every shave for optimal shaving performance. -- You can clean the outside of the shaver with a damp cloth. -- Regular cleaning guarantees better shaving performance. Cleaning the shaving unit Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt. 1 Rinse the shaving unit under a hot tap for some time.

2 Pull open the three shaving heads one by one.

3 Rinse all three shaving heads and all three hair chambers under a hot tap for 30 seconds.

Note:You can also brush the shaving heads and hair chambers with the cleaning brush supplied. Be careful with hot water. Always check if the water is not too hot, to prevent your hands from getting burnt. 4 Carefully shake off excess water and leave the shaving heads open to let the shaving unit dry completely. Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads. Cleaning the shaving unit in the Jet Clean System (RQ1296CC, RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only) The Jet Clean System comes in two types: -- Type RQ1008 has three cleaning programs: the eco program, the auto program and the intensive program. Press the up/down button to select the cleaning program you prefer. Note:The eco program has a shorter drying time, to save energy.The intensive program is a more thorough cleaning program.

-- Type RQ1007 has one automatic cleaning program. When you press the on/off button, the Jet Clean System starts cleaning in the automatic cleaning program.

Preparing the Jet Clean System for use Fill the cleaning chamber before first use. 1 Put the small plug in the Jet Clean System. 2 Put the adapter in the wall socket. ,, The holder automatically moves to the highest position.

3 Simultaneously press the release buttons on both sides of the cleaning chamber (1). Then lift the Jet Clean System off the cleaning chamber (2).

,, The cleaning chamber remains behind. 4 Unscrew the cap from the bottle with HQ200 cleaning fluid.

5 Fill the cleaning chamber with HQ200 cleaning fluid to a level between the two lines.

6 Place the Jet Clean System back onto the cleaning chamber.

Make sure the release buttons click back into place. Using the Jet Clean System Note: If you use the shaver with shaving foam or shaving gel, we advise you to rinse it under the hot tap before you clean it in the Jet Clean System.This guarantees an optimal lifetime for the cleaning fluid.

1 Hold the shaver upside down above the holder with the back of the shaver pointing towards the holder.

2 Place the shaver body in the holder behind the two clips (1) and press it down until it locks into place (2).

,, The display shows that the shaver is charging (see chapter ‘The display’).

3 RQ1008: Press the up/down button to select a cleaning program.

4 Press the on/off button on the Jet Clean System to start the cleaning program. ,, The shaver display stops showing the charging indication.

,, The cleaning light starts to flash and the shaver is automatically lowered into the cleaning fluid.

,, The cleaning light flashes throughout the cleaning program, which takes a few minutes. Note: RQ1007:The cleaning program takes 4 to 6 minutes.

Note: RQ1008:The auto and eco cleaning programs take 4 to 6 minutes.The intensive program takes approx. 35 minutes.

,, During the first phase of the cleaning program, the shaver automatically switches on and off several times and moves up and down. ,, During the second phase of the cleaning program, the shaver is placed in the drying position, indicated by the flashing drying symbol. This phase takes approx. 2 hours. The shaver stays in this position until the end of the program. Note: RQ1008:The drying phase takes 1 hour when you have selected the eco program. ,, After the cleaning program, the charging indication appears on the shaver display (see chapter ‘The display’).

Note: If you press the on/off button of the Jet Clean System during the cleaning program, the program aborts. In this case, the cleaning or drying light stops flashing and the holder moves to the highest position.

Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.The holder remains in its current position.When you put the adapter back into the wall socket, the holder moves to the highest position. -- When the cleaning fluid drops below the minimum level, the ‘cleaning chamber empty’ symbol starts to flash and the holder returns to its starting position. -- If you use the Jet Clean System to clean your shaver every day, you need to refill the cleaning chamber approx. every 15 days. Cleaning the Jet Clean System Clean the cleaning chamber every 15 days. You can wipe the outside of the Jet Clean System with a damp cloth.

1 Simultaneously press the release buttons on both sides of the Jet Clean System (1). Then lift the Jet Clean System off the cleaning chamber (2). ,, The cleaning chamber remains behind.

2 Pour any remaining cleaning fluid out of the cleaning chamber.

You can simply pour the cleaning fluid down the sink.

3 Rinse the cleaning chamber under the tap.

The cleaning chamber is not dishwasher-proof.

4 Fill the cleaning chamber with HQ200 cleaning fluid to a level between the two lines.

5 Place the Jet Clean System back onto the cleaning chamber.

Make sure the release buttons click back into place.

ENGLISH Extra-thorough cleaning method

Make sure the appliance is switched off. 1 Pull the shaving unit straight off the shaver. Note: Do not twist the shaving unit while you pull it off the shaver.

2 Pull open the three shaving heads one by one.

3 Press the retainer release tab (1) until the retainer opens (2).

Note: Do not clean more than one cutter and shaving guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.

4 Remove the cutter from the shaving guard.

5 Clean the cutter with the cleaning brush supplied.

6 Clean the inside of the shaving guard.

7 After cleaning, place the cutter back into the shaving guard with the cutter legs pointing downwards.

8 Press down the retainer over the cutter.

9 Close the shaving heads.

10 Insert the lug of the shaving unit into the slot in the top of the shaver

(1). Then press the shaving unit downwards (2) to attach it to the shaver (‘click’).

Cleaning the trimmer

Clean the trimmer every time you have used it. 1 Slide the trimmer slide forwards to slide out the trimmer.

2 Rinse the trimmer under a hot tap for some time. 3 Slide the trimmer slide backwards to retract the trimmer. Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.

Cleaning the Beard Styler attachment (RQ1296, RQ1295,

RQ1286, RQ1285, RQ1275, RQ1265 only) Clean the Beard Styler attachment every time you have used it. 1 Pull the comb off the Beard Styler attachment. 2 Rinse the Beard Styler attachment and the comb separately under a hot tap for some time. Note:You can also clean the Beard Styler attachment and the comb with the cleaning brush supplied. 3 Lubricate the trimmer teeth with a drop of sewing machine oil every six months. Storage 1 Slide the protection cap onto the shaving unit to prevent damage to the shaving heads. 2 Store the shaver in the pouch supplied.

MINUTES LEFT For maximum shaving performance, we advise you to replace the shaving unit every two years.

Only replace the shaving unit with an original RQ12 Philips Shaving unit. 1 The shaving unit symbol flashes (all types) and you hear a beep (RQ129x, RQ128x only) when you switch off the shaver . Note:The displays of the different types look different, but show the same symbol.

2 Pull the old shaving unit straight off the shaver.

Note: Do not twist the shaving unit while you pull it off the shaver.

3 Insert the lug of the new RQ12 shaving unit into the slot in the top of the shaver (1). Then press down the shaving unit (2) to attach it to the shaver (‘click’).

4 RQ128x/RQ127x/RQ126x/RQ125x: To reset the shaver, press and hold the on/off button for approx. 10 seconds.

Note: If you do not reset the shaver at the first replacement reminder, it continues to beep (RQ128x only) and show the shaving unit symbol at 8 more shaves or until you reset the shaver. Note for RQ129x:You do not need to reset the shaver. After 3 shaves, the replacement reminder (flashing shaving unit symbol and beeping) is deactivated automatically. Ordering accessories To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet. The following parts are available: -- HQ8505 adapter -- RQ12 Philips Shaving Unit -- HQ110 Philips Shaving Head Cleaning Spray -- HQ200 Philips Cleaning Fluid -- RQ111 Beard Styler attachment

ENGLISH Shaving heads

-- We advise you to replace your shaving heads every two years. Always replace the shaving unit with an original RQ12 Philips Shaving Unit. Cleaning -- Specific types only: use Jet Clean Solution (HQ200) for regular cleaning of the shaving heads.

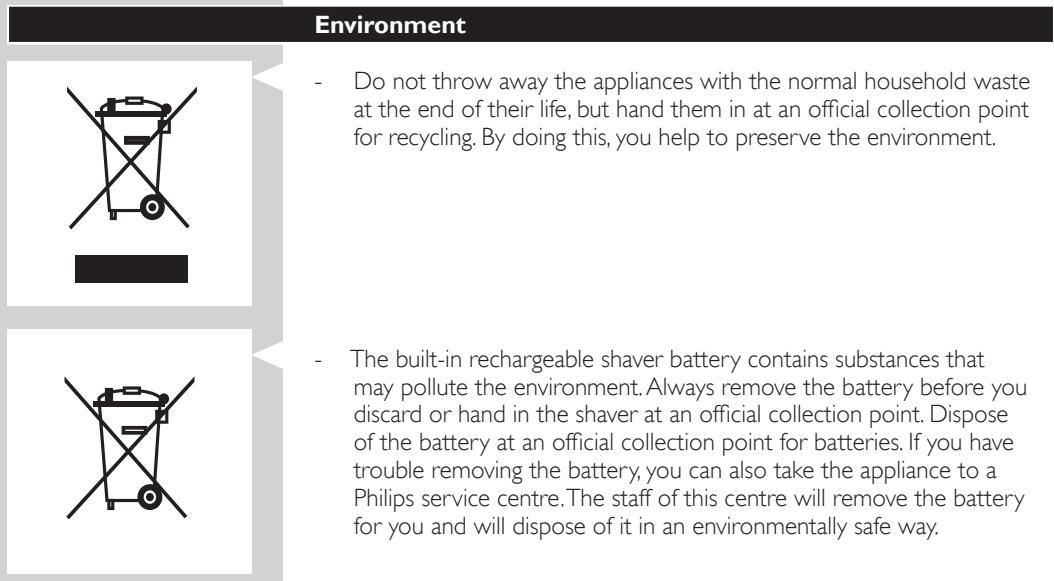

-- Do not throw away the appliances with the normal household waste at the end of their life, but hand them in at an official collection point for recycling. By doing this, you help to preserve the environment.

-- The built-in rechargeable shaver battery contains substances that may pollute the environment. Always remove the battery before you discard or hand in the shaver at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a

Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable shaver battery

Only remove the rechargeable battery when you discard the shaver. Make sure the battery is completely empty when you remove it. Be careful, the battery strips are sharp. 1 Remove the back panel of the shaver with a screwdriver. 2 Remove the rechargeable battery. Guarantee and support If you need support or if you have a problem, please visit www.philips.com/support or read the separate worldwide guarantee leaflet. Guarantee restrictions The shaving heads (cutters and shaving guards) are not covered by the terms of the international guarantee because they are subject to wear.

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country. Problem

The shaver does not shave as well as it used to.

The shaving heads are damaged or worn.

Replace the shaving unit (see chapter ‘Replacement’).

Long hairs obstruct the shaving heads.

Clean the shaving heads by following the steps of the extra-thorough cleaning method

(see chapter ‘Cleaning and maintenance’).

Specific types only: The Jet Clean System has not cleaned the shaver properly, because the cleaning fluid in the cleaning chamber is soiled or the cleaning fluid level is too low.

Clean the shaver thoroughly before you continue shaving. If necessary, clean and refill the cleaning chamber (see chapter

‘Cleaning and maintenance’).

The rechargeable battery is empty.

Recharge the battery (see chapter ‘Charging’).

Specific types only: The travel lock is activated.

Press the on/off button for 3 seconds to deactivate the travel lock.

The shaving unit is soiled or damaged to such an extent that the motor cannot run.

In this case, the shaving unit symbol, the tap symbol and the exclamation mark flash.

Clean the shaving unit or replace it (see chapters ‘Cleaning and maintenance’ and ‘Replacement’).

The temperature of the shaver is too high. In this case, the shaver does not work and the exclamation mark on the display flashes.

Switch off the shaver and let it cool down. As soon as the temperature of the shaver has dropped sufficiently, you can switch on the shaver again.

The shaver does not work when I press the on/off button.

The cleaning fluid in the cleaning chamber

RQ1296CC, is soiled. RQ1295CC, RQ1290CC, RQ1286CC, RQ1285CC, RQ1284CC, RQ1280CC, RQ1275CC, RQ1265CC, RQ1260CC, RQ1252CC, RQ1251CC, RQ1250CC only: The shaver is not entirely clean after I clean it in the Jet Clean System.

The Jet Clean System does not work when

I press the on/off button.

Empty and rinse the cleaning chamber and refill it with new cleaning fluid.

The cleaning fluid level is too low. If the fluid volume in the cleaning chamber drops below the minimum level during the cleaning program, the program aborts.The cleaning light and the ‘cleaning chamber empty’ symbol flash at intervals and the holder returns to its starting position.

Refill the cleaning chamber with cleaning fluid to a level between the two lines (see chapter

‘Cleaning and maintenance’).

You have used another cleaning fluid than the original Philips cleaning fluid.

Philips Cleaning Fluid.

The Jet Clean System is not connected to the mains.

Put the small plug in the Jet

Clean System and put the adapter in the wall socket.

You have not placed the shaver in the

Jet Clean System properly, so there is no electrical connection between the Jet Clean System and the shaver.

Press the shaver tightly into the holder to lock it into place.

The shaver is not fully You have not placed the shaver in the charged after I charge charger/Jet Clean System (specific types only) properly. it in the charger/Jet

Make sure you press the shaver until it locks into place.

The shaver is fully charged, but the display shows less than 60 shaving minutes.

The shaver is equipped with an intelligent self-learning system that monitors the shaver’s energy consumption and converts the remaining battery capacity into shaving minutes. The energy consumption and therefore the remaining number of shaving minutes depend on your skin and beard type and your shaving behaviour (e.g. the use of shaving gel).

If the number of shaving minutes of the fully charged shaver is less than 60 minutes, this is completely normal and does not mean that the battery capacity of the shaver has diminished.

RQ1008: The operating time of the Jet Clean System is suddenly shorter or longer than it used to be.

You have selected another cleaning program.

The Jet Clean System has three cleaning programs: the eco program, the normal program and the intensive program. Each of these programs has a different operating time.

Press the up/down button on the Jet Clean System to select the cleaning program of your preference (see chapter

‘Cleaning and maintenance’).
