Product Type	Beard Trimmer
Brand	Remington
Model	MB4045
Power Supply	Rechargeable with mains adapter or micro USB port
Battery Type	Rechargeable lithium-ion
Full Charge Time	4-5 hours (models HC5600/HC5800), 16 hours (HC5400)
Runtime	Up to 120 minutes (HC5600/HC5800), 60 minutes (HC5400)
Quick Charge	Yes (HC5600/HC5800): 10 min for 5 min of use
Number of Cutting Guides	3: adjustable 3-21 mm, 24-42 mm, beard guide 1-13 mm (depending on version)
Adjustment Step	3 mm (long guides), 2 mm (fine beard guide)
3-Day Beard Guide	1.5 mm (model HC5600)
Cleaning System	Quick Wash: removable blade washable under water
Blade Maintenance	Regular brushing, occasional oiling
Corded Use	Possible with mains adapter
Charge Indicator	Indicator light (HC5400/HC5600), LED screen (HC5800)
Power System	Dual Boost (HC5600) or Auto Boost (HC5800)
Safety	Auto shut-off not mentioned; do not use near water
Storage Temperature	Between 15°C and 35°C
Spare Parts	Blades, cutting guides, adapter, USB cable
Repairability	Battery replaceable by disassembly
Country of Manufacture	Not specified

Frequently Asked Questions - MB4045 REMINGTON

How to charge the MB4045 trimmer for the first time?

Before first use, charge it for 16 to 20 hours. Connect the adapter to the device and then to the mains. Make sure the device is turned off.

What is the battery runtime after a full charge?

Runtime varies by model: up to 60 minutes for HC5400, and up to 120 minutes for HC5600 and HC5800.

Can I use the trimmer while it is charging?

Yes, you can use it plugged into the mains via the adapter, but not via USB. Prolonged use on mains power may reduce battery life.

How to clean the MB4045 trimmer?

After each use, brush off accumulated hair. For a deep clean, use the Quick Wash system: press the button to remove the blade and rinse it under water. Do not immerse the entire device in water.

How to replace the blades?

Remove the two screws with a screwdriver, clean between the blades with a soft brush, then reassemble by correctly aligning the fixed blade and the moving blade. Oil lightly after assembly.

What to do if the trimmer does not charge?

Check that the adapter is properly connected and that the charging port is clean. If the problem persists, contact Remington consumer service.

How to adjust the cutting guide for a specific length?

The cutting guides are adjustable in steps of 3 mm (for long guides) or 2 mm (for the fine beard guide). Slide the guide onto the blade until it clicks into place.

Is the MB4045 trimmer waterproof?

Only the blade is designed to be washed under water. The device itself is not waterproof and should not be immersed.

How to remove the battery at end of life?

Fully discharge the device, remove the screws from the housing, disassemble the inner cover, then cut or break the battery tabs. Dispose of the batteries according to local regulations.

What to do if the blades no longer cut properly?

Clean the blades, check their alignment and oil them. If the problem persists, replace the blade set.

USER MANUAL MB4045 REMINGTON

Thank you for choosing Remington. Our products are designed to meet the highest standard of quality, functionality and design.

We hope you enjoy using your new Remington® product. Please read the instructions for use carefully and keep in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

1. WARNING - TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR INJURY TO PERSONS:

2 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised.
3 Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped in water.
4 Do not use accessories or attachments other than those we supply.
5 An appliance should never be left unattended when plugged in to a power outlet, except when charging.
6 Keep the power plug and cord away from heated surfaces.
7 Make sure the power plug and cord do not get wet.
8 Do not plug or unplug the appliance with wet hands.
9 Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.
10 Do not twist or kink the cable, and don't wrap it around the appliance.
11 Store the product at a temperature between 15^ and 35^
12 Do not immerse the appliance in liquid; do not use it near water in a bath-tub, basin or other vessel; and don't use it outdoors.
13 Suitable for cleaning under an open water tap.

PROPOWER

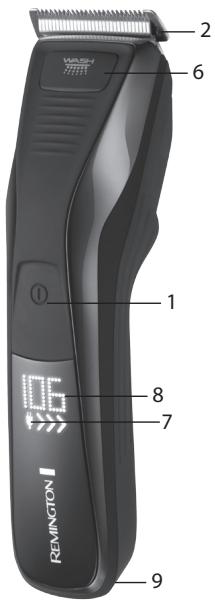

KEY FEATURES

1 On/Off Switch
2 Blade set
3 2 attachment guide combs 3-21mm and 24-42mm, 3mm adjustment
4 Adjustable stubble comb (HC5800) 1-13mm, 2mm adjustment
5 1.5mm Stubble comb (HC5600)

6 Quick wash release button
7 Charging indicator light (HC5400/HC5600)
8 LED display (HC5800)
9 Micro USB port
10 Micro USB cable
11 Charging stand (HC5800)
12 Adaptor

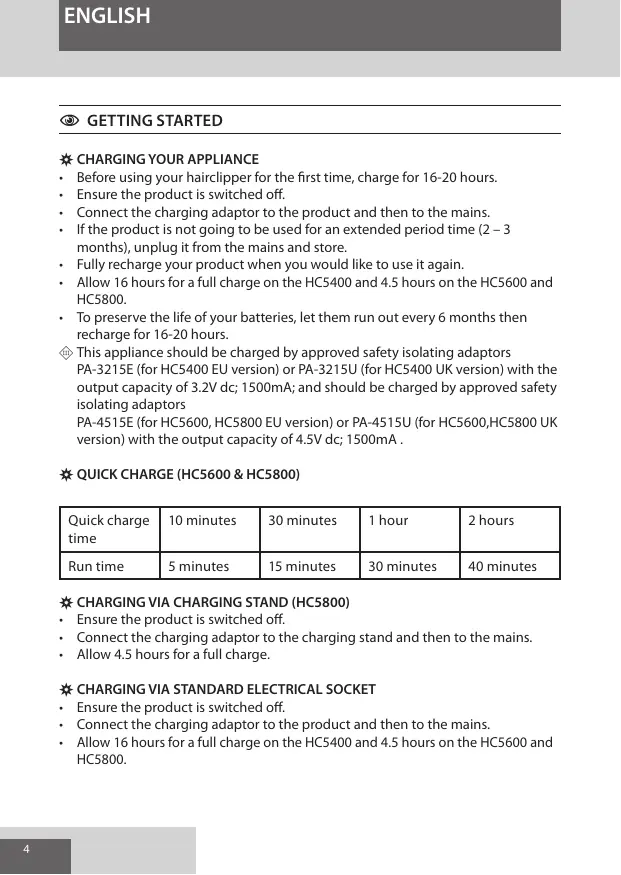

GETTING STARTED

CHARGING YOUR APPLIANCE

• Before using your hairclipper for the first time, charge for 16-20 hours.
• Ensure the product is switched off.
• Connect the charging adaptor to the product and then to the mains.
• If the product is not going to be used for an extended period time (2 - 3 months), unplug it from the mains and store.
• Fully recharge your product when you would like to use it again.
• Allow 16 hours for a full charge on the HC5400 and 4.5 hours on the HC5600 and HC5800.
• To preserve the life of your batteries, let them run out every 6 months then recharge for 16-20 hours.

This appliance should be charged by approved safety isolating adaptors PA-3215E (for HC5400 EU version) or PA-3215U (for HC5400 UK version) with the output capacity of 3.2V dc; 1500mA ; and should be charged by approved safety isolating adaptors PA-4515E (for HC5600, HC5800 EU version) or PA-4515U (for HC5600, HC5800 UK version) with the output capacity of 4.5V dc; 1500mA .

QUICK CHARGE (HC5600 & HC5800)

Quick charge time	10 minutes	30 minutes	1 hour	2 hours
Run time	5 minutes	15 minutes	30 minutes	40 minutes

CHARGING VIA CHARGING STAND (HC5800)

• Ensure the product is switched off.
• Connect the charging adaptor to the charging stand and then to the mains.
• Allow 4.5 hours for a full charge.

CHARGING VIA STANDARD ELECTRICAL SOCKET

• Ensure the product is switched off.
• Connect the charging adaptor to the product and then to the mains.
• Allow 16 hours for a full charge on the HC5400 and 4.5 hours on the HC5600 and HC5800.

\*USB

• Connect your USB cable to the USB port on your power source.
• Connect the USB cable to your appliance.

Note: charging may take longer when charging via USB.

CORDEDUSE

• Connect the charging adaptor to the product then to the mains.
• When the cord is connected to the mains, a digital display will be displayed on the appliance (HC5800).

CAUTION: Extended mains only use will result in the reduction of the battery life.
WARNING: The appliance can not be operated in corded mode while connected to a PC via the USB port.

CORDLESSUSE

When the unit is switched on and fully charged, the product can be used in cordless mode for up to 60 minutes for the HC5400 and up to 120 minutes for the HC5600 & HC5800.

INSTRUCTIONS FOR USE

BEFORE STARTING THE CUT

• Inspect the clipper making sure that it is free from hair and dirt.
• Seat the person so that their head is approximately at your eye level.
• Before cutting, always comb the hair so it is tangle free and dry.

Comb position	Adjustable stubble comb (HC5800)	Short comb	Long comb
1	1mm	3mm	24mm
2	3mm	6mm	27mm
3	5mm	9mm	30mm
4	7mm	12mm	33mm
5	9mm	15mm	36mm
6	11mm	18mm	39mm
7	13mm	21mm	42mm

TO ATTACH A COMB

• Hold the comb with its teeth upward.
• Slide it onto and along the clipper blade until the front of the comb firmly sits against the clipper blade.

TO REMOVA THE COMB

• Holding the clipper with the blades facing away from you, firmly push the comb upward and away from the blades.

INSTRUCTIONS FOR CUTTING HAIR

For even cutting, allow the comb attachment/blade to cut its way through the hair. Do not force it through quickly. If you are cutting for the first time, start with the maximum comb attachment.

STEP 1 - Nape of the neck

• Set the comb to 3mm or 6mm.
• Hold the clipper with the blade teeth pointing upwards. Begin starting at the centre of the head at the base of the neck.
• Slowly lift the clipper, working upwards and outwards through the hair, trimming just a little at a time.

STEP2-Backofthehead

• With the comb set at 12 mm or 18 mm ,cut the hair at the back of the head.

STEP3-Side of the head

• Set the comb to 3mm or 6mm, trim sideburns. Then change the setting to 9mm and continue to cut the top of the head.

STEP4-Topofthehead

• Use the longer length comb attachment and set it to 24mm or 27mm then cut hair on top of the head against the direction in which the hair normally grows.
• For longer hair on top, use the longer length comb attachment (24 - 42mm) to achieve the desired style.
  Always work from the back of the head.

STEP5-The finishing touches

• Use the clipper without an attachment comb for close trimming around the base and sides of the neck.
• To produce a clean straight line at the sideburns, reverse the hair clipper. Place the reversed clipper at right angles to the head, tips of the blades lightly touching the skin and then work downwards.

SHORT TAPERED STYLES - "FLAT TOPS" & SHORT CUTS

• Starting with the longest guide comb attached (24 - 42mm), cut from the back of the neck to the crown. Hold the guide comb flat against the head and slowly move the clipper through the hair.
• Use the same procedure from the lower side to the upper side of the head. Then cut the hair against the direction in which it grows and level with the sides.
• To give a "flat top" look, the hair on top of the head must be cut over the top of a flat comb.
• Use a closer guide comb to taper the hair down to the neckline as desired.

DUAL BOOST SYSTEM (HC5600)

• There are 3 settings for the Dual Boost system: Off, On, Boost.
  If the clipper is set to on, it will run at regular power.
• If the clipper is set to boost, it will provide maximum power.

AUTO BOOST SYSTEM (HC5800)

• There are 3 settings for the Auto Boost system: Off, Auto, Boost
• If the Clipper is set to Auto, it will run at regular power under low load conditions.
• When more power is needed, the clipper will automatically sense this and provide maximum boost.
• To activate the Boost setting, depress the power button for 2 seconds. The clipper will then constantly run at maximum power.

CARE FOR YOUR HAIRCLIPPER

Your clipper is fitted with high quality blades. To ensure long lasting performance of your clipper, clean the blades and unit regularly. Always keep the attachment guide comb on the trimmer blade.

AFTER EACH USE

• Ensure the clipper is switched off and disconnected from the mains before cleaning.
• Brush the accumulated hair from the blades. Do not submerge the clipper in water.
  To clean unit, wipe with damp cloth and dry immediately.

WASHABLE CLEANING

• The QUICK WASH SYSTEM is designed to maximise the efficiency of washable cleaning.

• Push the button that is located on the front of the hair clipper. The blades will slide out and the blade set can be easily cleaned under the tap.

• Once the blades are cleaned the blades are locked into place by pushing the blade set towards the hair clipper head and will snap into place.
• Do not run the entire unit under the tap, only the blade set is meant to be submerged in water.

Note: Ensure the clipper is turned off when cleaning.

EVERY SIX MONTHS

• At regular intervals the blade set should be removed and cleaned.
• Remove the 2 screws retaining the fixed blade with a screwdriver. Do not remove blade set.
• Brush out hairs from between the blades with soft cleaning brush. Do not remove the lubricating grease from the blades. It is not necessary to remove the small moving blade from the unit.
• If the moving blade has been removed this can be re-fitted by slotting the coated blade holder over the pin in the centre of the interior product head. The groove on the coated blade, just below the teeth, rests on a metal plate at the opposite side to the screw holes. The fixed blade is fitted with the raised profile pointing outwards and fixed with the 2 screws.
• Note that if the blades are not correctly aligned then cutting efficiency will be impaired.
• Place a few drops of cutter or sewing machine oil onto the blades. Wipe off excess oil.

CLEANING CAUTIONS

• Ensure the appliance is switched off and unplug from the main outlet before cleaning.
• Only the attachment guide combs and trimmer blade may be removed from the product for cleaning.
• Cleaning should be done with a soft brush, such as the brush supplied with the product.
• Do not rinse under water.
• Do not use harsh or corrosive cleaners on the units or their blades.

BATTERY REMOVAL

• The battery must be removed from the appliance before it is scrapped.
• The appliance must be disconnected from the supply mains when removing the battery.
• Ensure that the clipper is discharged of all power and disconnected from the mains.
• Remove the screw cover from back housing.
  Using a small screwdriver, remove (1) screw from the bottom of the clipper.
• Pry the front panel from the front housing and expose the inner housing.
• Using a small screwdriver, remove (4) screws from inner housing
• Pry the cover of inner housing and expose the PCB and batteries.
• Cut or break the wire stamps on the both end of the batteries and remove the batteries.
  The battery is to be disposed of safely.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol must not be disposed of with unsorted municipal waste, but recovered, reused or recycled.

KORTE GESTRUCTUREERDE KAPSELS - "FLAT TOPS" EN KORT HAAR

UW APPARAAT VERZORGEN

NABIJENI V NABJECIM STOJANKU (HC5800)

PPEOCTEPEXEHNA PN YNCTKE

Ipeed uicKoINpOBeBte, yTo6bI yCTpoiCTBO 6blIO BbIKIOueHO nOTcoeINHeO OT cTeN
ДлячNTКИСИЗDEЛЯМОЖHO CHIMaTb TOLbKO HappaBJIIOUJIe HaCaJKNI 6LOKNe3Bn.
CHNTbMOKHO TOJIbKO PnN NOMOUs MRAKo JTeTK, KOTOPa NOCTABJAreTcBMECTe Cn3dEJIeM.
He npombyBaIte NOd BOdoi.
He nCpOJIb3yIe IJn qIcTKn yCTpoIcTBA nIIN ne3Bn aIrpccmbHbIe IINI Bbl3bIAIOJIe KoppO3NIO BeIeCTBa.

ИЗВLEЕЧЕВЕБАТAPЕN

• Pered ytniun3aueie 6atapeu cneyu t3Bleuy n3 yctpoiCTBa.
  -ПииИЗВLEЧЕНСБаТApEиУСТРОДСТВОСЛДуETOTКЛЮЧИТБOTЭнКТРОСЕТИ.
• y6eɪntecb,уTO Maɪnɪkɑ nɒlɪnθctbʊ pa3pʌŋeHa n OTkɪnʊeHa oT cETn
  OTBnHTnte KpbIshky C3aHneCteHKn.
• MaJIeHbKOJ OTBepTKoI OTKpyTInTe BnHT (1) C HIXKHeJ YacTn MaIINHKn dJa CTpNXKn.
• Пденистся поедно наень корпса, полунов достун К Витreneчукрпуну.
• Достою велов рыков
• Ростуншима.
  MaJIeHbKOIOTBepTKoBbIKpyTInTe(4)BnHTbI IN3 BHyTpEnHeroKOpnyCa
• Póndébte KpbIshky BByTpneHero KOpnyca, NoluyuB Doctyn K Neuathon nlaTe n 6aTapeym.
• OTPe nIOTnOMaTe pIOMbI npoBODC o6eHX cToPOH 6aTapei ydaJIte 6aTapei.
  Batape npndexnT 6e3oanchoH ytnn3aun.

3koIoruuecka 3auita

KISA KESIMLI SAÇLAR – “DÜZ” VE KISA KESİMLER

PENTRU A INDEPARTA PIEPTENELE

BRIGA O VAŠEM ŠIŠACU ZA KOSU

Vasšišć je opremljen visokokvalitelnim ostricama. Kako biste osigurali dugotrajnu učinkovitost Vaseg Šišča, redovito cristite ostrice i jedinicu. Uvjiek držće stavavac Čěsija na ostrici trimera.

NAKON SVAKE UPORABE

• Prijé ciścenja osiguraje da je uredaj iskljucen i iskopćan iz utićnice elektricne mreze.
• Otresite nakupljene dlacice iz ostrica. Nemojtve uranjati siisac u vodu.
• Kako bistie očistili jedinicu, vlažnom krpom obrišite uredaj i odmah ga osušite.

MOKRO CIscenJE

SUSTAV BRZOG PRANJA osmišjen je za postizanje najveće moguce učinkovitosti mokrog cisćenja.
- Pritisnite tipku koja se nalazi na prednjoo strani šišača kose. Ostriceće kliznuti van, takto da cijeli komplet mozete Jednostavno oprati pod tekúcom vodom.
- Nakon što se oprali oštrice blokirajte ih na njihovo mjesto gurajući komplet prema glavi šišača dok ne sjednu na mjesto.
- Nemojte cijeli urejadaj prati pod vodom; samo se ostrice mogu uranjati u vodu.
- Napomena: uvjerite se da je šišač iskljucen prise nego što počnete s Čišćenjem.

SVAKIH SEST MJESECI

• U redovitim intervalima komplet ostrica treba skinuti očistiti.
• Pomocu odvijača uklonite 2 vijka koji pridržavaju fiksnu oštricu. Ne uklanjaje komplet oštrica.
• Mekom Četkom za Čišćenje išćtakjte dlacice izmedu ostrica. Ne uklanjajte ulje za podmazivanje s ostrica. Iz ureža(Some potrebno okloniti malu pomicnu ostrico.
• Ako je ostrica opcala, moze se popraviti postavljanem drzača obložene ostrice u unutarnji utor glave uredaj. Utor obloženih ostrica, odmah ispod zubaca, sjeda u metalnu pločicu na suprotnoj strani od rupica za vijke. Fiksna ostrica opremljana je izdignutim proflom kojiPokazuje prema van te je pričvršćena s 2 vijka.
  Učinkovitost radaće biti umanjena ako oštrice nisu pravilno poděsene.
  Stavite par kapi ulja za šišać ili šišać strojeve na oštrice. Obrisite visak ulja.

UPOZORENJE TIJEKOM CISCENJA

• Prijie cisćenja osiguraje da je urežaj iskljucen i iskopćan iz utićnice elektrîne mreze.
• Samo nastavci Češljeva i oštrica šišača mogu se skinuti s proizvoda radičićenja.
• Čiścenje treba vršiti samo mekanom Četkicom poput one koju ste dobili sa proizvodom.
• Nemojte ispirati pod vodom.
• Ne koristite gruba ili abrazivna sredstva za cisćenje na Jedinicama ili njihovim ostricama.

UKLANJANE BATERIJE

• Prije odlaganja uredaja baterija se mora ukloniti.
• Ure'daj mora biti iskopčan iz elektricne mreže kad se uklanja baterija.
• Osigurajte da je iz šišača izbačena sva elektrčna snaga i da je iskopćan iz mrežne utićnice.
• SkinitePoklopac pričvrsćen vijcima sa stražnjeg kucišta.
• Pomócu malog odvijača, odvjte (1) vijak na dnu šišača.
• Skinite prednju plocu s prednjeg kuciša kako biste vidjeli unutrasnje kucište.
• Pomócu malog odvijača, odvijte (4) vija iz unutržnjeg kucišta.
• Skinite unutrasne kuciSTE kako bist e vidjeli tiskanu plociu i baterije.
  Presijcite ili slomite zapecaceni kraj zice na oba kraja i uklonite baterije.
  Baterija se mora zbrinuti na siguran nacin.

ZASTITA OKOLISA

Kako bi se izbjegle štegne posljudice na okolíš i zdravlje zbog opasnih sup脏anci u elektrčinm i elektronskim proizvodima, svì uredaji obilježeni ovi'm symbolom ne smiju se zbrjinavati kao nerazvrstani komunalni opstad, vće se moraju priukupiti, ponovo koristiti ili reciklratir.

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 2

iiill i 15i 15i 15i 15i 15i

silllll jao Jauoal oohc slp

Jauo dai jiu wai Jai jua Jua (1)

.

Jyua 1211 yduu (4)

jll

y

.

aaiy

gall 8 jaiil gall y aal, ayail slal

jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol jol

i 1

S OBC = S COD + S BOC - S BOC

aai jy y lalai dll ay aal y aai ai jy jol aia lii jss laie,

aall Jaa. jyblal aal ball j bial (jgill) Boost 12!

.5aaill 5aill 5e jyauily i

：

aall

aiaa aaii aai iiaai aiil bii 1sll ai jai ai bi

jie jie jie lai jia lai jia

125

aill jie 10

aell aell g 2, lsh jy cai jai jai jai jai jai jai jai jai jai jai

jellie glll aae baae ae eae

Jilll Jlll

Jall Jll 150s 150j j Jll p

jGg jlll lal al 100 . Jn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

aaii i aiee eae

Jr J

LaSg CjJai jai jai jai

g a baaal jaiyai jay jay ay jayaiyai y

.

iill iie 1

J

a a a a a a a a a a a a a a a a a a a a a a a a a a a

a 1000000000000000000000000000000000000000000

gl aalboll o jaiill dala g uys jyolo! sasrsas jaiil o jaiil

gall gals jaiy. giall all wal bs g aall

y jlll llll g aiaa aai gle jnaii ai ball jaiilg

Jy Jannnll yie 1y Ieia aye gaa ayi aai o jai i jai. Jauanall

Jauu Jauu Jauu Jauu Jauu Jauu

iill jia iil jia jia jia jia jia jia

eaaa aee ae yall sll jia bao lai jy jbiill

elall 2

.

.

.

.

.

.

.

.

.

.

。

.

.

.

18 12 12 12 12 12 12 12 12 12 12 12 12 12 12

jll-3 0 jll
laal Ua 6 1 3 2 aall lal 1 1 9 1 9

14-4 25
27 24 10000000000000000000000000000000000000000000000000000000000000000000000000000

5 5
10
10

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa

(HC5600) 23 jall aygill pbl
Boost (Jz) On (z) Off: zjall aygill pbl 13 dll. (4)
(aj)
(aj)
(aj)
(aj)
(aj)
(aj)
(aj)

(HC5800) aiaaii (aiaai i A
Auto, () Off: (Auto Boost) aiaai (aiaai ai 3 d
(aia) Boost ()
(ajai)
(Auto)

aalalalalalalalalalalalalalalalalalalal

(1)

slicc ic jll baw jno 12!

4

g d 1000000000000000000000000000000000000000

.0005

(HC5800)

y

HC5600 5-4 HC5400 16

.HC5800

gulj 1y jia jia jia jai

iill

y 1

JalSll jaiil cie 5-4

USB

eJgSll Jusse USB JUs

JUB USB

USB 1

（

Lg

ii aii iii aii jll aii jll

10

35 15 j 11

gj 12

.

13

a jlljll

(On/off) 1

2

3 42-24 21-3 2 3

102 2, p13-1 (HC5800) baiall jaiil jaiil jaii 4

(HC5600) 1.5

6

7

(HC5800)LED 8

Model No HC5400/HC5600/HC5800

Remington* is a Registered Trade Mark of Spectrum Brands, Inc., or one of its subsidiaries

VARTA Consumer Batteries GmbH & Co. KGaA, Alfred-Krupp-Str. 9, 73479 Ellwangen, Germany

www.remington-europe.com

© 2013 SBI
