USER MANUAL IR LINK C EBODE

IR Link Series - Extend your remote!

IR Link C - Mains Powered IR Remote Control Extender over COAX

User guide 3
Bedienungsanleitung 7
Gebruiksaanwijzing 11
Anvandarmanual 15
Guideutilisateur 19
Guía del usuario 23
Manual do utiliser 27
Manuale per l'utente 31

Contents of the kit / Lieferumfang / Inhoud van de set / Innehäll / Contenu du kit /Contenido del paquete / Conceudo do kit / Dotazione del kit

1. One InfraRed Receiver, Model IRLP.
2. One INJ Injector
3. One CPL Coupler.
4. One Triple Blinking IR Emitter, Model 3REDB. Incl. set of replacement adhesives
5. A 12VDC Power supply.

6.3 extra replacement adhesives for the IR Emitters

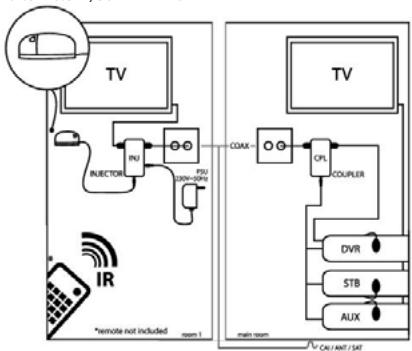

Example of where to install your IR Link C

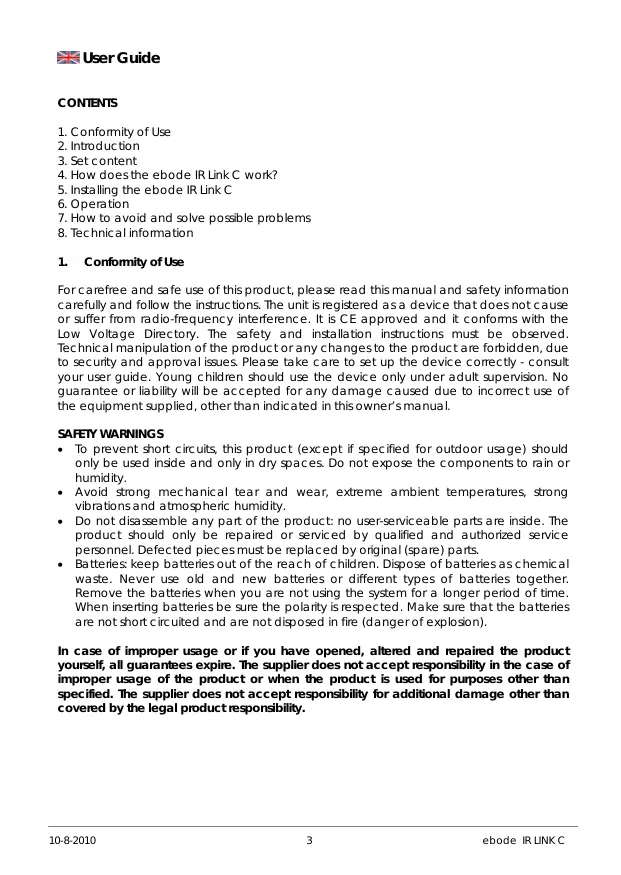

CONTENTS

1. Conformity of Use
2. Introduction
3. Set content
4. How does the ebode IR Link C work?
5. Installing the ebode IR Link C
6. Operation
7. How to avoid and solve possible problems
8. Technical information

1. Conformity of Use

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product or any changes to the product are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner's manual.

SAFETYWARNINGS

• To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity.
• Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity.
• Do not disassemble any part of the product: no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.
• Batteries: keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. When inserting batteries be sure the polarity is respected. Make sure that the batteries are not short circuited and are not disposed in fire (danger of explosion).

In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.

2. Introduction

Congratulations on purchasing the ebode IR Link C. Our ebode proprietary eR²x™ (pronounce Irex) Technology guarantees a high level of immunity for InfraRed noise from direct sunlight, CFL lighting and Flat Panel TV's (including Plasma, LCD and LED). It provides accurate reproduction of the latest generation InfraRed codes that are used in remote controls of, for instance, set-top boxes and media players (incl. RC5/6, RCMM, XMP).

The IR Link C is a mains powered InfraRed Extender System that allows full remote control operation of audio/video components (such as your Blu-ray player, A/V Receiver, DVR, Satellite Box, Cable Tuner, etc.) which are located in another room and makes use of existing coax cable (CATV).

An InfraRed Extender in general consists of an IR (InfraRed) capture device, the Receiver, a distribution circuit/connecting block, the Hub, and finally the IR LED output, the Emitter, which flashes the IR signal to the A/V component.

3. Set content

The ebode IR Link C consists of the following supplied parts:

1. One InfraRed Receiver, Model IRLP. It is placed at the remote room location to receive IR signals from the handheld remote controller.

2. One INJ Injector. This unit, located in the remote room, injects the remote control signal into the room to- room coaxial cable (along with the TV signal) and passes it to the CPL Coupler in the main room. It also provides quick connection of the IRLP IR Receiver and 12VDC power supply cables.

3. One CPL Coupler. Located in the main room, this Coupler extracts the remote control signal from the coaxial cable and passes it to the emitters that control your source equipment. In addition, the CPL contains a 2-way RF splitter so that the TV signal can be fed to a local TV.

4. One Triple Blinking IR Emitter, model 3IRDB. The Emitters on this device allow control of three InfraRed remote controlled audio/video components. The IR Emitters have a self adhesive film on one surface of each Emitter. This allows them to be "stuck" to the IR sensor "window" on your source equipment. There is a set of replacement adhesive pads included.

5. A 12VDC Power Supply. This plugs into a 230V - 50Hz outlet to provide power to the IRLP Receiver.

6. 3 extra replacement adhesives for the IR Emitters

4. How does the ebode IR Link C work?

The ebode IR Link C system uses the coaxial cable that carries the TV RF signal from the source equipment in the main room to the remote room, to send the IR control signals back to the source equipment. The coaxial cable may be up to 300m in length. If you already have a coaxial cable connecting your video

equipment with a remote room, your current hook-up should be similar to figure 1. If it isn't, run a single length of RG59 or preferably RG6 cable from the Main Room to the Remote Room.

NOTE: If RF amplifier(s), splitters or taps are used anywhere in the line of the coaxial cable between the CPL Coupler and the INJ Injector, you must verify if those are DC passive in order to be sure to route the IR commands through the amplifier(s) and splitters.

5. Installing the ebode IR Link C

INSTALLING THE IRLP IR RECEIVER

Insert the red mini plug attached to the IRLP into the jack marked "IR RECEIVER" on the INJ Injector. Refer to figure 2.

Plug the 12VDC Power Supply cord into the jack marked +12V on the INJ Injector. Plug the power supply into a 230V - 50Hz outlet after you have made all other connections.

Position the IRLP IR Receiver so that the InfraRed beam from the handheld remote control has a direct view at the front of the unit (within 10m). The Receiver can be fixed to the surface by using the double side tape pad or

via a slide on screw hole on the bottom of the unit.

INSTALLING THE INJ INJECTOR

Insert the "TO TV" plug on the back of the INJ injector into "RF IN" on the TV in the Remote Room. Connect the room-to-room cable to "ANT INPUT" on the INJ injector.

INSTALLING THE CPL COUPLER

Insert the "SAT/VCR" plug on the back of the CPL Coupler into "OUT TO TV" on DVR in the main room.

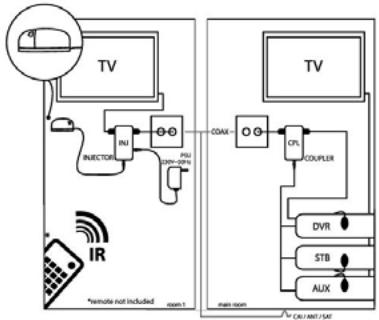

Connect the room-to-room cable to "REMOTE/TV" on the CPL Coupler, as shown in Fig. 2

INSTALLING THE 3IREDB TRIPLE IR EMITTER

Plug the 3IREDB Emitter into the jack marked "EMITTER" on the CPL Coupler in the main room.

The emitters should be installed directly to the InfraRed sensor "window" on the front panel of the satellite Receiver, DVR, cable box, etc. Simply remove the paper backing exposing the adhesive surface of each Emitter and apply them to the centre of the sensor window.

NOTE: Although the IRED appears dark to the eye, it is transparent to InfraRed. Positioning the IRED directly over the InfraRed window(s) of the component(s) will not block direct IR control from a handheld remote.

ATTENTION: If you are only using one A/V appliance, then you do not need to use the additional IR Emitters. Never remove it from the wire! Just dress up the wire and leave close to the CPL.

6. Operation

To use the ebode IR Link C Remote Control Extension System, simply point your handheld remote control(s) at the IR Receiver and press the desired button. A red LED on the front of the IR Receiver will indicate the reception of your InfraRed command.

NOTE: The maximum usable distance between your IR remote and the IRLP Receiver will vary for each remote and might be shorter than when directly used in the room controlling the satellite Receiver or other IR controlled devices.

ADVANCED MULTIROOM HOOKUP

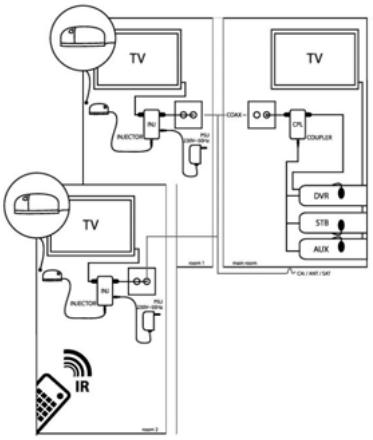

Figure 3 shows an advanced system using two ebode IR Link C's in a multi-room installation. Except for the addition of a 2-way DC passing RF splitter, the connections are essentially the same.

7. How to avoid and solve possible problems

Although the ebode IR Link C is equipped with proprietary eIRx™ (pronounced Irex) Technology, which guarantees a high level of immunity of InfraRed noise of direct sunlight, CFL lighting and Flat Panel TV's (including Plasma, LCD and LED), in rare cases, the IR Receiver may have to be moved to a different location if the unit is picking up unexpected interference. This interference may, in severe cases, prevent the system from working. You can identify interference when the InfraRed Emitters are lit or

blinking, even when you're not using a remote control transmitting at the time.

After repositioning, check to see if the ebode IR Link C operates the satellite Receiver or other components. If the ebode IR Link C still does not work, reposition the IRED Emitter(s). It may not be located directly over the component's InfraRed receiving "window". Consult the owner's manual of the unit or the manufacturer for the exact location of the InfraRed "window".

IMPORTANT: For installations involving more than two remote rooms, use the services of a competent professional audio/video installer experienced in InfraRed Remote Control Systems.

Do you still have questions? Please refer to www.ebodeelectronics.eu

8. Technical information

Power Supply: 230V 50Hz 12VDC 100mA; 2.1mm

IR emitting diode cable: 3 IR LEDs

Cable length: 3m from CPL to IR LEDs,

Receiver: dimensions 55x40x25mm

INHALT

INSTALLERA CPL KOPPLING

DECLARATION OF CONFORMITY

Hereby, ebode electronics, declares that this ebode IR Link C is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using

Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.

C

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)

This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.

It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.

For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.
