HDIK30 - Audio/video extension EBODE - Free user manual and instructions

Product type	Audio/video extender
Brand	ebode
Model	HDIK30
Dimensions (L x W x H)	100 x 50 x 20 mm
Weight	80 g
Power supply	USB 5V (cable included)
Connectivity	HDMI input/output, optical audio port
Maximum supported resolution	4K@60Hz
Transmission distance	Up to 30 m via standard HDMI cable
Main features	HD audio/video signal extension, HDCP 2.2 support, low latency
Care and cleaning	Wipe with a soft, dry cloth. Do not use liquid or abrasive products.
Safety	Do not expose to moisture or extreme temperatures. Do not open the enclosure.
Spare parts and repairability	This device contains no user-serviceable parts. In case of malfunction, contact customer support.
Compatibility	Works with all HDMI transmitters/receivers, game consoles, Blu‑ray players, TV set-top boxes
Package contents	Audio/video extender, USB power cable, quick start guide

Frequently Asked Questions - HDIK30 EBODE

How to install the ebode HDIK30 audio/video extender?

Connect the extender to your audio/video source via an HDMI cable, then connect the USB cable to a power source (wall adapter or TV USB port). Then, connect the HDMI output to your display or receiver.

What is the maximum transmission distance?

With a good quality standard HDMI cable, you can transmit the signal up to 30 meters without quality loss.

Is the extender compatible with 4K?

Yes, the ebode HDIK30 supports resolutions up to 4K@60Hz and is HDCP 2.2 compatible.

Can I use the extender without external power?

No, the extender requires power via USB 5V. You can use the supplied USB cable plugged into a wall adapter or a TV USB port.

What types of HDMI cables are recommended?

Use an HDMI high-speed cable with Ethernet (category 2) for optimal performance, especially over long distances.

Does the extender support surround sound?

Yes, it transmits multi-channel audio formats like Dolby TrueHD and DTS-HD Master Audio via the HDMI stream.

What to do if the image does not display?

Check that all cables are properly connected and the extender is powered on. Try restarting the source and display. If the issue persists, test with another HDMI cable.

Is this extender compatible with game consoles?

Yes, it works with consoles like PlayStation, Xbox, and Nintendo Switch, provided they have a standard HDMI output.

Can I use multiple extenders in series?

It is not recommended to cascade multiple extenders, as this may degrade the signal. For longer distances, use an HDMI repeater or a fiber optic cable.

How to clean the ebode HDIK30 extender?

Unplug the extender, then gently wipe the casing with a soft, dry cloth. Never use solvents or liquid products.

USER MANUAL HDIK30 EBODE

Black cable with a connector and label 'Blaster' below (no other text or symbols)

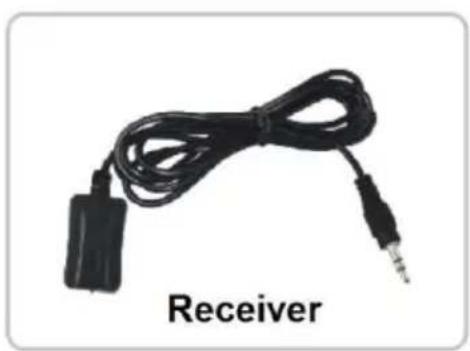

Black cable with a small connector and label 'Receiver' below (no other text or symbols)

Close-up of a black USB adapter with a yellow connector, labeled 'Adapter' below (no other text or symbols)

HDIK30

Before using our product, please read this document carefully.

Contents

1. CONFORMITY OF USE
2. INTRODUCTION
3. SET CONTENTS
4. SPECIFICATIONS
5. IR OPERATION WITH EBODE SWITCHER OR SPLITTER
6. IR OPERATION WITHOUT EBODE SWITCHER OR SPLITTER AS STAND-ALONE KIT
7. CEC OPERATION WITH EBODE SWITCHER OR SPLITTER
8. CEC OPERATION WITHOUT EBODE SWITCHER OR SPLITTER AS STAND-ALONE KIT

1. Conformity of Use

For carefree and safe use of this product, please read this manual and safety information carefully and follow the instructions. The unit is registered as a device that does not cause or suffer from radio-frequency interference. It is CE approved and it conforms with the Low Voltage Directory. The safety and installation instructions must be observed. Technical manipulation of the product, or any changes to the product, are forbidden, due to security and approval issues. Please take care to set up the device correctly - consult your user guide. Young children should use the device only under adult supervision. No guarantee or liability will be accepted for any damage caused due to incorrect use of the equipment supplied, other than indicated in this owner's manual.

Safety warnings

• To prevent short circuits, this product (except if specified for outdoor usage) should only be used inside and only in dry spaces. Do not expose the components to rain or humidity.
• Only connect the power cord to the mains after checking whether the mains voltage is the same as the values on the rating labels. Never connect a power cord when it is damaged. In that case, contact your supplier. If there is any danger of a thunderstorm, it is a good precaution to unplug the power supply from the mains network in order to protect it from lightning. The same applies if the system is to be out of action for any length of time.
• Avoid strong mechanical tear and wear, extreme ambient temperatures, strong vibrations and atmospheric humidity.
• Do not disassemble any part of the product: the device contains live parts and no user-serviceable parts are inside. The product should only be repaired or serviced by qualified and authorized service personnel. Defected pieces must be replaced by original (spare) parts.

In case of improper usage or if you have opened, altered and repaired the product yourself, all guarantees expire. The supplier does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. The supplier does not accept responsibility for additional damage other than covered by the legal product responsibility.

2. Introduction

Thank you for purchasing the ebode HDIK30. The ebode IR over HDMI set, HDIK30 contains two IR Adapters, one IR Receiver and one IR Blaster. These products are used for the ebode HDMI splitters (HDSPLIT12 & HDSPLIT14), switchers (HDSWITCH31 & HDSWITCH51) and could also be used as a stand-alone IR over HDMI solution. This kit features two selectable IR modes; CEC and IR. CEC is used when your device (TV, DVD, STB etc.) is CEC compatible. When your device is CEC compatible* you do not need to use the included IR Receiver and IR Blaster since receiving and sending of IR is done over the IR Receiver build into your TV and sources (DVD, STB etc.).

* Please note that in some cases your TV and source might be CEC compatible but cannot use the CEC feature of our kit. At this moment there is no standard for IR control over CEC so it's a matter of testing and seeing the results.

3. Set Contents

When unpacking your ebode HDIK30 please check if the items below are included, if any items are missed or damaged, please contact your distributor.

• 2x HDMI IR Adapter
- 1x IR Receiver
- 1x IR Blaster

4. Specifications

• Dual band IR Blaster and Receiver
• HDMI Male to Female Adapter
- Blaster and receiver support 30KHz – 60 KHz wide band IR
• 3.5mm Stereo Jack connector for IR
- Blaster and receiver working distance 3-5m
• IR over HDMI up to 100 meters
- No external power adapter required
- Switch between IR or CEC mode

5. IR operation with ebode switcher or splitter

• When using the HDIK30 kit with the ebode HDMI splitters (HDSPLIT12 & HDSPLIT14) or switchers (HDSWITCH31 & HDSWITCH51) you would only need 1 adapter to send the IR signal from the TV to the source (DVD, STB etc.). The receiving adapter is built into our switchers and splitters.
  • Take the HDMI cable out of the TV and put the adapter on the HDMI cable.
• Put the HDMI cable with adapter back into your TV.
• Connect the IR receiver to the adapter at the TV side and place the Receiver on a good clear visible spot near your TV so you can point at it with the remote of the source (DVD, STB etc.).
• Set the tiny switcher on the adapter at the TV side to "IR".
• Connect the Blaster to the IR output on the Switcher or Splitter and place the Blaster in front but within 2 meters of your source or sources such as DVD, STB etc. It is no problem if the sources are in a closed cabinet as long as the Blaster has clear visibility to the IR receiving windows on each device.
• Test your IR over HDMI connection by pointing the remote of the source of your choice to the IR Receiver and send an IR command such as power-on. Please verify if the source is powered and ready to receive IR commands by controlling it directly first.

6. IR operation without ebode switcher or splitter as stand-alone kit

• When using this IR over HDMI kit without any of our switchers you would need two adapters.
  • Take the HDMI cable out of the TV and put the adapter on the HDMI cable.
• Put the HDMI cable with adapter back into your TV.
• Connect the IR receiver to the adapter at the TV side and place the Receiver on a good clear visible spot near your TV so you can point at it with the remote of the source (DVD, STB etc.).
• Set the tiny switcher on both adapters to "IR".
• Take the HDMI cable out of the source (DVD, STB etc.) and put the adapter on the HDMI cable.
• Put the HDMI cable with adapter back into the source.
• Connect the Blaster to the IR output on the adapter at the source side and place the Blaster in front but within 2 meters of your source or sources such as DVD, STB etc. It is no problem if the sources are in a closed cabinet as long as the Blaster has clear visibility to the IR receiving windows on each device.
• Test your IR over HDMI connection by pointing the remote of the source of your choice to the IR Receiver and send an IR command such as power-on. Please verify if the source is powered and ready to receive IR commands by controlling it directly first.

7. CEC operation with ebode switcher or splitter

• When using the HDIK30 kit with the ebode HDMI splitters (HDISPLIT12 & HDSPLIT14) or switchers (HDSWITCH31 & HDSWITCH51) you would only need 1 adapter to send the IR signal from the TV to the source (DVD, STB etc.). The receiving adapter is built into our switchers and splitters.
  • Take the HDMI cable out of the TV and put the adapter on the HDMI cable.
• Put the HDMI cable with adapter back into your TV.
• Set the tiny switcher on the adapter at the TV side to "CEC".
• Look into the manual of your TV and Source and make sure both have CEC enabled. If not the CEC feature cannot work.
• Test your IR over HDMI connection by pointing the remote of the source of your choice to the IR. Receiving Window of your TV and send an IR command such as power-on. Please verify if the source and TV are powered and ready to receive IR commands by controlling it directly first.

8. CEC operation without ebode switcher or splitter as stand-alone kit

• When using this IR over HDMI kit without any of our switchers you would need two adapters.
  • Take the HDMI cable out of the TV and put the adapter on the HDMI cable.
• Put the HDMI cable with adapter back into your TV.
• Connect the IR receiver to the adapter at the TV side and place the Receiver on a good clear visible spot near your TV so you can point at it with the remote of the source (DVD, STB etc.).
• Take the HDMI cable out of the source (DVD, STB etc.) and put the adapter on the HDMI cable.
• Put the HDMI cable with adapter back into the source.
• Set the tiny switcher on both adapters to "CEC".
• Look into the manual of your TV and Source and make sure both have CEC enabled. If not the CEC feature cannot work.
• Test your IR over HDMI connection by pointing the remote of the source to the IR Receiving Window of your TV and send an IR command such as power-on. Please verify if both the source and TV are powered on and ready to receive IR commands by controlling it directly first.

Figure 1.2

Inhalt:

Figur 1.2

Inhoud

1. GEBRUIKSVOORSCHRIFT
2. INTRODUCTIE
3. INHOUD
4. SPECIFICATIES
5. IR WERKING MET EBODE SWITCHER OF SPLITTER
6. IR WERKING ZONDER EBODE SWITCHER OF SPLITTER ALS STAND-ALONE KIT
7. CEC WERKING MET EBODE SWITCHER OF SPLITTER
8. CEC WERKING ZONDER EBODE SWITCHER OF SPLITTER ALS STAND-ALONE KIT

Figuur 1.2

Contenu

1. CONFORMITE D'UTILISATION
2. INTRODUCTION
3. CONTENU

4. CARACTERISTIQUES

5. FONCTIONNEMENT IR AVEC LE SWITCH OU SPLIT EBODE

6. FONCTIONNEMENT IR SANS LE SWITCH OU SPLIT EBODE

7. FONCTIONNEMENT CEC AVEC LE SWITCH OU SPLIT EBODE

8. FONCTIONNEMENT CEC SANS LE SWITCH OU SPLIT EBODE

Figure 1.2

DECLARATION OF CONFORMITY

Hereby, ebode electronics, declares that this ebode HDIK30 kit is in compliance with the essential requirements and other relevant provisions of the following Directives:

Directive 2004/108/EC of the European Parliament and of the Council of 15 December 2004 on the approximation of the laws of the Member States relating to electromagnetic compatibility

Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits

Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

Directive 2005/32/EC of the European Parliament and of the Council of 6 July 2005 establishing a framework for the setting of eco design requirements for energy-using

Technical data and copies of the original Declaration of Conformity are available and can be obtained from ebode electronics: PB 25, NL-4264ZG, the Netherlands.

CE

User Information for Consumer Products Covered by EU Directive 2002/96/EC on Waste Electric and Electronic Equipment (WEEE)

This document contains important information for users with regards to the proper disposal and recycling of ebode products. Consumers are required to comply with this notice for all electronic products bearing the following symbol:

Environmental Information for Customers in the European Union

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.

It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.

For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

DECLARATION OF CONFORMITY TO R&TTE DIRECTIVE 1999/5/EC for the European Community, Switzerland, Norway, Iceland and Liechtenstein

Product category: general consumer (category 3).

English: This equipment is in compliance with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC

Close-up of a black circular electronic device with white branding and a small logo, no visible text or symbols on the body.

Bluetooth Speaker BTS30

Use the BT Sound to share the music on your smartphone, tablet or laptop wirelessly with your friends. As the BT Sound is small in size you can enjoy your favourite songs any place, anytime, anywhere! Ideal for parties, festivals or while travelling.

Bluetooth Receiver BTR30

Transmit the music from you smartphone, tablet or laptop wireless to your BT Sound Receiver. You easily hook this up to your amplifier, stereo set or your car audio system. Enjoy your favourite songs with all your friends at home, and on the go!

Black electronic device labeled 'ebode' with cable and speaker ports (no readable text beyond branding)

ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit www.ebodeelectronics.eu.

Also available from ebode: Bluetooth Speaker and Bluetooth receiver

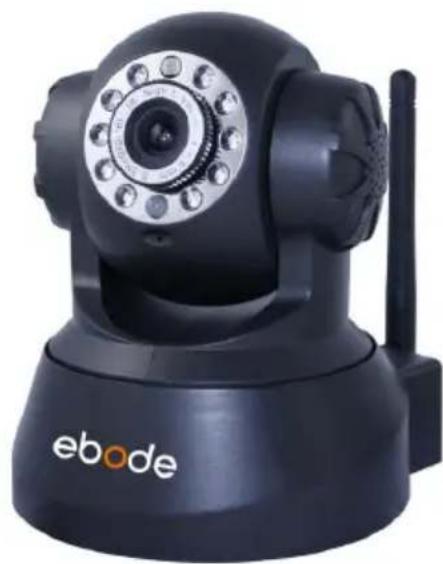

Black ebo de camera with visible sensor and antenna (no text or symbols on device body)

WideEye IP Camera IPV38WE

The indoor camera comes with a standard 6.0mm lens or you can choose the 3.6mm WideEye lens. They are both pan and tilt and can be set as a motion detector which records videos, photos and sound. They have a build-in microphone and speaker.

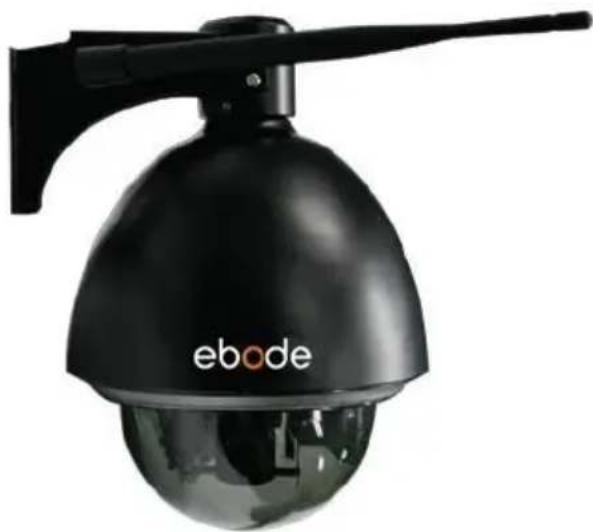

Dome IP Camera IPV68

The dome camera is a waterproof camera for both outdoor and indoor use. The camera can Pant, Tilt, has 3x Optical Zoom and 640 x 480 pixels (300k) MPEG4 resolution. It has a metal housing, an easy user interface and is fully plug and play.

Black spherical security camera with 'ebode' branding, no visible text or symbols on the device itself

ebode is focusing on wireless audio and video products, that are affordable, innovative and plug & play. The products provide you with comfort in your home, help you to avoid wires, and make sure you can stream your personal audio and video to where ever you want to look or listen to it. For more ebode products and information, please visit www.ebodeelectronics.eu.

Also available from ebode: Bluetooth Speaker and Bluetooth receiver

Free Frequency FM Transmitter

Plug the FM Sound in your Smartphone and send the music wireless to your (car) radio. Works with any free frequency. Available for iPod, iPhone, iPad, Android, and any other device with a 3.5mm plug.

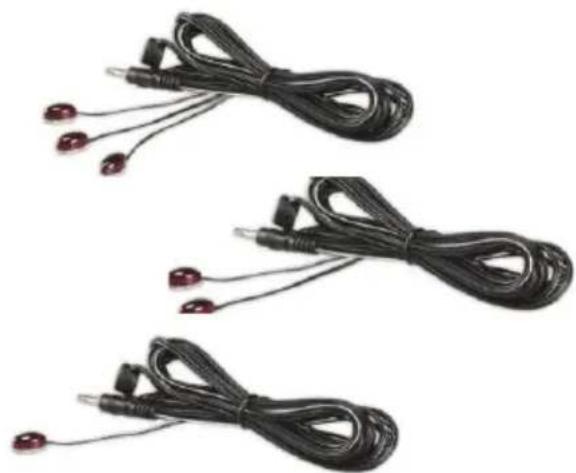

Infrared Accessories
