AT-5452 - Air-conditioner TRISTAR - Free user manual and instructions

Product type	Monoblock mobile air conditioner
Model	AT-5452
Brand	Tristar
Refrigerant	R410A
Quantity of refrigerant	0.27 kg (depending on variant)
Global warming potential (GWP)	2088
CO2 equivalent	0.5638 tonne (depending on variant)
Power supply	220-240 V ~ 50 Hz
Functions	Cooling, dehumidification, ventilation, timer
Operating temperature range	18 °C to 35 °C
Temperature adjustment	16 °C to 31 °C (cooling mode)
Fan speeds	High, medium, low (depending on Fan Speed button)
Timer	0-24 hours for on and off
Water tank capacity	Not specified (full tank alarm)
Continuous drainage	Possible via rubber plug and hose
Minimum distance around the appliance	30 cm
Air filter	Washable, clean every 2 weeks
Dimensions (approx.)	Not specified (portable, on wheels)
Weight (approx.)	Not specified
Warranty	24 months
Spare parts	Available at service.tristar.eu
Safety	Automatic shutdown on overheating (heating mode), full tank alarm, child protection (supervision required)
Cleaning and maintenance	Unplug before cleaning; clean air filter with warm water; do not use solvents
Installation	Requires hot air exhaust hose and window kit included

Frequently Asked Questions - AT-5452 TRISTAR

How to clean the air filter?

Open the air intake grille, remove the filter, clean it with a neutral detergent in warm water (40°C), dry it in the shade, then replace it. It is recommended to clean it every two weeks.

What does error code E0 mean?

The E0 code indicates a failure of the ambient temperature sensor. The appliance may continue to operate without replacement, but it is recommended to replace the sensor.

How to use the timer to turn the appliance on or off?

To set the on timer: appliance off, press Timer and set the desired time (0-24h) with the temperature buttons. For off: appliance on, press Timer and set the off time.

What to do when the full water tank indicator lights up?

If the internal water tank is full, the appliance stops and the indicator flashes. Drain the water by removing the drain plug at the bottom of the appliance or connecting a hose for continuous drainage.

What type of refrigerant does this appliance use?

The air conditioner uses R410A refrigerant. The exact quantity varies by model: 0.27 kg (AC-5477, AC-5527PR) or 0.29 kg (AC-5529, AC-5531). It is a fluorinated greenhouse gas with a GWP of 2088.

Can I use an extension cord?

Using an extension cord is not recommended. Plug the appliance directly into a properly grounded 220-240V/50Hz wall outlet, in accordance with local electrical standards.

What is the minimum distance to maintain around the appliance?

The appliance must be installed on a flat, clear surface, with at least 30 cm of free space around it to ensure good air circulation.

How to install the hot air exhaust hose?

Attach the two ends of the hose to the fixing clamps (square and flat). Insert the square clamp into the openings at the back of the air conditioner, then place the other end on the window kit. Make sure the hose is not obstructed.

How does the dehumidification mode work?

Press the Mode button until the Dehumidification icon flashes. The appliance automatically sets the temperature 2°C below room temperature and forces the fan at low speed. Dehumidification mode helps reduce indoor humidity.

What to do if the appliance does not cool sufficiently?

Check that doors and windows are closed, that no heat source is nearby, that the exhaust hose is properly connected and not blocked, that the set temperature is not too high, and that the air intake is not obstructed.

USER MANUAL AT-5452 TRISTAR

• Please read this user's manual carefully to ensure proper use, maintenance and installation.
• The appliance is for indoor use only.
• Do not use the unit on a socket under repairs or not installed properly
• Do not use the unit, follow these precautions: o Near to source of fire.
  o An area where oil is likely to splash.
  o An area exposed to direct sunlight.
  o An area where water is likely to splash.
  o Near a bath, a laundry, a shower or a swimming pool.
• Never insert your fingers, rods into the air outlet.
  Take special care to warn children of these dangers.
• Keep the unit upward while transport and storage, for the compressor locates properly.
• Before cleaning the air-conditioner, always turn off or disconnect the power supply.
• When moving the air-conditioner, always turn off and disconnect the power supply, and move it slowly.
• To avoid the possibility of fire disaster, the air-conditioner shall not be covered.
• All the air-conditioner sockets must comply with the local electric safety requirements. If necessary, please check it for the requirements.

• Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance shall be installed in accordance with national wiring regulations.
  Notes:

o If any parts damage, please contact the dealer or a designated repair shop;
o In case of any damage, please turn off the air switch, disconnect the power supply, and contact
o The dealer or a designated repair shop;
o In any case, the power cord shall be firmly grounded.
o To avoid the possibility of danger, if power cord is damaged, please turn off the air switch and disconnect the power supply. It must be replaced from the dealer or a designated repair shop.

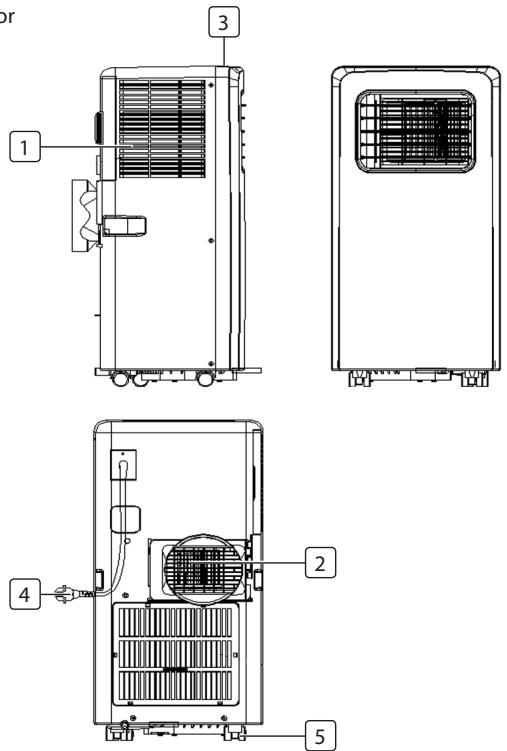

PARTS DESCRIPTION

1. Air inlet
2. Air outlet
3. Control panel
4. Power cord
5. Castor

ACCESSIONS

Part	Description
	Hot-air exhaust hose
	Hose connector (window end)
	Hose connector (Air conditioner end)
	Window kit
	Remote controller

EN

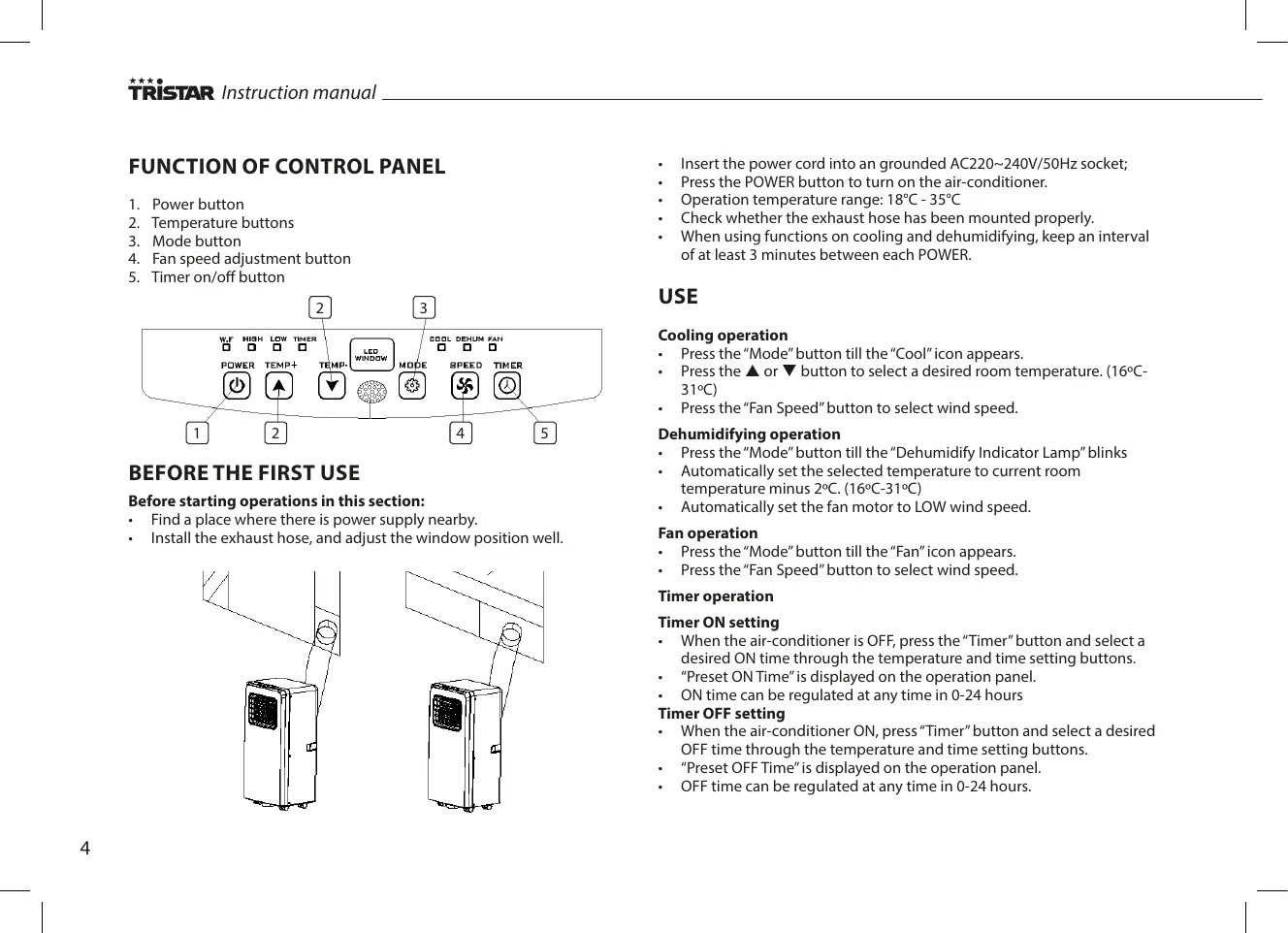

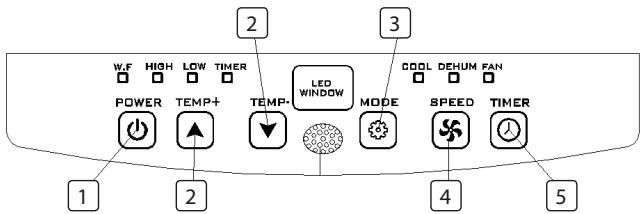

FUNCTION OF CONTROL PANEL

1. Power button
2. Temperature buttons
   3.Mode button
3. Fan speed adjustment button
4. Timer on/off button

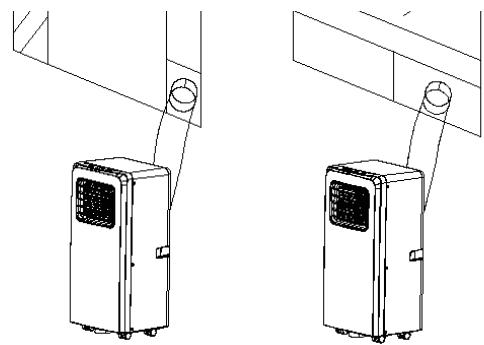

BEFORE THE FIRST USE

Before starting operations in this section:

Find a place where there is power supply nearby.
Install the exhaust hose, and adjust the window position well.

• Insert the power cord into an grounded AC220~240V/50Hz socket;
• Press the POWER button to turn on the air-conditioner.
  Operation temperature range: 18^ - 35^
• Check whether the exhaust hose has been mounted properly.
• When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER.

USE

Cooling operation

• Press the "Mode" button till the "Cool" icon appears.
  Press the or button to select a desired room temperature. (16°C-31°C)
  Press the "Fan Speed" button to select wind speed.

Dehumidifying operation

• Press the "Mode" button till the "Dehumidify Indicator Lamp" blinks
• Automatically set the selected temperature to current room temperature minus 2^ . (16°C-31°C)
• Automatically set the fan motor to LOW wind speed.

Fan operation

• Press the "Mode" button till the "Fan" icon appears.
  Press the "Fan Speed" button to select wind speed.

Timer operation

Timer ON setting

• When the air-conditioner is OFF, press the "Timer" button and select a desired ON time through the temperature and time setting buttons.
• "Preset ON Time" is displayed on the operation panel.
  ON time can be regulated at any time in 0-24 hours

Timer OFF setting

• When the air-conditioner ON, press "Timer" button and select a desired OFF time through the temperature and time setting buttons.
• "Preset OFF Time" is displayed on the operation panel.
  OFF time can be regulated at any time in 0-24 hours.

Continuous Drainage

• When you plan to leave this unit unused for a long time, please remove the rubber blockage from the drainage hole at the bottom of unit, and connect a drain hose to the lower fixing clip. All the water in the water tank will drain outside.
• If water pump is damaged, continuous drainage can be used, and under this condition, the water pump is not activated. The unit can also work well.
• If water pump is damaged, intermittent drainage can also be used. Under this condition, when the water full indicator lamp lights up, please connect a drain hose to the lower fixing clip.

Internal Tank Water Full Alarm Function

The inner water tank in the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (If water pump is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will drain outside.)

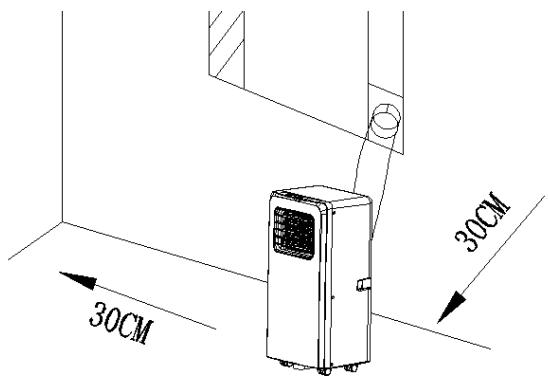

INSTALLATION

• A removal air-conditioner shall be installed in the flat and empty place all around. Don't block the air outlet, and the required distance around should be at least 30cm .
• Socket wiring should be in accordance with the local electric safety requirements.

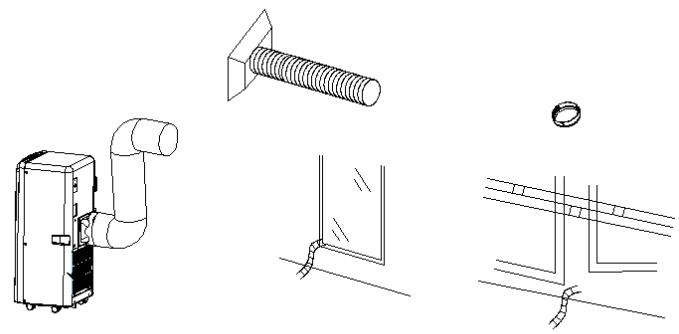

Exhaust Hose Installation

• Twist both ends of the exhaust hose into the square fixing clip and the flat fixing clip.
• Insert the square fixing clip into openings at back of the air conditioner
• Put the other end of the exhaust hose to the near windowsill.

Window Slider Kit Installation

• The installation manner of window slider kit is mostly in "horizontal" and "vertical", No much difference in actual process.

CLEANING MAINTENANCE

• Before cleaning, be sure to disconnect the unit from any electric supply outlet.
• First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.
• Do not use gasoline or other chemicals to clean the unit.
• Do not wash the unit directly.
  If the conditioner is damaged, please contact the dealer or repair shop.

Air Filter

• If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.
• Open the air inlet grille and take off air filter.
• Clean the air filter with neural detergent in lukewarm 40^ and dry it up in the shade.
• Putting the air filter into the inlet grille, replace the components as they were.

TROUBLE SHOOTING

Troubles	Possible Causes	Suggested Remedies
The unit does not start when pressing power button	·Water full indicator lamp blinks, and water tank is full. ·Room temperature is higher than the setting temperature. (Electric heating mode) ·Room temperature is lower than the setting temperature. (Cooling mode)	·Dump the water out of the water tank. ·Reset the temperature ·Reset the temperature
The unit doesn't cool enough	·The doors or windows are not closed. ·There are heat sources inside the room. ·Exhaust air hose is not connected or blocked. ·Temperature setting is too high. ·Air inlet is blocked.	·Make sure all the windows and doors are closed. ·Remove the heat sources if possible ·Connect or clean the exhaust air hose. ·Reset the temperature ·Clean the air inlet.
Auto Power-Off in heating mode	• Heating protection, when the temperature at the air outlet exceeds 70, the unit will power off automatically.	• Restart the unit at enough lower room temperature.
Noisy	• The ground is not level or not flat enough • The sound comes from the flowing of the refrigerant inside the air conditioner	• Place the unit on a flat, level ground if possible • It is normal.
E0 Code	• Room temperature sensor failed	• Replace room temperature sensor (the unit can also work without replacement.)
E2 Code	• Water tank full	• Please empty the water tank

The product or equipment contains fluorinated greenhouse gas.

Art.nr. AC-5477

Coolant: R410a

Quantity in kg: 0,27

Global Warming Potential: 2088

CO2 Equivalent in tonnes: 0,5638

Art.nr. AC-5527PR

Coolant: R410a

Quantity in kg: 0,27

Global Warming Potential: 2088

CO2 Equivalent in tonnes: 0,5638

Art.nr. AC-5529

Coolant: R410a

Quantity in kg: 0,29

Global Warming Potential: 2088

CO2 Equivalent in tonnes: 0,6055

Art.nr. AC-5531

Coolant: R410a

Quantity in kg: 0,29

Global Warming Potential: 2088

CO2 Equivalent in tonnes: 0,6055

GUARANTEE

• This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.
• For the detailed warranty conditions, please refer to our service website: service.tristar.eu

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

SUPPORT

You can find all available information and spare parts at

http://www.service.tristar.eu
