GMO23ORA - Microwave GORENJE - Free user manual and instructions

Product type	Microwave with grill
Brand	Gorenje
Model	GMO23ORA
Power supply	230 V – 50 Hz
Total power	1280 W
Microwave power	900 W
Grill power	1200 W
Microwave frequency	2450 MHz
External dimensions (W x H x D)	510 x 303 x 405 mm
Cavity dimensions (W x H x D)	330 x 212 x 330 mm
Cavity volume	23 L
Net weight	14.5 kg
Noise level	< 58 dB (A)
Main functions	Minute reheating, microwave (5 power levels), automatic defrost, grill (2 levels), combined cooking (2 modes), automatic cooking (6 menus)
Clock and timer	24-hour clock, timer for delayed start
Child safety	Lock by pressing + and - buttons simultaneously for 2 seconds
Turntable materials	Glass, diameter suitable for cavity
Maintenance and cleaning	Clean the interior with a damp sponge; turntable and roller ring are dishwasher safe; do not use abrasive detergents
Spare parts and repairability	Bulb replaceable by retailer; power cord by after-sales service
Safety instructions	Appliance must be earthed; do not use if door or seal is damaged; do not heat sealed containers; supervise children when using the grill
General information	Household use only; WEEE compliance; ventilation space: 8 cm on each side, 10 cm at the rear

Frequently Asked Questions - GMO23ORA GORENJE

How to set the clock on the Gorenje GMO23ORA microwave?

Press the Clock/Timer button. The display flashes. Set the hours using the 1 MIN and 10 SEC buttons, then press Clock/Timer again to set the minutes. Press a third time to confirm.

Can I use metal containers in this microwave?

No, never use metal dishes or those with metal handles, nor containers with metal trim. They may cause sparks and damage the appliance.

How to activate child safety?

Press the + and - buttons (increase and decrease time) simultaneously for 2 seconds. Repeat to deactivate.

The microwave no longer heats, what to do?

First check that the appliance is plugged in and that the fuse/circuit breaker has not tripped. Make sure the door is closed properly and the lock is engaged. If the problem persists, contact after-sales service.

How to clean the inside of the oven?

Use a damp sponge with a mild non-abrasive detergent. Avoid harsh chemicals. For odors, place a bowl of water with lemon juice and heat for 5 minutes in microwave mode.

Can I cook hard-boiled eggs in the microwave?

No, do not cook hard-boiled or soft-boiled eggs in the microwave, as they may explode even after cooking.

How to use the automatic defrost function?

Press the Micro... Auto menu button until DEF is displayed. Enter the weight of the frozen food (max. 2 kg) using the 1 MIN and 10 SEC buttons, then press Start/Reset.

What to do if smoke comes out of the microwave?

Immediately stop the oven, unplug it, and keep the door closed to smother any flames. Do not open the door suddenly.

How to set a delayed start with the timer?

First set the start time using the Clock/Timer button. Then select the power and cooking duration, then press Start/Reset. The oven will start at the programmed time.

What utensils can I use for the grill?

Use only microwave-safe and heat-resistant utensils. The grill works with a heating element at the top of the oven: place food on the provided trivet.

USER MANUAL GMO23ORA GORENJE

Mikrovalovna pečica	Navodila za uporabo	SI
Mikrovalovna pećnica	Upute za uporabu	BIH HR
Mikrotalasna rerna	Uputstvo za upotrebu	BIH SRB MNE
Мікробрава та чека	Уразства за у鞘тpeба	MK
Microwave oven	Instruction manual	GB
Mikrowellengerät	Gebrauchsanweisung	D
Micro-ondes	Notice d'utilisation	F
Mikrohullámú sütó	Használati utasítás	H
Kuchenka mikrofalowa	Instrukcja obšlugi	PL
Microunde	Manual de/utilizare	RO
Mikrovlnná rúra	Návod na obsluhu	SK
Mikrovlnná trouba	Návod na použití	CZ
Мікровьлнова差别фурна	Инструкци за у鞘тpeбa	BG
Мікрхвийто вп.	Инструкци з-Eastочиуатацii	UA
Мікроволновая песь	Инструкци по-Eastочиуатацii	RUS
Forno a microonde	Istruzioni d'uso	I
Mikrobřlggeovn	Brugsanvisning	DK
Mikrobřlggeoven	Bruksanvisning	SE
Mikrovígsugnen	Bruksanvisning	NO
Mikroaaltouuni	Käytöohje	FI
Mikrovilnu krasnj	Lietotaja rokasgramata	LV
Mikrobangu krosnele	Naudojimo instrukcija	LT
Mikrolaineahi	Kasutusjuhend	EE
Microondas	Instrucciones para el uso	E

SI Navodila za uporabo 3 HR Upute za uporabu 10 SRB, MNE Uputstvo za upotrebu 17 MK упатства за употреба 24 EN Instruction manual 32 DE Gebrauchsanweisung 39 FR Notice d'utilisation 47 HU Használati utasítás 54 PL Instrukcja obsługi 62 RO Manual de utilizare 70 SK Návod na obsluhu 77 CZ Návod na použití 84 BG инструкция за употреба 91 UK інструкція з експлуатації 99 RU инструкция по эксплуатации 106 IT Istruzioni d'uso 113 DK Brugsanvisning 120 SE Bruksanvisning 127 NO Bruksanvisning 134 FI Käyttöopas 141 LV Lietošanas pamācības rokasgrāmata 148 LT Naudojimo instrukcija 155 EE Kasutusjuhend 162 ES Instrucciones para el uso 169

Read the instructions carefully and keep them for future reference!

Specifications

Power consumption: 230V~50Hz, 1280W Output power: 900W Grill heater: 1200W Operating frequency: 2450MHz External dimensions: 510mm (W) x 303mm (H) x 405mm (D) Cavity dimensions (inside of the oven): 330mm (W) x 212mm (H) x 330mm (D) Oven capacity: 23 liters Weight without packaging: approx. 14.5 kg Noise level: Lc < 58 dB (A)

Read the instructions carefully and keep them for future reference!

Specifications

Power consumption: 230V~50Hz, 1280W Output power: 900W Grill heater: 1200W Operating frequency: 2450MHz External dimensions: 510mm (W) x 303mm (H) x 405mm (D) Cavity dimensions (inside of the oven): 330mm (W) x 212mm (H) x 330mm (D) Oven capacity: 23 liters Weight without packaging: approx. 14.5 kg Noise level: Lc < 58 dB (A)

This appliance is marked according to the European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE).

The product is designed to facilitate the return and recycling of old appliances, in accordance with European regulations.

Before calling service

1. If the oven does not work at all, if nothing appears on the display, or if the display shows an error:

a) Check that the power cord is properly plugged into the electrical outlet. If it is not, unplug the cord, wait 10 seconds, and then plug it back in. b) Check the fuse for the outlet or the circuit breaker that is connected to the main fuse. If the fuse has blown, test the outlet with another appliance.

1. If the microwave oven does not heat, i.e., it does not emit microwave energy:

a) Check that the timer is set correctly. b) Check that the door is properly closed and the safety interlocks are engaged. If not, microwave energy cannot be released.

If you are unable to resolve the problem yourself, contact the regional service center.

Contact the nearest regional service center.

Radio interference (interference)

The microwave oven may cause interference to your radio, TV receiver, and similar devices. If interference occurs, you can eliminate or reduce it by taking the following measures:

a) Check the door and sealing surfaces. b) Place the radio, TV receiver, and other devices away from the microwave oven. c) Use properly installed antennas to ensure good reception.

Note:

The appliance is intended only for household use for heating food and beverages using electromagnetic energy. Use the appliance only in enclosed spaces.

Installation

1. Check whether the packaging material is damaged.
2. When unpacking, inspect the appliance to ensure it is not damaged, for example:
3. Damaged door,
4. Broken door,
5. Connect the hose to the valve (regulator) on the cylinder and to the valve on the stove.
6. Pressure inside the cylinder.
7. If you notice any of the above-mentioned defects, do not use the stove.
8. Place the stove on a flat surface that is sufficiently firm to support the weight of the stove.
9. Place it away from sources of high temperature and fire.
10. Do not place anything on the stove.
11. Ensure adequate ventilation; around the stove there should be at least 10 cm of free space.
12. Do not remove the safety guards on the rotating part.
13. As with all other appliances, this one also requires careful handling when used by children.

WARNING: THIS APPLIANCE MUST BE EARTHED.

1. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
2. The stove requires a power supply of 1.3 kVA. We recommend that you consult a service engineer or a competent electrician when installing the stove.

IMPORTANT

The voltage in the connection cable has the following meaning:

Green-yellow: grounding

Blue: neutral

Brown: phase

These functions provide the following possibilities:

a) Cooking with microwave (100% power) Example: Cooking with 100% power for 5 minutes. 1. Set the time to "5:00". 2. Press "Start/Reset". b) Cooking with microwave with power level 1. Press the button "Micro...Auto menu", select 70% power. 2. Set the time to "10:00". 3. Press the button "Start/Reset".

You can select among 5 different power levels for cooking, and the maximum operating time is 60 minutes.

Бpoj Ha Притискаба На КОпчETO "Micro"	Jaунна Мнкробрави Те заши	Изpanic ЕкраноT
1	100%	P100
2	70%	P70
3	50%	P50
4	30%	P30
5	10%	P10

3. Automatic Defrosting

Depending on the type of frozen food, the appliance will help you choose the appropriate power and heating time.

Example: Defrosting 0.5 kg of frozen meat.

a) By pressing the button "Micro...Auto menu" select "DEF". b) By pressing the buttons "1Min" (1kg) and "10Sec" (0.1kg) set the weight. c) Press "Start/Reset".

The weight of the frozen food must be less than 2 kg.

4. Grill

The oven has two modes; you can select them using the "Micro...Auto menu" (the maximum time for the timer is 60 minutes).

Mode 1: 85% power on the scale, on the screen it is written G-1.

Mode 2: 50% power on the scale, on the screen it is written G-2.

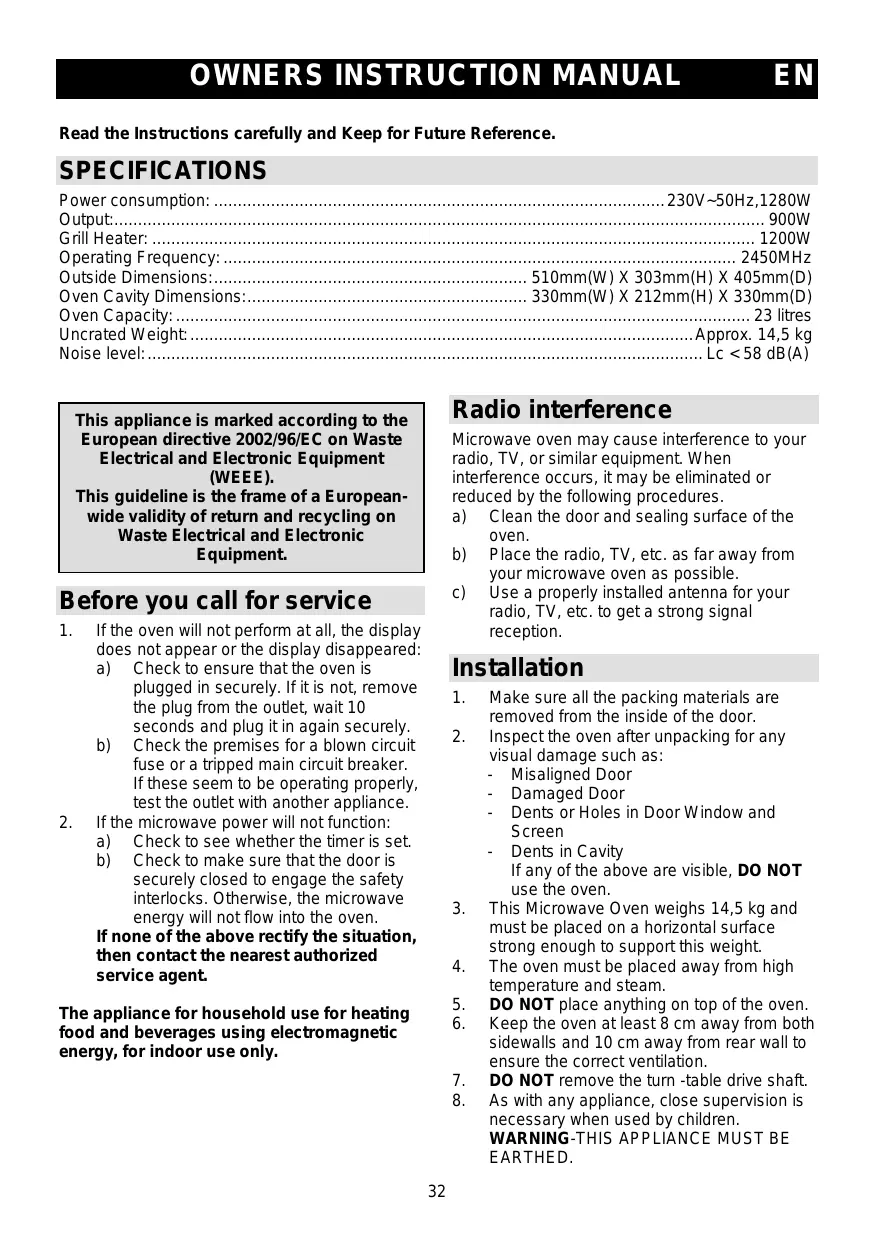

Read the Instructions carefully and Keep for Future Reference.

SPECIFICATIONS

Power consumption: 230V~50Hz, 1280W Output: 900W Grill Heater: 1200W Operating Frequency: 2450MHz Outside Dimensions: 510mm(W) X 303mm(H) X 405mm(D) Oven Cavity Dimensions: 330mm(W) X 212mm(H) X 330mm(D) Oven Capacity: 23 litres Uncrated Weight: Approx. 14.5 kg Noise level: Lc < 58 dB(A)

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Before you call for service

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

Radio interference

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven. b) Place the radio, TV, etc. as far away from your microwave oven as possible. c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

Installation

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door Damaged Door
4. Dents or Holes in Door Window and Screen
5. Dents in Cavity If any of the above are visible, DO NOT use the oven.
6. This Microwave Oven weighs 14.5 kg and must be placed on a horizontal surface strong enough to support this weight.
7. The oven must be placed away from high temperature and steam.
8. DO NOT place anything on top of the oven.
9. Keep the oven at least 8 cm away from both sidewalls and 10 cm away from the rear wall to ensure correct ventilation.
10. DO NOT remove the turntable drive shaft.
11. As with any appliance, close supervision is necessary when used by children.

WARNING: THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord.
2. This oven requires 1.3 KVA for its input. Consultation with a service engineer is suggested when installing the oven. CAUTION: This oven is protected internally by a 250V, 10 Amp fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow:

Earth

Blue:

Neutral

Brown:

Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green or green-and-yellow.
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Important safety instructions

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy; WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode. WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

• The oven must have sufficient air flow. Keep 8 cm space at back; 10 cm at both sides and 10 cm from top of the oven. Don't remove oven's feet, do not block air vents of the oven. Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation; If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Safety instructions for general use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such as papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc., without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salsaed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.
• There are thermometers available specifically for microwave cooking. These may be used.
• Microwave utensils should be used only in accordance with manufacturer's instructions.
• Do not attempt to deep-fry foods in this oven.
• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid

straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

1. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
2. When preparing/cooking food/liquid, remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content, do not use plastic containers.
3. Cooking utensils may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
4. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend the microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from bags before placing the bag in the oven. c) If materials inside the oven should ignite, keep the oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

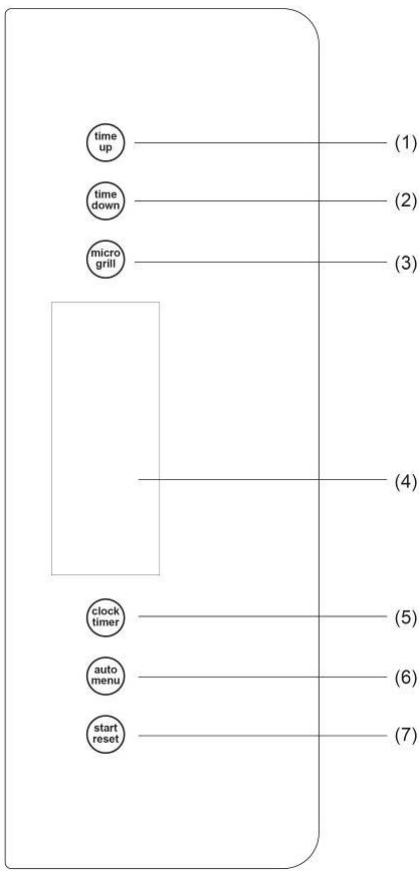

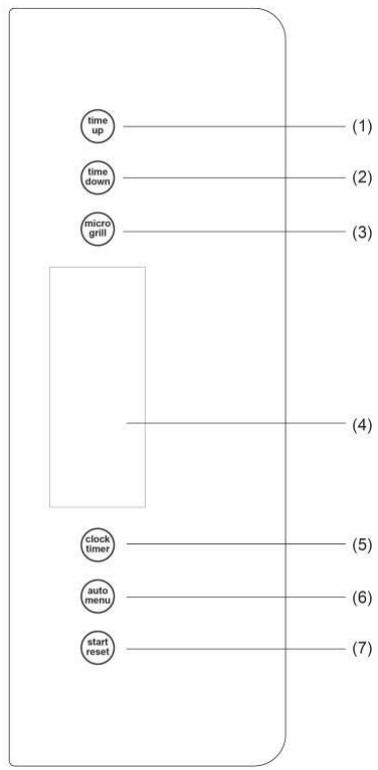

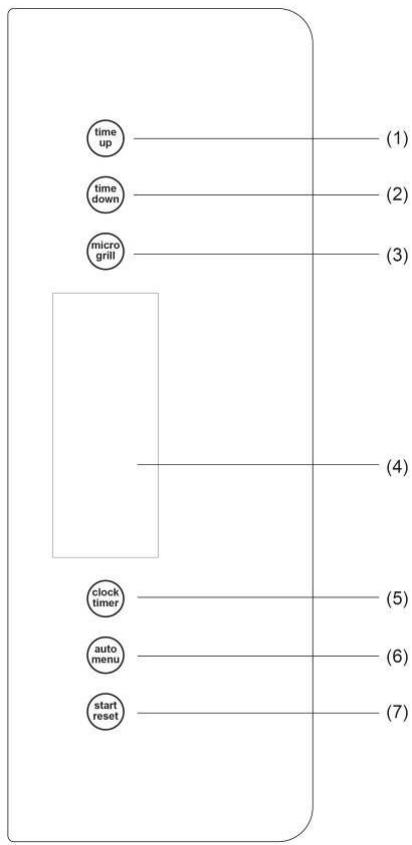

Computer control panel

1. TIME UP
2. TIME DOWN
3. Micro/defrost/Grill/Double Grill/Comb
4. Display Window
5. Clock / Timers
6. AUTO / MENU
7. START/RESET

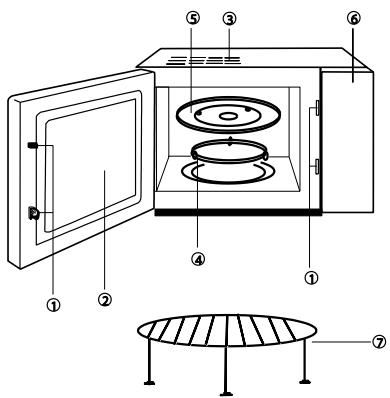

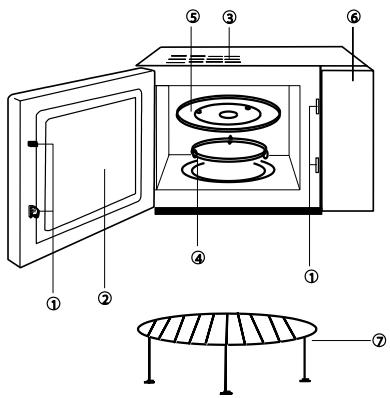

Feature diagram

1. Door Safety Lock System
2. Oven Window
3. Oven Air Vent
4. Roller Ring
5. Glass Tray
6. Control Panel
7. Grill rack

Operation Instruction

1. Single Button Heating

Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.

Example: To heat a glass of milk

a) Put a glass of milk onto the glass turntable and close the door. b) Press the button Start/Reset, the microwave oven will work on 100% power for 1 minutes. c) You will hear 5 beeps when cooking is completed.

2. Microwave Heating

This function has two options.

a) Quick microwave heating (100% power)

Example: To heat food on 100% power for 5 minutes

1. Set time to 5:00
2. Press Start/Reset b) Manual-operation microwave heating

Example: To heat food on 70% power for 10 minutes

1. Press "Micro...Auto menu" button, select 70% power;
2. Set time to 10:00
3. Press Start/Reset

There are 5 power levels and the longest microwave cooking time is 60 minutes.

Touching times "Micro"	Microwave power	Display
1	100%	P100
2	70%	P70
3	50%	P50
4	30%	P30
5	10%	P10

3. Auto weight defrost

Select the weight of the frozen food, it will automatically help you to adjust the power level and time.

Example: defrost 0.5 kg of frozen meat.

a) Press "Micro...Auto menu" to select "0,1". b) Input weight by pressing "1min" (1kg) and "10 sec" (0.1kg) button. c) Press "Start/Reset".

Weight of frozen food must be less than 2 kg.

4. Grill

This function has two options. You may select between the two by pressing the "Micro...Auto menu" button (the longest cooking time is 60 minutes):

Option 1: 85% grill power, display G-1

Option 2: 50% grill power, display G-2

Example: Cooking food using the grill for 20 minutes

a) Press "Micro...Auto menu" until LED displayed "G-1". b) Set cooking time "20:00" c) Press "Start/Reset"

When grilling, food is not heated by microwaves. Heat is radiated from the metal heater at the top of the oven.

When grill is working, the cooking time is divided into 2 stages. After the 1st stage, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn over the food. Close the door after turning the food. Press "Start/Reset" button and the cooking will continue for the 2nd stage. If you do not want to turn over the food, the oven will re-start automatically after 1 min pause.

5. Combination Cooking

With this appliance you can select between two options of combination cooking.

Option 1: Combination cooking (55% microwave + 45% grill) LED will display "C-1"

Option 2: Combination cooking (30% microwave + 70% grill)

LED will display "C-2".

Example: Cooking food using option 2 for 15 minutes.

a) Press "Micro...Auto menu" until the LED displays "C-2" b) Set cooking time for "15:00" c) Press "Start/Reset"

6. Auto-Menu

You only need to select food type and weight, it will help you to automatically adjust power and time.

Example: Auto cooking 0.4 kg fish

a) Press "Micro...Auto menu" button until "A-5" displayed. b) Input the weight by pressing the button "1 min" (1 kg) and the button "10 sec" (0.1 kg). c) Press "Start/Reset".

Touching Times "1min"	Menu, Weight (kg)
	A-1 Rice	A-2 Vegetable	A-3 Noodle s
1	0,1	0,1	1
2	0,2	0,2	2
3	0,3	0,3
4	0,4	0,4
5	0,5	0,5
6		0,6

The oven has a 24-hour digital clock. To set the time, for example to 4:30 PM:

a) Press the "Clock/Timer" button. The display will start flashing. Adjust the hour using the "1 Min" and "10 Sec" buttons. b) Press "Clock/Timer" again, then adjust the minutes using the "1 Min" and "10 Sec" buttons. c) Press "Clock/Timer" again, and the clock will be set. d) If you want to change the time, repeat the procedure above.

8. Timer

This allows you to set the microwave oven to start and finish cooking at a pre-set time. The clock must be set before you use this feature.

Example: The current time is 16:30, and you want to start cooking at 18:15 on 70% power for 10 minutes:

a) Press "Clock/Timer", set the time to "18:15" by pressing the "1 Min" and "10 Sec" buttons (same procedure as setting the clock). b) Press "Micro...Auto menu" to select 70% power. c) Set the cooking time to 10 minutes. d) Press "Start/Reset".

If you do not set the power and cooking time and directly press the start button once you have programmed the time, the appliance will only work as a clock. At 18:15 there will be 10 beeps, and the appliance will switch off.

9. Child-safety lock

To activate the child safety lock, press "Time up" and "Time down" at the same time for 2 seconds.

Press "Time up" and "Time down" at the same time for 2 seconds again to unlock the machine.

10. Start/Reset

a) During operation, pressing the "Start/Reset" button will stop the operation. b) If any program was set before pressing start, pressing this button will cancel all the set programs.

Care of your microwave oven

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to the oven walls, wipe with a damp cloth. The use of harsh detergents or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth. Do not use detergents, abrasives or spray-on cleaners on the control panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dishwasher. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
9. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care

Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

Additional recommendations for cooking with microwave, grill and useful advices can be found on web side:

http://microwave.gorenje.com

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

Power consumption: 230V~50Hz, 1280W

Capacity: 900W

Grill: 1200W

Operating frequency: 2450MHz

External dimensions: 510mm (L) x 303mm (H) x 405mm (W)

Cavity dimensions: 330mm (L) x 212mm (H) x 330mm (W)

Cavity capacity: 23 liters

Weight: approx. 14.5 kg

Noise level: Lc < 58 dB (A)

Functions: Combination cooking (55% microwave + 45% grill)

Before using, please read the instructions carefully.

Specifications

Power consumption: 230V~50Hz, 1280W Output power: 900W Grill: 1200W Frequency: 2450MHz External dimensions: 510mm (L) x 303mm (H) x 405mm (W) Internal cavity dimensions: 330mm (L) x 212mm (H) x 330mm (W) Capacity: 23L Weight: approx. 14.5 kg Noise level: Lc < 58 dB (A)

The device has been marked in accordance with the European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). This Directive defines the obligations, which apply within the European Union, to take back and recycle used devices.

WARNING: THIS APPLIANCE MUST BE EARTHED.

1. The socket must be easily accessible. This appliance consumes 1.3 kW. We recommend consulting a service center specialist for installation of the appliance.

WARNING: The appliance is protected by an internal fuse rated at 250V, 10A.

IMPORTANT

The main cable wires are colored in accordance with the following table:

Green-yellow Earth

Blue Neutral

Brown Live

As the colors of the wires may not correspond to the color markings on the terminals of your plug, proceed as follows: The green-yellow wire must be connected to the terminal marked with the letter E or the earth symbol, or colored green or green-yellow. The blue wire must be connected to the terminal marked with the letter N or colored black. The brown wire must be connected to the terminal marked with the letter L or colored red.

Important Safety Instructions

WARNING! To reduce the risk of fire, electric shock, or injury to persons, the following must be observed:

1. Read the instructions carefully before using the appliance.
2. Do not place in the microwave oven products that are tightly sealed in containers (e.g., sealed glass jars or baby bottles), as they may explode. If in doubt, refer to the cooking instructions.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

1. Before using the appliance, please read the operating instructions carefully.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Never leave the appliance unattended while it is in operation.
3. Do not use the appliance if it is not working properly or if it is damaged.
4. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Be careful when using paper, plastic, or other combustible materials in the oven to facilitate cooking. b) Remove wire twist-ties from paper or plastic bags before placing them in the oven. c) If materials inside the oven ignite, do not open the oven door. Turn off the oven and disconnect the power cord, or turn off the power at the fuse or circuit breaker panel.

Safety Instructions

This appliance operates in accordance with generally accepted safety rules and regulations for electrical appliances.

1. Before using the appliance, install it correctly (on rollers, on a table, etc.).
2. Use the appliance only for preparing food. Never use it to heat oil, paper, or other non-food items. Do not use the appliance for sterilization.
3. Do not turn on the appliance when it is empty. This may damage the appliance.
4. Do not use the appliance for storing books, paper, etc.
5. Do not use the appliance for canning food, as it is not intended for that purpose. Improperly canned food may spoil and pose a health hazard.
6. Do not cook eggs in their shells: they may explode. When cooking eggs,

cover them with a lid and let them stand for a few minutes after cooking.

1. Before cooking foods such as sausages, bacon, potatoes, and poultry (i.e., foods with a skin or shell), pierce them several times with a fork.
2. Place the baking dish in the openings of the two doors and the body.
3. Do not remove the parts (lid, handles, hinges, etc.).
4. Do not place it directly on the tray, as it will tip over. Before cooking, place the products on a suitable dish.

IMPORTANT: DISHES NOT SUITABLE FOR USE IN MICROWAVE OVENS

• Metal skewers, pans, or dishes with metal handles.
• Dishes with metal trim.
• Paper dishes with plastic coatings or plastic bags.
• Melamine dishes, because the materials that make up their composition absorb microwave energy. This can cause the dishes to heat up and change the liquid state of the food.
• Tightly sealed dishes.
• Dishes with a narrow neck.
• Ordinary thermometers for meat and sauces. For microwave ovens, there are specially designed thermometers that can be used if necessary.
• Use dishes for microwave ovens only according to the manufacturer's instructions.
• Do not attempt to cook products in the microwave oven.
• Microwave ovens are intended for heating food and beverages. Warning: even if the lid is not tightly closed, the product may not withstand high temperatures and may create steam, so be careful when heating in a conventional oven.
• Check the temperature of the cooked food carefully before serving. It is recommended not to consume the food immediately after cooking; let it stand for a few minutes and stir for even distribution of temperature.
• Products with a high content of fat and water should be placed in the oven for 30-60

seconds before cooking. This will allow the mixture to thicken and prevent the formation of bubbles.

1. Some products (e.g., various puddings, jam, etc.) heat up very quickly. When cooking dishes that contain a lot of fat or sugar, do not use plastic containers.
2. The container in which the food is located may heat up from the food. This is especially important if there are plastic elements in the container. There may be a risk of the container melting or deforming.

1. Increased
2. Reduced
3. Microwave/Defrost/Grill/Convection/Combination
4. Dishwasher
5. Oven/Timer
6. Auto/Menu
7. Start/Cancel

DESCRIPTION OF THE DEVICE

1. Door handle 2. Viewing window 3. Ventilation openings 4. Legs 5. Turntable 6. Control panel 7. Grill

CONTROL

1. PREPARATION

You need to press this button once to start cooking. It is very fast and convenient. For example: to heat a cup of

1. Place a glass of water on the plate, then close the door firmly.
2. Press "Start/Cancel". The microwave will operate at 100% power for 1 minute.
3. After 1 minute, you will hear 5 beeps indicating the end of cooking.

2. COOKING WITH MICROWAVE

The unit must be on.

a) High microwave heating (100% power)

Example: Heating at 100% power for 5 minutes.

1. Set the time to "5:00"
2. Press "Start/Cancel" b) Microwave heating in stages:

Example: To heat at 70% power for 10 minutes

1. Press the "Micro...Automatic Menu" button, select the power level 70%
2. Set the time to "10:00";
3. START/STOP button

Set the power level and maximum cooking time.

5. Combination cooking

With your appliance you can select two combination cooking methods.

Option 1: Combination cooking (5% microwave + 45% grill) LED shows "C-1"

Option 2: Combination cooking (30% microwave + 70% grill) LED shows "C-2".

Example: Cooking food using Option 2, for 15 minutes.

a) Press the "Micro...Auto Menu" button until LED shows "C-2" b) Set the cooking time "15:00". c) Press "START/STOP".

6. Auto Menu

You only need to select the type and weight of the food, it will automatically set the power and time.

As the color of the wires may not match the color markings on the terminals of your appliance, you must do the following:

The green-yellow wire must be connected to the terminal marked with the letter E or the symbol for grounding, which is colored green or green-yellow. The blue wire must be connected to the terminal marked with the letter N or colored black. The brown wire must be connected to the terminal marked with the letter L or colored red.

Important safety instructions

WARNING! To reduce the risk

of fire, electric shock, injury to persons, or excessive microwave power, it is necessary to:

1. Carefully read the instructions before using the appliance.
2. Do not heat in a microwave oven such products as oil and tightly closed containers (e.g., closed glass jars or baby bottles), because they may explode. For recommendations, refer to the cooking guide.
3. Use the appliance only in accordance with the operating instructions.
4. Children may use the appliance only under the supervision of an adult.
5. Do not use the oven if it is not functioning properly or if it is damaged.
6. To reduce the risk of fire in the cavity:

a) Do not cook longer than the specified time. Be careful when using paper, plastic, and other flammable materials for cooking in the microwave oven. b) Remove wire twist-ties from bags before placing them in the oven. c) If materials inside the oven ignite, do not open the door; turn off the appliance and disconnect it from the power supply or remove the fuse.

Safety instructions

USEFUL SAFETY TIPS

This appliance operates in accordance with general safety rules and requirements for the operation of electrical appliances.

1. Before using the appliance, correctly install all equipment (support on rollers, rotating plate, etc.).
2. Use the oven only for preparing food. It is strictly forbidden to dry clothes, paper, or other items in the oven. Do not use the oven for sterilization.
3. Do not turn on the oven empty. This may damage it. 4. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Do not allow children to play with the appliance. 5. Do not use the oven for canning food, as it is not intended for that purpose. Improperly canned food may spoil and become dangerous to health.
4. They can explode. When you are ready to cook,

cover them with a lid and let them stand for a few minutes after cooking.

1. Before cooking foods like sausages, hot dogs, potatoes, chicken wings, etc. (i.e., foods with a skin), pierce them several times with a fork.
2. Do not insert objects into the openings between the door and the oven body.
3. Never remove the oven parts (knives, mounting screws, etc.).
4. Do not cook fish directly on the rotating plate. Before cooking, place the food in a suitable dish.

IMPORTANT - UTENSILS FOR USE IN THE MICROWAVE OVEN

• Metal skewers, pans, or utensils with metal handles. Utensils with metal elements.
• Paper bags with wire ties or plastic packaging.
• Melamine utensils, as the material they contain absorbs microwave energy. This can cause the utensils to burn and reduce the cooking speed.
• Plastic utensils.
• Utensils with a narrow neck. Ordinary thermometers for meat or sweets. For microwave ovens, there is a specially designed thermometer that can be used when necessary.
• Use microwave-safe utensils only according to the manufacturer's instructions.
• Heating products in a microwave oven.
• In a microwave oven, products heat up faster than in a container. Remember: even if the lid is not hot to the touch, the products under it have a high temperature and will create as much steam as on a regular stove.
• Always check the temperature of cooked food, especially if you are cooking for children. It is advisable not to consume food immediately after cooking; let it stand for a few minutes and stir to distribute the temperature evenly.
• Products with a high fat or water content should be left in the oven for 30-60 seconds after cooking. This allows the mixture to settle and prevents the formation of bubbles. Some products (e.g., Christmas pudding, jam, etc.) heat up very quickly. When cooking food that contains a lot of sugar, do not use plastic utensils.
• The container in which the food is located may also heat up from the food. This is especially important if the dish contains plastic elements. Here you will need a holder to remove the dishes from the oven.

Control panel

1. Set time +
2. Set time -
3. Select operating mode (microwave/defrost/grill/combined cooking)
4. Display
5. Clock/Timer
6. Auto menu
7. Start/Cancel

1. Door locks 2. Viewing window 3. Ventilation openings 4. Support on rollers 5. Glass turntable 6. Control panel 7. Grill rack

Operating instructions.

Alternative 1: Combined cooking (55% microwave + 45% grill)

"C-1" is displayed.

Alternative 2: Combined cooking (30% microwave + 70% grill)

"C-2" is displayed.

Example: Cooking using alternative 2 for 15 minutes.

a) Press the "Micro...Auto menu" button until "C-2" is displayed. b) Set the cooking time to "15:00" c) Press "Start/Reset"

6. Auto menu

1. ONE-TOUCH HEATING

You can start simple cooking with a single touch of a button, which is especially practical if you want to quickly heat up, for example, a glass of water, etc.

Example: To heat up a glass of milk:

a) Place a glass of milk on the glass turntable and close the door. b) Press the "Start/Reset" button, the microwave oven starts at 100% power for 1 minute. c) You hear 5 beeps when the cooking is finished.

2. HEATING WITH MICROWAVES

Operation Instruction

1. One-touch heating

With just one press of a button, you can start a simple food cooking/reheating program. This is very convenient when, for example, you need to quickly reheat a glass of water or similar. Example of how to reheat a glass of milk:

a) Place the glass of milk on the glass turntable and close the door. b) Press the "Start/Reset" button, the microwave oven will start operating at 100% power for 1 minute. c) When the heating is finished, you will hear 5 beeps.

2. Microwave heating

This function has two options.

a) Quick microwave heating (power 100%). Example of how to cook food at 100% power for 5 minutes: 1. Set the timer to 5:00 minutes. 2. Press the "Start/Reset" button. b) Manually controlled heating. Example of how to cook food at 70% power for 10 minutes: 1. Press the microwave/grill "Micro...Auto menu" button, select 70% power; 2. Set the timer to 10:00 minutes. 3. Press the "Start/Reset" button.

Important safety instructions
