Product type	Range hood
Brand	FABER
Model	STEELMAX
Use	Kitchen
Installation type	Wall-mounted with telescopic chimney
Dimensions (W x D), body	63 x 41 cm
Chimney height	Adjustable from 730 to 1000 mm
Minimum height above cooking surface	650 mm
Air outlet diameter	150 mm (120 mm reducer supplied)
Electrical supply	220-240 V, 50/60 Hz
Number of speeds	4 (including a timed 6-minute speed)
Lighting	Yes, dedicated switch
Grease filters	Metal, dishwasher safe (every 2 months)
Activated charcoal filter	Optional, to be replaced every 4 months
Material	Stainless steel
Energy efficiency class	Not stated
Noise level	Not stated
Safety functions	Stop via button T1, mandatory grounding
Weight	Not stated

Frequently Asked Questions - STEELMAX FABER

What is the minimum installation height above a gas stove?

The minimum safety distance between the cooking surface and the hood is 650 mm. If the stove manual specifies a greater distance, follow that.

How to clean the grease filters?

The metal filters are dishwasher safe. Remove them by pushing them backward and pulling down. Wash them every 2 months (more frequently with heavy use) and let them dry before reinstalling.

When should I replace the activated charcoal filter?

The activated charcoal filter is not washable. Replace it at least every 4 months (more often with heavy use). To change it, first remove the metal filters, then unclip the used filter and install the new one.

Can I use the hood with a gas stove?

Yes, but ensure adequate ventilation of the room. The negative pressure must not exceed 0.04 mbar to prevent gas backflow. Never connect the hood to a flue used for combustion appliances.

How to adjust the fourth speed?

Press button T3 for 2 seconds: the indicator flashes and the hood switches to 4th speed with a 6-minute timer. After this time, it returns to the previous speed.

What diameter of exhaust duct should I use?

Use a duct with a diameter of 150 mm. If necessary, the supplied ø 150-120 mm reducer allows connecting a 120 mm duct.

The hood no longer turns on, what to do?

First check that the hood is plugged in and the bipolar switch is in the on position. If the problem persists, check the fuse or circuit breaker. If nothing works, contact customer service.

Can I install the hood myself?

The electrical installation must be carried out by a qualified technician. The mechanical assembly (wall mounting, duct connection) can be done by a knowledgeable DIYer, strictly following the instructions in the manual.

How to completely stop the motor?

Press button T1 (first speed): it cuts the motor regardless of the current mode. The hood first switches to first speed then stops.

Where to find spare parts (filter, bulb)?

For spare parts, contact FABER customer service. Use only original parts to ensure safety and performance.

USER MANUAL STEELMAX FABER

Line drawing of a tall industrial chimney mounted on a base (no text or symbols)

Instructions Manual

SAFETY INFORMATION......4

CHARACTERISTICS 7

INSTALLATION....8

USE 11

CARE AND CLEANING....12

SOMMAIRE

FR

CONSIGNES DE SÉCURITÉ....13

CARACTERISTIQUES....16

INSTALLATION....17

UTILISATION 20

NETTOYAGE ET ENTRETIEN 21

INHALTSVERZEICHNIS

DE

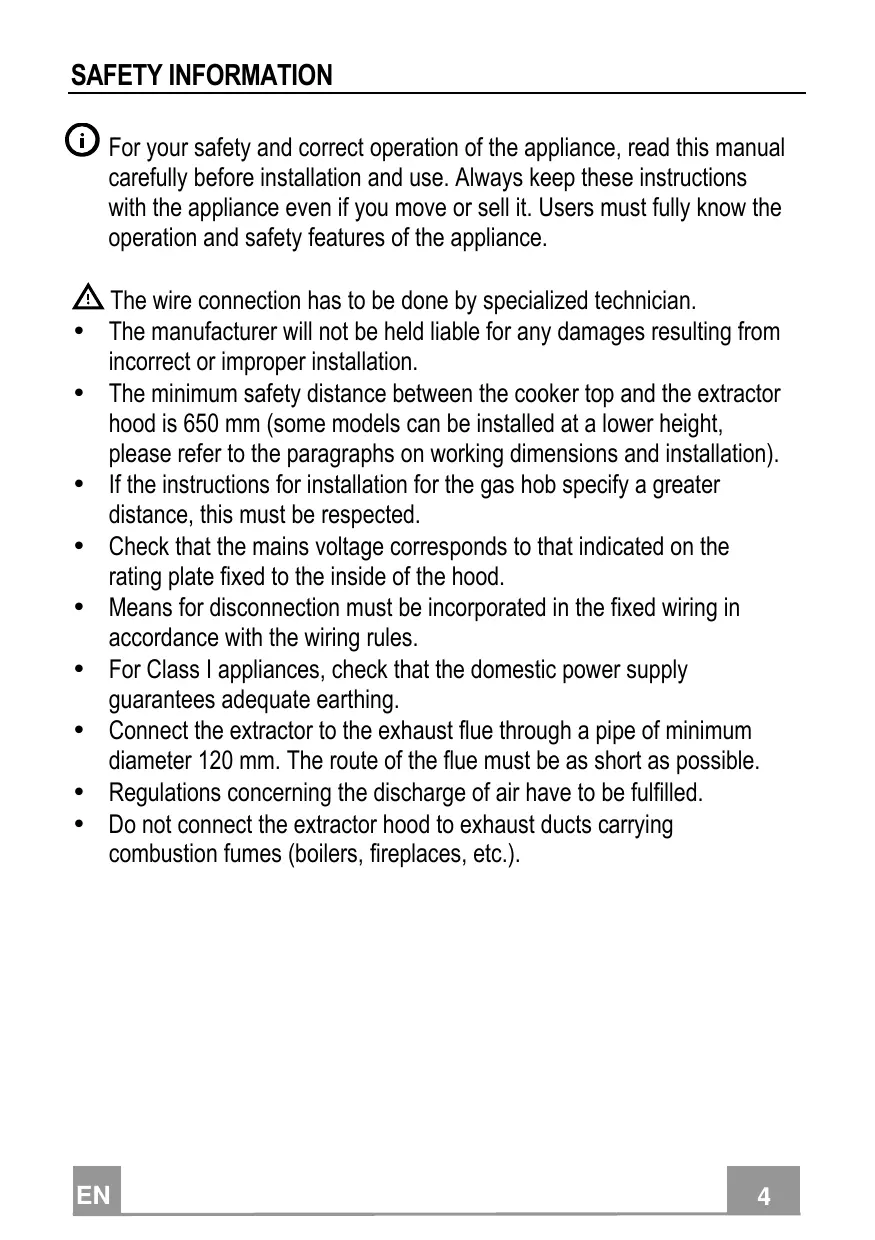

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

⚠ WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

⚠ WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

• Do not look directly at the light through optical devices (binoculars, magnifying glasses...).
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  ⚠️ Accessible parts may become hot when used with cooking appliances.

• Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The symbol 📁 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

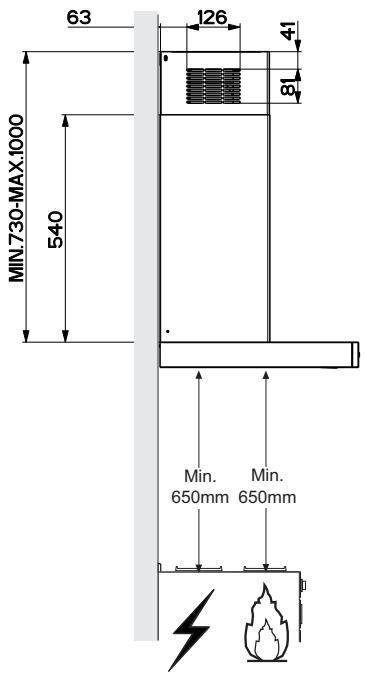

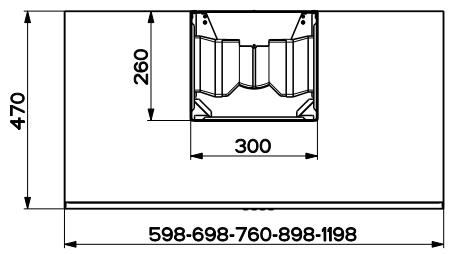

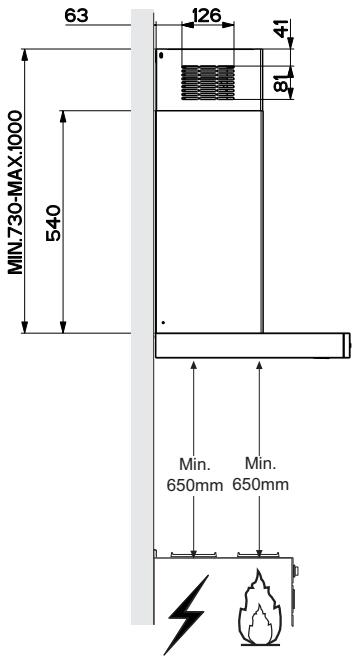

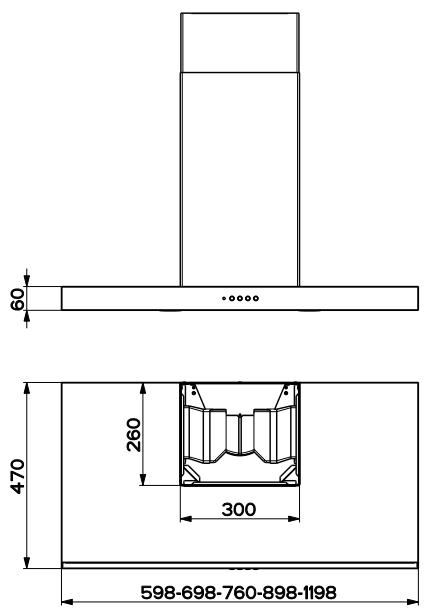

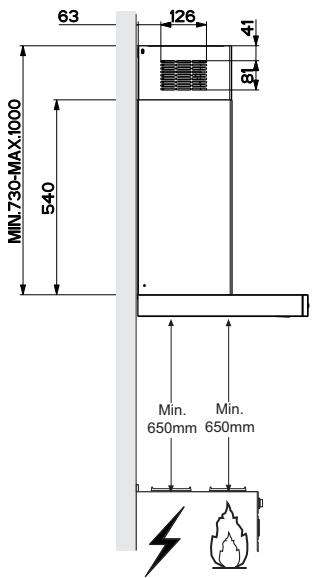

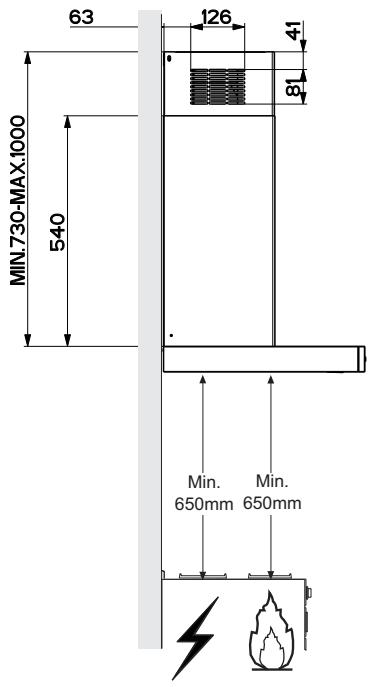

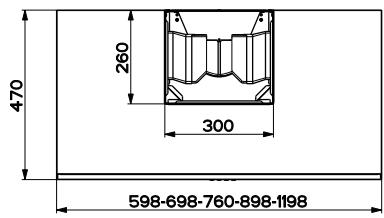

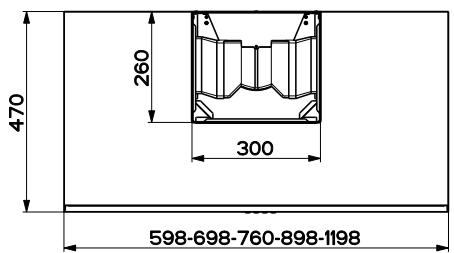

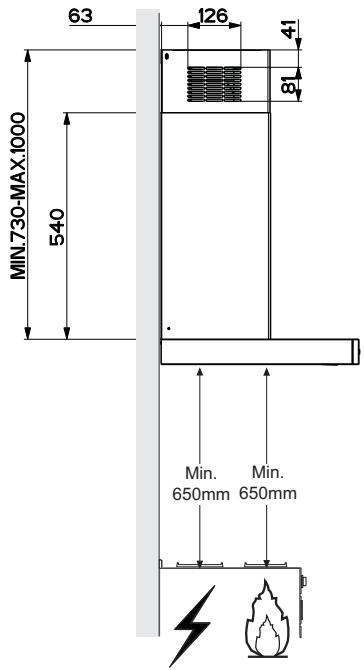

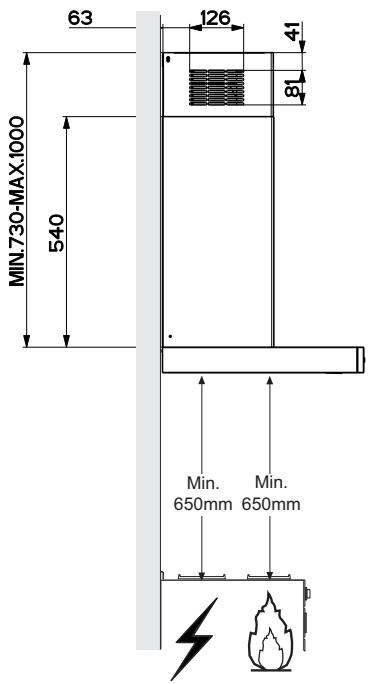

Dimensions

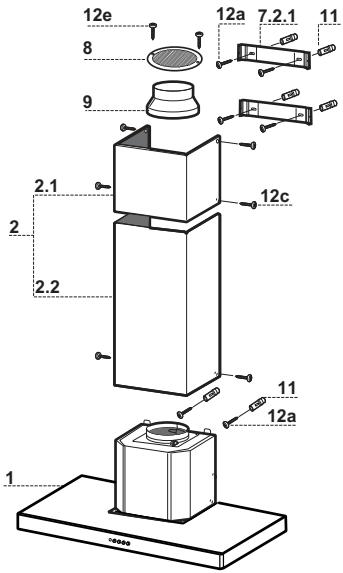

Components

Ref.	Q.ty	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper Section
2.2	1	Lower Section
8	1	Air Outlet Grill
9	1	Reducer Flange ø 150-120 mm

Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 6,5
12e	2	Screws 2,9 x 9,5

Q.ty	Documentation
1	Instruction Manual

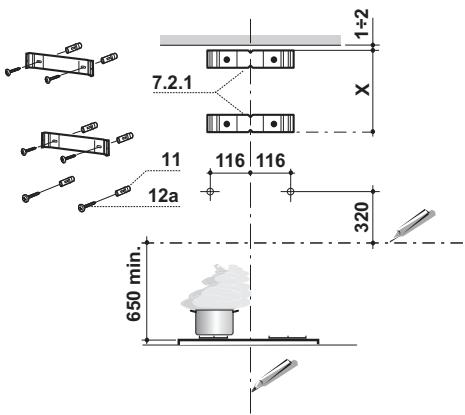

Wall drilling and bracket fixing

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the brackets using the 12a (4,2 x 44,4) screws supplied.

• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.

• Hook the hood body onto the screws 12a.
  • Fully tighten the support screws 12a.
• Adjust the screws Vr to level the hood body.

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

RECIRCULATION VERSION AIR OUTLET

• Cut a hole 125 mm in any shelf that may be positioned over the hood.
• Insert the reducer flange 9 on the hood body outlet.
• Connect the flange to the outlet on the shelf over the hood by using a flexible or rigid pipe 120mm .
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Fix the air outlet grid 8 on the recirculation air outlet by using the 2 screws 12e (2,9 x 9,5) provided.
• Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

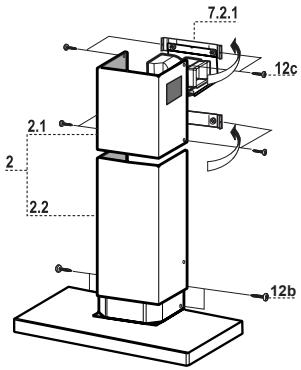

Chimney assembly

Upper exhaust Chimney

• Slightly widen the two sides of the upper chimney and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

Lower exhaust Chimney

• Slightly widen the two sides of the chimney and hook them between the upper chimney and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.

Control panel

BUTTON	LED	FUNCTIONS
T1 Speed	On	Turns the Motor on at Speed one.
		Turns the Motor off.
T2 Speed	On	Turns the Motor on at Speed two.
T3 Speed	Fixed	When pressed briefly, turns the Motor on at Speed three.
L Light		Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

Control panel

BUTTON	LED	FUNCTIONS
T1 Speed	On	Turns the Motor on at Speed one.
		Turns the Motor off.
T2 Speed	On	Turns the Motor on at Speed two.
T3 Speed	Fixed	When pressed briefly, turns the Motor on at Speed three.
	Flashing	Pressed for 2 Seconds.
		Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L Light		Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

Grease filters

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters.
• Remove the saturated activated carbon filter by releasing the fixing hooks.
• Fit the new filter by hooking it into its seating.
• Refit the metal grease filters.

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Lighting unit

- For replacement contact technical support ("To purchase contact technical support").

Diagram showing a mechanical component with an inset view of a tool interacting with a green arrow (no text or symbols present)

Montage Cheminée

Cheminée supérieure

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Filtre anti-odeur (Version filtrante)

REPLACEMENT FILTRE AU CHARBON ACTIF

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Éclairage

Diagram showing a mechanical component with a dashed line and an inset view of a tool interacting with a green arrow (no text or symbols present)

Kaminmontage

Oberer Kaminteil

Schalttafel

Schalttafel

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Geruchsfilter (Umluftversion)

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Beleuchtung

LED-Strahler

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Tablero de mandos

Tablero de mandos

Illustration of a hand interacting with a smartphone screen showing a green download arrow (no text or symbols present)

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Iluminación

Simple line drawing of a T-shaped object with a vertical height dimension labeled '60' (no text or symbols beyond the measurement)

Εξαρτήματα

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Φωτισμός

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Установка дымохода

Верхний дымоход

Панель управления

Панель управления

Illustration of a hand interacting with a smartphone screen showing a green download arrow (no text or symbols present)

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Освещение

Pure technical diagram of a T-shaped structure with dimension标注 (no text or symbols)

Parçalar

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Bacanın Montajı

Üst Baca

Kumanda Tablosu

Kumanda Tablosu

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Koku Filtresi (Filtreli Model)

AKTİF KARBONLU KOKU FİLTRESİNİN DEĞİŞTİRİLMESİ

Illustration of a hand using a finger to press or install a component, with a green arrow indicating direction (no text or symbols present)

Aydınlatma

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Kamino montavimas

Viršutinis kaminas

Valdymo skydelis

MYGTUKAS DAVIKLIO FUNKCIJOS

VALDYMO SKYDELIS

Illustration of a hand interacting with a smartphone screen showing a green download arrow (no text or symbols present)

Illustration of a hand using a finger to press or install a mechanical component, with no visible text or symbols.

Apšvietimo skyrius

Pure technical line drawing of a T-shaped structure with dimension标注 (no text or symbols)

Sastāvdalas

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Dūmvada montāža

Vadības panelis

Vadības panelis

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Pure geometric diagram of a T-shaped structure with dimension标注 (no text or symbols)

Komponendid

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

Korstna koostamine

Juhtpaneel

Juhtpaneel

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Valgustusseade

Pure geometric diagram of a T-shaped structure with dimension标注 (no text or symbols)

Alkatrészek

Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

Kezelőlap

Kezelőlap

Illustration of a hand interacting with a smartphone screen showing a green arrow (no text or symbols)

Illustration of a hand using a finger to press or install a mechanical component, with a green arrow indicating direction (no text or symbols present)

Világítás

" Product family name for MEA market: STILO "

Pure technical diagram of a T-shaped structure with dimension标注 (no text or symbols)

المكونات

Diagram showing a mechanical component with a green arrow indicating direction, no text or symbols present

اجزاء المدخنة

الجزء العلوي :

لوّة التحكم

لوّة التحكم

Illustration of a hand pressing down on a smartphone screen with a green arrow indicating the touch (no text or symbols present)

Illustration of a hand using a finger to press a device on a green surface, with a green arrow indicating direction (no text or symbols)

إدارة
