USER MANUAL SR-5240 TRISTAR

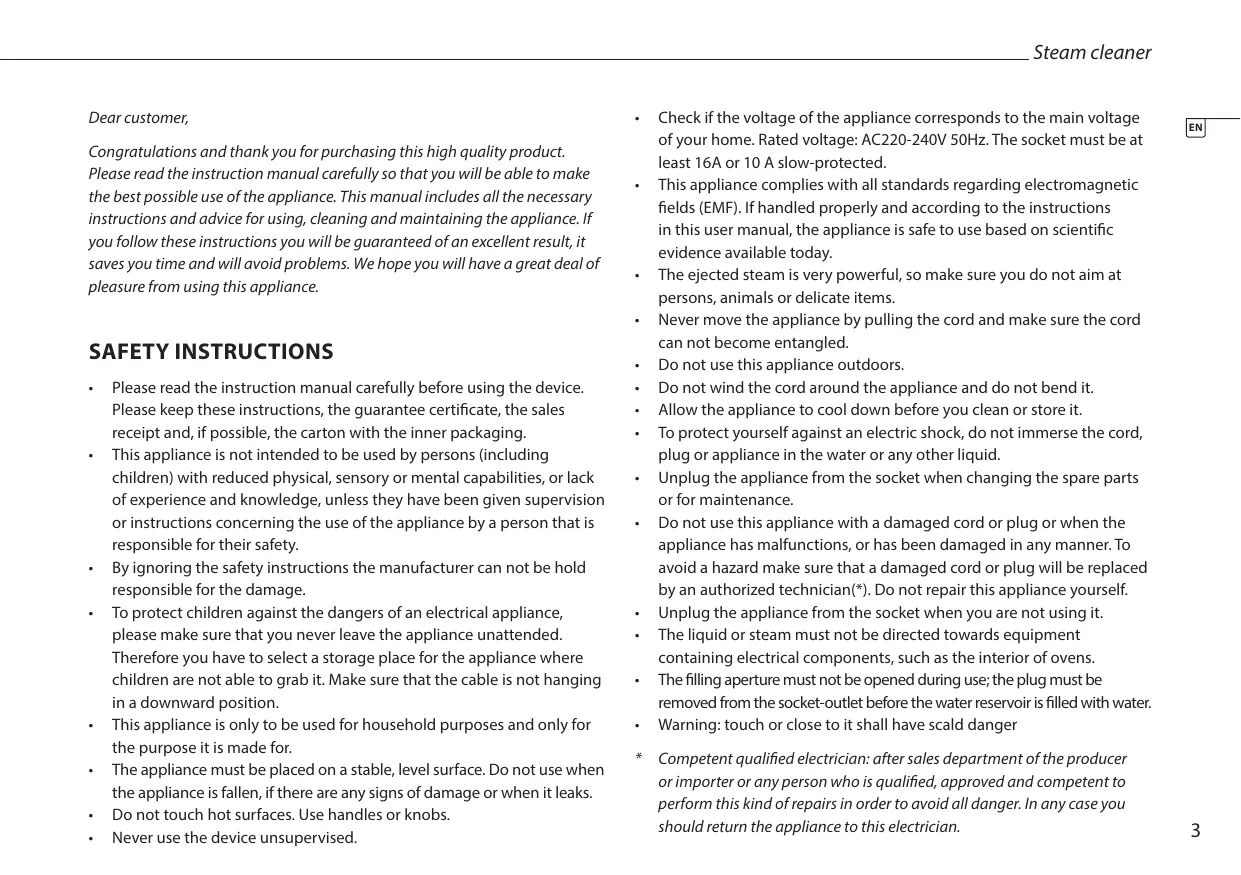

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SAFETY INSTRUCTIONS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of an electrical appliance, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• The appliance must be placed on a stable, level surface. Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.
• Do not touch hot surfaces. Use handles or knobs.

• Never use the device unsupervised.

• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50Hz. The socket must be at least 16A or 10 A slow-protected.

• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• The ejected steam is very powerful, so make sure you do not aim at persons, animals or delicate items.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• Do not use this appliance outdoors.
• Do not wind the cord around the appliance and do not bend it.
• Allow the appliance to cool down before you clean or store it.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Unplug the appliance from the socket when changing the spare parts or for maintenance.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an authorized technician (^*) . Do not repair this appliance yourself.
• Unplug the appliance from the socket when you are not using it.
• The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens
• The filling aperture must not be opened during use; the plug must be removed from the socket-outlet before the water reservoir is filled with water.
• Warning: touch or close to it shall have scald danger
• Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

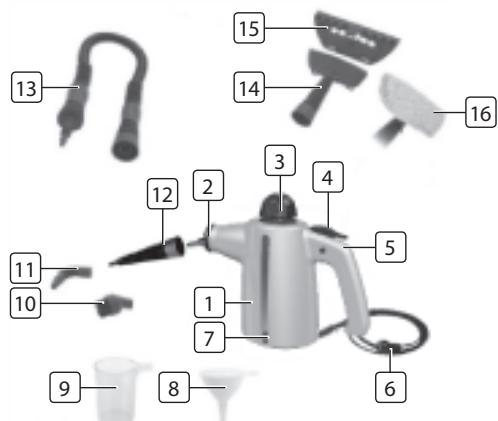

PARTS LIST

1. Body
2. Short spray nozzle
3. Safety cap
4. Steam button
5. Handle
6. Power cord and plug
7. Power indicator
8. Funnel
9. Measuring cup
10. Spray nozzle with round brush
11. Bent spray nozzle
12. Long spray nozzle
13. Extended connecting spray nozzle
14. General spray nozzle
15. Spray nozzle for door/ window
16. Towel sleeve

• Unpack the product, check the accessories and documents supplied with the product and make sure that the product and accessories are not damaged.
• Before use, please read the instruction manual carefully. The steam cleaner is only for use in households.

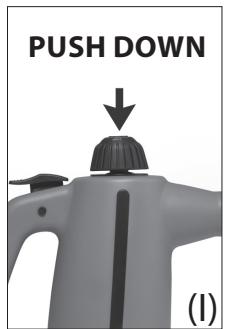

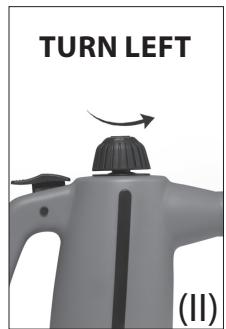

• First, place the steam cleaner on a flat platform, push down the safety cover (I), unscrew the safety cap counter clockwise(II), and then install the funnel.

• Fill the measuring cup with maximum 175 ml. of clean water and add the water into the tank. Do not overfill the tank, some space must be left in the tank. Re-install the safety cap and tighten it in position.
  After plug-in it will take around 4 minutes that the steamcleaner is ready for use. At this time lightly press the steam button and check whether steam is sprayed out of the nozzle. Before using please put 175~ml of water in the tank and spray this, for example into the sink. (Do not aim the spray nozzle at other persons).
• If there is steam sprayed out, please install suitable accessories according to your needs after you release the button.
• Press down the steam button again in order to carry out the operations required by you.

INSTALLATION OF ACCESSORIES

Install the long spray nozzle (12) or extended connecting spray nozzle (13) Hold the pipe section of the long spray nozzle in your hand, align the arrow with the single-line mark on short spray nozzle (2) on the machine body, and insert the long spray nozzle in position. Rotate the long spray nozzle in clockwise direction, and align the arrow on the long spray nozzle with the double-line mark on short spray nozzle on the machine body, as shown in figure (I). To remove the long spray nozzle, please rotate the long spray nozzle inversely (counter clockwise) as shown in figure (II), and align the arrow on the spray nozzle with the single-line mark on the machine body. Then the long spray nozzle can be pulled out.

For the extended connecting spray nozzle (13) you have to use the same procedure as shown above.

Install spray with round brush (10) or bent spray nozzle (11) For direct installation on short spray nozzle (2), aim the spray nozzle with round brush or bent spray nozzle at the top of spray nozzle, as shown in figure (III), and push the spray nozzle upwards until it is in position.

Installation of spray nozzle for door/window (14 & 15) First install the general spray nozzle (14) on short spray nozzle (2), as shown in figure (IV) Install the two small hooks of the spray nozzle for door/ window (15) onto suspension lugs of the general spray nozzle, and then trigger the big hook of the spray nozzle for door/window, and push the spray nozzle for door/window up and clutch (V) it onto the body of the general spray nozzle.

FUNCTIONS

Disinfection and sterilization:

Install the long spray nozzle (12) on the short spray nozzle (2) and aim the spray nozzle at the position that needs disinfection, then press down the steam button. High-temperature steam can kill bacteria.

• Cleaning the clothes:

Install the general spray nozzle (14) on the short spray nozzle (2), and then mount the towel sleeve (16). Aim it at the hung clothes, and press down the steam button and move the general spray nozzle up and down as well as to the left and to the right at the same time. Then stains can be removed from the clothes.

• Cleaning doors and windows:

Install the general spray nozzle (14) on the short spray nozzle (2), and then install the spray nozzle for door/window (15) on it. Aim this at the door/window, and press down the steam button and move it up and down as well as to the left and to the right at the same time. Then stains can be removed from the door/window.

• Cleaning the floor boards:

Install the bent spray nozzle (11) or round spray nozzle (10) on the long spray nozzle (12). For spots on difficult places you can also use the extended connecting spray nozzle (13). Then aim it at the floor board, and press down the steam button to remove the dirt and stains in wall corners and on the floor.

REFILL WATER DURING OPERATION

• Unplug the power cord and disconnect the power supply.
• Press down the steam button to release the pressure until no steam is injected out.
• Slowly unscrew the safety cap but do not remove it, and residual steam will be discharged slowly until no steam comes out. Then make sure the machine cools down for about five minutes. Finally, completely remove the safety cap.
• Use the funnel and measuring cup to refill a suitable quantity of cold or hot water into the tank.
• Re-install the safety cap onto the machine body and tighten it in position.

CLEANING

• When finished cleaning, unplug the power cord and disconnect the power supply.
• Press down the steam button to release the pressure until no steam is injected out.
• Slowly unscrew the safety cap but do not remove it, and residual steam will be discharged slowly until no steam comes out. Then make sure the machine cools down for about five minutes. Finally, completely remove the safety cap.
• Empty the residual water in the tank and clean the external surface with a piece of dry cloth.
• At last, re-install the safety cap onto the machine body and tighten it in position.

GUARANTEE

• Tristar is not liable for damages occurred through:
• o In case the appliance has fallen.
• o In case the appliance has been technically changed by the owner or another third party.
• o In case of improper use of the appliance.
• o In case of normal wear of the appliance.
• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty is only legal on European soil. This warranty does not overrule the European directive 1944/44CE
  Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.

• Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.

• Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
• When the appliance should be repaired, make sure that this will be performed by an authorized company.
  This appliance may not be amended or changed.
• If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
• For questions or compliances please contact your retailer "point of purchase."
• This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
• Only material or manufacturing defects are included in this warranty.
  If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
  The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.
