FRESH-AROMA-PERFECT II DUO - FRESH-AROMA-PERFECT THERMOLUX - FRESH-AROMA-PERFECT THERMOSTAR - Coffee machine BEEM - Free user manual and instructions

USER MANUAL FRESH-AROMA-PERFECT II DUO - FRESH-AROMA-PERFECT THERMOLUX - FRESH-AROMA-PERFECT THERMOSTAR BEEM

Coffee Maker with integrated Coffee Mill

Subject to printing error.

Details of this user manual 41

Copyright. 41
Warnings 42
Intended use 43
Disclaimer 43

Safety. 44

Fundamental safety precautions. 44

Electric shock hazard 45

Danger of burning 45

Initial operation. 46

Safety guidelines. 46

Unpacking. 46

Checking contents and packaging 46

Disposal of the packaging. 47

Requirements for the place of use 47

Electrical connection 48

Overview/Delivery contents 49

Accessories. 49

Control panel. 50

Before using for the first time 51

Operation 52

Safety guidelines. 52
Switching on the display lighting 52
Setting the time 53
Filling with water 53
Filling with coffee beans 53
Inserting a new filter bag. 54
Specifying the number of cups 54
Setting the coffee strength 54

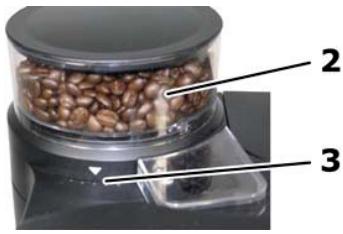

Setting the grinding fineness. 55
Activating the filter change reminder 56

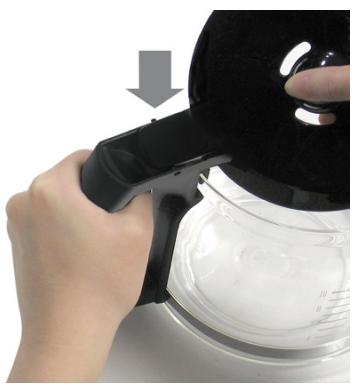

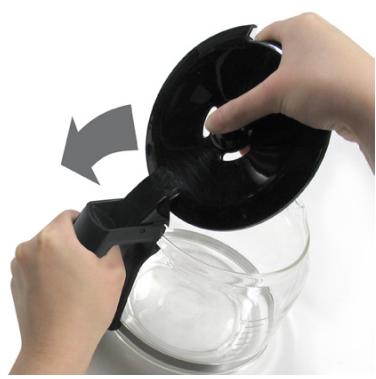

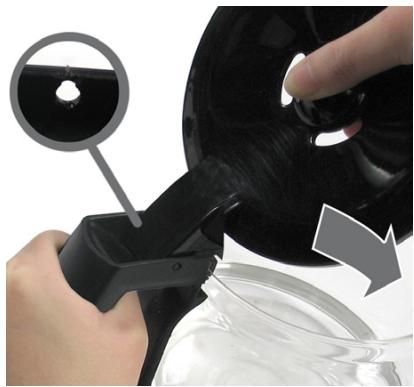

Removing and fitting the lid of the coffee jug 56

EN

Table of Contents

Instructions for brewing coffee 57

Requirements for aromatic coffee. 57

Preparation 58

Brewing coffee with coffee beans 58

Brewing coffee with coffee powder 59

Brewing coffee using the preset timer. 60

After brewing 62

Emptying / cleaning the filter. 62

Cleaning and maintenance 63

Safety guidelines. 63

Cleaning 63

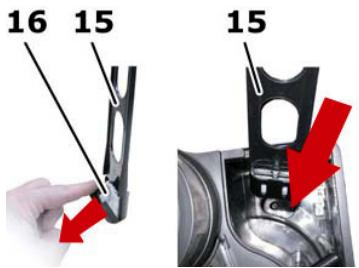

Changing the activated carbon filter 65

Descending 66

Troubleshooting 67

Safety guidelines. 67

Faults - causes and remedies. 67

Information on storage/disposal 69

Storage 69

Disposal 69

Appendix 69

Technical data 69

Spare parts and other accessories. 70

Certifications 70

Guarantee, service and repairs. 71

EC Declaration of Conformity 73

Index 74

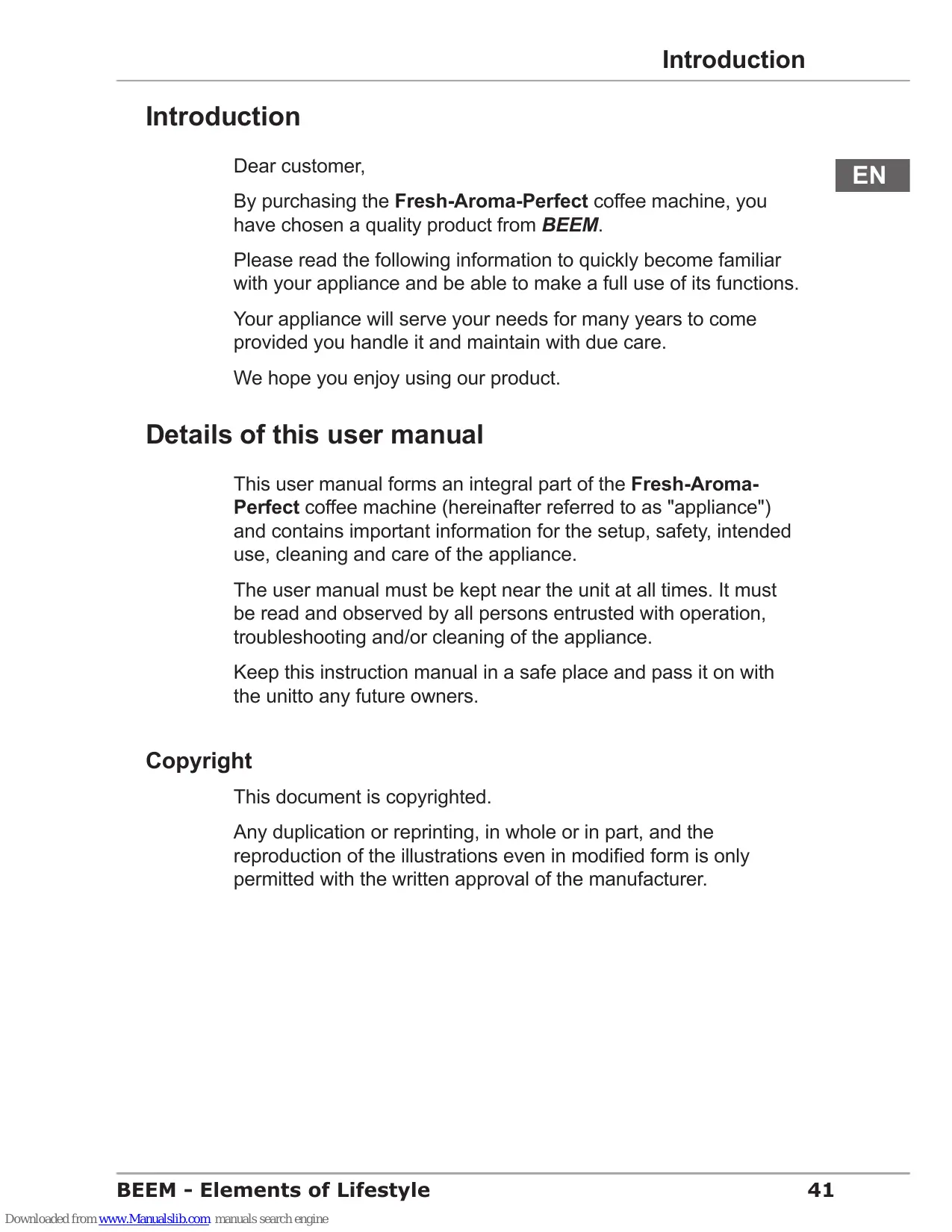

Introduction

Dear customer,

By purchasing the Fresh-Aroma-Perfect coffee machine, you have chosen a quality product from BEEM.

Please read the following information to quickly become familiar with your appliance and be able to make a full use of its functions.

Your appliance will serve your needs for many years to come provided you handle it and maintain with due care.

We hope you enjoy using our product.

Details of this user manual

This user manual forms an integral part of the Fresh-Aroma-Perfect coffee machine (hereinafter referred to as "appliance") and contains important information for the setup, safety, intended use, cleaning and care of the appliance.

The user manual must be kept near the unit at all times. It must be read and observed by all persons entrusted with operation, troubleshooting and/or cleaning of the appliance.

Keep this instruction manual in a safe place and pass it on with the unitto any future owners.

Copyright

This document is copyrighted.

Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.

EN

Warnings

The following warnings are used in this user manual:

DANGER

A warning of this category indicates an impending dangerous situation.

If the dangerous situation is not avoided, it may lead to serious injury or even death.

Follow the instructions in this warning to avoid the danger of serious injury or even death.

WARNING

A warning of this category indicates a potentially dangerous situation.

If the dangerous situation is not avoided, it may lead to injuries.

Follow the instructions in the warning message to prevent injuries to persons.

CAUTION

A warning of this category indicates potential material damage.

If the dangerous condition is not prevented, it will cause damage to objects.

Follow the instructions in the warning message to prevent damage.

NOTE

A note indicates additional information that simplifies the use of the device.

Intended use

This appliance is intended mainly for non-commercial use in closed rooms for brewing coffee using coffee powder or coffee beans.

Any other use other than previously stated is considered as improper use.

WARNING

Danger resulting from improper use!

If not used for its intended purpose and/or used in any other way, the machine may be or become a source of danger.

Only use the appliance for its intended purpose.
Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage or injury resulting from use of the device for other than its intended purpose.

The risk is borne solely by the machine owner.

If used commercially, please observe the modified warranty period.

Disclaimer

All technical information, data and instructions on installation, operation and care of the appliance contained in this user manual correspond to the the latest standards at the time of printing.

The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.

EN

Safety

This appliance complies with the prescribed safety regulations. Improper use can however, result in personal injury and/or damage to the device.

For safe use of the appliance, observe the following fundamental safety precautions and the precautions described separately in the individual sections:

Fundamental safety precautions

• Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.
• Do not allow children to use the appliance without supervision.
• Do not leave the appliance unattended during operation.
• Do not pull the mains cable to remove the plug from the socket.
• Persons who due to their physical, mental or motor response abilities are unable to operate the appliance may only use the appliance under supervision or instruction by a responsible person.
• Repairs to the appliance must only be carried out by authorised dealers or by the works customer service. Unqualified repairs can lead to considerable danger for the user. In addition, the warranty will be void.
• Repairs to the appliance during the warranty period must be carried by an authorized customer service, otherwise no warranty shall be granted for direct and indirect damage.
• Faulty parts must only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.
• Never operate the appliance without water, otherwise the appliance will be damaged.

Electric shock hazard

DANGER

Danger to life by electric shock!

Contact with live wires or components could lead to serious injury or even death!

Observe the following safety precautions to avoid electric shocks:

• Do not use the appliance if the mains lead or plug is damaged.
  Do not open the housing of the appliance Danger of electric shock if live connections are touched and/or the electrical and mechanical configuration is changed.
• Never immerse the appliance or the plug into water or other liquids.

EN

Danger of burning

WARNING

Hot steam may escape during operation.

Observe the following safety precautions to avoid burning yourself.

• Keep your body away from escaping steam.
  Do not open the filter compartment during operation.
  Before cleaning, let the appliance cool down.

EN

Initial operation

Safety guidelines

WARNING

Persons may be injured or material damage may be caused when putting the appliance into operation!

Observe the following safety precautions to avoid any danger:

• Packaging materials must not be used as toys. Risk of suffocation.
  Observe all information on the requirements on the place of operation and the electrical connection of the appliance to avoid personal injury and material damage.

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.
Before using for the first time, remove all packagingmaterials and the protective film from the device and accessories including the information slip in the grinder.

NOTE

• Do not remove the rating plate or any warning signs on the appliance.
  The notes on the grinder and the water tank lid can be removed but must nevertheless be observed.

Checking contents and packaging

As standard, the appliance is supplied with the components and accessories described in the appliance overview.

NOTE

• Check for visible damage or missing items on delivery. Report incomplete or damaged items to your supplier/retailer immediately.

Disposal of the packaging

The packaging protects the device against damage during transit. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled.

Disposing of the packaging for recycling helps conserve raw materials and reduces waste. When no longer required, dispose of the packaging materials in accordance with the local regulations.

NOTE

If possible, keep the original packaging during the warranty period in order to be able to pack the device properly in the event of a warranty claim. Transport damage will lead to a void warranty.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the installation location has to satisfy the following requirements:

• Place the appliance on a dry, flat, waterproof and heat-resistant surface.
• The surface finishes on furniture may contain constituents that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.
• Do not install the appliance in a hot, wet or very humid environment or in the vicinity of inflammable materials.
• Because of hot surfaces, the appliance must be placed at a location which is out of the reach of children.
• The socket used must be easily accessible to enable quick disconnection of the appliance power circuit in the event of an emergency.

EN

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions have to be observed for the electrical connection:

• Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.
• The socket has to be protected by at least a 10 A circuit breaker.
  If the appliance is to be connected to the power supply via an extension cable, the cable cross-section has to be at least 1.5 mm².
• Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.
• The mains cable must not pulled tightly, bent or come into contact with the hot appliance or hot surfaces.
• Place the cable in such a way as to avoid danger from tripping.
• The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician.

The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

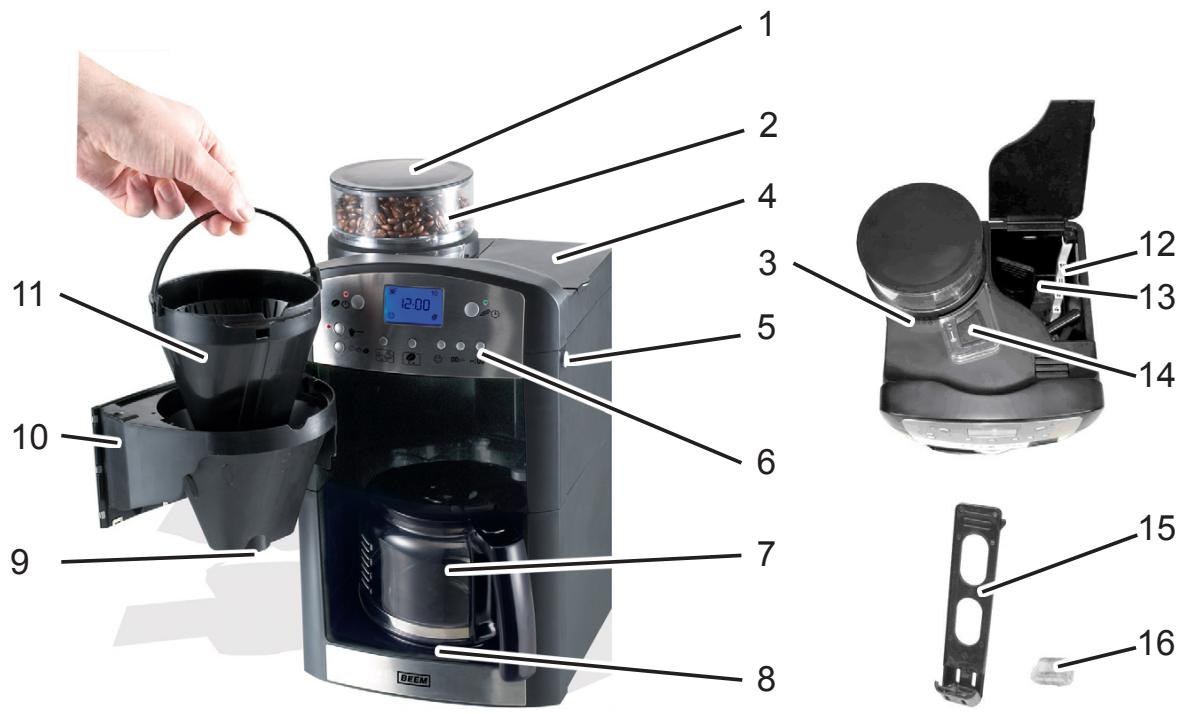

Overview / Delivery contents

EN

1Grinder lid

10 Filter compartment

2Grinder

11 Filter insert

3 Grinding fineness scale

12 Level indicator

4 Water tank lid

13 Water tank

5 Release button

14Grinder shaft

6 Control panel with control elements

15 Filter holder with filter compartment flap

7 Coffee jug with lid

16 Activated carbon filter

8 Hot plate

17 User manual (not illustrated)

9 Drip protector

Accessories

Cleaning brush

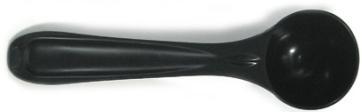

Measuring spoon

EN

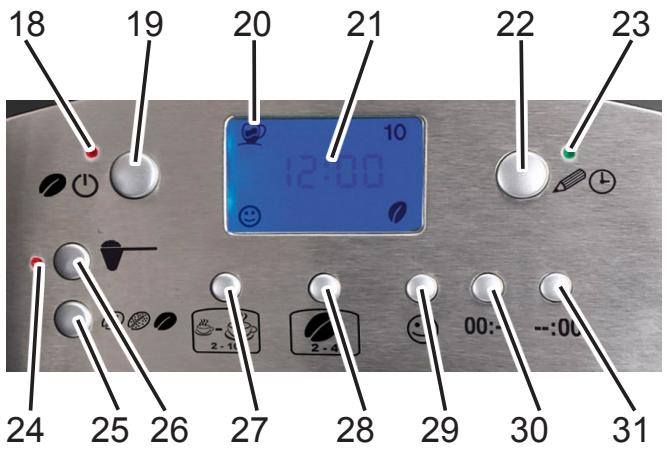

Control panel

18 "On/Off" indicator lamp
19 button

(brewing coffee with coffee beans)

20 "Cup" symbol
21 Time display
22 ① button

(setting the timer)

23 indicator lamp
24 indicator lamp

25 button (coffee strength adjustment)
26 button (brewing coffee with coffee powder)
27 button (setting the number of cups)
28 button (for extra-strong coffee)
29 button (switching the filter change reminder on and off)
30 00:-- button (setting the hour display)
31 --:00 button (setting the minute display)

Before using for the first time

NOTE

Activate the display lighting by pressing any key.
Wipe the appliance and the accessories with a slightly damp cloth.
Wash the coffee jug (7) with warm water and washing-up liquid.
Activate the filter change reminder as described in the section Activating the filter change reminder.
Fill the water tank (13) with fresh water up to mark 10 as described in the section Filling with water.
Fill the appliance with coffee as described in the section Filling with coffee beans.
Rinse the filter insert (11) with clean water and install it in the appliance as described in the section Inserting the filter.
Insert an empty unused filter bag as described in the section Inserting a new filter bag.
Place the coffee jug (7) with the lid on the hot plate (8) under the filter compartment (10).
Set the number of cups to 10 as described in the section Setting the number of cups.
Press the button (19) to switch the grinder on.
Wait until all the water has run through and the "cup" symbol (20) starts to flash.
Empty the coffee jug (7) and pour the coffee away.
Wash the coffee jug (7) with warm water and washing-up liquid.

NOTE

During the initial period of use, odour may be produced by the materials used in the appliance. The odour will diminish after a short period of time.

EN

EN

Operation

This section contains important information on the operation of the appliance.

Safety guidelines

WARNING

Danger of burning! Hot steam may escape during operation.

Observe the following safety precautions to avoid burning yourself.

• Keep your body away from escaping steam.
  Do not open the filter compartment during operation.

CAUTION

Possible damage to the appliance!

Observe the following instructions to avoid damage:

• Only fill the grinder storage container with and never with water or coffee power.
• Only fill the water tank with water and never with coffee beans or coffee power.

Switching on the display lighting

The blue display lighting goes out 60 seconds after the last keypress except when the appliance is in operation, e.g. coffee is being brewed or kept warm.

Press any key to switch on the display lighting.

NOTE

• Only press the button for the desired action after the lighting goes on.

Setting the time

Insert the plug into the socket. The time 12:00 starts flashing on the display.
Set the hours by pressing the 00:-- button (30).
Set the minutes by pressing the --:00 button (31).

NOTE

The time will be stored until either a new time is entered or the plug is removed from the socket for more than a minute.

Filling with water

Open the water tank lid (4).
Place the grinder cover (1) onto the grinder (2).
Fill the necessary amount of water for the number of cups required.

NOTE

The entire amount of water in the tank is always used, independent of the number of cups or the strength of coffee set.
Observe the filling level indicator (12) in the water tank. Do not overfill!

Close the water tank lid (4)

Filling with coffee beans

Remove the grinder cover (1).
Make sure that the water tank lid (4) is closed to prevent coffee beans from falling into the water tank.
Pour the coffee beans into the grinder (2). Do not overfill!
Replace the cover (1) on the grinder (2).

Inserting a new filter bag

EN

Press the unlocking button (5) to open the filter compartment (10).
Place a size 4 filter bag into the filter insert (11).
Close the filter compartment (10).

Specifying the number of cups

Press and hold the button (27) until the required number of cups is displayed.

NOTE

The following settings are possible: 2, 4, 6, 8, or 10 cups.
The number of cups set will be stored until either a new number of cups is entered or the plug is removed from the socket for more than a minute.

Setting the coffee strength

Press and hold the button (25) until the display shows the desired strength.

NOTE

The following settings are possible: light, medium and strong.
The set coffee strength will be stored until either a new coffee is entered or the plug is removed from the socket for more than a minute.

Particularly strong coffee

Press the button (28) to prepare a particularly strong coffee (similar to espresso). The display reads 2-4. Pressing the button (28) switches the number of cups between 2 and 4.

NOTE

This function can be activated only if 2 or 4 cups of coffee have been set.
Press the button (27) to switch this function off. The 2-4 symbol in the display goes off.

Setting the grinding fineness

The grinding fineness is set by turning the grinder to the right or left (2).

Turn the grinder (2) so that the scale arrow of the grinder is pointing to the position with the desired degree of fineness on the scale (3).

NOTE

You can set five different levels:

Completely left: finest grind.
Completely right: coarsest grind.

Activating the filter change reminder

EN

NOTE

In order for the filter change reminder to function, the appliance must remain connected to the mains power and the time set as described in the section Setting the time.
Press the button (29) to activate the filter change reminder. The symbol appears in the display. The symbol will start flashing after 70 coffees were brewed. Replace the activated carbon filter as described in the section Replacing the activated carbon filter.

Removing and fitting the lid of the coffee jug

The appliance is equipped with a glass jug and a lid.

To remove the lid, proceed as follows:

Open the lid as illustrated.

Turn the lid in the direction of the arrow to release the left-hand pin of the lid from the holder (see detailed illustration). The lid can now be removed.

To fit the lid, proceed as follows:

First insert the right-hand pin into the holder, then turn the lid in the direction of the arrow so that the left-hand pin engages.
Close the lid.

Instructions for brewing coffee

Requirements for aromatic coffee

In order to prepare aromatic coffee, please observe the following instructions:

If possible, use freshly ground coffee powder for the optimum flavour.
■ Experiment with the amount of coffee powder until you find the flavour you prefer.
Try various different levels of grinding fineness for the coffee powder. The grinding fineness for the coffee powder influences the aroma of the coffee.
- Fill the water tank with the amount fresh water required for the desired number of cups.
Clean and descale the appliance at regular intervals. A dirty and/or scaled appliance impairs the aroma.
- Although the hot plate on which the coffee jug stands can keep the coffee hot for some time, we recommend that you pour brewed coffee into a thermos jug and switch off the appliance.

Preparation

EN

NOTE

• When the appliance is in operation, the coffee jug (7) must be under the filter compartment (10) and the lid of the coffee jug must be fitted correctly. The lid of the coffee jug presses the drip protector (9) upwards, and the coffee can flow from the filter through the lid into the coffee jug.
  The drip protector (9) prevents water running out of the filter when the coffee jug (7) is removed from the appliance. During the brewing process however, the coffee jug (7) should not be removed from the appliance for more than 30 seconds, otherwise the filter will fill up and the coffee will overflow.
  When the brewing process has been completed, the "cup" symbol (20) in the top left of the display starts flashing.

Brewing coffee with coffee beans

NOTE

Activate the display lighting by pressing any key. The lighting goes out 60 seconds after the last button was pressed.
Fill the water tank with water as described in the section Filling with water.
Fill the appliance with coffee as described in the section Filling with coffee beans.
Insert an empty unused filter bag as described in the section Inserting a new filter bag.
Select the desired number of cups as described in the section Setting the number of cups.
Set the desired strength of coffee as described in the section Setting the coffee.
Set the grinding fineness as described in the section Setting the grinding fineness.
Press the button (19) to switch on the grinder.

The indicator lamp (18) lights up, the freshly ground coffee powder is transported into the filter compartment (10) through the chute and the coffee is brewed.

EN

Stopping the brewing process

Press the button (19) to stop the brewing process and switch the appliance off. The indicator lamp (18) goes off; the appliance is switched off.

NOTE

The appliance automatically switches itself off after 2 hours.

Brewing coffee with coffee powder

NOTE

Activate the display lighting by pressing any key. The lighting goes out 60 seconds after the last button was pressed.
Fill the water tank with water as described in the section Filling with water.
Insert an empty unused filter bag as described in the section Inserting a new filter bag. With the help of the measuring spoon supplied (1 level spoon per cup), fill the filter bag with the required amount of coffee powder up to a maximum of 2 cm under the filter edge.
Press the button (26) to start brewing the coffee. The indicator lamp (24) lights up and the coffee is brewed.

Stopping the brewing process

Press the (26) or button (19) to stop the brewing process and switch the appliance off. The indicator lamp (24) goes off; the appliance is switched off.

NOTE

The appliance automatically switches itself off after 2 hours.

Brewing coffee using the preset timer

EN

NOTE

To brew coffee using the timer, the time must be set as described in the section Setting the time.
Activate the display lighting by pressing any key. The lighting goes out 60 seconds after the last button was pressed.

Programming the preset time

Press the button (22) and keep the button pressed for about 3 seconds. The indicator lamp (23) starts flashing.
Use the 00:- button (30) and --:00 (31) to set the requested starting time.

For brewing coffee with coffee powder:

Also press the button (26) while as the indicator lamp (23) is still flashing. The indicator lamp (24) lights up.
Fill the water tank with water and the filter bag with coffee powder.

Brewing coffee with coffee beans:

Make sure that the indicator lamp (24) is not on. If necessary, press the button (26) while the indicator lamp (23) is still flashing. The indicator lamp (24) goes off.
Set the number of cups, the strength of the coffee and the grinding fineness.
Fill water into the water tank and the coffee beans into the grinder.
Place an unused, empty filter bag into the filter holder.

Finishing programming

Press the button (22) again to activate the preset timer function. You can also wait until the indicator lamp(23) stops flashing and then press the button (22). The indicator lamp (23) lights up permanently and the time selection function is activated.

When the preset time is reached, the appliance is switched on automatically.

Stopping the preset timer

In order to stop the timer, press one of the following buttons:

• button (22) - The indicator lamp (23) goes off.
• button (19) - The indicator lamp (23) goes off and the appliance starts brewing the coffee with coffee beans.
• The button (26)

The indicator lamp (23) goes out and the appliance starts brewing coffee with coffee powder.

After brewing

EN

Carry out the following operations after each use of the appliance in order to retain proper function of the appliance and prevent mould from forming:

WARNING

Danger of burning!

Observe the following safety precautions to avoid burning yourself.

Always allow the appliance to cool down before cleaning.

Emptying / cleaning the filter

Press the unlocking button (5) to open the filter compartment (10).
Remove the filter insert (11) with the filter bag from the filter compartment.
Throw the filter bag away and wash the filter insert (11) and drip protector (9).

Cleaning and maintenance

This section contains important information on cleaning and maintenance of the appliance.

EN

Safety guidelines

WARNING

Observe the following safety precautions before starting to clean the appliance:

• Switch off the appliance and pull the plug out of the mains socket before starting cleaning.
• Wait until the appliance has cooled down before you start to clean it.
• Never immerse the appliance or the plug into water or other liquids.

Cleaning

CAUTION

Possible damage to the surface of the appliance!

Do not use sharp objects or abrasive cleaning agents to clean the surfaces.
- Clean the filter insert (11) and coffee jug (7) after each use. The coffee jug, lid and filter insert can be washed in a dish washer. Remove the lid of the coffee jug first as described in the section Removing/fitting the coffee jug lid.
If necessary, clean the grinder (2) and the grinder cover (1).
- Wipe the housing with a moist cloth. Use a little washing-up liquid to remove any stubborn stains.

EN

• it is possible that the grinder shaft can become blocked during the grinding process. In this case, clean the grinder shaft (14):

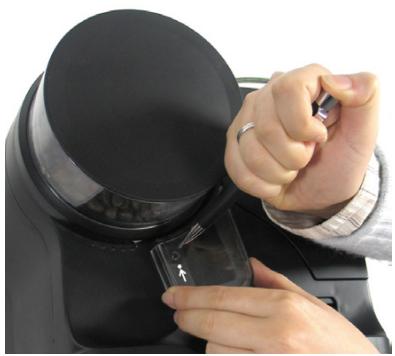

Push the locking button (on the symbol) with a pointed object and remove the lid.

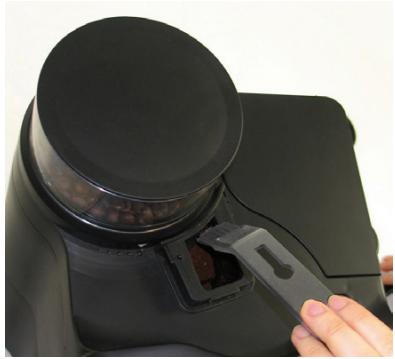

Clean the grinder shaft (14) with the cleaning brush supplied.

Changing the activated carbon filter

Change the activated carbon filter after brewing 70 times or when the symbol starts flashing in the display. Please proceed as follows:

Press the button (29) to switch off the filter change reminder. The symbol on the display goes out.

Take the filter holder (15) from the water tank (13) and open the filter container flap and remove the used activated carbon filter.
Remove the activated carbon filter (16) from its plastic packaging and thoroughly rinse under running water in order to remove any potential production residues.

Place the new filter in the filter container and close the filter container flap.
Slide the filter holder (15) into the recess (arrow).
Press the button (29) to activate the filter change reminder again.

NOTE

The filter change reminder is active only when symbol in the display is not flashing.

EN

Dscaling

In order not to impair the service life of the appliance and the quality of the coffee, the appliance must be descaled at regular intervals. The descending interval depends on the water hardness (at least every 6 weeks).

Fill the water tank with water to the 10 mark and add citric acid or vinegar essence (approximately 5 % acidic solution).

NOTE

If you use a commercially available descaling agent, observe the manufacturer's instructions for use.

Press the button (26).
Allow the descending solution to run through the machine.
Empty the coffee jug (7).

NOTE

If the appliance is severely scaled, it may be necessary to repeat the descending process.

Allow two tank fills of clear water to run through the appliance for rinsing.
Wash all removable parts with warm water and washing-up liquid before brewing coffee again.

Troubleshooting

Safety guidelines

EN

DANGER

Danger to life by electric shock!

Pull the plug out of the mains socket before starting troubleshootinging.

WARNING

Danger from unqualified repairs!

Unqualified repairs can lead to considerable danger for the user and cause serious damage to the device.

Repairs to electrical appliances may only be carried out by the works customer service or by specialists trained by the manufacturer.

Faults - causes and remedies

Fault	Possible cause	Remedy
No symbol in the display	Not plugged in	Insert the plug
	No mains power	Check the fuse / socket
	Display is defective	Contact customer service
The automatic circuit breaker in the fuse box trips	Too many appliances connected to the same power circuit	Reduce the number of appliances on the power circuit
	Appliance defective	Contact customer service
Water runs out of the appliance	Too much water in the water tank	Do not overfill the water tank

EN

Fault	Possible cause	Remedy
The coffee is dispensed into the coffee jug very slowly	Anti-drip valve is clogged	Clean the anti-drip valve
	Appliance is scaled	Descale the appliance
The coffee runs onto the hot plate	Coffee jug not correctly positioned	Position the coffee jug in the middle under the filter compartment
The coffee does not run into the coffee jug	Coffee jug lid is not correctly fitted	Fit the lid correctly
The coffee is too weak	Too much water in the water tank	Only fill in the amount of water required for the desired number of cups
Grounded coffee does not fall into the filter compartment	Grinder shaft blocked	Clean grinder shaft
Strong build-up of steam during coffee brewing	Appliance severely scaled	Descale the appliance. several times

NOTE

If you cannot resolve the problem with the steps described above, please contact customer service.

Information on storage/disposal

Storage

If you do not intend to use the appliance for a longer period of time, empty and clean it as described in the section Cleaning and care. Store the appliance and all accessory parts in a dry, clean and frost-free place which is protected against direct sunlight.

EN

Disposal

This product must not be disposed of in the domestic refuse within the European Community.

Dispose of the appliance in accordance with the EU Directive 2002/96/EU-WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authority in charge of waste disposal.

Appendix

Technical data

Model	Fresh-Aroma-Perfect Version 2
Type number	W6.001
Operating voltage	230 VAC
Mains frequency	50 Hz
Power consumption	1,000 W
Protection class	I
Type of protection	IP X0
Grinder capacity	100 to 120 g of coffee beans, depending on the size of bean
Coffee jug capacity	1.2 litre
Dimensions	393 x 243 x 320 mm (H x W x D)
Approximate weight	4.7 kg

Spare parts and other accessories

EN

Item*	Article No.	Designation
7	900 466 018	Coffee jug with lid
11	900 466 011	Filter insert
15	900 466 031	Filter holder with filter container flap
16	D 20 00 614	Activated carbon filter
-	900 466 051	Measuring spoon
-	900 466 056	Cleaning brush

• according to the drawing in the description of the appliance

Certifications

Symbol	Meaning
Intertek	The appliance has been tested and certified by Intertek.
CE	The appliance conforms to the relevant EU Directives (see Declaration of Con-formity).
RoHS	This appliance conforms to the Directives on the Restriction of Hazardous Substances in Electrical and Electronic appliances (RoHS).
	This appliance conforms to the provisions of the Waste Electrical and Electronic Equipment Directive (WEEE).

Guarantee, service and repairs

This is a quality product from BEEM and was produced using the latest manufacturing methods.

We guarantee the perfect condition of this quality product. We will remedy any faults due to material flaws or manufacturing faults free of charge within the warranty period.

The warranty period for this appliance is two years.

For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the warranty period is six months. This does not infringe the warranty disclaimer.

Warranty disclaimer: The warranty does not cover faults caused by improper use, failure to observe instructions and safety precautions in the user manual, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.

If we are obliged by law to provide a warranty, we will comply with such obligation- to the exclusion of the right to cancellation or price reduction - and at our discretion, repair or replace the product free of charge. Should the remedy fail despite several attempts or should the replacement product exhibit faults attributable to us, the customer shall be entitled - at his/her discretion - to reduce the purchase price or to cancel the contract of purchase. Claims under warranty do not prolong the warranty period. For exchange or return of the appliance (withdrawal from the purchase contract) or reduction of the purchase price, the first contact is always the retailer from whom you purchased the product. This particularly applies to returning the appliance or the claim for reductions as these have to be settled with respect to the purchase price. Refunding the purchase price or a credit in the event of a reduction of the purchase price can only be handled by the retailer from whom you purchased the appliance.

EN

Should - contrary to expectations - faults occur, please try to resolve the matter by telephone first. Should this not be successful, please send the carefully packed appliance to your retailer or to the customer service address shown below. Please state your complete address, type and model number and the serial number of the appliance. This information can be found on the rating plate of the appliance. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a printed and dated receipt of purchase or invoice. Without a printed receipt of purchase or invoice, no services under warranty can be provided, whether for repairs, spare parts or other claims.

Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor first. Information can be obtained – preferably by e-mail – from the customer service address indicated below.

Repairs not covered by the warranty can also be performed against individual payment by customer service - outside Germany by the retailer from whom you purchased the appliance or by a service centre, if available.

Replacement parts and consumables can be ordered from your retailer or the stated customer service address. Please contact first your dealer or the local distributor if you live outside of Germany.

For product information, accessory orders or questions on service handling, please contact your retailer or the stated customer service address. Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor first.

You can also use the Internet. You will find accessories and spare parts, as well as user manuals in various languages on our website www.beem.de . In addition you will find further product information.

EC Declaration of Conformity

Name/address of manufacturer:	BEEM Blitz-Elektro-Erzeugnisse Manufaktur Handels-GmbH Dieselstrasse 19-21 D-61191 Rosbach v.d.H.
We hereby declare that the product
Model:	Fresh-Aroma-Perfect Version 2
Type:	W6.001
conforms to the following relevant regulations: EU Directive 2006/95/EU Electrical devices for use within certain voltage limits, EU Directive 2004/108/EU Electromagnetic compatibility.
EN55014-1:2006 EN55014-2:1997+A1:2001 EN61000-3-2:2006 EN61000-3-3:1995+A1:2001+A2:2005 EN62233:2008 EN60335-1:2002+A11,A1:04+A12,A2:06+A13:2008 EN60335-2-14:2006+A1:2008 EN60335-2-15:2002+A1:05+A2:2008
EN55014-1:2006 EN55014-2:1997+A1:2001 EN61000-3-2:2006 EN61000-3-3:1995+A1:2001+A2:2005 EN62233:2008 EN61000-3-3:1995+A1:2002+A11,A1:04+A12,A2:06+A13:2008 EN60335-1:2002+A11,A1:04+A12,A2:06+A13:2008 EN60335-2-14:2006+A1:2008 EN60335-2-15:2002+A1:05+A2:2008

EN

EN

Index

A

Accessories 49

Activated carbon filter. 65

Appliance elements 49

B

Before using for the first time . . . . .51

Brewing

Timer. 60

with coffee beans 58

with coffee powder 59

Brewing instructions 57

C

Cleaning 63

Coffee beans 58

Coffee powder 59

Control panel 50

D

Damaged appliance 44

Danger of burning. 45

Delivery contents 46, 49

Dscaling 66

Disposal 47,69

E

EC Declaration of Conformity. 73

Electrical connection. 48

F

Filter 62

G

Guarantee. 71

1

Initial use 46

Installation location. 47

Intended use. 43

L

Liability disclaimer 43

N

New owner 41

0

Operation 52

Activating the filter change reminder 56

Filling with coffee beans .53

Inserting a new filter bag. 54

Removing/fitting the lid of the coffee jug. 56

Setting the coffee strength 54

Setting the grinding fineness. . . .55

Setting the number of cups. .54

Setting the time. 53

Switching on the display lighting .52

P

Packaging. 47

R

Repairs. 71

S

Safety 44

Service 71

Storage. 69

T

Technical data. 69

Transport inspection. 46

Troubleshooting 67

U

Unpacking. 46

W

Warnings. 42

Table des matières

Avant-propos 77

Herinnering filtervarging activeren

OPMERKING

For service in other countries contact your local dealer.
