USER MANUAL K4 KARCHER

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Dear Customer.

Please read and comply with these original instructions prior

to the initial operation of your appliance and store them for later use or subsequent owners.

Contents

Scope of delivery EN .5

Proper use EN .5

Environmental protection . EN . .5

Safety EN 5

Description of the Appliance... EN . . .8

Before Startup EN .8

Start up. EN 9

Operation EN 9

Transport EN .10

Storage. EN .10

Maintenance and care EN .11

Troubleshooting EN .11

Accessories and Spare Parts.. EN . .12

Warranty. EN .12

Technical specifications EN .12

EC Declaration of Conformity.. EN ..13

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Proper use

This high pressure cleaner is designed for domestic use only.

• for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).
  with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the infor

mation accompanying the cleaning agents.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

The extraction of water from public waters is prohibited in some countries.

Work with detergents must only be performed on liquid-tight work surfaces with connections to the wastewater runoff. Do not let release detergent into waters or earth.

Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Safety

Meaning of the notes

Danger

Pointer to immediate danger, which leads to severe injuries or death.

Warning

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

Caution

Pointer to a possibly dangerous situation, which can lead to minor injuries.

Caution

Pointer to a possibly dangerous situation, which can lead to property damage.

Symbols on the machine

The appliance must not be directly connected to the public drinking water network.

1 Risk of damage! The appliance must only be operated laying down (horizontal).
2 The high pressure jet may not be directed at persons,

animals, live electrical equipment or at the appliance itself.

3 Protect the appliance against frost.

Electric components

Danger

• Never touch the mains plug and the socket with wet hands.
  Check the power cord with mains plug for damage prior to every use. Immediately have damaged power cord replaced by an authorised customer service / electrician. Do not operate an appliance if the power cord is damaged.
  All current-conducting parts in the working area must be protected against jet water.
  The mains plug and the coupling of an extension cable must be watertight and must never lie in water. Moreover, the coupling may never lie on the ground. The use of cable reels that ensure that the sockets are at least 60~mm above the ground is recommended.
  Make sure that the power cord or extension cable is not damaged by running over, pinching, dragging or the like. Protect the power cords from heat, oil, and sharp edges.

Warning

The appliance may only be connected to alternating current. The voltage must correspond with the type plate of the appliance.
The appliance may only be connected to an electric supply that has been installed by an electrician in accordance with IEC 60364.

• Unsuitable electrical extension cables can be hazardous. Only use electrical extension cables outdoors which have been approved and labelled for this purpose and have an adequate cable cross-section: 1 - 10 ~m: 1.5 ~mm^2; 10 - 30 ~m: 2.5 ~mm^2 :
  Always fully unreel the extension cable from the cable drum.
  For safety reasons, we recommend that you operate the appliance only via a residual current device (max. 30 mA).

Safe handling

Danger

Check important components, such as high-pressure hose, hand spray gun and safety installations, for damage prior to every operation. Immediately replace damaged components. Do not operate appliance with damaged components.
The high-pressure jet must not be directed at other persons or the user him/herself to clean clothing or footwear.
- Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
Vehicle tyres/tyre valves are susceptible to damage from the high-pressure jet and may burst. The first indication for this is a discolouration of the tyre. Damaged vehicle tyres/tyre valves are perilous. Keep a minimum jet distance of 30 cm during cleaning!
- Keep packaging films away from children, there is a risk of suffocation!

Warning

The appliance must not be operated by children or persons who have not been instructed accordingly.
This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lacking experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or they have received precise instructions on the use of this appliance and have understood the resulting risks.

Children must not play with this appliance.
Supervise children to prevent them from playing with the appliance.
The user must use the appliance as intended. The person must consider the local conditions and must pay attention to other persons in the vicinity when working with the appliance.
High-pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high-pressure hoses, fixtures and couplings recommended by the manufacturer.
- Do not use the appliance when there are other persons around unless they are also wearing protective clothing.
This appliance was designed to be used with detergents which are supplied or recommended by the manufacturer. The use of other detergents or chemicals may compromise the safety of the appliance.

Caution

In case of extended breaks, switch the appliance off at the main switch / appliance switch or pull the mains plug.
- Keep a distance of at least 30~cm when using the jet for cleaning painted surfaces to avoid damage.
- Never leave the appliance unattended as long as it is in operation.
- Do not operate the appliance at temperatures below 0^ .

Other risks

Danger

Do not spray flammable liquids.
- Never draw in fluids containing solvents or undiluted acids and solvents! This includes petrol, paint thinner and heating oil. The spray mist is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids and solvents, as they corrode the materials used on the appliance.
The appliance may not be operated in explosive atmospheres.

If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety regulations must be observed.

Personal protective equipment

Wear protective clothing and safety goggles to protect against splash back containing water or dirt.

Stability

Caution

Create stability for the appliance prior to any work on or with the appliance to prevent accidents or damage.

The stability of the appliance is warranted when it is placed onto an even surface.

Safety Devices

Caution

Safety installations serve the protection of the user and may not be modified or bypassed.

Appliance switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.

Overflow valve with pressure switch

The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

Illustrations on fold-out page!

1 Storage for accessories
2 Transport handle, detachable
3 Quick coupling for high pressure hose
4 Appliance switch "0/OFF"/,I/ON"
5 Mains cable with mains plug
6 Carrying handle
7 Bearing wheel
8 Water connection with integrated sieve
9 Coupling element for water connection
10 Detergent suction hose (with sieve)
11 Trigger gun
12 Lock trigger gun
13 High pressure hose
14 Key to detach the high pressure hose from the trigger gun
15 Spray lance with pressure regulation (Vario Power)

Carrying out the most common cleaning tasks. The work pressure can be stagelessly regulated between "Min" and "Max". You can add detergent when "Mix" is selected.

In order to adjust the working pressure, release the lever of the hand spray gun and turn the spray lance to the desired position.

16 Spray lance with Dirtblaster For strong contaminations

* Optional accessories

17 Washing brush
Suitable for use with detergents.
18 Rotary washing brush
Suitable for use with detergents.
Especially suitable for cleaning cars.
19 Foam nozzle with detergent container With powerful foam for effortless cleaning.

\*\* Not included in the delivery

20 Water supply hose

Use a fabric reinforced water hose with a commercially available coupling. Minimum diameter 13mm (1/2 inch); minimum length 7.5m .

Before Startup

Attaching the Accessories

Mount loose parts delivered with appliance prior to start-up.

Illustrations on fold-out page!

Illustration A

Screw the coupling element to the water connection on the appliance.
Illustration B
Push the high pressure hose into the trigger gun until it locks audibly.

Note: Make sure the connection nipple is aligned correctly.

Check the secure connection by pulling on the high pressure hose.

Water supply

For connection values, see type plate/technical data.

Caution

Impurities in the water can damage the high-pressure pump and the accessories.

For protection, the use of the KÄRCHER water filter (optional accessory, order no.

4.730-059) is recommended.

Water supply from mains

Observe regulations of water supplier.

Warning

According to applicable regulations, the appliance must never be used on the drinking water net without a system separator. A suitable system separator by KÄRCHER or alternatively a system separator according to EN 12729 type BA must be used.

Water that has flown through a system separator is no longer classified as drinking water.

Caution

Always connect the system separator to the water supply, never directly to the appliance!

Drawing in water from open reservoirs

This high-pressure cleaner is suited to work with the KÄRCHER suction hose with backflow valve (Optional accessory, order no. 4.440-238) to draw in surface water, e.g. from water butts or ponds (see specifications for max. suction height).

Fill the suction hose with water.
Screw the suction hose into the water connection of the appliance and insert it into the water source (e.g. rainwater drum).

Start up

Caution

Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".

Illustration C

Push the high pressure hose into the quick coupling until it locks audibly.
Attach the water supply hose to the coupling on the water connection. Note: The supply hose is not included.
Connect the water supply hose to the water supply.
Completely open the water tap.
Insert the mains plug into the socket.
Turn on the appliance "I/ON".

Illustration D

Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the device will switch on.

Switch the appliance on for a (max. of 2 minutes) and wait until the water exits at the hand spray gun without bubbles.

Release the lever on the trigger gun. Note: Release the lever of the trigger gun; the device will switch off again.
High pressure remains in the system.

Illustration E

Lock the lever on the trigger gun.

Operation

Danger

The water jet that is emitted from the high-pressure nozzle results in a repulsion power acting on the hand spray gun. Make sure that you have a firm footing and are also holding the hand spray gun and spray lance firmly.

Danger

High-pressure jets can be dangerous if improperly used. The jet may not be directed at persons, animals, live electrical equipment or at the appliance itself.

Caution

Risk of damage! The appliance must only be operated laying down (horizontal).

Caution

Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.

Caution

Risk of damage to the paintwork

When working with the washing brush, it must be free of dirt or other particles.

Illustration F

Push the spray lance into the trigger gun and fasten it by turning it through 90^ .
Unlock the lever on the trigger gun.
Pull on the lever of the trigger gun; the device will switch on.

Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.

Working with detergent

Danger

The use of wrong detergents or chemicals can compromise the safety of the appliance.

Please use exclusively KÄRCHER detergents and care products to carry out the respective cleaning task, as these were specifically developed for your appliance. The use of other detergents and care products may lead to premature wear and can invalidate your warranty claims. Please obtain information at your local dealer or request information directly from KÄRCHER.

Danger

The improper use of detergents can cause severe injuries or toxication.

When using detergents, the material data safety sheet issued by the detergent manufacturer must be adhered to, especially the instructions regarding personal protective equipment.

Illustration G

Pull detergent suction hose as far as is required out of the housing.
Suspend end of detergent suction hose in a container filled with detergent.
Use spray lance with pressure regulation (Vario Power).
Turn the spray lance to "Mix" position. Note: This will mix the detergent with the water stream.

Optional

Fill the detergent solution in the detergent tank of the foam nozzle (observe dosage instructions on the packaging of the detergent).

Recommended cleaning method

Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
Spray off loosened dirt with the high pressure jet.

Interrupting operation

Release the lever on the trigger gun.
Lock the lever on the trigger gun.
During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.

Finish operation

Caution

Only separate the high-pressure hose from the hand spray gun or the appliance when there is no pressure in the system.

Caution

When disconnecting the supply or high pressure hose, warm water may leak from the connections after operation.

After operation with detergent: Run the machine for approximately 1 minute for a clear rinse.
Release the lever on the trigger gun.
Turn off the appliance "0/OFF".
Turn off tap.
Press the lever on the trigger gun to release any remaining pressure in the system.
Lock the lever on the trigger gun.
Disconnect the mains plug from the socket.
Detach the appliance from the water supply.

Transport

Caution

In order to prevent accidents or injuries, mind the weight of the appliance during transport (see technical data).

When transporting by hand

Illustration H

Lift appliance by the carrying handle and carry it.

Illustration 1

Pull out the transport handle until it audibly snaps into place.
Pull the appliance by its transport handle.

When transporting in vehicles

Secure the appliance against shifting and tipping over.

Storage

Caution

In order to prevent accidents or injuries, mind the weight of the appliance when choosing the storage location (see technical data).

Storing the Appliance

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

Park the machine on an even surface.
Press the disconnect on the trigger gun and remove the high pressure hose from the trigger gun.
Push the casing of the quick coupling for the high pressure hose toward the rear and disconnect the high pressure hose from the appliance.

Illustration 1

Stow away the mains cable, the high-pressure hose and accessory on the appliance.

Frost protection

Caution

Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:

Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
Store the appliance and the entire accessories in a frost free room.

Maintenance and care

Danger

Risk of electric shock. Turn off the appliance and remove the mains plug prior to performing any care and maintenance work.

Care

Prior to longer periods of storage, e.g. in the winter:

Remove filter from suction hose for detergent and clean under running water.
Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

Maintenance

The appliance is maintenance free.

Troubleshooting

You can rectify minor faults yourself with the help of the following overview. If in doubt, please consult the authorized customer service.

Danger

Risk of electric shock. Turn off the appliance and remove the mains plug prior to performing any care and maintenance work.

Repair work and work on the electrical components may only be performed by an authorised customer service.

Appliance is not running

Pull on the lever of the trigger gun; the device will switch on.
Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
Check the mains connection cable for damages.

Appliance does not start, motor hums

Voltage reduction due to weak mains supply or when using an extension cable.

When switching on, first pull the lever of the trigger gun and then switch the appliance switch to "I/ON".

Pressure does not build up in the appliance

Check setting at the spray lance.
Check water supply for adequate delivery rate.
Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.

Strong pressure fluctuations

Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
Check water flow quantity.

Appliance is leaking

Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.

No detergent infeed

Use spray lance with pressure regulation (Vario Power).

Turn the spray lance to "Mix" position.

Clean the detergent suction hose filter.
Check the detergent suction hose for kinks.

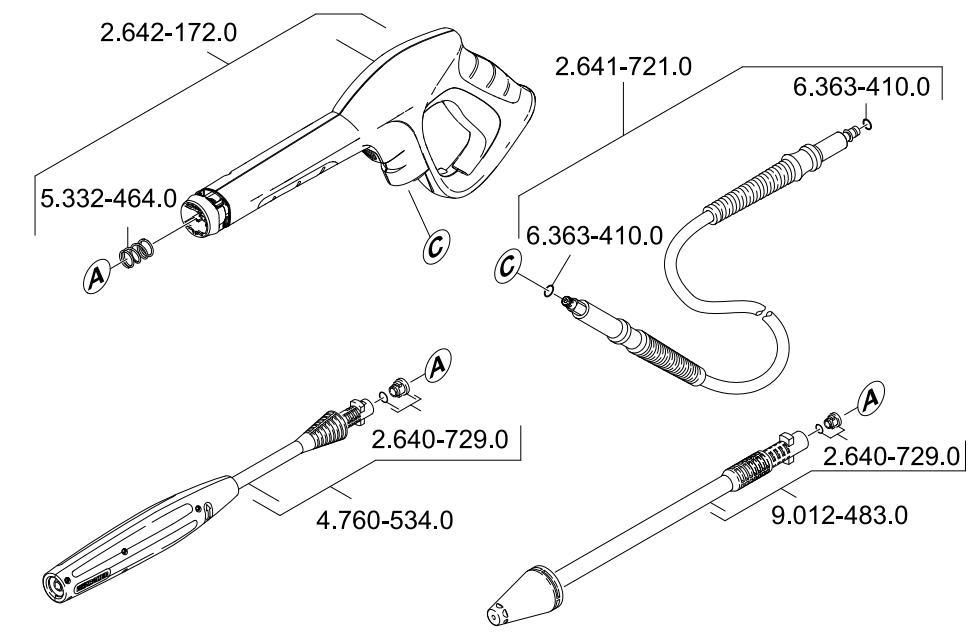

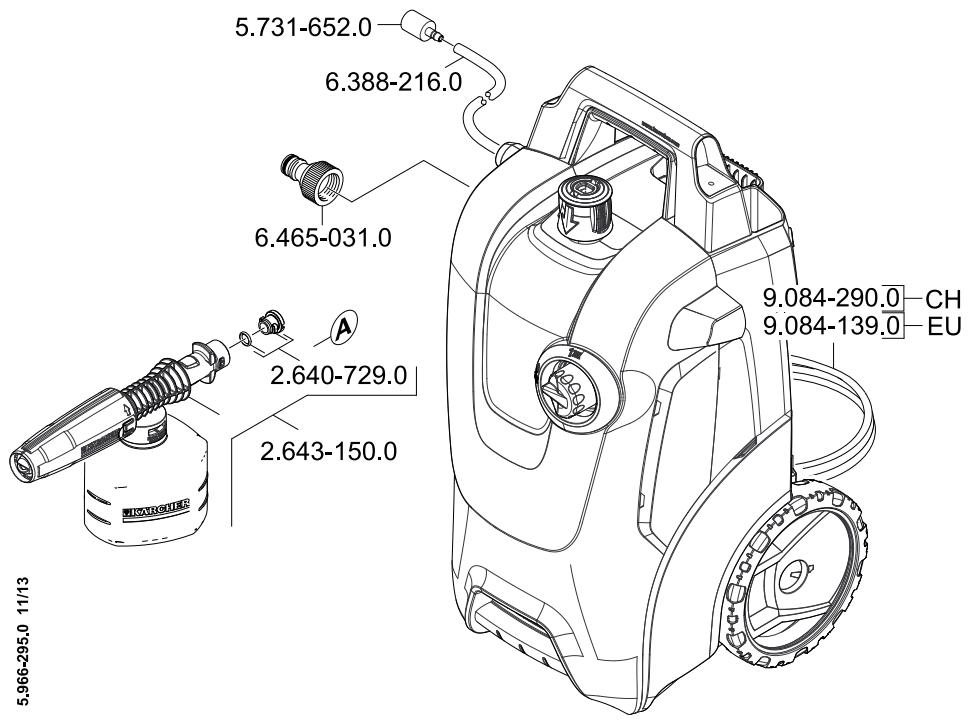

Accessories and Spare Parts

Special accessories

Special accessories expand the possibilities of using your appliance. Please contact your KÄRCHER dealer for further information.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase.

Addresses can be found under:

www.kaearcher.com/dealersearch

Technical specifications

Electrical connection
Voltage	230 V
	1~50 Hz
Connected load	1,8 kW
Protection class	IP X5
Protective class	I
Mains fuse (slow-blow)	10 A
Water connection
Max. feed pressure	0,8 MPa
Max. feed temperature	40 °C
Min. feed volume	9 l/min
Max. Suction height	0,5 m
Performance data
Working pressure	11 MPa
Max. permissible pressure	13 MPa
Water flow rate	6,3 l/min
Max. feed volume	7,0 l/min
Detergent flow rate	0,3 l/min
Recoil force of trigger gun	16 N
Dimensions and weights
Length	516 mm
Width	295 mm
Height	282 mm
Weight, ready to operate with accessories	12,2 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value	<2,5 m/s²
Uncertainty K	0,3 m/s²
Sound pressure level LpA	75 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	91 dB(A)

Subject to technical changes.

EC Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.637-xxx

Relevant EU Directives

2000/14/EC

2004/108/EC

2006/42/EC (+2009/127/EC)

2011/65/EU

Applied harmonized standards

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2008

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 87

Guaranteed: 91

The undersigned act on behalf and under the power of attorney of the company management.

H.Jenner

CEO

S. Reiser

Head of Appropriation

Authorised Documentation Representative

S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Cher client,

www.kaercher.com/REACH

Sécurité

Manipulation friable

Danger

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Telephone: [phone]

Winnenden, 2013/09/01

Gentile cliente,

www.kaercher.com/REACH

Sicurezza

www.kaearcher.com/dealersearch

Dati tecnici

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Geachte klant

www.kaercher.com/REACH

Veiligheid

www.kaearcher.com/dealersearch

Technische gegevens

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Estimado cliente:

www.kaercher.com/REACH

Seguridad

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Estimado cliente

Leia o manual de manual original antes de utiliser o seu apare-

Dados techniques. PT...14

www.kaercher.com/REACH

Seguraçā

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Kare kunde.

www.kaercher.com/REACH

Sikkerhed

www.kaearcher.com/dealersearch

Tekniske data

Gaelende EF-directiver

2000/14/EF

2004/108/EF

2006/42/EF (+2009/127/EF)

2011/65/EU

71364 Winnenden (Germany)

TIf.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Kjare kunde.

www.kaercher.com/REACH

Sikkerhet

** Leveres/DDs standard

www.kaercher.com/dealersearch

Tekniske data

2006/42/EF (+2009/127/EF)

2011/65/EU

71364 Winnenden (Germany)

TIf: [phone]

Winnenden, 2013/09/01

Bästekund,

#

www.kaercher.com/REACH

Sakerhet

www.kaearcher.com/dealersearch

Tekniska data

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Arvoisa asiakas

www.kaercher.com/REACH

Turvallisuus

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2013/09/01

Axiotmu EeAatn.

Piv xpoaiouioeTe Tn ou
Okeun oac yia npwtn popa, dia
BaoTe autcTG TTpWTOTUttc eOnc, Evpyntoe OuMPWVA e autcKai Kpa
Tnote Tc yia eAAovtikxpnn n YIA TOV
ETIOEVO IIOKTInT.

www.kaercher.com/REACH

Aoαλεια

Evtoves δiakumavoeic nieons

www.kaercher.com/dealersearch

S. Reiser
Head of Appropriation

YtEeBuvosTeknpiwoNS

S. Reiser

71364 Winnenden (Germany)

Tnλ::[phone]

Φαξ: [phone]

Winnenden, 2013/09/01

Sayin musterimiz,

www.kaercher.com/REACH

Güvenlik

Uyarilarin anlami

Tehlike

www.kaercher.com/dealersearch

Teknik Bilgiler

Elektrik baglantisi

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

YbaxaemblnokynateJIb!

IpeepnepbimnpmHeHneBawaero npnbopa npountaTe

3Ty opuHnHaIbHyU INHCTpyKUIO NO 3KcNlyaTaun, NocLe 3TOrO DeIeCTByIe COOTBeTCTBENHO COxpaHnte ee IJy DaJIbHeiJeTo NOJb3OBAHnI INI dIe CNeDuIoero BlaJeIbua.

OrnaBneHne

KOMJIeKT IOCTaBKn RU .5

IcnoJIb3ObaHne no Ha3HaueHHIO RU . .5

3aunTa okpykaioe cpebl..RU...5

Be3onacHocTb RU...6

Oncanhe npnbopa . RU .9

Ipeud hauanom pa60tbU .9

Haayao paobtBu RU 10

3Kcnpnyataua RU..11

TpaHcnpToPbOka RU..12

Xpahene. RU..12

YxOДиTexHnueeCKoe O6cnyKn-BAHne.RU..13

POMOuB CnUyae HEnoJaOK.RU..13

YnaKOBOChbIe MaTePnAJIbI npIrOdHbI dIy BToPnUHoi O6pa60Tkn. IOn3Tomy He Bbl6paCsbIaIte YnaKOBky BmecTe CDOMaUSHMNIOTXoDAMN, a cdaIte ee B ODNH n3 PnyKTOB pInema BToPnUHOrO cbIpbra.

CtapbIe npn60bpI coedePkaT ceHHbIe nepepa6aTabiBaembIe MaTePnaJIbI, noIeJxauIe nepedaeB IyHKtbl npneMkn BTOpHOrO cbIp8a. Po3ToMy yTuIN3npYIne CTapbIe npn60bpI uepe3 COOTBeTCTByUoIe CnCTEmbl npneMkn OTXODOB.

3a6op BOIbI n3 OoJIeCTBeHHbIX BOIOeMOB B HeKOTOpbIX CTpaHax 3a- npuehen.

Пювдь tab pa6otbIC npIMeHnEM qICTaIero cpeIcTba pa3peIaETCa TOnbKO Ha BOHOENpOHIuaEmbIX pa6oUHX IOBepxHocTEx C NOcEOJIHnEHm K b6IToBoi KaHaII3aUnn. He DONYCKaTb pONIKHOBEHnY ChCTaIeero cpeIcTba B BOIOEMcI INI rpyHT.

Pa60tbl NO OUHCTke, C8Ba3aHHbIe c NIOBJIeHNEM CTOUHbIX BOd, CODePka- uix MaunHHoe MacNo (HaNPmEp, MOkA DnBiratelne, DNHua ABTomo- bna), pa3peShaTcN pNOBoNDt b TOJbKO B CnEuaJIbHbIX MeCTax, 06OpyDObaHHbIX MACIOOTDeJInteJIem.

www.kaercher.com/REACH

Be30nachoctb

3haeHne yka3aHn:

Onachocmb

Yka3aHue omHocumelbHo HenocpeDcmeHHO ap03raeU onachocmu, Komopar npueodum K mJKeIbIM yeebym UUNKcmepmu.

IpeynpeXdeHue

Yka3aHue omHocumelbHo 6o3MOxHOu noMeHcuaIbHo onaChou cumyaauu, KOMopaR moKem npueecmu KmJKeIbIM yEyBMy UUN K Cmepmu.

BhumaHue!

Yka3aHue Ha nomeHuzaJIbHO onachHy cUmyauKIO, Komopar MoKem npubeecMu KnonyuHIO neKux mpaem.

BhumaHue

Yka3aHue omHocumelbHo 8o3MoXHO noMeHcuaJIbHO onaCHO cUmyaUu, KOMopaJ MOxem noeNeB mamepuJIbHbI yuepe6.

CnmbonblHa npnbope

3aepaaemcHnprmyo nod KnUoyMb ycmpoucmeo Kmpybo npoeody c numbeoou eodoi.

1 Onachocmb nopekdeHnra! Ycmpoucmgo pa3peWaaemc uCNoIb3OaMb mJbKO e JexkaeM (eOpu3OHmaJIbHOM) NOJIOKeHuU.

2 He hnapaBnAmbcmpyO bObHa JIOdeu, XueomHbIX, EKnIOUeHNHe 3Jekmpuueckoe obOpdyObaHue uNu Ha cam BbICOKOHApHbI MOUoU annapam.
3 3auiuamb npubop om mopo3a.

3NeKtpnueckne KOMNoHEtbl

Onachocmb

Hu 6 Koem cnyae He npukacambc K umenceIbHOB 8unke U po3emKe MokpbIMu pykAm.
Ipeod hauanom paobmblc annapamom npoeepumbcemeoou coedunHmehblkabenb uwmencbhyo eunky ha nopexdeHn. PoepexdHbl cemeoou coedunhemblkab6bnonben He3amedunelno 3aMeHen yponHomoyenHcny60e cepucchoo ocbnyuBaHur/cneuaucmom-3neKmpukom.He 3cknyamupobambycmpoucmeo c nopexdeHbIM cemeBIM coedunHmbl HbIM KaBelem.

Bce mokonpooboduue 3nemEmbl e pa6oey 30he doJXhbl 6bimb 3auuueHbl om nonadahura cmpyu 60dbI.
CemeBa 6nka u coedunHumeBnbl 3neMeHm yDnHumeJdoJXhbl 6bIm bZepMemuHbIMU u He haxoDbc8 eOde. CoedunHumeBnbl 3neMeHm e daNbHeuWeH He doJxhen Kacambc noJa.PekomeHdyemc UcNoB3oAmb KaBeNbHbIe 6apabAhbl, Komopbie oBecepeuBaom pa3MeueHue po3emok He MeHee, Yem 60 MM om nona.
Heobxodmo cneumb 3a mem, ymobsI cemeo coedunmeIbHbI KaebI u yolunumeIu He bIu noepexdbl nymem nepeezda ueez hux, cdaIu- bauHua, pacmJxehnU u m.I. CemeBie Kaebu cnedyem zauuamb om 603- deucmbua kapbl, macna, a maKke om noepexdura ocmpbIMu KpaMlu.

IpeynpexdeHue

Ycmpoicmeo cneoyem eknoyamb molboe cemb nepemehno moka. Hanpiaeue doJxHo coombemcmo- bmyka3aHnaym 3abodckou ma6nu-Ke.

UcmpoicmoKHOIOKluOamb moIbKO K3IeMeHmy 3IeKmpoIOkIuOeuHua,UCONHeHHOMy 3IeKmpoHmepom e coombemcmBuu co cmaHdapmom MekdynapodHou 3IeKpmo-mexHuuecko kOmuccuu (M3K) IEC 60364.
Henodxodyaue 3neKmpuueckue ydunumenu moym npedcmaenm b onachocmb. Bne nomesehu cneodyem uonl3oabmb monbko donyuencehble dna uclnoj3oBaHua u coomeemcmbeHHO MapkuopoaHbIe 3neKmpueckue ydunHumeu c docmamouhblm nonepeuHbIM ceeHuem npoeoda:1- 10M:1,5 MM²,10-30M:2,5 MM²:
YdunHumenb cneodyem 8ce2da noJHoCmbo pa3MaMbIeamb c Ka6JIbHO2O 6apabha.
13 coobpaeHu 6e3oNaChocmu peKoMeHoyemc uCnOlb30aMb ycmpoucmeo c aemomamom 3auumbl om moka ymeku (MaKc. 30 mA).

Бezonachoe 06cnyKuBaHne

Onachocmb

Ipeod kaxdbim npumehenuem npoeepmbl Ha hauue nopexdehu maKue 6aXhble KOMnoHmbI, KaK uHaBe bICOKo2O daJIeHnU, nucmonem-pa3-6pbIsZuBambl npedoxpanEmbHbIe ycmpoucmea. NopexdeHbIE KOMnoHmbI nodJexam He3aMeDnUmelbHOJ 3aMeHe. He ekCnIyamupoBamb ycmpoucMBO C nopexdeHHbIMU KOMnoHmemu.
He pa3peuwaemcmaKxe HapnaeIbmbcmpyioBDbl, haxoayocnoD bicoKum daaeneHEm,Ha opyaux unu cebaoJyucmku odexkbl unu obyu.
He yucmumb cmpye e oobI npedMe mbI, codepkaaue eeuecemaa, epeHbIe dna 3doopo8b (Hanpumep, ac-6ecm).
AemomobunbHbe wuHb/wwHHbIe 6HmUu Moaym 6bIMn oepexdeHbI cmpye 8oBIO nod daaHeuem u nonHymb. IepbIM npu3HaKOM 3mo2o cnJxum u3MeHeHue ueema wuHbI.

IoppekdeHbIe aBmOmbunbHbIe WuHb/wwHHbIe BEmMuI npedcmaenr om onaChocmb dnn Jxu3Hu.Bo epMa Yucmku uHn Heo6xodUmo bIdepxueamb paCCMOHue MeKdy fOpcyHKou u wHo, kAk MuHUMym, 30 cm!

Unyakoobuyu npneHky depxamb 6da nu om demeu, cyuecmeyem onacnoctmb ydywena!

IpeynpeKdeHue

3Kcnnyamaua npubopa dembu unu nuazmu, He npowedu mu uHcmpykmax, 3anpeaaemcra.
Данhoe ycmpoucmeо He npedha3ha-ueho dny ucnonb3o6aunur nIObmu C OspaHnueHHbIMU qu3uyeCKUMU, CEHcOpHBIMU UUNY MCMBeeHHbIMU 8O3MOX-Hocmru, a makke luC o omycmcm-ueem onbima u/Unu omcymcuem Heobxodumbix 3HaHui, 3a uckIIOyHuEM cNoaye, Ko2a OHU HaxOyrmr NOD ha3Opom omBemcMehHOz 3a 6e3-onacHocmb luua unu noJyauom om Hezo yka3aHua NO npumeHeHuO ycmpoucmea, amakxe oc03HaOM bI meKaouue omCIOda pUCu.
He pazepwaime demm uapambc ycmpoicbom.
Cneodumb 3a mem, ymo6bl demu He uapau c ycmpoucm.
Iolb3oabeMeIb o83an uCnoIb3oaeamb ycmpoucmeo 6 coombeemcmbu c Ha-3naueHuem. OH doJxhen yUmbieamb MecmhbIe ocobenHocmu u obpaumab EHumane npu paBome C ycmpoucmeBOM Ha dpyaux luu, haxodrauxxcn no6nu3ocmu.
UHaau bicokoo daenHua, apmamyu Mymbi Umeom boIbwoe 3naehue dra bezonacocmu ycpoucmea. Bmoou cya3u cnedyem npumehmbo mloko uHaau bicokoo daenHua, apmamyu Mymbi, peKoMeHDoaHnble u3aOobumelm ycpoucmea.
He ucnolb3o6amb ycmpoucmeo, Ko2a 8 30ne deucmbu Haxodmca dpyue IIOU, ecnu ONU He HocamHyo odexdy.

DanHbI npu6op 6bln pa3pa6omAn dny UcnoB3o8aHua MoUx cpeCme, Ko-mOpble nocmaenomc unu 6bln peKomeHdo8aHbU 3zomOumem npu6opa. IcnoB3o8aHue dpyux moUx cpeCme unu xumukamoe moXem HezamueHo noEunmHa 6e3ona-chocmb npu6opa.

△BHumaHue!

Bo epem npodjxumelbHexpepepbieoe 8 paobome cneedyem ebiknouymb ycmpooucmeo c nomoubno anaBHOZO ebIKNUoyamela / npubopHOZO bIKNUoyamena unu omcoedunhm eooom 3JIeKmpocemu.
IpuMoKeJaKupoeaHbINoepxHoCmeu cneyem bIdepkueambpaccmohue 30 cm om fOpcyku do noeepxHocmu,ymobbluzbexkambnopeJxdeHura JapuOeKu.
3anpeuzaemc ocmnaempbabomauoue ycmpoucm863 npucmoppa.
He pa3pewaemc3KcPnyamaucyycmpoUcma npu mEmpepamype Hxke 0^

PpOue onaChocTu

Onachocmb

He paclbIaMb aOpIOue XkuOkoMu.
BcacsbHue ycmpoUcBOM xkoCmeu, codepxauux pacmbopumenu, amKke Hepa36aeIeHHbIX Kucnom unpacmbopumenu He donyckaemc! Kmakum beueecmeam omnozarmc, Hanpumep, bEn3un, pacmbopumenu Kpa-cok u Ma3ym. Obpa3yuOuIcra 3 maKux beueecm8 mumah neako 0ocIamenaemc, e3pbEoONaceH u rdoobm. He ucNoIb3oBamb auemOH, Hepa36aeIeHHbIe Kucnombu pacmbopumenu, mak kak OHU pa3pywaIom MamepuIbl, u3 komOpbIX u3aOMoJIeHO ycmpoUcMBO.
3Kcnnyamauya ycmpoucmea 80 63pbl- 80oancbix 30hax 3anpeuaemcr.
IpuucnoIb3o6aHu ycmpoucmea e onachbix 30hax (Hanpumep,Ha aemoz3napaOchbix cmanuex) cneyem co6nodamb coombeemcmyuue npaeuna mexHuku 6e0nacHocmu.

ИндиВиДуаЛьНоe 3aциТhoe Chapяжehne

Длгзацumbi om pa3nematouxcx6pbizao8oodyu ap3u cneyem hocumb coomcemeyouy0 3auumHyO odexdy u 3auumHbIe ouku.

Ko3ΦΦnμηENT yCTOuHBOCTN

△BHumaHue!

Ipeed bInolHeHue m IIObIX deUcmeu c ycmpoUcmeom uny ycmpoUcmea HeobxOumo oBecneumb ycmoUcuOcmb eo 136exaHue HecacmHbx Cnyaee unu noepexdeHu e pe3yIbMame onpokuObHaunu ycmpoUcmea.

YCTOuHBOCTb npi6opa rapaHTnpoBaHa TOJbKO B TOM Cnyuae,ecn OH yCTaHOBJIeH Ha pOBHOI NOBepxHOCTN.

3aunTHbIe yctpoCTBa

△BHumaHue!

3aumhble ycmpoicmea cnykam dna 3aumbl noIb3oameJe. BudouImeHene 3aumhbx ycmpoicme unu npene6pexehue umu He donyckaemcra.

Pn6OpHbI BbIKIOuOaTeJIb

IJIaBbI BbIKIyOaTeJI bI npenTCTByET HeIpn0n3BOJbHO paOte annapata.

3aONHHTb BCacbIBaHOUII WJNaHr BO-DOI.

→ PπBnHTntb BCaBbAIOuI ΜlaHr K ΘlEmeHTy IODaun BODbHa npBope n NOMeCTNTb B INCTOChNk BODbl (HaNPm-Mep, B DoXdEByo 6Oky).

Hauano pa6oTbI

BhumaHue

Paboma 8cxyu 8 meueHue 6oJee 2 MuHym npueodum K 8bIXody u3 cmpoHaocca 8bICOKO 0 daBHeHua. Ecnu ycmpoUcMEO 8 meueHue 2 Munym He NaBupaem DaeneHue, mo ezo cneDyem 6blKnOumb u deu CmBoaB b coomEemcmuu C yka3aHuaM, Komopbie npueoJmAe 8 aNaBe „MoMoCb 8 cnUae HenOnaOdoK".

PncyHOK

BCTaBnTb BbICOKOHApHbI ⅢJNaHrB 6bICTpOpa3bEmHOe CoeINHeHne Do ⅢeJIYka.
BCTaBnTb ⅢJNaHr nOdaun BODbl COOTBETCTBYUoee COeINHeHne.
Yka3aHne:ΠTaIooIuI uHaHr He BXOINTB O6bEm NOCTaBKn.
IopOeENHtB BOJHOI WJIaHr K BOJOpOBdy.
→Полноctью OTKpoIte BOIoPpOBoHbI KpaH.
BCTaBnTb ceTeByIO wTeNceJIbHyIO BUNKy Bpo3eTKy.
→ BknHouHTb annapat ,I/ON" (I/BKJ).

PncyHOK D

→ Pa36IOKIpOBAb pbIur pyHOro nI-CTOneTa-pacnbIInTeJI.
→IOTaHyb3a pbIyar,annapaT BkJIIOHTC.

OCTaBnTb yCTpoIcTB BO BKHNoeHHbIM (He 6oJee, Yem Ha 2 MNHyTbI) Do Tex NOP, NOKa I3 BbICOKOHAnOpHOrO INCTOJIeTa-pacNblINTeJI He HaChET BbIXOДNTb BOda 6e3 Ny3blpKOB Bo3dYxa.

OTnycTntb pbIar pyHOro nIcToIetaPacnbJIInTeJIa.

Yka3aHHe: Ecnn pbyIar cHOBa OCBO6O- dITcA, annapaT cHOBa OTKnHouNTc. BlicOKoe daBJIeHne coXpaHReTcB cnCTeme.

PncyHOK

3a6IokpoBaTb pIyar pyHOro nIcToIeta-pacblIInTeJra.

3Kcnpnyatauia

Onachocmb

Bbixodaa u3 conna bbcokoo daenu cmpy eobbl b13b1eaem omdauy nucmolema-pa36pb13aeamena. No 3moi npuune Heo6xodumo 3aHmY ycmouboe noLoXeHue, KpEnKO depXamb nucmonempa36pb13aeamEnb u cmpuHy o mpy6ky.

Onachocmb

Haxodzaacn noB bICOKum daeJenuem cmya oObMoXem npu HnpaebunbHom ucNoIb3oBaHu npedcmaaJmb ona- chocmb. 3anpeaaemc Hnpaasmb cmpyio oObHa JIOdeU, XueomhIX, EKHO- ueHHoe 3neKmpuueckoe obOpdyoBaHue UNu Ha cam bICOKOHApHbi MOUu an- napam.

BhumaHue

Onachocmb noepekdeHua! Ucmpou-cmeo pa3pewaemc ucnolb30aamb molbko 8 lekaueM (2opu3OHaBbHom) noloxehuu.

BhumaHue

He yucmumb aemomobunbHbIe wuHbI, naKokpacouhoe nokpbimue uUyecmbuMeNbHbIe noeepxHocmu (Hanpumep, depeEaHHbe) c npumehenuem fpe3bl dny ydaJeHnura apzhu. Cyuecmeyem onachocmb noepekdeHnur.

BhumaHue

Puck noepexdeHua naokpacouhoo noKpbimur

Ipeod pa6omou c mouue uemko cne dyem y6edumbc8 mOM,mo OHa ouuueHa om ap3u unu dpyeux nocmoponHux ya-cmu.

PcyHOK

→ HanaheHa pyuHoi nIcToIeT-pacnblIInTeBCTpyHyTOtpy6ky 3aФNKCuPyuTe ee, NOBepHyb Ha 90^
→ Pa36nokinpobatbpyar pyhoro nntoIeta-pacnbIInTeJI.
→ПOTЯнтьзapbIyar，annapat BKJIIOUHT- C.

Yka3aHHe:EcnnpbUar cHOBaOCBO6OHTcra,annapat cHOBaOTKJIuOHTcR.BbICOKoe daBJIeHHe COxpaHReTcB CnCTeme.

Pa60Ta c MOIOUIM CpeIcTBOM

Onachocmb

IcnoIb3oEaHue HenoDxOraux Yucmuaux cpeOme uu Xumukamoe Moem HeaamueHo noeUmaHb Ha 6ezoaChocmbycmpoucmea.

Дяьингемо задау по усмке упьзуime uckючимьho усмцue cpedcmeu cpedcmea no yxody Фчмы KARCHER, мak кak ои раразомны сецално дя п汞именя в Bavш empoe. П汞имен ue pyuaux усмцux cpedcmeu cpedcme no yxody можem пuceMu K yckopenHomy u3hocу u nomepu npabaHa yapahmuhoe obcnjxubane. Podobnyu unфopmauzuo мхно узhamb e cneuaunzupoeanHom Mecme mopoeenu unu poluyumb helocecdmaeHNo epdcmabumeJIbcmse KARCHER.

Onachocmb

Henpaunbhoe npumehene yucmuaux cpedcmme mojem cmamb npuuhou cepbexhmxpaam unu ompaeniHu.

Ppu npumehenu yucmuaux cpecdme cneydem cobniodammbpe6oBaunca cepmuukama be3onacnocmu npou3oUme, ocobenho yka3aHura omhocumelbHo npumehenur cpecdme uhdueudyaJb-Hou 3auumbl.

PncyHOK

BcacsBaIouuI nnAhn IJIaMOUeO cpeCTBa BbITaIuNTb N3 KOpNyaC Ha He- 06xOIMyU dInHy.
Onyctntb BCacbIbauouiu IuaHr IJIaMOUoero CpeDCTBa B pe3epByap cpaCTBOPOM MOUoero CpeDCTBa.
IcnoJb3OBAbCTpyHnyTpy6ky cpeIyJrTopoM daBJeHnA (Vario Power).
Повернтув стугшую ТрубkyВ полженье „Mix".

Yka3aHHe: TaKmI o6pa3oM, npi 3KcNJIyatauIN paTbOP MOUSeIero cpeICTBa CMeUNBaETcO CTpye BObl.

B kaueCTBe onuIN

3aJIntb pactBop MOUeero CpeCTBa B 6akДЯ MOUeero CpeCTBa, KOTOpBI NODCOeINHReTcK HacaIKe IJRA UcTkn peHOI (co6JIIOJaYka3AHnNo Do3N-

POBKe Ha eMKoCTn IaI MaIOUeTo CpeI-CTBa).

PekomehdyembI cnoc6 moKn

→ 3KoHOMHO pa36pbI3raTb MOIOUee CpeIcTBO NO cyXoI NOBepxHOCTN I DaTb EmY IOJeIcTBoBA Tb (He I03BOJIaTb BbICbIXaTb).
→ PactbopeHHyI rpr3b CmblcTpye BbICOKO r daBJIeHn.

PpepebBba6oTe

Otnyctntb pbuvar pyhoro nictoletapacnbinteJia.
3a6IokpoBaTb pbUar pyuHOro nIcToIeta-pacblInTeJra.
Bo Bpem npoJnxTeIbHbIX nepepbI BOB B pa6Ote (cBbIe 5 MNHyT) annapat cJeNyET BbIKIOuataB,0/OFF" (0/BblKl).

OkoHuaHne pa6oTbI

△BhumaHue!

Omcoedunmblnanahe bicokozodae nHe om nucmonema-pa3bpbiauame nUu ycmpoucmea,koeda cucmememocymcmyem daene.

BhumaHue

Ipu cnmau numouezo unu ebicokohanopnoo wlaHa2a 80 epempaobm MoJem o6pa3o6ambcy ymeka eopyeu bOdbie Meemax coedunehua.

Pocne pa6oTbI C MOUcIM CpeiCTBOM: C celenbIO nOLOCKaHnA DaTb npu6Opy npa6oTaTb OkOIO 1 MNHyTbI.
OTnycTntb pbIar pyHoro nIcToJIeTa-pacnbIJIInTeJIa.
→ BbIKIIOHHT bannapat "0/OFF" (0/ BblKJI).
→ 3aKpbITb BOdHbI KpaH.
→ HαkaTb pbIaR pyHOrO nIcToIeTa-pac- pblnteIg dIg c6pOca daBHeHnB CnCTeme.
3a6IokpoBaTb pbUar pyuHOro nIcToIeta-pacnbIInTeJra.
→ BbTaunTe uTencelbHyu BuNky n3 po-3eTKn.
OTJeJIITb annapaT ot BoIOcHa6Ke-HnI.

TpaHcnpToPobKa

△ BHUMAHue!

Bo u36exaHue Hecyaemhix cnyaee unu mpaBmupoBaHua, npu mpancnopmuOBe HeoXoDUMOpunHmb 8o EHumane Bec ycmpoucmea (cm. pa3den "TexHuYeckue daHHble").

TpaHcnpTnpoBka BpyHyU

PcYHOK H

→ BbICOKO pOdHЯr bI npIbOp 3a pyUky npepeHeCTn.

PncyHOK

→ BbIaHyTb Do ΜεηUka pyKoTky dIpy TaHcnpTnpoBKn.
→ПиборТянтуЗа ручky ДпЯ Транснор TinpoВань.

TpaHcnpOpTnpoBka Ha TpaHCnpOpThbIX CpeDCTBax

IpeepdIINTeBbIM XpaHEnm,HaPnMep,3MOi:

→ CHIMNTEФЛьтИЗ BCacbIBAUоero UJnaHraДЯ MOUоero CpeДCTBa И рОМоITE erO npOTOCHOH BOdOi,
BbInbTe c nOMoUbIO pIIOCKORY6eB CE-TEBOI qINbTp IN3 3JIeMeHTa IJRA BOOCHa6XeHnI npOMOIteero IpTOuHOI BOIOI.

Texnueckoe obcnyxuBaHne

AnnapaT He HuykdaetcB npoФnIakTnueckOM 6cbnyKuBaHIn.

YnctTaaee CpeDCTBO He BCAcbIbAeTcR

IcnoIb3OBAtB cTpHyu Tpy6ky C pe-ryJrTOpOM daBJIeHnA (Vario Power). IobepHyTB cTpHyu Tpy6ky B noJIo-JxHeNe "Mix".
OuHCTnTbΦnIbTp BO BCaCbIBaHOUeM JHaHRe MOIOUeO cpeDCTBa.
→Поберпь BCасьВаIOUишлангдЯ MOIOОERO cpeDCTBaHa nepernObl.

PpHnHaIeJXHOCTN 3aIacHbIe DeTaII

CneuaJIbHbIe npHaJdJIeXHoCTn

CneuHaBhIe npHaadJeKHOCTn pauchipraOT BO3MOXHOCTn pIMMeHEnr np6Oba.Boone DetalbHyIO INΦopMaciIO MOxHOpoJyHTb y TopROoB OpraHn3aunn fnpMbki KARCHER.

3anachbte yactn

IcnoIb3yIte ToIbko opunHaIbHbIe 3anaChbIe yactn fnpMbIKARCHER. OncaHne 3anacbIX Yacte HaxOITcB V KOHc DaHHO IHCTpyKuIN NO kCnPyatauIN.

RapaHTn

B kaJdoi cTpaHe DeiCCTBYIOT COOTBEcTCT-BeHNO rapaHTnHbIe ycIobNIA, n3daHHbIe yNoJIHOMOueHHo OpraHn3aUnei C6bIaTa HauWe npOduKuIN B daHNo CTpaHe. Bo3-MoJHbIe HeNCnPaBHOCTn npIbopa B TeueHne rapaHTnHOrO cPoka Mbl yCTpaHReM 6ecPiMaTHo, ecnn npUHa 3akNIOuaeTCB V deΦeKtax MaTePnAIOB nIn OOn6kax npn I3rTOBLeHm. B Cnyuae BO3NHKObeHn IpeTeH3N B TeueHne rapaHTnHOrO cPoka npoc6Ba oBaPSaTbcra, Imeepn Ce6ye O NOKyIKe, B TOpROByO prAhn3aUIn, npOdaBsuYb Bam pnp6op nIn B 6bnKaJShyU OyONlHOMOueHHU cLyXbBy cepBnCHOrO obClyKmbAHnI.

www.kaercher.com/dealersearch

TexHnueckne daHHbIe

3JNeKtpuYeckne npaMeTpbl

71364 Winnenden (Germany)

Ten: [phone]

ΦaKc: [phone]

Winnenden, 2013/09/01

Tiszelt Ügyfelünk!

www.kaercher.com/REACH

Biztonság

www.kaearcher.com/dealersearch

Muszaki adatok

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Vázeny zákazníku,

#

www.kaercher.com/REACH

Bezpečnost

Vyznam upozorněné

Nebezpeci!

www.kaercher.com/dealersearch

Technické udaje

2006/42/ES (+2009/127/ES)

2011/65/EU

S. Reiser
CEO
Head of Approbation

Osoba zplnomocnéná sestavenim dokumentace:

S. Reiser

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Spostovani kupec.

www.kaercher.com/REACH

Varnost

Pomen opozoril

Nevarnost

www.kaercher.com/dealersearch

Tehnični podatki

Zadevne ES-directive:

2000/14/ES

2004/108/ES

2006/42/ES (+2009/127/ES)

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

Szanowski Klienci!

www.kaercher.com/REACH

www.kaearcher.com/dealersearch

Dane techniczne

Podlącenie do sieci

2006/42/WE (+2009/127/WE)

2011/65/UE

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2013/09/01

Mult stimate client,

www.kaercher.com/REACH

Siguranta

Transportul in vehicle

Asigurataparatulcontraalunecarii sirasturnarii.

Depozitarea

Atentie

www.kaercher.com/dealersearch

Date tehnice

Directive EG respectate:

2000/14/CE

2004/108/CE

2006/42/CE (+2009/127/CE)

2011/65/UE

Norme armonizate utilize:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Vázeny zákaznik.

#

Pred prvym pouzitim vasho zaradenia si preciţajearto pô

www.kaercher.com/REACH

Bezpečnost'

Vyznam upozorneni

Nebezpečenstvo

www.kaercher.com/dealersearch

Technické udaje

2006/42/ES (+2009/127/ES)

2011/65/EU

2000/14/ES: Priloha V

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2013/09/01

Poštovani kuple

Priere prve uporabe Vaseg ureda ja procitajte ove originalne radne upute, postupajte prema njima i saucujte ih za kasniju uporabu ili za sljedeceg vlasnika.

Pregled sadržaja

Opseg isporuke HR .5

www.kaercher.com/REACH

Sigurnost

Značenje napomena

Opasnost

www.kaearcher.com/dealersearch

Tehnički podaci

Elektrichi prikrljučak
Napon	230 V
	1~50 Hz
Priključna snaga	1,8 kW
Stupanj zašite	IP X5
Klasa zašite	I
Strujna zašita (inertna)	10 A
Priključak za vodu
Dovodni tlak (maks.)	0,8 MPa
Dovodna temperatura (maks.)	40 °C
Dovodni protok (min.)	9 l/min
Maks. usisna visina	0,5 m
Podaci o snazi
Radni tlak	11 MPa
Maks. dozvoljeni tlak	13 MPa
Protok vode	6,3 l/min
Maksimalni protok	7,0 l/min
Protok sredstva za Čišćenje	0,3 l/min
Povratna udarna sila ručnog pi-štolja za prskanje	16 N
Dimenzije i težine
Duljina	516 mm
Širina	295 mm
Visina	282 mm
Težina u stanju pripravnosti za rad, s priborom	12,2 kg
Uvtvržene vrijednosti prema EN 60335-2-79
Vrijednost vibracije na ruci	<2,5 m/s2
Nepouzdanost K	0,3 m/s2
Razina zvučnog tlaka LpA	75 dB(A)
Nepouzdanost KpA	3 dB(A)
Razina zvučne snage LWA + nepouzdanost KWA	91 dB(A)

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primijenjene uskladene norme:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

Head of Appropriation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

Poštovani kuple

Pre prve upotrebe Vaseg uredaja procitajte ove originalno

www.kaercher.com/REACH

Sigurnost

Značenje napomena

Opasnost

Napomena koja ukazuje na reposredno pretecu opasnost koja dovodi do teških telesnih povreda ili smrti.

Upozorenje

Napomena koja ukazuje na eventualno opasnu situaciju koja moze dovesti do teških telesnih povreda ili smrti.

△ Oprez

Napomena koja ukazuje na eventualno opasnu situaciju, koja moze izazvati lakse telesne povrede.

Pažnja

Napomena koja ukazuje na eventualno opasnu situaciju koja moze izazvati materijalne stete.

Simboli na uredaju

www.kaearcher.com/dealersearch

Tehnički podaci

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primenjene uskladene norme:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2013/09/01

Ybaxaem KIneHTn.

Ppei nIpbBOTo I3IOJI3BaHe Ha Baunya peI npouTeTe TOBa

opunHaHNO HNCTpyKUy yNbTbaHe 3a pa-60Ta, JeIcTBaIe Cnopei Hero n ro 3ana3eTe 3a IIO-KbCHO n3IPOJ3BaHe nII N3aCneDbaSIN npITexKaTeI.

CbDpXaHne

ObemHaIOCTaKaTa... BG...5

YnoTepe6a no npedna3NaueHne BG...5

Ona3BaHe Ha OKoJHaTa cpea. BG . .5

CnryphocT BG...6

OncanHeHa ypea. BG...8

Ipeeni nyskaHe B eKcnIioaTauny BG . .9

Пусане векплоатаця.....BG...10

Eknpnoataua BG.10

TpaHcnpT BG .12

CbXpaHene. BG...12

Грижи и подрьжka.. BG...12

POMOu npHnHn3npaBHOCTN..BG...12

B HЯΚΟ ΚΤρΑΝΗ Ε e ΠΟ3ΒΟJEΗ ΙΙΤΟΥΒΑΗΕ ΘΑ ΒΟДΑ ΘΟ ΜΟΥ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ ΒΕ

Pa6oTaTc nOuHCTBaUe npenapatne IO3BOJeHa cAmo Bbpxy yCTOuHbNHa TeuHOCtNaP6OTn IOBbpxHOCTn cI3BOd KbM KaHJIa3aCuaTAt 3a MpbCHa BOda. He OCTaBnTe NOuHCTBaUnte npenapatn Da IOnaDat BB BoDHNte baceHn nIOvBaTata.

IOnucTbaHe, npn KoTo ce OTdEJI MpbchBa BOJa, CbIbPkaaMa MacNo, HAnpImep npn MneHe Ha DnBraTeJi, MneHe Ha IOD, MOKe Da Ce N3BbPbBa Camo Ha MeCTa, KbIeTO ca npedBvIeHn pe3epBoapn 3a Cb6bpaHe Ha MacNoto.

Yka3aHnna 3a CbctaBknte (REACH)

AkyaJIHa INHΦopMaζη 3a cbCTaBKnTe ξe HamepIte Ha:

www.kaercher.com/REACH

CnFpyphocT

3haeHneHa yka3aHnraTa

Onachocm

Yka3aHue 3a Henocpecdmbeno apo3raUa onacHcM, KOyMo bOu do mexKu meJeHu HapaHbAHua Ulu do cMbpm.

△IpeodynpeXdeHue

Yka3aHue 3a 3b3MOxHa onacha cumya- uya, kOyMo MoKe da doeede do mexku meIechu HapaHraBaHura ULU do Cmbpm.

△BhumaHue

Yka3aHue 3a 6b3MOxHa onaHa cumya- uya, KoMyo MoKe da doBeede do neku Ha- paHraeaHua.

BhumaHue

Yka3aHue 3a 6b3MoXHa onacHa cumya- uya, Koymo MoKe da doBeede do Mamepu- aJHu uemu.

CnmboHa ypea

Ypeobm He 6bua da ce EKnIOUcBa HENOCpeOcmeeHO KbM ObuEcMeehama Mpeka 3a NumuHa BOda.

1 Onachocm om yepexdahe! Ypebymmpa6ea da pa6o-mu camo e neahano nono- xehue (xopuzohmaHno).

2 He hacoueauime cmpyma

noB BuCOKo HAnraaHe KbM Xopa, KUeomHu, akmueHo eNeKmpuuecko obopyoBaHe UJU KbM camua ypeD.

3 Ypeda da ce na3u om 3ampb36ahe.

EneKtpnueckn KOMNoHEnTn

Onachocm

Hukozaa He dokocbaume uenceeta KOhmacma cbnaxHu pue.
Ipedu cya ynompeba npoeperbau me mpekoja 3axpaHauka6en c uencela 3a uem. He3abHo an2aJxupaMe cneuaJU3upan cep8u3/ eNeKmpomexHuk CbC CMHaHa Ha nopeDeHna Mpekoju 3axpaHauka Ka6eJI. He nyskaume beknloamaucya ypeda

c nopehen Mpeko 3axpaeaau Ka-6eJ.

Bcuuku ekekmpueecku yacmu u elemmu o obceea ha paoboma mpr6ea da ca 3auumenu om eoohama cmpy.
Ueencbym u kynnyhzm Ha eunu yobjxumeneH kabemmp8ea da 6b-dam bodoycmouueu u He buea da ce Hamupam ebe oda. Ocehen moa kynnyhzm He buea da leku Ha noda. Ipenopbyea Ce u3non3baHemo Ha 6apabahu 3a Kabenu, Koumo aapaanmuam, ye konhmakmume ue ce Hamupam Ha MuHumym 60 MM om noda.
Obpbhe me bHmAHue Ha moea, mpeXoBua3xpaHbau Ka6eunu yDblJxumEnHuaM Ka6e 1a He ce HapAnmUu nopeaonopaUnpemunaeaneHa aemomobuUbpxymx, npema3BaHe, onbaane unu nodobnu. Iazeme mpekoBume 3axpaneaun Ka6enu om oopeuuna, macna u ocmpu pb6oe.

△IpeodynpeXdeHue

Cebp3eaume ypeda camo kbl npomEnIue mok. Hanpexehuemo mpr6ea da cbomeemcmea ha nocouehomo bpxy dupMeHama ma6enka ha ypeda.
Cebp3eaHemohypea e no3eOJeHocamoKbM eJekmpuuecku u360d,u3- nIbHeH om enekmpouHcmaJamop cb- enacHo IEC 60364.
Henodxoduime ekempueecku ybIkumenu KaBenu Moaam da 6b- dam onacn. Ha omkpuno u3noJ3eaIme camo pa3peuHume 3a moea u cboemmo o6o3naHu ekempueecku ybIkumenu KaBenu c docmambyHo ceuenue Ha npoeodhuime:1-10M: 1,5MM^2 10-30M:2,5 MM2
YobJxumEnHnarm Ka6eImp6ea da 6bde HantbIHo pa3Bum om 6apabaha 3a Ka6eIu.
Ipo npuunu Ha cuayphocmma npunuHnno npenopbyeame 3adeumhae mo Ha ypea npe3 3auumno npucno-cobneue 3a naode e HappekeHuemo (MaKc. 30 mA).

Cnrgpno 6opabeHe

Onachocm

Ipedu cyaKa ekcnnoamau npoeepaBaume 3a uemu baxHume KOMnOHeHmu, kamo Mapkyuime 3a pa6oma nod HanaaHe, nucmonema 3a pbyHo npbckane u npedna3Hume npucnoc6neHua. Cmehyme He3ab6eNo noepeDeHume KOMnoHmu. He nycaume eekcnnoamau ypeDa c noepeDeHu KOMNOHeHmu.
He hacoue aume cmpyama nod bucoko Hnlaahe KbM dpyauxopa uu KaM ca Mume ce6e cu, 3a da noucmeame o6neKno uu obyuku.
He npbckaime ebpxy npedmemu, koumo cbbpkam onacHu 3a 3dpabeMo eeueceMa (Hnnp. a3becm).
AemomobunHume aymu/ehmunume Ha aymu Moaam da 6bdam nopedeHu om cmpyma nod bucoko hanae u da ce cnkyam. Pbeu npuzhak 3a moa e obeseemhaHemo ha yumama. PoepedHume aemomobunHu aymu/ehmuni Ha aymu ca onachu 3a xueoma. Cnaeaume Muumum 30 cm pa3cmohue Ha npckane npu noucmbahemo!
Дрьжme о納аковсунomo Фолю danele om obceza ha deua, cbluecmyba onachocm om 3adyuwaabe!

△IpeodynpeXdeHue

Upeobm He mpr6ea da ce u3non3ea om deua, Mnaedexu unu Heomopu3upaHu luua.
To3u ypeD He e npedHa3Hauhen 3a mo-ea, da 6bde u3nOJ3eAH om luca c oapauHu fU3uuecku, cEH3OpHu U ymcBHeHu cnOCo6HocMu u lunca Ha onum u/Unu lunca Ha no3HaHua, ocEh aKO me ca nod had3opa Ha omoeapra-uo 3a mXhama be3onacHocm luce unu ca nonyuunu om He2o uHcmpyK-uu, kak da u3non3eam ypeDa.
IeuaHa He 6uea da uepaam c ypea.
Ieua mpr6ba da sbdam noh had-3op, 3a da ce aapaHmupa, ye nma da uepaam c ypeda.

Pompebumenmmpaea da u3non3ea ypeda no npedha3nueHue.ToMmp6ba da 63eme nod EHumane MecmHume ycnoa u npu paBoma c ypeda da eHumaa 3a xopama,Hamupaun ce e 6nu-3ocm.
Mapkyume 3a pa6oma nod haIrahe, apmamypume u Kynnyhume ca eaxHu 3a 6e3onacHcMma Ha ypea. H3non3Baume npenopbuaHume om npou3oDumela Mapkyu 3a pa6oma nod hJa-2ane, apmamypu u KynnyHeu.
He u3non36aume ypeda, ako 6 o6ceaa My ce Hamupam dpyauxopa, dopu akome hocarm 3auumHo o6JeKJIo.
To3u ype e pa3pa6omeH 3a non3eaHe Ha npenapamu 3a noucmcBaHe, KoUmo ce docmaem unu npenopbyeam om npou3eodumela. H3non3eaHemo Ha dpyu npenapamu 3a noucmcBaHe unu xumukanMoKe da enoWu hadejHoCmMa u be3onacHocmmHa ypeda.

△ BHUMaHue

Ipu no-npodbJnxjumEnHu npekbcaaHnHa pa6oma u3KnIOueaUme ypea om 2naHnur npekbc8au /npekbc8aHa ypeDa Uu u3BaxdaUme uencena om KOhmacma.
Ipu noucmbahe Ha naKupuHn OeBpxHocmu cna3eaume MuHumalno pa3cmohue Ha npbckane om 30 cm, 3a da u3beaheme ypekdaunma
Hukoza He ocmaeune ypeda 6e3 ha-30p,dokamo paobomu.
He pa6omeme c ypeda npu memnepa-mypu n0D 0°C.

Дугн onachoctn

Onachocm

He npbckaume oopmu meuhocmu.
Hukoza He 3acmykaume cbbpkau pa3meopumenu mehocmu unu He pa3pehe nu kucelenu u pa3meopumenu! KbM mx cnadam hnp.6hen, pa3pedumenu 3a 6ou u haphma.Aepo30nHaMaMbana e cunho 6b3nnameHuMa,ekcno3ueHa u ompo6ha.He u3- no13baume auemoh,He pa3pehe nu kucelenu u pa3meopumenu,mb'u kamo

me pa3aJkdam u3nOJ36aHume Ha ype- da mamepuanu.

3a6pahe e ekcnloamau8 30Hu, Koumo uma onachocm om ekcnlo3uu.
Ipu u3noJ36aHe Ha ypeDa 8 onachu 30Hu (Haip. 6eH3uHocmaHuu)mpra6ea da ce 33emam noD eHumaHue cbomemHume pa3nope6b 3a 6e3oNaChocm.

YpeIbT He NoteJIa, MOTOpbT 6pbMn

CnaaHe Ha HnpeXeHneTo nopadn cna6a eJeKtpueecka MpeXa nn npn n3noI3BaHe Ha ydbJxKeTEn.
→ PnB KBNIOUbaHeTo pBPO N3DbpnaIte NoCTa Ha NnCTOJIeTa 3a pBCHo npbcka-He, CNeT TOBa NOCTaBeTe npeKcbBaVa Ha ypeJa Ha ,I/ON".

YpeIbT He DoCTnra HaJIraHe

→Пюверете НастpoикаТа На ТрбаТа 3a pa3пьсkaHe.
→ПювереTe,Дали подаразно на Вда e с дocTaTbUHOKONIчecTBO.
I3terIeTeZeIkaTaOTBpb3kata3aKpaHa 3a BOda C NOMOHTa Ha NIOCKN KJIeUIN YI NOHCTeTPOID TeuAua BOda.
06e3Bb3dYuShaBaHeneHa ypeJa:BkIIOUeTe ypeJa 6e3 Mapkyu 3a pa6Ota noiHaJIraHe i N3yakaJte (MaKc.2 MInHy-T),DOKATO BOdaTa 3aOnOHe da N3nN3a 6e3 MexypyeTa OT N3BOda 3a BVCOKO HaJIraHe.I3KIOUeTe ypeJa oOTHOBoNoDBbPjKeTe Mapkyu 3a pa6Ota noiHaJIraHe.

CnJIH N KOJIe6aHnB H aHaTaHTo

Почиствае на дюза Високо habягathe: Мхнete замьрсванята OTOTBOPa Ha dюзатcnomoцTa Ha ngla uN3ПлakHete C BODa Happei.
→Пюовере Te DeиТа Na BoДаТa.

YpeTHe xepMeTuueH

Maikata Jnnca Ha xepMeTnHocT Ha ypeHa e obycnoBaHa texnueckn. Pnp cnIHa JInca Ha xepMeTnHocT ce o6bphete KbM OTOpN3nPaH cepBn3.

ПочиствацOTO срedingво He ce 3acmykba

Да ceизползва Трьба 3а раэпpackва-heс реруларе на habяганeto (Vario Power)Трьбатza paэпрьсквае да се зa-Вьрtn B NOLOXeHne „Mix".
→ПоунICTeTeФиNTbpaHa BCMyKaTeHnHaMapkyu 3a ПОунICTBaUO CpeДСТВО.
→Пювере Te BCMykaTeHnЯ МаркуЗа IOчИСТВацо CpeДСТВО 3a OгьНATN MECTa.

PpHaIeJXHocTn np3epBHN qactn

ElenemHTOCTneuaJIHATA OKOMJIeKTOBka

Elenentte ot CneuHaHaTa OKOMnJIeK-TOBka pa3wnpBb3MOxHcTNe 3a n3- noJ3BaHe Ha Bauny ypeI. Io-noPobHa HOpMauny ue noJyUnTe OT oToPn3upaHn IpeDCTabUte 3a ypeInTe KARCHER.

Pe3epBn qactn

I3noJI3BaIe cAmo opuHnHaJIHn pe3epBHN ZaCTn Ha KARCHER. CncbK Ha pe3epBHNte YaCTN Ue HamePHTe B KpaJ Ha HactOaIyTO YnbTBAHe 3a pa6Ota.

TapaHcH

BbB BcKa CtpaHa BaKaat rapaHcNOnHHnTe yCIOBnI, Np6NIkyBaHN O T OTOp3nPaHata OT Hac DNCTprbEyTopcKa cnpMa. EBeHTyAaHn NOBpeHn Ha BaHnYpeD Ie OTcTpaHnB pAMKnTE Ha rapaHcNOnHHnCpok 6e3JIaTHo, Ako Ce Kacae 3a DepeKT B MaTePraJAnITE nIN npi npOn3BOdCTBO. B raPaHcNOnHeN cIyuae Ce o6bPheTe KbM DNCTprbEyTopa INn Hau-6JIu3KnOr OTOp3nPaH cepBn3, KaTO PpeDCTabNTe KacOBaTa 6eJIeKka.

www.kaercher.com/dealersearch

TexHnueckn daHHN

EneKtpuYecko 3axpaHBaHe

Hansegenne	230 V 1~50 Hz
Присбedingиюнамош- ност	1,8 kW
Градус на зашита	IP X5
Клас зашита	I
Прedeшитынел (иментел)	10 A
Зхаранвае с ворда
Налаягане на постывацата ворда (макс.)	0,8 MPa
Темпегатура на постыва- цата ворда (макс.)	40 °C
Дебит за постывацата ворда (Mин.)	9 Л/мен 0,5 M
Макс. Височина на засмквае

aHHN 3a MoUHOCTTa

РавOTно налаяганe	11 MPa
Мakсимално дорустимо на- лаяганe	13 MPa
Дебит, Вoda	6,3 Л/мен
Мakсимален дебит	7,0 Л/мен
Дебит, петерати за поис- ванe	0,3 Л/мен
Сида на оtmара на пистоleta	16 N
За ръчно пьсканe

Mepkn terna

71364 Winnenden (Germany)

Ten.: [phone]

ΦaKc: [phone]

Winnenden, 2013/09/01

Väga austatud klien

www.kaercher.com/REACH

Ohutus

Märkuste tähendused

Oht

Osutab vahetult ahvardavale ohule, mis voib pohjustada tosiseid kehavigastusi voi loppeda surmaga.

HoIatus

Osutab voimalikule ohtlikule olukorrale, mis voib pohjustada tosiseid kehavigastusi voi loppeda surmaga.

Veevarustus veevargist

www.kaercher.com/dealersearch

Tehnilised andmed

Toode: Korgsurvespesur

Tuup: 1.637-xxx

Head of Appropriation

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2013/09/01

Godajamais client!

Pirms ieri cimes pirmas lietoanas izlasiet instrukcijas originalvalo

www.kaercher.com/REACH

Drošība

Norăžu nozime

Bistami

www.kaercher.com/dealersearch

Tehniskie dati

Elektropadeve

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2013/09/01

Gerbiamas klien.

Priespimarka pradedantaudotisprietaisu,butina ati

džiai perskaityi originalia instrukcija, ja vadovautis ir saugoti, kad ja galima butu nau-dotis veliau arba perduoti naujam savinin-kui.

Turinys

www.kaercher.com/REACH

Suga

Nuorodu paaiskinimas

Pavojus

Nuoroda del tiesioginio pavojaus, galincio sukelti sunkius kuno suzalojimus ar mirtj.

△Ispejimas

Nuoroda del galimo pavojaus, galincio sukelti sunkius kuno suzalojimus ar mirti.

Adresus rasite: www.kaearcher.com/dealersearch

Techninial duomenys

Elektros iranga

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2013/09/01

UaHOBnKoPncTyBaCy!

Ipeed nepshm 3actocybaHnram BaWOrO npictpoI npouHTaTte

IIO opuHnHaJIbHy IHCTpyKciUo 3 ekCnPyataui, nicra UboRo diIte BiIDNoBiND Ho He' Ta 36peXeTb II dnn PoJaNbUoro KOpNCtYBaHHa 60 dna HAcTyNHO BJaCHnka.

3mict

KOMJIeKT NOCTaayHn. UK...5

PpabnIbHe 3aCTocyBaHHra. UK...5

3axnCT HaBKOJIINHbOro cepeIOBnUca. UK...5

Be3neka UK...6

Oncn pnpctpoU UK...9

Ipeep noaTkom po6oToN .UK...9

BveeHnB Eeknnyatauio. .. UK...10

Ekcnnyataia UK.11

TpaHcnpOpTyBaHHa UK...12

36epirahnna UK.12

Доглад та texhiчne обслг罗ваянna. UK..13

Iionomora y BnnaKyu HenoJaOK UK...13

Ppnilaandry 3anachi detani. UK..14

Tapaantia. UK..14

Texhihi xapaKTepeNCTnKi. .UK...15

3aBa npi BiIIOBiIDHicTb CbponeiCbKoro cnIBTOBapnCTBa UK .15

KOMnJIeKT noCTaHaHHa

KomnneKtaucipnctroo 3a3haeHa Ha ynaKOBuCi. Pnpo3pakyBaHHi npnctroo nepeBipNTKmnnKeTauio.

Y pa3i Hectaqui DoDAtKOBORO OblaJHaHHa 60 yuKoJKeHb,OTpIMaHx NiI qac TpaHCnOpTyBaHHa, CnIIOBIDOMTe npo ce B ToproBeJIbHy opraH3auHIO,ka npoJana anapat.

www.kaercher.com/REACH

Bézneka

3HaueHHBka3iBOK

△ObepexHo!

Bka3ieka 0o do He6e3neku, kka 6e3nocepedhbo 3aapoxye ma npu3bodumb do mxxmpaem yu cmepi.

△PonepexdkHn

Bka3iKa 0do nomeHuiHo moKnuOi He6e3neHoiC cumyaui, 0o MoKe npu3BeMcU do mXkuxmpaM Yu cMepmi.

△ Yezza!

Bka3i8ka uodo nomeuio Ho he63neuho i cumyaui, k a moke cnpuuHmu ompumHa HneKux mpaem.

yeaza

Bkaizka zoodo moKnueoI nomEnuHOn He6e3neuHi cmyaui, zo MoKe cnpuunHumu mamepiabhi 3bumku.

CmboJn Ha npncIpoi

Pnpumpi He moxHa iidKIOUamu 6e3nocepedHbO do mpyoepody 3 numHO oooio.

1 He6e3neka yuko3xHnHa! Ppuempiu do3e0n8embc Eukopucmo8yamumilbku y lekaOmy (eou3OHmAbHOMy) nOIOXeHHI.
2 He ckepoyeamu cmpymiHb eodu ha IIOdeu, mApun, yeIMKHeHe eNEkmpuNe oBnaDHaHHa Ha cam bucoKoHanipHu MuHua napam.
3 Cnio 3axuama npunaed io mop0sy.

EneKtpnHi KOMnoHeHTN

△O6epexHo!

Hikolu He mopkaumecb MepexHo2o umekepy ma pozemku 8onoaumu pykamu.
Ipeod noyamkom po6omu 3 anapamom nepeepumu mepexeue Kaebma umencelbny eulky Ha nowkoedxehn. Ywkoedxue HkabeH mepexho2o kUeHNH NOeUNH bymu HeaunHO 3amHeHu ynoHoBaxeHO cny60IO cepicHOO o6cNo8yBaHH/ qaxieM-eneKmpukom. He Kopucmyaumcb npucmpoem 3 nowkoedxehm npo6oDM nioKnquenHdo mepexi.
Bci yacmuH, uo npoeobm b cmpym y po6oui 30hi, noeunHi bymu 3axuueHi bi nompapanJHHKpanenb bodu.
I IImencelbHa eBukka ma 3'edhyBaIbHu eIemHm nOobKyEa a NobunHi bymu zepMemuHi ma He nepe6yBamU y 6oDi. 3'edHbHu eIemHn HadaJI He nobuHen cmocyBamucn iDnozU. PekomeHoycBcB uKOpucmoeBamu KaebNbI bapabAnu, kIi 3abe3neuyomb po3MiueHnpo3emok He MeHwe, HIX e 60 MM eID iD nozoU.
Cniodkyume 3a mum, uo6 mepexhi KaBeni abo nooexyueqi He moXha 6bno nowkodumu hacmynuewu Ha Hux, y pezylbmani nepezuHaHna, po3ipeaHna abo noidho2o ywkodxeHH. 3axuzaume MepexeHu KaBent eid japu, macna ma 2ocmpux noeepxoHb.

△PonepeoKehn

Ipnucpii cnid emukamu nuwe do 3minnozo cmpyMy. Hanpyza noeunha iiooeidamu eka3aHUM Ha fipmoei mabluu npucmpo daHUM oodo Hanpyeu.
IpucmpiMoKe 6bmyPiOeHaHuu
Lnue do eNeKmpuHoi MepeXi, uo
NoouHa 6bmy EcmaHOeNa
eNeKpmoHmepo EidnoEioHO do
cMaHdapmy MxHapodHOi
eNeKpmexHicHo i Komicii (MEK) IEC
60364.

Henpuadamhi enekmpuhyi nooexkyeaipoxymb 6ymu Hebe3neHuMu. Ha biokpumomy noeimpi eukopucmoeyama minbku npudamhu dny zuo2o enekmpuyhu npodoxyyauch iioobidHM mapkybaHm ma doctamHim diaempmKaebn:1-10 m:1,5 MM², 10-30 m:2,5 MM²:
Ipooexkyaeu noBuHEn 3aekdu bymu noeHicmno po3KpyueHm 3 KaeblbHo2o 6apabany.
3 MípkybaHb 6e3πeKu padumo nioKnIouamu npucmpiu uepe3 aemomam 3axucmy iD cmpymy bumikaHn (MaKc. 30 mA).

Бe3neuHe o6cIyroBvBaHHa

06epexHo!

Ipeped koxhm ukuopumannm nepeepmaHa harehicmb nowkodxheb maki eaxnuei KOMnoHmu, JaWnae bucoko0o mucky, nicmonem-po36pu3ky8a ma 3anobixhi npucmpoi. Nowkodxehi KOMnoHmu cnid HezauHo 3amHmu. He Kopucmyamucb npucmpoeM 3 nowkodxehmu KOMnoHmemamu.
Takox He do36oIembcr ckepo8yamu cmpymh bodu, uo nepe6ybae nducokum muckom, ha iHux IIOdeu nu Ha cebe dnyuueHHa 3ymmra yu oday.
He Mumu npedMemu, uo Micmmb wkiDnuei dna 3dopeoe'peoenu (HaPuknad, a36ecm).
CmpymenHm NiD muckom MoKymb 6ydu nowkodxehi abo nonhymu Koneca aemomobinie. Nepuo o3HaKOIO nowkodxehnE 3miHa KOIbOpY Koneca. Nowkodxehi Koneca cmaHOeJMb Hebe3neky dny 3dopoe' B Xodi ouuueHHNcI 36epieamu ducmauho uohaumHe 30 cm!
PakyeaIbHy npIeKy mpumaIme nOaIi biD dimeu, icHyc He6e3neka 3adyweHnra!

△IonepeoKehn

3aboponhaembcekcnnyamaui npucmpoio dimbu a6o HekaianpikoBaHmu oc6amu.
Lii npucpii He npu3naeHu dny 6ukopucmaHHnIObMu 3 06mxeHUMU fI3uHUMU,ceHCOPHumu a6o po3ymoBmu moKnuocmmu a6o 3 eIDcymnicMIO docidy/a6o 6IDcymnicMIO eIDnoBDHux 3HaHb,3a BuHramKom buadkie, KOnu BOHU 3haxodmbcr NiD HaeJADOM 6IDnoEdalbHOi 3a Be3neky oc6u a6o ompumyomb iD HeI bKa3iBku no 3acmocyeanHIO npucpoio, amokx yc6idomNIObMb MoKnuePi3UKU.
He dozeoJme dima npucmpoeM.
Cmexkumu 3a mum, uo6 dimu He epanu i3 npucmpoeM.
Kopucmya nuuHEn uKOpucmoeyamu npucpiy y eioeiodocmi do iHcmpykui. BIn noBuH en epaxoyama yMoBu Micceocmi ma 3eepmamu yeauy Ha mpeix oc6 nd qac po6omu 3 npucmpoem.
LJHau, apmamypu ma 3'edhnn - Maomb baxnuee 3naehn da 6e3neku pobomu 3 npucmpoem. Do3eOnyembcs bukopucmann H JhaHei, apmamyp ma 3'edhnh, doynuheux dny eukopucmaHH eupo6HuKOM.
He bukopucmooyamu npucmpiu, konu 30hi docxnocmi 3haxodmbc iHwi IIOdu, oc6JIueo, kkuo BOHU He MaIomb 3axUCHOO ODAy.
Lei npucmpiu 6ye po3pObeHnI dny buKOpUcMaHHa Y HbOMy MUoUx 3acobie, uo noCmaaHombcra abo peKomeHoyombcra eupo6HuKom. BuKOpUcMaHHa Ihuux MuOuX 3acobie abo ximikame moKe HezamueHo enluHymu Ha 6e3neKy npucmpoio.

△ Yeasa!

IiD yac mpuaeJux npepe e pobomi cnid bumkhymu npucmpiu 3a donomoo2o 20noeH2o bumkaaya / bumkaaya npucmpoio abo iD'edhamu uo2o biEneKpmopepexi.
Дязлобиаань покожжени ру ouuценhi cnid 3бepizamu biocmaHB zuhaumehwe 30 cm biJ nakoeaHux noeepxoHb.
He moxha 3auiuamu npucmpiu 6e3 haaydy niq yac po6omu.
He do3e0jraembca ekcnlyamaia npucmpo npu memnepamypi Huxue 0^

Ihwi He6e3nekn

06epexHo!

He po3nulmau zoipoui pidunu.
3a6boponhaembc8cMOKmyaHnnpucmpoempiuH，0oMicmpo3uHHKU，amokxhepO36abHeHXKusomaboP3uHHKie！TakumupeoBuHaMuE，HanpuKlad，6eH3un，po3uHHKfapbuMaMa3ym.Tymane2ko3aumcuMu，b6yXoHe6e3neuHuimypmHu.HeukOpucmoeymeaemoh，hepo36abNeHiKcIOMmuP3uHHiZacob，maKzpeoEuHuEpluaombHaMamepiau，0oEukOpucmoeyombcHa npucmpoi.
3abopoheno bukopucmoeyamu npucmpiu yubxohoe3neuhux 3OHax.
Ipu bukopucmaHHi npucmpoIO e He6e3neuHomy Micu (HaNPkuad, 6eH3OKoNnKa) Heo6xioHo npumpumyBamucb cneuaIbHuX nopad no mexHi ci 6e3neku.

IHdNBIyajbHe 3axnche cnopraJxKeHHa

Odaaume 3axuchy odekyma 3axuchi okynpu dnil 3axumy eioeodu ma bpydy, uo eio6pu3kyiombcra.

KoepiiciHT ctiKocTi

△yeaza!

Peped eukohannm 6ydb-kuux diu 3 npucmpoem a6o bJn Hb0o Heobxio 3a6e3neum cmiukicmb, uo6 3anobiamu Heuachum bunaKaM ma mpaemyeaHIO e pe3ybnmami nepekuadHn npucmpoio.

→ CtiKicTb npnlaNy rapaHToBaHa JInuE y TOMy BnnaKy, KOJI NOrO BCTaHOBNeHo Ha pIBHni NOBepxHi.

3axnchi 3ac06n

△yeaza!

3axuci npucmpoi cnyayomb dny 3axumy kopucmyaue. Budo3miHa 3axuchux npucmpoie yu HexmyaHn Hmu He donyckaembc.

BmMkau npncTroo

TOnOBHn BmNkauch 3anobirae camoBjNbHi po60ti anapaty.

Блokувань руногоNICToJeTy- pO3nIIOBaua

HabeDeHO OINc PnCTpOu 3

MaKcImMaJIbHOIO KOMJIneKTaUciEO.

KomnneKtaicBidpi3HЯeTbc3aIexHo BId Moeni (nVB. ynakyBaHHa).

3o6paXeHHaNb.Ha pO3BOpOTi!

1 Miciue nIy 36epirarHnA kcecyapiB
2 Puyka Длг Транспортуваимь, BИТЯгутбя
3 WbNdkOp03HIMc 3'EdHaHHaIJI pIKJIOUeHHBnCOKOHanipHOrO IJaHra
4 TOnOBHnBmMkaU,0/OFF" / ,I/ON" (0/BIMK. / I/YBIMK.)
5 MepexkeBn Ka6eNb 3i uTeNceIbHO BUNKOIO
6 Puyka
7 TpaHcnpTHe KOJecO
8ПиБeДeHЯ BOДи 3i BCaHOBnEHm ciTuaCTHM pInbTpOM
9 ActnHa 3'EdHaHHa IJIa NiBBeDeHHa BOIN
10 BCMOKTYBaJIbHn IJIaHr IJIЯ MInHOro 3acO6y (3 φiJIbTpOM)
11 Puchnni nicToIeT-po3nnIOBau
12Блokуванн рун Horo nicToNeTypo3nIIOBaua
13 Pykab BnCOKOro TnCKy
14 KhonkaДЯ BiD'EDHaHnHЯ WlaHry BInCOKOrO TnCKy BiD pyHoro niCToJeTypo3nIIOBaua
15 CtrpymeHeBa Tpy6ka 3 peryIIOBaHHaM TnCKy (Vario Power)

Peped noaTkom po6oTH

BctaHObitb 3anachi yactnHn

Ipeed nooyatkom ekcnnyatauapanaputy BCTaHOBHTIdoaHI He3akpinneHi YaCTHNI.

3o6paXeHHaNb.Ha pO3BOpOTi!

MaJIIOHOK A

→ 3'εДиВаьну MyФТу 3 KOMПпeКТу πiД'εДиНeTe ДО eIeMeHту anapaТа ДЯ нoДаВaHHЯ BODи.

MaJIHOHOK B

BCTaBnTn ⅢJAAHr BNCOKO r TnCKy BpyHnnPiCToJIeT-po3nJIIOBaUdo KnaCaHHa.

Bka3iBka: IOpTmMyBaTncb npaBnIbHOro po3MiueHnHa 3'EdHyBaJIbHOrO HineJIHO.

→ IpebeBipuTu HadiiHicTh KpiinHeHHa, NotarHyBUn 3a WnlaHr BnCOKOrTo TnCKy.

IpaBAnHbOu

IOTyXHicTb DnB. Ha 3BOcBi T a6JIuCi/B TexHiuNX daHnx.

yeaza

Bodhi 3abpyDHeHH MoKymb cnpuunHm nu nowkOxHeHH Hacocy eucokso muCKy ma npuna.ДЯ 3axucmy padumo ckopucmamucb bOdHUM fInbmpom KARCHER (cneuaJIbHe npuna,Homep dJa 3amoJenH4.730- 059).

IpaBAnHb BOaN 3 BoDorohy

Iotpmytecb npad niinpneMCTBa BOJONOCTaayHn.

△PonepeoKeHHa

BiodnoiHO do dioux dupekmue 3aboponembceeknnyamaui npucmpo6e3 cuscmemho0 po3diovobau e cuscemi nocmaaHna numho i odu.Cnid eukopucmoyeamu iDnoiH u cuscmemu po3diovbaq ipmu KARCHER a6o anbmehamuehu cuscmemu po3diovbaq, 3aioHO EN 12729 muny BA.

Boda, zo npouwla chepe cuscmemnupo30inobau, baxaembcn Hnpudamno 0ra numma.

yeaza

CucmemHu po3diHoea 3aeKdu noBuHe 3haxodumc8 cucmemi eoOnocmauHn, He do3eOJembcr iidKnoyamu uo2o 6e3nocepedHb o npucmpo.

IOnaBaHnB BODn 3 BiKpntnx BOOIMMn

Дань Високоанірні МИнь anapat 3i BCMOKTyBaJIbHIMШанROM KARCHER Ta 3ВОРOTНМКлаланOM (СпeцIaJIbHe npILAДЯ, HOMePЗamOBLeHnR.4.440-238)npu3HaueHOДЯ BCMOKTyBaHHЯ BODI 3 BiKpNTxpe3epByapIB, npmIpom, 3 DiJOKДЯ DOUOBOI BODI YI CTaBkIB (MaKcMmaJIbHy BVICOTy BCMOKTyBaHHЯДИВ.ypo3dini "TexHicHi DaHI").

3aIOBHNITBCMOKTYBaJIbHnI WJIaHr BOIOHO.

→ PnirBnHTnBCMOKtyBaIbHn IJnaHr Do eIeMeHTa NODaCi BOu H a npicTpoI Ta NOMICTnU y DkepeNo BOuN (HaNPnkJa, y DOoOBy bOchky).

BVeDeHnBaeknIyatauio

yeaza

Poboma ecyx npomr oem 6bwe 2 xeunn npueodumb do buxody 3 na dy hacocae bucoko0 mucky. Kao npucmpiu npomraon 2 xeunuH He nabupa e muck, mo uo0cniD eumkhymu ma diamu eidnoibdo ekazikam, kpi npueodmbc8 aanai "Donomoza y eunadky he nojadok". MaHIOHOK C

BCTaBHTN BVCOKOHanipHn IJNaHr y IWBnDKopo3'EMHe 3'EJaHaHHn Do KlaCaHHn.
BCTaBHTI UHaHr DnI npaHi BOi B MyD TY BiINOBIHORO 3'EDHaHH. Bka3IBKa: IJIaHr npaHi BOi He BXODITb DO KOMNJIeK TY NOCTaHaHH.
PiJ'eHaTn BOJaHn IJNaHr DO BOIOBOy.
Lijikom BiiKpnIte BOOriHnn KpaH.
BCTaBTe MepeXeBn uTeKepe y po3eTKy.
→ YbIMKHiTb anapat ,I/ON" (I/YBIMK.). ManhoHok D
→ P036JIOkyBaTn BaXJIb pyHOrO nictOnTeY-po3nJIHOBaHa.
IotrayHTn 3a BaxiNb, anapat yBIMKHeTbCra. 3aIuHITn npicTpriyBIMKHeHm (He 6JIbU, HIX Ha 2 XBUNH), nOKn 3 pyHOrO p03NIIIOBaHa He NoUHe BVXODHTN BOda 6e3 6yIb6aWok nobitpr.
→ 3BilbHItb BaxiNb 3pyHnMp03nIIOBaUemBka3IBKa:JaKIO BaxiNb 3HOBy3BilbHnTbcra,anapat 3HOByBIMKHeTbcra.BICOKNI TCK3aIIuHaetbcraB CnCTemi.

MaHIOHOK E

3a6nokyBaTN Baxijb pyHoro nictolety-p03nnHOBaay.

Ekcnnyatauia

△ObepexHo！

Cmpymnb bodu, uo buxodumb 3
fopcyhku nio bucokum hanoPOM,
cnpuunre e iddauy puhozo nicmonemy- po3nunobau. 3 uei npuunu cnid
3aHmu cmiuke noJoxeHHa, MiHO
mpumamu pyHuN nicmonem-po3nunobau
3i cmpymunno mpykoio.

△O6epexHo!

CmpymiHb eOdu, uo 3naXoDumbcra nio buKoUM muckom, MoKe cmaHoobmu He6e3neky npu HnnpaBunbHomy EukopucmaHH. 3abOpohreMbc8 ckepoByamu cmpymHb oodu Ha IIOdeu, meapun, yeIMKHehe enekmpuHe 0bnadHaHHya Ha caM bucoKoHaipHu Muouhu anapam.

yeaza

He6e3neka yukokxeHH! Ppucmpiu do380jembcra eukopucmoeyamu minbky lexaoy (2oju30hmaJIbHomy) noJoxehHi.

yeaza

He yucmum aemomobijhuiu,
laokaapboe nokpmm a6o yumnbi
noeepxhi (hanpukna3 depesnu) i3
3acmocyeaHnM fpe3u dny budaneHH
6bydy. lChye 3aaP03a nowkodxehn.

yeaza

Puzuk nowkodxehnnaKoap6ofo nokpumma
Ipepdobomoo3 Muoyo uimkoocid nepekohamuc8momy,0o oHa ouuetae iD 6pydy abo iHux cmopohhix yacmok.

MaHIOHOK

→ HaDiHbTe Ha puHm NiCToJIeT- po3nIIOBaU CTpyMmHHy Tpy6kY Ta 3aΦiKcYte II, NOBepHyBmHa 90^
→ P036JIOkyBaTn BaXiJIb pyHOrO nictOJeTy-po3nIIOBvau.
→ПOTЯнтуза Вадиь, anapat yBIMKHTbC.

Bka3ibKa: KaIO BaJIb 3HOBy 3BiJIbHnTbCra, anapat 3HOBy BUMKHeTbCra. BucOKn TnCK 3aJIuHaCTbCra B CnCTemI.

Pobota 3 MnHm 3ac06om

△O6epexHo!

BukopucmaHnHeeiDnoiHux 3ac06ie
dnyuueHHa6o ximikame moke
hezamueHo enluHymu Ha 6e3neky
npucmpo.

Длг buKohyeaH0zo 3a6dAnH no yuSeHHo eukOpucMoeyme euknOyHO 3acobu dny uUeHNma 3acobu no dozIy dy fipMu KARCHER, ockInbku eOnu po3pObeNHi cneuaJIbHo dny 3acmocyeaHnry y eauux npucmpox. 3acmocyeaHnry ihuux 3acobie dny uUeHNma 3acobie no dozIy do Me puzBeemu do npuckopeHO 3Hocy ma empaMu npaaHa naapAHmiHe obcnyoBvAHnry. DoKnadHy infopMaio MoxHa odepXamu e cneuaIi3oEahOMy Micui mopaii a6o be3nocepeHbO e npedcmabHmuMe KARCHER.

△ObepexHo!

HenpaBunbHe 3acmocyeaHn 3ac06i8 dny
yuueHH MoKe cmmu npuHoo
cepO3Hux mpaem abo ompyehb.
Ppu 3acmocyeaHn 3ac06ie dny yueHH
cnid dompumyamucr bumoe
cepmuqikamy be3neku bupobhuka,
ocobnueo ekazibok iDhocho
3acmocyeaHn 3ac06ie iHDueidyalbHo2o
3axucmy.

MaHIOHOK 6

→ BCMOKTYBaJIbHn IJIaHr IJIa MmIHorO 3acO6y BNTaTn 3 KOpNycy Ha NOTpi6Hy DOBXKINHy.
OnyctNTIN BCMOKTYBaIbHNI JNaHr IJIaMnHO 3acO6y B pe3epByap 3po3HHOM MmHO 3acO6y.
→ BinkopnctOByBaTu n CTpyMeHeBy Tpy6ky 3 perynIOBaHHm TnCKy (Vario Power)
→Повернтусту мину Тубку В положеня „Mix". Вka3iBka: Таим чином, пи екл�аразць розун Мйною засобу змшуеть сд CTумehem BODи.

B kocti onii

→ 3aIHTMmHm3acioBpe3epByap InMaHOrO 3ac06y (DToPmMyuOncb Bka3iBOK 1oDoIOO3yBaHHHaEMHOCTI dI MaHOrO 3ac06y).

Pekomehdobahi MeToOn OuyuHn

→ Pɔзпліntи Hebeileky kiIbkiCtB 3ac6oyДЯЧИSEHнHa cyxu NOBepxHIO Ta3aIIshHTn DiTn (He BucnxaTn).
→ 3MnItepo3UHHeHn6pydCTpyMeHEM BNCOKOTo TCKy.

BidnoBidaHnDapeKtnaBC

2000/14/EC

2004/108/EC

2006/42/EG (+2009/127/EG)

2011/65/EC

Ppknadhi rapmoniuyoi HOpMn

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

3aCTOCOByBaHm MeToD oUiHKn BiIDNoBIDHOCTI

S. Reiser
Head of Approbation

ynoBHOBaXeHnNo DOKymeHTaU: S. Reiser

71364 Winnenden (Germany)

Ten.: [phone]

ΦaKc: [phone]

Winnenden, 2013/09/01

KypmetTI TyTbIHyWbl,

BiyibMbbl anfawkbk KonpaHy aIbIHda naJaIaHaHy HcKaybH

MkyTOKbIbIbIbI3,HcayapdbOpbIaIan,KeiHri naIaIaHyuIN HeMeceOcbIannapaTbI KeiHn aIaNalaHaTbIH TyFaIap yuIN caKTan KoIbIH3.

Ma3MyHbI

KanTama iuiHdere 6eJweKTeP. KK .5

БуйыIMы МakcaТына сэйkeс Колдану ... KK...5

Kopwafrn opTaHbI KopFay . . . KK . .5

Kayincizik KK 6

BiybIM CnataTamaCbl. KK .8

Icke KocyaIbHaH. KK .9

БиьIMы icke Kocy ..KK..10

KoIdaHny. KK ..10

TacbImaJday KK.12

BvibIMhblCaKaTalHybl .KK.12

Kytmy MeH TexHnKaIbIK TeKcepy KymblCTapbl. KK .12

Keideprinep 6oJFaHda KEmek any. KK .13

БунбIM KepeK-жарakTapbl MeH KocanBb 6eJIweKeTepi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KenindeMe KK 14

TexHnKaJbIK MaFJyMaTtap . . . KK . .14

EC cTaHdapTtap cənKeCTIK TypaIbI DeKlapaunia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KanTama iwiHdere 6eJIwekTepe

CizdiH 6yIbIMbIHb3dbIH KekTki3iNy KeIeMi
Kopanwada 6eHeneHreH. BiybIM
KopanwacBH aWKaHda Kopanwa iWihderi
6yIbIM MeH 6eJIWeKTePiH TOJIbIK XHe
6y3blMaFAH TypDe 6oJFaHdbfBtH TeKcepin
aJIbHbI3.

Erep Kei6ip Ka6bIbIKTap KOK 6oJcA
Hemece TacblMaJIay Ke3iHderi akaynap
6oJcA, annapaTbI caTkaH qnpMaHbI
xa6apdap etIH3.

www.kaercher.com/REACH

Kayincizik

HcykaYbIH aHbIKTaMaCbI

Kayin

Abyip kapaakammahyra He enImae anapbIn corambin mikee mypde myce anamblmayekene Hycay.

CaKaMaHdbIpy

Abyip jkapakammahyra He eniime anapbin cofambin bikmuman Kayinmi kardaunapra HycKay.

CaKmbiHKyckaybl

JKeHJI kapaKammaHyra anapbIn cofambH bIkmumai Kayinmi Kardaura Hycay.

Ha3ap ayadapbIhbl3

Mamepuandbik 3uHra anapbIn corambih bikmuman Kayinmi XardauHa Hcyay.

БунбIMдаfbI cMbBOJdap MeH 6eJIrIep

BiyubIMbIO KOFAMbIK aybi3 cy JeNiciHe mikeNeu Kocyra 60JMaUdbI.

1 3aKbIMdany kayni! Byubimdb mek KeIeHeN Kyude naDaanahyra bona db.
2 KorapbKbcBIMdbI arbIH aamapra, kanyapnapra, bencen3neKmpnik Kypandapra Hemece 6yubIMhIH e3iHe KapcbI 6arbImmanMayb muic.
3 Byubimbaa3daHcaKmaHb13.

3neKtpnik Kypamdaactap

Kayin

Ka6eBbawacblMeH 3neKmp po3emkacblEwkaaah bInraIdbI KOJMeH yCmMaHaHbI3 He mypmneHi3.
Kyam cbIMb Meh KaBeJIb awacbIHda ep KOIaHbIc anDbIHda 3aKbIMdapdbIH 6apKoRbIH meKcepH3. 3aKbIMdaHaH KybIM cbIMbIH eKJemmi Kbi3Mem Kepcemyu/ 3NeKmpwi MAmHAp depey ayBcMbpybl muic. KybIM cbIMbl 3aKbIMdaHaH 6yUbIMbO1 KOIaHbSaHbI3.
Bepi jymbic 6bnimwecide 6ap 6oIraH mok emki3iuu 6nwekepebIH copraay wawbipahdbkopray bony KepeK.
Y3apmKbIuMbIH KeJI auIpbI MeH
XaIramacbl cyra 6epik bonyi KepeK
XeHe oIapObl cyra muiz36ey KaKem.
XaIramaKepeDe kanau 6oNca, conau
Xamnaybl muic.KabeJxHaumblH
WaprblbIKondaHraHbIb3 XeH,6yn
awalbl po3emKaHbIH KepeDe H MuH.60 MM.XORapbl mpybl KaMmaMaCb13
emedi.
Kyam cbIMbi MeH y3apmKbIiMtbIn KUbIy, KbICbIy, co3bIy XaHe m.6. HAmuxeciHde naOda 6oIraH akaynapdbH 6oImaybH KaaraJaiay Kepek. 3neKmpik cbIMdapdbI bICMbH, MaDbH acepineH XaHe emKip KbIPnapdaH KopFaHbI3.

CaKaMaHdbIpy

ByubimdbI mek aybcnabI mokka kajraHb3. Kephey byubimhbIn myp kecmecihde Kepceminaen Hcpheye cukce 60nybl muic.
BvibIMdbI meK 3neKmpuiHIN IEC 60364 cmahdapmbiHa cukec KOdbipraH 3neKmp po3emkacbiHa kajfayra 6oJadbl.
Kapamcb3 3nekpik y3apmy Kaebbdepin KOndaHy Kayinmi bony MyMKIn. Cbypma kymbic icmeaeHde mek KaHa pyKcam eminaeh XHe Naibkmbl mypde beeneineHce HxHe Xemkiikmi Keandehen Kumacbi 6ap 3nekpik y3apmy Kaebbdepin KOndaHbIb3:1-10M:1,5MM2;10-30 M:2,5 MM2:

¥3apmKbIuMbI apKauaH Ka6eNb 6apa6aHbHa monbIfbImeH opaHbI3.
Kayincidikmi KaMmamacb3 emy MaKcamblda 6YubIMdba aemomammbl axbipamkbiuu (MaKc. 30 MA) apkblbl KOlaHy kamah ycbHbnadbl.

Kayinci KoJdaHy

Kayin

KorapbI KbICBIMdbI wnaHai, KOImeHwaubipamy nucmonemi xHeKayinci3dk KypaIadapbl cuaKmbiMaHb3dbI KypamDacmapda apKOndaHbIC andbIHDA 3akbIMdapbIH6ap-koRbIH mekepiH3.3akbIMdanraH KypamDacmapdbdepeyaybcmbpbHb3.KypamDacmapbl 3aKbIMdaJFaH 6yUbIMdbI KOJaHa6aHbI3.
Korapbl KblcimbI afbH Kuim Hemece aR Kuiim ma3aJay yuih 6aca aadamapra Hemece e3iHizee KapcbI 6arbimmayra 6oImauobI.
KypambldaKayinmizammapbl (MbicaJIb,macKeHdip)6apzammapdb 6ypkimHe3.
UuHaap/uHa 6paHdaIapblXorapbl KbcIMbI aBihHa 3aKbIMra KeJIn, Xapblybl MykIn. MyhIn 6ipHwi Benaici -uHa myciHH e3epyi. 3aKbIMdAnrH uHaanap/uHa 6paHdaIapbl eme Kayinmi 6oJbIn ma6blnabI. Ta3anay Ke3iHde arBHHaH KEMHDe 30cM KaWbIKmbIkma mypblb13!
Kanmama Kara3bH 6ananapdaH aynaKymahbi3, myHwBfBn Kany Kayni 6ap!

CaKaMaHdbipy

Bana napra HeMece Hycay 6epinaeHkoaadamapra 6yI 6yubIMdbI naudanahyra 6oMauiobI.
BvN KpybIrfHbI quskaJIbIK, ceHCOPnbIK HeMece aKbI-NoDAmybI ueKmEnaen HeMece moxipubeci XHe/ Hemece biikminie i Kok adamdap 6jikmi MAMAHbIH bakblaybIDa 60MaHaH Ke3de HeMece oCbI MAMHap mapabIHan bYbIMdbI KOndaHy mcini XHe orAh kambicmbI

Kayinmep myciHdiipimmeaen Ke3de naudanah6aybu muic.

BaIaIapra KypbINFBIMe H O'HayrpaKcam 6epMeH3.
Bana napra KypbInrBIme H ouhayra Konj 6epmey yuiH onapdbi bakbnan ombyp kepek.
Iaoudaanhyb6yubimdbHbicahbiHa 6aunahbcmb kondahybKepeK. ByubIMMeJxMbic icmey Ke3iHde Jepainikmi wapmmapra Ha3ap aydapybKepeK, xakbIHda JypeH aadamapdbE ckepyi kaxem.
Korapbl KbcibIMdbuHaHe, apMamypa MeH MyfmaIap 6yubIMhbIH Kayinc3diayuH MaHb3db. TeK eHdipyui MaYndarah Xofapbl KbcimdbuHaHeJep, apMamypanap MeH MyfmaIapDb kondaHbHb3.
Eeep Kopraywbl Kuimi Jokbaca aadamap JkaKbIH 6oJca, 6yubIMdbI KOndaHbHaB13.
Bny6yibmb6yubimwbfarpuywbicbimeH KOybIraH HeMece ycblbIraH ma3anay 6yubIMap naDanaHy ywiH. BaKa ma3anay 6yubIMap Hemece xumraIK 3ammeKmep KOndaHy Ke3IHde 6yubIMbIH Kayinci3OieIH 6y3bIybi MYMKIH.

CaKmbIK HycKaybl

Y3aKa yaKbIm icKe KocblMa mypraH XaRdaUda Heia3i KocblUmbI/6yubIM KocblUbIN 6acbl HEmece 3JneKmpnik awahbl axblpambIn 6yubIMoI eWipin3.
Jaikmanrah 6emmepdi maanay KeiHoe 3aKbIMdapra kOJI bepMey yuIH arbHHaH KEMIHDe 30 cm KaawbIKmbikma mypbIbI3.
Bvubimdbi ewkaaah Kocynbl KyuiHde KaNbpyra 60MauiobI.
Temnepamypa 0^ -deH mEmeH 6oIraHa dbyubIMObi KOndaHbI3.

Baçka Təyekeldep

Kayin

KaHfbIw cyubikmbikmapobbl 6ypkImeHi3.
Epimho KocbIrah cybIKmbkmapbI HemeepimImeaeH KbIkwkbIap MeH epimHdinepdi ewkaawan 6yubIMr copfblmaHbI! Bynapra, Mbicnbl, 6en3un, epimKiuimep Hemece Maym XamaDbI. CybIKmbK bypikkiui me3 XaHfbli, JapblBtuW xHe ynb60bn mablnadl. AuemOH, epimImeep KbiukbIadap MeH epimKiuimepi KOndaHaBbI3, onap 6yubIMdafti KOndaHbIraH MamepuandapdbH 6y3bIybiHa anapa aanaDbI.
Kapbiny kayni 6ap jeppepe naoudanhyra mblbIM caIbHaobI.
BvibIMdbiKayinmi aumakmapda (MbicaJIb,BeH3UN Kyo cmaHuaJapbIHda) KondaHy Ke3iHoe muicmi Kayinci3ik epexeepin cakmay kaxem.

Kayincizdk KypanapbI

CaKmbIK Hcckaybl

Kayinci3diK KypaIadapbIHbIM MaKcambl - KondaHyubInapdbI Kayinmen caKaMaHdbIpy, onApdbI e3eepmye Hemece 6aKbInaycbI3 KaIdbIpyf aOImauDbI.

BiybIM Kockblbl

BiybIM KOKbIbIb6ybIMHbIH KeHET KOJaHaBbIybHa XoJbepMeiDi.

Kynnb6ap kon6ypikkiiwi

KyIbIn KOI 6pyIKKiHIn HnHITiperIH KAbaDbI da, 6yIbIMbH IN KeHET IcKe KocblNyBHa KOn 6epMeiDi.

KbICbIMDbI KockbIuBbI 6ap 6ocatKbIu KJanaH

BocatKbI KwIanaH MaKcImMaIdbI pyKcAt etinreH Kymbc KblcblHbI apTybHa K0JI 6epMeiDi.

KoJImeH WaaBbIpaTy NnCTOJIeTIHiH TyTkacbl 6OcaTbIJaHaNda KbcIcIM KCKbIbIb CopanTbI icTeH WbIfapbl aIaDbI, KOFapbl KbICbIMdbI aFBIM TOKaTaTbIaNdbI. TyKa TapblFaHa copan KaItaDaH KocblaBl.

BvibIM cHnTaTamaCbI

OcbI naDanaHy HcyaybIHda TOJIbIK
KnbIHTbIK KepcetijireH. MoJeBRe
6aJNaHbICTbI JKeTki3iNy KJIeMInDe
e3reWeJIik 6oJaDbI (KanTaMaHbI KapaHbI3)

CypeTRep 6yKtemeni 6eTTe KapaHbI3!

1 KepeK-kaPaKaTapDbI caTay opHbI
2 TacbImaJday TtKacbl, KblKbImaJIbl
3 Xofapbl KbcbIMdbI Wnahrire apHaJFaH XblJam aXbipaTbIaNtBm MyfTa
4 Bybim Kockblbl "0/OFF"/I/ON"
5 3neKtp TokKa Kocy Ka6eIep aHaacbImeH
6 TacbImaJday TTKacbl
7 TacbImaJnay deHreJeri
8 Kipictipinre eneri 6ap cy kekti3y kepi
9 Cy keTki3y kepihe apHaIraH MypTa
10 Ta3anaftbI 3aTAPdb copfbity shnaHrici (cy3rici 6ap)
11 Kon bypikkiu
12 Kynnb6ap kon 6ypiKiWi
13 Kofapbl KblcIMdb WJnaHri
14 KofapbI KbIcBIMdbI JNaHriHi KOI 6pyiKiWiHeH aXbIpaTyFa apHaJIFaH TYIme

15 KbIcBIM peTteriwi 6ap waabipaty Ky6bipb (Vario Power) KondaHbICTaftbTa3anay KymblCTapbHa apHaflraH. Kymblc KbIcMbI Min"JxHe "Max" apacbHda bipKeJIki peTteJei. "Mix" KyinHde Ta3anaFbI 3aTTbIKocyfa 6onaBl. Kymblc KbICbIMbIH peTtey ysiH KOI bypikkuiHIn TYKacbIH xibepiH3 XHe Waabipaty Ky6bipbH KaIaFaH Kyire 6ypaH3.
16 Kip KeTipy pfpe3epi 6ap waubpaaty K6blpbl KInH KeTipinetIH KipJeHyre apHaIraH

\*KocbIMwa Kepek-kaPaKaTap

17 Kyfblw KbIJaKa Ta3anaFbIw 3aTTapMeH xMblic icTeyre kapaMdbI.
18 AHaJMaIbI KyfBiI KblIaK Ta3aIaNbI 3aTTapMeH Kymblc icTeyRe kapaMbl. Ocipece aBtOMaTTbI Ta3aJIay ysiH kapaMbl.
19 Ta3anaftb3at caybItb6ap Ke6ik
Wymeri Ta3anaftb3at caybTTaH copbJaNb
XeHE KyaTTbTa3anaftb3at Ke6iri
60nbT a6bJaNb.

\*\*KHaKaTa KaMTbJMaFaH

20 Cy afbHbI uHaHrci MaTAmeKyUeHtINReH cy uHaHrci CTaHdApTTbIMyΦTaMeHKoJaHaBlaJaDbI. DnAmetpi eH KeMi 13 MM (1/2 IIOm), Y3bIHdbfB eH KeMi 7,5 M.

Icke Kocy aIaBHaH

BiyibIM Kepek-kaKaPaKTapbIn oPhaTy

Icke Kocy aJdIbIHda 6yIbIMHbIH 6oc KocaIKbl 6eNikTePiOpHaTbIHbI3.

Cypetep 6yKtemeni 6eTKe kapaHbI3!

Cyper A

ByiIMbIH MyoTacbi MeH cy XeTKi3y xepiH 6ekiTih3.

Cyper B

KofapbI KblcBIMdbI JlnaHriHi KOJ 6pyiKiWiHe Dbl6bcnE H6kiTImereHwe eHri3i3. HcyKay: BaIIaHaBtBipFbIb 6ypaHdaIbTIyTikTePdiN dypbO pHaIaackaHbIH TeKcepHj3.
KoIapbl KblcBIMbl IJnaHriJeri TApTbIbIbCTbl TeKcepy Ke3iHne caK 60JIbIHbI3.

Cy bepy kyuenei

BaiNaHbIC mənImeTepiH Typ TaKtacbl/ TexNkaJIbIK mənImeTep 6eIimiHde kapaHbI3.

Ha3ap ayadpaHbI3

CydaRbI KocnnapKorapbI KbICbIMdbI copfbiwka XeHe KepeK-JapaKaMapra 3aKbIM Keinmipy MymKiH. KopraHbIC yuH IN KARCHER cy cy3aicIH (KocbIMwa KepeKJapaK, mancbipbc Hempi 4.730-059) naDaJAnhy CsbHbInadbl.

Ky6bipdaH cy 6epy kyneci

Cy 6epy MekeMeeciH HycKaynapbH opbHaHbI3.

CaKaMaHdbipy

KoandaHbIambl 3aHbI epexepee
cAkec,ipikmey kyueci KOK 6yubIM
ewkaWAn ac cy kyuecihde
koandaHbImaybl muic.MiHemmi mypde
KARCHER KompanucreMakyldaFah
ipikmey kyueci Hemece EN 12729,BA
mypi mananmapbHa cai Kelemin ipikmey
kyueci kondaHbInybl muic.
Ipikmey kyueci apkbInbI aBbHraH cy aybl3
cy peminde KapacmbpblnMaiobl.

Ha3ap ayadpaHbI3

IpiKmey KjYueCIN apKaWAn cy 6epy KJYueNepiHe, EwKaWAn 6yUbIMra mikeNeu KocnAhl3.

Cydbl aawbk caybitTah copfbyT

Бул когары KBICIMы TazalaftbIu 6eTTeri cydbI, MblcAnbI, XaHbIp He ToFAHHa, copby Yu wIn Kepi KlaNaHbI (KocbIMwa kepek-xapak, Tancbipbc Hemipi 4.440-238) bap KARCHER copby uHaHricMeh biPre naDanaHbJaDbI (MaKcImaJdbI copby BnIKtirH TexHkaJIbK maniMeTTepDeH kapaHbI3).

CopfbyTu wnaHriciH cymeH TOJtblpblHbl3.
CopfbyTy wlaHriciH 6ynbIMhBHy Cy XeTKi3y JkepiHe 6ekiTHi3 KAnHe cy Ke3iHe (MbCaIbI, KaaHbIp) iin KOybHbI3.

BvIbIMdbI icke Kocy

Ha3ap ayadapbHbI3

2 Muhymmah apmbik Kypfak Kyuidezi
XyMbIC Xorapbl KbICbIMdbl COPbIuMbIH
3aKbIMdaNybiHa anapbn coradbl.
BybIMdbI 2 Muhym iuiHde KbICbIMcbI3
KaJIbHa KeIinpiH3,6ybIMdbI eWipiH3
xHe "Akaynbkmap BoBuHwa aHbIKmaMa"
6eImiHdeei HycKaynapdbOpbHdaHbI3.
Cypet C

KorapbI KblcBIMdbI WJahHriHi XblJaam aXbipaTbJIaTbIH MyfTaFa Dbl6bcnEH 6ekitijmereHe eHri3iH3.
Cy afbihb uhaHricin cy xektki3y xepiHderi MyoTara opHaTBih3. HcKay: Cy xibepy uhaHrici 6yibmmeh 6ipre caTbImaNdi.
→ Cy afbHbI wHaHriciH cy 6epy kyyneciHe XaJIFaHbI3.
→ Kv6bip KpaHbIH TOJIbIFbIMeH aUbIb3.
→ 3JIeKTp aUaAcbIH 3JIeKTp po3eTKacbIHa caJIbIHbl3.
→БиьIMыI"lON"KyHHe aybICTbIPbIHb3.

Cyper D

KoI 6ypikkiuH nHTiperIH KynbInTaH 6ocatblb13.

NiHTipeKti TapTbIbI3 Da, 6yIbIM KocblaDbI. Cy Keiipuikci3 Kon 6ypikkuiine ShfapbImaHaHwa 6yIbIMdbI JxMbIC icTeTIi3 (MaKc.2 MmHyT).
KoI 6ypiKiHin HnHTiperIH 6OcaTbHb3. Hycay: NiHTipeK 6OcaTbJFaHHaH KeiH 6yblm eWipipJIe.i. KYneeri KOfapbl KbICbIM caKTanaDbI.

Cypet E

KoI 6ypikkiuHn iHTiperIH KyIbntHaB13.

KoIpaHy

Kayin

KorapbI KbIcblObl WymeKe cy aftlbI KyyueiminaeHde kon 6ypikkiuine KaumapbIM kyui apmaDbI. Kayinc3 kyudi KaMmAmacB13 emy yuiH kon 6ypikkiuMi MeH waibpamy Ky6bIpbIH JkaKcbIan YcmaHbI3.

Kayin

KorapbI KbIcBIMMeH wIrfapblbnWaaWbpanambiH arBIMdapbiH naUbIKcbI3mypde kondaHaHaKayin mycyi MymkiH.OcbI arBIMdapbiH adamapra, kahyapnapHe aHdapra KapcbI, icme bONFaH 3neKmpKypandaPra Hemece 6yubIMhBiH e3iHekapcbI sbarbimmalmaybu muic.

Ha3ap ayadpaBihB3

3aKbIMdany Kayni! ByubIMdb mek KeIndeHen Kyude naudanaHyra 6oNaDbI.

Ha3ap ayadapbIhB13

UHa, naK he arawcui c3imman 6empeoi wawbipamy KcbipbImeH ma3anamahbi3, ce6ebi 3aKbIMdany Kayni 6ap.

Ha3ap ayadpaHbI3

Boryra 3akbim Keimipy kayni Kybiw Kblwaekmbi naudanaHrah Ke3de OHi Kip He baca benuweKmepdeh boc ycmayKepek.

Cyper F

Ⅲaawbipaty Kv6bipbH KOJ 6pypiKiIiHe eHri3iH3 JxHe 90^ aHaJIbIMda 6ekiTHi3.
KoI 6ypikkiuH nIHtiperIH KyblntaH 6ocatbHbI3.

→ NiHTipeKTI TapTbIHb3 da, 6YbIM KocblaDbI.

Hycay: NiHTipeK 6ocatbJnFaHHaN KeiH 6yibIM eWipineDi. Jyueeri Xofapbl KbcBcIM caKTanaDbI.

Ta3anaftbi 3aTneh Kymbic icTey

Kayin

JXacaHbI ma3anaFbIw 3ammapbI
HeMece xumnblk 3ammapdbKOndaHy
6yubIM kayinci3diie 3uH Keimipyi
MYMKIH.
Op ma3anay XymbcI ywiH meK
KARCHER ma3anaFbIw XaHe Kymy
3ammapbI naDanaHbIb3, c6e6i onap
6yubIMbIb36en naDanaHbIny uwiH
apHaBIXacakmanfAh. Baca ma3anaFbIw
XaHe Kymy 3ammapbI h naDanaHy
Me3eincix mo3yra XaHe KenindikmiH
6y3bIyibaHa aKeenyi MYMKIH. ApHaBl
dykeHDI xaBapdAp emH3 He Mece mikeNeu
KARCHER aknapammbIK beniime
xaBapnaCbIb3.

Kayin

JacaHbI ma3anaRbUu 3ammapbI naDanaHy aybp JapaKaammapra He ynaHyFa anapbIn corybl MymKIn. Ta3aay bUbIMdap KondHy Ke3iHde ma3anay bUbIM ubIrApuybIHbIN 3ammapbIH Kayincizik nacnpmmbl, acipece jkekoprany kypandap mypalbl HycKaynapbI cakmay kaxem.

Cyper 6

→ Ta3anafbl 3aTbIH copfblty IJnahrici KaIanaFah Y3blNbIKKa KopnyCTAH TapTbIHb3.
Ta3anafbl 3aTbIH copfbity JnaHrici H Ta3anafbl 3at Kocnac6ap Cayltka iiniH3.
KbICbIM peTteriwi6ap wauwbipaty Ky6bIpbH (Vario Power) naJaHaHbIH3.
ⅢaibpaTy KybipbIn "Mix" KyiHe 6ypbHbI3. HcKay: OcbHbIH HtNKeCiHde naJaHaHy Ke3iHne Ta3aJaFbIi 3aT Kocnacbl cy afbHbHa KocbIaBbl.

Kocbimwa

K6ik yMerieHH Ta3aIaNbIi 3aT CaybITbIH Ta3aJIaNbIi 3aT KOCnacBImeH ToTTbIPbIbI3 (MeJIWeP HcKayJaNapbIH Ta3aJIaNbIi 3aTTbIH Ka6bIHda KaPaHbI3).

YcbHbJFaH Ta3aJaay Tciji

Ta3anay 6yIbIMbIH Kypfak YcTipTkE yHemDi Tpyde IaIbIpaTbIn, ciHy yIiH (KeTIpIn KeTki3Be rHa) bipa3 KaNTbIPyblHbI Ja3bIM.
→ Epitirren Kipdi Kofapbl KblicbIMbl afbHMeh WauBIn Xi6epiH3.

KoIpaHybI yaKbITwa TKTaTy

→ Kɔn 6ypikiiHin niHTiperiH 6ocatbHbI3.
KoI 6ypikkiiHIn nIHtiperIH KynblntaHbI3.
→ ￥3ak kymblc kiipictepi (5 MInHyTTaH apTbIK) yIiH 6yIbIMdbI "0/OFF" KyniHe aybICTbIPbIbI3.

KymbICTbI aIayTay

CaKmbIK HycKaybl

Kyuede Kbcim KOK 60nraHda Kofapbl KbcimbObl wnaHaHi meK KOI bypikkiuHeH He bYubIMHaAkbipamblB3.

Ha3ap ayadapbHbI3

ArbH He Jxorapbl KbcibMdbu IaHaicih axbipamy apkblnb kondaHy KeiHoe bIcMbIK cydbI yuubikmapdaH wBIFapyfa 6oJadbl.

Ta3anaftbI 3aTneH Kymbcic iTey Ke3iHne: BybIMbl Wamameh 1 MnHyT Waio yuH Kymbcic iTeTiHi3.
KoI 6ypikiiHnHtiperIH 6ocatbHb3.
→ ByiMbIbI "0/OFF" KyiHe opHaTbIbI3.
→ Ky6bip KpaHbHx Ka6bHb3.
KyuJeeri 6ap KbICbIMdb TeMeHnDeTy yuH kon 6ypiKiuiHi nIHtipereiH 6acblb3.
KoI 6ypikkiiHIn nIHtiperIH KyIbIITaHbI3.
→ ΘηεΚTp aωaçbIH ΘηεΚTp p03eTkacbIHah WbIfapbI n aJbIHbI3.
→БиIMdbI cy 6epy KyneciHeaKbIpaTbIHbI3.

TacbImaJday

CaKmbIK HcCKaybl

Anammap MeH 3aKbIMapObI 6oNObIpMAY yuIH 6yUbIMobI macImaIooaraH Ke3oecaImarbiHa Ha3ap aydapbiI3 (mexHuKaJIbIK MəJImemmepei KaPaHbI3).

KoImeH TacbImaJnay

Cyper H

→ KypaanDbI TyTkacbIHahn KeTepein TaBImaIJaHbI3.

Cyper

TacbImaJay TyTkacbIH UblfapbHbI3, on 6ekitinei.
→ ByiBIMdbI TaCbIMaJIday TyTKacbIHapTApTbIHbI3.

YwaKTapda TacbImaJday

KypbIfblHb cIpbraHAn KeTydeH XaHe COfbIydaH KopfaHbI3.

BvibIMbIH caKTaIbHybl

CaKmbIK HcCKaybl

Anammap MeH 3aKbIMdapdbI bOndbIpMay yuiH cakmay opbIHOpabIH mHaDAraH Ke3de 6yubIMhIH cAlMaftbHa Ha3ap ayOpabHb13 (mexHuKaJIbIK MAmiMemmePdi KapaHb13).

BmybIMdbicaTay

¥3aKa yaKbIka, MbICaJIb, KbICTa caKTay yUiH "KyTy" 6eIIMiHderi HyCKaynapdbOpbIHdaHbI3.

→ ByuBIMdb teric 6eTke KoBihb3.
KoI 6pyikkiuHderi axbipaty Tymecin 6acblh3 XHe KOFapbl KbcIMdbI uHaHi iKoI 6pyikkiuH e H axbipatblb13.
Kofapbl KbICbIMdbI Wnahrire apHaJfAH XblJamam axbipatbIaTbIH MyfTaHbIH KopnycbIH KepceTki 6aftbImeH 6acBbI3 XeHe Kofapbl KbICbIMdbI WnahriHi TapTbIN WbIFapblHbI3.

Cypet 1

Kyat CbIMbIH, KOFapbl KbICbIMdbI UJnAHrHi JKeHe KepeK-xapaKTapDbI 6yNbIMda caKTaHbI3.

Ara3dAn KopfAreBic

Ha3ap ayadapbHbI3

TonbIfbIme6ocambimmaH 6yubIM MeH KepeK-kaPakmap a3daH 6y3binybIMYMkiH. 6yubIM MeH KepeK-kaPakmapdo bI moBbIFbIMe6ocambihb3 XaHe a3daH KopraHbI3.

3aKbIMdanyfα kon 6epmey yshin:

ByibIMdbI TObnIFbIMeH cydaH 6ocatbIHb3: Kocblfah Kofapbl KbICbIMdbI JnHaHrci MeH Kocblfah Cy 6epy Knyeci KOK 6yibIMdbI Kocblb3 (MaKc.1 MInHyT) XHe JxOFapbl KbICbIMdbI YSwbIKbI cy KaImaFaHwa XblbTBHb3. ByibIMdbI eWipiH3.
→ ByibIMdbI 6apNbIK kepeK- japaKaTapbImeH a3 etKi36eTih Jepre caKTayfKaOyblHbI3.

Kyty MeH TeXHnKaJIbIK TeKcepy XymbICTapbl

Kayin

3neKmpnik mokmbiH cory kayni.

KypblfbiFa Kbl3Mem Kepemy andbIHda KypblfbiHbEuipin, 3neKmp awacbIH po3emKaadaH wblrapblbI3.

KvTy

¥3ak yaKbITKa, MbICaJIbl, KbICTa CaKTay yUliH:

Cy3riHi Ta3aJaNfblu 3aTTb1 CopfbIty IJHaHriciHeh axbipTaHbI3 XeHe afbIHbI cy actbHda Ta3aJaNbI3.
Cy kTeKti3y jKepiHderi eJeleKti KEMnipaybI36eH wEwiiH3 xHe aFbIHdbI cy acTbIHda Ta3aHaHbI3.

KbI3MeT Kepcety

Kpbblfbl KbI3MeT KepceTydi KaKeTeetnei.

Kepeprinep 6oJraHda KEmek any

UaftnKeeprinepdi actbda Kepcetilireh Ti3imre cainkec O3iH3 X08 aanybHb3 MymkiH. KydkTI kafdaimapda KbImet Kepcety 6eJIMiH apnaBmMaHaDapbIme H xa6apJaacbl3.

Kayin

3Neekmpnik mokmbih cory kayni.
Kpbinfbira Kbi3Mem Kepcemy anbihda
Kpbinfbih ewiipin, 3nekmp awacbH
po3emkaadn wbiarpabHbI3.
XeHdey xMbcmapbMeH 3nekmpnik
6eJwEkmep 6oBuIHwa xMybicmap meK
ekiEmmi KbImem Kepcememih
MaHaDap opBihdayi KepeK.

БунбIMЖumbicICTemereHne

KoI 6ypikwHIn HnHTiperIH TaTbIHbI3 Da,6yHbIM KocblnaBl.
ByibIMhblTHypTaKtacbHda KepcetIirHeKepHeyTOKKe3iHKepeHyIHe cAkeC eEeHdiriH TeKcepHi3.
Kyat cblmbihdafb3aKbImdapdbIH 6ap- xOFbIH TeKcepiH3.

Буным icke kocbIMmaIbI, MOTOP dipindei

Önci3 3neKtpnik TK Hemece y3apTkblIITbI naJaIaHcyce6eBiHcKpHeydiH TEmeHdeyi.
BmybIMdbI KocbIn, anDbImeH KOJ 6pyiKiWiHiH TTyKacbH TapTbIHb3, coaH KeiH bMybIM KockbIbH "I/ON" KyiHe opHaTbIHb3.

БунбIM Кьсимfaхayanберmereнde

ⅢaIbIpaTy K6bIbIHdaIbI npaMeTpdi TeKcepiH3.
→ Cy sepy kyyneicinderi keTkijikti sepiic Kelemim TekepiH3.
Cy kTeK3y kepiHderi eJekTi KEmnipaybI36eH WSeWiH3 xKeHe aFbIHdbI cy aCTbIHda Ta3aHaHbI3.

→ BybIMdbj KeJDenety: KocbIraH Jxorapbl KbcBIMdbj WnAhrici XOK 6yibIMdbj KocbIb3 JxHe cy Kepipwikci3 Jxorapbl KbcBIMdbj YwBikka WbIFrapblFaHaJUa KyTHi3 (MaKc.2 MInHyT). BybIMdbj eWipiH3 JxHe Jxorapbl KbcBIMdbj WnAhrhi KaTt JaNFAhbl3.

KaTbI KbICbIM ipKijicTepi

XKorapbI KbIcBIMdbI UyMeKTI Ta3aJAY: UyMeK KaHaJIbIHaN KipJIeHydi INHeMekTeipiH3 XHe KaIbTaJAH CymEHUaMbIHbI3.
→Cy KyIO MEnIeepiH KaIa TeKcepiH3.

Biybim 6iteynili JOK

BybIMhbla3dafah KeMy TeXHkAnblK ce6enneH opbl aJdbI. KaTbKeMy opbl anFaHa daekiNETTI KbI3MeT KepceTy MaMaHbHa xa6apJaCbHb3.

Ta3anafbiw 3at copfbtbnmaiDbI

KbICbIM peTteriwi 6ap 7a7bIpaTy K6bIpbH (Vario Power) naiDanaHbIH3. 7a7bIpaTy K6bIpbH "Mix" KyniHe 6ypbIH3.
Ta3anaftbIu 3aTTbI COPfblTy
UJnahriciHderi cy3riHi Ta3anaHbI3.
→ Ta3anaftbI 3aTTbI copfblty IJnAHHriciHderi cBtHbIKTapdbIH 6apKOFbIH KaTaN TcKcepiHj3.

Буным Керек-жарakтарIMenКocankbl6eJWeKTepi

AphaBbI Xa6DbIKTap

KocbIMwa KepeK-kaPak 6yIbIMdbI KOJaHaYdbH MymKiHdkTePiHKeHeiTeI. ToIbIK aKnapaTbI KARCHER dInepiHi3eH anbHb3.

KocankbI 6eIwekTep

TeKaHa TynHcyKaIbIK KARCHER KocajkbI 6eJWeKTeP KOJaHaBbIb3. KocajkbI 6eJWeKTePdIH CypETTMeCic ocbl HcayIbIKTBiH COhIHDa bepinreH.

KeninideMe

БуньIMДарыIMbI3 yuH IneJepEnDeЖayanTbI eTIM cepikTecTePim3 TapanbIHah WbIFapbIaTbIH KeiINdEme WapTTapbI KUwTe 6OJaIbI. Erep MaTePnAnDapDbIH akaylbIFbI HeMece DaBbIHday 6abbcIHdaFbI KaTeJIkTep TaBbIcna, bI3 bIKTmAm aKaaybIKTapdbI KeiIN Mep3iMi iHiHde AkbICbI3 XeHNeMiz. KeiIN Mep3iMi iHiHde Hapa3bIJbIKTapbIHbI3 BoJCa, acnAaTbI caTKaH cayda MeKemeciHe Hemece JkaKbIHdaFbI ekInETTI cepBnCTIK KbI3MeT KepCeTy OPhbHa cTaBn An Any YerIH KepCetIn, xaBapNaCbIHbI3.

ΘHπipinre H KHy KepceTinre H Typ KecTeCiHDe WnΦpNaHFaH.

Keke caHdapIbIH MaftbHaCbl KeleciJe 60aIbI:

MbyicaJIbI:30190

3 ΘHДiPIIrReH JbJIbI
0 ΘHπipiπreH facbipbl
1 ΘHπipinreH OXkbIДbIK
9 ΘHidiipiIreH aibihbH ekHsi caHbI
0 ΘHДiPInReH aIbIbIH 6ipiHsi caHbI

CoHbImeH 6yI MblcAJa 30190 KoIbI 09/(2)013 eHndipijre H KyHIn 6iJdpEJI.

Mekenkainap TeMeHne 6epinreH: www.kaercher.com/dealersearch

TexHnKaIbIK MaFJyMaTTap

Злес耗费 Куатка Косу
Злес耗费 Кернейу	230 V 1~50 Hz
Токая косу Туральы мэліmetтетр	1,8 kW
Коргай дэржени	IP X5
Коргай класьы	I
Желлик са��андырfbыш (Инерцялы)	10 A
Су щектоу щөрì
Кую Кысыmbы (eh когары)	0,8 бар
Кую Temпературасы (eh хогары)	40 °C
Кую мелшөрì (eh aзы)	9 п/мен
Мамс. сорfcылay Биikтiri	0,5 M
Жүмbingпapаметрөрì
Жүмbing Кысыmbы	11 бар
Мамс. рүksот eтілген Кысым	13 бар
Берinc мелшөрì, су	6,3 п/мен
Берinc мелшөрì (eh когары)	7,0 п/мен
Берinc мелшөрì, тазалыш 3at	0,3 п/мен
Кол оурікишін кaiтарым kyшi	16 N
Мелшөрөр мөн са'makтар
Yындыгь	516 MM
Жалпаксыыгь	295 MM
Биіktiri	282 MM
Салмагь, көрек- жарakтaramэн пайдануfa дайын күдe	12,2 кr
EN 60335-2-79 талanларын са' бүлгileнген дөрөтр
Колдаfterдіріл мэни	<2,5 M/cesk²
Көлг Ricizdīgi	0,3 M/cesk²
Дыбьс Кысыmbы дөнгий LpA	75 дБ(A)
Дыбьс Кысыmbын bH	3 дБ(A)
элшeyинн KpA seilricizdīgi
Дыбьс Куши дөнгий LwA +	91 дБ(A)
Дыбьс Кысыmbын bH
элшeyинн KWA seilricizdīgi

TexHnKaIbIK e3repictepyKcat etinreH.

EC cTaHdapTTap cəŋKeCTiK TypaIbI dEknapaun

OcbI aHbIKTama apKbIbI b63 acbIda
KepeCtiIReH MaunHa KypaIbIHbIH, Xo6aIay
XHe Kypblbc Typi apKbIbI XHe
UbIrapblbIN catblrHan TciciI apKbIbI
Eypona OdaftbHbIH 3aHdbI
DnpeKTbBaNapblbIH HerizrMaHbI3dbI
Kayinc3dik XHe DeHCayIbIK caTay
caJanaPbIHda KOblfAH TaJANTapbHa
CcKeec 6oJIraHbIH pactaIMbI3. BybIM
KypblbIMbHa eCKepTIImereH e3repictep
eHri3ince, atJFaH mAmMe JapamCbI3
60bln Ta6blJaBl.

ΘHIM: Kofapbl KbICbIMMeH

Ta3aJiafbliu

Typi: 1.637-xxx

Tnicti EC dnpektnBaJapbl

2000/14/EG

2004/108/EG

2006/42/EG (+2009/127/EG)

2011/65/EO

KoIdaHbIiFaH 6eKITIIReH cTaHdapTTap

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 1997+A1: 2001+A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3:2008

EN 62233: 2008

KoIaH6anbl CaiKeCTikr Baranay typanbI epexenep

2000/14/EG V KocbIMuacbl

Winnenden, 2013/09/01

5,966-295.0 11/13
