Product type	High-pressure cleaner
Brand	Kärcher
Model	K 2 Premium Full Control
Maximum pressure	120 bar
Maximum flow rate	400 l/h
Motor power	1.4 kW
Power supply	230 V / 50 Hz
Power cord length	5 m
High-pressure hose length	6 m
Weight	5.1 kg
Dimensions (L x W x H)	408 x 308 x 588 mm
Pump type	Stainless steel pump
Control system	Full Control with pressure regulator
Sound level (dB(A))	76 dB(A)
Sound measurement uncertainty (K)	2 dB(A)
Vibration (m/s²)	1.0 m/s²
Protection class	II
Included accessories	Full Control lance, gun, rotary nozzle, foam nozzle, 6 m hose
Use	Cleaning of small to medium surfaces, vehicles, garden furniture
Maintenance	Integrated air purger, removable water filter, easy draining
Safety	Automatic motor shut-off, anti-freeze protection, safety lock on gun
Repairability	Repairability index: 8.4/10 (according to French decree)
Warranty	2 years (parts and labor)

Frequently Asked Questions - K 2 Premium Full Control KARCHER

What maximum pressure can the Kärcher K2 Premium Full Control reach?

The maximum pressure is 120 bar, which allows effective cleaning of stubborn dirt.

What accessories are included with this high-pressure cleaner?

The K2 Premium Full Control comes with a Full Control lance, a gun, a rotary nozzle, a foam nozzle, and a 6-meter hose.

How do I adjust the pressure on the Full Control lance?

Turn the dial on the gun to continuously adjust the pressure, from low (for delicate surfaces) to high (for embedded dirt).

Can I use the K2 Premium Full Control with a water tank?

Yes, but the water must be filtered and the supply flow rate must be at least 400 l/h under pressure. A suction kit is required for use from a tank.

What type of water should I use to avoid damaging the device?

Use potable or filtered water. Avoid hard, salty, or water containing impurities that could clog the pump.

How do I maintain the high-pressure cleaner after each use?

After use, drain the water from the hose and pump, clean the water inlet filter, and store the device in a frost-free place.

Is the K2 Premium Full Control suitable for car washing?

Yes, set the pressure to low to medium (use the foam nozzle for shampooing) and keep a distance of at least 30 cm to avoid damaging the paint.

What should I do if the high-pressure cleaner does not start?

Check the power supply, ensure the gun trigger is pressed to release air, and that the water filter is not clogged.

Where can I find spare parts for the Kärcher K2 Premium Full Control?

Spare parts are available on the Kärcher official website or from authorized dealers. The device's serial number is needed to identify compatible parts.

How do I winterize my high-pressure cleaner to avoid frost damage?

Empty all remaining water, add Kärcher special antifreeze to the pump (or use a water-antifreeze mixture at -20°C), then store the device in a dry, temperate room.

USER MANUAL K 2 Premium Full Control KARCHER

Deutsch 4

English 8

Français 12

Italiano 16

Nederlands 20

Español 24

Português 28

Dansk 32

Norsk 36

Svenska 40

Suomi 44

Ελληνικά 48

Türkçe 52

Русский 56

Magyar 60

Čeština 64

Slovenščina 68

Polski 72

Românește 76

Slovenčina 80

Hrvatski 84

Srpski 88

Български 92

Eesti 96

Latviešu 100

Lietuviškai 104

Українська 108

Register and win! www.kaercher.com/register-and-win

EAC

59674100 (10/16)

Inhaltsverzeichnis

Sicherheit D E

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Contents

Safety ...... EN 4

Proper use.....EN 4

Environmental protection.....EN 4

Description of the Appliance ..... EN 5

Installation and Startup ..... EN 5

Operation. E N

Transport and storage .... EN 6

Maintenance and care....EN 6

Troubleshooting.....EN 6

Accessories and Spare Parts ..... EN 7

Technical specifications....EN 7

Warranty E N

EU Declaration of Conformity ..... EN 7

5

Safety

Please read these original operating instructions and the enclosed safety in-

structions prior to the initial use of your device. Proceed accordingly. Keep both booklets for future reference or subsequent owners.

Hazard levels

⚠️ DANGER

Pointer to immediate danger, which leads to severe injuries or death.

⚠ WARNING

Pointer to a possibly dangerous situation, which can lead to severe injuries or death.

CAUTION

Pointer to a possibly dangerous situation, which can lead to minor injuries.

ATTENTION

Pointer to a possibly dangerous situation, which can lead to property damage.

Safety Devices

CAUTION

■ Safety installations serve the protection of the user and may not be modified or bypassed.

Appliance switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

The lock locks the lever of the trigger gun und prevents the accidental start of the device.

Auto-stop function

If the lever on the trigger gun is released, the pressure switch turns off the pump, the high-pressure jet stops. If the lever is pulled the pump is turned on again.

Symbols on the machine

The appliance must not be directly connected to the public drinking water network.

The high pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.

Protect the appliance against frost.

Proper use

This high pressure cleaner is designed for domestic use only.

– for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).

– with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the information accompanying the cleaning agents.

Environmental protection

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

The packaging material can be recycled. Please arrange for the environmentally appropriate disposal of the packaging.

Old appliances contain valuable recyclable materials that should be recycled properly. Please arrange for the environmentally appropriate disposal of the old devices.

Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.

Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.

Work with detergents must only be performed on liquid-tight work surfaces with a connection to the sewer system. Do not let release detergent into waters or earth.

Description of the Appliance

The scope of delivery of the device (depending on the model) is illustrated on the packaging. These operating instructions describe all possible options.

Illustrations on the inside of the picture page

1 High pressure connection

2 Appliance switch „0/OFF“ / „I/ON“

3 Storage hook

4 Carrying handle

5 Transport handle, detachable

6 Detergent suction hose with detergent filter and lid

7 Detergent Tank

8 Coupling element for water connection

9 Water connection with integrated sieve

10 Storage for spray lance

11 Storage for trigger gun

12 Mains cable with mains plug

13 Bearing wheel

14 Trigger gun

15 Lock trigger gun

16 Clamp for high pressure hose

17 High pressure hose

18 Full Control spray lance Dirtblaster For strong contaminations Pressure level: HARD

19 Full Control spray lance Click-Vario Power Carrying out the most common cleaning tasks Pressure levels: HARD / MEDIUM / SOFT / MIX

* Optional

20 Washing brush

Suitable for use with detergents.

21 Foam nozzle

For effective detergent foam.

22 Detergent

** Additionally required

23 Fabric-reinforced water hose with commercially available coupling.

- Minimum diameter, 1/2 inches (13 mm).

- Minimum length 7.5 m.

Installation and Startup

Illustrations on the inside of the picture page

→ Illustrations A C

Mount loose parts delivered with appliance prior to start-up.

→ Park the appliance on an even surface.

→ Illustrations D E

Pull out the clamp from the trigger gun and plug the high-pressure hose into the trigger gun.

Push the clamp in until it locks. Check the secure connection by pulling on the high-pressure hose.

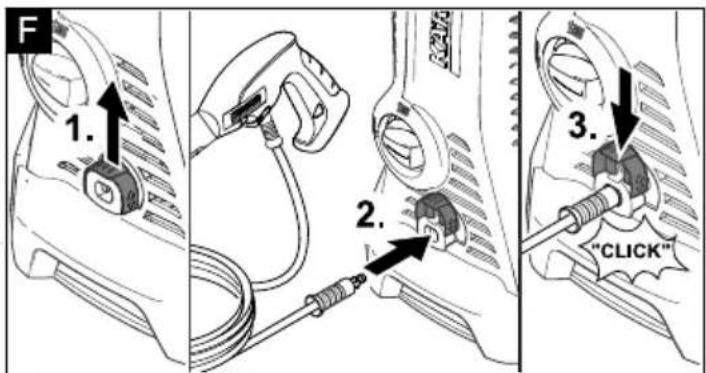

→ Illustrations F H

ATTENTION

Impurities in the water can damage the high-pressure pump and the accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.

Operation

CAUTION

Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".

High pressure operation

CAUTION

Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage.

ATTENTION

Car tyres, paint or sensitive surfaces such as wood should not be cleaned with the dirt blaster, as there is a risk of damage.

→ Illustrations I J

Full Control System

Pressure level For example, recommended for
	HARD Stone terraces made of paving stones or exposed aggregate concrete, asphalt, metal surfaces, garden utensils (wheelbarrow, spade, etc.)
	Turn the Full Control spray lance Click-Vario Power as far as it will go for maximum possible pressure.
	MEDIUM Motorcar / motorcycle, brick surfaces, plastered walls, plastic furniture
	SOFT Wooden surfaces, bicycles, sand stone surfaces, rattan furniture
	MIX Operation with detergent

ATTENTION

The sensitivity of the materials can strongly differ depending on the age and the condition. The so-called recommendations are non-binding.

Operation with detergent

Note: Detergent can only be added when the device is operated in low pressure mode.

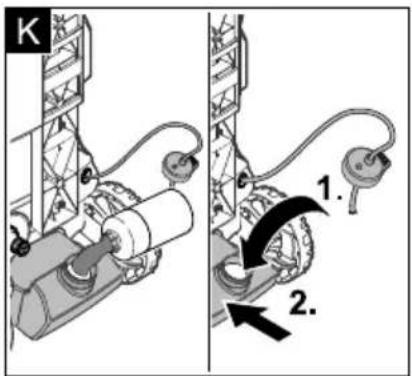

→ Illustrations K L

Optional

→ Illustration M

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.
→ Spray off loosened dirt with the high pressure jet.

After operation with detergent

→ After operation with detergent: Run the machine for approximately 1 minute for a clear rinse.

Operation with washing brush

ATTENTION

Risk of damage to the paintwork

When working with the washing brush, it must be free of dirt or other particles.

Note: If required, the washing brushes can be used to work with detergent.

Interrupting operation

→ Illustration N Release the lever of the trigger gun and lock it.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.

Finish operation

⚠️ CAUTION

Only separate the high-pressure hose from the trigger gun or the device when there is no pressure in the system.

→ Release the lever of the trigger gun.
→ Turn off the appliance "0/OFF".
→ Disconnect the mains plug from the socket.
→ Turn off tap.
→ Press the lever on the trigger gun to release any remaining pressure in the system.
→ Lock the lever of the trigger gun.
→ Detach the appliance from the water supply.

Transport and storage

CAUTION

Risk of personal injury or damage! Mind the weight and storage of the appliance during transport.

When transporting by hand

→ Lift appliance by the carrying handle and carry it.
→ Pull out the transport handle until it audibly snaps into place.
Pull the appliance by its transport handle.

When transporting in vehicles

→ Secure the appliance against shifting and tipping over.

Storing the Appliance

→ Park the machine on an even surface.
→ Stow away the accessories on the appliance according to the device.

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

Frost protection

ATTENTION

Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:

→ Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
→ Store the appliance and the entire accessories in a frost free room.

Maintenance and care

The appliance is maintenance free.

Care

⚠️ DANGER

Risk of electric shock.

→ Prior to all work on the appliance, switch off the appliance and pull the power plug.

Clean the sieve in the water connection

Clean the sieve in the water connection regularly.

ATTENTION

The sieve must not be damaged.

→ Remove coupling from the water connection.
Illustration 0
→ Pull the sieve out (e.g. using flat pliers), clean under running water and then reinsert it.

Troubleshooting

⚠️ DANGER

Risk of electric shock.

→ Prior to all work on the appliance, switch off the appliance and pull the power plug.

Appliance is not running

→ Push the lever of the trigger gun, the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.

Pressure does not build up in the appliance

→ Check setting at the spray lance.
→ Completely open the water tap.
→ Remove air from appliance before operation. Switch on the appliance without connection the HP hose (max. 2 minutes) and run it until the water discharging from the HP outlet is free of bubbles. Switch off appliance and reconnect HP hose.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

Strong pressure fluctuations

→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.

Appliance is leaking

→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.

No detergent infeed

→ Use Vario Power spray lance.
Turn the spray lance to "Mix" position.
→ Remove filter from suction hose for detergent and clean under running water.
→ Check the detergent suction hose for kinks.

Accessories and Spare Parts

Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com.

Technical specifications

Electrical connection
Voltage 220-240	V1~50-60 Hz
Power consumption 6 A
Protection class IP X5
Protective class II	回
Mains fuse (slow-blow) 10 A
Water connection
Max. feed pressure 1,2 MPa
Max. feed temperature 40 °C
Min. feed volume 8 l/min
Performance data
Working pressure 7,4 MPa
Max. permissible pressure 11 MPa
Water flow rate 5,5 l/min
Max. flow rate 6,0 l/min
Recoil force of trigger gun	11 N
Dimensions and weights
Length	246 mm
Width	280 mm
Height	586 mm
Weight, ready to operate with accessories	5,3 kg
Values determined as per EN 60335-2-79
Hand-arm vibration value	<2,5 m/s2
Uncertainty K	0,3 m/s2
Sound pressure level LpA	74 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	90 dB(A)

Subject to technical changes.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase.

Addresses can be found under:

www.kaercher.com/dealersearch

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High pressure cleaner

Type: 1.673-xxx

Relevant EU Directives

2000/14/EC

2014/30/EU

2006/42/EC (+2009/127/EC)

2011/65/EU

Applied harmonized standards

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 87

Guaranteed: 90

The undersigned act on behalf and under the power of attorney of the company management.

H. Jenner
CEO

S. Reiser
Head of Approbation

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Table des matières

Sécurité FR 4

www.kaercher.com/REACH

2 Interrupteur principal "0/OFF" / "I/ON"

18 Lance Full Control rotabuse

www.kaercher.com/dealersearch

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Winnenden, 2016/08/01

Indice

Sicurezza.... I T 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

2006/42/CE (+2009/127/CE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Inhoud

Veiligheid .... NL 4

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

www.kaercher.com/REACH

2006/42/CE (+2009/127/CE)

2011/65/UE

71364 Winnenden (Germany)

Tele.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Índice

Segurança PT 4

www.kaercher.com/REACH

2 Interruptor do aparelho "0/OFF" / "I/ON"

3 Visto de armazenamento

www.kaercher.com/dealersearch

2006/42/CE (+2009/127/CE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Indholdsfortegnelse

Sikkerhed DA 4

Adresser finder De under: www.kaercher.com/dealersearch

2006/42/EF (+2009/127/EF)

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Innholdsfortegnelse

Sikkerhet N O

www.kaercher.com/REACH

Materialet i emballasjen kan resirkuleres. Kvitt deg med emballasjen på miljøvennlig måte.

2 Apparatbryter "0/OFF" / "I/ON"

3 Oppbevaringskrok

4 Bærehåndtak

5 Transportgrep, uttrekkbar

www.kaercher.com/dealersearch

2006/42/EF (+2009/127/EF)

2011/65/EU

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 87

Garantert: 90

71364 Winnenden (Germany)

Tlf: [phone]

Winnenden, 2016/08/01

www.kaercher.com/REACH

www.kaercher.com/dealersearch

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Sisällysluettelo

www.kaercher.com/REACH

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2016/08/01

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2016/08/01

İçindekiler

Güvenlik T R

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

Оглавление

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/08/01

Tartalomjegyzék

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Obsah

Bezpečnost CS 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

2006/42/ES (+2009/127/ES)

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Vsebinsko kazalo

Varnost SL 4

Namenska uporaba. SL 4

Varstvo okolja SL 4

Opis naprave. SL 5

www.kaercher.com/REACH

Embalažni materiali so primerni za recikliranje. Embalažo zavrzite okolju prijazno.

Stare naprave vsebujejo dragocene za recikliranje primerne materiale, ki jih je treba odvesti za ponovno uporabo. Stare naprave zavrzite okolju prijazno.

www.kaercher.com/dealersearch

Izjava EU o skladnosti

S to izjavo potrjujemo, da spodaj omenjeni stroj zaradi svoje zasnove in načina izdelave ustreza temeljnim varnostnim in zdravstvenim zahtevam EU-standardov. Ta izjava izgubi svojo veljavnost, će kdo napravo spremeni brez našega soglasja.

Proizvod: visokotlačni čistilec

Tip: 1.673-xxx

Zadevne EU-direktive:

2000/14/ES

2014/30/EU

2006/42/ES (+2009/127/ES)

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

Spis treści

Bezpieczeństwo PL 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

2006/42/WE (+2009/127/WE)

2011/65/UE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2016/08/01

Cuprins

Siguranța R O

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Declaratie UE de conformitate

Directive UE respectate:

2000/14/CE

2014/30/UE

2006/42/CE (+2009/127/CE)

2011/65/UE

Norme armonizate utilize:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Obsah

Bezpečnost SK 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

2006/42/ES (+2009/127/ES)

2011/65/EÚ

Uplatňované harmonizované normy:

EN 50581

EN 55014-1: 2006+A1: 2009+A2: 2011

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-3: 2013

EN 62233: 2008

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2016/08/01

Pregled sadržaja

Sigurnost H R

www.kaercher.com/REACH

Materijali ambalaže se mogu reciklirati. Ambalažu odložite na otpad u skladu s propisima o očuvanju okoliša.

Stari uređaji sadrže vrijedne materijale koji se mogu reciklirati te bi ih stoga trebalo predati kao sekundarne sirovine. Stare uređaje odložite na otpad u skladu s propisima o očuvanju okoliša.

Električni i elektronički dijelovi često sadrže sastavne dijelove koji pri pogrešnom rukovanju ili pogrešnom zbrinjavanju mogu predstavljati potencijalnu opasnost za ljudsko zdravlje i okoliš. Ipak, ti sastavni dijelovi nužni su za propisani pogon uređaja. Uređaji označeni ovim simbolom ne smiju se odlagati u komunalni otpad.

www.kaercher.com/dealersearch

EU izjava o sukladnosti

2006/42/EZ (+2009/127/EZ)

2011/65/EU

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

Pregled sadržaja

Sigurnost S R

Namensko korišćenje ....SR 4

Zaštita životne sredine. . . . . . . . . . . . . . . . . . . . . . . . . SR 4

Opis uređaja ....SR 5

www.kaercher.com/REACH

Ambalaža se može ponovo preraditi. Ambalažu odložite u otpad ekološki primereno.

Stari uređaji sadrže vredne materijale sa sposobnošću recikliranja i treba ih dostaviti na ponovnu preradu. Stare uređaje odložite u otpad ekološki primereno.

Električni i elektronski uređaji sadrže često sastavne delove koji, u slučaju nepravilnog rukovanja ili nepravilnog odlaganja u otpad, mogu da predstavljaju potencijalnu opasnost za zdravlje ljudi i okolinu. Ipak, ovi sastavni delovi su neophodni za pravilan rad uređaja. Uređaji koji su označeni ovim simbolom ne smeju da se odlažu u kućni otpad.

Radovi na čišćenju kod kojih nastaju uljne otpadne vode, kao što su pranje motora, pranje donjeg dela vozila, smeju da se izvode samo u perionicama sa separatorom ulja.

S deterdžentima se sme raditi samo na vodonepropusnim radnim površinama koje su priključene na kanalizacioni sistem. Ne dozvolite da deterdženti prodru u površinske vode ili tlo.

Opis uređaja

Obim isporuke uređaja (u zavisnosti od modela) je prikazan na ambalaži. Ovo uputstvo za rad opisuje sve moguće opcije.

Slike pogledajte na stranicama sa grafikama

www.kaercher.com/dealersearch

Izjava o usklađenosti sa propisima EU

Ovim izjavljujemo da ovde opisana mašina po svojoj koncepciji i načinu izrade, sa svim njenim modelima koje smo izneli na tržište, odgovara osnovnim zahtevima dole navedenih propisa Evropske Zajednice o sigurnosti i zdravstvenoj zaštiti. Ova izjava prestaje da važi ako se bez naše saglasnosti na mašini izvedu bilo kakve promene.

Proizvod: Uređaj za čišćenje pod visokim pritiskom

Tip: 1.673-xxx

2006/42/EZ (+2009/127/EZ)

2011/65/EU

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2016/08/01

Съдържание

Сигурност......BG 4

Употреба по предназначение ..... BG 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/08/01

Sisukord

Ohutus.... ET 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

Toode: Körgsurvepesur

Tüüp: 1.673-xxx

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2016/08/01

Satura rādītājs

Drošība LV 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2016/08/01

Turinys

Sauga LT 4

www.kaercher.com/REACH

www.kaercher.com/dealersearch

ES atitikties deklaracija

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2016/08/01

3MICT

Безпека U K

www.kaercher.com/REACH

www.kaercher.com/dealersearch

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2016/08/01
