GXP285 1-LINE - IP Phone GRANDSTREAM - Free user manual and instructions

Product type	SIP IP Phone, 1 line
Brand	Grandstream
Model	GXP285 1-LINE
Dimensions (approx.)	200 x 180 x 80 mm
Weight (approx.)	800 g
Power supply	5V DC power adapter (included)
Display	LCD
Number of lines	1 SIP line
Programmable buttons	3 buttons
Connectivity	RJ-45 LAN port (10/100 Mbps), PC port (pass-through), RJ-9 combo port, headset port
Protocol	SIP
Audio quality	High quality, audio codec support
Configuration	Via built-in web server or phone keypad (DHCP/static IP)
Provisioning	Automated provisioning
Security	Privacy protection, not intended for emergency calls
Installation	On desk (with stand) or wall (with wall mount)
Package contents	1 phone, 1 handset, 1 5V adapter, 1 Ethernet cable, 1 phone cable, 1 stand, 1 installation guide
Maintenance	Clean with a soft, dry cloth. Do not use chemicals.
Repairability	Spare parts available from the manufacturer. Repair by qualified technician.

Frequently Asked Questions - GXP285 1-LINE GRANDSTREAM

How to mount the phone on the wall?

Attach the wall mount bracket to the base of the phone, then hang it on the wall. Pull the handset hook tab to keep it in place during wall use.

How to configure the phone via web browser?

Press MENU, go to Status to get the IP address. Type this IP into a browser. The default username is admin and the password is 123.

What are the default passwords?

The default username is admin and the password is 123.

What to do if the screen stays black after powering on?

Check that the 5V power adapter is properly plugged in and the Ethernet cable is connected. Wait for complete startup (a few minutes). Do not restart if the LEDs are blinking, as this could corrupt the firmware.

Can I use the phone to call emergency services?

No, the GXP285 is not preconfigured for emergency calls. You must subscribe to a third-party Internet telephony service and properly configure the phone for it. Grandstream disclaims any liability.

How to connect the phone to the network?

Connect the Ethernet cable to the LAN port of the phone and to your router/switch. Plug the power adapter into the power jack. The phone will obtain an IP address automatically via DHCP.

How to access the configuration menu?

Press the circular MENU button. Use the UP/DOWN and LEFT/RIGHT arrows to navigate, and press MENU again to confirm.

How to reset the phone to factory settings?

Via the phone menu: go to Config > Reset or via the web interface under Administration > Reset.

Does the phone support DHCP service?

Yes, by default the phone uses DHCP to obtain an IP address. You can also configure a static IP in the Config menu or via the web server.

Where can I download the complete user manual?

The detailed manual is available on the Grandstream website: http://www.grandstream.com/support/gxp_series/general/gxp_support.html.

USER MANUAL GXP285 1-LINE GRANDSTREAM

Grandstream Networks, Inc.

1297 Beacon Street, 2nd Floor

Brookline, MA 02446. USA

Tel: [phone]

The GXP280/GXP285 is not pre-configured to support or carry emergency calls to any type of hospital, law enforcement agency, medical care unit ("Emergency Service(s)") or any other kind of Emergency Service. You must make additional arrangements to access Emergency Services. It is Your responsibility to purchase SIP-compliant Internet telephone service, properly configure the GXP280/GXP285 to use that service, and periodically test your configuration to confirm that it works as You expect. If You do not do so, it is Your responsibility to purchase traditional wireless or landline telephone services to access Emergency Services.

GRANDSTREAM DOES NOT PROVIDE CONNECTIONS TO EMERGENCY SERVICES VIA THE GXP280/GXP285. NEITHER GRANDSTREAM NOR ITS OFFICERS, EMPLOYEES OR AFFILIATES MAY BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR LOSS, AND YOU HEREBY WAIVE ANY AND ALL SUCH CLAIMS OR CAUSES OF ACTION ARISING FROM OR RELATING TO YOUR INABILITY TO USE THE GXP280/ GXP285 TO CONTACT EMERGENCY SERVICES, AND YOUR FAILURE TO MAKE ADDITIONAL ARRANGEMENTS TO ACCESS EMERGENCY SERVICES IN ACCORDANCE WITH THE IMMEDIATELY PRECEDING PARAGRAPH.

PRECAUTIONS:

WARNING: Please DO NOT power cycle the GXP280/GXP285 when the LED lights are flashing during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction.

WARNING: Use only the power adapter included in the GXP280/GXP285 package. Using an alternative non-qualified power adapter may possibly damage the unit.

OVERVIEW

The GXP280/GXP285 is a next generation entry-level SIP phone that features an LCD screen and 3 softkeys. The GXP280/GXP285 delivers superior audio quality, comprehensive telephony features, automated provisioning, security protection for privacy and broad interoperability with most 3rd party SIP devices and leading SIP telephony platforms. It is a very cost-effective choice for any business needing a feature rich basic IP phone.

PACKAGE CONTENTS:

1 X GXP280/GXP285
Main Case

1 X Handset

1X5VPowerAdapter

1x Ethernet Cable

1 X Phone Cord

1 X Phone Stand

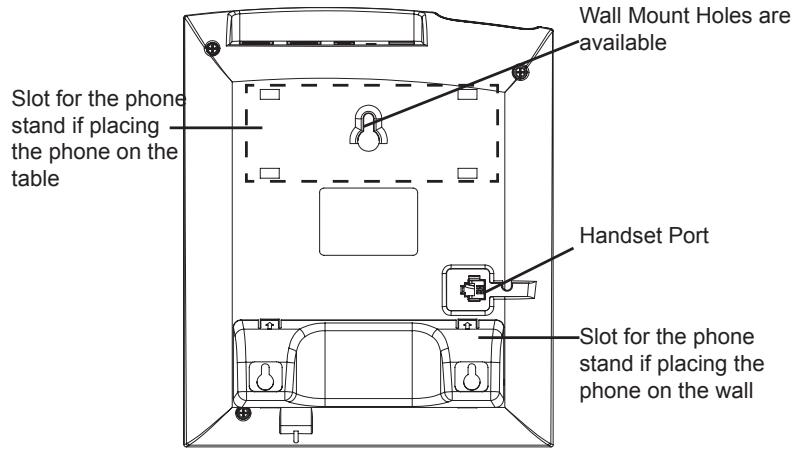

PHONE SETUP:

Installing the phone (Wall Mount):

1. Attach the phone stand to the bottom of the phone as wall mount spacers.
2. Attach the phone to the wall via the wall mount hole.

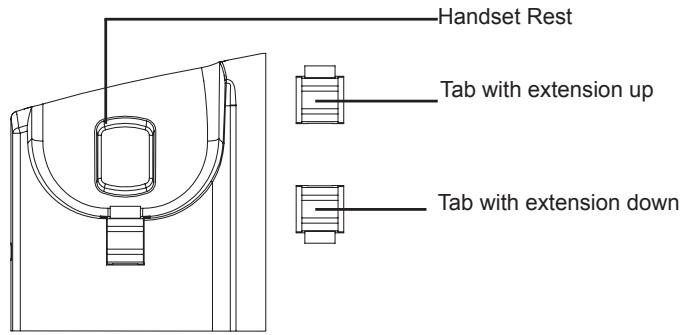

3. Pull out the tab on from the handset cradle. (See figure below)
4. Rotate the tab and plug it back into the slot with the extension up to hold the headset while the phone is mounted on the wall. (See figure below)

Installing the phone (Phone Stand):

For installing the phone on the table with the phone stand, attach the phone stand to the bottom of the phone where there is a slot for the phone stand. (Upper half, bottom part).

CONNECTING THE PHONE:

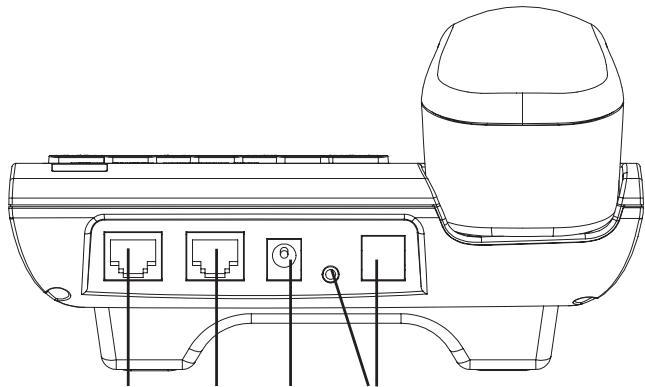

Refer to the illustration below when following the setup instructions.

PC Port LAN Port Power Headset Port

To setup the GXP280/GXP285, follow the steps below:

1. Connect the handset and main phone case with the phone cord.
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the router) using the Ethernet cable.
3. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an electrical outlet. (GXP280 only)
4. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for the date/time display to show up.
5. Using the phone embedded web server or keypad configuration menu, you can further configure the phone using either a static IP or DHCP.

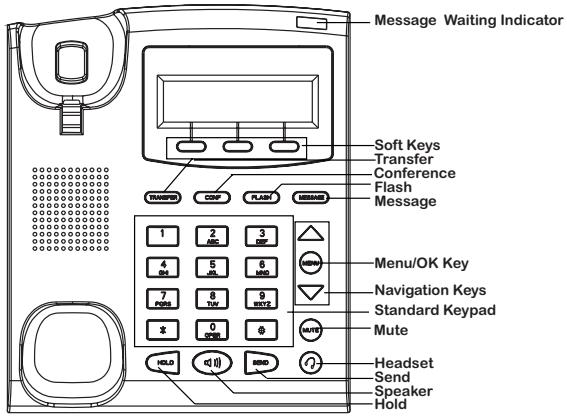

Tips For Using the Keypad:

1. To access the MENU, press the round MENU button.
2. Navigate the menu by using the UP/DOWN and LEFT/RIGHT buttons.
3. Press the round MENU button to confirm a menu selection.
4. Delete an entry by pressing the MUTE button.
5. The phone automatically exits MENU mode when there is an incoming call, the phone goes off-hook, or when the MENU mode is left idle for 20 seconds.

PHONE CONFIGURATION:

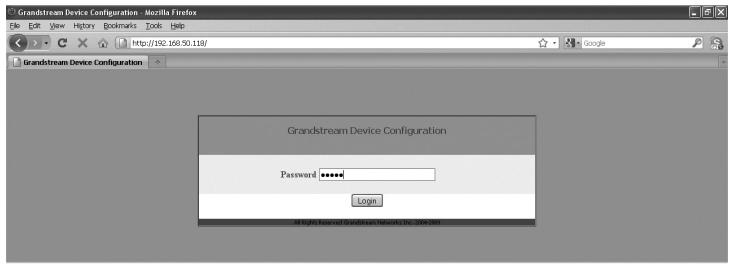

Configure the GXP280/GXP285 using a Web Browser:

1. Ensure your phone is powered up and connected to the Internet.
2. Press MENU button to go into menu of the phone.
3. Press the "down" arrow button to "Status" and press MENU button to see the IP address.
4. Type the phone's IP address in your PC browser.
5. The default administrator password is "admin"; the default end-user password is "123".

Configure the GXP280/GXP285 using the Keypad:

1. Make sure the phone is idle
2. Press the "MENU" button to access the keypad MENU to configure the phone.
3. Select MENU-> Config, to configure settings for SIP Proxy, Outbound Proxy, SIP User ID, SIP Auth ID, SIP Password.
4. Follow MENU options to configure the basic features of the phone – for example: the IP address if using a static IP. For details, please check GXP Series User Manual.
5. Please contact your ITSP (Internet Telephony Service Provider) for additional settings that may be necessary to configure the phone.

Note: For the detailed user manual, please download from: http://www.grandstream.com/support/gxp_series/general/gxp_support.html
