Brand	BOSCH
Model	ROTAK 32
Product Type	Electric lawn mower
Rated input power	1200 W
Cutting width	32 cm
Cutting height	20 to 60 mm (adjustable)
Grass collection box volume	31 L
Weight (according to EPTA 01/2003)	6.6 kg
Protection class	II (double insulation)
Power supply	230 V~, 50 Hz
Blade type	Rotary steel blade
Sound pressure level	79 dB(A)
Guaranteed sound intensity level	94 dB(A)
Vibration (a_h)	< 2.5 m/s², uncertainty K = 1.5 m/s²
Safety	Blade brake (quick stop), overload protection, safety switch
Maintenance	Cleaning after each use, sharpening or replacing the blade if necessary, checking screws and nuts
Spare parts	Blades, blade screws, grass collection box, handlebar, power cable (Bosch original parts recommended)
General information	Household use only; do not use in rain; suitable for sloping grounds with caution

Frequently Asked Questions - ROTAK 32 BOSCH

What is the power of the BOSCH ROTAK 32 lawn mower?

The rated input power is 1200 W.

What is the cutting width of the ROTAK 32?

The cutting width is 32 cm.

How to adjust the cutting height?

The cutting height can be adjusted from 20 to 60 mm using a central adjustment lever. Refer to figure 4 of the manual.

What is the volume of the grass collection box?

The grass collection box has a capacity of 31 liters.

Is the lawn mower suitable for sloping grounds?

Yes, but with caution. It is recommended to mow perpendicular to the slope and do not use on very steep slopes.

What to do if the motor does not start?

Check the mains voltage, plug, extension cord and fuse. If the overload protection device is triggered, let the motor cool down and increase the cutting height.

How to maintain the blade?

Wear gloves, clean the blade after use and replace it if blunt or damaged. Tighten the blade nut/screw to 17 Nm.

What types of extension cord to use?

Use an approved extension cord of type H05VV-F or H05RN-F, with a minimum cross-section of 1.0 mm² for 40 m, 1.5 mm² for 60 m, or 2.5 mm² for 100 m.

How to clean the lawn mower?

Unplug the appliance, remove the grass box and blade if necessary. Clean the housing with water and a brush, then dry thoroughly. Do not clean with a pressure water jet.

Where to find spare parts?

Contact the Bosch After-Sales Service or an authorized dealer. Use only Bosch original parts. Refer to the 10-digit article number on the rating plate.

USER MANUAL ROTAK 32 BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-garden.com

F016L70769(2012.11)O/119UNI

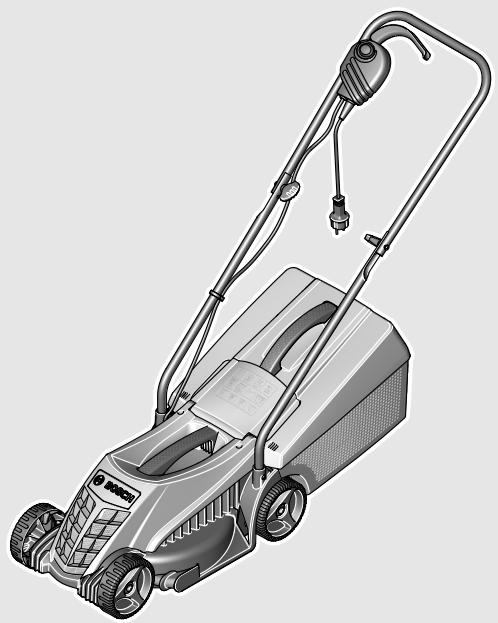

Rotak

32

de Originalbetriebsanleitung en Original instructions fr Notice originale es Manual original pt Manual original it Istruzioni originali nl Oorspronkelijke gebruiksaanwijzing da Original brugsanvisning sv Bruksanvisning i original no Original driftsinstruks fi Alkuperäiset ohjeet

el Πρωτότυπο οδηγίες χρήσης tr Orijinal işletme talimatı pl Instrukcja oryginalna cs Původní návod k používání sk Pôvodný návod na použitie hu Eredeti használati utasítás ru Оригинальное руководство по эксплуатации uk Оригінальна інструкція з експлуатації ro Instrucțiuni originale bg Оригинална инструкция

BOSCH

sr Originalno uputstvo za rad sl Izvirna navodila hr Originalne upute za rad et Algupärane kasutusjuhend lv Instrukcijas oriģinālvalodā lt Originali instrukcija

Deutsch . 3

English 7

Français. Page 11

Español . Página 15

Portuguese.. Page 20

Italian.. 24

Dutch.. 28

Danish. 33

Swedish Page 37

Norwegian. Page 40

Finnish. 44

Greek 48

Turkish Page 52

Polish .Page 57

Czech .Page 61

Slovak. Page 65

Hungarian Page 69

Russian Page 73

Ukrainian. Page 78

Romania . 82

Bulgarian .. Page 87

Serbian. Page 91

Slovenian Page 95

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Helmut Heinzelmann Senior Vice President Head of Product Engineering Certification

i. V. h = m_c

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 04.06.2012

Montage and Operation

www.bosch-garden.com

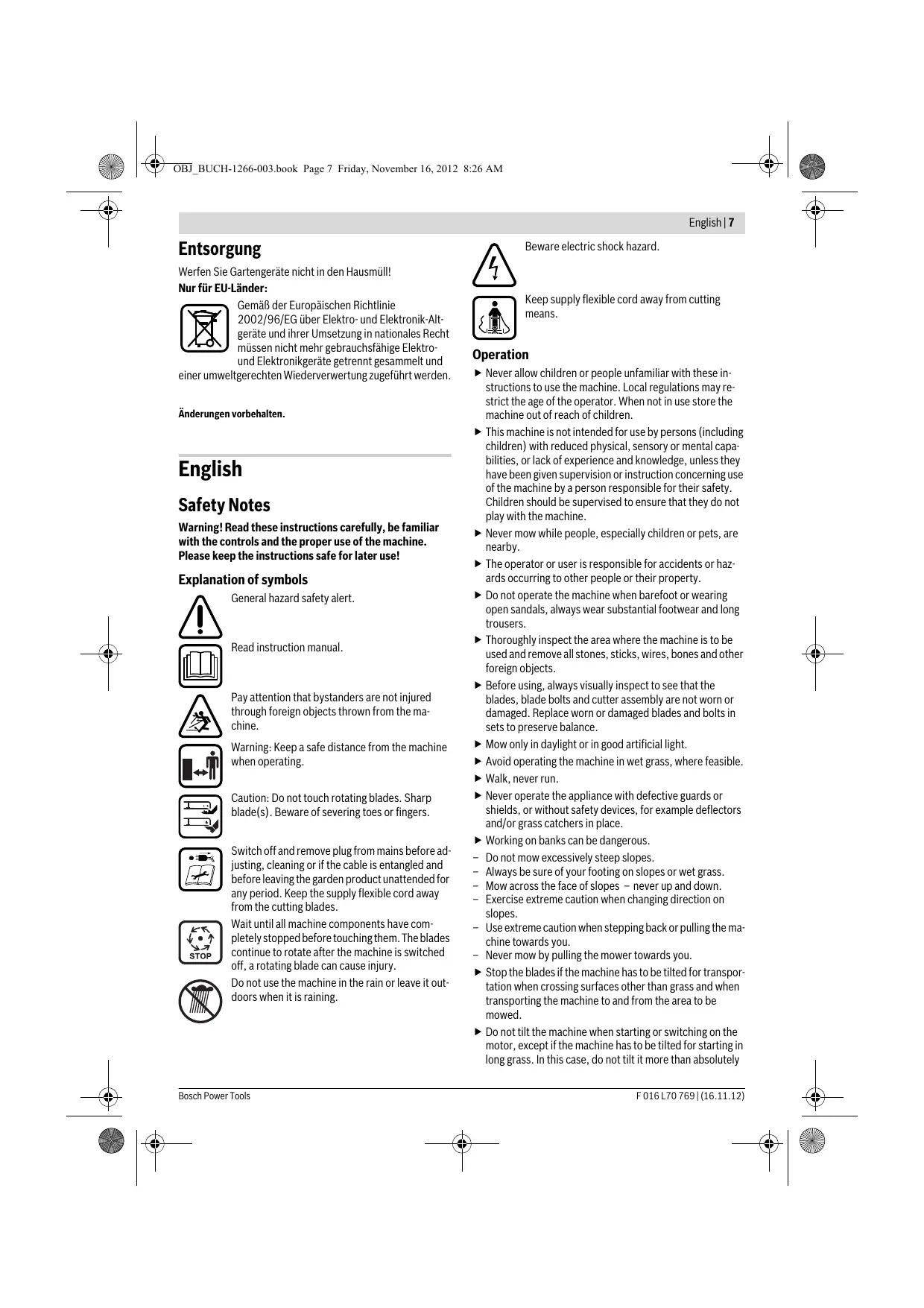

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine.

Please keep the instructions safe for later use!

Explanation of symbols

General hazard safety alert.

Read instruction manual.

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine when operating.

Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers.

Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting blades.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Do not use the machine in the rain or leave it outdoors when it is raining.

Beware electric shock hazard.

Keep supply flexible cord away from cutting means.

Operation

• Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine.
• Never mow while people, especially children or pets, are nearby. The operator or user is responsible for accidents or hazards occurring to other people or their property.
• Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers. Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects. Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Mow only in daylight or in good artificial light. Avoid operating the machine in wet grass, where feasible. Walk, never run.
• Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place. Working on banks can be dangerous.
• Do not mow excessively steep slopes.
• Always be sure of your footing on slopes or wet grass.
• Mow across the face of slopes - never up and down. Exercise extreme caution when changing direction on slopes.
• Use extreme caution when stepping back or pulling the machine towards you.
• Never mow by pulling the mower towards you.
• Stop the blades if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed. Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely

necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground.

Switch on the motor according to the instructions with feet well away from rotating parts. Do not put hands or feet near or under rotating parts. Always stand clear of the discharge zone when operating the machine. - Never pick up or carry the machine while the motor is running. - Keep supply cables and extension cables away from the blade. The blade can cause damage to the cables and lead to contact with live parts. Beware electric shock hazard.

Remove the plug from the socket:

• whenever you leave the machine, before clearing a blockage,
• before checking, cleaning or working on the machine,
• after striking a foreign object. Inspect the machine for damage and make repairs as necessary,
• if the machine starts to vibrate abnormally (check immediately).

Power supply

The voltage indicated on the rating plate must correspond to the voltage of the power source. We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30mA residual current. Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer. See the operating instructions for the order no. and types. Never touch the mains plug with wet hands. - Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges. The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.

Always wear gardening gloves when handling or working near the sharp blades.

Electrical Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled. The blades continue to rotate for a few seconds after the machine is switched off.

Caution - do not touch the rotating blade.

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

Extension cords/leads should only be used if they comply with H05VV-F, H05RN-F types or IEC type design (60227 IEC 53, 60245 IEC 57).

If you want to use an extension cable when operating your product, only the following cable dimensions should be used:

• 1.0 mm² : max. length 40 m
• 1.5 mm² : max. length 60 m
• 2.5 mm² : max. length 100 m

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations.

If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Cable connections should be kept dry and off the ground. It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

For products not sold in GB:

WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.

The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition. If the supply cord is damaged, it must be replaced by a Bosch Service Centre.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.

Maintenance

Always wear gardening gloves when handling or working near the sharp blades. - Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition. - Check the grass catcher frequently for wear or deterioration. Examine the machine and replace worn or damaged parts for safety. Ensure replacement cutting means of the right type are used. Ensure replacement parts fitted are Bosch approved.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

Symbol

Meaning

Movement direction

Reaction direction

Wear protective gloves

Weight

Switching On

Switching Off

Permitted action

Prohibited action

Accessories/Spare Parts

Intended Use

The garden product is intended for domestic lawn mowing.

Technical Data

Lawnmower		Rotak 32
Article number		3600 H85 B..
Rated power input	W	1200
Blade width	cm	32
Height of cut	mm	20 – 60
Grassbox, capacity	l	31
Weight according to EPTA-Procedure 01/2003	kg	6.6
Protection class		☐/II
Serial number	see type plate on the gar- den product
The values given are valid for a nominal voltage [U] of 230 V. For differ- ent voltages and models for specific countries, these values can vary. Please observe the article number on the type plate of your garden prod- uct. The trade names of the individual garden products may vary.

Noise/Vibration Information

Measured sound values determined according to 2000/14/EC (1.60 m height, 1 m distance away).

Typically the A-weighted noise levels of the product are: Sound pressure level 79 dB(A); sound power level 93 dB(A). Uncertainty K = 1 dB.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60335: a_h < 2.5 m/s^2, K = 1.5 m/s^2

Declaration of Conformity CE

We declare under our sole responsibility that the product described under "Technical data" is in conformity with the following standards or standardization documents: EN 60335 according to the provisions of the directives 2011/65/EU, 2004/108/EC, 2006/42/EC, 2000/14/EC. 2000/14/EC: Guaranteed sound power level 94 dB(A). Conformity assessment procedure according to Annex VI.

Equipment category: 32

Notified body:

SRL, Sudbury, England, Nr. 1088

Technical file (2006/42/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 04.06.2012

Mounting and Operation

Action	Figure
Delivery Scope	1
Handle Assembly	2
Snap together the Grassbox	3
Grassbox fitting/removing	3
Adjusting the Cutting Height	4
Connecting the Extension Lead	5
Starting	5
Stopping	5
Working Advice	5-6
Blade Maintenance	7
Selecting Accessories	7

10|English

Troubleshooting

Problem	Possible Cause	Corrective Action
Motor refuses to start	Power turned off	Turn power on
	Mains socket faulty	Use another socket
	Extension cable damaged	Inspect cable, replace if damaged
	Fuse faulty / blown	Replace fuse
	Possible clogging	Check underneath the garden product and clear out as necessary (always wear gardening gloves)
	Motor protector has activated	Allow motor to cool and increase height of cut
	Mowing too low for the conditions	Increase height of cut
Machine functions intermittently	Extension cable damaged	Inspect cable, replace if damaged
	Internal wiring of garden product damaged	Contact Service Agent
	Motor protector has activated	Allow motor to cool and increase height of cut
Garden product leaves ragged finish and/or Motor labours	Height of cut too low	Increase height of cut
	Cutting blade blunt	Replace the blade
	Possible clogging	Check underneath the garden product and clear out as necessary (always wear gardening gloves)
	Blade fitted upside down	Refit blade correctly
Blade not rotating while garden product switched on	Cutting blade obstructed	Switch off garden product Clear obstruction (always wear gardening gloves)
	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
Excessive vibrations/noise	Blade nut/bolt loose	Tighten blade nut/bolt (17 Nm)
	Cutting blade damaged	Replace the blade

After-sales Service and Application Service

www.bosch-garden.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Bosch Power Tools

Francais | 11

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

Do not dispose of garden products into household waste!

Only for EC countries:

According to the European directive

2002/96/EC for Waste Electrical and Electronic

Equipment and its implementation into national

law, electrical and electronic equipment that are

no longer usable must be collected separately

and disposed of in an environmentally correct manner.

Subject to change without notice.

Français

Technical file (2006/42/EC) available from Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

www.bosch-garden.com

Robert Bosch (France) S.A.S.

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Helmut Heinzelmann

Senior Vice President Head of Product

Engineering Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Montaje y operación

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

www.bosch-garden.com

Technical file (2006/42/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Assembly and use

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

i. V. h = m_c

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Mounting and use

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Senior Vice President Engineering

Helmut Heinzelmann Head of Product Certification

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 04.06.2012

Mounting and operation

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Service Center Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Disposal

Do not dispose of the power tool together with household waste material!

Applies only to EU countries:

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Assembly and operation

www.bosch-garden.com

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Denmark

Tel.: [phone] (within Sweden)

Fax: [phone]

Disposal

Only for EU countries:

Technical data (2006/42/EC) at: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Helmut Heinzelmann Senior Vice President Head of Product Engineering Certification

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 04.06.2012

Assembly and operation

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Finland 47

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Installation and use

www.bosch-garden.com

Technical file (2006/42/EC) from: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Senior Vice President Engineering

Helmut Heinzelmann Head of Product Certification

PA · PB

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 04.06.2012

Declaration of conformity

www.bosch-garden.com

When ordering spare parts, always quote the 10-digit part number given on the rating plate of the machine.

Greece

Robert Bosch A.E.

Erchias 37

19400 Koropi-Athens

Tel.: [phone]

Fax: [phone]

www.bosch.com

www.bosch-pt.gr

ABZ Service A.E.

Tel.: [phone]

Fax: [phone]

Anoupon

Do not dispose of power tools in household waste.

Method for EU countries:

Keep the environment safe.

Turkish

Safety Instructions

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

i.v. h : w

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Assembly and operation

www.bosch-garden.com

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Expert Team [phone]

Isiklar LTD.STI.

Kizilay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

60 | Polish

www.bosch-garden.com

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

64 | Czech

Assembly and operation

www.bosch-garden.com

Bosch Service Center PT

K Vapence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Waste processing

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

i. V. h = ml _____

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Assembly and use

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Troubleshooting

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

www.bosch-garden.com

WARNING: When working in the area of the cutting blades, wear garden gloves.

Electrical Safety

Attention! Before performing any maintenance or cleaning, switch off the garden tool and pull the plug out of the socket. These operations must also be performed if the power cord is damaged, cut, or tangled. After switching off the tool, the blades continue to rotate for a few seconds. Be careful - do not touch the rotating blade.

The garden tool is double insulated and does not require grounding.

The rated voltage is 230 V ~ 50 Hz (for countries not in the EU: 220 V or 240 V depending on the model). Use only approved extension cords. Information can be obtained from an authorized service center.

Only extension cords of type H05VV-F, H05RN-F, or IEC (60227 IEC 53, 60245 IEC 57) may be used.

If you need an extension cord for the unit, only use extension cords with the following wire cross-section:

• 1.0 mm²: maximum length 40 m - 1.5 mm²: maximum length 60 m - 2.5 mm²: maximum length 100 m

Warning: The extension cable must, according to safety regulations, have a protective conductor, which is connected via the plug to the protective conductor of your electrical network.

In doubtful cases, contact a professional electrician or an authorized Bosch workshop.

CAUTION: Extension cables that do not comply with the regulations can be dangerous. The extension cable, plug, and coupling must be in a water-proof execution, intended for use outdoors.

Cable connections must be dry and must not lie on the ground.

To increase safety, it is recommended to use a residual current device (RCD) that trips at max. 30 mA. The RCD should be tested before each use of the device.

Instructions for products outside the scope of this manual: In the interest of your safety

It is necessary to connect the plug of your power tool to the extension cable. The coupling of the extension cable must be protected from water splashes, made of rubber or covered with rubber. The extension cable must be used with a strain relief.

The cable must be regularly checked for signs of damage; it can only be used in perfect condition.

Damaged network cables may only be repaired in an authorized Bosch workshop.

Maintenance

When working in the area of sharp blades, always wear protective gloves. Check all nuts, bolts, and screws for tightness to ensure safe working conditions of the tool. Regularly check the condition and degree of wear of the blade guard. Check the power tool and replace worn or damaged parts in any case. Use only the intended parts for the power tool. For replacement, use original spare parts from Bosch.

Symbols

The following symbols will help you with reading and understanding the operating instructions. Remember the symbols and their meaning. Correct interpretation of the symbols will help you work more correctly and safely with the power tool.

76 | English

Symbol

3nayenne

HaprabJeHne DmJKeHHa

Haprablenhe peakun

HaedeBaIte 3aunTbIe pykabuIcI

Bec

Bkliouenne

BbIKIOUeHne

Pa3peuennoeJeicTBne

3aIpeHHeJeCTBnE

PpinaHndJeXHoCTn/3aunactn

PpImeHHeNoHa3HaueHnIO

CaNoBbI HNCTpyMeHT ppeHa3HaueH dIy cKauHbAHn TaPabbl Haacthblx ra3OHax.

TexHnueckne daHHbIe

DaHbIe no uMy n Bn6paun

A-B3BWeHnHbI yOBeHb IyMa OTeIeKtpOnHCTpyMeHTa coCTaBnE tObuHNo: yOBeHb 3ByKOBOr DabHeHHN 79 d(B(A); yOBeHb 3ByKOB MoUHOCTn 93 d(B(A).

Tolerance K = 1.5 m/s².

The sum of the vibrations a_h (vector sum of three directions) tolerance K is determined in accordance with EN 60335:

a_h < 2.5m/s², K = 1.5m/s².

Declaration of Conformity

C

We declare under our sole responsibility that the product described in the 'Technical Data' complies with the following standards and regulations: EN 60335 in accordance with the provisions of Directives 2011/65/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC.

2000/14/EC: guaranteed sound power level 94 dB(A). Conformity assessment procedure according to Annex VI.

Product category: 32

Notified body:

SRL, Sudbury, England, No. 1088

Technical documentation (2006/42/EC):

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

PA · PB

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

MOHTAKH N'Kcnpnyataun

www.bosch-garden.com

PnB CEx DOnONHHTeNbHbX BONpOcAaN3aKa3e 3aIpaCTe, nokanyiSta, o63aTeNbHO yKa3bBaIte 10-3NaHbI TOBAPHbI HOpE, yKa3aHHbI Ha 3aBoDcKo Ta6nUKe caDOBOr IHCTpymeta.

ZeHTpOB BbMOjKTe NOLyUHTb Ha OΦuHaJIbHOM CaITe

78|YkpaHcbKa

www.bosch-pt.ru lih6o no tenefohy cnpaBoucho-cepBnCHOn cnjx6bl Bosch 8-800-100-8007 (3BOHOK 6ecnPaThb).

Benapycb

He will use the instrument and throw it in the trash!

Only for adults:

In accordance with European Directive 2002/96/EC on waste electrical and electronic equipment and its transposition into national legislation

Outdated electrical and electronic

Devices and instruments must be collected separately and handed over to an environmentally friendly recycling facility.

Changes possible.

ME77

Ukrainian

Safety instructions

Attention! Please read the following instructions carefully. Familiarize yourself with the controls and proper use of the instrument. Keep this instruction manual for future reference.

Explanation of symbols

Warning label for safety.

Read the instruction manual.

Follow the instructions to avoid injury or damage.

Warning: Keep the instrument in a safe position when not in use.

Danger: Do not touch the blades, they are sharp. Keep fingers and hands away.

Switch off the tool and unplug the plug from the socket before adjusting, cleaning, or storing the tool, or if the cord is tangled or you are leaving the tool unattended for a short period. Do not allow the tool to be used by children.

Before touching any parts of the tool, wait until all parts have stopped. The risk of injury from the tool may increase if you touch it while it is still moving.

Do not use the tool in damp conditions, as the tool is not generally intended for such use.

Protect yourself from electric shock.

Do not allow children to use the tool.

Operation

riangleright Never allow persons who are not familiar with these instructions to use the tool. Local regulations may restrict the age of the user. If you are not using the tool, store it out of reach of children. riangleright This tool is intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the tool.

Bosch Power Tools

It is necessary to supervise children to ensure that they do not play with the tool.

Mow the grass only when it is dry, especially for, or for domestic animals. For safety reasons, carefully handle and store the tool. Do not work with the tool barefoot or in open sandals. Wear protective clothing and long trousers. Always keep hands and feet away from the cutting blade. Before using the lawn mower, check that the blade is not worn or damaged, and that the blade bolts are tight. To avoid imbalance, replace worn or damaged blades together. Mow the grass only in daylight or in good artificial light. Do not use the tool on wet grass. Always keep a firm footing, especially on slopes. Do not use the tool with damaged guards or shields, or without safety devices, such as the deflector and/or the grass catcher. Mowing on slopes can be dangerous. Do not mow on excessively steep slopes. On slopes, always make sure you are standing firmly on your feet. On slopes, mow across, not up and down. When working on slopes, be especially careful when turning. Be especially careful when pulling the tool towards you. When mowing, always push the tool forward, never pull it towards you. Tilt the tool for transport, and carry it over the grass catcher, as well as to the place where you intend to mow, if such a place allows it, when the blades are stopped. When starting the tool and switching on the motor, do not tilt the tool, except for those cases when it is necessary to start on tall grass. In such a case, tilt the tool, pressing the handle, only as much as necessary and only from the side away from the operator. When lowering the tool, make sure your hands are on the handle. Switch off the tool as described in the operating instructions, and make sure your feet are at a sufficient distance from the blades, which are rotating. Do not put your hands and feet near rotating parts, and do not stay close to such parts.

Keep a safe distance from the tool when working with it. Never lift or carry the tool while the motor is running. Do not allow the cutting blade to come into contact with the power cord. It could be damaged by the cord and cause contact with live parts, which are under voltage. Be careful, there is a risk of electric shock.

Unplug the tool from the socket:

• before starting the tool without supervision,
• before checking, cleaning, or servicing the tool, or performing any work on it,
• before checking, cleaning, or servicing the tool, or performing any work on it,
• Check the tool for damage. Regularly inspect the tool for wear and, if necessary, repair it. If the garden tool is extremely damaged (especially the cable), do not use it.

Connecting to the power source

The cable in the power source must match the data on the nameplate of the device. Use the device only with a socket that is protected by an automatic switch for disconnection from the mains. When using an extension cord, use only the type specified in the operating instructions, with the appropriate cross-section and type of plug. Never touch the plug with wet hands. Do not step on, pull, or squeeze the extension cord or the connecting cord, as it may be damaged. Keep the cord away from high temperatures, oil, and sharp edges. The connecting cord must have the cross-section specified in the operating instructions and be protected from moisture. The plug must not lie in water.

Wear sturdy gloves when handling or working near sharp blades.

Electrical safety

Warning! Before carrying out any work on the tool, such as maintenance or cleaning, switch off the tool and disconnect the plug from the socket. The tool must be disconnected from the power supply before any maintenance or cleaning work is carried out.

Carefully - do not touch the blade, it is sharp.

The electrical safety of the garden tool is ensured by its protective insulation and does not require grounding. The tool operates at 230 V~, 50 Hz (for countries where the voltage is not standard, depending on the voltage, 220 V or 240 V). Use only the approved extension cord.

80|Ukrainian

cable. Information can be obtained from authorized service centers.

Only use extension cords of type H05VV-F, H05RN-F or IEC (60227 IEC 53, 60245 IEC 57).

If you use the device outdoors, only use an extension cord with the following diameter:

- 1.0 mm²: maximum length 40 m - 1.5 mm²: maximum length 60 m - 2.5 mm²: maximum length 100 m

Note: If you use an extension cord, it must have a protective conductor, which is connected via the plug to the protective conductor of your electrical network (see safety instructions).

After use, have the tool checked by a qualified electrician or the nearest Bosch service center to carry out servicing.

WARNING: The supply cable must not be damaged. The supply cable, plug and coupling must be waterproof and suitable for outdoor use.

Cable connections must be dry and must not lie on the ground.

It is recommended to use a residual current device (RCD) with a maximum trip current of 30 mA. The RCD must be checked before each use.

Products purchased outside of Great Britain:

CAUTION: For safety reasons, it is necessary that the appliance is only connected with a supply cable. The coupling of the supply cable must be protected against water splashes, made of rubber or coated with rubber. The supply cable must be used with a strain relief.

The plug must be regularly checked for damage; it must not be used in a damaged condition.

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Declaration of Conformity with E

We declare under our sole responsibility that the product described in the Technical Data complies with the following standards or normative documents: EN 60335 in accordance with the provisions of Directives 2011/65/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC. 2000/14/EC: guaranteed sound power 94 dB(A). Conformity assessment procedure according to Annex VI. Product category: 32

Authorized representative:

SRL, Sudbury, England, Nr. 1088

Technical documentation (2006/42/EC):

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

www.bosch-garden.com

For all spare parts and ordering inquiries, please quote the 10-digit order number on the product nameplate of the garden tool.

The warranty for this power tool is provided in accordance with the laws and regulations of the manufacturer's territory for all countries listed in the warranty or authorized service centers of Robert Bosch. The use of counterfeit products is unsafe during operation and may have negative consequences. The production and distribution of counterfeit products is prosecuted under administrative and criminal law.

Ukraine

LLC Robert Bosch

Service center for power tools

Kranin Street, 1, 02660, Kyiv-60

Ukraine

Tel.: [phone] (multi-channel)

E-Mail: [e-mail]

Official website: www.bosch-powertools.com.ua

The addresses of regional warranty service centers are specified in the national warranty card.

Disposal

Do not dispose of power tools with household waste

For EU countries only:

In accordance with the European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

They must be handed over separately and disposed of in an environmentally friendly manner.

Româna

Safety and work instructions

Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Senior Vice President Engineering

Helmut Heinzelmann Head of Product Certification

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 04.06.2012

Mounting and operation

www.bosch-garden.com

In case of complaints and spare parts orders, please always specify the 10-digit identification number of the garden power tool.

Romania

Robert Bosch SRL

Bosch Service Center

Str. Horia Macelariu Nr. 30-34

013937 Bucharest

Tel. power tool service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Tel. customer consulting: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-romania.ro

Do not throw garden power tools in the household trash!

According to European Directive 2002/96/EC

on waste electrical and electronic equipment

and its transposition into national legislation, electrical and

electronic equipment must be

disposed of separately from household waste.

Keep the power tool away from rain and moisture.

Keep the cable at a safe distance from the cutting blades.

Maintenance

In no case allow the garden power tool to be used by persons who are not familiar with the operating instructions. It is possible that national legislation imposes restrictions on the use of this garden power tool. When the power tool is not in use, store it in a place inaccessible to children. This garden power tool is not intended for use by persons with reduced physical, sensory or mental capabilities, or by persons lacking experience or knowledge (including children), unless they are supervised by a person responsible for their safety and instructed in the use of the garden power tool.

Care must be taken to ensure that children do not play with the garden power tool. Never cut while other people, especially children or pets, are in the immediate vicinity.

Responsible for injuries to other persons or for material damage is the user. Do not work with the garden tool barefoot or with sandals. Wear sturdy, fully closed shoes and long trousers. Before use, carefully check the cutting area and remove stones, sticks, wires and other foreign objects. Before use, check that the blades, locking screws and the entire cutting unit are not damaged or worn. Replace worn or damaged blades and locking screws in a complete set to avoid imbalance during operation. Cut only in daylight or in very good artificial light. If possible, do not use the garden tool when the grass is wet. Work calmly, never rush. Never work with the garden tool if its guards or covers are damaged or if the safety devices are not in place, e.g., the protective guard or the grass catcher. Working on uneven terrain can be dangerous. Do not cut on excessively steep slopes. On slopes, pay attention to your footing and stability. On uneven terrain, walk carefully and never run. When mowing on slopes, always mow across the slope, never up or down. Pay special attention when changing direction on slopes. When walking backwards or pulling the garden tool, be extremely careful. When cutting, always push the garden tool forward, never pull it towards your body.

88|Bulgarian

Before using the power tool, read the instructions for use carefully. When using the power tool, keep the work area clean and well lit. When starting the power tool, do not press the trigger unless this is necessary for starting it at high speed. In the event of a jam, release the trigger and let the tool come to a stop. When starting the power tool on the ground, hold it firmly with both hands. Start the power tool as described in the operating instructions, keeping the blade at a safe distance from your body and turning away from the blade. Do not place your hands or feet near the blade or in close proximity to rotating parts. When working with the power tool, keep a safe distance from the discharge area. Never touch the blade. Do not operate the power tool while it is running. Keep the power cord and any extension cord at a safe distance from the blade. The cord may be damaged, which could cause the operator to receive an electric shock. Beware, there is a risk of electric shock.

Disconnect from the power supply:

When you are finished with the power tool, - first remove the blade, then clean the machine, when you check, clean, or perform maintenance on the power tool, - be careful not to touch the blade. Always check the power tool for damage; if necessary, send it for repair, - if the power tool vibrates abnormally (perform an immediate check).

Charging the machine

The voltage of the charging cable must correspond to the data on the machine's nameplate. The connection of this machine to a socket that is protected by a residual current device with a tripping current of 30 mA is recommended. The charging cable of this machine may only be replaced by the manufacturer or an authorized service center, as described in the operating instructions.

Never touch the machine when your hands are wet. Do not pull or carry the charging cable, as you may damage it. Be careful not to damage its insulation. Protect the cable from heat, oil, and sharp edges. The extension cord you use must be of the type specified in the operating instructions and must be protected against water splashes. Do not allow the contacts and the plug to become wet.

When you need to perform work near the blade, work carefully with protective gloves.

Safety when working with electric current

Warning! Before servicing or cleaning the garden electric tool, disconnect it from the mains and remove the plug. This applies especially in case of accidental damage or cutting of the supply cable. As soon as the garden tool is disconnected, the blades continue to rotate for a short time. Warning: Do not touch the rotating blades.

To ensure the safety and reliability of the garden electric tool, it must be connected to an insulated socket and must not be exposed to moisture. The working voltage is 230 V AC, 50 Hz (for countries outside the EU: 220 V, 240 V depending on the model). Use only approved extension cables. For more information, contact your local service center.

Technical documentation (2006/42/EC) at: Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Mounting and operation

www.bosch-garden.com

If you have any questions about your Bosch product, please contact our representatives. You can also send us a 10-digit catalog number of your Bosch power tool.

Weight according to EPTA-Procedure 01/2003

6.6

Protection class

see type plate on the garden tool

Serial number

Data applies to nominal voltage [U] of 230 V. With voltages that deviate and country-specific versions, this data may vary.

Please note the item number on the type plate of your garden tool. Trade names of individual garden tools may vary.

Technical documentation (2006/42/EG) at: Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Senior Vice President Engineering

Helmut Heinzelmann

Head of Product Certification

Information on noise/vibration

Noise values were determined according to 2000/14/EC (1.60 m height, 1 m distance).

The A-weighted noise level of the device is typically: Sound pressure level 79 dB(A); Sound power level 93 dB(A). Uncertainty K = 1 dB.

Total vibration values a_h (vector sum of three directions) and uncertainty K were determined according to EN 60335: a_h < 2.5m / s²,K = 1.5m / s².

www.bosch-garden.com

Please quote the 10-digit item number from the type plate of the garden tool for all inquiries and when ordering spare parts.

Serbian

Bosch-Service

Dimitrija Tucovića 59

11000 Belgrade

Tel.: [phone]

Fax: [phone]

Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Senior Vice President Engineering

Helmut Heinzelmann Head of Product

Certification

i.v. h : w

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 04.06.2012

Assembly and operation Troubleshooting

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

i. V. h = ml _____

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

Assembly and operation

www.bosch-garden.com

When making any inquiries or ordering spare parts, please always quote the 10-digit catalogue number from the type plate of the garden tool.

Croatian

Robert Bosch d.o.o

Kneza Branimira 22

10040 Zagreb

Tel.: (01) 295

Fax: [phone]

Disposal

Do not dispose of garden tools in household waste!

Only for EU countries:

According to European Directive 2002/96/EC for old electrical and electronic devices, unusable electrical and electronic devices must be collected separately and brought to environmentally compatible recycling.

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

106 | Eesti

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

www.bosch-garden.com

Bosch Lawn and Garden Ltd., PT-LG/ENS4,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product

Certification

i.v. h : w

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

www.bosch-garden.com

When requesting consultations and ordering spare parts, please be sure to indicate the ten-digit order number shown on the rating plate of the garden tool.

Republic of Latvia

Robert Bosch SIA

Bosch electric tool service center

Dzelzaviaiela120S

LV-1021 Riga

Tel.: [phone]

Fax: [phone]

E-mail: [e-mail]

Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Helmut Heinzelmann

Senior Vice President

Head of Product

Engineering

Certification

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

04.06.2012

F016L70769|(16.11.12)

Bosch Power Tools

Lithuanian | 115

Fault setting

www.bosch-garden.com
