USER MANUAL TASSIMO TAS4213 BOSCH

Thank you for choosing a TASSIMO machine. With TASSIMO, you can enjoy your favourite drink at any time. Aromatic coffee, strong espresso, tasty caffé crema, creamy cappuccino or latte macchiato, or even a cup of tea or hot chocolate: they’re all waiting for you at the push of a button. Your TASSIMO machine works exclusively with specially developed capsules known as TASSIMO T DISCS. When you insert the T DISC, the machine automatically reads the bar code printed on the label. This contains exact details of the amount of water needed, as well as the brewing time and temperature required to prepare the chosen beverage. T DISCS are specially designed for use with the TASSIMO brewing system and offer perfect enjoyment, cup after cup. To ensure long-term enjoyment, please only use the T DISCS specially developed for the TASSIMO machine.

Safety instructions ¡¡Risk of electric shock! ¡¡Risk of scalding! –– This appliance is designed for preparation of small amounts of coffee for domestic use or for use in non-commercial, household-like environments, such as staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities. –– Connect and operate the appliance only in accordance with the specifications on the rating label situated on the base of the machine. –– Do not use your TASSIMO machine if either the power cord or appliance is damaged. –– Use indoors at room temperature only and not above 2000m sea level. –– Do not let children or persons with reduced mental or sensory abilities or limited knowledge and experience use the appliance, unless they are supervised or have been instructed in the use of the appliance by a person who is responsible for their safety. –– Keep children away from the appliance. –– Supervise children to ensure that they do not play with the appliance. –– In the event of malfunction, unplug the appliance immediately. –– To avoid potential hazards, repairs such as replacing a damaged cord should only be performed by our service personnel. –– Never immerse the appliance or power cord in water. –– Wait until the orange light lights up before opening the brewing unit. –– Never open the brewing unit during the brewing process. –– Please note that the beverages are very hot when dispensed. 04/2011 01_TAS 40_Heft1.indb 17

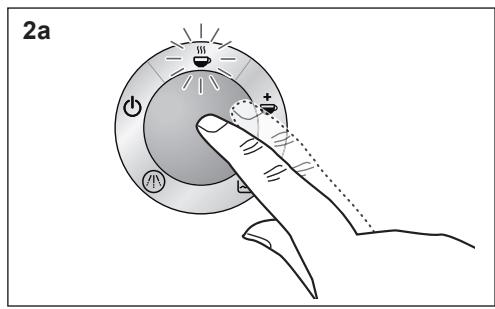

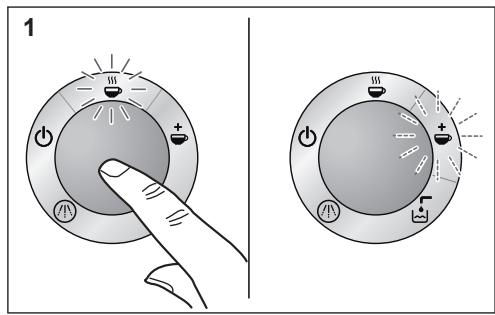

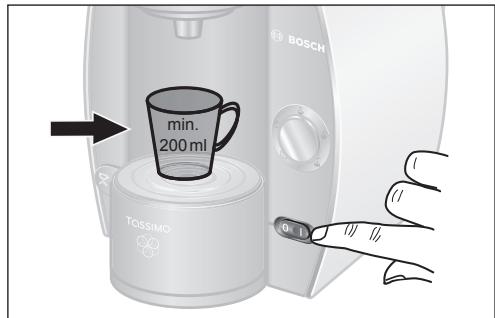

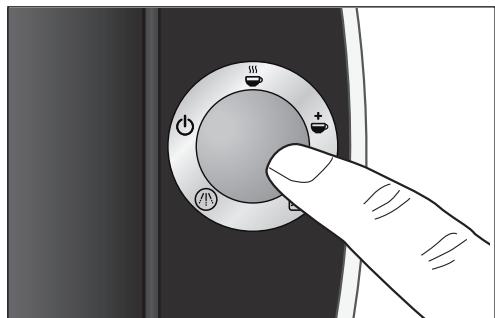

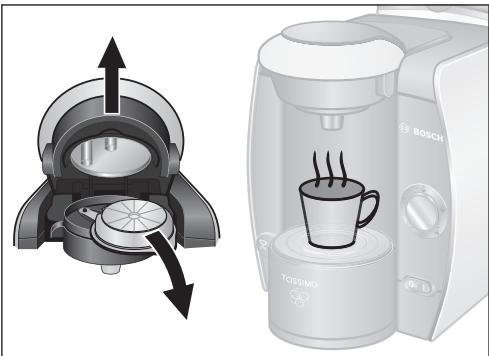

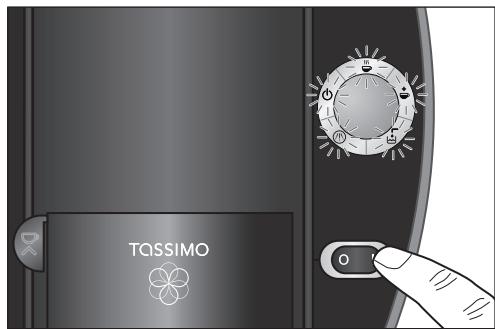

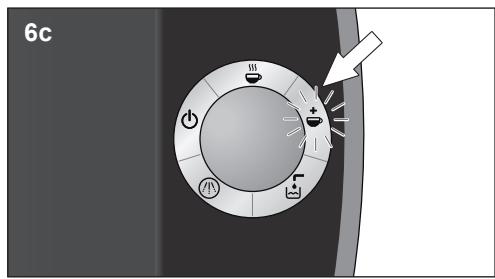

Controls Power switch The on/off switch turns your TASSIMO machine on a Stand-by and off. When it is switched on, all 5 display items light up briefly. The stand-by light will then remain on until the appliance is in use. ii Note: To save energy, the appliance should be switched off after each use. Start/stop button Once the T DISC of your choice is properly secured in your TASSIMO machine, you may start brewing it by pressing the start/ stop button. Press again to stop the brewing process early, in order to adjust the drink to your individual taste. Display Items

6a Stand-by a a Stand-by icon lights up (orange) when the power switch is switched on. You can now open the brewing unit and remove the T DISC or insert a new one.

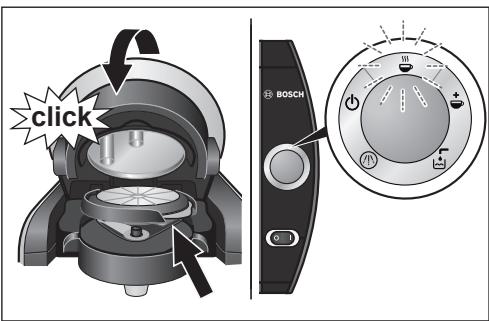

6b Automatic O O Automatic icon lights up (green) when your TASSIMO machine is ready for use. O Automatic icon will flash during a brew cycle after the start/stop button is pressed. Never open the brewing unit during the brewing process. Robert Bosch Hausgeräte GmbH 01_TAS 40_Heft1.indb 20

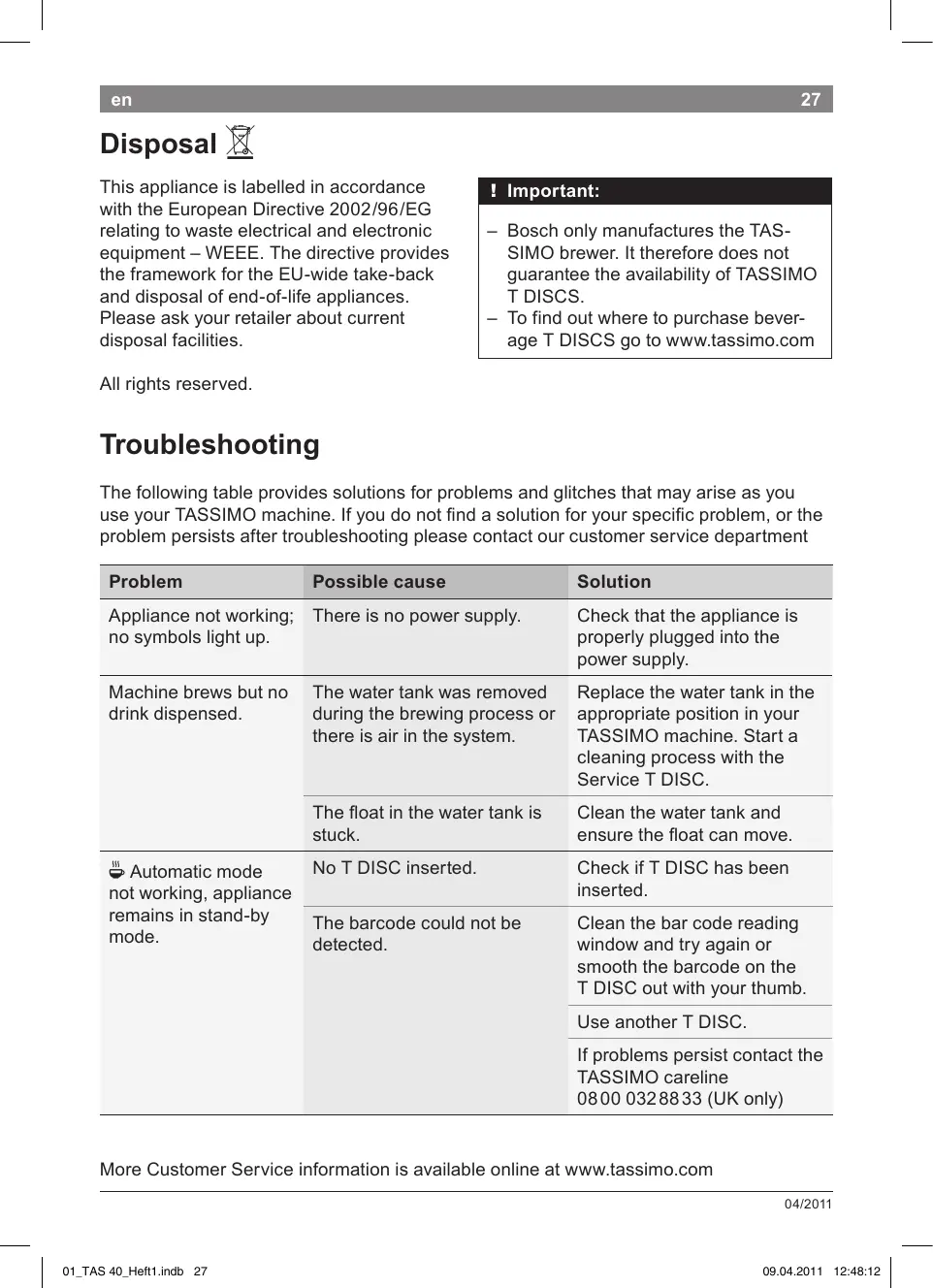

This appliance is labelled in accordance with the European Directive 2002 /96 /EG relating to waste electrical and electronic equipment – WEEE. The directive provides the framework for the EU-wide take-back and disposal of end-of-life appliances. Please ask your retailer about current disposal facilities. !! Important: –– Bosch only manufactures the TASSIMO brewer. It therefore does not guarantee the availability of TASSIMO T DISCS. –– To find out where to purchase beverage T DISCS go to www.tassimo.com All rights reserved. Troubleshooting The following table provides solutions for problems and glitches that may arise as you use your TASSIMO machine. If you do not find a solution for your specific problem, or the problem persists after troubleshooting please contact our customer service department Problem Possible cause Solution Appliance not working; no symbols light up. There is no power supply. Check that the appliance is properly plugged into the power supply. Machine brews but no drink dispensed. The water tank was removed during the brewing process or there is air in the system. Replace the water tank in the appropriate position in your TASSIMO machine. Start a cleaning process with the Service T DISC. The float in the water tank is stuck. Clean the water tank and ensure the float can move. No T DISC inserted. Check if T DISC has been inserted. The barcode could not be detected. Clean the bar code reading window and try again or smooth the barcode on the T DISC out with your thumb. O Automatic mode not working, appliance remains in stand-by mode. Use another T DISC. If problems persist contact the TASSIMO careline. 08 00 032 88 33 (UK only) More Customer Service information is available online at www.tassimo.com 04/2011 01_TAS 40_Heft1.indb 27

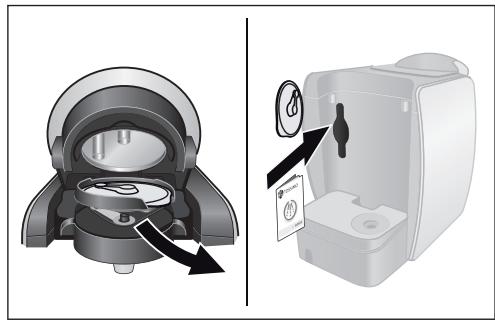

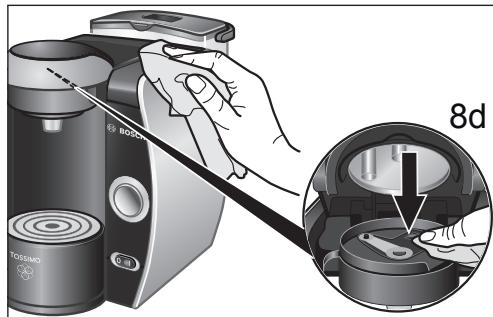

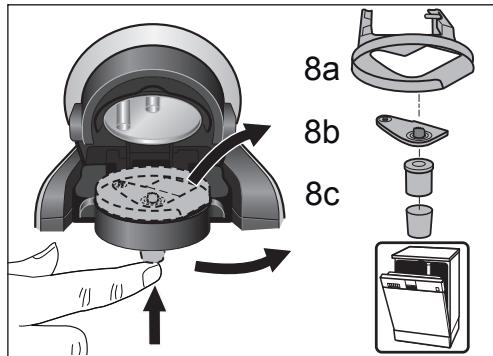

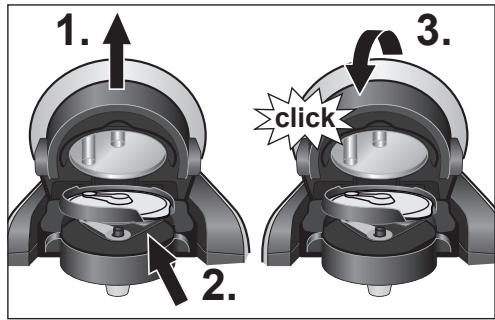

Problem Possible cause Solution O Automatic mode skipped, appliance goes straight to . N Manual mode. The barcode could not be detected. Clean the bar code reading window. The quality of the crema has deteriorated. The drink outlet is clogged or dirty. Remove the drink outlet from the brewing unit and detach the piercing unit. After cleaning everything thoroughly, reassemble the parts and replace them in the brewing unit. Brewing unit cannot be securely closed. Piercing unit / T DISC holder is not properly inserted. Insert the T DISC holder and piercing unit properly. The T DISC is not inserted properly. Re-insert the T DISC and make sure it is properly positioned. The brewing unit is not properly closed. Push the clamp down firmly until it audibly clicks into place. The T DISC is damaged or leaky. Stop the brewing process, remove the T DISC and clean the brewing unit. The piercing unit is either not inserted or not inserted properly. Check to ensure that the piercing unit is inserted properly. Water on the surface under the cup stand. Water from condensation. Condensation may occur and is not a fault. Remove it by wiping with a cloth. Service T DISC is damaged or lost. The Service T DISC must always be used for cleaning and descaling processes. Look for the Service T DISC in the storage compartment at the back of the appliance. Water dripping from the brewing unit. Use another T DISC. You can still prepare the drink by holding down the start /stop button. The Service T DISC can be obtained from the Bosch customer service department (article no. 611632, for contact details, see page 150). More Customer Service information is available online at www.tassimo.com Robert Bosch Hausgeräte GmbH 01_TAS 40_Heft1.indb 28

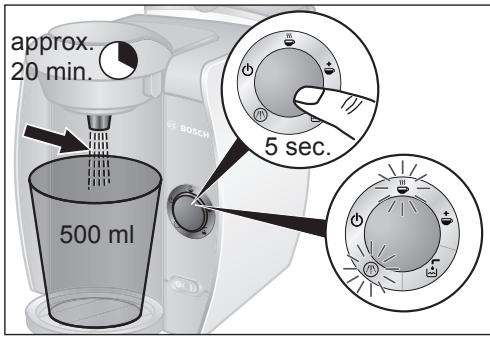

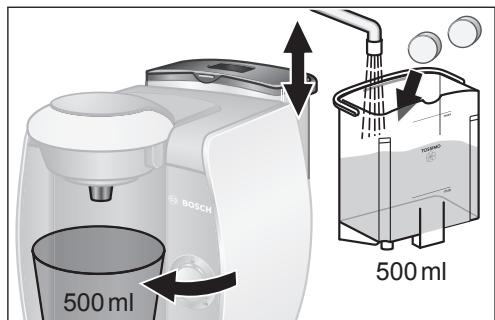

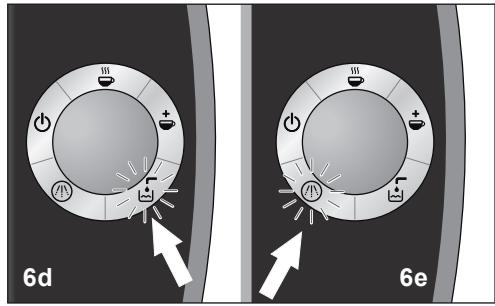

Problem Possible cause Solution P Fill tank lights up The float in the water tank is stuck. Clean the water tank and ensure that the float can move. P 6d and Q 6e are flashing simulta­ neously and it is not possible to prepare drinks. There is a fault on the machine. Turn the machine off using the on/off switch, wait approximately 5 minutes and turn the machine back on. . If P 6d and Q 6e are still flashing, please contact the TASSIMO careline. 08 00 032 88 33 (UK only) Q Descale flashes even though you are using soft water. Even soft water contains small Descale the appliance. . amounts of dissolved lime. Special descaling agents can be obtained from . www.tassimo.com, the Bosch customer service department (article no. 310967, for contact details, see page 150) or from your retailer. even though there is sufficient water in the tank. More Customer Service information is available online at www.tassimo.com 04/2011 01_TAS 40_Heft1.indb 29
