Sensor	Exmor R CMOS 1 inch (13.2 x 8.8 mm)
Effective resolution	20.1 megapixels
Lens	ZEISS Vario-Sonnar T*
Optical zoom	25x
Equivalent 35mm focal length	24-600 mm
Maximum aperture	F2.4 (wide-angle) / F4.0 (telephoto)
Optical stabilization	SteadyShot
ISO sensitivity	100-12,800
Minimum focus distance	3 cm (wide-angle) / 72 cm (telephoto)
4K video	XAVC S 4K, 25 fps, 100 Mbps
High-speed HD video	XAVC S HD, 100 fps, 100 Mbps
Super Slow Motion (HFR)	Yes
Video formats	XAVC S 4K, XAVC S HD, AVCHD, MP4
LCD screen	3 inches, 1,228,800 dots
Electronic viewfinder (EVF)	2,359,296 dots
Wi-Fi / NFC	Yes / Yes
Microphone input	3.5 mm mini jack
Headphone output	Yes
Memory support	SD / SDHC / SDXC, Memory Stick Duo
Weight (without accessories)	1,051 g
Dimensions (W x H x D)	127.4 x 94 x 132.5 mm

Frequently Asked Questions - DSC-RX10M3 SONY

What is the zoom range of the Sony DSC-RX10M3?

The DSC-RX10M3 features a ZEISS Vario-Sonnar T* 25x lens, covering an equivalent focal length of 24 to 600 mm in 35mm format. This exceptional range makes it an all-in-one camera, from wide-angle to super-telephoto, without ever changing the lens.

Does the Sony DSC-RX10M3 record in 4K?

Yes, it records in 4K (XAVC S 4K) at 25 fps with a bitrate of 100 Mbps. It also supports XAVC S HD up to 100 fps at 100 Mbps, AVCHD, and MP4. For 4K, you must use an SDXC card with UHS Speed Class 3 (U3).

How do I use the Super Slow Motion mode on the RX10M3?

Select the HFR (High Frame Rate) mode via the mode dial or the camera menu. The camera captures the sequence at a very high frame rate and then automatically generates a slow-motion video. The useful recording time in HFR is shorter than in standard video mode.

Which memory card should I choose for the DSC-RX10M3?

The camera accepts SD, SDHC, SDXC, and Memory Stick Duo cards. For 4K or high-speed filming, you must choose an SDXC card with UHS Speed Class 3 (U3) of at least 64 GB. A card that is too slow will cause recording interruptions.

How do I connect the DSC-RX10M3 to a smartphone?

Enable Wi-Fi in the camera's Network menu, then open the Sony Imaging Edge Mobile app (formerly PlayMemories Mobile) on your smartphone. The built-in NFC also allows instant pairing by bringing a compatible phone close to the camera.

The autofocus is not working, what should I do?

Check that the switch is in the AF position. In low light, autofocus may be less responsive. If the subject is too close in telephoto (less than 72 cm), AF will fail: step back or switch to manual focus (MF). In wide-angle, the minimum AF distance is 3 cm.

Is the lens of the DSC-RX10M3 interchangeable?

No. The ZEISS Vario-Sonnar T* lens is fixed and integrated into the camera. The DSC-RX10M3 is a bridge camera (non-interchangeable lens camera). This design ensures optical consistency and the 24-600 mm range is always available.

What is the minimum focusing distance of the DSC-RX10M3?

In wide-angle position, the minimum focusing distance is about 3 cm, allowing for very close macro shots. In telephoto (600 mm equivalent), this distance increases to about 72 cm. The SteadyShot optical stabilization helps achieve sharp images at close distances.

Does the DSC-RX10M3 have an external microphone jack?

Yes, the camera includes a 3.5 mm mini jack for an external microphone and a headphone output for real-time audio monitoring. These inputs/outputs are particularly useful for videographers seeking professional quality sound.

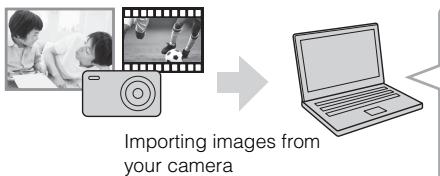

How do I transfer photos from the DSC-RX10M3 to a computer?

You can connect the camera directly to your computer via USB cable, or remove the memory card and use a card reader. The built-in Wi-Fi also allows wireless transfer via the Sony Imaging Edge app (PC/Mac) or Imaging Edge Mobile (smartphone).

How do I optimize the battery life of the DSC-RX10M3?

Reduce the screen brightness in the display settings. Disable Wi-Fi and NFC when not in use, and enable quick auto-sleep mode. Recording in 4K consumes more power: have a spare battery ready for long video sessions.

USER MANUAL DSC-RX10M3 SONY

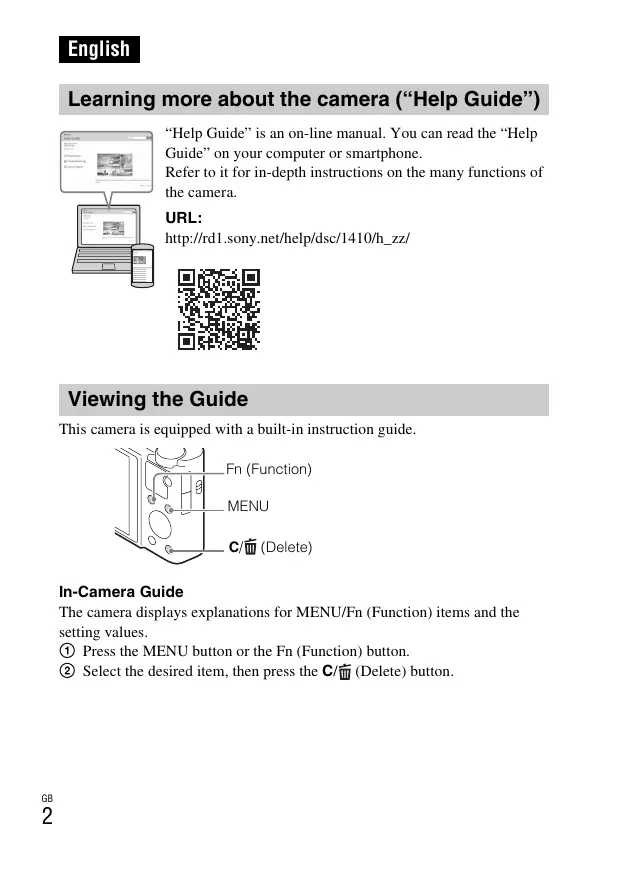

Learning more about the camera ("Help Guide")

"Help Guide" is an on-line manual. You can read the "Help Guide" on your computer or smartphone.

Refer to it for in-depth instructions on the many functions of the camera.

URL:

http://rdl.保养.net/help/dsc/1410/h_zz/

Viewing the Guide

This camera is equipped with a built-in instruction guide.

In-Camera Guide

The camera displays explanations for MENU/Fn (Function) items and the setting values.

① Press the MENU button or the Fn (Function) button.
② Select the desired item, then press the C/ (Delete) button.

Owner's Record

The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.

Model No. WW808161 (DSC-RX100M3)

Serial No.

Model No. AC-UB10C/AC-UB10D

Serial No.

GB

WARNING

To reduce fire or shock hazard, do not expose the unit to rain or moisture.

IMPORTANT SAFETY INSTRUCTIONS -SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS

If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.

CAUTION

Battery pack

If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.

• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60^ (140^) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.

• Do not handle damaged or leaking lithium ion batteries.

• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.

• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.

I AC Adaptor

Use the nearby wall outlet (wall socket) when using the AC Adaptor. Disconnect the AC Adaptor from the wall outlet (wall socket) immediately if any malfunction occurs while using the apparatus.

The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.

For Customers in the U.S.A. and Canada

I RECYCLING LITHIUM-ION BATTERIES

Lithium-Ion batteries are recyclable.

You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.

For more information regarding recycling of rechargeable batteries, call toll free

1-800-822-8837, or visit http://www.call2recycle.org/

Caution: Do not handle damaged or leaking Lithium-Ion batteries.

Battery pack

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CANICES-3B/NMB-3B

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR).

For Customers in the U.S.A.

If you have any questions about this product, you may call:

Sony Customer Information Center

1-800-222-SONY (7669)

The number below is for the FCC related matters only.

Regulatory Information

Declaration of Conformity

Trade Name:SONY

Model No.: WW808161

Responsible Party: Sony Electronics Inc.

Address: 16530 Via Esprillo,

San Diego, CA 92127 U.S.A.

Telephone No.: 858-942-2230

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment must not be co-located or operated in conjunction with any other antenna or transmitter.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

I Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For Customers in Canada

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

For Customers in Europe

I Notice for the customers in the countries applying EU Directives

Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany

CE

Hereby, Sony Corporation, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL:

http://www.compliance.sony.de/

I Notice

If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.

This product has been tested and found compliant with the limits set out in the EMC regulation for using connection cables shorter than 3 meters (9.8 feet).

The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for

the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

GB

For Customers in Singapore

Complies with IDA Standards DB00353

For customers who purchased their camera from a store in Japan that caters to tourists

I Note

Some certification marks for standards supported by the camera can be confirmed on the screen of the camera.

Select MENU (Setup) 6 [Certification Logo].

If display is not possible due to problems such as camera failure, contact your Sony dealer or local authorized Sony service facility.

Checking the supplied items

The number in parentheses indicates the number of pieces.

• Camera (1)
• Rechargeable Battery Pack NP-BX1 (1)
• Micro USB Cable (1)
• AC Adaptor AC-UB10C/UB10D (1)
• Power Cord (mains lead) (not supplied in the USA and Canada) (1)
• Wrist Strap (1)
• Strap adapter (2)

(Strap adapters are used to attach the shoulder strap (sold separately), as illustrated.)

• Instruction Manual (this manual) (1)
  Wi-Fi Connection/One-touch (NFC) Guide (1)

This guide explains the functions that require a Wi-Fi connection.

For further details on Wi-Fi functions/One-touch (NFC) functions, refer to the "Wi-Fi Connection/One-touch (NFC) Guide" (supplied) or the "Help Guide" (page 2).

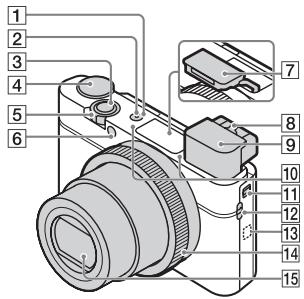

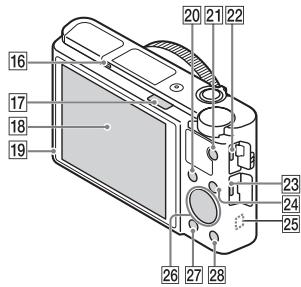

Identifying parts

4 Mode dial

(Intelligent Auto)/

(Superior Auto)/

P (Program Auto)/

A

[aperture Priority]/

S (S

hutter Priority)/

M

Manual Exposure)/

MR

(Memory recall)/

图

(Movie)/ (Sweep

Pane

orama)/SCN (Scene)

Selection)

For shooting: W/T (zoom) lever For viewing: (Index) lever/ Playback zoom lever

6 Self-timer lamp/AF illuminator

7 Flash

• Do not cover the flash with your finger.

• When using the flash, slide the Flash pop-up) switch. If not using the flash, press it down manually.

• When not using the flash, press it back into the camera body.

Diopter-adjustment lever

ON/OFF (Power) switch
2 Power/Charge lamp
3 Shutter button

GB

Viewfinder

• When using the viewfinder, slide down the Viewfinder pop-up switch, then pull the eyepiece out from the viewfinder until it clicks.
• When you look into the viewfinder, the viewfinder mode is activated, and when you take your face away from the viewfinder, the viewing mode returns to the monitor mode.

10 Microphone
Viewfinder pop-up switch
Hook for strap
13 N (N Mark)

• Touch the mark when you connect the camera to a smartphone equipped with the NFC function.
• NFC (Near Field Communication) is an international standard of the short-range wireless communication technology.

14 Control ring
15 Lens
16 Eye sensor
17 (Flash pop-up) switch

18 Monitor

• You can adjust the monitor to an easily viewable angle and shoot from any position.

Light sensor
For shooting: Fn (Function) button For viewing: (Send to Smartphone) button
21 MOVIE (Movie) button
22 Multi/Micro USB Terminal

Supports Micro USB compatible device.

23 HDMI micro jack
24 MENU button
25 Wi-Fi sensor (built-in)
26 Control wheel
27 (Playback) button
28 C/（Custom/Delete）button
29 Battery insertion slot
30 Battery eject lever
31 Tripod socket hole

• Use a tripod with a screw less than 5.5mm (7/32 inches) long. Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.

32 Access lamp
33 Memory card slot
34 Battery/Memory card cover
35 Speaker

Inserting the battery pack

GB

1 Open the cover.

2 Insert the battery pack.

• While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.
• Closing the cover with the battery inserted incorrectly may damage the camera.

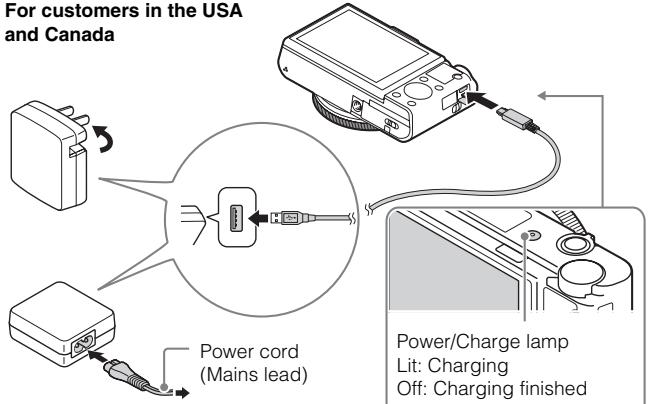

Charging the battery pack

For customers in the USA and Canada
For customers in countries/regions other than the USA and Canada

Power/Charge lamp

Lit: Charging

Off: Charging finished

Flashing:

Charging error or charging paused temporarily because the camera is not within the proper temperature range

1 Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied).
2 Connect the AC Adaptor to the wall outlet (wall socket).

The power/charge lamp lights orange, and charging starts.

• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the power/charge lamp flashes and charging is not finished, remove and re-insert the battery pack.

Notes

• If the power/charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range. When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10^ to 30^ (50^ to 86^) .
• The battery pack may not be effectively charged if the terminal section of the battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton swab to clean the terminal section of the battery.
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied).
• The AC Adaptor AC-UD11 (sold separately) may not be available in some countries/regions.

Charging time (Full charge)

The charging time is approximately 230min using the AC Adaptor (supplied).

Notes

• The above charging time applies when charging a fully depleted battery pack at a temperature of 25^ (77^) . Charging may take longer depending on conditions of use and circumstances.

Charging by connecting to a computer

The battery pack can be charged by connecting the camera to a computer using a micro USB cable. Connect the camera to the computer with the camera turned off.

• If you connect the camera to a computer when power is turned on, the camera will be powered by the computer, which allows you to import images to a computer without worrying about the battery running out.

Notes

• Note the following points when charging via a computer:
• If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.
• Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. That may cause the camera to malfunction. Before turning on/off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.
• No guarantees are made for charging using a custom-built computer or a modified computer.

Battery life and number of images that can be recorded and played back

		Battery life	Number of images
Shooting (still images)	Screen	Approx. 160 min.	Approx. 320 images
	Viewfinder	Approx. 115 min.	Approx. 230 images
Typical movie shooting	Screen	Approx. 50 min.	—
	Viewfinder	Approx. 50 min.	—
Continuous movie shooting	Screen	Approx. 85 min.	—
	Viewfinder	Approx. 90 min.	—
Viewing (still images)		Approx. 215 min.	Approx. 4300 images

Notes

• The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.

• The number of images that can be recorded is for shooting under the following conditions:

• Using Sony Memory Stick PRO Duo™ (Mark2) media (sold separately)

• The battery pack is used at an ambient temperature of 25^ (77^) .

• [Display Quality] is set to [Standard]

• The number for "Shooting (still images)" is based on the CIPA standard, and is for shooting under the following conditions:

(CIPA: Camera & Imaging Products Association)
- DISP is set to [Display All Info].
- Shooting once every 30 seconds.
- The zoom is switched alternately between the W and T ends.
- The flash strobes once every two times.
- The power turns on and off once every ten times.

• The numbers of minutes for movie shooting are based on the CIPA standard, and are for shooting under the following conditions:

• [Record Setting]: 60i 17M(FH)/50i 17M(FH)

• Typical movie shooting: Battery life based on repeatedly starting/stopping shooting, zooming, turning on/off, etc.
• Continuous movie shooting: Battery life based on non-stop shooting until the limit (29 minutes) has been reached, and then continued by pressing the MOVIE button again. Other functions, such as zooming, are not operated.

Supplying power

You can use the AC Adaptor AC-UD10 (sold separately) or AC-UD11 (sold separately) for shooting and playback to supply power when shooting or playing back images.

Notes

• You cannot shoot or play back images while the supplied AC Adaptor is connected to the camera.

Inserting a memory card (sold separately)

1 Open the cover.
2 Insert the memory card (sold separately).

• With the notched corner facing as illustrated, insert the memory card until it clicks into place.

3 Close the cover.

Memory cards that can be used

	Memory card	For still images	For movies
A	Memory Stick XC-HG Duo™	✓	✓
	Memory Stick PRO Duo	✓	✓ (Mark2 only)
	Memory Stick PRO-HG Duo™	✓	✓
B	Memory Stick Micro™ (M2)	✓	✓ (Mark2 only)
C	SD memory card	✓	✓ (Class 4 or faster)
	SDHC memory card	✓	✓ (Class 4 or faster)
	SDXC memory card	✓	✓ (Class 4 or faster)
D	microSD memory card	✓	✓ (Class 4 or faster)
	microSDHC memory card	✓	✓ (Class 4 or faster)
	microSDXC memory card	✓	✓ (Class 4 or faster)

• In this manual, the products in the table are collectively referred to as follows:

A: Memory Stick PRO Duo media
B: Memory Stick Micro media
C:SD card
D: microSD memory card

• When recording XAVC S format movies, use the following memory cards:

• SDXC memory card (64 GB or more and Class 10 or faster)

• SDXC memory card (64 GB or more and UHS-I-compatible)
  Memory Stick XC-HG Duo media

• This camera supports UHS-I-compatible SD cards.

Notes

• When using Memory Stick Micro media or microSD memory cards with this camera, make sure to use with the appropriate adaptor.

To remove the memory card/battery pack

Memory card: Push the memory card in once to eject the memory card.

Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.

Notes

• Never remove the memory card/battery pack when the access lamp (page 10) is lit.

This may cause damage to data in the memory card.

Setting the clock

1 Press the ON/OFF (Power) button.
Date & Time setting is displayed when you turn on the camera for the first time.
- It may take time for the power to turn on and allow operation.
2 Check that [Enter] is selected on the screen, then press on the control wheel.
3 Select a desired geographic location by following the on-screen instructions, then press .
4 Set [Daylight Savings], [Date/Time] and [Date Format], then press .
- When setting [Date/Time], midnight is 12:00 AM, and noon is 12:00 PM.
5 Check that [Enter] is selected, then press .

Shooting still images/movies

: Intelligent Auto

Movie

GB

Shooting still images

1 Press the shutter button halfway down to focus.

When the image is in focus, a beep sounds and the or indicator lights.

2 Press the shutter button fully down to shoot an image.

Shooting movies

1 Press the MOVIE (Movie) button to start recording.

• Use the W/T (zoom) lever to change the zoom scale.

2 Press the MOVIE button again to stop recording.

Notes

• When using the zoom function while shooting a movie, the sound of the camera operating will be recorded. The sound of the MOVIE button operating may also be recorded when movie recording is finished.
• Continuous movie shooting is possible for approximately 29 minutes at one time with the camera's default settings and when the ambient temperature is approximately 25^ ( 77^ ). When movie recording is finished, you can restart recording by pressing the MOVIE button again. Recording may stop to protect the camera depending on the ambient temperature.

1 Press the (Playback) button.

Selecting next/previous image

Select an image by pressing (next)/ (previous) on the control wheel or by turning the control wheel. Press in the center of the control wheel to view movies.

- Deleting an image

① Press the C/（Delete）button.
② Select [Delete] with on the control wheel, then press .

Returning to shooting images

Press the shutter button halfway down.

GB

Control wheel

DISP (Display Contents): Allows you to change the screen display.
/ (Drive Mode): Allows you to switch between shooting methods, such as single shooting, continuous shooting or bracket shooting.
(Exposure Comp./Photo Creativity): Allows you to adjust image brightness./Allows you to operate the camera intuitively and shoot creative images easily.
(Flash Mode): Allows you to select a flash mode for still images.

Fn (Function) button

Allows you to register 12 functions and recall those functions when shooting.

① Press the Fn (Function) button.
② Select the desired function by pressing / / on the control wheel.
③ Select the setting value by turning the control wheel or the control ring.

Control ring

Your favorite functions can be assigned to the control ring. When shooting, established settings can be changed just by turning the control ring.

(Camera Settings)

Image Size	Selects the size of still images.
Aspect Ratio	Selects the aspect ratio for still images.
Quality	Sets the image quality for still images.
Panorama: Size	Selects the size of panoramic images.
Panorama: Direction	Sets the shooting direction for panoramic images.
File Format	Selects the movie file format.
Record Setting	Selects the size of the recorded movie frame.
Dual Video REC	Sets whether to simultaneously record an XAVC S movie and MP4 movie or an AVCHD movie and MP4 movie.
Drive Mode	Sets the drive mode, such as for continuous shooting.
Flash Mode	Sets the flash settings.
Flash Comp.	Adjusts the intensity of flash output.
Red Eye Reduction	Reduces the red-eye phenomenon when using flash.
Focus Mode	Selects the focus method.
Focus Area	Selects the area of focus.
AF Illuminator	Sets the AF illuminator, which provides light for a dark scene to aid focusing.
Exposure Comp.	Compensates for the brightness of the entire image.
ISO	Adjusts the luminous sensitivity.
ND Filter	Sets the function that reduces the amount of light. You can set to a slower shutter speed, reduce the aperture value, etc.
Metering Mode	Selects the method for measuring brightness.
White Balance	Adjusts color tones of an image.
DRO/Auto HDR	Compensates automatically for brightness and contrast.
Creative Style	Selects the desired image processing. You can also adjust contrast, saturation and sharpness.
Picture Effect	Selects the desired effect filter to achieve a more impressive and artistic expression.
Focus Magnifier	Enlarges the image before shooting so that you can check the focus.
Long Exposure NR	Sets noise reduction processing for shots with a shutter speed of 1/3 second or longer.
High ISO NR	Sets noise reduction processing for high-sensitivity shooting.
Center Lock-on AF	Sets the function to track a subject and continue focusing when pressing the center button in the shooting screen.
Smile/Face Detect.	Selects to detect faces and adjust various settings automatically. Sets to automatically release the shutter when a smile is detected.
Soft Skin Effect	Sets the Soft Skin Effect and the effect level.
Auto Obj. Framing	Analyzes the scene when capturing faces, close-ups, or subjects tracked by Lock-on AF function, and automatically trims and saves another copy of the image with a more impressive composition.
Scene Selection	Selects pre-set settings to match various scene conditions.
Movie	Selects the exposure mode to suit your subject or effect.
SteadyShot	Sets SteadyShot for shooting still images. Reduces blur from camera shake when shooting while holding the camera.
SteadyShot	Sets SteadyShot for shooting movies.
Color Space	Changes the range of reproducible colors.
Auto Slow Shut.	Sets the function that automatically adjusts the shutter speed following the brightness of the environment in movie mode.
Audio Recording	Sets whether to record audio when shooting a movie.
Micref Level	Selects the microphone level during movie recording.
Wind Noise Reduct.	Reduces wind noise during movie recording.

GB

Memory recall	Selects a setting registered in advance when the mode dial is set to MR (Memory recall).
Memory	Registers the desired modes or camera settings.

Custom Settings)

Zebra	Displays stripes to adjust brightness.
MF Assist	Displays an enlarged image when focusing manually.
Focus Magnif. Time	Sets the length of time the image will be shown in an enlarged form.
Grid Line	Sets a grid line display to enable alignment to a structural outline.
Auto Review	Sets auto review to display the captured image after shooting.
DISP Button	Sets the type of information to be displayed on the monitor or in the viewfinder by pressing DISP on the control wheel.
Peaking Level	Enhances the outline of in-focus ranges with a specific color when focusing manually.
Peaking Color	Sets the color used for the peaking function.
Exposure Set. Guide	Sets the guide displayed when exposure settings are changed in the shooting screen.
Live View Display	Sets whether or not to reflect settings such as exposure compensation in screen display.
Pre-AF	Sets whether or not to perform auto focus before the shutter button is half pressed.
Zoom Setting	Sets whether to use the Clear Image Zoom and Digital Zoom when zooming.
FINDER/MONITOR	Sets the method for switching between the viewfinder and screen.
AEL w/ shutter	Sets whether to perform AEL when the shutter button is half pressed. This is useful when you want to adjust the focus and exposure separately.
Self-portrait/-timer	Sets whether to use a 3-second delay self-timer when the screen is tilted upward about 180 degrees.
Bracket order	Sets order of shooting for exposure bracket and white balance bracket.
Face Registration	Registers or changes the person to be given priority in the focus.
Write Date	Sets whether to record a shooting date on the still image.
Function Menu Set.	Customizes the functions displayed when the Fn (Function) button is pressed.
Custom Key Settings	Assigns a desired function to the button and the control ring.
Zoom Func. on Ring	Sets the zooming function of the control ring. When you select [Step], you can move the zoom position to a fixed step of the focal length.
MOVIE Button	Sets whether to always activate the MOVIE button.
Wheel Lock	Sets whether to disable the control wheel temporarily by using the Fn button when shooting. You can disable/disable the control wheel by pressing and holding down the Fn button.

(Wireless)

Send to Smartphone	Transfers images to display on a smartphone.
Send to Computer	Backs up images by transferring them to a computer connected to a network.
View on TV	You can view images on a network-enabled TV.
One-touch(NFC)	Assigns an application to One-touch (NFC). You can call up the application when shooting by touching an NFC-enabled smartphone to the camera.
Airplane Mode	You can set this device to not perform wireless communications.
WPS Push	You can register the access point to the camera easily by pushing the WPS button.
Access Point Set.	You can register your access point manually.
Edit Device Name	You can change the device name under Wi-Fi Direct, etc.
Disp MAC Address	Displays the MAC address of the camera.
SSID/PW Reset	Reset the SSID and password of smartphone connection.
Reset Network Set.	Reset all network settings.

(Application)

Application List	Displays the application list. You can select the application you want to use.
Introduction	Displays instructions on using the application.

(Playback)

Delete	Deletes an image.
View Mode	Sets the way in which images are grouped for playback.
Image Index	Displays multiple images at the same time.
Display Rotation	Sets the playback direction of the recording image.
Slide Show	Shows a slide show.
Rotate	Rotates the image.
✕ Enlarge Image	Enlarges the playback images.
4K Still Image PB	Outputs still images in 4K resolution to an HDMI-connected TV that supports 4K.
Protect	Protects the images.
Motion Interval ADJ	Adjusts the interval for showing the tracking of subjects in [Motion Shot Video], where the tracking of the subject's motion will be shown when playing back movies.
Specify Printing	Adds a print order mark to a still image.
Beauty Effect	Retouches a person's face on a still image and saves the retouched image as a new image.

(Setup)

Monitor Brightness	Sets the screen brightness.
Viewfinder Bright.	Sets the brightness of the electronic viewfinder.
Finder Color Temp.	Sets the color temperature of the viewfinder.
Volume Settings	Sets the volume for movie playback.
Audio signals	Sets the operating sound of the camera.
Upload Settings	Sets the upload function of the camera when using an Eye-Fi card.
Tile Menu	Sets whether to display the tile menu every time you press the MENU button.
Mode Dial Guide	Turns the mode dial guide (the explanation of each shooting mode) on or off.
Delete confirm.	Sets whether Delete or Cancel is preselected in the Delete confirmation screen.
Display Quality	Sets the display quality.
Pwr Save Start Time	Sets the length of time until the camera turns off automatically.
PAL/NTSC Selector (only for 1080 50i compatible models)	By changing the TV format of the device, shooting in a different movie format is possible.
Demo Mode	Sets demonstration playback of a movie to on or off.
HDMI Settings	Sets the HDMI settings.
USB Connection	Sets the USB connection method.
USB LUN Setting	Enhances compatibility by limiting the functions of the USB connection. Set to [Multi] in normal conditions and to [Single] only when the connection between the camera and a computer or AV component cannot be established.
USB Power Supply	Sets whether to supply power using a USB connection.
Language	Selects the language.
Date/Time Setup	Sets date and time, and daylight savings.
Area Setting	Sets the location of use.
Format	Formats the memory card.
File Number	Sets the method used to assign file numbers to still images and movies.
Select REC Folder	Changes the selected folder for storing images.

GB

New Folder	Creates a new folder for storing still images and movies (MP4).
Folder Name	Sets the folder format for still images.
Recover Image DB	Recovers the image database file and enables recording and playback.
Display Media Info.	Displays the remaining recording time of movies and the recordable number of still images on the memory card.
Version	Displays the camera software version.
Setting Reset	Restores settings to their defaults.

Features of PlayMemories Home™

The software PlayMemories Home allows you to import still images and movies to your computer and use them. PlayMemories Home is required for importing XAVC S movies and AVCHD movies to your computer.

Playing back imported images

For Windows, the following functions are also available:

Viewing images on a calendar

Creating movie discs

Uploading images to network services

Sharing images on PlayMemories OnlineTM

PlayMemories

Notes

• An Internet connection is required to install PlayMemories Home.
• An Internet connection is required to use PlayMemories Online or other network services. PlayMemories Online or other network services may not be available in some countries or regions.
• Use the following URL for Mac applications: http://www.sony.co.jp/imsoft/Mac/
• If the software PMB (Picture Motion Browser), supplied with models released before 2011, has already been installed on your computer, PlayMemories Home will overwrite it during the installation. Use PlayMemories Home, the successor software of PMB.

System requirements

You can find the system requirements for the software at the following URL: www.sony.net/pcenv/

Installinng PlayMemories Home on a computer

1 Using the Internet browser on your computer, go to the following URL, and then install PlayMemories Home.

www.sony.net/pm/

• For details on PlayMemories Home, refer to the following PlayMemories Home support page (English only): http://www.sony.co.jp/pmh-se/
• When installation is complete, PlayMemories Home starts.

2 Connect the camera to your computer using the micro USB cable (supplied).

• New functions may be installed in PlayMemories Home. Connect the camera to your computer even if PlayMemories Home is already installed on your computer.

Notes

• Do not disconnect the micro USB cable (supplied) from the camera while the operating screen or the accessing screen is displayed. Doing so may damage the data.
• To disconnect the camera from the computer, click on the taskray, then click [Eject PMHOME].

Features of Image Data ConverterTM

Below are examples of the functions available when you use Image Data Converter.

• You can edit RAW images using multiple correction functions, such as tone curve or sharpness.
• You can adjust images using white balance, brightness and Creative Style, etc.
• You can save displayed and edited still images to your computer.

There are two ways to save RAW images: save and leave as RAW data or save in a general-purpose file format.

• You can display and compare the RAW images/JPEG images that are shot with this camera.
• You can rank images in five levels.
• You can set the color label.

Installimg Data Converter

1 Download the software from the following URL and install it on your computer.

Windows: http://www.sony.co.jp/imsoft/Win/

Mac: http://www.sony.co.jp/imsoft/Mac/

Viewing Image Data Converter Guide

For details on how to use Image Data Converter, refer to the Image Data Converter Guide.

1 For Windows:

Click [Start] [All Programs] [Image Data Converter] [Help] [Image Data Converter Ver.4].

For Mac:

Start Finder [Applications] [Image Data Converter] [Image Data Converter Ver.4] In the menu bar, choose "Help" Image Data Converter Guide.

• For Windows 8, start Image Data Converter Ver.4 In the menu bar, choose "Help" Image Data Converter Guide.
• For details on Image Data Converter, you can also refer to the camera's "Help Guide" (page 2) or the following Image Data Converter support page (English only):

Adding functions to the camera

You can add the desired functions to your camera by connecting to the

application download website (PlayMemories Camera AppS^TM ) via the

Internet.

http://www.roy.net/pmca/

• After installing an application, you can call up the application by touching an

NFC-enabled Android smartphone to the N mark on the camera, using the [One-touch(NFC)] function.

Number of still images and recordable time of movies

The number of still images and recordable time may vary depending on the shooting conditions and the memory card.

Still images

Image Size]: L: 20M

When [Aspect Ratio] is set to [3:2]*

Capacity Quality	2 GB
Standard	295 images
Fine	170 images
Extra fine	125 images
RAW & JPEG	58 images
RAW	88 images

• When the [Aspect Ratio] is set to other than [3:2], you can record more pictures than shown above. (Except when [Quality] is set to [RAW].)

Movies

The table below shows the approximate total recording times using a memory card formatted with this camera. The recording time for XAVC S and AVCHD movies is when [Dual Video REC] set to [Off].

(h hour), m (minute))

Record Setting\Capacity	2 GB
60p 50M/50p 50M	—
30p 50M/25p 50M	—
\(24p 50M^*\)	—
120p 50M/100p 50M	—
60i 24M(FX)/50i 24M(FX)	10 m
60i 17M(FH)/50i 17M(FH)	10 m
60p 28M(PS)/50p 28M(PS)	9 m
24p 24M(FX)/25p 24M(FX)	10 m
24p 17M(FH)/25p 17M(FH)	10 m
1440×1080 12M	15 m
VGA 3M	1 h 10 m

• only for 1080 60i compatible models
• Continuous shooting is possible for approximately 29 minutes (a product specification limit). The maximum continuous recording time of an MP4 (12M) format movie is about 15 minutes (limited by the 2 GB file size restriction).
• The recordable time of movies varies because the camera is equipped with VBR (Variable Bit-Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording. The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.

Notes on using the camera

Functions built into this camera

• This manual describes 1080 60i-compatible devices and 1080 50i-compatible devices. To check whether your camera is a 1080 60i-compatible device or 1080 50i-compatible device, check for the following marks on the bottom of the camera. 1080 60i-compatible device: 60i 1080 50i-compatible device: 50i
• This camera is compatible with 1080 60p or 50p-format movies. Unlike standard recording modes up to now, which record in an interlacing method, this camera records using a progressive method. This increases the resolution, and provides a smoother, more realistic image. Movies recorded in 1080 60p/1080 50p format can be played back only on 1080 60p/1080 50p-supported devices.
• While aboard an airplane, set [Airplane Mode] to [On].

On use and care

Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.

Notes on recording/playback

• Before you start recording, make a trial recording to make sure that the camera is working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Do not aim the camera at the sun or other bright light. It may cause a malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.

Do not use/store the camera in the following places

• In an extremely hot, cold or humid place
  In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
• Storing under direct sunlight or near a heater
  The camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
• In sandy or dusty places

Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.

On carrying

• Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.

ZEISS lens

The camera is equipped with a ZEISS lens which is capable of reproducing sharp images with excellent contrast. The lens for the camera has been produced under a quality assurance system certified by ZEISS in accordance with the quality standards of ZEISS in Germany.

Notes on the screen, electronic viewfinder and lens

• The screen and electronic viewfinder are manufactured using extremely high-precision technology, and over 99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen and electronic viewfinder. These dots are a normal result of the manufacturing process, and do not affect the recording.

• Do not hold the camera by the monitor or the viewfinder.

• Take care that your fingers or other objects are not caught in the lens when it is operating.

• Take care that your finger is not in the way when pushing the viewfinder down.
• Do not forcibly push down the viewfinder when the eyepiece is pulled out.
• If water, dust or sand adheres to the viewfinder unit, it may cause a malfunction.

Notes on shooting with the viewfinder

This camera is equipped with an Organic Electro-Luminescence viewfinder with high resolution and high contrast. The camera is designed to provide an easily viewable viewfinder by appropriately balancing various elements.

• The image may be slightly distorted near the corners of the viewfinder. This is not a malfunction. When you want to check every detail of the entire composition, you can also use the monitor.
• If you pan the camera while looking into the viewfinder or move your eyes around, the image in the viewfinder may be distorted or the color of the image may change. This is a characteristic of the lens or display device and is not a malfunction. When you shoot an image, we recommend that you look at the center area of the viewfinder.

Notes on the flash

• Do not carry the camera by the flash unit, or use excessive strength on it.
• If water, dust or sand get into the open flash unit, it may cause a malfunction.
• Take care that your finger is not in the way when pushing the flash down.

Sony accessories

Use only genuine Sony brand accessories, otherwise it may cause a malfunction. Sony brand accessories may not come to market for some countries or regions.

On camera's temperature

Your camera and battery may get hot due to continuous use, but it is not a malfunction.

On the overheat protection

Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.

A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool down enough, the power may turn off again or you may be unable to record movies.

On charging the battery

• If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.

This is due to the battery characteristics. Charge the battery again.

• Batteries which have not been used for more than a year may have become deteriorated.

Warning on copyright

Television programs, films, videotapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.

No guarantee in the case of damaged content or recording failures

Sony cannot provide a guarantee in the case of failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.

Cleaning the camera surface

Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:

• Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.

Maintaining the screen

• Hand cream or moisturizer left on the screen may dissolve its coating. If you get any on the screen, wipe it off immediately.
• Wiping forcefully with tissue paper or other materials can damage the coating.
• If fingerprints or debris are stuck to the screen, we recommend that you gently remove any debris and then wipe the screen clean with a soft cloth.

Notes on wireless LAN

We assume no responsibility whatsoever for any damage caused by unauthorized access to, or unauthorized use of, destinations loaded on the camera, resulting from loss or theft.

Camera

[System]

Image device: 13.2mm× 8.8mm (1.0 type) Exmor R^TM CMOS sensor

Total pixel number of camera: Approx. 20.9 Megapixels

Effective pixel number of camera: Approx. 20.1 Megapixels

Lens: ZEISS Vario-Sonnar T* 2.9× zoom lens

f = 8.8 mm - 25.7 mm( 24 mm - .

70~mm (35 mm film equivalent))

F1.8 (W) - F2.8 (T)

While shooting movies (16:9):

25.5 mm - 74 mm *1

While shooting movies (4:3):

31mm - 90mm^*1

*1 When [SteadyShot] is set to [Standard]

SteadyShot: Optical

File format:

Still images: JPEG (DCF, Exif, MPF Baseline) compliant, RAW

(Sony ARW 2.3 Format), DPOF compatible

Movies (XAVC S format):

MPEG-4AVC/H.264XAVCS

ver.1.0 format compliant

Video: MPEG-4 AVC/H.264

Audio: Linear PCM 2ch (48 kHz 16 bit)

Movies (AVCHD format):

AVCHD format Ver. 2.0 compatible

Video: MPEG-4 AVC/H.264

Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo Creator

Manufactured under license from Dolby Laboratories.

Movies (MP4 format): Video: MPEG-4 AVC/H.264

Audio: MPEG-4 AAC-LC 2ch

Recording media: Memory Stick PRO Duo media, Memory Stick Micro media, SD cards, microSD memory cards

Flash: Flash range (ISO sensitivity (Recommended Exposure Index) set to Auto):

Approx. 0.4m to 10.2m

(1.31 ft. to 33.46 ft.) (W)/

Approx. 0.4m to 6.5m

(1.31 ft. to 21.33 ft.) (T)

[Input and Output connectors]

HDMI connector: HDMI micro jack

Multi/Micro USB Terminal*:

USB communication

USB communication: Hi-Speed USB (USB 2.0)

• Supports Micro USB compatible device.

[Viewfinder]

Type: Electronic viewfinder (Organic Electro-Luminescence)

Total number of dots:

1 440 000 dots

Frame coverage: 100%

Magnification: Approx. 0.59 × (35 mm-format equivalent) with 50 mm lens at infinity, -1m^-1

Eye point: Approx. 20mm from the eyepiece, 19.2mm from the eyepiece frame at -1m^-1

* Diopter adjustment: -4.0m^-1 to +3.0m^-1

[Monitor]

LCD monitor:

7.5cm (3.0 type) TFT drive

Total number of dots:

1 228 800 dots

[Power, general]

Power: Rechargeable battery pack

NP-BX1, 3.6V

AC Adaptor AC-UB10C/UB10D, 5 V

Power consumption:

Approx. 1.7W during shooting

with the monitor)

Approx. 2.3 W (during shooting

with the viewfinder)

Operating temperature: 0^ to 40^

(32°F to 104°F)

Storage temperature: -20^ to +60^

(-4^ to +140^)

Dimensions (CIPA compliant):

101.6mm× 58.1mm× 41.0mm

(4 inches × 2 3/8 inches ×

1 5/8 inches) (W/H/D)

Mass (CIPA compliant) (Approx.):

290g (10.2 oz) (including NP-BX1

battery pack, Memory Stick PRO

Duo media)

Microphone: Stereo

Speaker: Monaural

Exif Print: Compatible

PRINT Image Matching III:

Compatible

[Wireless LAN]

Supported standard: IEEE 802.11 b/g/n

Frequency: 2.4GHz

Supported security protocols: WEP/

WPA-PSK/WPA2-PSK

Configuration method: WPS (Wi-Fi)

Protected Setup) / manual

Access method: Infrastructure Mode

NFC: NFC Forum Type 3 Tag

compliant

Model No. WW808161

AC Adaptor AC-UB10C/UB10D

Power requirements: AC 100 V to

240V,50Hz/60Hz,70mA

Output voltage: DC 5 V, 0.5 A

Rechargeable Battery Pack

NP-BX1

Battery type: Lithium-ion battery

Maximum voltage: DC 4.2 V

Nominal voltage: DC 3.6 V

Maximum charge voltage: DC 4.2 V

Maximum charge current: 1.89 A

Capacity: Typical 4.5 Wh (1240 mAh)

Design and specifications are subject to

change without notice.

Trademarks

Memory Stick and are trademarks or registered trademarks of Sony Corporation.
XAVC S and XAVC S are registered trademarks of Sony Corporation.
- "AVCHD Progressive" and "AVCHD Progressive" logotype are trademarks of Panasonic Corporation and Sony Corporation.
- Dolby and the double-D symbol are trademarks of Dolby Laboratories.
- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
Mac is a registered trademark of Apple Inc. in the United States and other countries.
- iOS is a registered trademark or trademark of Cisco Systems, Inc.
- iPhone and iPad are registered trademarks of Apple Inc. in the United States and other countries.
- SDXC logo is a trademark of SD-3C, LLC.
- Android, Google Play are trademarks of Google Inc.
- Wi-Fi, the Wi-Fi logo, Wi-Fi PROTECTED SET-UP are registered trademarks of the Wi-Fi Alliance.
- The N Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
- DLNA and DLNA CERTIFIED are trademarks of Digital Living Network Alliance.

• Facebook and the "F" logo are trademarks or registered trademarks of Facebook, Inc.
  YouTube and the YouTube logo are trademarks or registered trademarks of Google Inc.
• Eye-Fi is a trademark of Eye-Fi, Inc.
• In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the TM or ® marks may not be used in all cases in this manual.

MEMORYSTICK
LITHIUM ION
AVCHD Progressive
HOMI

Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.

http://www.sony.net/

http://rd1.保养.net/help/dsc/1410/h_zz/

Afficher le guide

Responsible : Sony Electronics Inc.

Adresse: 16530 Via Esprillo, San Diego, CA 92127 E.-U.

Complies with IDA Standards DB00353

balayage)/SCN (Selection scene)

(h (heure), m (minute))

Capacité Réglage d'enreg.	2 Go
60p 50M/50p 50M	—
30p 50M/25p 50M	—
24p 50M*	—
120p 50M/100p 50M	—
60i 24M(FX)/50i 24M(FX)	10 m
60i 17M(FH)/50i 17M(FH)	10 m
60p 28M(PS)/50p 28M(PS)	9 m
24p 24M(FX)/25p 24M(FX)	10 m
24p 17M(FH)/25p 17M(FH)	10 m
1440×1080 12M	15 m
VGA 3M	1 h 10 m

Environ 20,1 megapixels

Films (format XAVC S):

Audio: Linear PCM 2 canaux (48 kHz 16 bits)

Films (format AVCHD) :

(Indice de lumination

recommende) reglee sur Auto):

Env. 0,4m a 10,2m 1,31 pi a

33,46 pi) (W)/

Env. 0,4m a 6,5m (1,31 pi a

21,33 pi) (T)

http://rd1.保养.net/help/dsc/1410/h_zz/

B: Memory Stick Micro

C: Scheda SD

Circa 20,1 megapixel

http://rd1.保养.net/help/dsc/1410/h_zz/

(CIPA: Camera & Imaging Products Association)

http://rdl.保养.net/help/dsc/1410/h_zz/

Visualizar o Guia

B: Memory Stick Micro

C:Cartao SD

http://rdl.保养.net/help/dsc/1410/h_zz/

(Speicherabruf)/(Film)/

Schwenk-Panorama)/

(Szenenwahl)

5Fur

Audio: Linear PCM 2ch (48 kHz 16 Bit)

Format AVCHD Ver. 2.0

kompatibel

Video:MPEG-4AVC/H.264

Audio: Dolby Digital 2ch,

Konfigurationsmethode: WPS (Wi-Fi Protected Setup) / manuell

Zugangsmethode: Infrastruktur-Modus NFC: NFC Forum Type 3 Tagkonform

Model No. WW808161

http://rd1.保养.net/help/dsc/1410/h_zz/

De gids weergeven

Helpfunct. in camera

Elementary apparatus

4 Pokretto trybu

i (Inteligenta auto)/

io^+ (Lepsza automatyka)/

P (Program Auto)/

A membranous cystitis (BCC) is a rare entity that is characterized by the presence of a single or multiple cystic lesion in the bladder. It is usually associated with a history of bladder cancer, and it is also common in men.

B: Memory Stick Micro

C: SD karta

D: Památova microSD karta

http://rd1.保养.net/help/dsc/1410/h_zz/

http://rd1.保养.net/help/dsc/1410/h_zz/

Aani: Linear PCM 2ch (48 kHz 16 bit)

Videot (AVCHD-muoto):

AVCHD-muoto versio 2.0

-yhteensopiva

Video: MPEG-4 AVC/H.264

Aani: Dolby Digital 2ch, mukana

Dolby Digital Stereo Creator

http://rd1.保养.net/help/dsc/1410/h_zz/

Vise veiledningen

Det fins en veiviser i selve kameraet.

Kameraveiviser

B: Memory Stick Micro

C: SD-kort

D: microSD minnekort

(PlayMemories Camera

http://www.sony.net/pmca/

• Etter at du har installer en applikasjon, kan du starte den ved Å berøre N-merket på kameraet med en NFC-aktivert Android-smarttelefon, ved hjelp av [En touch (NFC)]-funksjonen.

(h (time), m (minutt))

Kapasitet Opptaksinnst.	2 GB
60p 50M/50p 50M	—
30p 50M/25p 50M	—
24p 50M*	—
120p 50M/100p 50M	—
60i 24M(FX)/50i 24M(FX)	10 m
60i 17M(FH)/50i 17M(FH)	10 m
60p 28M(PS)/50p 28M(PS)	9 m
24p 24M(FX)/25p 24M(FX)	10 m
24p 17M(FH)/25p 17M(FH)	10 m
1440×1080 12M	15 m
VGA 3M	1 h 10 m

http://rd1.保养.net/help/dsc/1410/h_zz/

(CIPA: Camera & Imaging Products Association)

(Brugerdef. indstlinger)

Installation of Image Data Converter

(h (time), m (minute))

Kapacitet Optageindstilling	2 GB
60p 50M/50p 50M	—
30p 50M/25p 50M	—
24p 50M*	—
120p 50M/100p 50M	—
60i 24M(FX)/50i 24M(FX)	10 m
60i 17M(FH)/50i 17M(FH)	10 m
60p 28M(PS)/50p 28M(PS)	9 m
24p 24M(FX)/25p 24M(FX)	10 m
24p 17M(FH)/25p 17M(FH)	10 m
1440×1080 12M	15 m
VGA 3M	1 h 10 m

Konfigurationsmetode: WPS (Wi-Fi)

Protected Setup) / manuel

Adgangsmetode: Infrastrukturtilstand

NFC: NFC Forum Type 3 Tag

kompatibel

Model No. WW808161

Lysnetadapter AC-UB10C/ UB10D

Strömkrav: Vekselström 100 V til

240V,50Hz / 60Hz,70mA

Batterity: Lithium-ion-batteri

Maksimal spending: Jævnstrøm 4,2 V

Nominal spanding: Jævnstrøm 3,6 V

Maksimal opladinngsspaending:

Javnstrom 4,2 V
