Product Type	Unmanaged network switch
Brand	AirLive
Model	LIVE-FSH8PS
Number of Ports	8 RJ-45 10/100 Mbps ports
Speed	10/100 Mbps (auto-negotiation)
Main Features	Auto-MDI/MDI-X, collision detection, flow control
Power Supply	External AC adapter (5V DC, check label)
LED Indicators	Power (green), Link/Act (green), FDX/Col (yellow), 100M (red)
Dimensions	Approximately 20 x 13 x 4 cm
Weight	Approximately 600 g (with adapter)
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% non-condensing
Compatibility	IEEE 802.3, 802.3u, 802.3x
Installation	Plug-and-play, rubber feet included
Maintenance and Cleaning	Clean with a soft dry cloth; unplug before cleaning
Safety	Do not expose to moisture; avoid network loops
Spare Parts and Reparability	Not user-repairable, no spare parts available
General Information	Compliant with CE, RoHS standards

Frequently Asked Questions - LIVE-FSH8PS AIRLIVE

How to install the AirLive LIVE-FSH8PS switch?

Remove the switch from its packaging. Place the rubber pads under the feet. Connect the AC adapter; the Power LED lights up. Connect your network devices to the ports using RJ-45 cables (CAT5 for 100 Mbps). The Link/Act LED should light up or blink.

What to do if the Link/Act LED does not light up?

Check that the connected device is powered on and the cable is properly inserted. Test with another cable. Ensure the distance does not exceed 100 meters. The switch is plug-and-play; no configuration required.

How to interpret the switch LEDs?

Power LED: green on = power. Link/Act: green on = link established, blinking = activity. FDX/Col: yellow on = Full Duplex, off = Half Duplex, blinking = collisions. 100M: red on = 100 Mbps, off = 10 Mbps.

Can I use a crossover or straight-through cable?

The switch is equipped with Auto-MDI/MDI-X, so you can use either a straight-through or crossover cable to connect any type of device (PC, router, another switch).

What is the maximum cabling distance?

The maximum distance between the switch and a device is 100 meters for category 5 or higher UTP/STP cable. Beyond that, use a repeater.

How to configure the switch?

The LIVE-FSH8PS is an unmanaged switch: it requires no configuration. It works immediately after connection. For advanced features like VLAN, a managed model is needed.

What to do if my network does not work after connection?

Check the LEDs: Power should be on, Link/Act on each connected port. Ensure all devices are on the same IP subnet (e.g., 192.168.0.x). Avoid network loops: do not connect two cables between the switch and another switch without reason.

Does the switch support Gigabit?

No, this model is a Fast Ethernet switch (10/100 Mbps). For Gigabit, choose the Live-GSH5T/8T model.

How to clean the switch?

Unplug the power. Clean the casing with a soft dry cloth. Do not use liquid or abrasive products.

Is there a VLAN function on this model?

No, the LIVE-FSH8PS does not have a VLAN selector. The VLAN function is only available on the Live-FSH16T+ models. If you need VLAN, choose a switch from the Live-FSH16T+ series.

USER MANUAL LIVE-FSH8PS AIRLIVE

Live Series Switches

Live-FSH5PS, Live-FSH8PS, Live-FSH5R, Live-FSH8SB, Live-FSH8R, Live-FSH16T+, Live-GSH5T, Live-GSH8T

Quick Setup Guide

English 1

Espanol 4

Deutsch 7

François 10

13

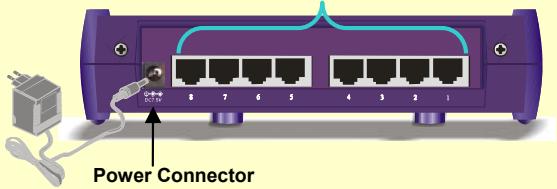

Port Layout

Note: The case and port layouts differ between each model of Live switches.

Station Ports
(5, 8, or 16 ports depending on models)

Installation Steps

1. Remove the switch and accessories from the package
   Live-FSH8R, 16T+, Live-GSH5T, and Live-GSH8T only Attach the rubber pads to the bottom of the switch
   Live-FSH16T+v2 only If you want to use the VLAN function, please select VLAN mode. Please refer to "VLAN Selector" section for details
2. Connect power to the switch, make sure "Power" LED is on.
3. Connect devices to the switch:

Connect PCs, router, print servers, AP, or other network devices to the station ports.
Live-GSH5T/8T only Connect Server with Gigabit card or another Gigabit switch to the Gigabit Port
Use twisted pair cable, please view "cabling requirement section for details.
Check whether the "Link/Act" light is on. If not, please make sure the other device or the PC's power is on
Please do not form a network loop, refer to the "Connectivity Rules" section for details.
The maximum cabling distance is 100 meter

1. Please refer to the user's manual in the CD for detail instructions.

All Live switches feature Auto-MDI/MDI-X function. It allows users to use straight-thru cable for all type of connections.

LED & Cabling Rules

LED indicator	Color	Status	Meaning
All Models
Power	• Green	ON OFF	Power ON Power OFF
Link/Act	• Green	ON Blinking OFF	Connection is made Transmitting/Receiving No connection is made
FDX/Col	• Yellow	ON OFF Blinking	Full Duplex Half Duplex Collisions (in half duplex)
100M	• RED	ON OFF	100 Mbps Connection 10 Mbps Connection
Live-FSH16T+
VLAN	• Yellow	ON	VLAN Mode On
VLAN	• Yellow	OFF	VLAN Mode OFF
Live-GSH5T/ Live-GSH8T
• 1000/ACT • 100/ACT • 10/ACT	• Green • Green • Green • Green	ON ON ON Blinking	FDX 1000Mbps Connection FXD 100Mbps Connection FXD 10Mbps Connection Transmitting/Receiving

Port Type	10/100 Ports	Gigabit Port (Live GSH5T/8T)
Cable to use	100Mbp :CAT5 UTP/STP 10Mbps: Cat 3, 4, 5 UTP/STP	10/100/1000Mbps Cat 5 UTP/STP
To PC	Straight-through	Straight-through
To hub/switch	Straight-through	Straight-through
Maximum distance	100m	100m

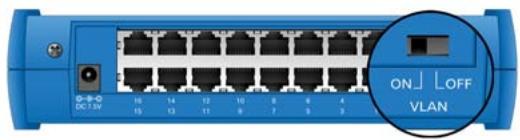

VLAN Selector (Live FSH16T+ only)

For normal operation, please make sure your VLAN switch is in "OFF" Position

Live-FSH16T+ is equipped with VLAN selector switch in the back panel. When activated, each port will be in its own VLAN group with 2 sharing ports. Ports in different VLAN groups cannot see each other. However, everyone can see the sharing port. Please make sure your VLAN selector is in "OFF" position if you are not using the VLAN function.

ON: Every port in its own VLAN group sharing Port 8 and 16
OFF: VLAN function off, the switch operates in normal mode

Connectivity Rules

Please avoid forming a network loop (see the diagram on the right) when connecting the cables. A network loop can cause the network to shutdown..
The maximum cable distance is 100 meter
Always check the LED lights for trouble shooting
Computers and network devices must be in the same IP subnet in order to see each other. For example, 198.168.0.1 can not see 192.192.1.1 for Class C subnet. You can find out the computer's IP address by typing "IPCONFIG" in WinNT/2000/XP's command line. For Win9x, run "WINIPCFG".
- Avoid operating device in 10Mbps full duplex mode if the device does not have auto-negotiation function.
